Description：
1.Wifi Bridge router is a long range high performance 11ac outdoor CPE with 300Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, 27dBm RF power, 14dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 3000 meters.(Barrier free）
2.support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup, no need to access into GUI, avoid the complex setup program
3.300mbps wifi repeater with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V PoE, ESD protection and surge protection, ideal for outdoor use;
4.Most Important, 5.8g wifi router support watchdog self-detection function, reboot and recover device automatically if some network attack.
5.outdoor point to point wireless bridge equipped 2*100Mbps RJ45 ports. The transmission speed between the two wifi bridges outdoor is up to 300Mbps. Through the 100mbps RJ45 port, the maximum wired network speed will be 100Mbps, Which can better meet your internet speed needs
Specification:
Hardware:
Wireless:IEEE 802.11 a / n /ac, 2T2R 300 MIMO Technology
DDR2:64MB
Flash:SPI NOR 8MB
Interface:
1 * 10/100Mbps RJ45 WAN Port
1 * 10/100Mbps RJ45 LAN Port

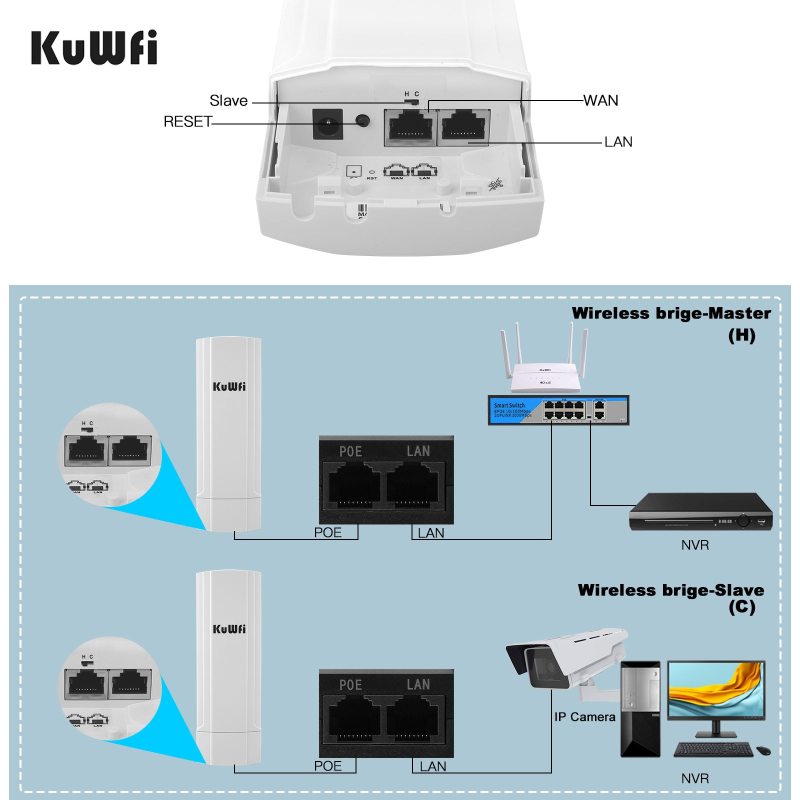

1 * Switch to operate the operation mode (H is AP mode, C is Repeater mode)
1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish operation mode configuration
Antenna:14dBi Panel Antenna
Size 237mm*79.1mm*56.1mm
Power:POE 24V 0.5A
Power Consumption:< 8W
Waterproof Level:IP65
Firmware
Operation Mode:Wireless AP, Wireless Bridge
Protocol/Standard:
IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n/ac(5.8G WLAN)
Support Watchdog Technology
With Wi-Fi Channel Analysis Tool
Central Managed by WLAN Controller in AP Mode
Remote Managed by Cloud Server in AP and Repeater Mode
Temperature
Working: -30°C ~ 55°C
Storage: -0°C ~ 70°C
Humidity:5%~95% (typical)
Package Included:
1x Wireless WiFi Bridge
1x 24V/0.5A PoE Adapter
1x Ethernet LAN Cable
1x User Manual
1x Installation accessories
OR
2x Wireless WiFi Bridge
2x 24V/0.5A PoE Adapter
2x Ethernet LAN Cable
1x User Manual
1x Installation accessories
(Depends on whether you buy 1 piece or 2 pieces)
