Five points:
- 【Easy to carry and good compatibility】4K HDMI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HDMI input signal
- 【1080P With 60FPS,Support HDCP】The HD video capture card can support HDCP 1080P with 60FPS, it is very suitable to use it for game live streaming.
- 【Faster Data Transmition】USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
- 【ZERO Latency HDMI Loopout】There is no latency when you use the hdmi loopout port, the hdmi loopout port is very usefully when you are making a game live streaming.
- 【Plug and Play,No Need to Install Driver】It is compatible with Linux, Mac OS, windows 7/8/8.1/10, very easy to setup, there is no need to install driver.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Description
Features
- Support MJPEG
- Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate
- Some win7 need to install the driver
- Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems
- Can automatically detect the input video format, and automatically adjust to the set output size and frame rate
- Can automatically detect the input audio format and convert it to 48KHz PCM audio
- Collection rods can be used on a PC
- Support online firmware upgrade to better improve product compatibility
Product specification
- Input interface: 1 HDMI interface
- Output interface: USB3.0, 300 ~ 350MB / s throughput
- HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
- HDMI sound input: LPCM sound signal
- HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color
- Video sampling rate: HDMI: 165MHz
Software compatibility
- Adobe Flash Media Live Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X);QuickTime Player (OS X), OBS, PotPlayer and etc.
- Power consumption: ≤ 2.5W
- Working temperature: 0-70 degrees Celsius
- Storage temperature: -20-120 degrees Celsius
- Storage humidity: 5% -90%
Interface Description
- Signal indicator: When the device captures video normally, the indicator lights up
- Power indicator: When the device is connected to the USB port of the computer, this indicator lights

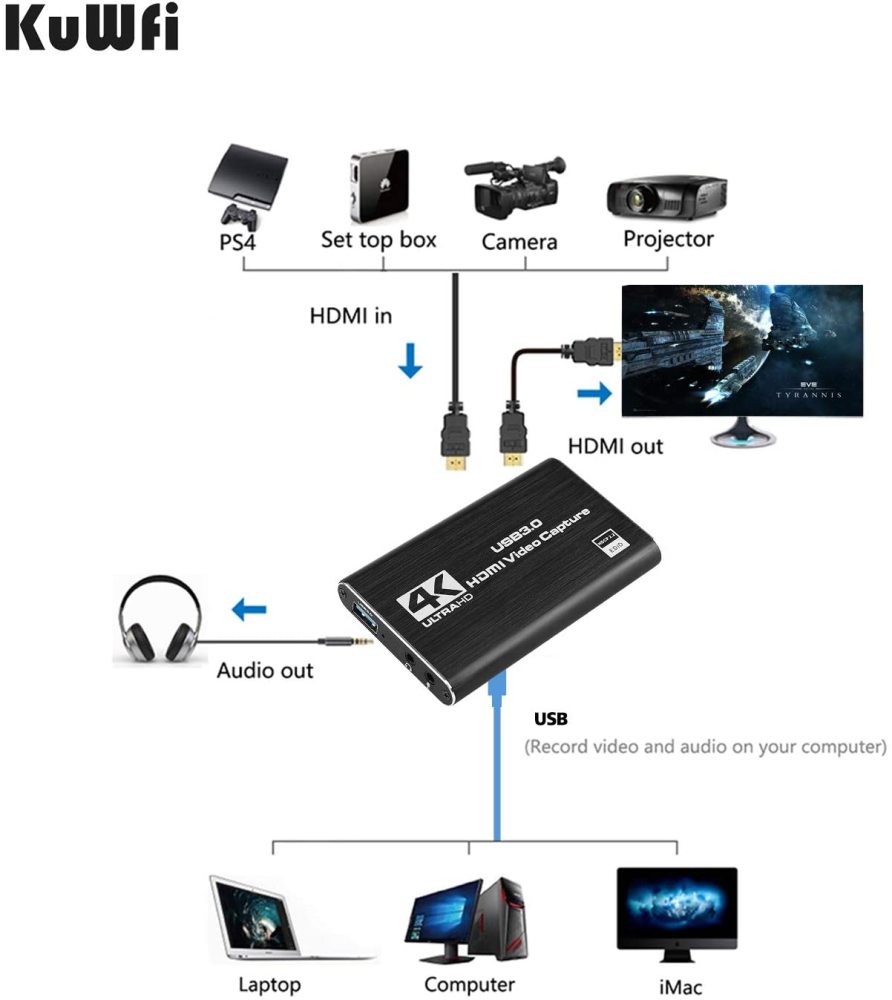

- HDMI input: This slot is where the HDMI output source such as camera, camcorder, game box, IPTV box, etc. is connected
- USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop
|
|
|

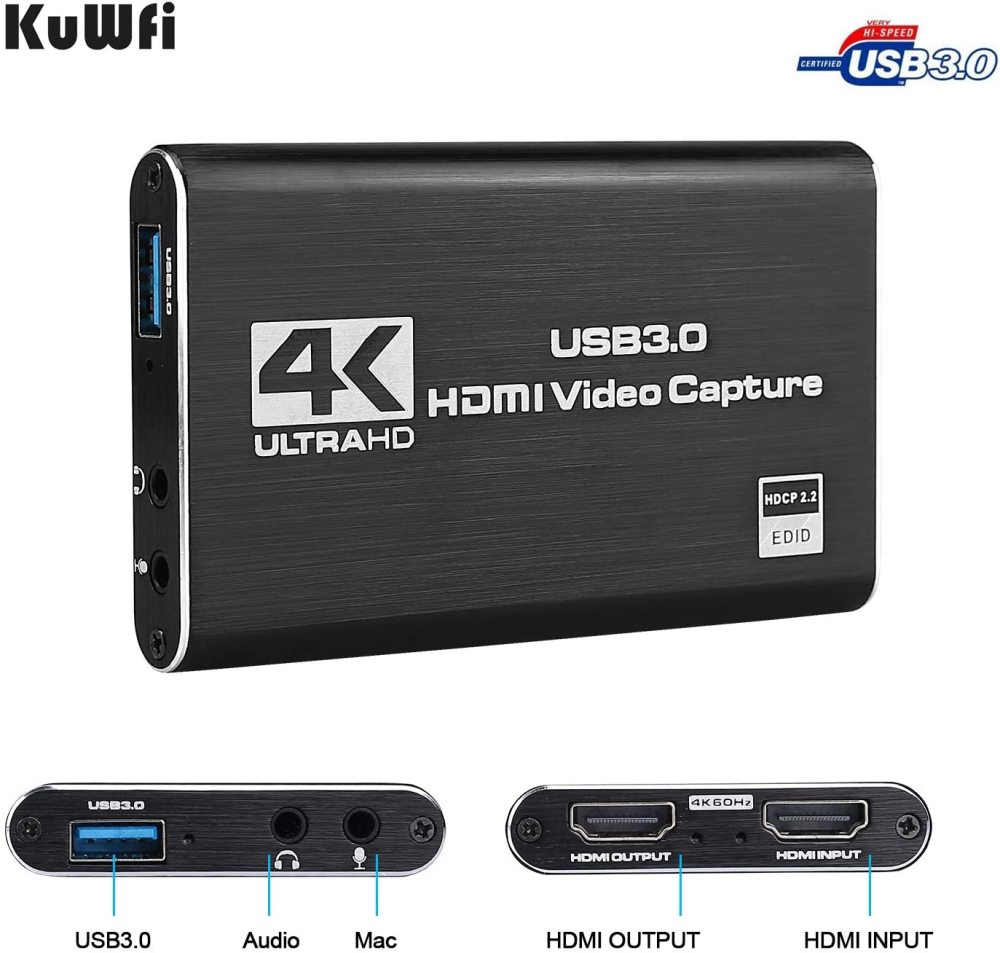

Connection Port:
- USB3.0
- Audio
- Mac
- HDMI(output)
- HDMI(input)
|
High Definition Display:
- Full HD 1080P video capture, 60Fps video recording and live broadcast
- High-intensity reproduction of video delicate colors, clear, vivid picture quality
|

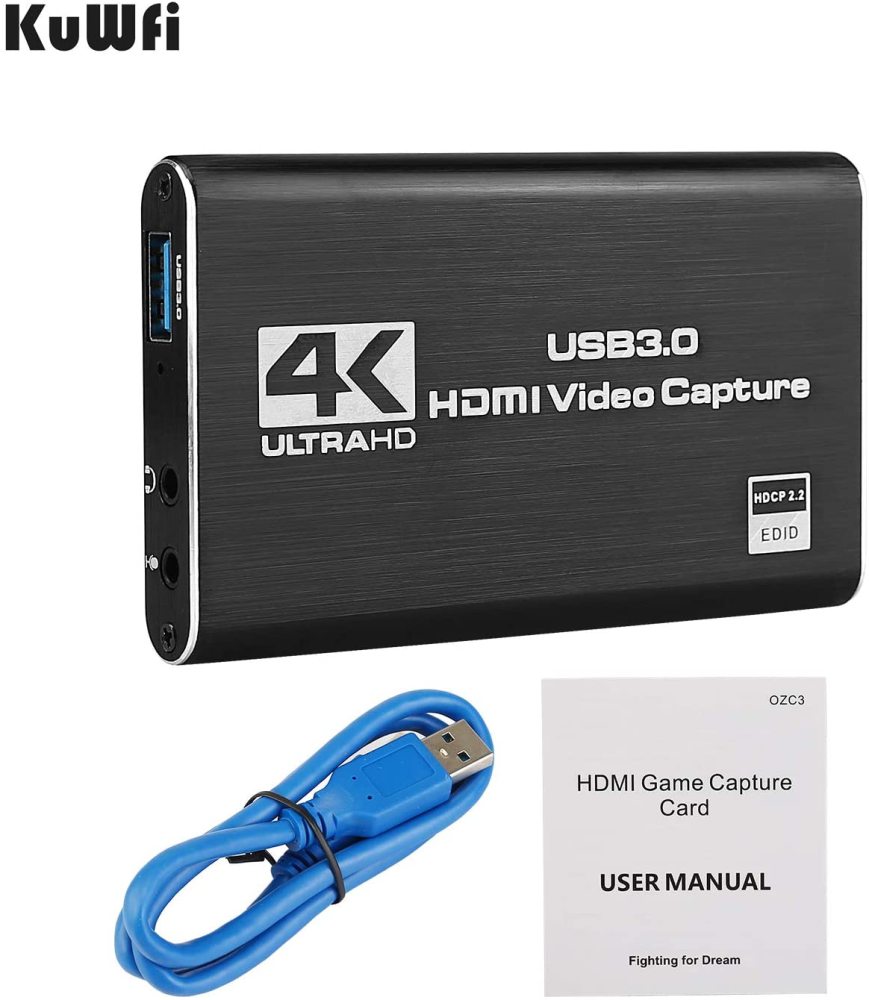

Packing List:
- 1* HDMI Capture Card
- 1* USB 3.0 Data cable
- 1* Manual
|
