Product Description

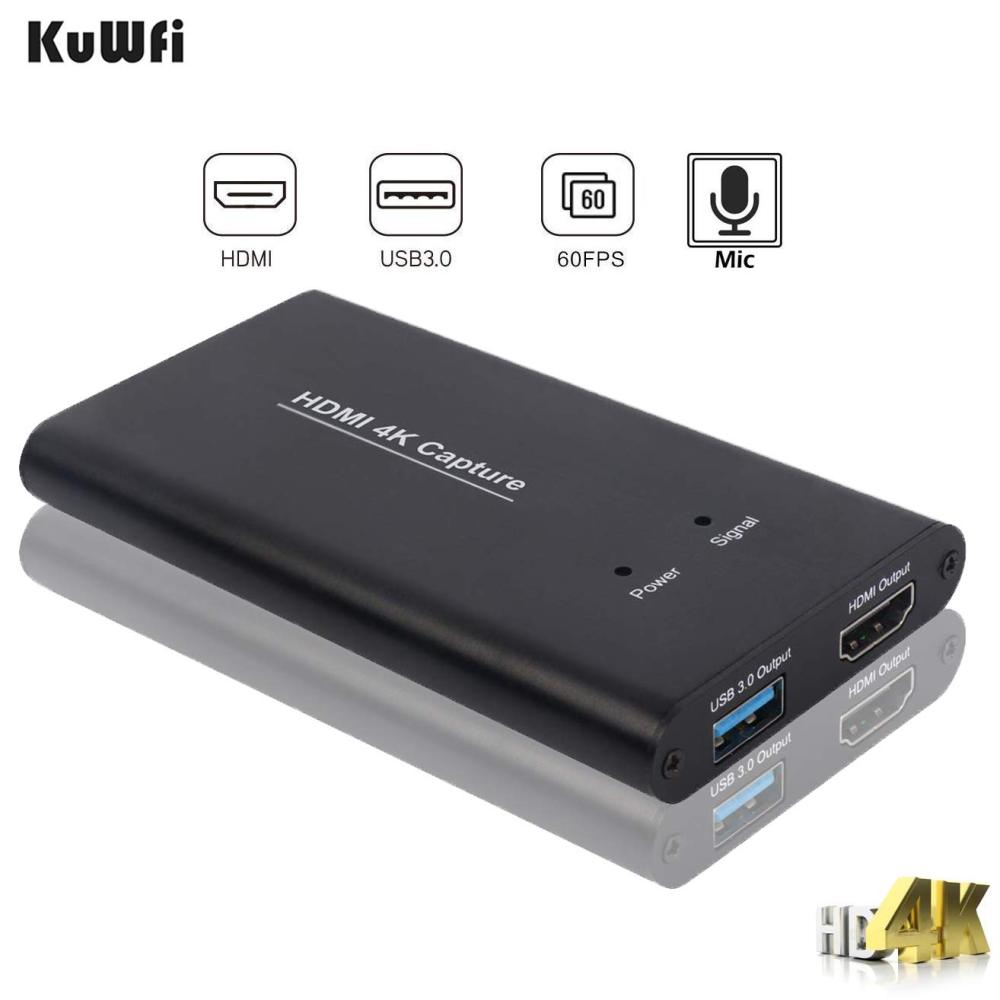

KuWFi 4K HDMI to USB3.0 Video Capture Card

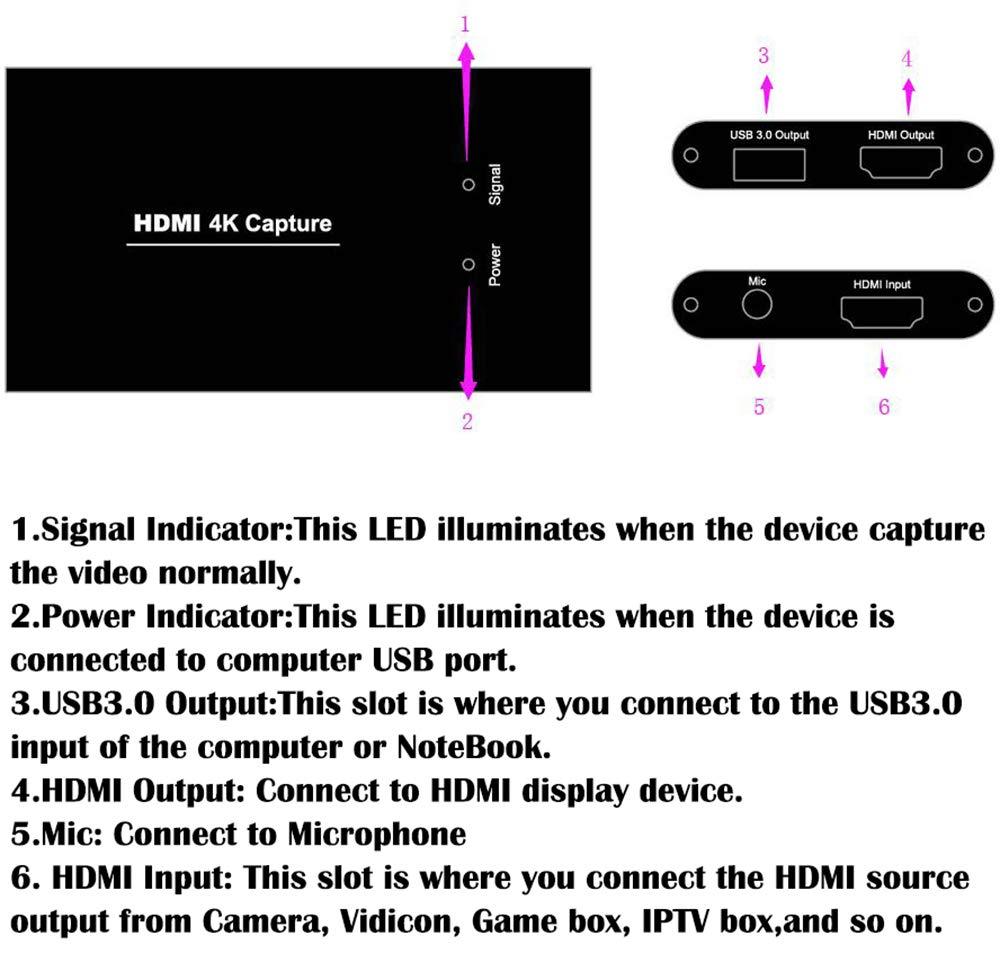

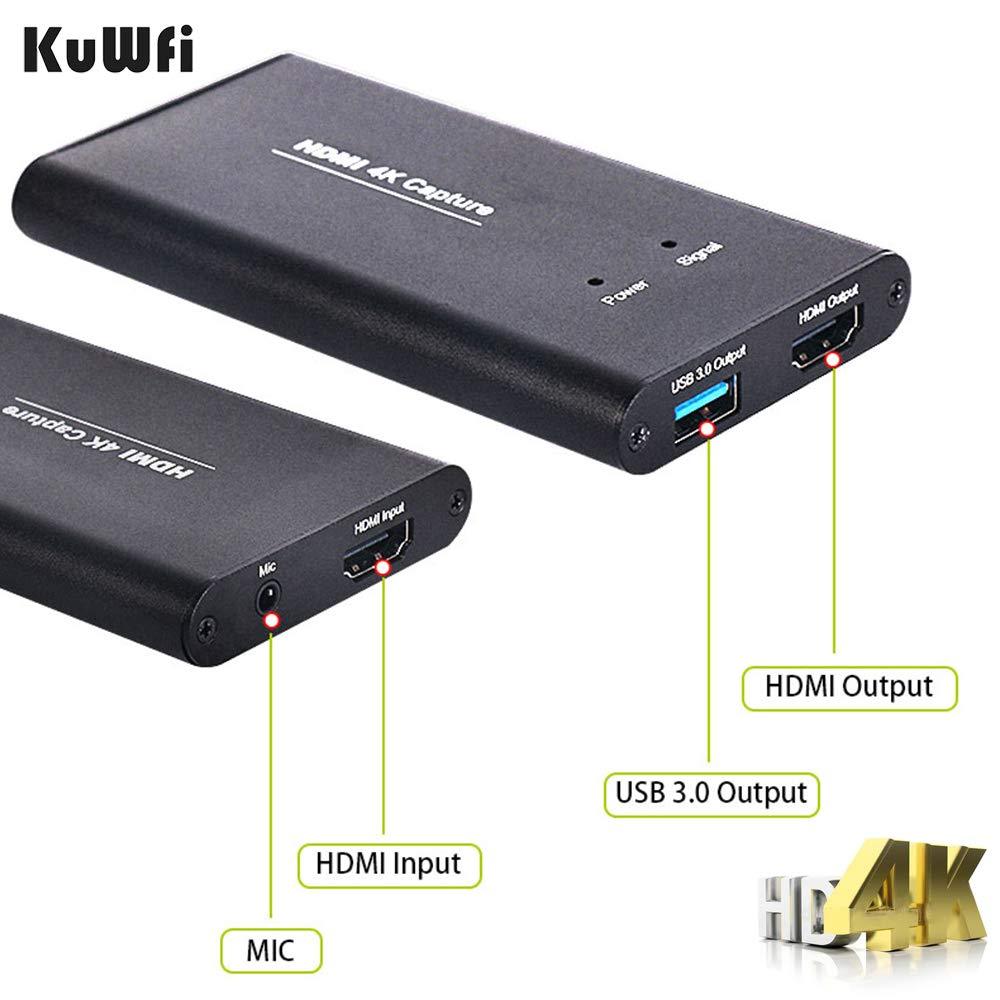

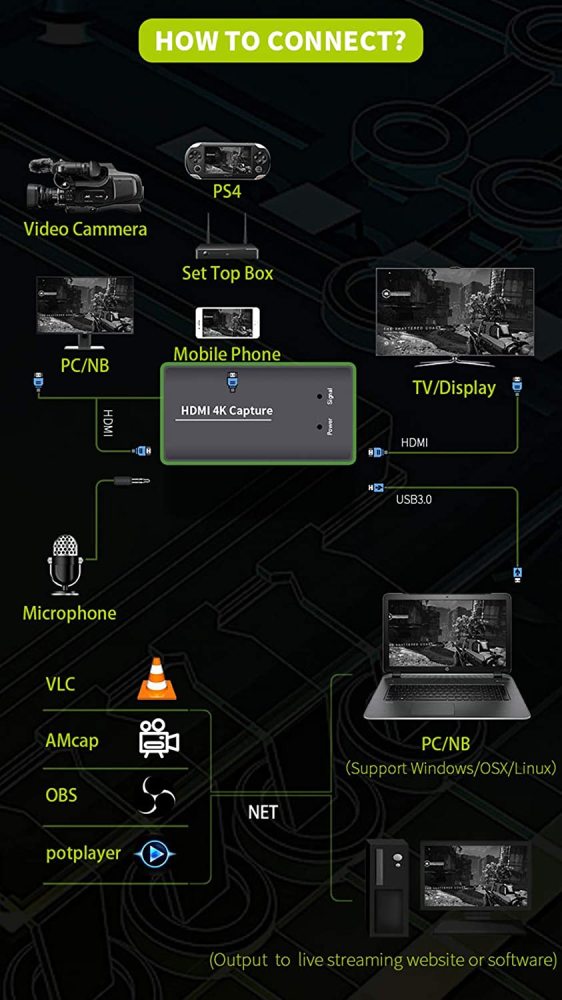

Connection:
- Input interface: 1 HDMI interface, 1 Mic input
- Output interface: USB3.0, 300-350MB/s throughput MAX HDMI Loop-out
HDMI input:
4K/60,50，30Hz,1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98Hz, 1080i 50/60Hz, 720P 50/60Hz, 480P, 576P;
1280x1024, 1280x960, 1024x768, 800x600, 640x480;
Note: Only when the input resolution is 4K/60Hz,4K/30Hz, 1080P/60Hz,1080P/50Hz,1080P/30Hz,720P/60Hz,720P/30Hz, the device can capture the signal.
HDMI output:
4K/60,50,30Hz,1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P
1280x1024, 1280x960, 1024x768, 800x600, 640x480
USB3.0 output: 1080P/720P
HDMI audio input: 1 LPCM audio signal
HDMI input formats: It compatible with HDMI2.0 standard, the max bandwidth is 600MHz, 4K/60Hz, 12bit deep color
Output Formats Resolutions:
640x480/720x480/720x576/800x600/1024x768/ 1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080/3840x2160
- Frame rate: 25/29.97/30/50/59.94/60 fps
- Video Sampling Rate : HDMI 600MHz
- Audio and video capture : It meets the standards of UVC (USB video class) and UAC(USB audio class)
- Output color space: YUV, RGB

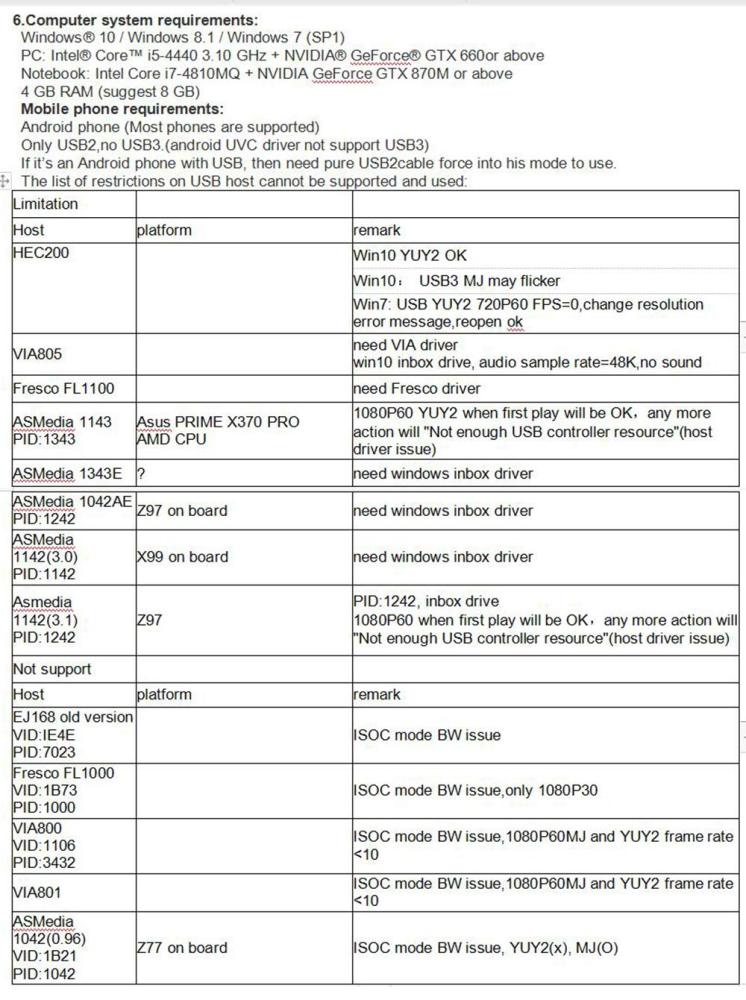

- The support of OS: Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS
Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X)and etc. OBS; PotPlayer
Upgrade: The firmware can be upgraded
- Size: 113X61X13mm
- Power consumption: ≤2.5W
- Working Temperature: 0-70 ℃
- Storage Temperature: -20-120 ℃
- Storage Humidity: 5%-90%
NOTE: Cannot capture HDMI source with HDCP key
Five points:
- This 4K/60Hz HDMI to USB3.0 Video Capture Dongle is easy to carry,have a superior performance,superior compatibility,simple installation and many other features,It can capture one HDMI signal input and compatible with Windows,Linux,Macos X and USB3.0 interface. It also compatible with USB2.0 and preview, record, capture, live broadcase through a number of free third-party software via USB3.0 interface;The HDMI video capture meets UVC and UAC standard
- It can capture one single channel HD HDMI video signals; The capture resolution up to 1080P/60Hz, input resolution up to 4K/60Hz, the HDMI Loop-out resolution is the same as input resolution; Support Mic recording input; Support MJPE and YUY2; Support UAC&UVC，support 48 KHz PCM audio
- KuWFi capture need to install a driver with some of the Windows7 system; It is compatible with Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS operating systems
- USB3.0 Video Capture, 300~350MB / s throughput max and it is compatible with USB 2.0 (40MB/s throughput max). It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically
- This Capture Card can automatically detect the input audio formats and swift it to 48KHz PCM audio. Two capture can be used on one PC; The firmware can be updated. With good picture quality, the RGB
