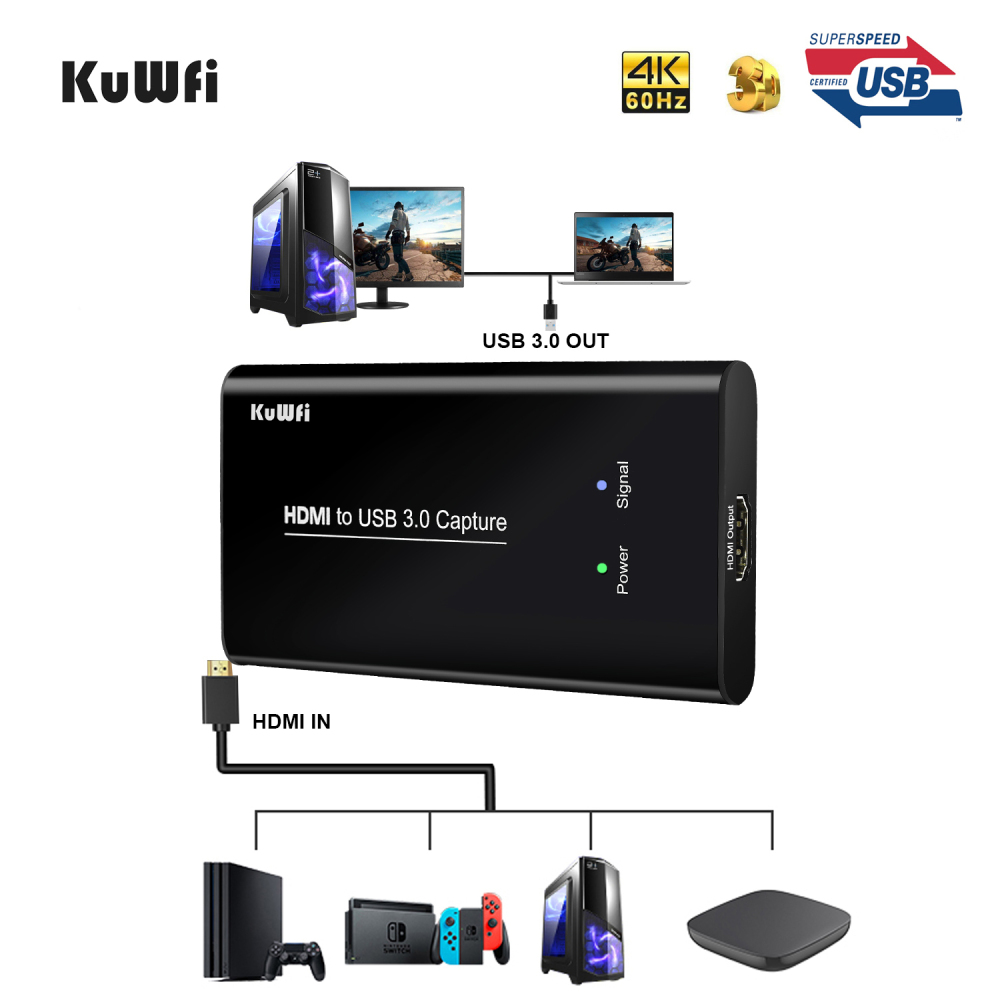

- 【What KuWFi HDMI03 is】HDMI to USB3.0 Game Video Capture Dongle support Game Streaming Live Stream Broadcast for Laptop/PS4/Swi/Xbox
- 【Features】 This HDMI Capture with USB 3.0 high-speed interface,which can record HD HDMI video to PC.USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0. It is compatible with UVC video capture and YUV 422 video output, Support UAC&UVC,support 48 KHz PCM audio. The process of video and audio is done by the grabber and will not occupy the CPU
- 【Resolution】Capture up to 1920x1080 resolution (1080p) at 60Hz with hardware accelerated up-scaling / down-scaling; Automatically determines input video format and converts it to the specified output size and frame rate; Automatically converts input audio formats to 48 KHz PCM stereo audio
- 【Software Compatibility】The HD HDMI Capture need to install a driver with the Windows7 system, It is compatible with Windows 7(need driver); Windows8/Windows8.1/Windows10 or later, Linux OS, Mac OS operating systems, No need to install a driver, and it is truly plug & play
- 【Customer Service】For 30 days after the date of purchase, return your undamaged KuWFi product and receive a full refund for ANY reason.12-month warranty for quality-related issues For 12 months after the date of purchase we take care of all quality-related issues with a REPLACEMENT OR FULL REFUND
Connection:

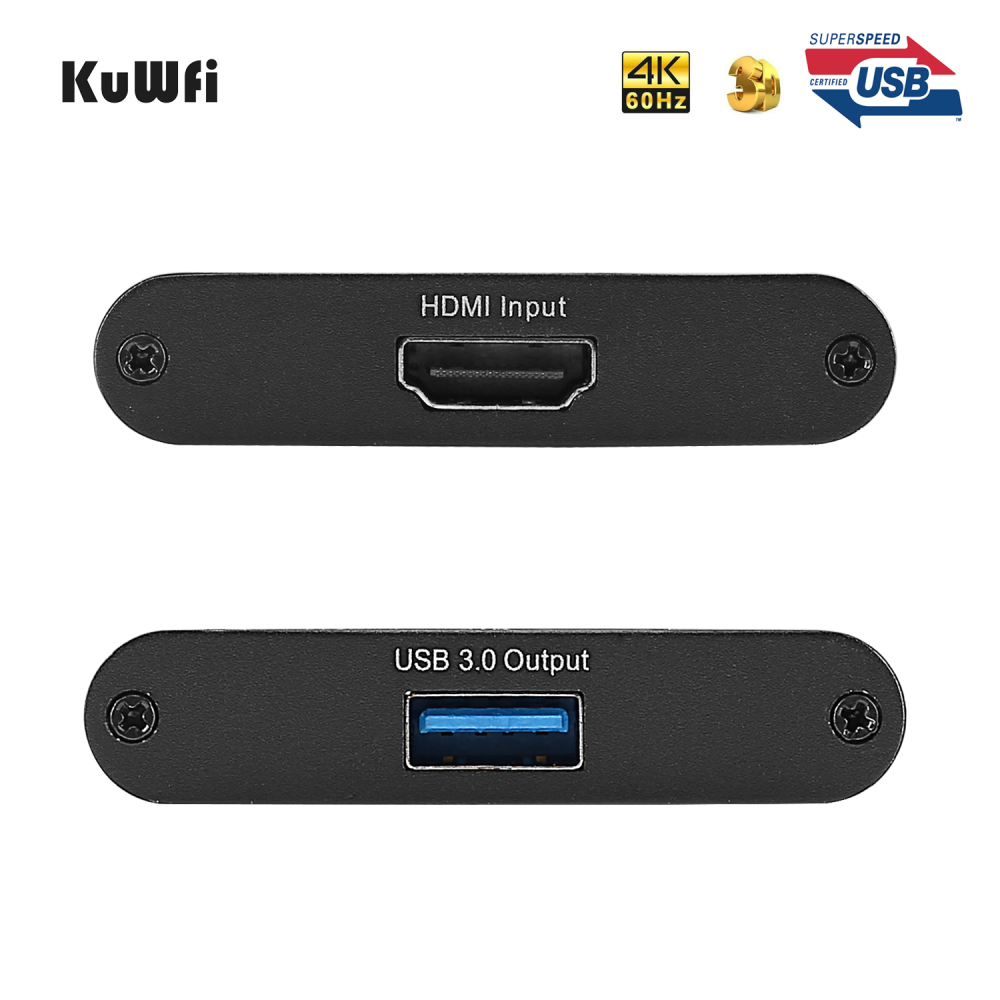

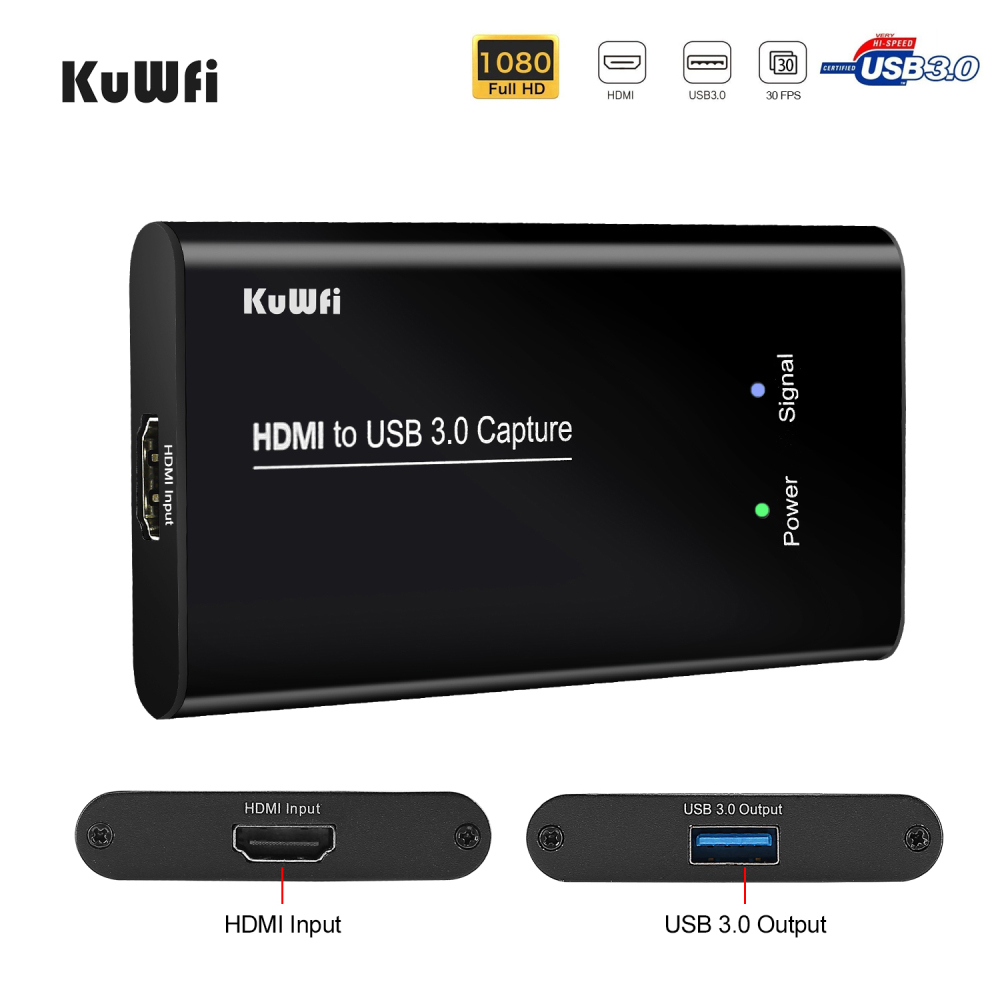

Input interface: 1 HDMI interface
Output interface: USB3.0, *237MB/s throughput MAX
HDMI input: 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280x1024, 1280x960, 1024x768, 800x600, 640x480
HDMI audio input: 1 LPCM audio signal
HDMI input formats: It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Output Formats Resolutions: 640x480/720x480/720x576/800x600/1024x768/ 1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080
- Frame rate: 25/29.97/30/50/59.94/60 fps
- Video Sampling Rate HDMI: 165MHz
- Audio and video capture : It meets the standards of UVC (USB video class) and UAC(USB audio class)
- Output color space: YUV, RGB
- Video Process: color space switch, Hardware Color Space Switch
- Image Scale : Hardware scale
- Support: Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS
Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X)and etc.
Development interface compatibility:
DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Upgrade The firmware can be upgraded

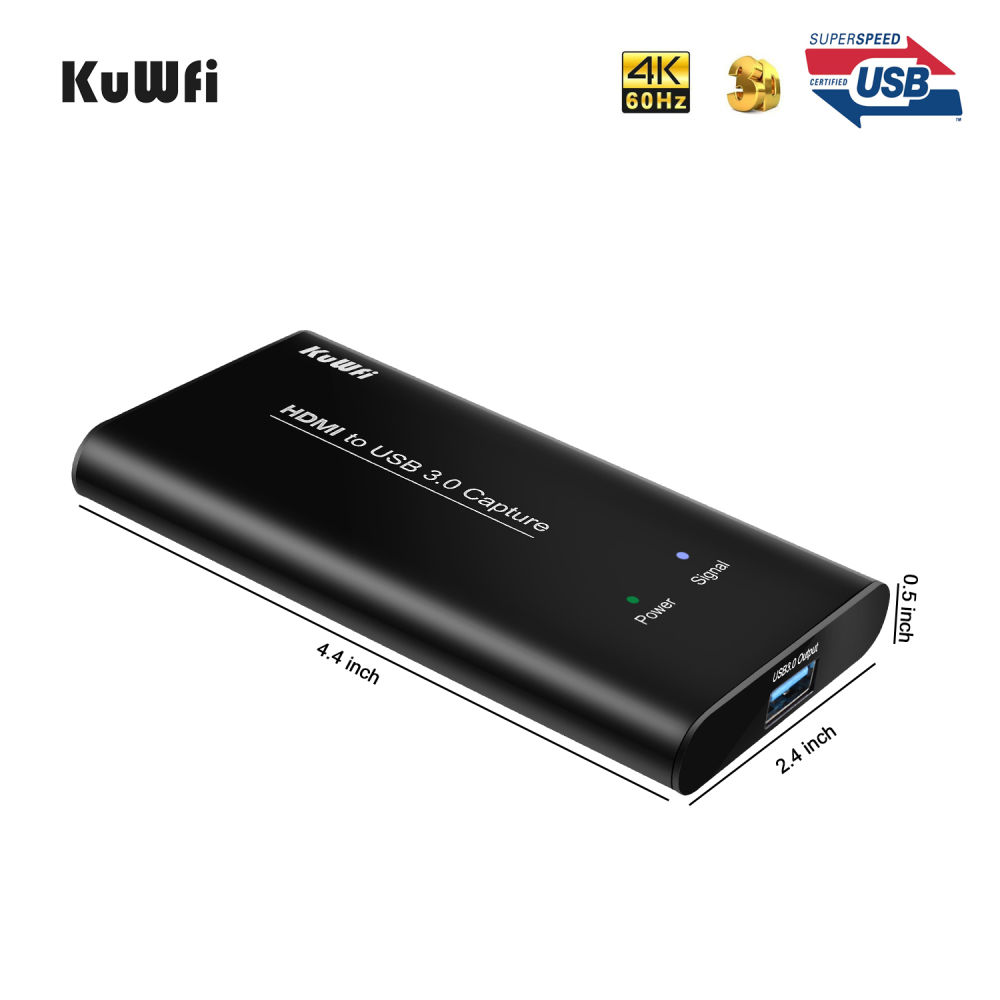

Size: 113X61X13mm
Power consumption: ≤2.5W
Working Temperature: 0-70 ℃
Storage Temperature: -20-120 ℃
Storage Humidity: 5%-90%
