Five points:
- HDMI to USB3.0 Video Capture Dongle,it is easy to carry,have a superior performance,superior compatibility,simple installation and mant other features,It can capture one HDMI 1080p60 input and output signal; compatible with Windows,Linux,Macos X and USB3.0 interface,Compatible with many USB3. chipset (Intel,Renesas,ASMedia,Fresco Logic),compatible with PCIe Gen1.1x1 expansion via USB3.0 interface
- HD Video Capture Card can capture one single channel HD HDMI video signals. The input and output video signal can reach 1080p/60 Hz. With Mic recording input . Multiple grabber can be used on one PC
- It is compatible with UVC video capture and YUV 422 video output. Support UAC&UVC，support 48 KHz PCM audio. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0. The process of video and audio is done by the grabber and will not occupy the CPU
- Plug-and-Play: It doesn’t need to install a driver, and it is truly plug-and-play. It is compatible with Windows, Linux, OS X operating systems. The firmware can be updated
- KuWFi HDMI video capture can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically. It can automatically detect the input audio formats and swift it to 48KHz PCM audio
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Description

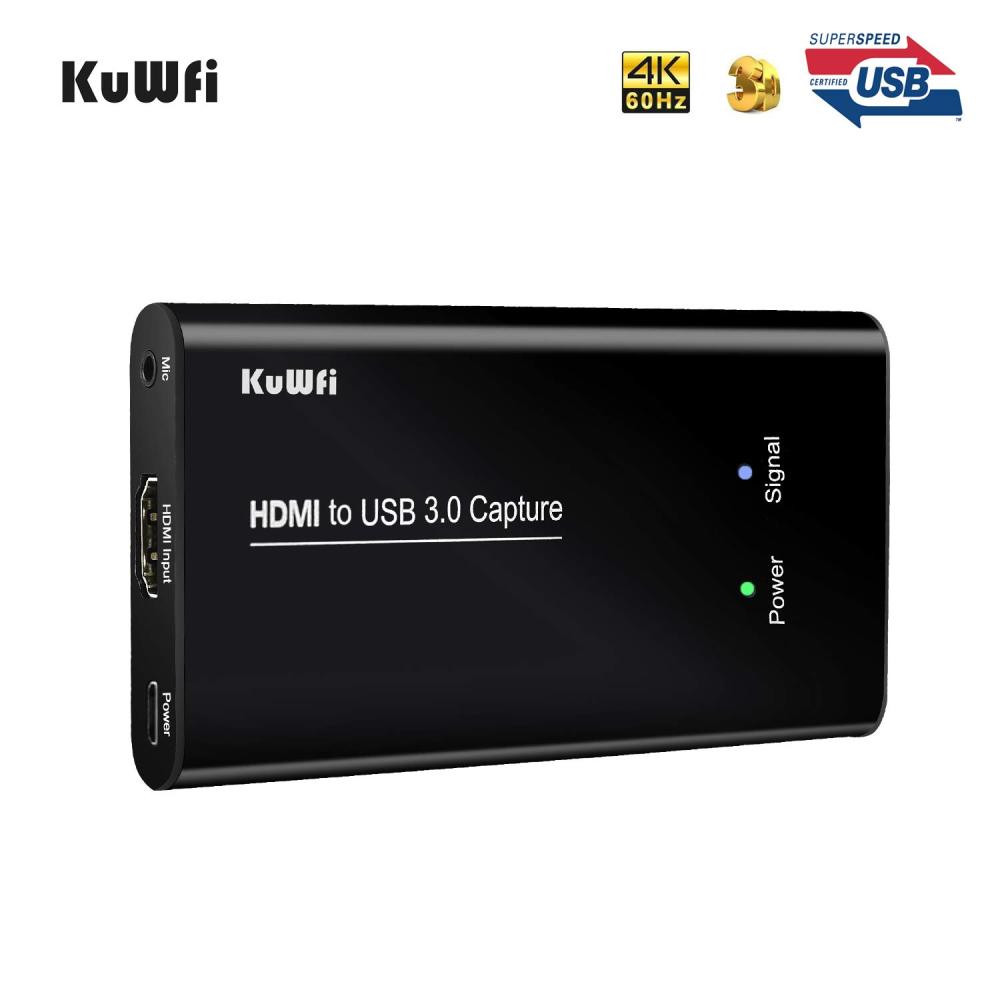

KuWFi HDMI to USB3.0 Video Capture Card
HDMI input: 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280x1024, 1280x960, 1024x768, 800x600, 640x480
HDMI audio input: 1 LPCM audio signal
HDMI input formats: It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Output Formats Resolutions: 640x480/720x480/720x576/800x600/1024x768/ 1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080
Development interface compatibility: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux); OS X (QuickTime)
Software compatibility:
- Windows Media Encoder (Windows)
- Adobe Flash Media Live Encoder (Windows, OS X)
- Real Producer Plus (Windows)
- VLC (Windows, OS X, Linux)
- QuickTime Broadcaster (OS X)
- QuickTime Player (OS X)
- Wirecast (Windows, OS X) and etc.
60 frames-low latency & Best colors reproduction
- Frame rate: 25/29.97/30/50/59.94/60 fps
- Video Sampling Rate : HDMI: 165MHz
- Audio and video capture : It meets the standards of UVC (USB video class) and UAC(USB audio class)
- Output color space: YUV, RGB
- Color space switch: Hardware Color Space Switch
- Image Scale: Hardware scale
- Power consumption: ≤2.5W
|
|
|
|

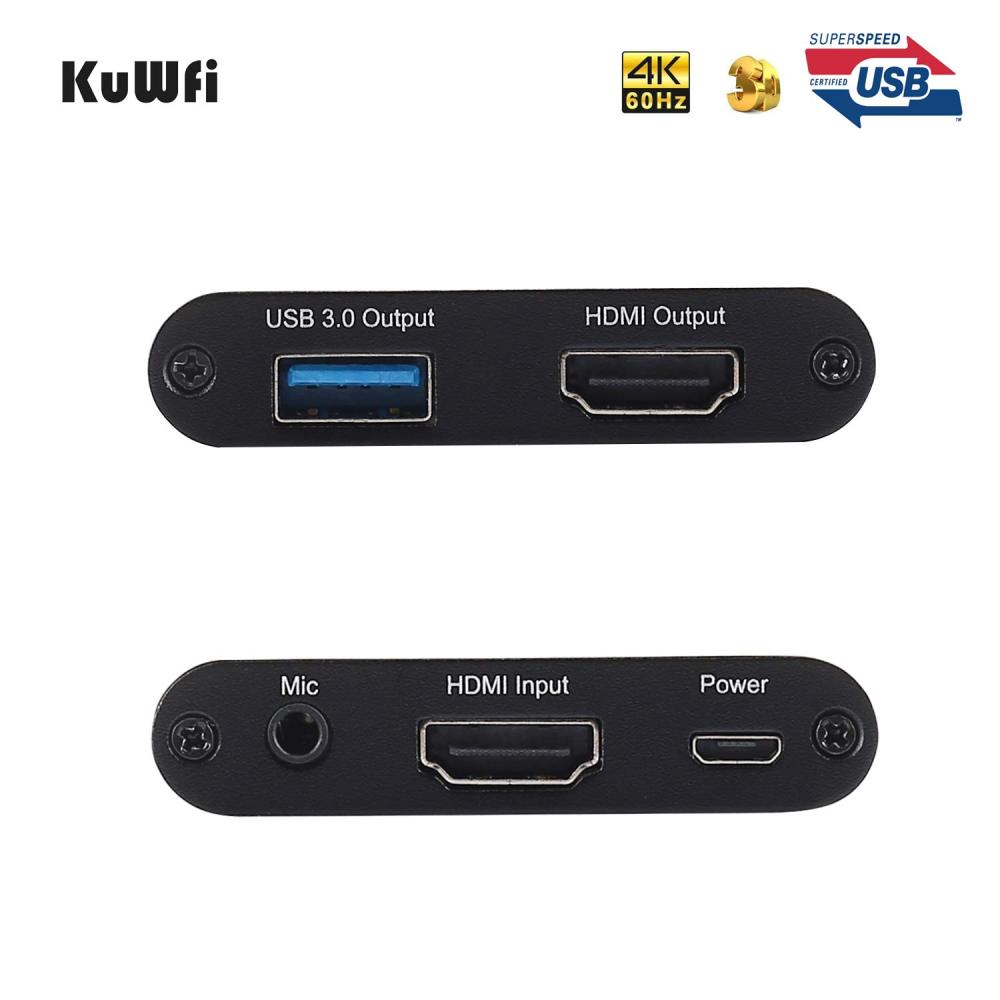

Connection ports
- Input interface: 1 HDMI interface; 1 Mic interface; 1 Micro USB Power interface
- Output interface: USB3.0, *300-350MB/s throughput; USB2.0, *40MB/s throughput ; 1 HDMI loop out interface
|
|
|
