Product Description
1. Wifi 6 router is mainly aimed at the office, home, IoT shopping mall and restaurant. It provides high-speed, reliable routing and data transmission capabilities to meet their different application scenarios
2.High performance hardware configuration
Adopts MTK7621 + MTK7905 + mMTK7975 high performance SOC suite, with 16MB flash and 256MB memory, industrial circuit design. It also supports the IEEE802.11a/b/g/n/ac/ax protocol, also can provide 2.4G 573Mbps + 5.8G 1201Mbps wireless access speed and 1000Mbps Ethernet switching processing speed.
3.Green environmental protection, high efficiency and energy saving
A large number of energy-saving technologies are applied to this WiFi 6 Router, including single antenna standby technology, dynamic MIMO power saving technology,enhanced automatic power saving transmission technology and packet by packet power control technology; and based on IEEE802.3 az standard hardware design, when the network is not in use, it will automatically enter the low-power and power-saving mode; but as long as someone uses the network, it will immediately convert to normal pattern.
4.A variety of security strategies to ensure network data security at all times - Support WPS, WPA, WPA2, WPA3 wireless security access, support SSID concealment, visitor network, black and white list, LAN port isolation, ALG , MAC filtering, IP filtering, NAT setting, DDOS to effectively protect network security and ensure the user’s network data security at all time
Tips for Button
5.Reset: Restore factory settings button, press and hold for 6 seconds to restore factory settings and restart automatically
WPS: WPS function button, short press to start PBC function
Notes: Please make sure your smart device used support WiFi 6 function !!!
Product Description
CPU: MT7621A+MT7905+MT7975
Memory: 256MB DDR3 RAM//Flash: 16 MB

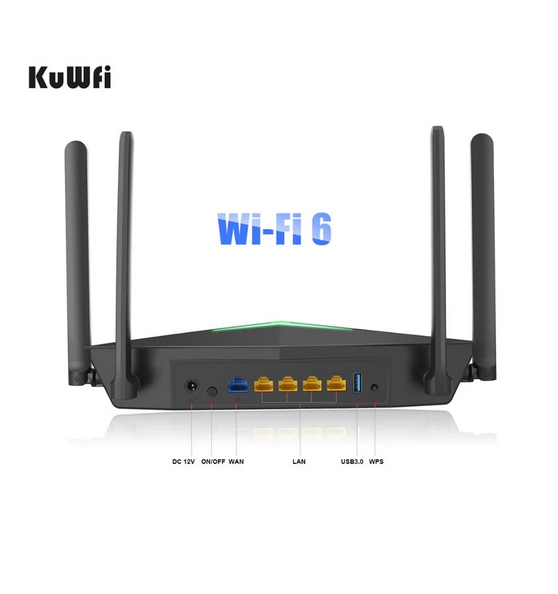

Support 4*10/100/1000Mbps RJ45
Power supply: DC 12V 1A
Button: Reset,WPS, Power
Antennas: 2.4G+5.8G: 2T2R 5dBi gain
1*10/100/1000Mbps RJ45 WAN
3*10/100/1000Mbps RJ45 LAN
Support Multiple Internet Connect: PPPOE,STATIC IP, DHCP, DNS
Radio rate up to 1800Mbps,2.4G Up to 573Mbps + 5.8G Up to 1201Mbps
Support wireless security functions: WPA-PSK/WPA2-PSK/WPA3
Support PPTP,L2TP VPN
Support Firewall: IP,MAC,Port Filtering and DMZ
Support TR069 and upgrade online
Support IPV4,IPV6 Protocol
Working Mode: Routing mode and bridge mode
Carrying capacity: 128 users
Dimensions: 262*177*180mm
Operating Environment
Operating Temperature: Normal: -40℃ to +55℃
Storage Temperature: -40℃ to +70℃
Operating Humidity: 5%~ 90%
Storage Humidity: 5%~ 95%
