Support AP Mode, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.
Multiple Protection for Stable Performance
AP240 with ABS fireproof material, white color, suitable for various decoration styles.And PCB board with watchdog design, can reboot automatically in case of failure.What's more, it support lightning protection and ESD protection, can install in various harsh environment.
Power over Ethernet
AP240 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not available, eliminating the mess of altering existing network infrastructure.
Then the WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more professionaland save cost in Wi-Fi Projects.
Main Features:
1. Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate,11ac 2x2 MIMO,technology,2* 10/100Mbps Ethernet Ports
2. Support active IEEE 802.3af48V PoE standard
3. Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
4. Support (PPPOE, static IP, dynamicIP) and Wireless AP Mode
5. With function of build in firewall, IP filter, URL filter and MAC filter
6. Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
Hardware Specification
Standard: 802.11ac/b/g/n, MIMO technology
Interface:
1 * 10/100Mbps RJ45 WAN Port
1 * 10/100Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna:
Build in 5dBi 2.4GHz MIMO Antenna
Build in 4dBi 5.8GHz MIMO Antenna
Size :188*33mm
POE: 48V 0.5A
LED Indicator
Sys, 2.4G WIF, 5.8G WIFI, LAN, WAN
Max Power Consumption< 10W
ESD ±6KV
Surge Protection Different mode: ±2KV
RF Data
Frequency:
2.4G:802.11b/g/n: 2.4GHz~2484GHz
5GHz:802.11a/n/ac: 5150MHz ~5850MHz
Throughput: 1200Mbps
RF Power (2.4GHz)<22dBm
RF Power (5GHz) <21dBm
PPM : ±20ppm
Max Users: 128+
Environment Operating Temperature: -20~55 ℃
Storage Temperature: -40~70 ℃
Humidity: 5%~95% non-condensing;
Storage Humidity: 5%~90% non-condensing

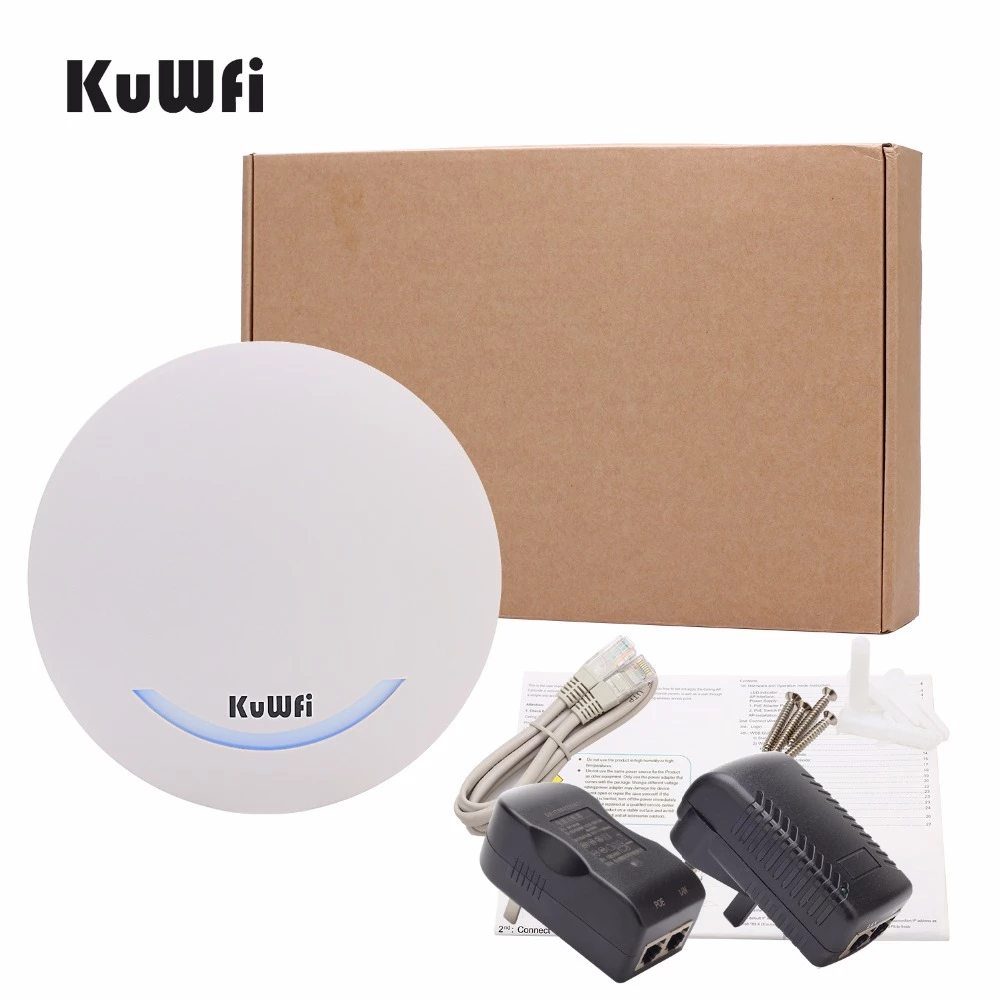

Package Contents
1x 1200Mbps Dual Band wireless access point
1x Ethernet Cable
1x Quick Installation Guide
1x Setting Accessory
