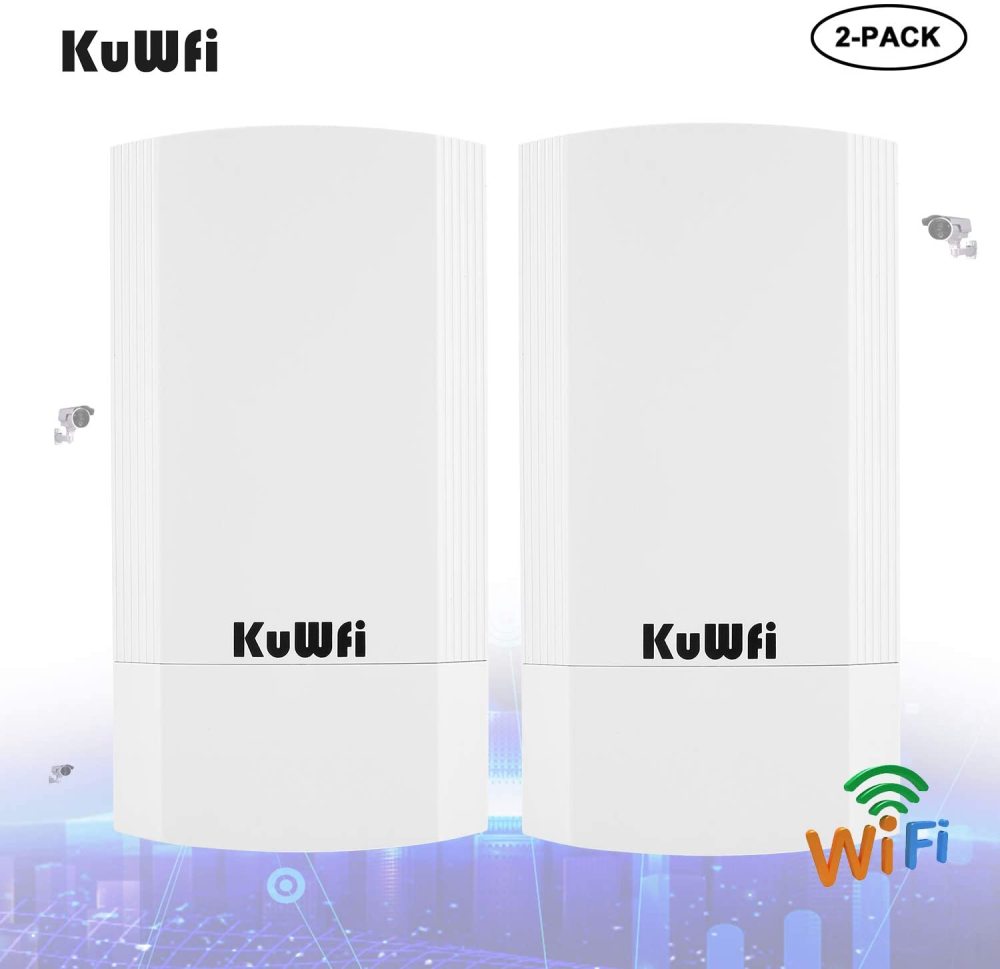

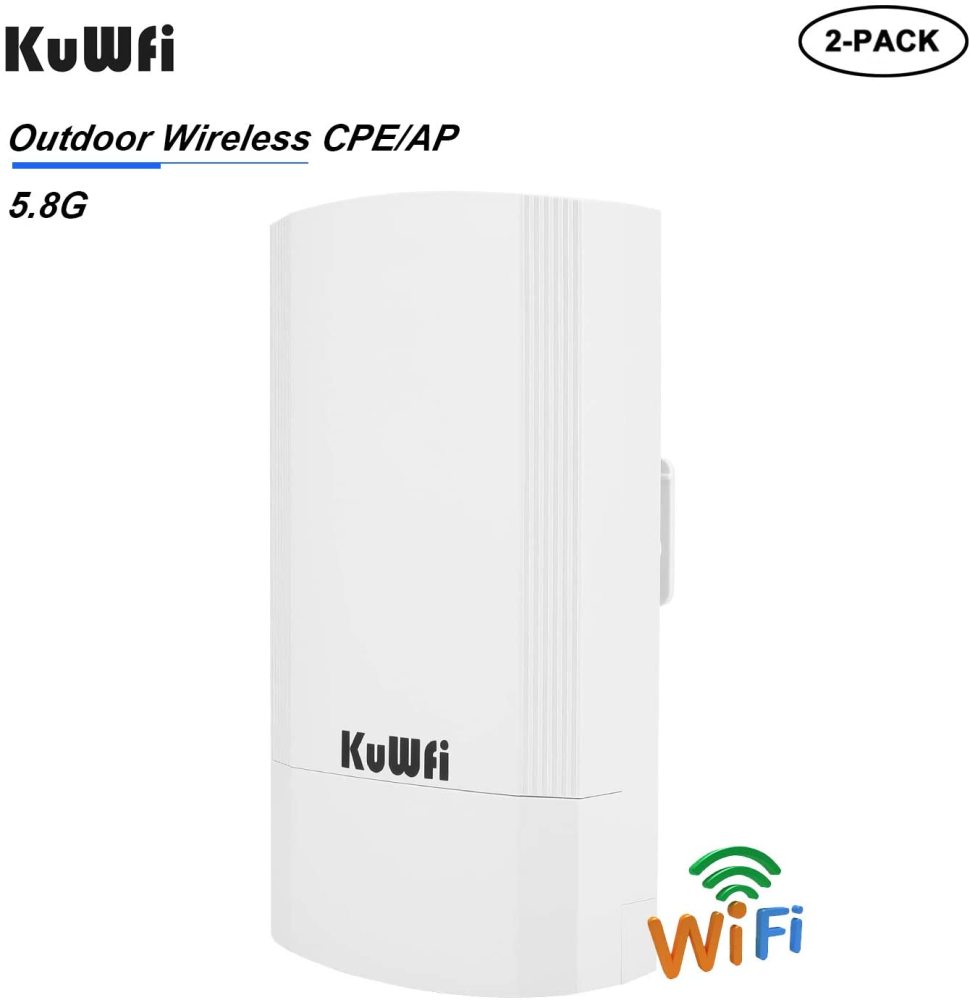

KuWFi CPE200 is an 11ac 5G outdoor CPE with LED display. It comply with 802.11b/g/n/ac Wi-Fi standard, data rate up to 900Mbps, Build in 12dBi panel antenna, the Wi-Fi range to up to 2KM. With LED display, wireless AP, Wi-Fi repeater operation mode, it work in pairs for point to point connection,make more than 16PCS IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

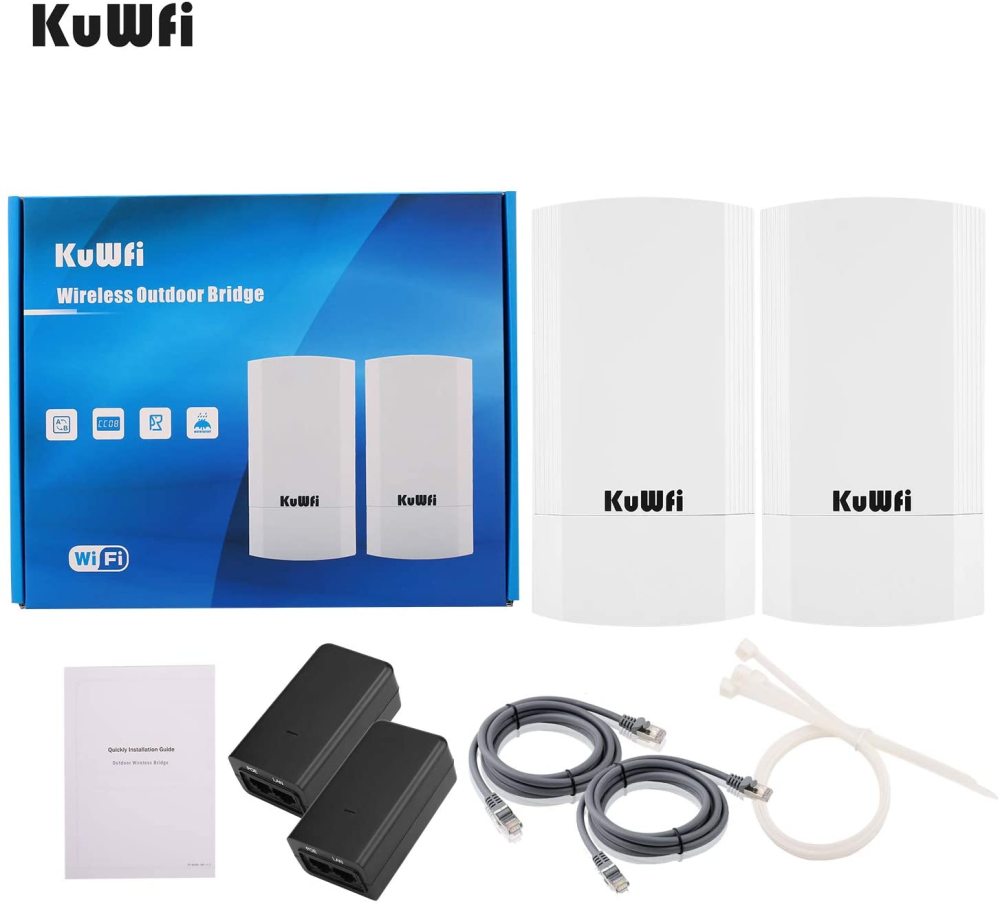

Package List
- CPE200- 2pcs
- POE Power Adapter (24V0.5A) - 2pcs
- Quick Start Guide - 1pcs
- Ethernet Cable (1 meter) - 2pcs
- Plastic Hoop - 4pcs
NOTES:
- If a single device uses AP mode, its WiFi coverage is only about 100 M
- The transmission speed between 2 bridges max is 900Mbps. The highest network speed that can be achieved max is 100Mbps(The Rj45 Port up to 100M).
Too long cables/buried wires is too troublesome? But want to extend wifi from one building to another building?
- When you want to extend a network from one building to another, the best answer is almost always a cable—preferably a burial-grade cable, either Ethernet or fiber, laid in a conduit and buried several feet . But that's expensive. And now, a device that connects two LAN segments together via wireless wifi transmission. A wireless bridge is often used to span buildings and provides a more economical method than laying cable or leasing a private line.
Applications Case:
- A company have a second building that is about 180' from the main building and needed stable internet for both employees and security systems. We tried reaching it with our mesh routers, but even placing one on an outside wall wouldn't supply a stable signal. We could have installed a second modem/router but that would add hundreds to our initial install and monthly costs. Installing this wireless bridge has offered a stable signal and wiring it into a mesh system, it has allowed us to expand our net throughout the second building.
1.This cpe router produce 5.8G900Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display to configure the PT/PTMP connection
2.Build in 12dBi MIMO panel antenna(embedded) ,High Gain Antenna for More Range
3.CPE200 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, ESD protection and surge protection, ideal for outdoor use
4.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃
5.Multi-Mode
- Support Wireless AP, Repeater operation mode
- Support SSID broadcasting, Multi SSID up to 4
- Support DHCP serverNetwork Security
6.Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
7.Users Max: 64, Recommand: 30

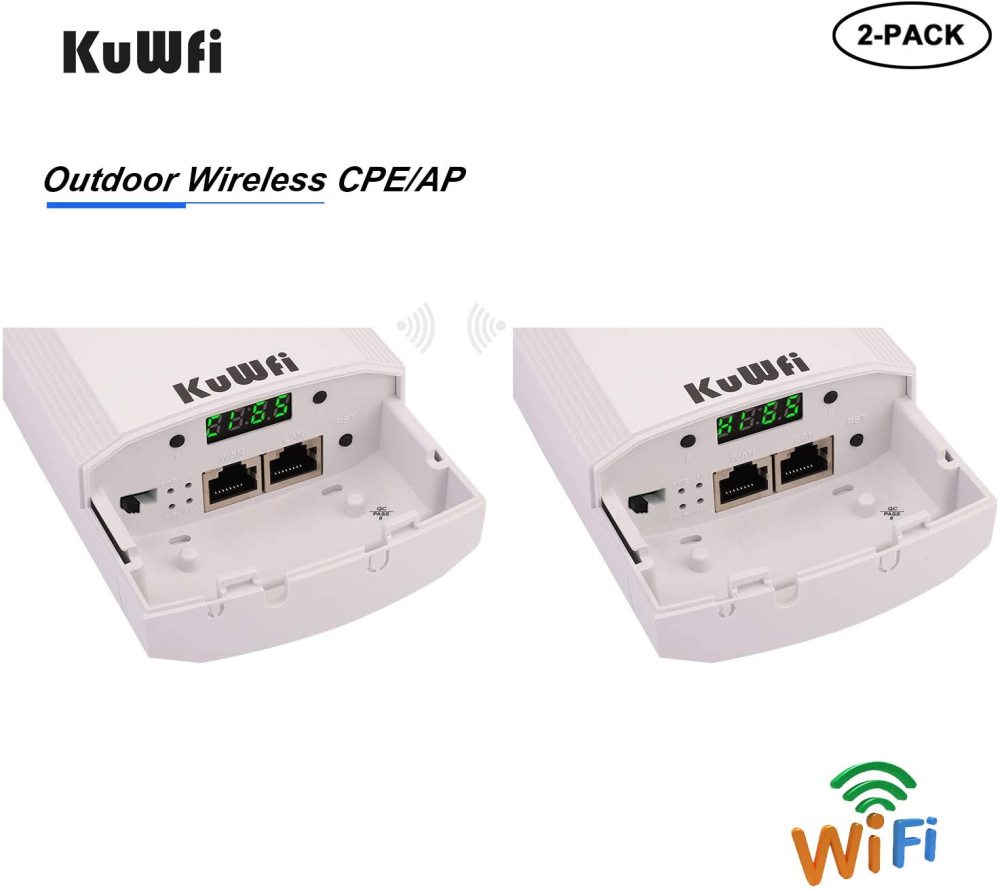

Interface:
1*10/100Mbps WAN Port,
1*10/100Mbps LAN Port
1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode)
1 * Reset button
FLASH * DDR2: FLASH 8MB * DDR2 64MB
Waterproof Level:IP65
Wireless security: OPEN、WPA、WPA2、WPA-PSK、WPA2-PSK
Packing list:
CPE Router
POE Power Adapter (24V0.5A)
Quick Start Guide*1pcs
Ethernet Cable (1meter)
