Description:

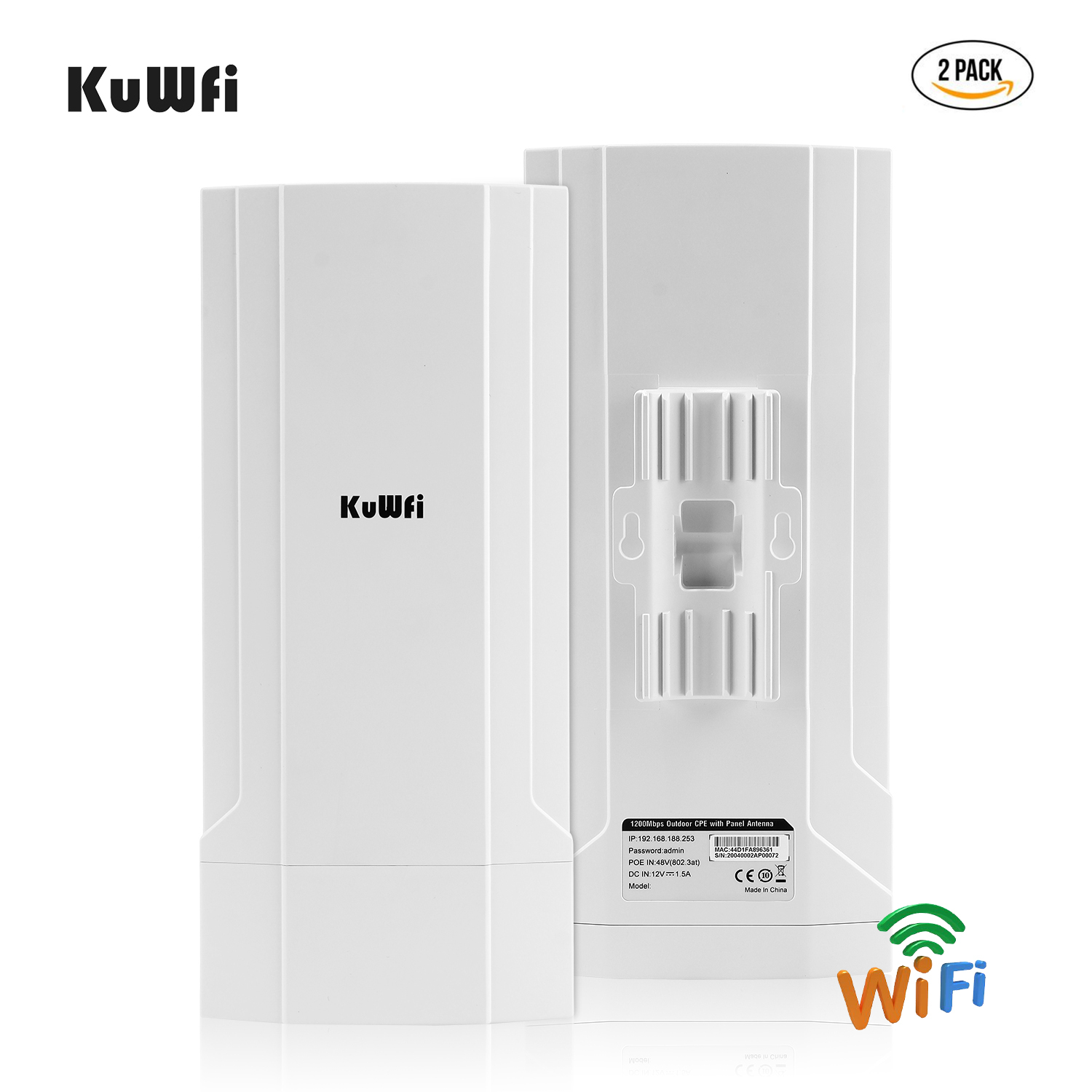

1.High Power Outdoor WiFi Bridge CPE2200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the working temperature can be at -40℃ to 55℃. Suit for any country

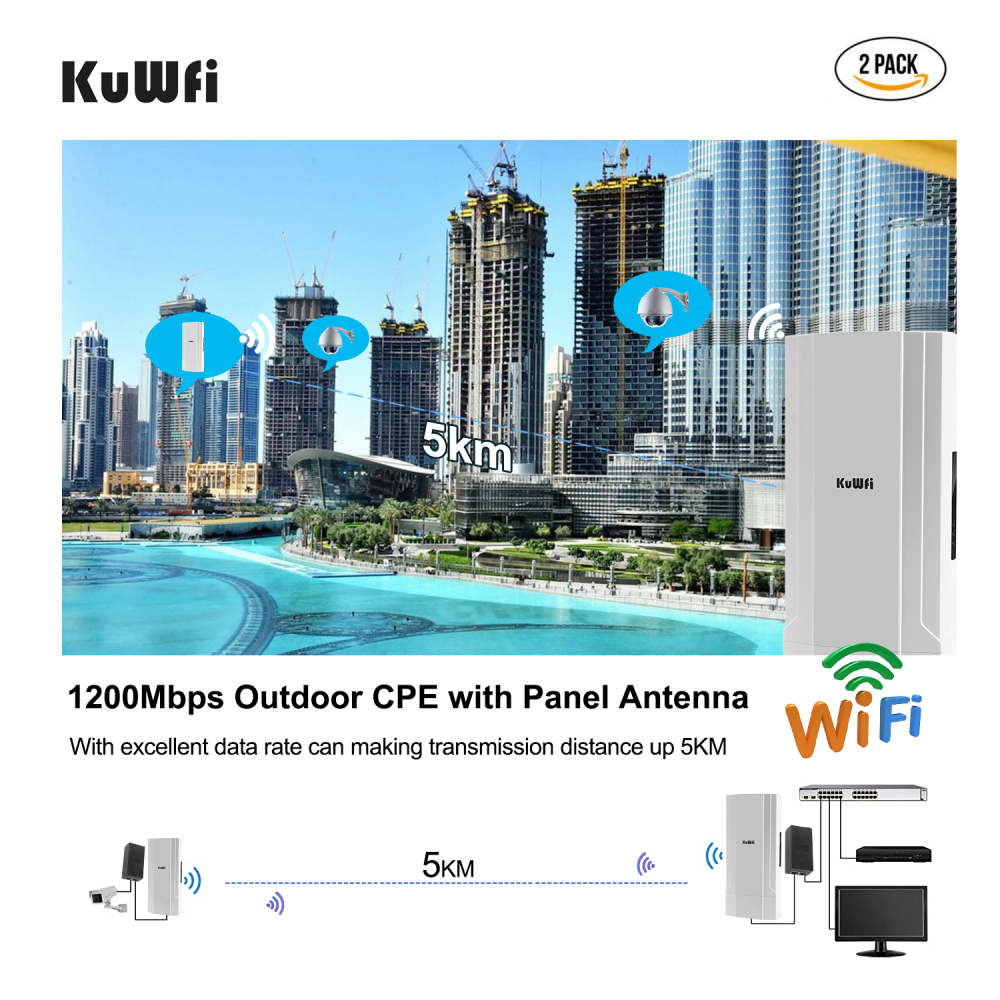

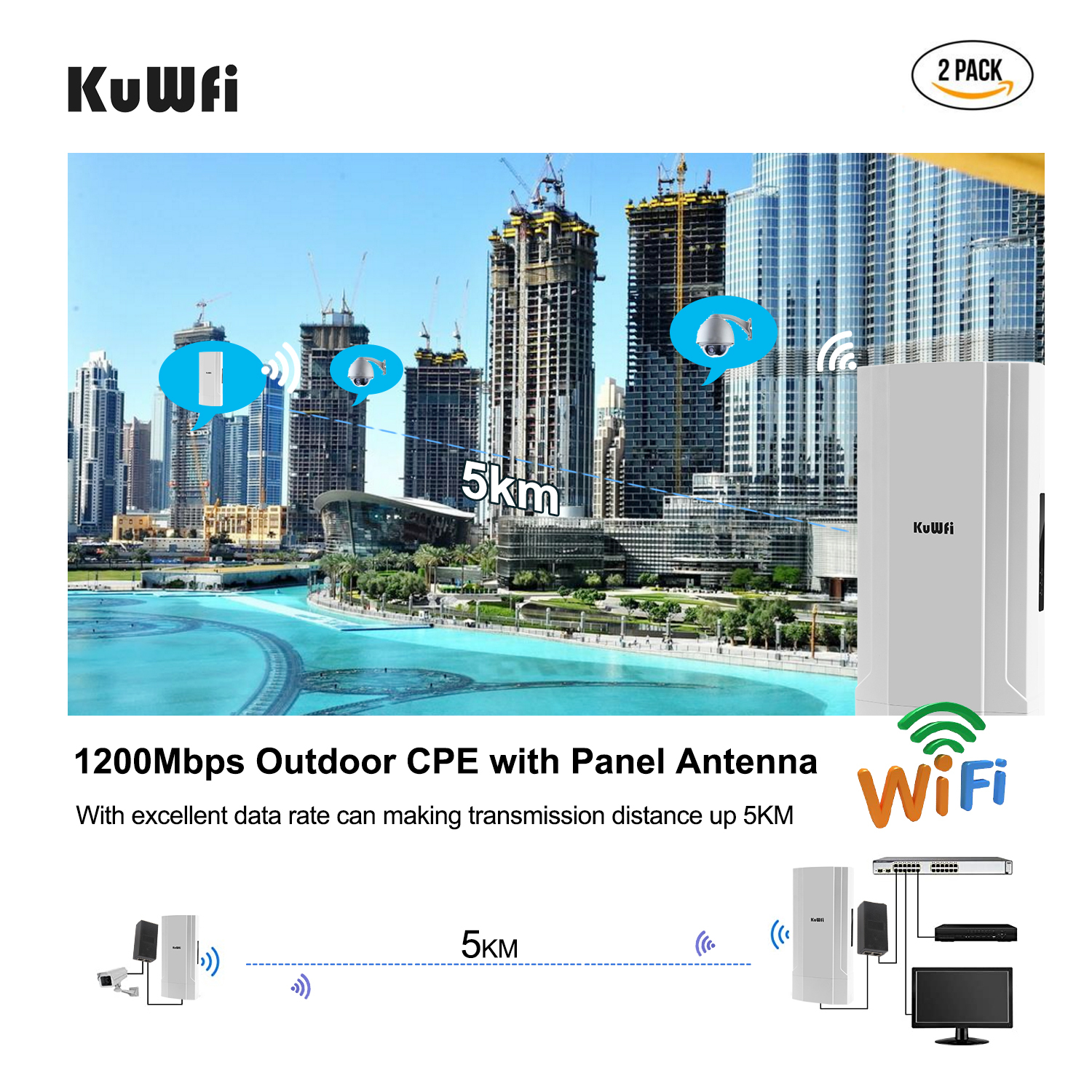

2.High Power, High Gain Antenna, more WiFi Range - Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in dual band panel WiFi antenna, the PTP/PTMP WiFi range more than 5KM
3.Power over Ethernet - Outdoor AP CPE2200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

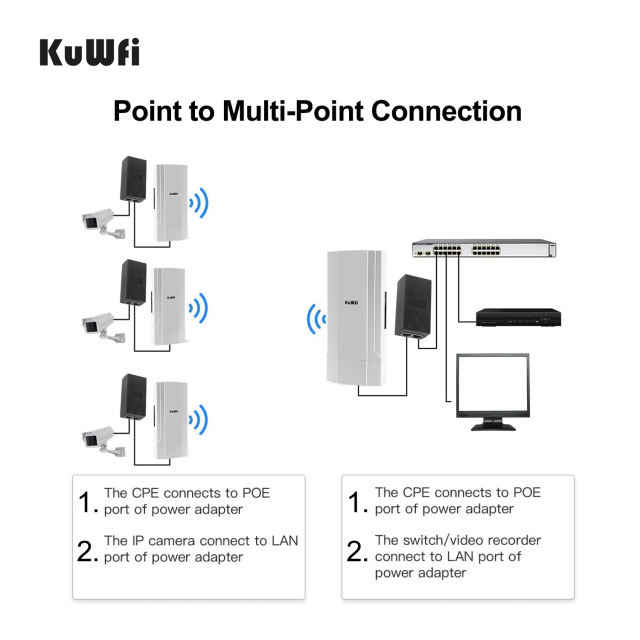

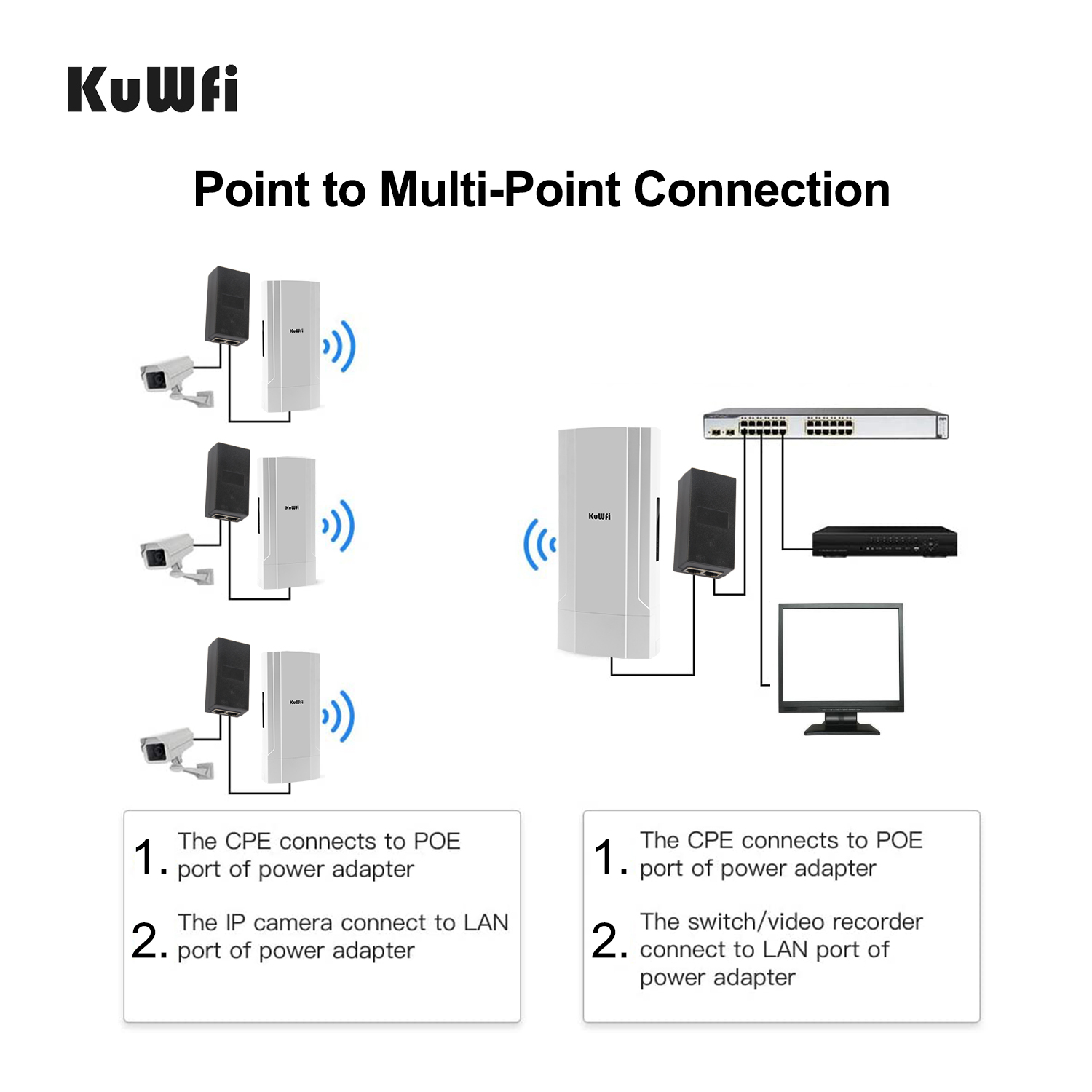

4.Multiple Operation Mode - support wireless AP, WiFi Repeater operation mode, max to meet with different operation request
5.With Access Control System under AP/WDS operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore, Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this AP more professional in WiFi Projects
Features:

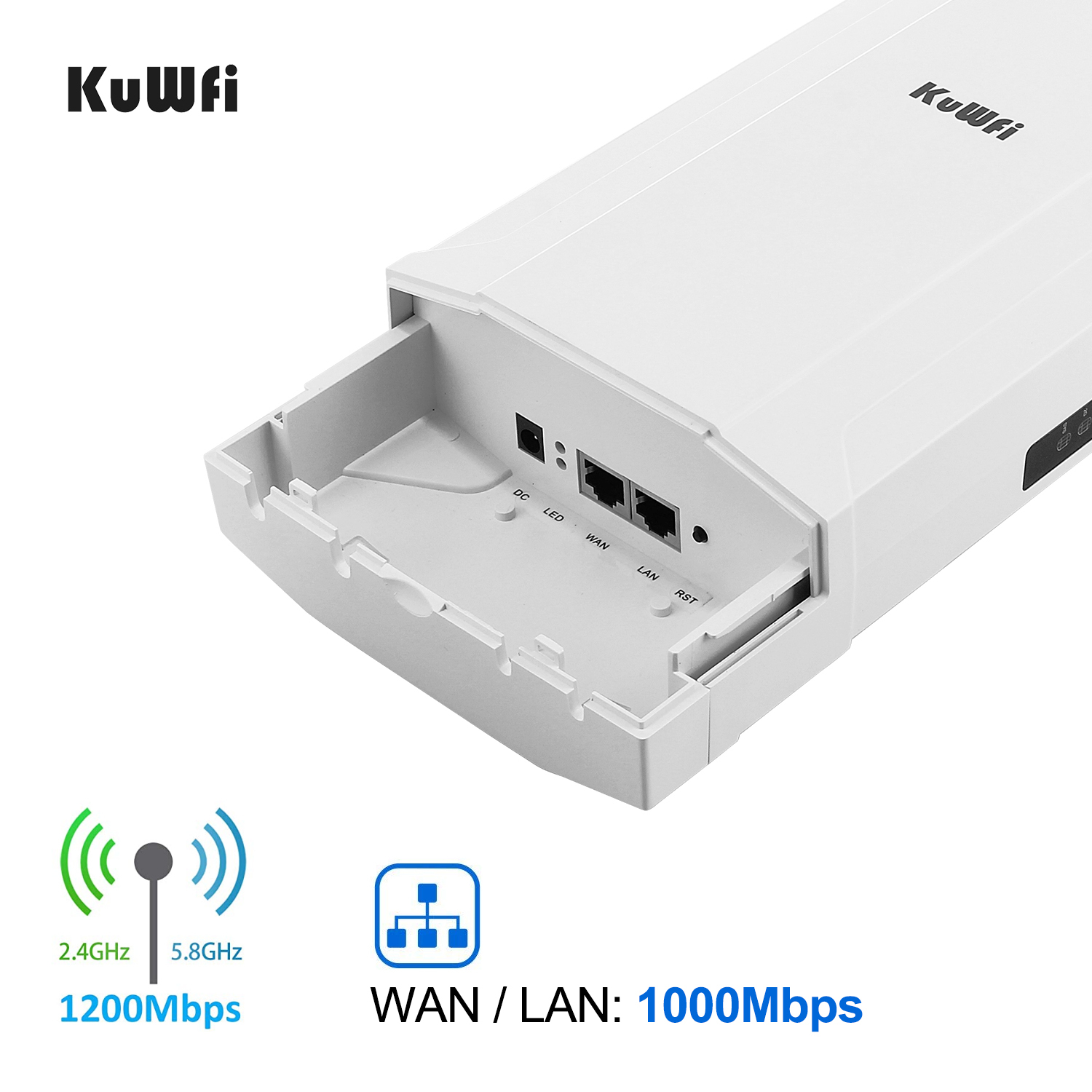

Interface
1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE
1 * 10/100/1000Mbps RJ45 LAN Port
1 * WDS switch button, press it to do WDS PTE/PTMP connection
1 * Reset button, press 15 seconds to revert to default setting
Main Features
- Chipset: Qualcomm QCA9563 + QCA9882 +QCA8334
- Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
- 500mW high power, Qualcomm Chipset, 16M Flash, 128M DDR2 RAM, more user, more stable
- Antenna: Build in Panel antenna, 12dBi in 2.4GHz, 14dBi in 5.8GHz
- Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter
- Power consumption: 48V PoE<30W
- Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety
- Support ( static IP, dynamic IP), Wireless AP, Repeater,operation mode
- With function of firewall, IP filter, URL filter and MAC filter
- Comply with IEEE 802.3az standard,RF power adjustment and frequency analyzer for better application in different environment
- Support DDNS, VPN pass through, Port forwarding and DMZ host
- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
- Size: 315mm * 145 mm * 80 mm
-Data Rate: 1200Mbps (2.4G 300Mbps, 5.8G 900Mbps)

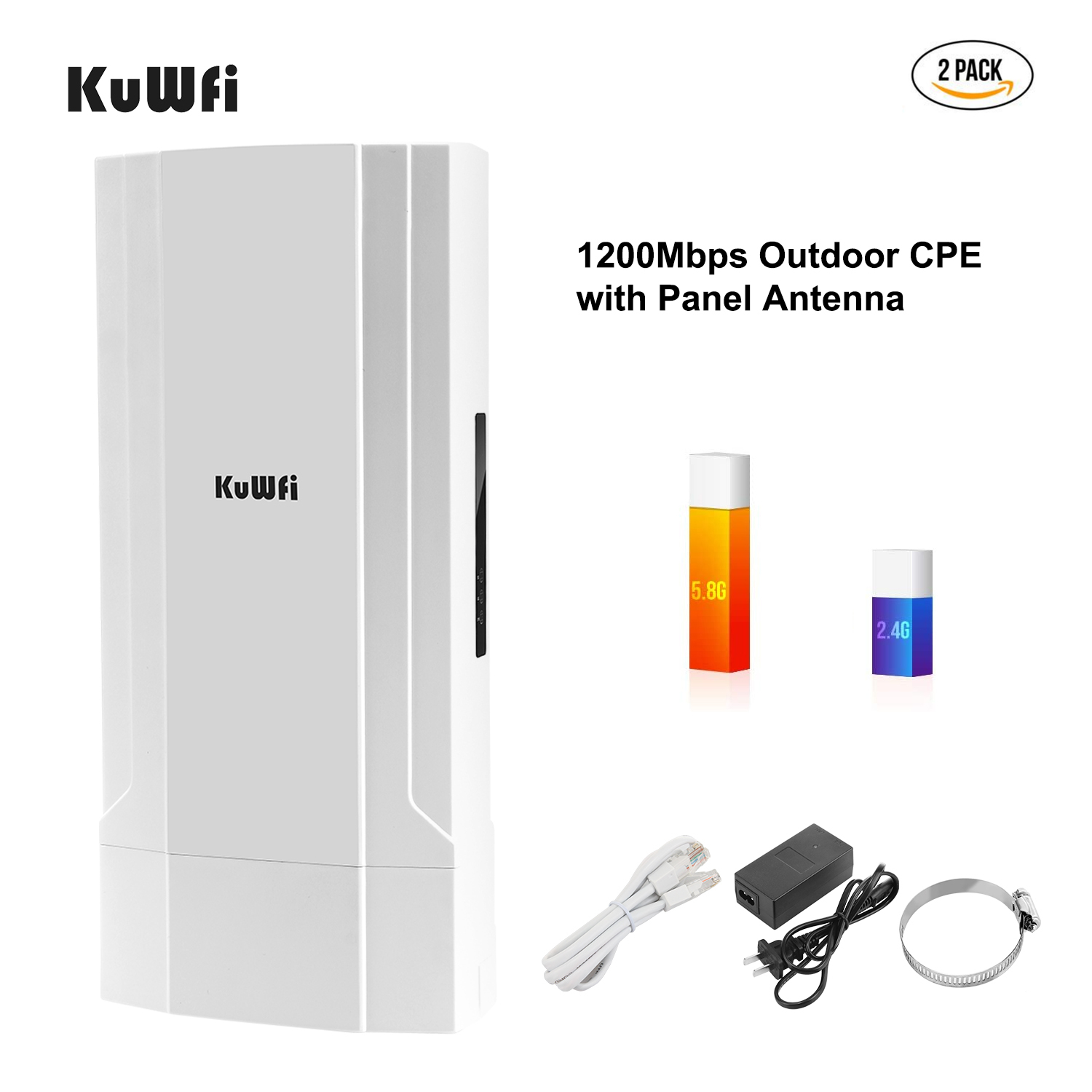

Package List:

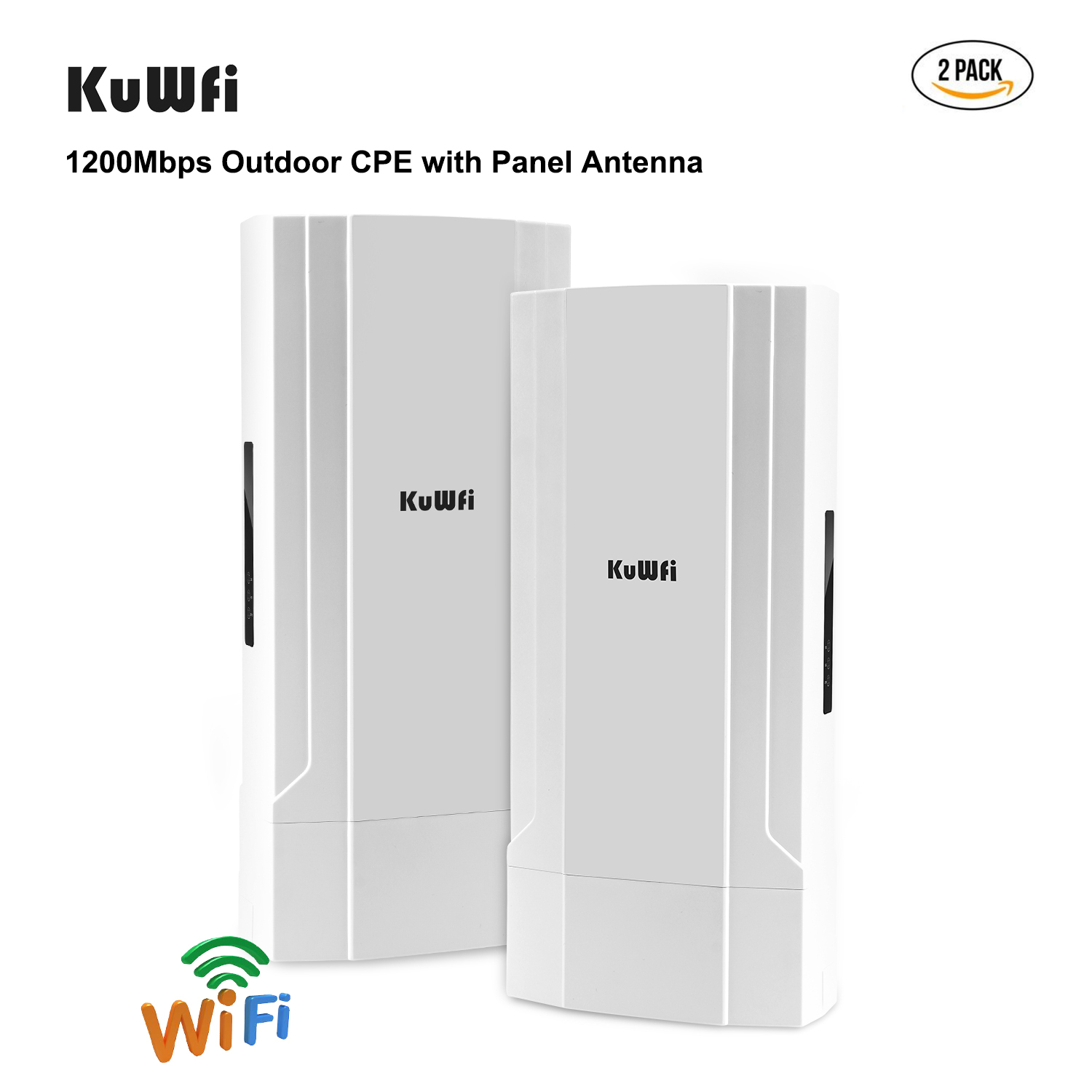

1 * KuWFi CPE2200 PTP Bridge (2-Pack)
2 * Stainless ties
2 * Cable
2 * 48V PoE Power
Applications Case
I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
