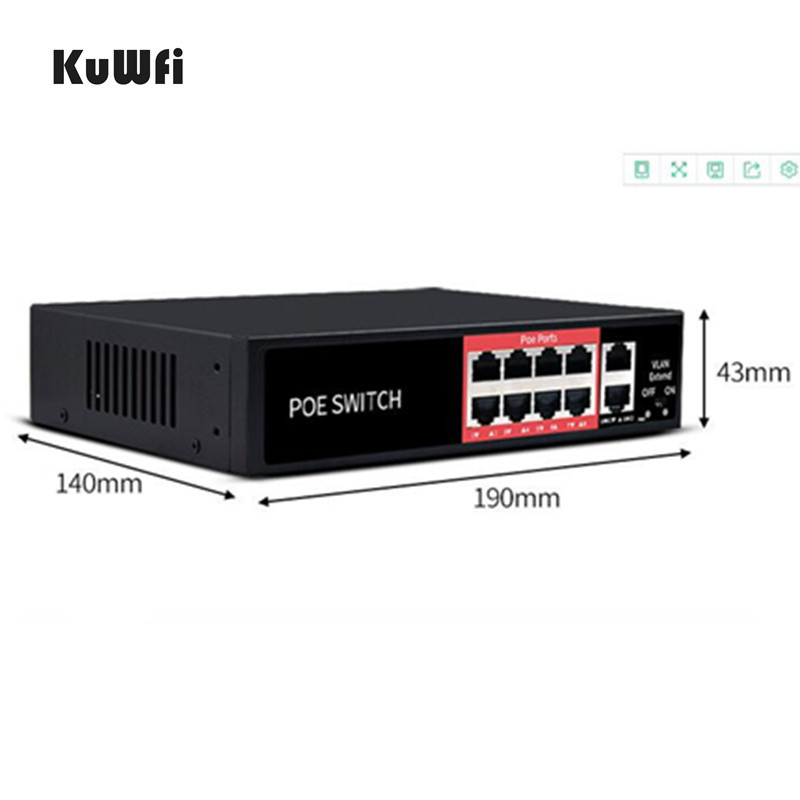

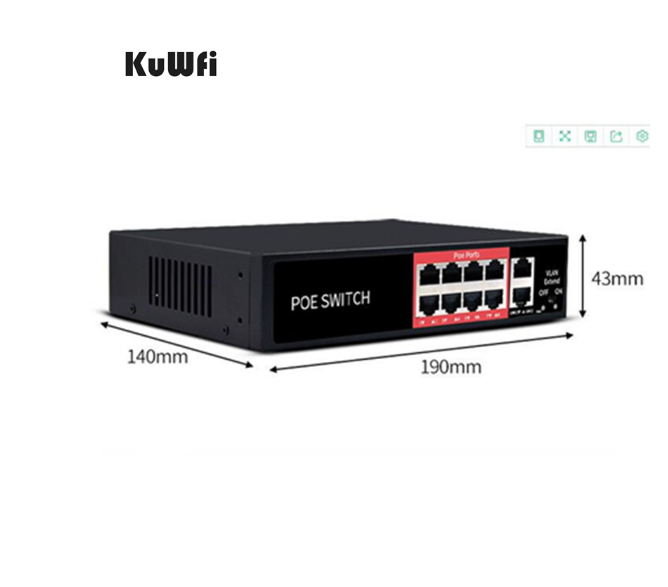

This POE switch of 250-meter transmission speed is designed and developed independently by SSC to meet the needs of network power supply. It adopts the latest high-speed Ethernet switching chip, ultra-high backplane bandwidth design, and has extremely fast data processing capabilities to improve smooth data transmission performance. , with 8 power supply network ports, 2 RJ45/uplink ports. Among them, all 8 RJ45 ports support network cable power supply

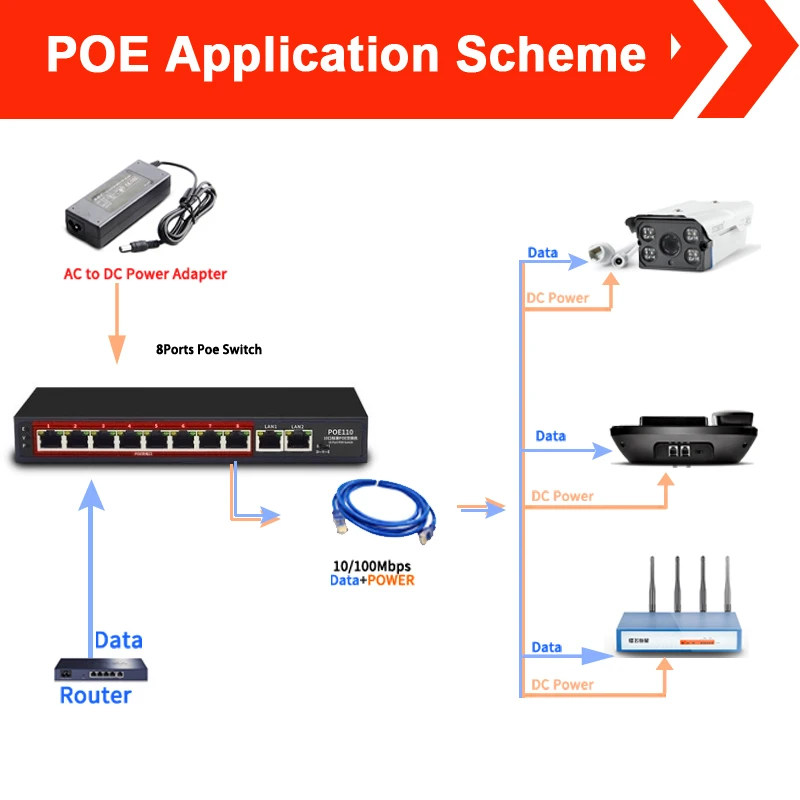

it's suitable for Hikvision,DAHUA and other brands with 802.3af/802.3at PoE Powered Devices(PD)
Support EXTEND mode, max Network Cable length to 250 meters
NOTE: When EXTEND mode enable, the Max bandwidth for the Power Link (PoE) port 1-8 network port will be reduced to 10Mbps for each one. Please check your IP CAMERA's bit stream setting. We recommend the value does not over 8Mbps(8192Kbps). (The up-link is not affected, it will always working at 100Mbps max speed) 10 Ports (2Uplink, 8 PoE) 10/100Mbps Midspan Mode-B Unsolicited Power (1,2+/3,6-) Compatible IEEE 802.3af/at, Per port Max 50Watt Wall Mount .
48V 144Watt(Max.144W)
WARM TIPs: (If you change to the EXTEND mode, the Max allowable Network Cable length will increased to 250 meters. So we use 48V power adapter. This will avoids the power loss over the long distances, and will make sure the PoE IP Camera working.)
(If you switch to V mode, start VLAN mode POE port data isolation, to prevent broadcast storm, virus invasion, improve the safety factor and the picture more smoothly)
(Please select according your device power consumption, in order to ensure device stable running, the total power consumption should not exceed 75watt of the power supply)
If your camera is with word “12V/PoE” as this picture shows, then please select this 48V PoE Switch, do not select 12V PoE Switch.
Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V PoE Ethernet port
1. PoE switch x1
2. AC Power Adapter(DC OutPut: 48V) x1
3. AC Power Cable x1
