Introduction:

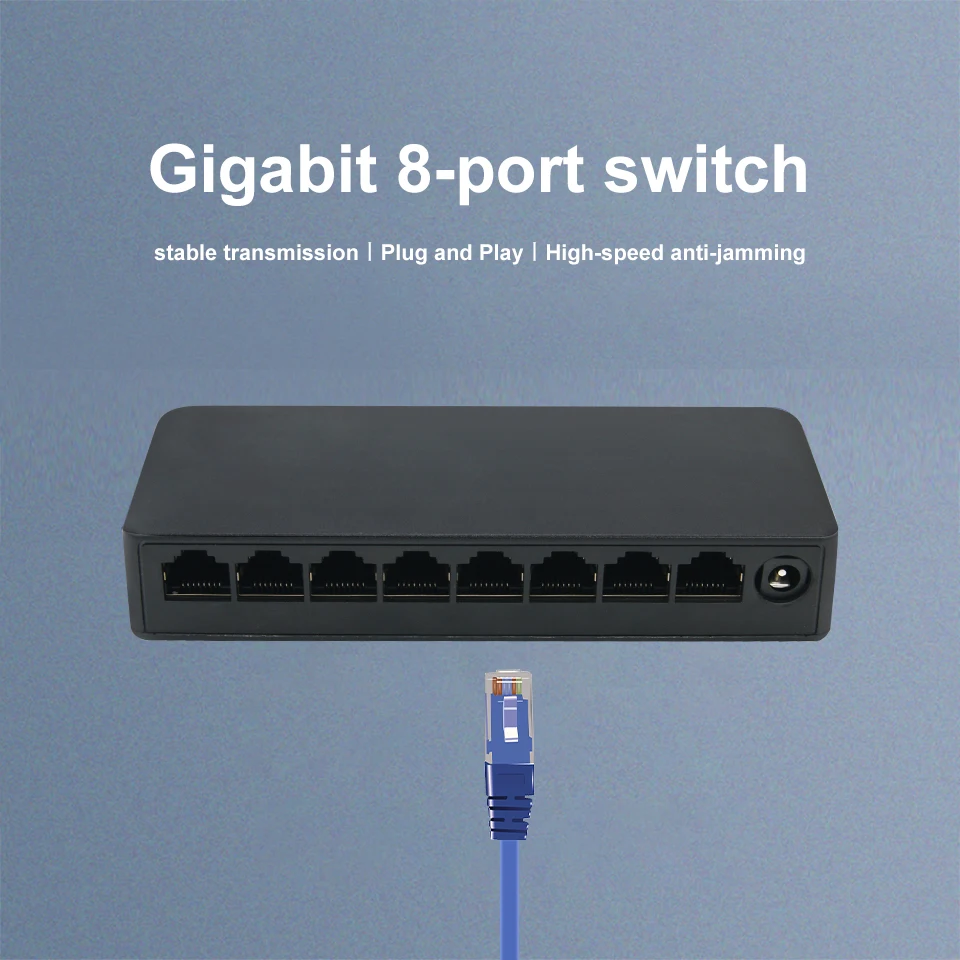

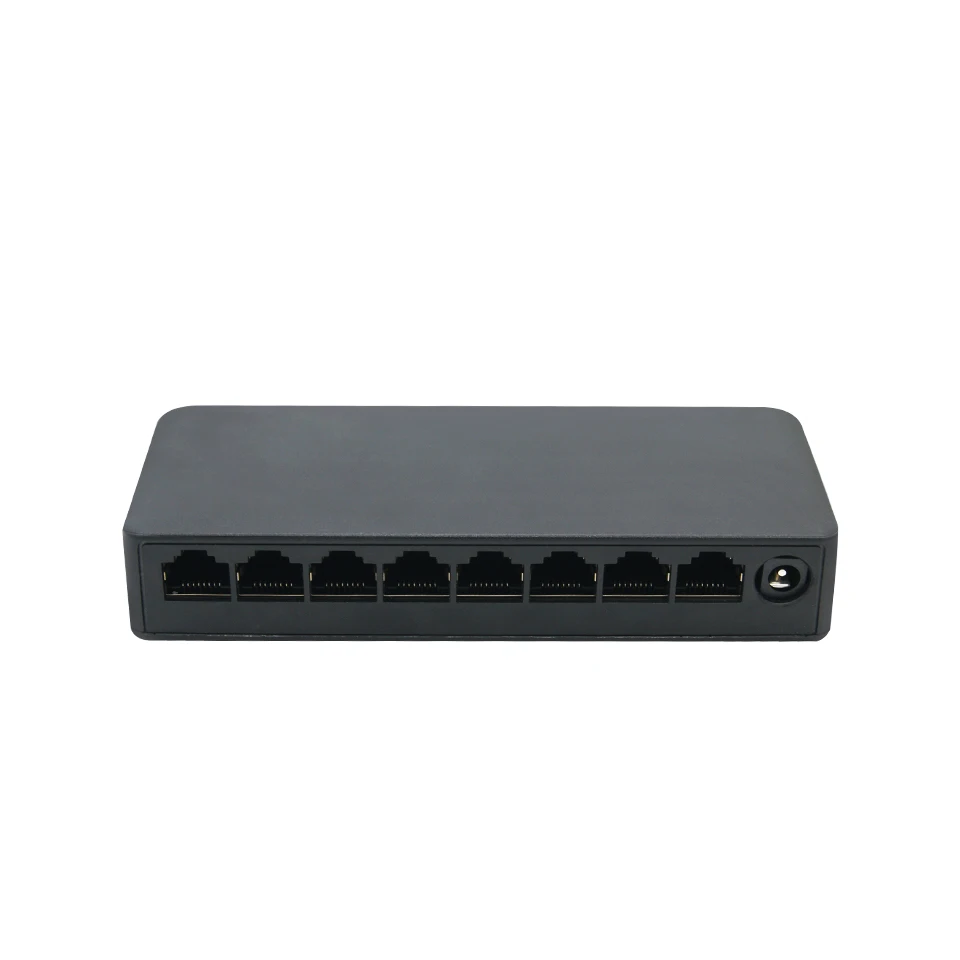

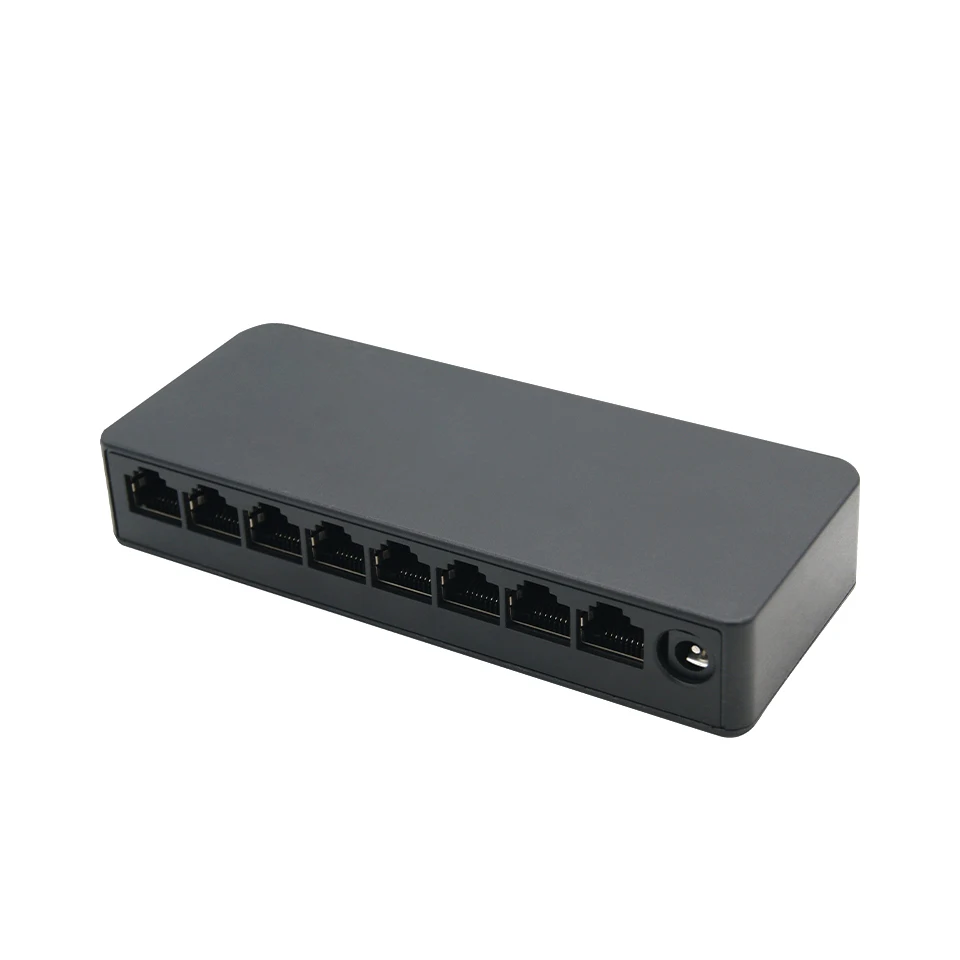

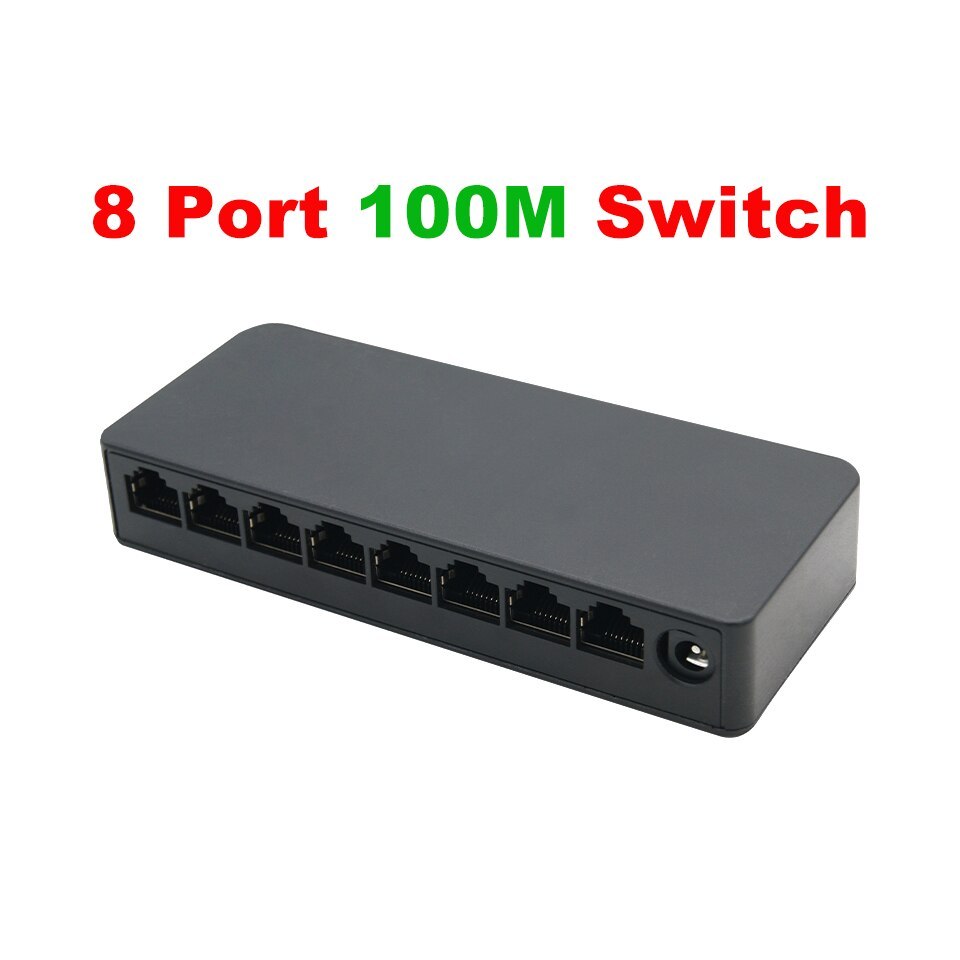

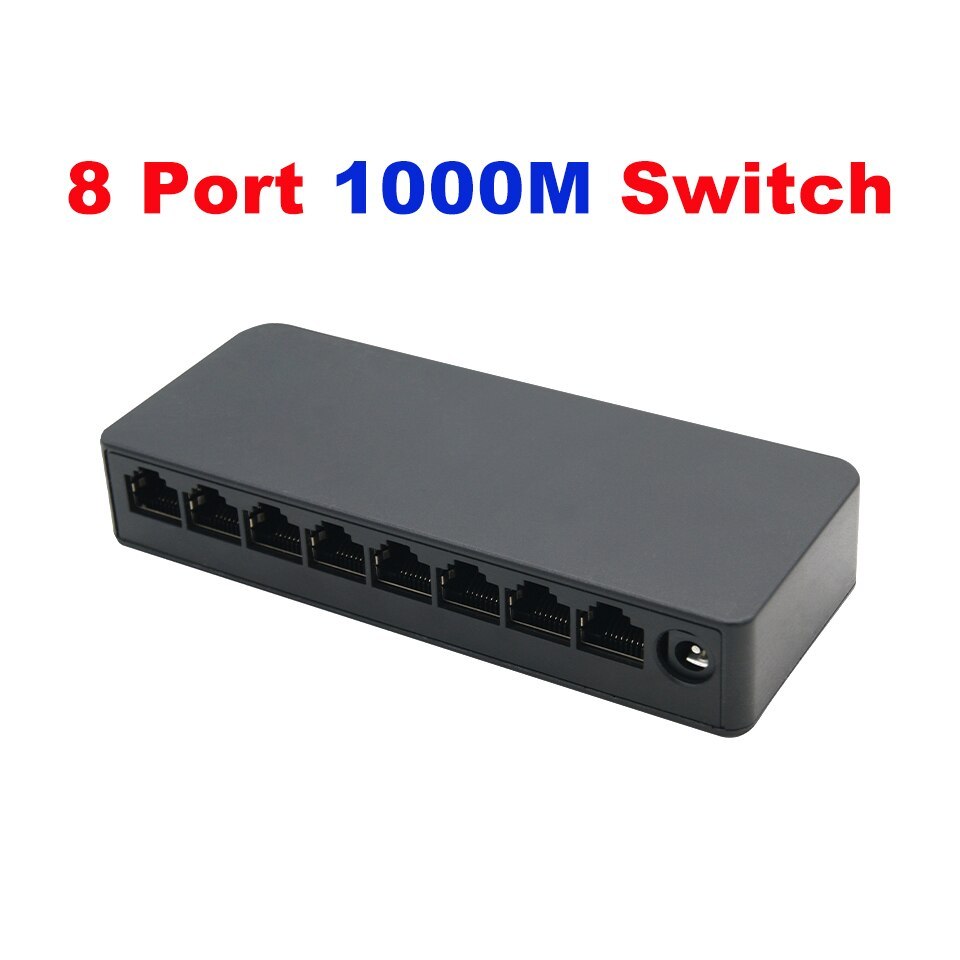

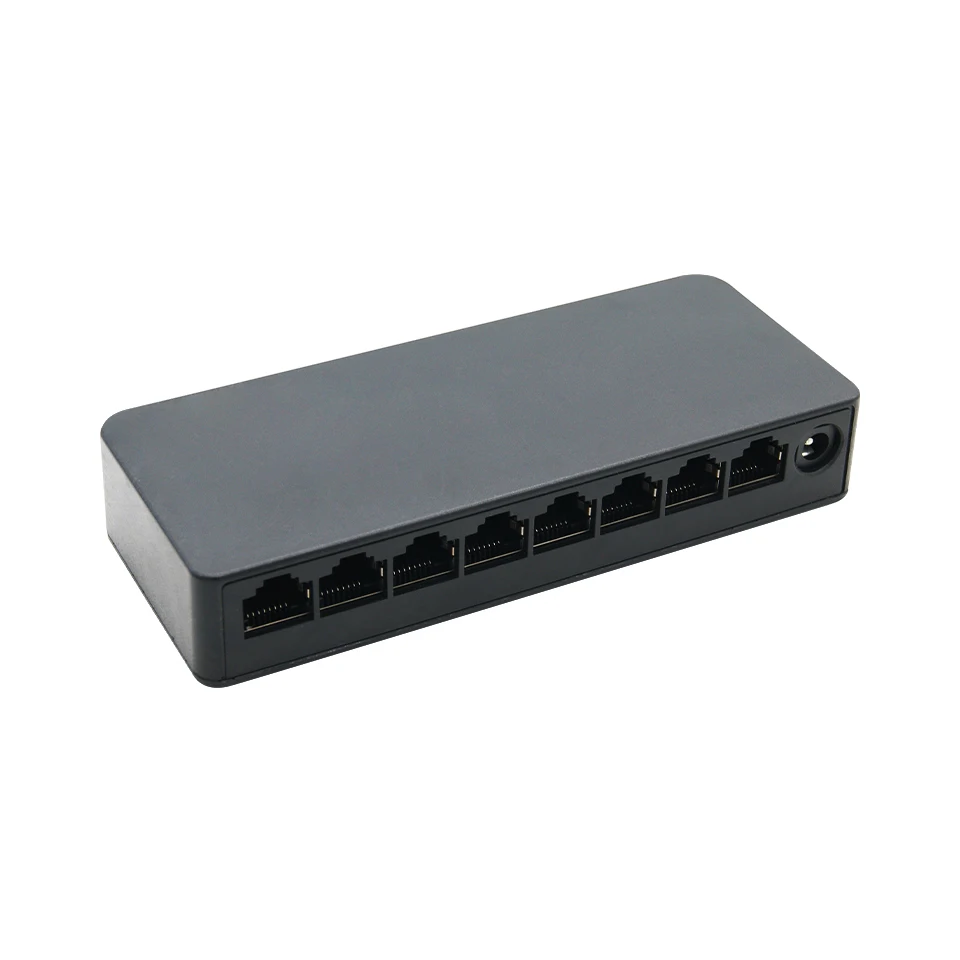

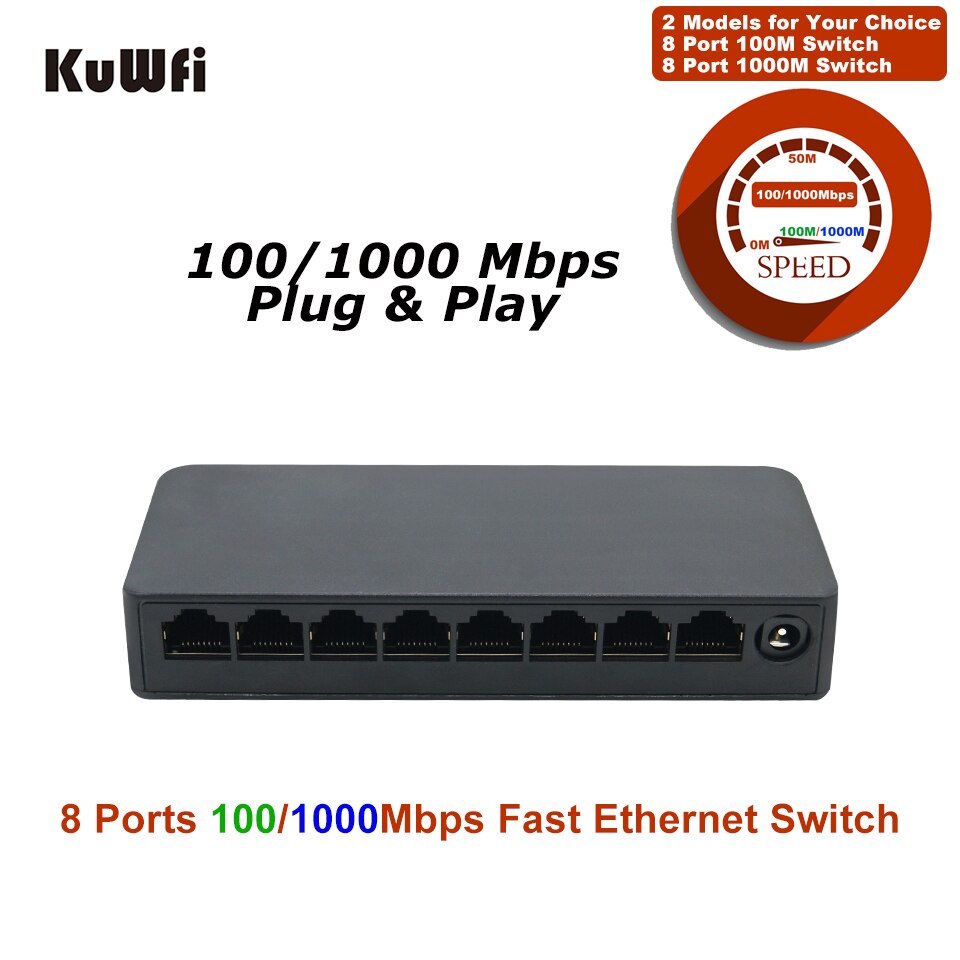

These unmanaged switches are Fast Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 8 Port 10/100Mbps or 10/100/1000Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 100Mbps or 1000Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.
Features:

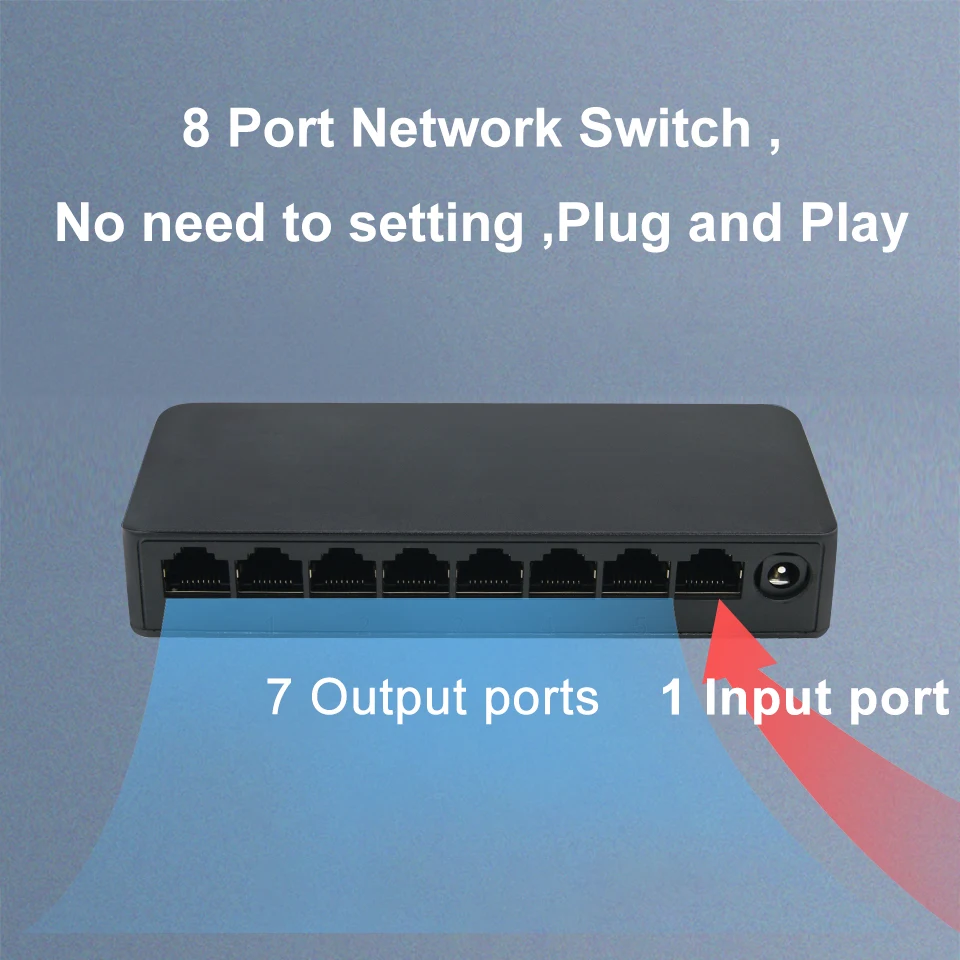

8*100M or 1000M Ethernet port with auto-negotiation function
Support 100M or 1000M speed rate,MDI/MDIX
Support IEEE802.3x Flow control and back pressure control
Each port has the complete LED Indicator light
Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed
Support multicast to avoid network congestion
Support 5-16V voltage input
Support 4K lightning protection of whole device.

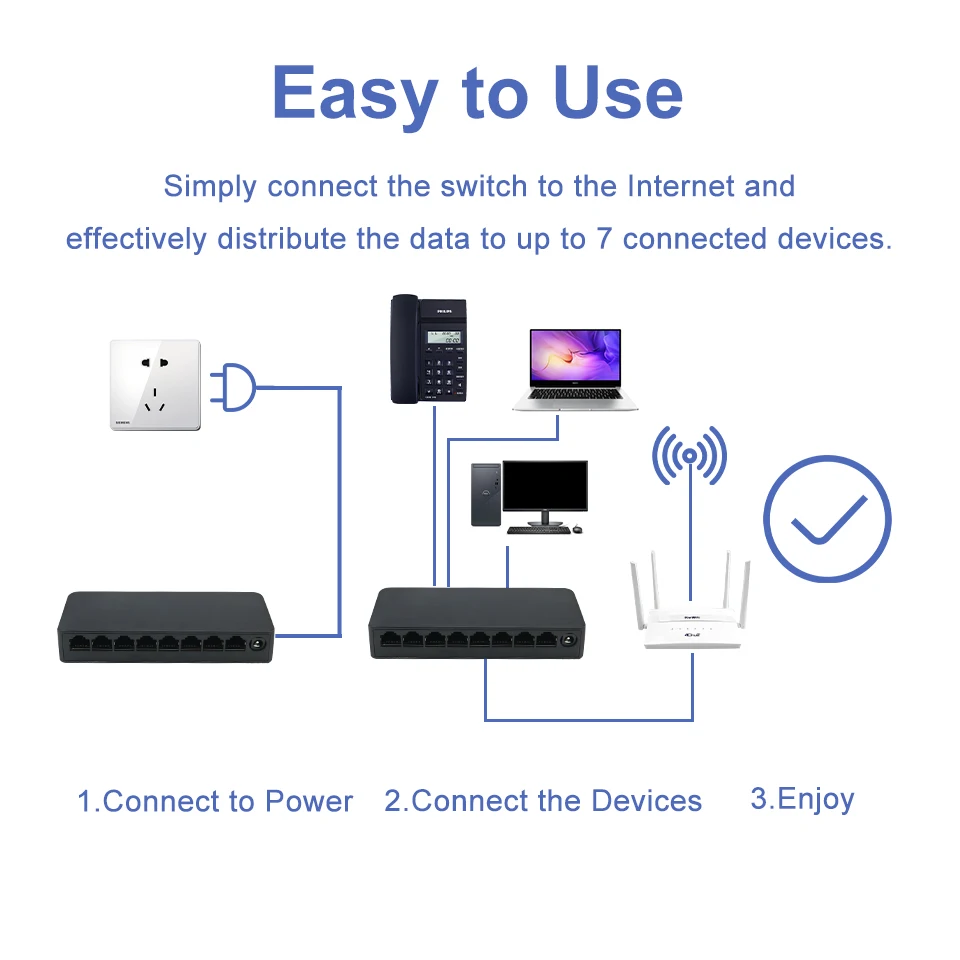

Require no configuration and will instantly operate as soon as you power it up
Use low-power consumption chips,only 2.5W in full load conditions
Specification:
Standards：
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3x Flow control
Ethernet Port：
Connector: RJ45
Data Rate: 10/100M
Distance: 100m
UTP Type: UTP-5E or higher level
Performance：
Processing Type: Store and Forward
Transmission Mode: half/full-duplex with auto-negotiation function
MAC Table Size: 2K
Buffer Space: 448K
Back bandwidth: 1.6G
Time Delay: ＜150μs
Power：
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 1.8W～4W
Environment：
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)

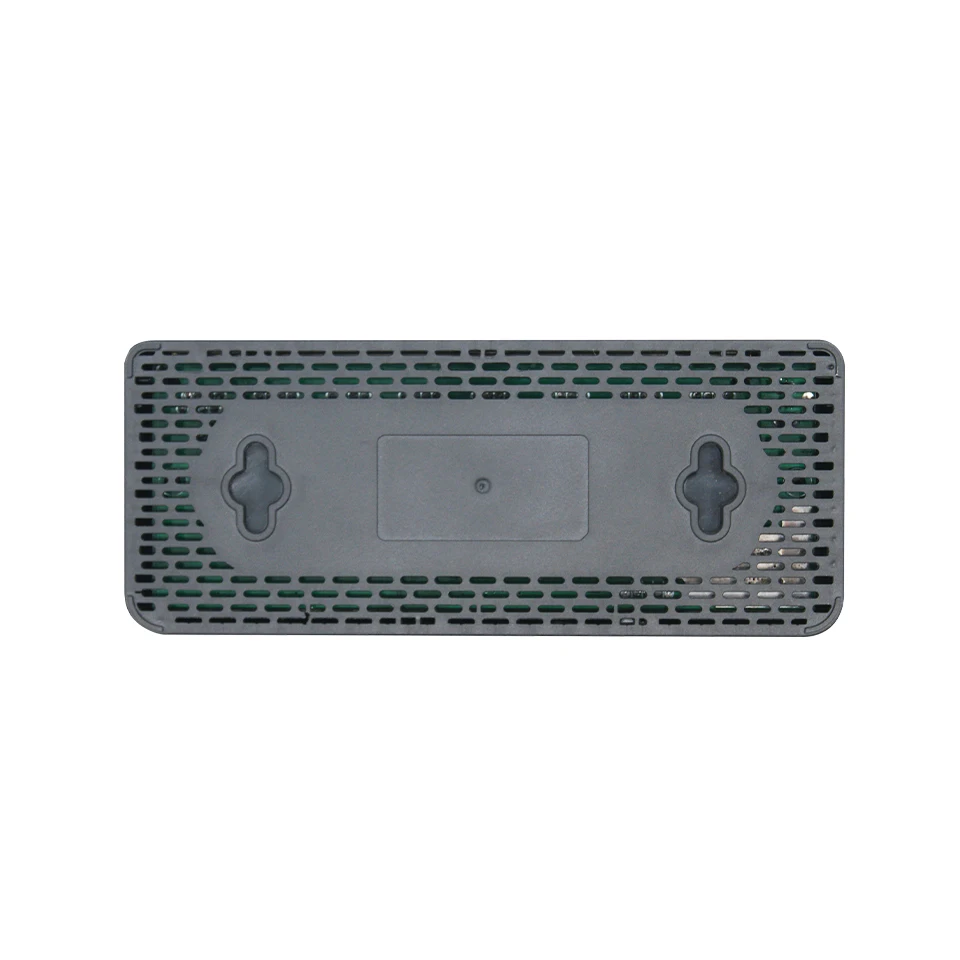

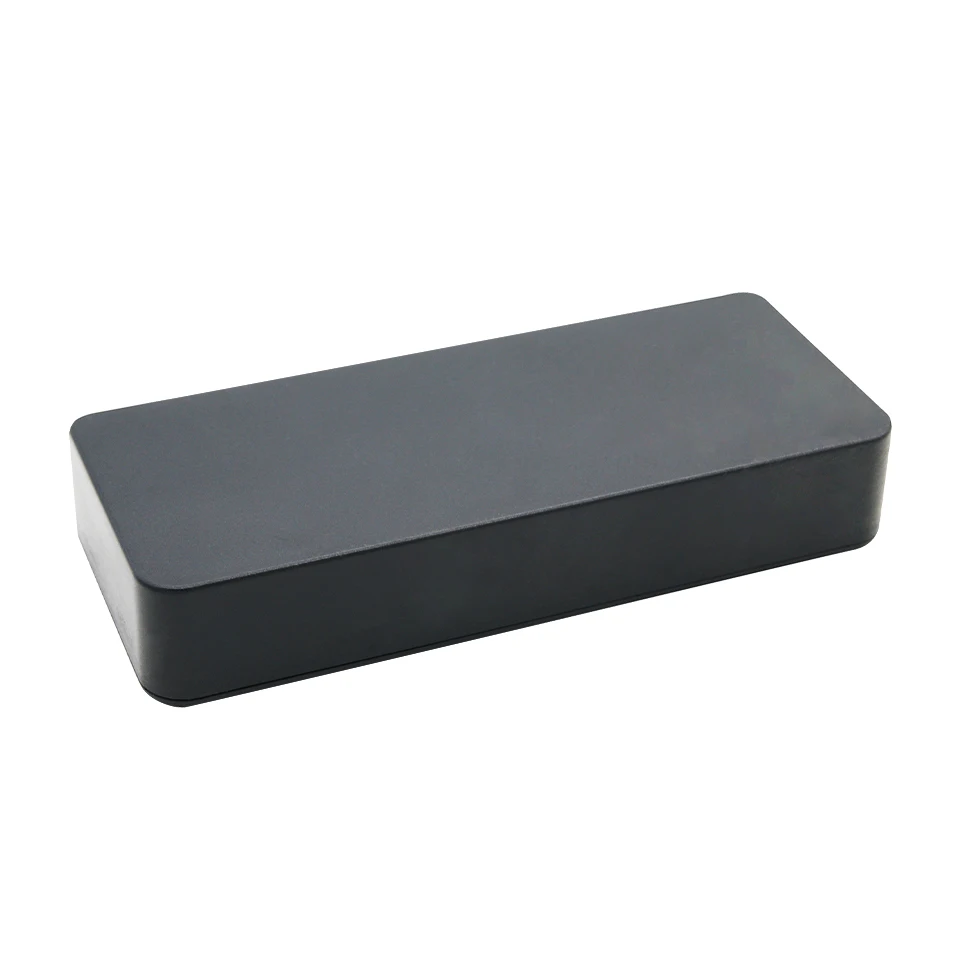

Physical Characteristics：
Dimension: 140×52×28mm
Weight: 0.30kg
Color: Black
