Open Source OpenWRT for better performance ,and the firmware of OS More user-friendly settings. two software web interface can be update .but we will build in OS firmware .
Version-1
4G LTE FDD:B1/B3/B5(2100/1800/850MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia
Version-2
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa
Version-3
4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania
WE3926-US Version
4G LTE FDD:B2/B4/B5/B7/B(1900/1700/850/2600MHZ)
3G WCDMA:B2/B4/B5(1900/1700850MHZ)
Working in USA/CA/Mexico

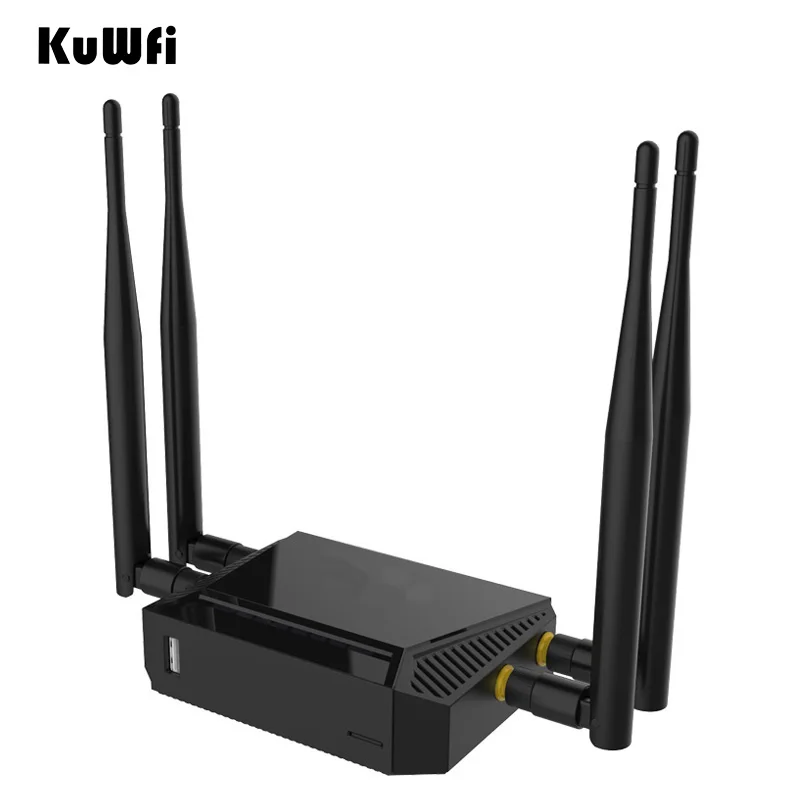

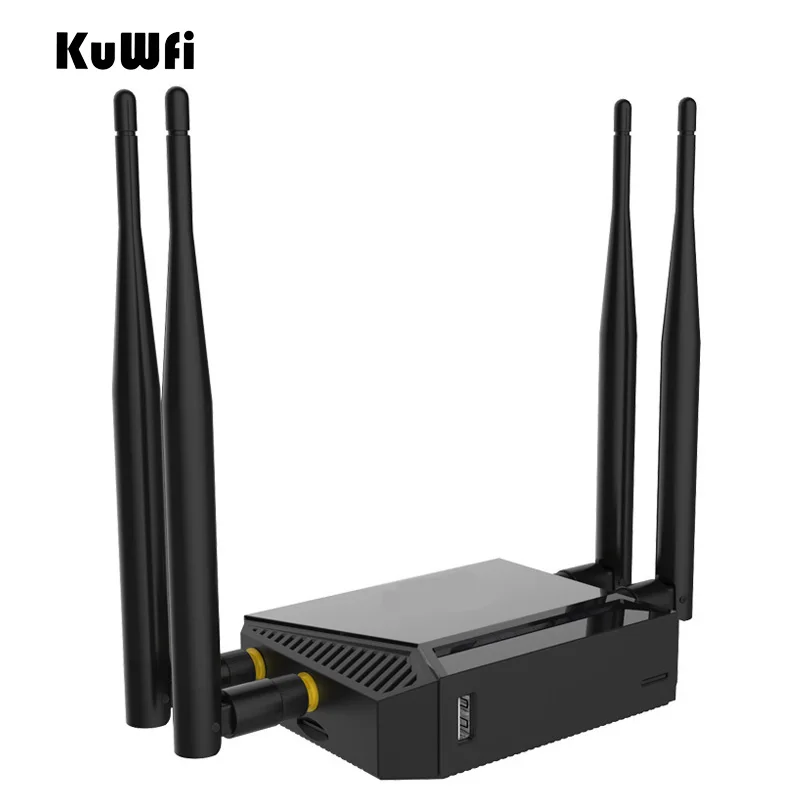

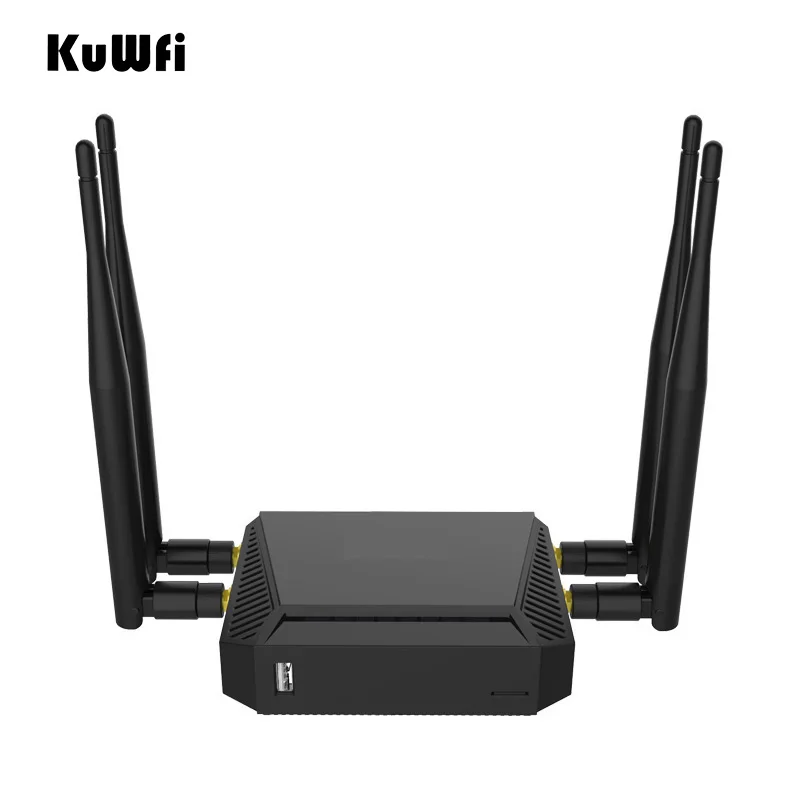

The WE3926 is used new wireless solution, performs better and more functions.
Stable wireless performance, stronger scalability , transmission rate 300Mbps
solution for enterprise, home, company, office’s WiFi networking
Also supports 3G/4G, it could also dial-up via the USB port
OPENWRT firmware
(Suitable for engineer developing, User Interface: not that friendly for end users)

- With MIPS 32 Byte professional networking processor
- 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Port
- with 16MB Flash,128M RAM
- 1000mW high power, 4PCS external 5dBi antenna, longest WiFi coverage in the market.
- With USB 2.0 port, support SAMBA, FTP server and DLNA, it is a wireless router can sharing files
- Suppor wireless AP, WiFi Router multi operation mode to meet with different requirement.
- Support PPPOE, static IP, dynamic IP in gateway operation mode
- Support DDNS, VPN pass through, Port forwarding and DMZ host
- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
- Support SSID broadcasting, multi SSID, VLAN tag and Chinese SSID
- With function of build in firewall, IP filter, URL filter and MAC filter
- With build in DHCP Server, can assign IP address for connected wireless access poin
Hardware
|
Main Chipset
|
MT7620A (580MHz)
|
RAM
|
DDR2 128MB
|
SPI FLASH
|
16MB
|
Protocol
|
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
|
RT Power
|
802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm;
802.11n 15dBm±2dBm;
|
Reception Sensitivity
|
802.11b: -83dBm@10% PER
802.11g:-74dBm@10% PER
802.11n:-68dBm@10% PER
|
Work Channel
|
2.4GHz choose:1-13
|
Wireless Rate
|
Max 300Mbps
|
Work Frequency
|
2.4GHz
|
Antenna
|

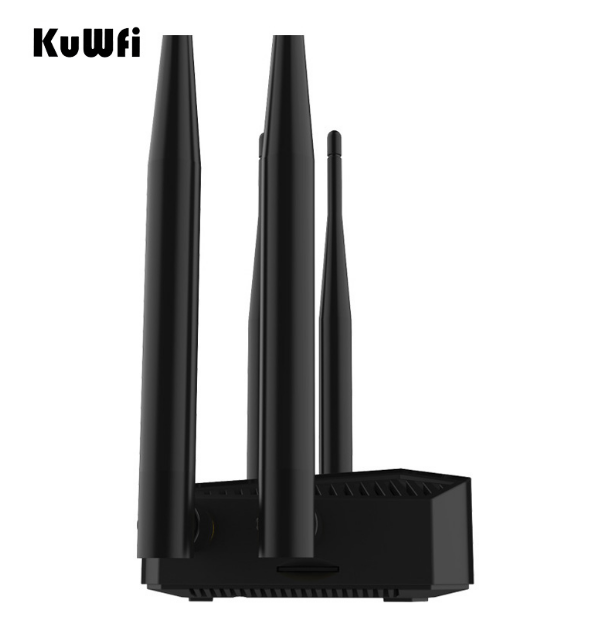

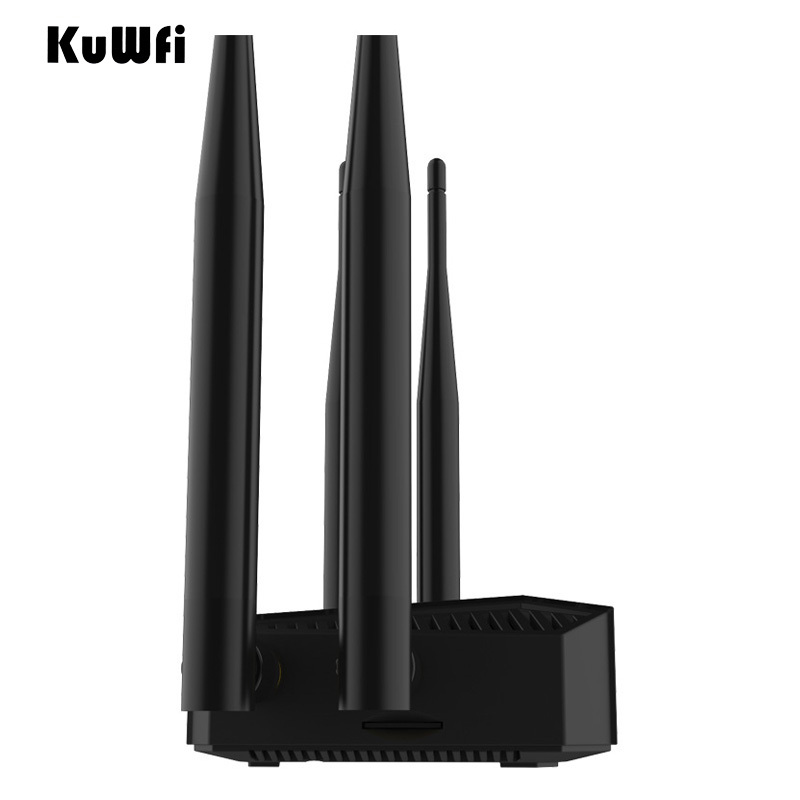

4* removable Omni Directional 5dBi antenna
|
Interface
|
1* PCI-E slot
1 *SIM card slot
1 *USB 2.0 port
1 *Micro SD card slot

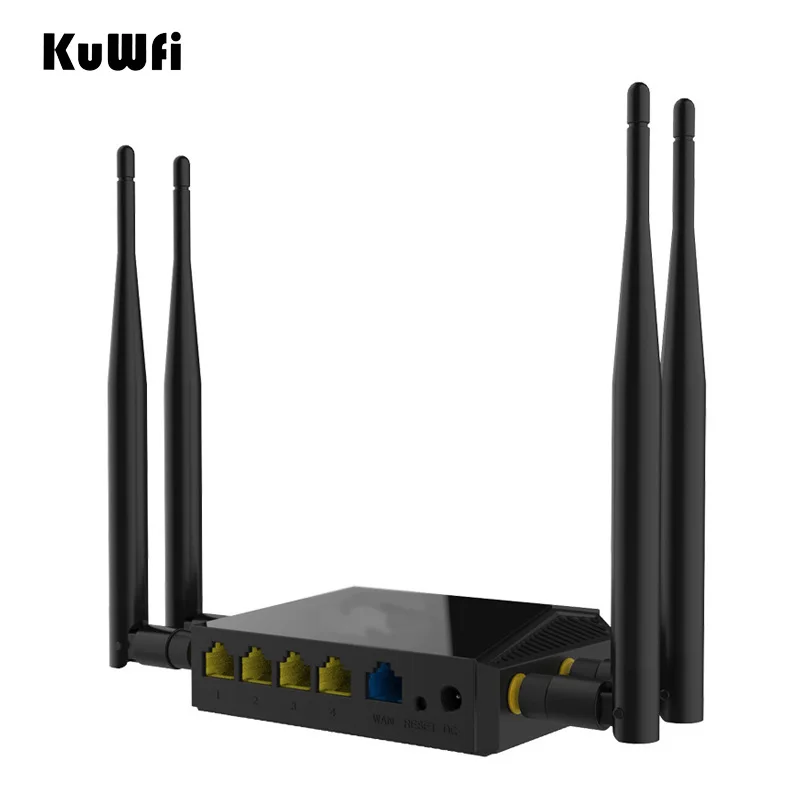

1 *10/100M WAN port(Auto MDI/MDIX)
4 *10/100M LAN port(Auto MDI/MDIX)
|
LED
|
Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
|
Button
|
Reset Button
|
Max Power consumption
|
< 12W
|
Dimension(L*W*H)
|
141*85*26MM
|
Software
|
WAN Type
|
PPPoE,Dynamic IP, Static IP
|
Work Mode
|
AP;Router;
|
DHCP
|
Server, Client, DHCP Client List, Address Reservation
|
Port Forwarding
|
Virtual Server, Port Triggering, UPnP, DMZ
|
Firewall Security
|
Dos, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
|
DDNS
|
Support
|
VPN Pass-Through
|
PPTP, L2TP, IPSec (ESP Head)
|
Band Ctrl
|
Support
|
Static Router
|
Support
|
System Log
|
Support
|
Other Function
|
Mac clone
NTP Synchronize
Web firmware upgrade
|
Others
|
Work Environments
|
Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;
Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
|
Adapter
|
12V 1A
|
Package contents:
1*Wireless Router
1*DC adapter
1* A4 paper user manual
