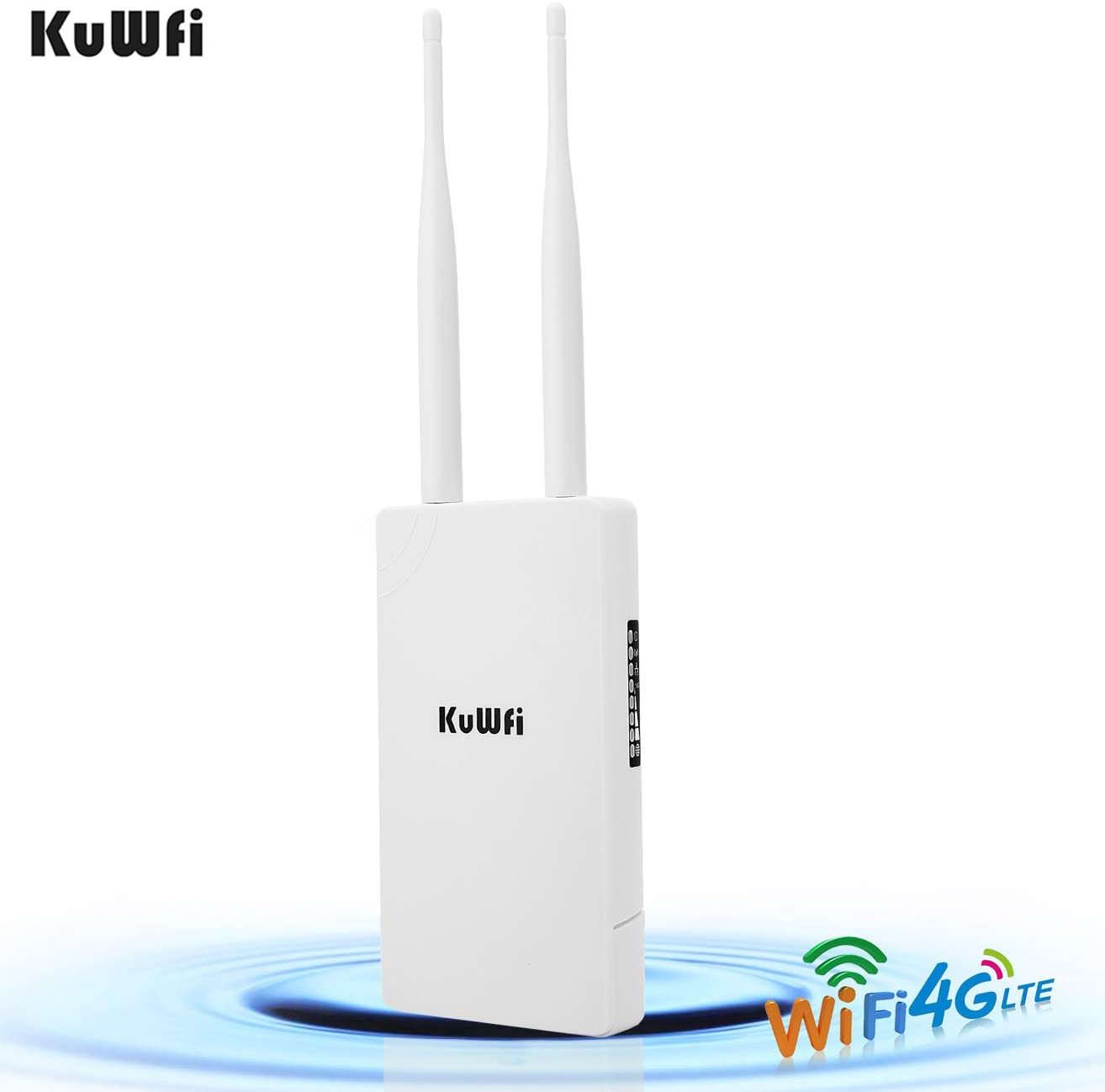

KuWFi CPF905 offers secure internet sharing service to multiple terminal users. WiFi devices(Smart phones. Tablets, PCs) can get access to internet through this device,enioy 4G/3G/2G high speed services. The connection process depends on the system of eachWiFi device, please follow the prompting messages.
Features
- HW_VER:CPF905-V1.0
- MTK Chipset:MT6735WM
- Wi-Fi Chipset:MT6625L
- RAM/ROM:4GByte EMMC+512MByte DDR2
- Wi-Fi:IEEE 802.11b/g/n
- Wi-Fi Transfer rate:UP to 150Mbps
- Encryption:Wi-Fi Protected Access (WPA/WPA2)2
- Soft SIM:esim or softsim
- Customization:Smart system,high-level;Customization possibility

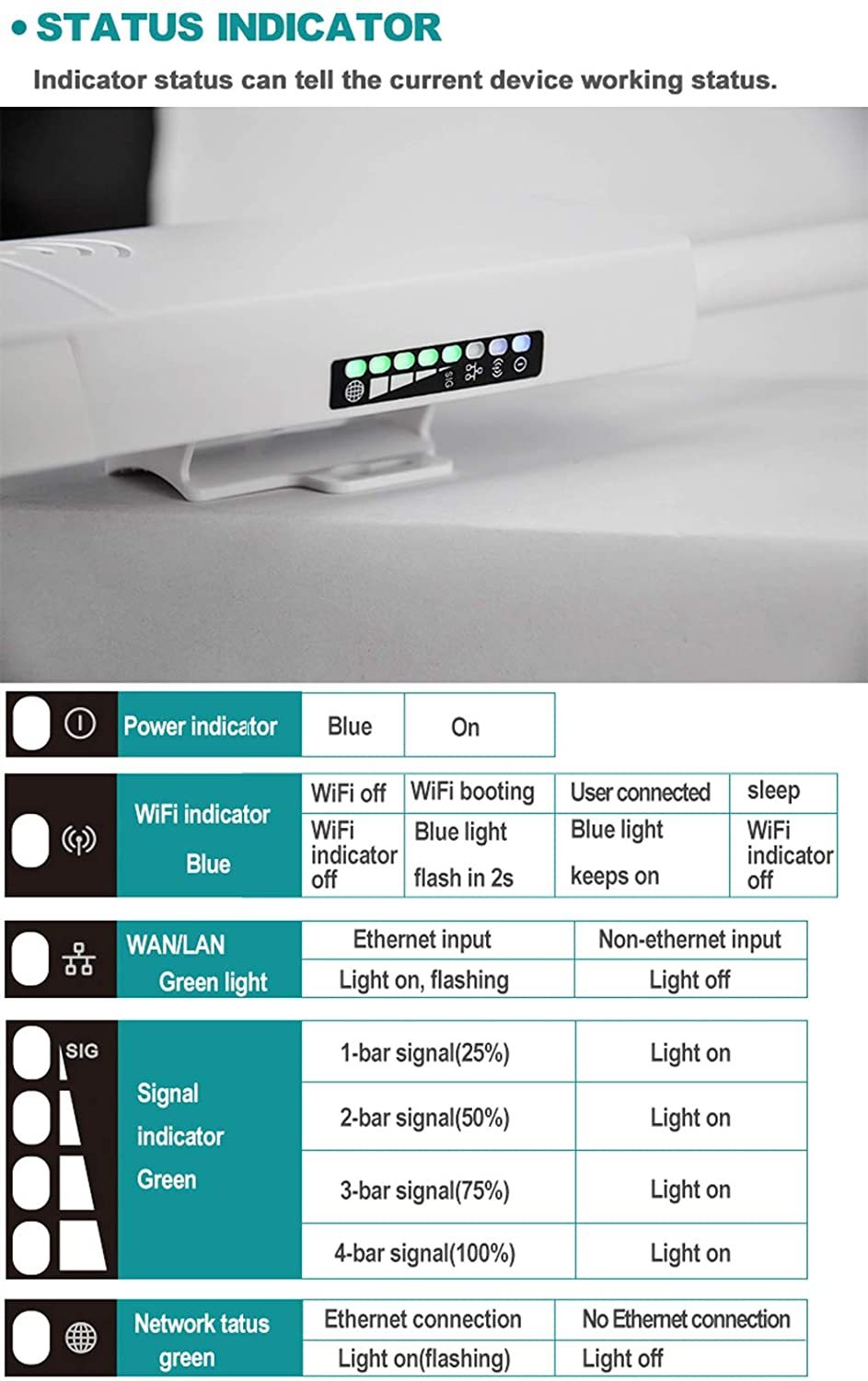

- LED:LED indicator
Support frequency Band (NOT support USA)
- FDD operating band:B1,B3,B7,B8,B20
- TDD operating band:B38,B39,B40,B41
- WCDMA:B1,B8
- GSM:900/1800MhZ
- EVDO BC0
Internet
- Wi-Fi:Wi-Fi AP Max 10 users
- SSID:4G-CPE-XXXX(last 4 digits of IMEI)
- WiFi password by default:1234567890
Operation system
- PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8
- MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later
- IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later
- Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later
NOTE
Any problem, please contact the seller first, you will get help,thanks
|
|
|
---|---|---|
High Speed 4G WiFi AntennasTransfer rate - up to 150Mbps DL - up to 50Mbps UL - HSDPA up to 42.2Mbps DL - HSUPA up to 11.5Mbps UL - 3.1Mbps DL |
Waterproof Outdoor CPE RouterIP 66 WATERPROOF - IP 66 waterproof case - Anti-UV - Corrosion resistant - Suitable for outdoor installation Operating Environment - Working temperature: -20° to 75°C - Working height:Current tested max height 3000m (10,000 inches) |

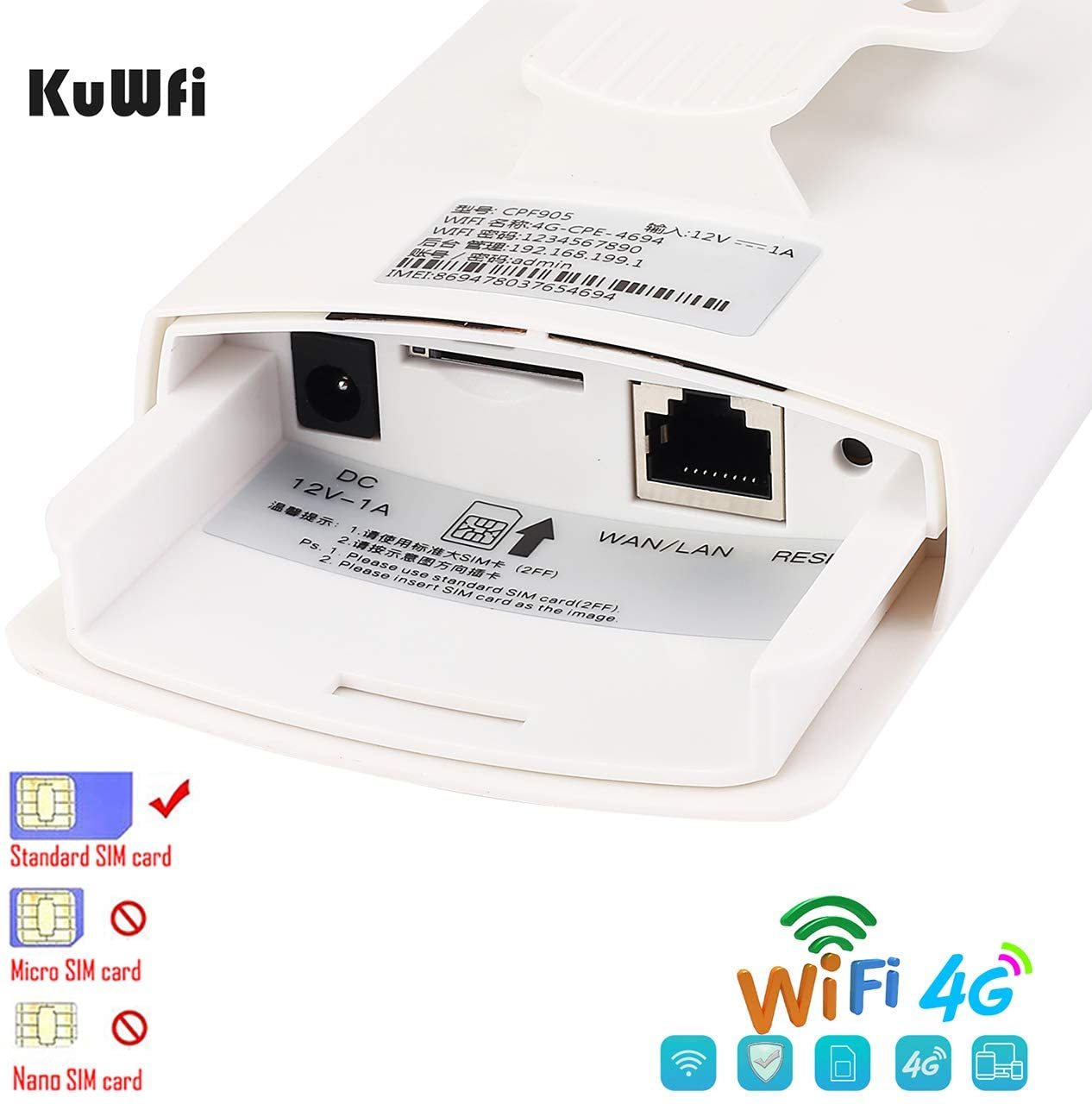

External PortsExternal Ports - SIM:2FF Standard SIM Card(SIM card is NOT including) - USB:USB TYPE A (5V 1A IN) - DC:12V 1A IN - RJ45:1* WAN/LAN |
Professional chipset, supports CAT 4, much faster than CAT 3 Better signal receiving Lower heating, longer battery life, let users experience the network freely

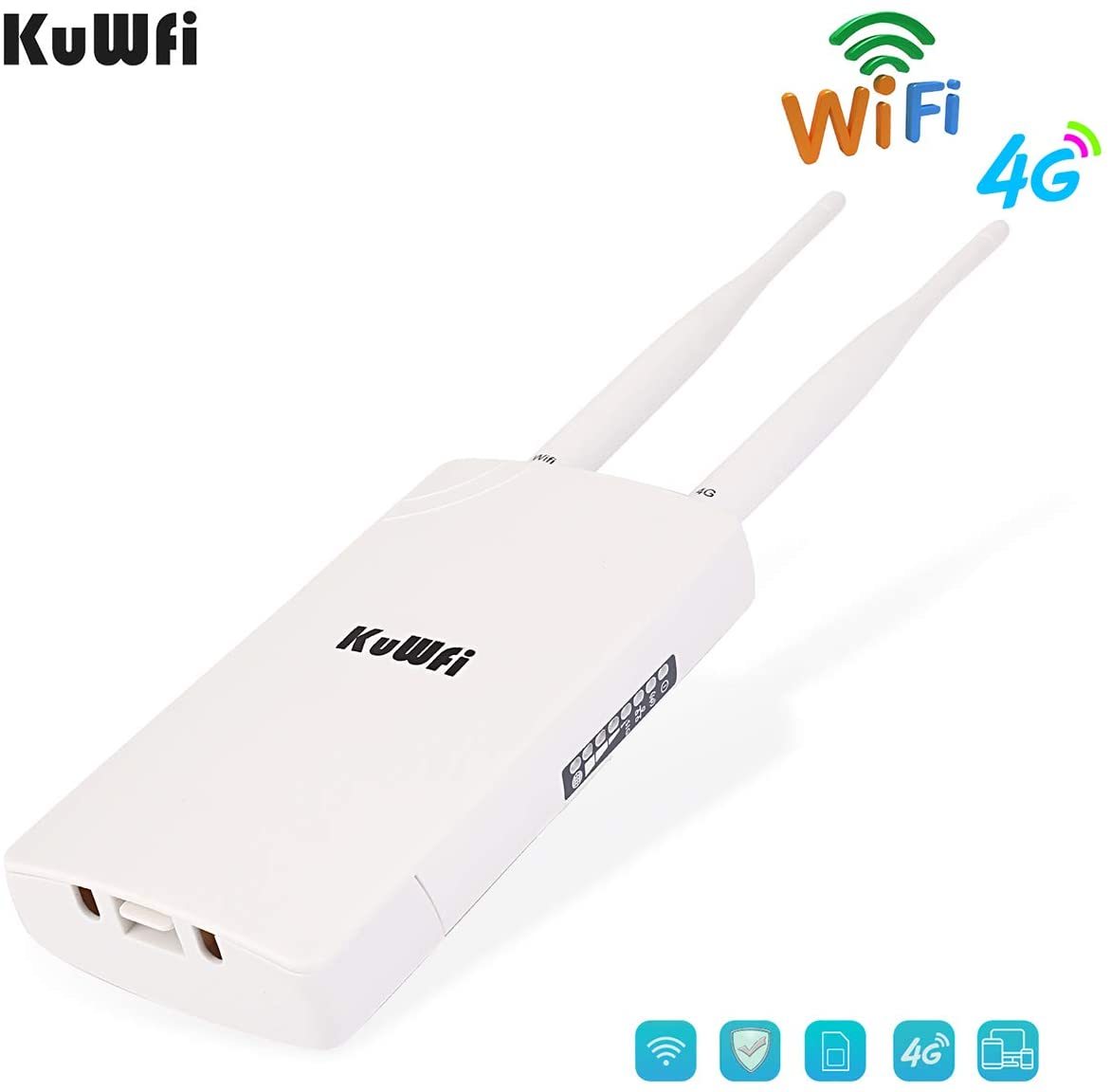

Streamline case, simple and elegant

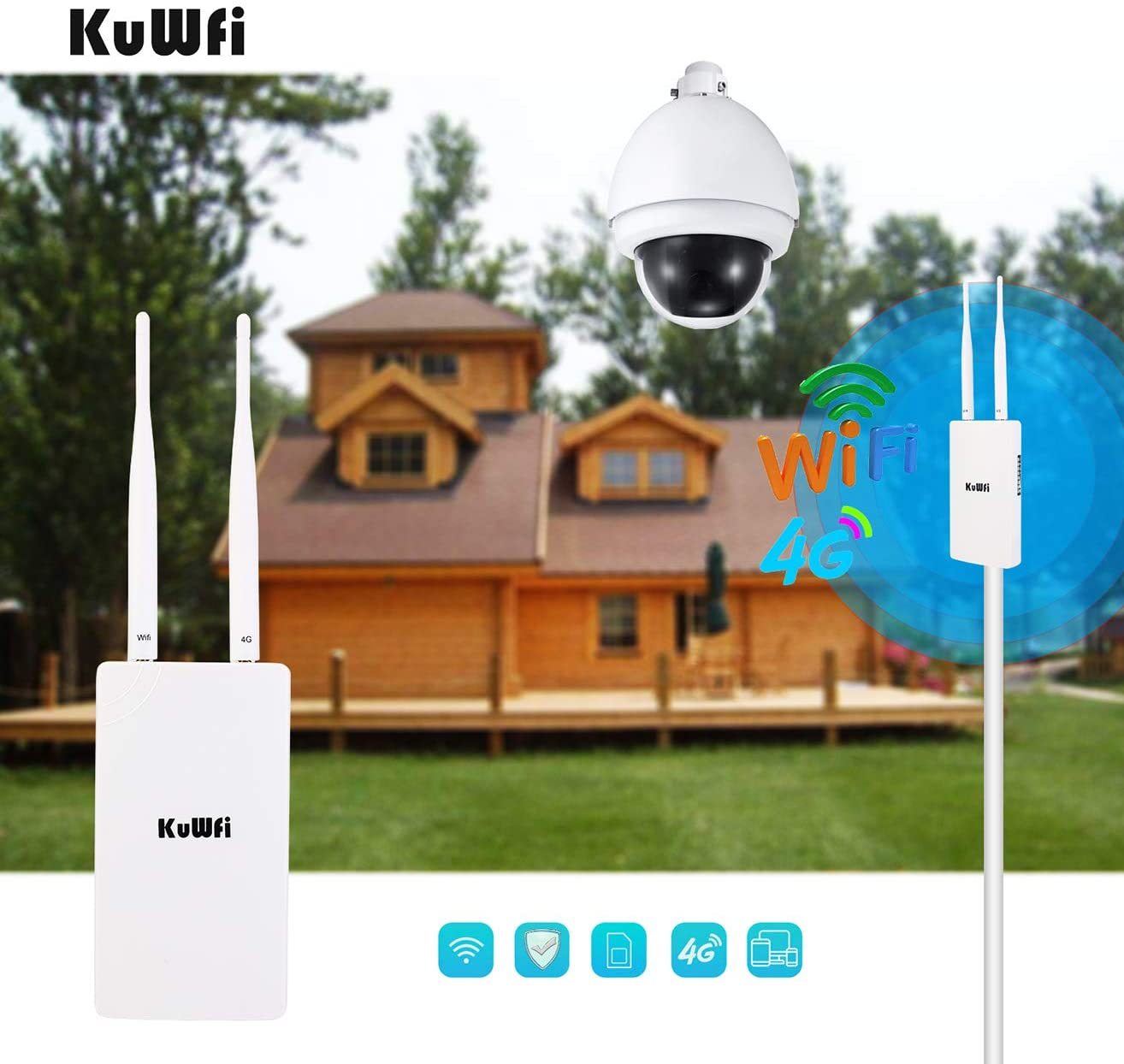

Outdoor installation, avoid the wiring
Multiple methods of installation
Quick installation in multiple environments

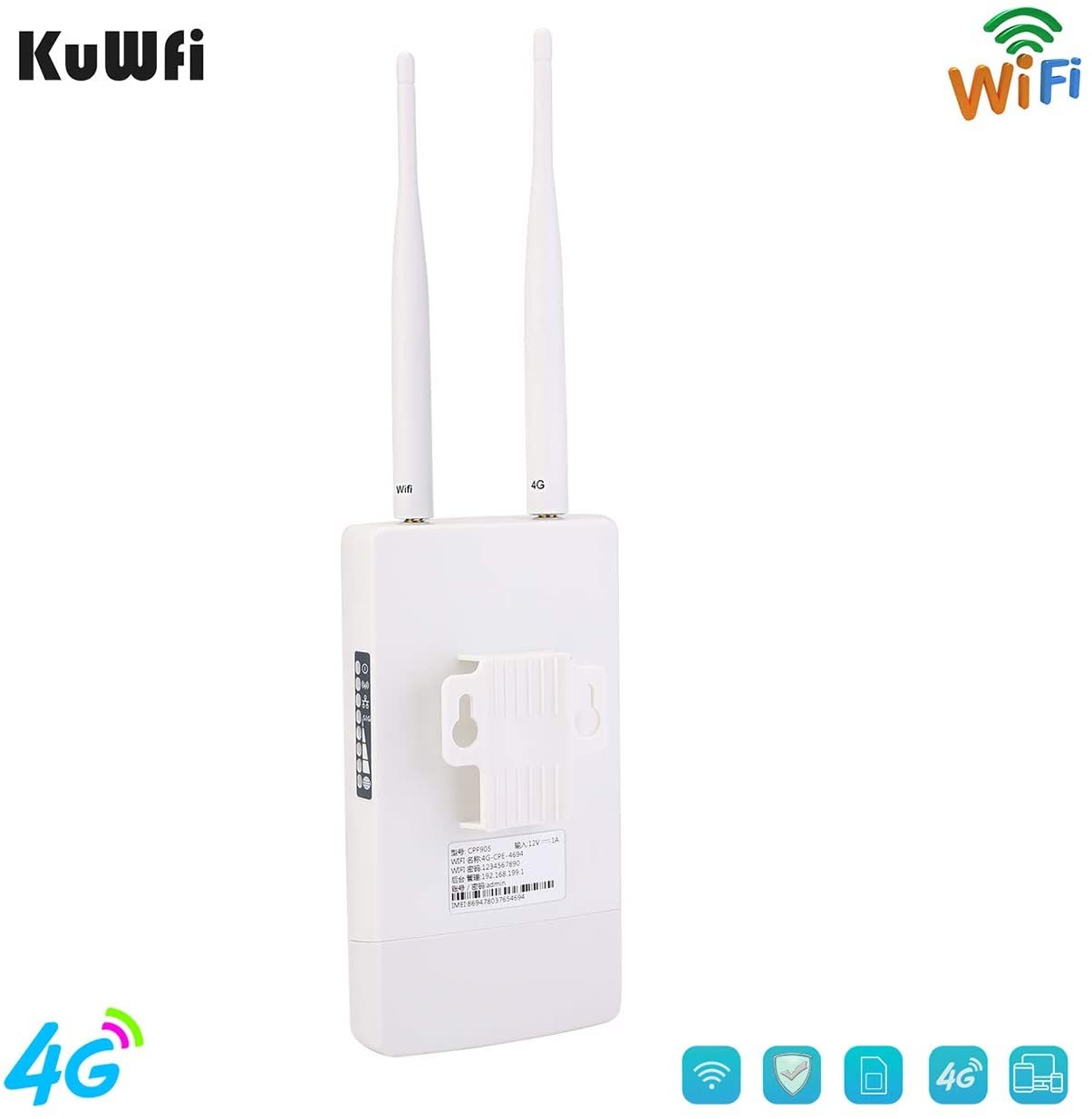

Wall-hanging or Pole-mounting
Easy and convenient installation
|
|
|
---|---|---|
1Press mount E, remove the cover C, insert SIM card And plug ethernet cable power cable according to the sign Close the cover |
2Use the metal strap, go from A to C through the mounting hole Adjust the size according to the pole size |
3Mount the device on the pole, tighten the strap by screwdrivers or pliers |
