FAQ:
Q1: i can not log in web ui page for the router?

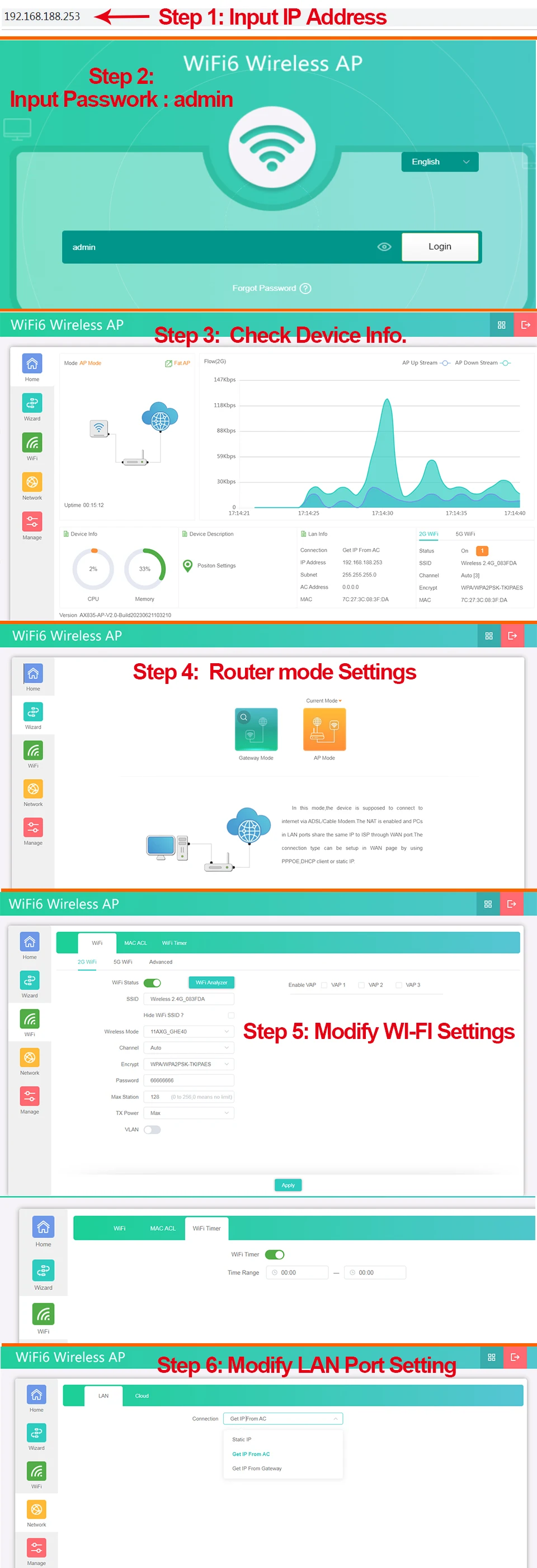

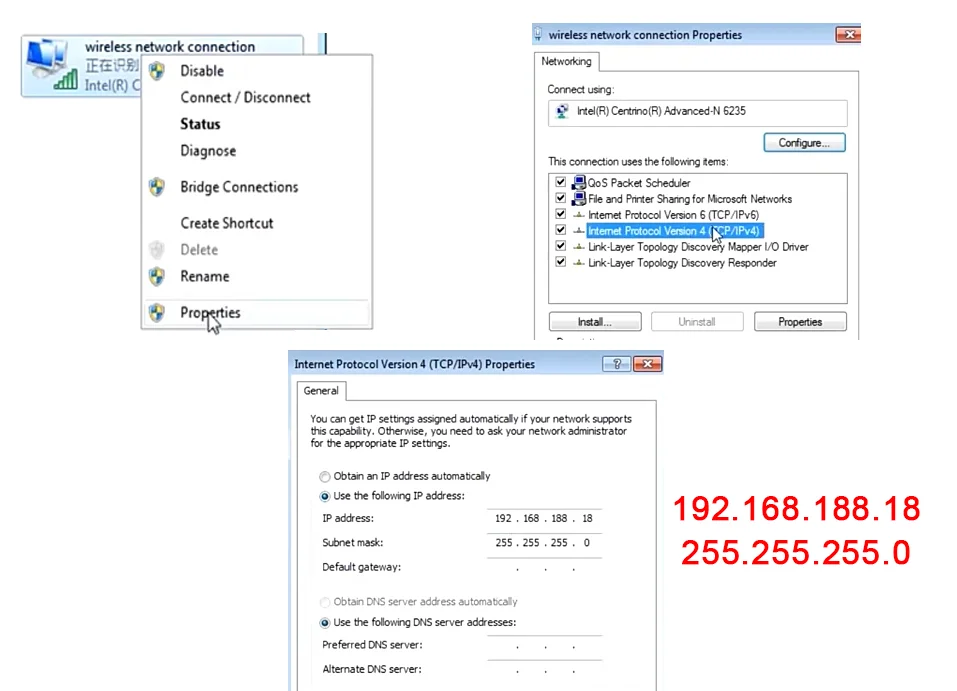

A1: If you need to manage the router, you can use a computer wired connect or smartphone wifi connect to the router.Then set a static IP address for the network to access the WEB UI page.
you can set static ip address type 192.168.188.10 and Subnet mask type 255.255.255.0.And then you can log in web ui page 192.168.188.253 in browser.
Since the static IP address is set only to change the router settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.
Q2: Wifi signal transmission distance is short?
A2: 2.4Ghz Wifi has strong penetration and can transmit over longer distances, but is slower. 5Ghz Wifi has weak penetration, but is fast at close distances. Please avoid walls if you can, so whatever router encounters a wall will weaken the Wifi signal.
Q3: The router Wi-Fi signal is weak or the transmission distance is short?

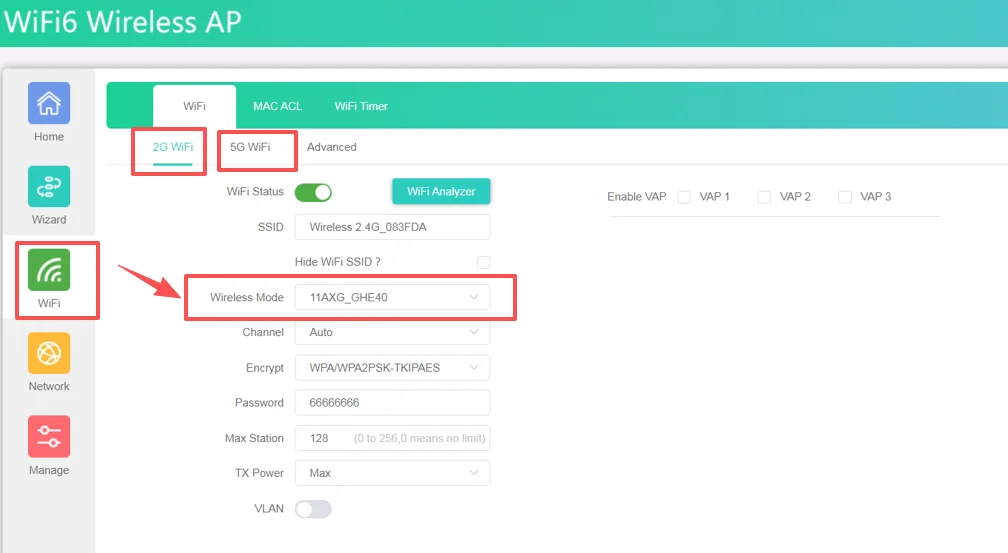

A3: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.
Product Introduction:

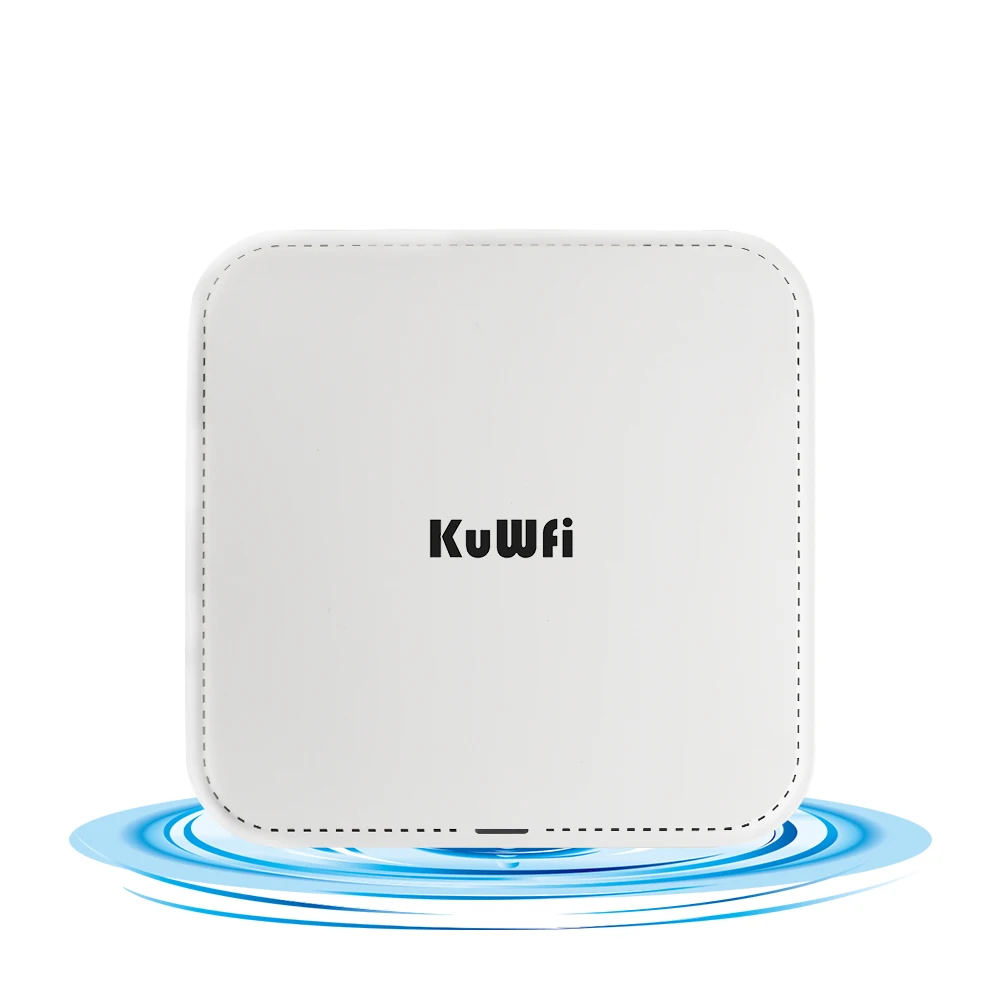

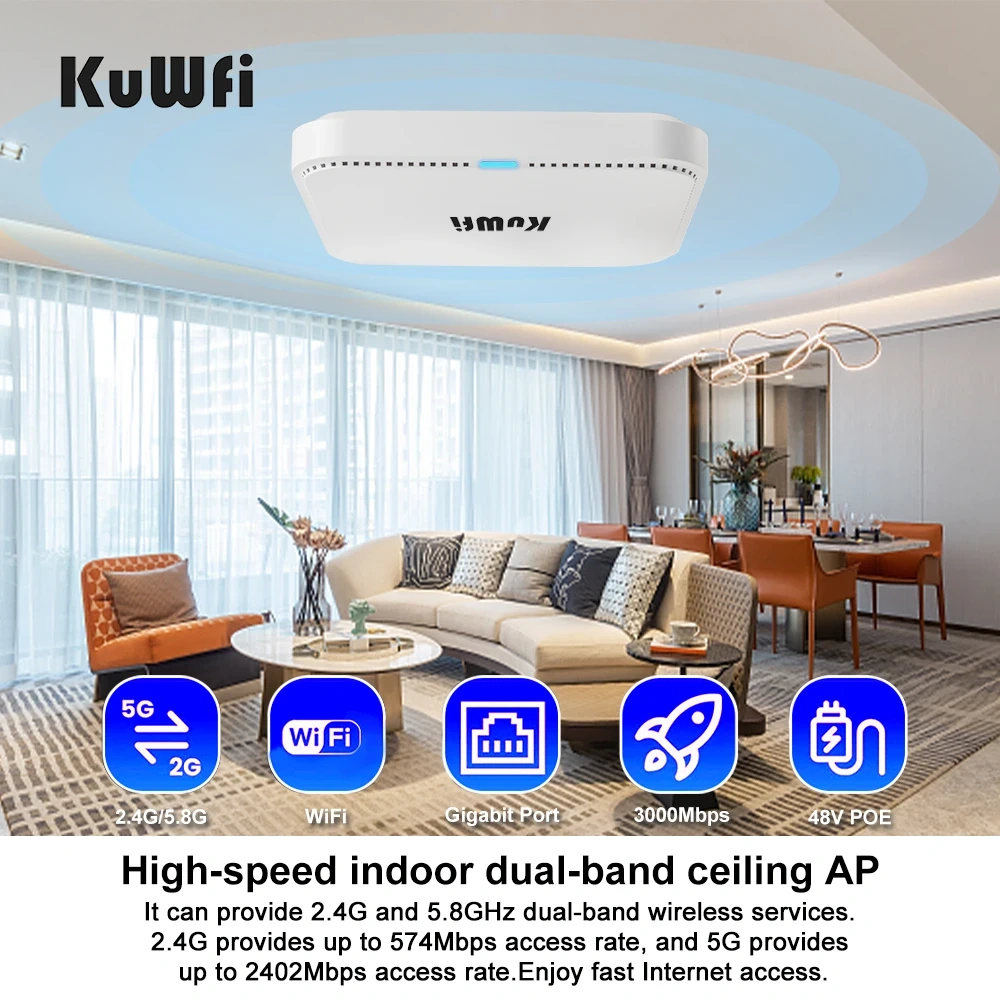

AX835 is a high-performance, high-speed 11ax indoor dual-band ceiling AP Router that can provide 2.4G and 5.8GHz dual-band wireless services. 2.4G provides up to 574Mbps access rate, and 5G provides up to 2402Mbps access rate.And the router with gigabit WAN LAN RJ45 network port.

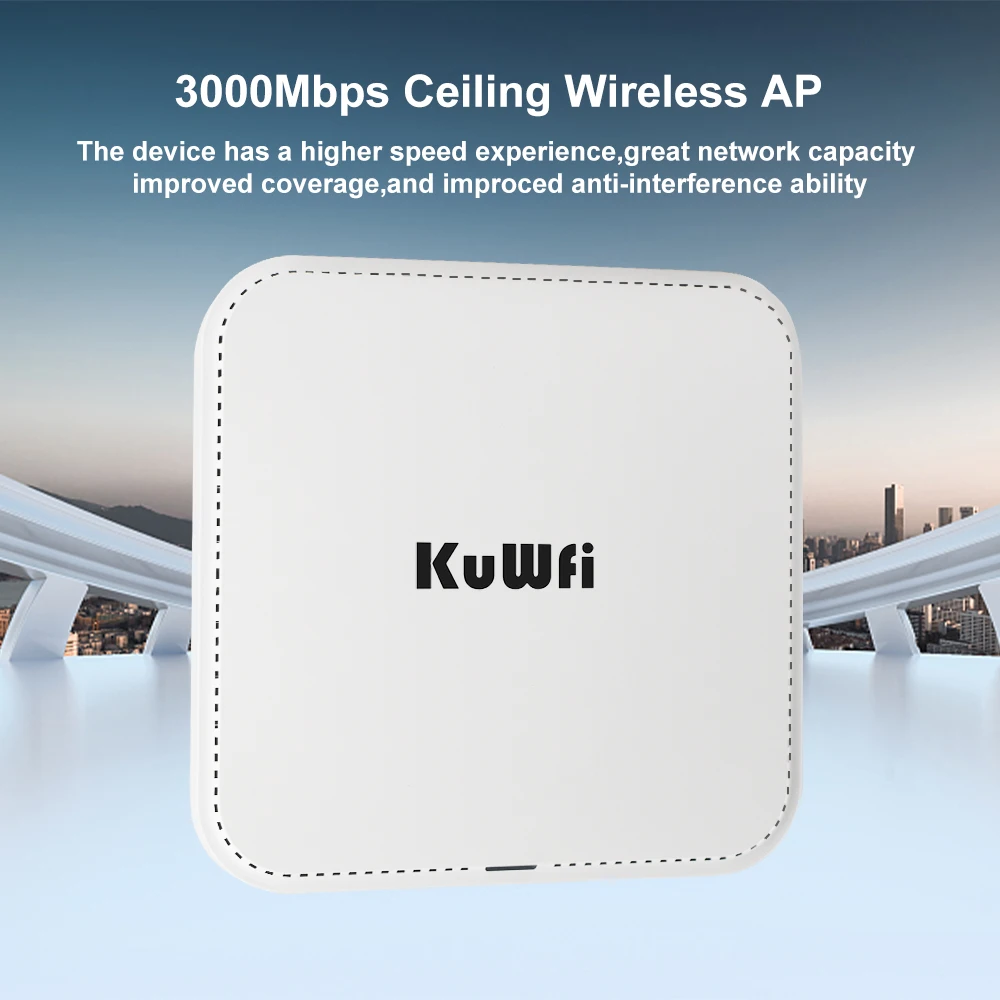

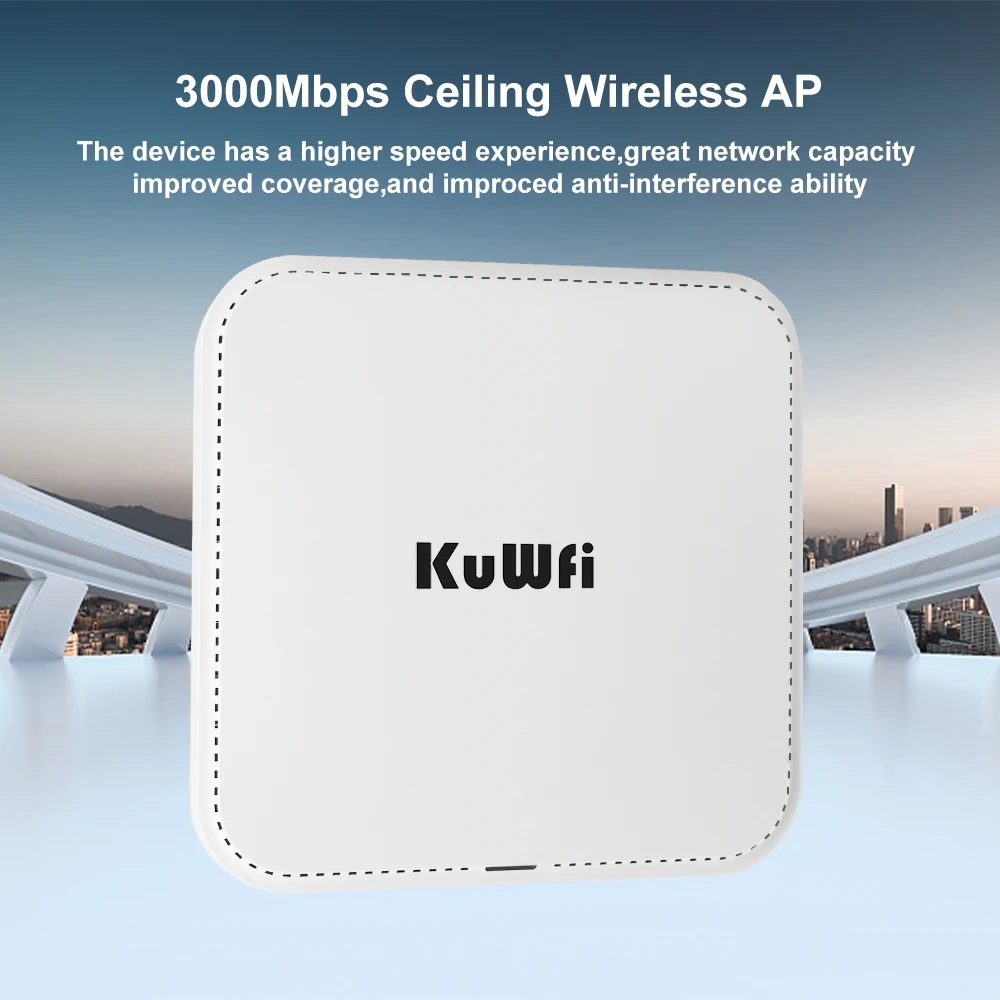

This is an enterprise-grade ceiling wireless AP with PoE and high gain antennas, ensure a stable connection in indoor high-density wireless coverage environment.
Main Features:
1.3000Mbps Dual Band Ceiling AP Router

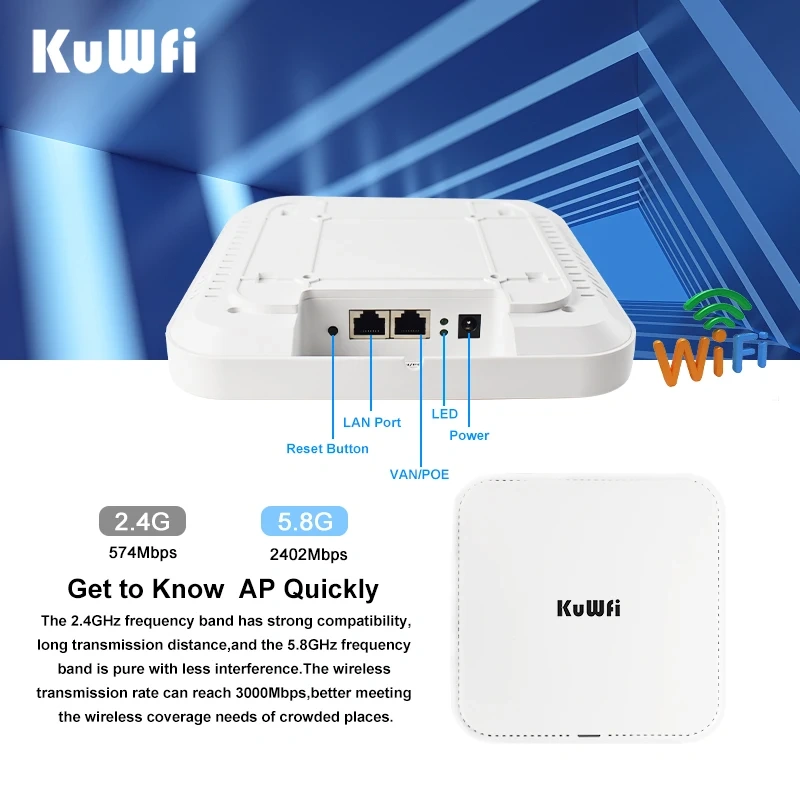

The Router provide 2.4G and 5.8GHz dual-band wireless services. 2.4G provides up to 574Mbps access rate, and 5G provides up to 2402Mbps access rate.Transmission speed is very fast, suitable for enterprise, home, school and other places.
2.With Gigabit Port

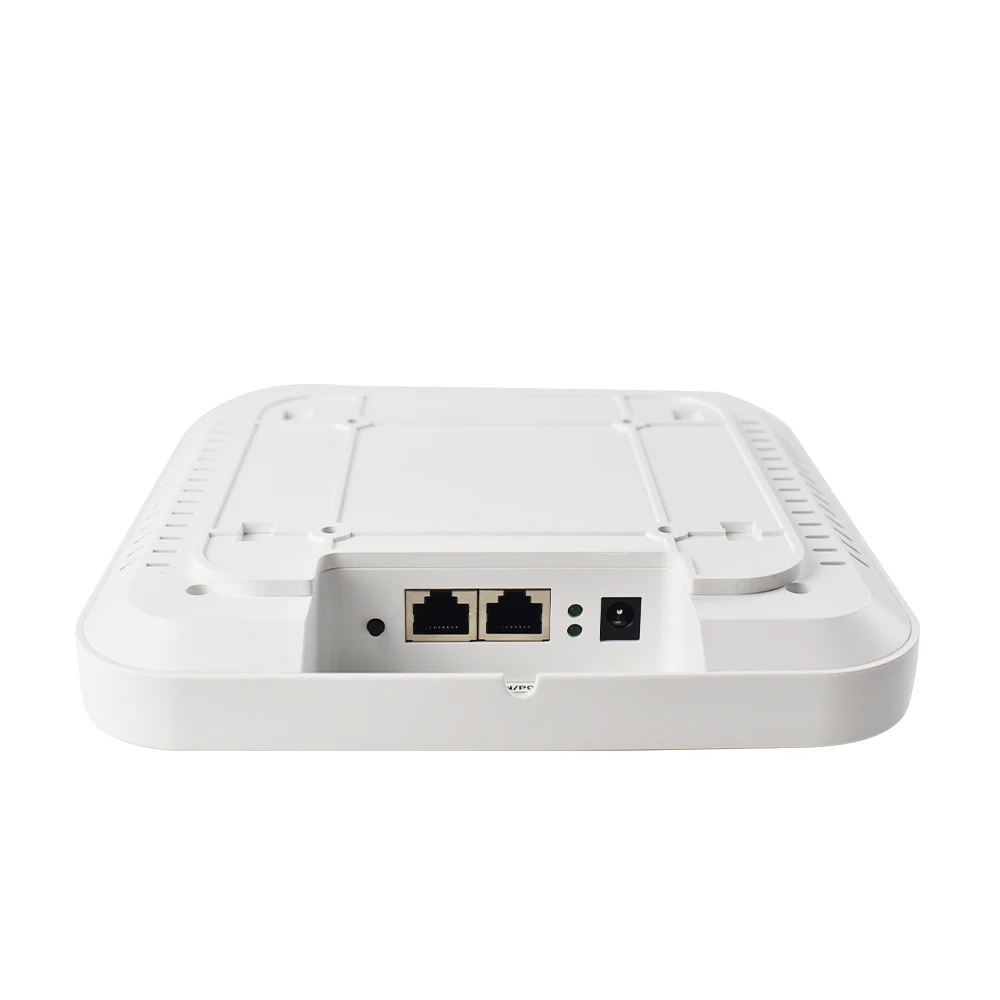

The Router provide gigabit WAN LAN network port, and can enjoy high-speed network when connecting to PC, laptops and other devices.
3.Built-in antenna
High RF power and high gain built-in antennas design significantly enhance the stability of wireless signal and extends wireless range to reduce dead spots.
4.Supports two power supply modes

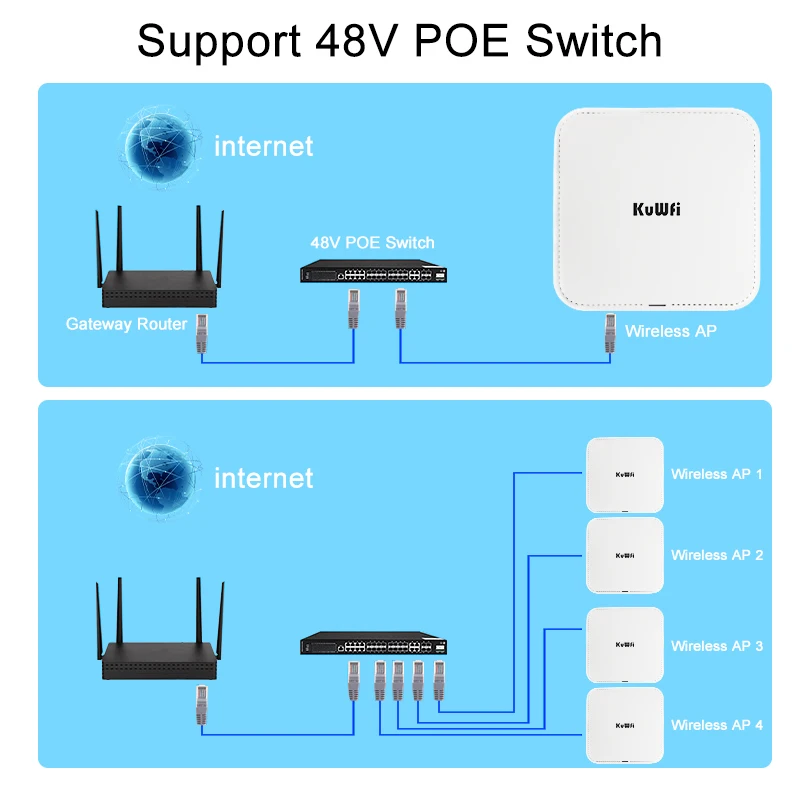

This router support 48V POE switches and use network cable to power the device.In addition, DC 12V power supply can be used to power the router(package does not include DC power).To cope with a variety of different use cases.
5.Support Max 64 Users
The Router support user quantity limited, Max 64 users to access each band,share the Internet with your family, friends, and colleagues. Ideal for smart home devices.
Specification:

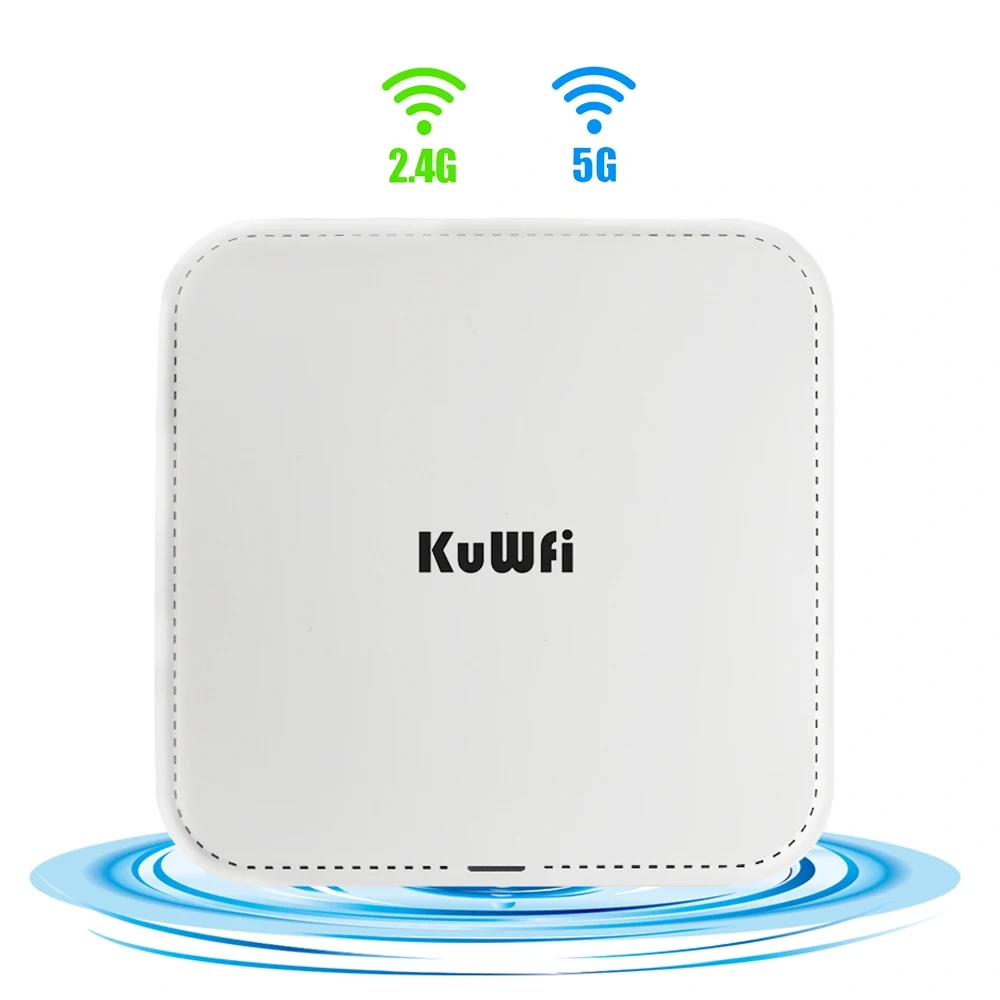

Model: AX835 Ceiling AP Router
Dual WiFi Total Rate: up to 3000Mbps
2.4G Wireless data rate: up to 574Mbps
5.8G Wireless data rate: up to 2402Mbps
2.4G Frequency: 2.4GHz ~ 2.484GHz
2.4G WIFI protocol: 802.11 b/g/n/ax
5.8G Frequency: 5.150GHz～5.850GHz
5G WIFI protocol: 802.11 a/n/ac/ax
WAN Port: 10/100/1000M,Support 48V POE
LAN Port: 10/100/1000M

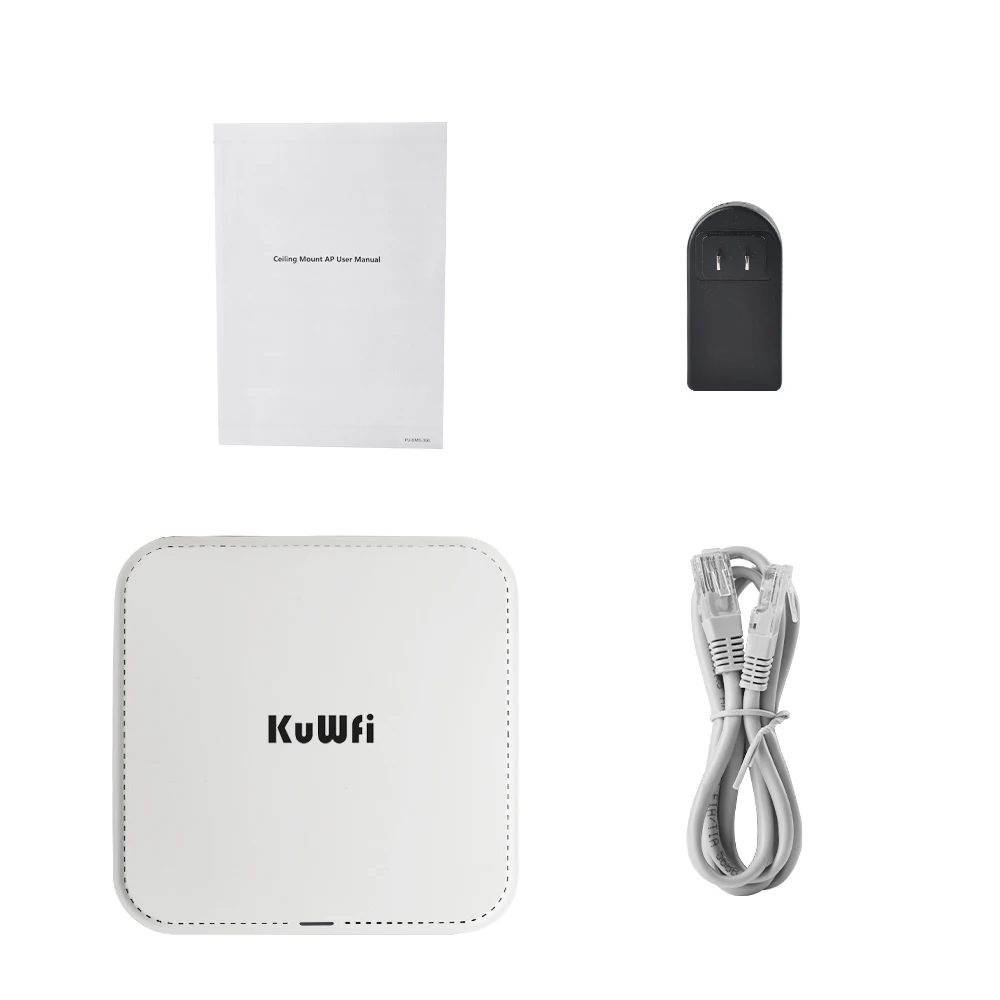

Package Included:
1x AX835 Ceiling AP Router
1x 48V POE Power adapter
1x Ethernet LAN Cable
1x User Manual
