Product Description
1.48v PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
2.100/1000mbps switch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices
3. PoE 48V switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
4. PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Product Detail

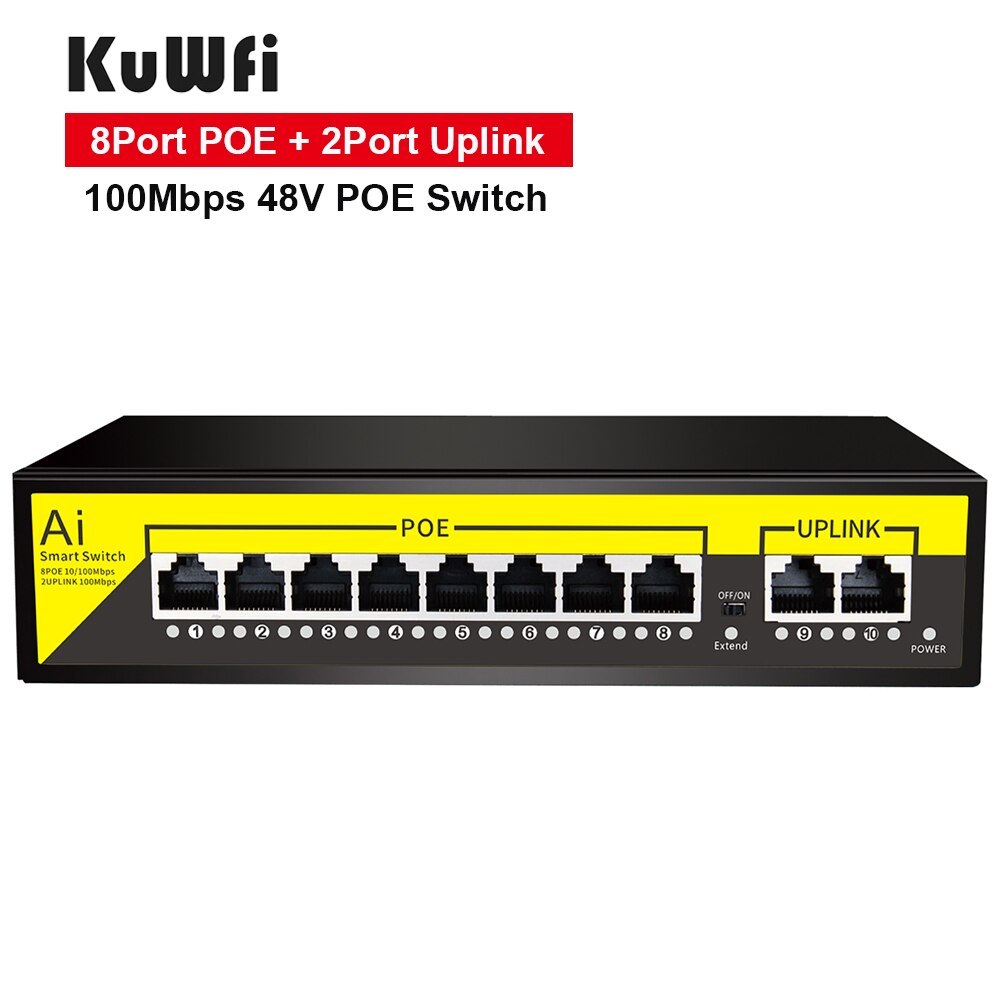

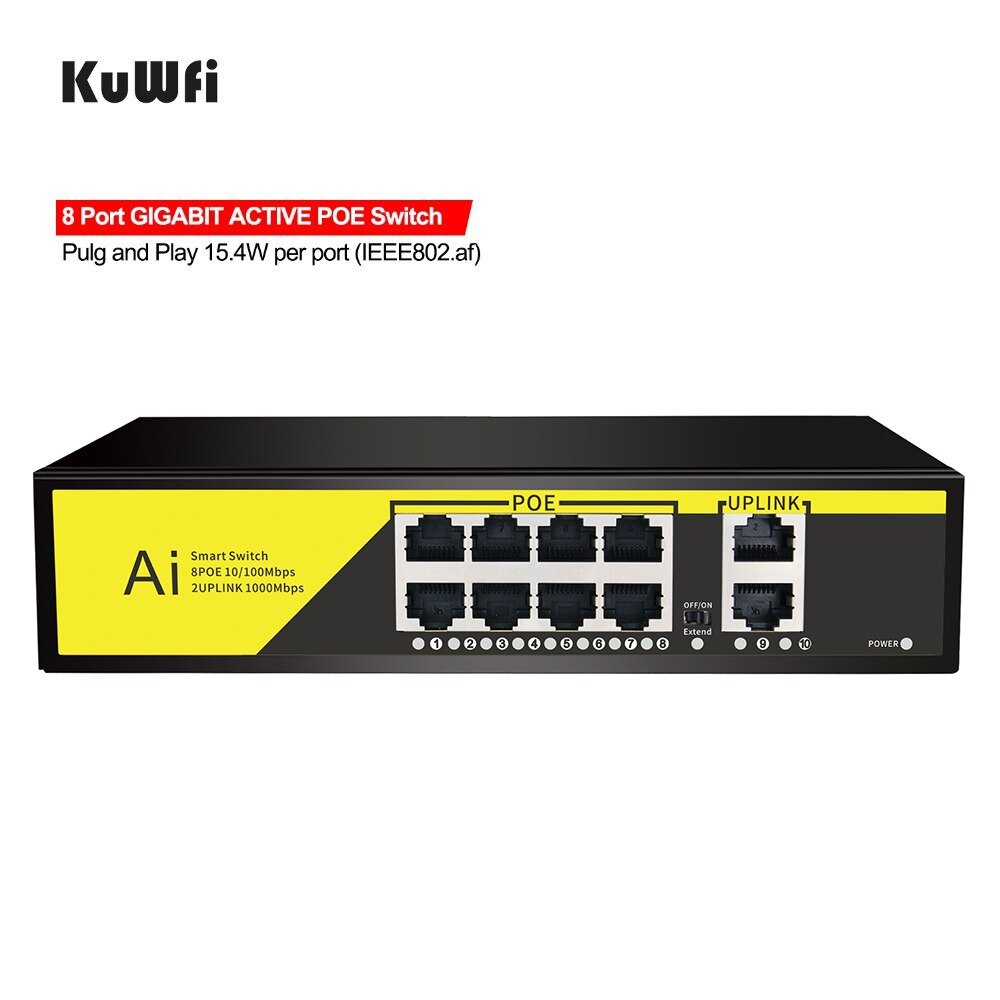

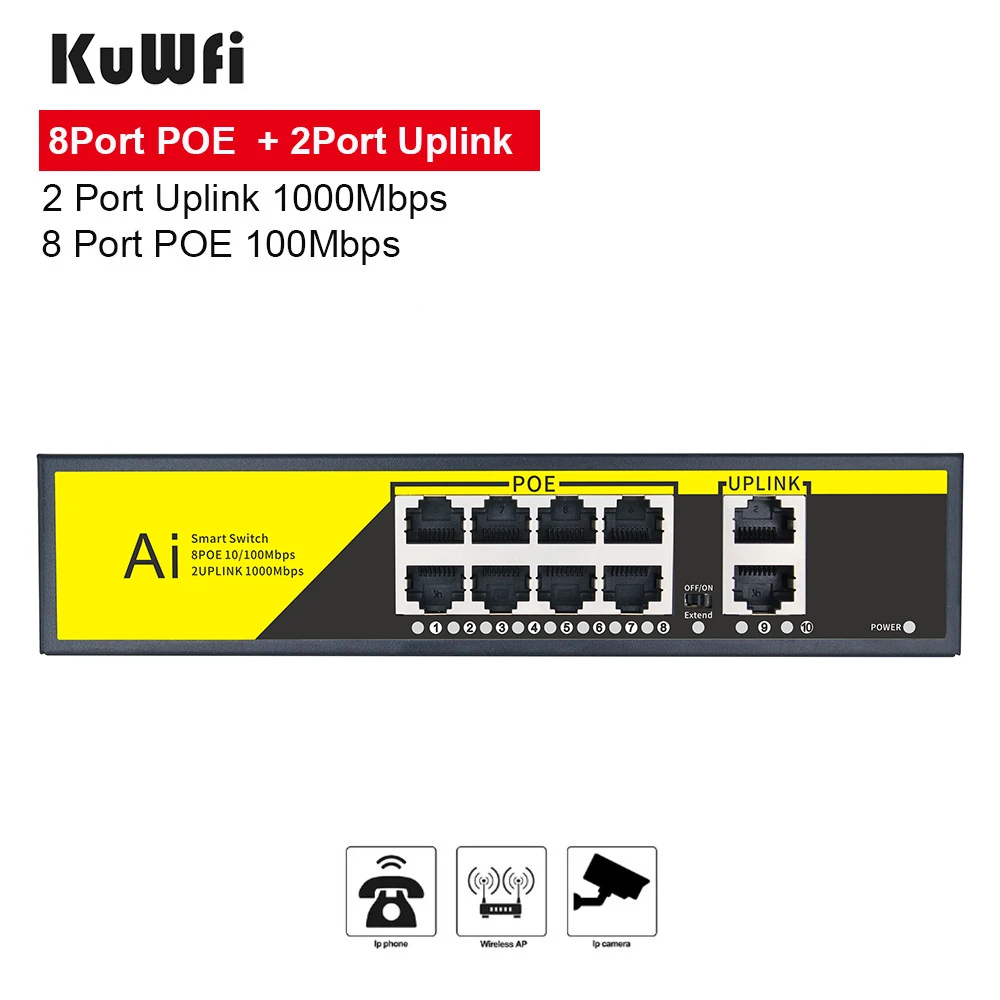

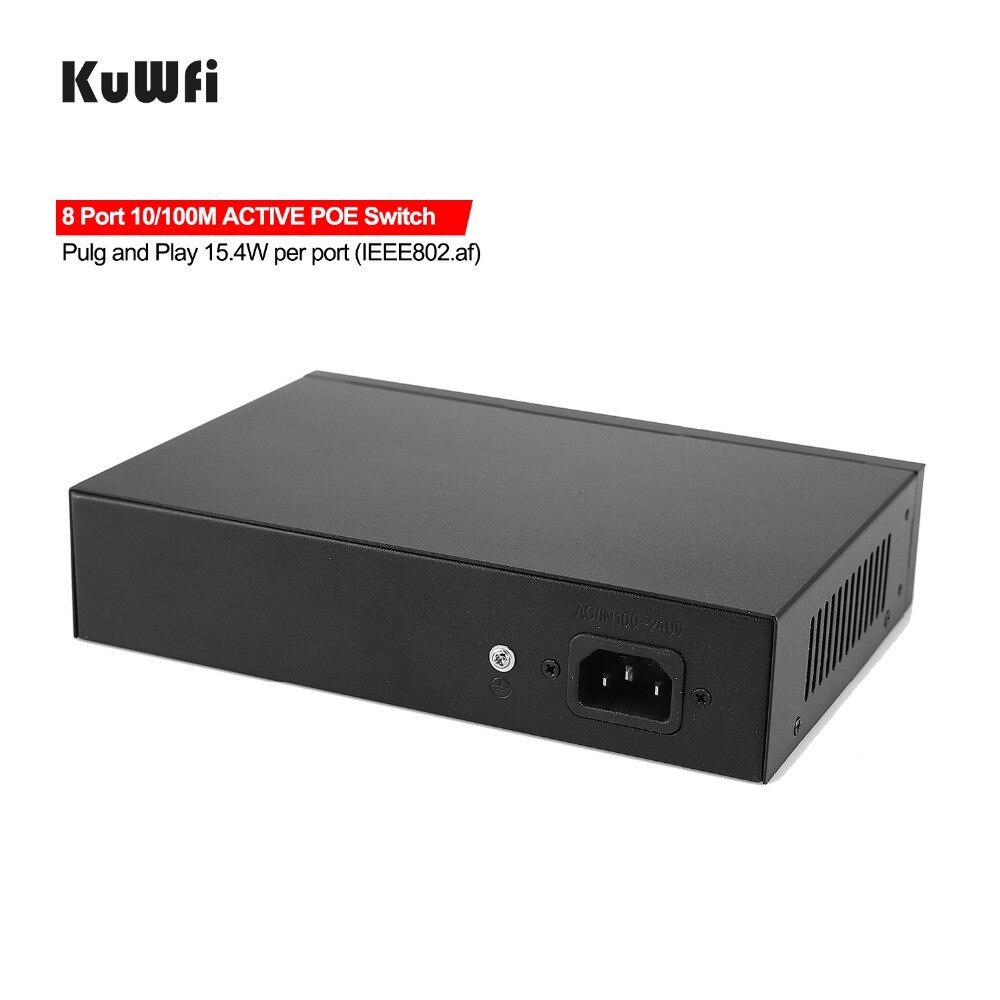

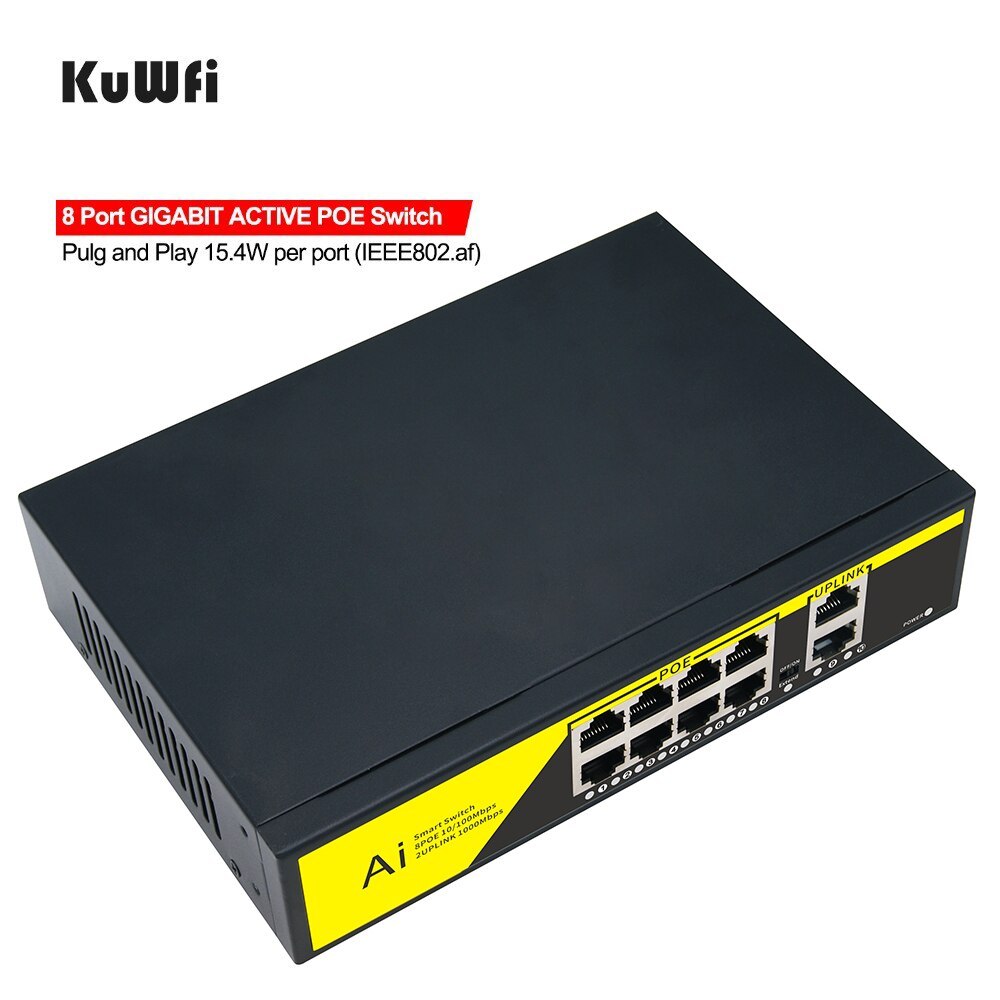

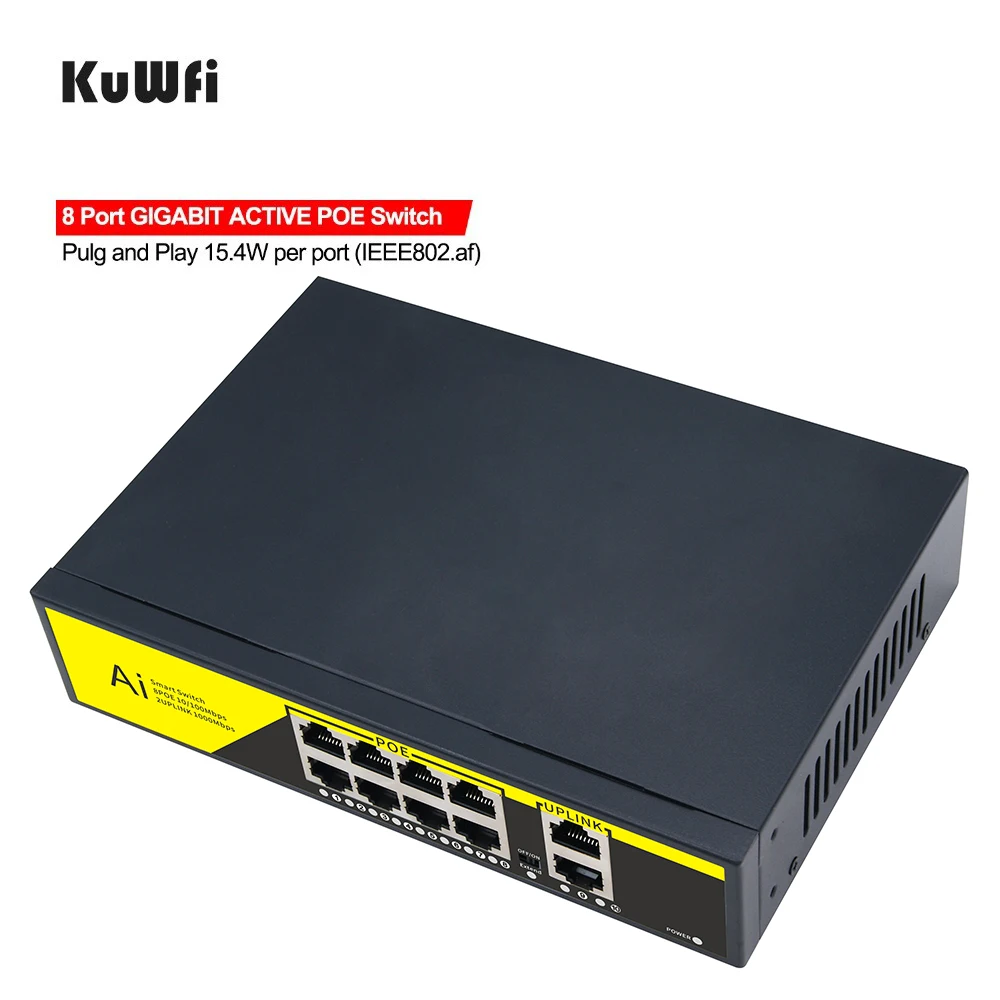

Product Name:10 Port 10/100M/1000 POE Switch(8+2)
Power Supply Type:External, Both 1/2+,3/6- and 4/5+7/8-
PoE Output Power:15.4W/30W
Connector:8*10/100mbps POE port,
2*10/100/1000mbps UP-Link port
Network Medium:Cat5 (UTP) or more
Network Standards:
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power:15.4W per port(IEEE802.3af).
Processing types:Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Backboard Bandwidth:2G
Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power:Input-52V DC input
PoE power consumption:15.4W per port(IEEE802.af)
Environment specification:
Operating temperature -10-55℃(32-104℉)
Storage temperature:-40-70℃(14-158℉)
