Description:

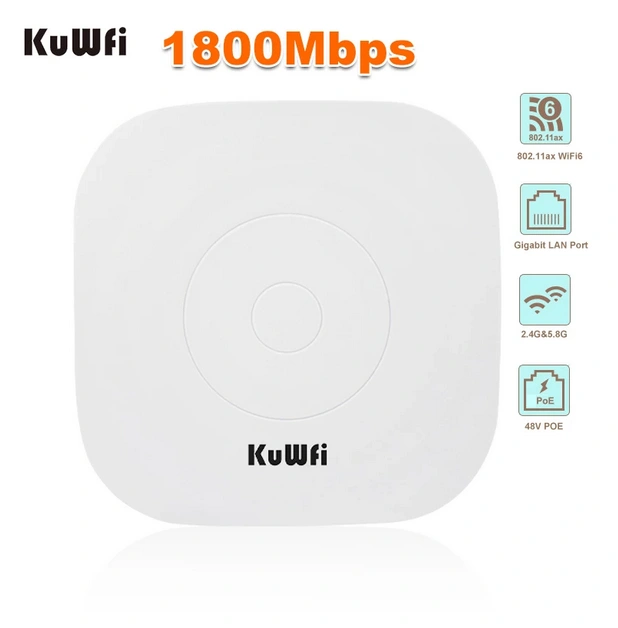

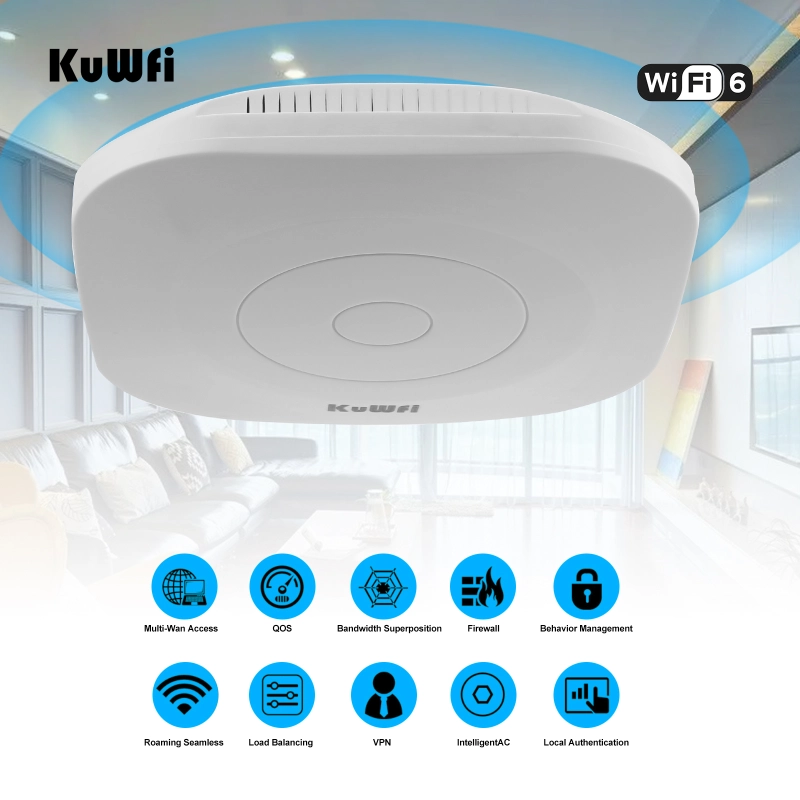

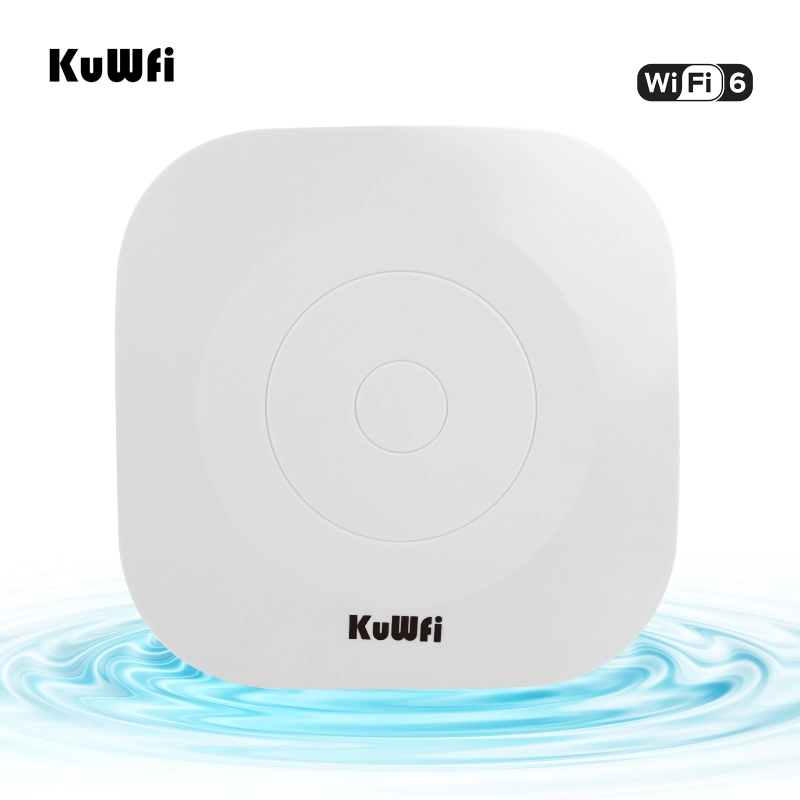

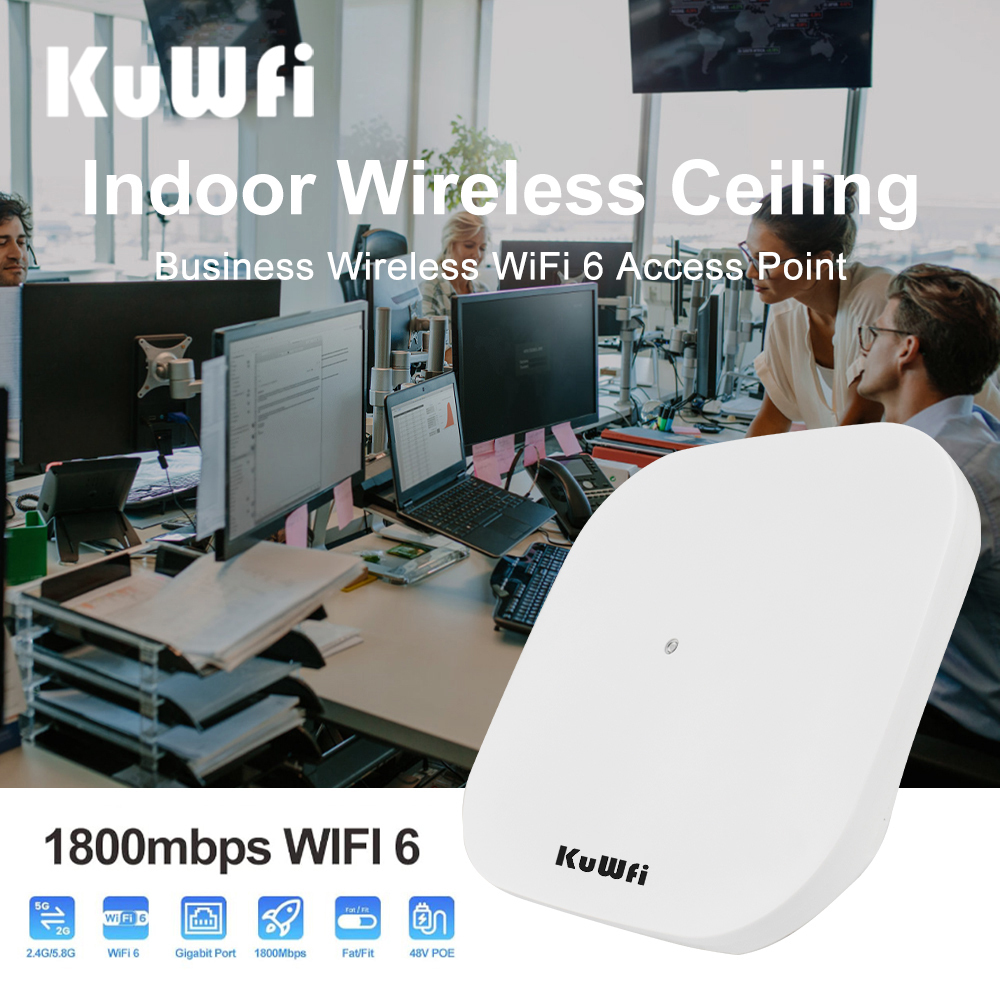

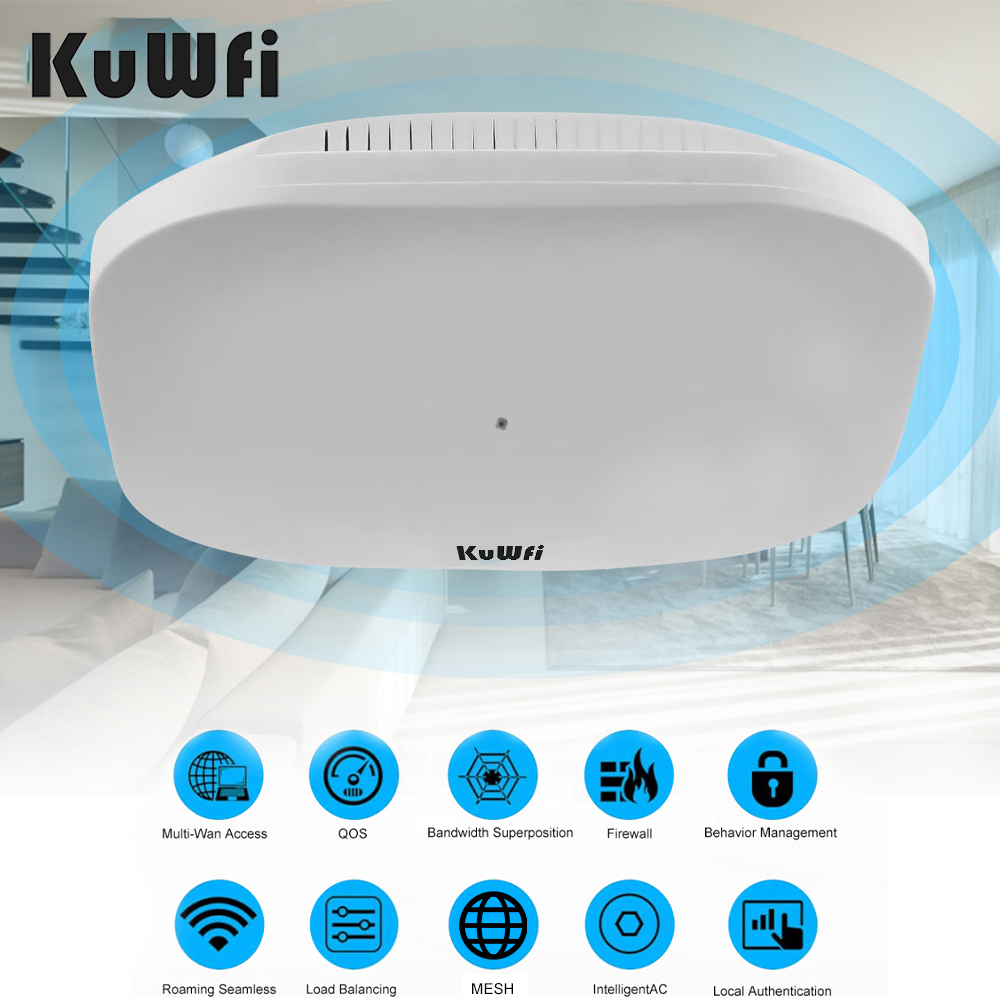

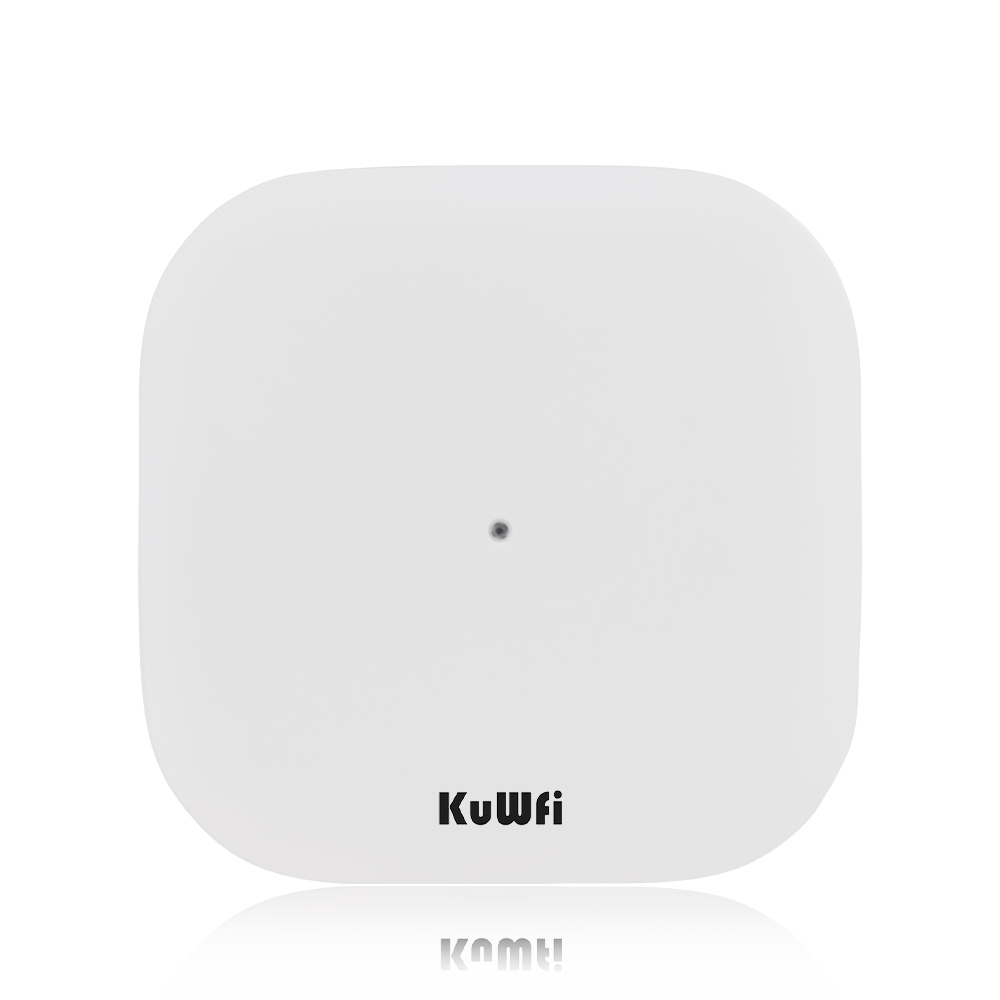

This is an enterprise-grade ceiling wireless AP with PoE and high gain antennas, ensure a stable connection in indoor high-density wireless coverage environment.

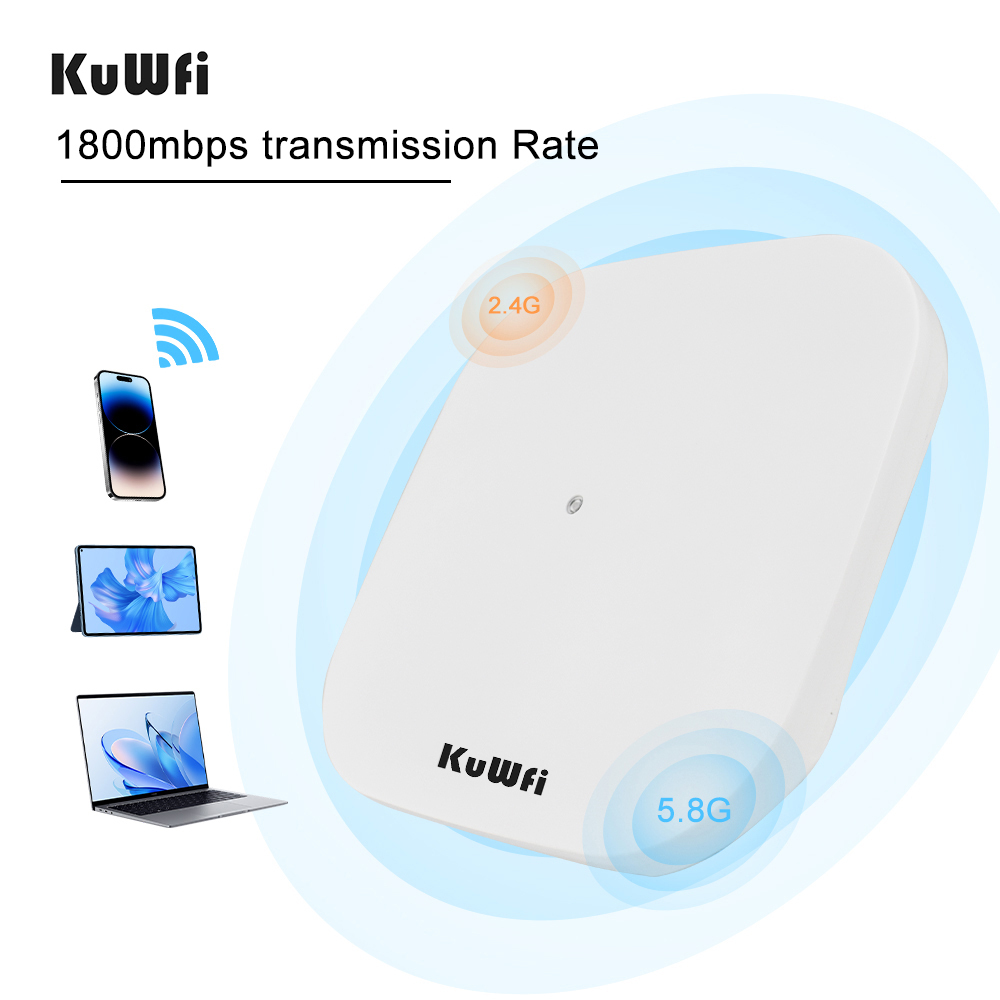

It operates at 2.4GHz and 5.8GHz dual band, adopts new generation Wi-Fi 6(802.11ax) technologies and comply with IEEE 802.11a/b/g/n/ac/ax standards, the Wi-Fi data rate is up to 1800Mbps.
It supports Micro AC, local AC, cloud AC and WeChat Mini program management, and mesh networking. It provides a cost-effective solution for indoor wireless network applications like villa, office, hotel, restaurants, shopping mall,
stores, schools etc.
High performance dual core processor, comprehensively improving the network load capacity, faster data forwarding, and more stable long-term operation.
Main Features:
➢ Comply with IEEE 802.11a/b/g/n/ac/ax standards, the Wi-Fi data rate is up to 1800Mbps.
➢ High RF power and high gain antennas design significantly enhance the stability of wireless signal and extends wireless range to reduce dead spots.
➢ Advanced RF optimization with automatic channel, power level selection to reduce interference. AP can recognize various channels being used and automatically switch to the best available channel to provide best experience for the users.
➢ 2* 10/100/1000Mbps LAN ports

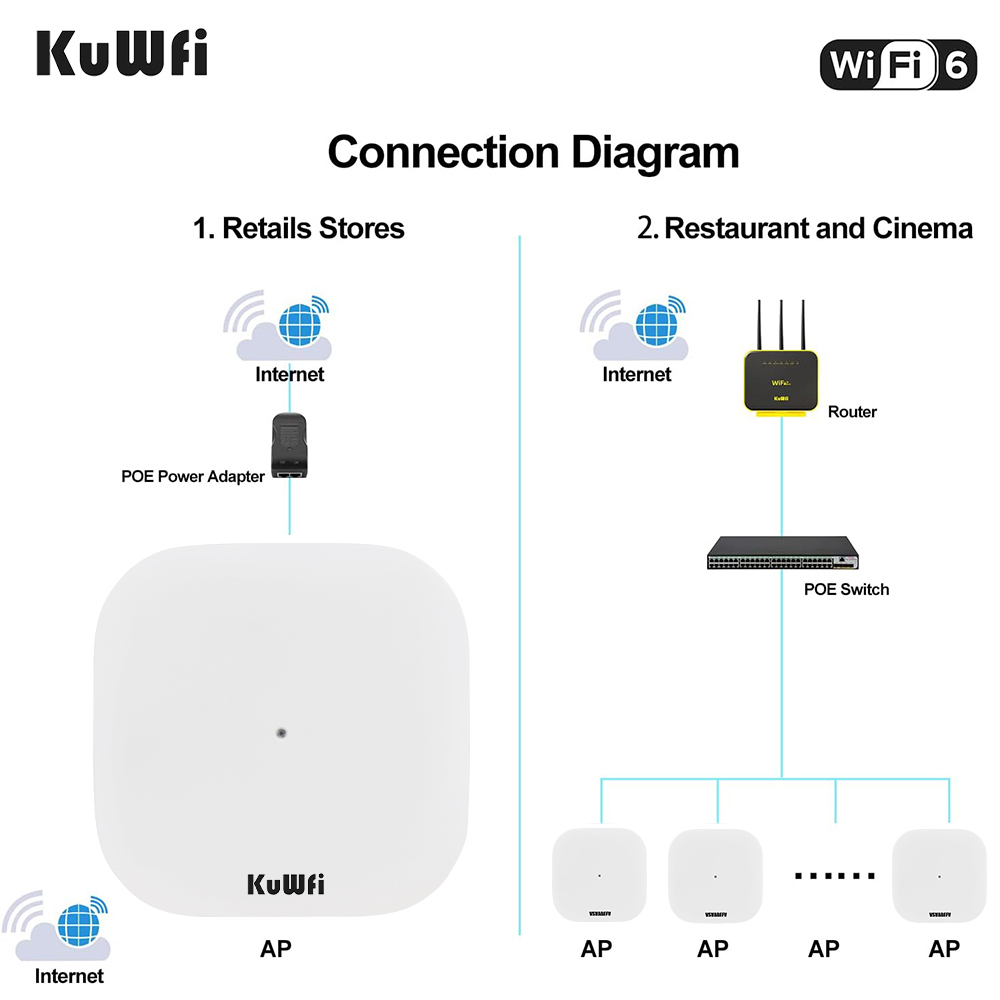

➢ PoE power supply by combining your power and data connection into a single cable makes outdoor deployment simple and fast.

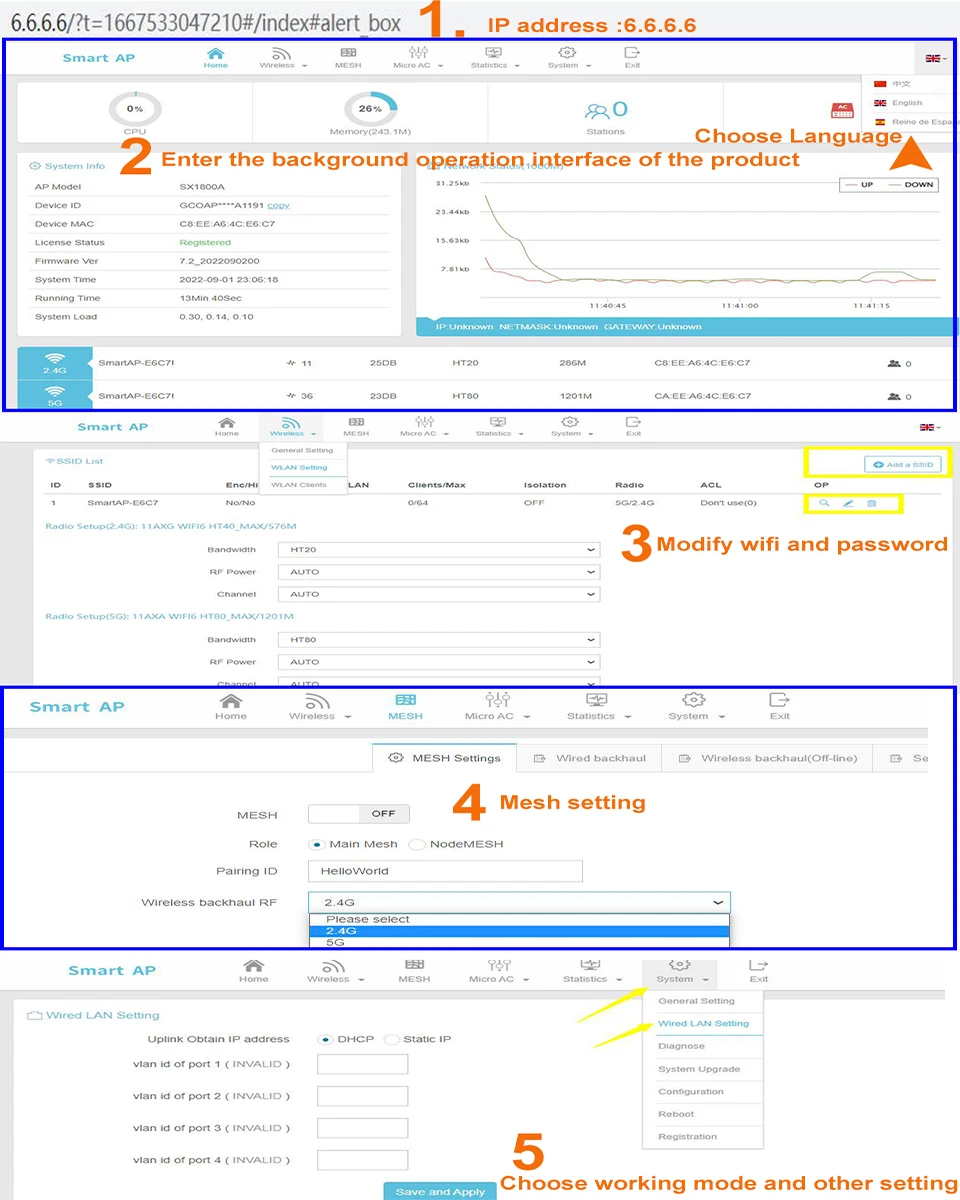

➢ It supports Micro AC, local AC, cloud AC and WeChat Mini program management, and mesh networking.
Hardware Specification

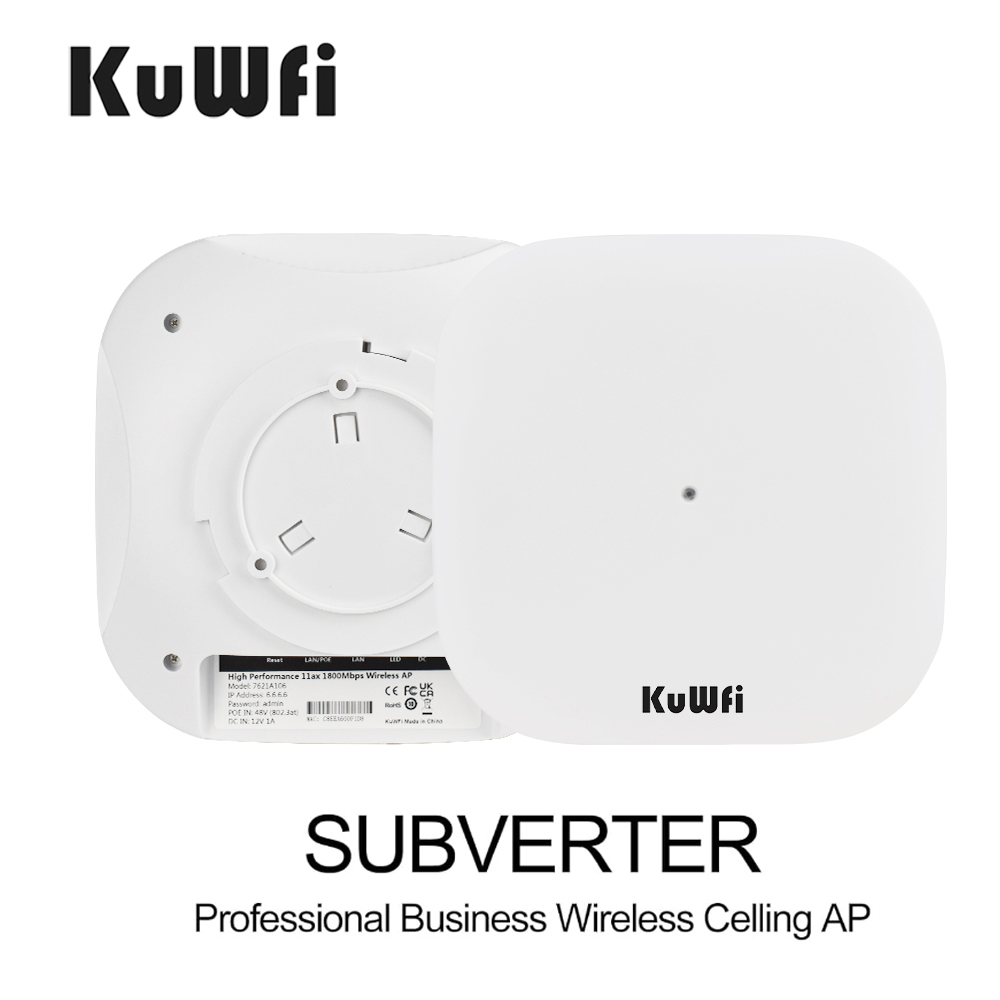

Product Size 190*190*50mm
CPU MT7621AT+7915DAN+7975DN
Memories FLASH 16MB, DDR 256MB Protocols Comply IEEE802.11a/b/g/n/ac/ax, IEEE802.3, IEEE 802.3u, IEEE 802.3ab

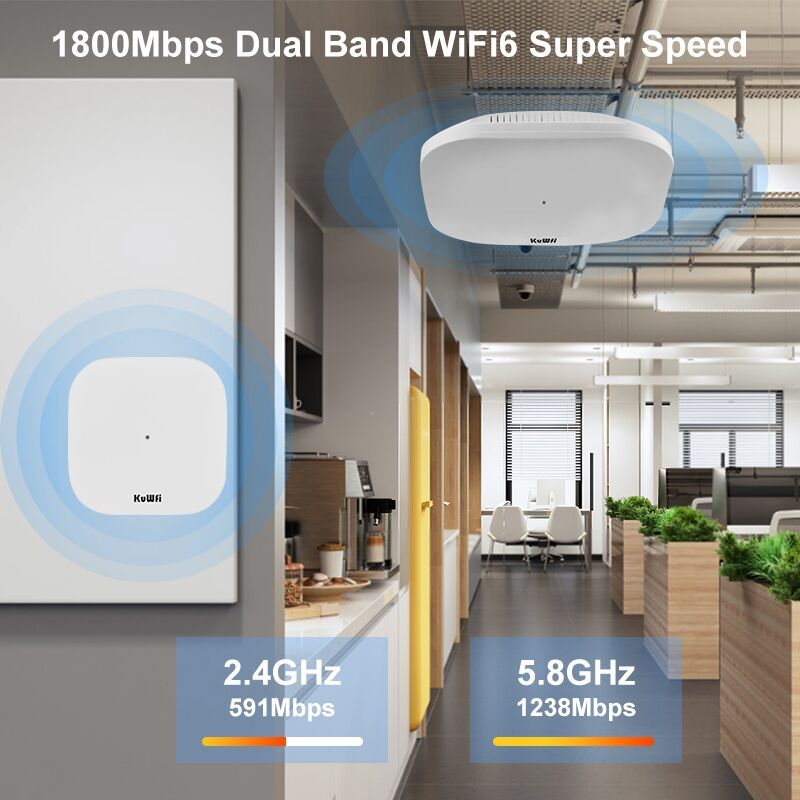

2.4GHz WiFi: 574Mbps, 2.412 GHz ~ 2.472 GHz (Channels 1~13)
5GHz WiFi: 1201Mbps, 5.180 GHz ~ 5.850 GHz (Channel 36~165)
TX Power 100mW
Ethernet Ports
1x 10/100/1000Mbps WAN, support POE 48V input
1x 10/100/1000Mbps LAN
Power Supply DC 12V 1A, POE 48V(We only send 48V POE power adapter)
Modulation Type OFDM/BPSK/QPSK/DQPSK/DBPSK
Reset Button 1x Reset button, Restore factory default settings
Antenna Internal 5dBi x 4PCS
LED Indicator WAN, LAN
Working Temperature -10°C~+55°C
Storage Temperature -40°C~+80°C
Working Humidity 10%~90% RH（non-condensation）
Storage Humidity 10%~90% RH（non-condensation）
Package Included:
1x 11ax WiFi6 Ceiling Access Point
1x 48V POE Power adapter
1x Ethernet LAN Cable
1x User Manual
