Note: our antenna parameters have changed as follows: length: 35cm, diameter: 2cm, 2.4G antenna gain: 8dBi.
1.AP20 Router is a high performance outdoor router/CPE/AP/ repeater with Qualcomm Chipset

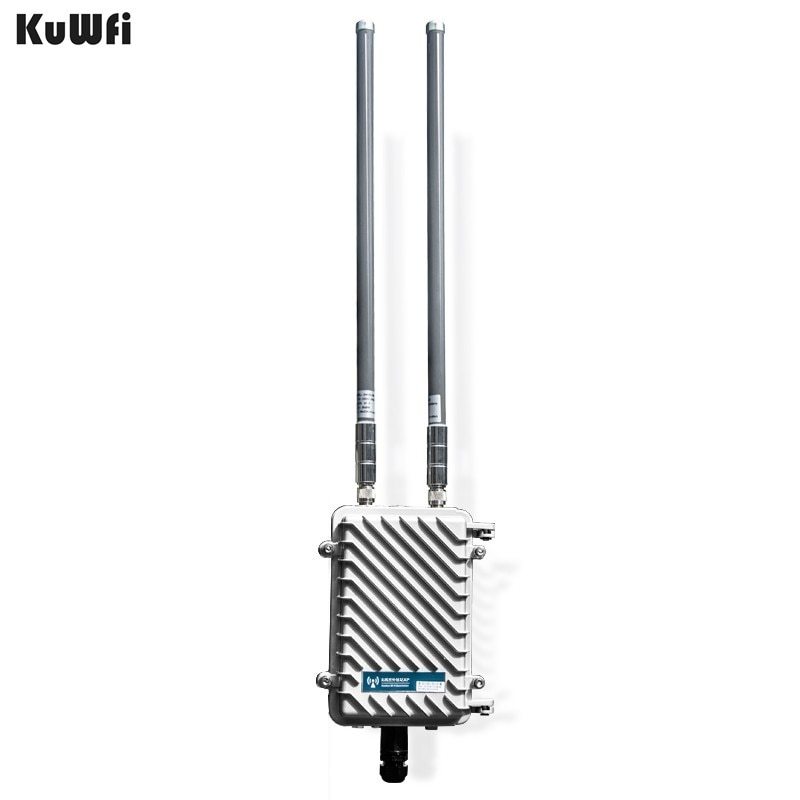

2.With detachable outdoor omni antenna and adjustable high RF power, make this outdoor access point with WiFi coverage up to 400 meters.
3.It supports Wireless AP, Gateway, WiFi Repeater, WISP operation mode, effective solution for outdoor long range WiFi coverage application.

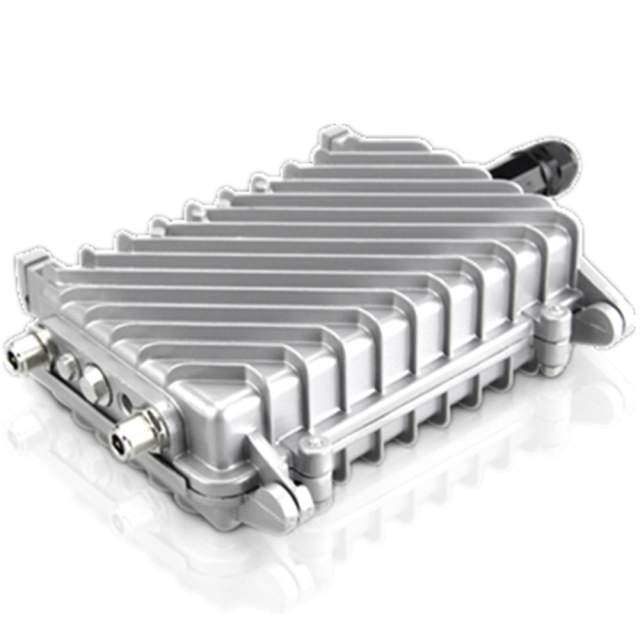

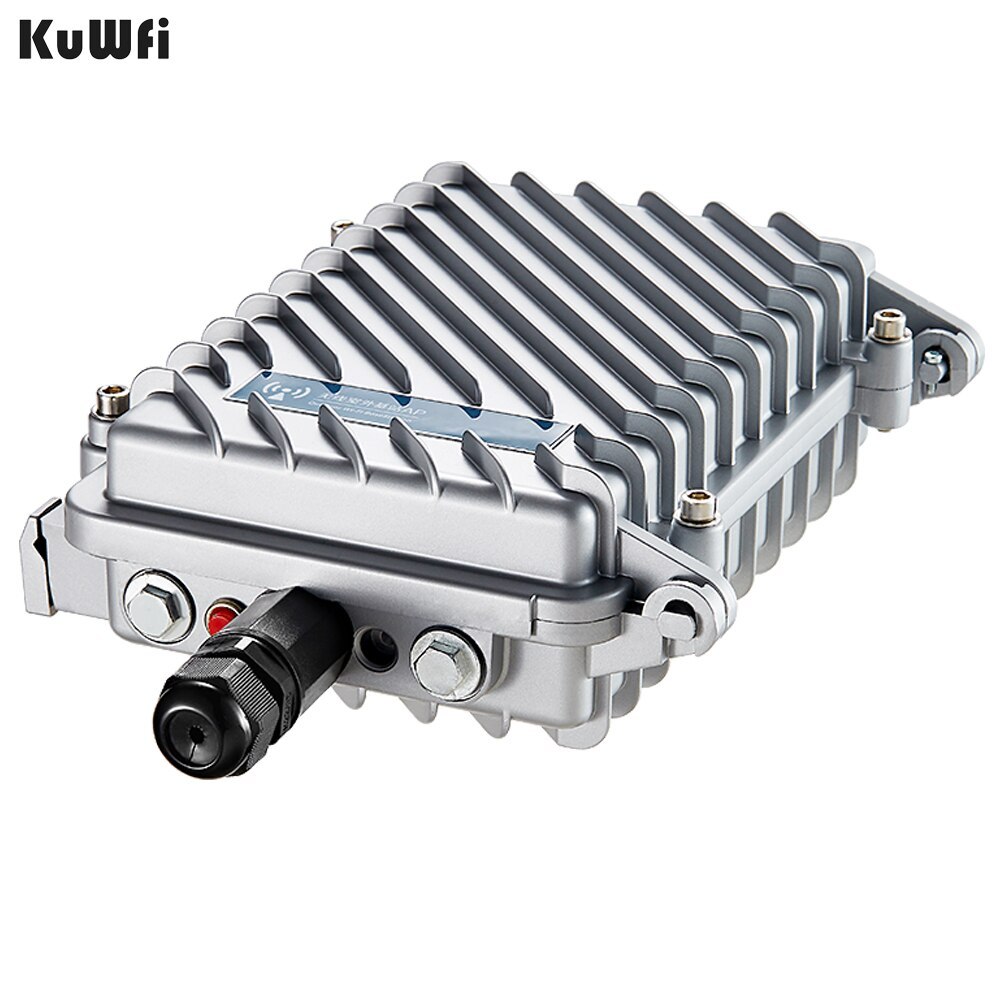

4.AP20 300Mbps Router with metal outdoor shell to avoid the damage from outdoor rain, dust, sunshine and thunderstorm weather, adaptive to various environment also.
5.AP20 is designed to provide WISP, CPE solutions and long-range wireless network solution for video surveillance and transmission.
How Does it Work?
1.Slide the straps through the slots on the back of the AP/Router and tighten the straps around the hole.
2.Connect one end of an LAN cable to the PoE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP/Router.
3.Use another LAN cable to connect the LAN port of the power supply.
4.Plug the power adapter into a wall socket.
Features:
MIMO Technology, 300Mbps Data Rate
Comply with IEEE 802.11b/g/n standard，2.4GHz frequency, 2T2R protocol with 300Mbps data rate
WirelessIEEE 802.11b/g/n, 2T2R 300Mbps MIMO Technology
Interface1*10/100Mbps RJ45 Port
1* Reset Button to restore factory default
Antenna:Outdoor use External omni Antenna
LED Indicator:Power, WIFI
Power:24V PoE
Operation Mode:Gateway, Repeater, WISP, AP
Network Protoco:IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n
Wireless Security:WEP Encryption-64/128/152 bit
WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)
Environment
TemperatureOperating Temperature: 0°C~55°C
Storage Temperature: -20°C ~ 70°C
HumidityOperating Humidity 5%~95% RH Non condensing
Storage Humidity 5%~95% RH Non condensing
