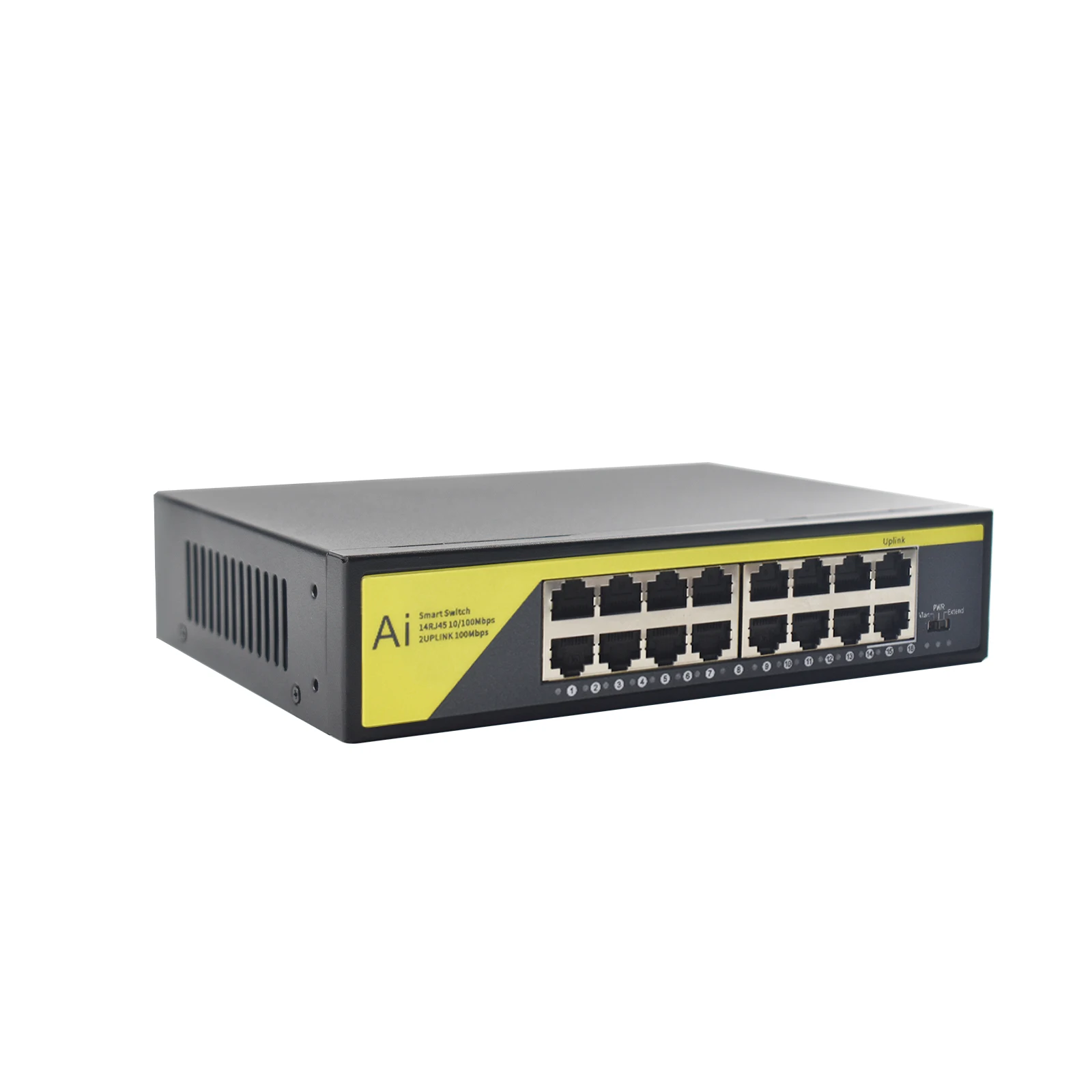

Product Description:
This is a 48V standard POE switch with IEEE802.3af/at protocol.It adopts the latest high-speed Ethernet switching chip and has extremely fast data processing capabilities to improve smooth data transmission performance ,With power supply network ports, 2 RJ45 Uplink ports. Among them, all RJ45 ports support network cable power supply.

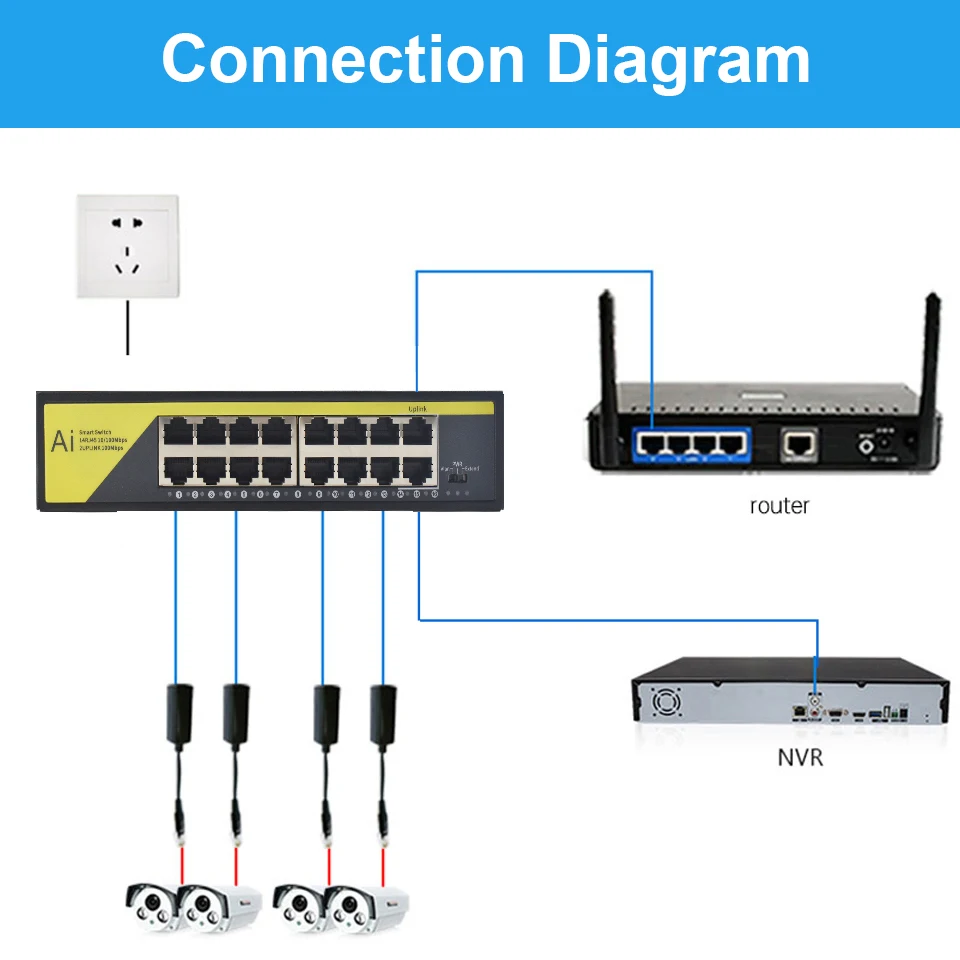

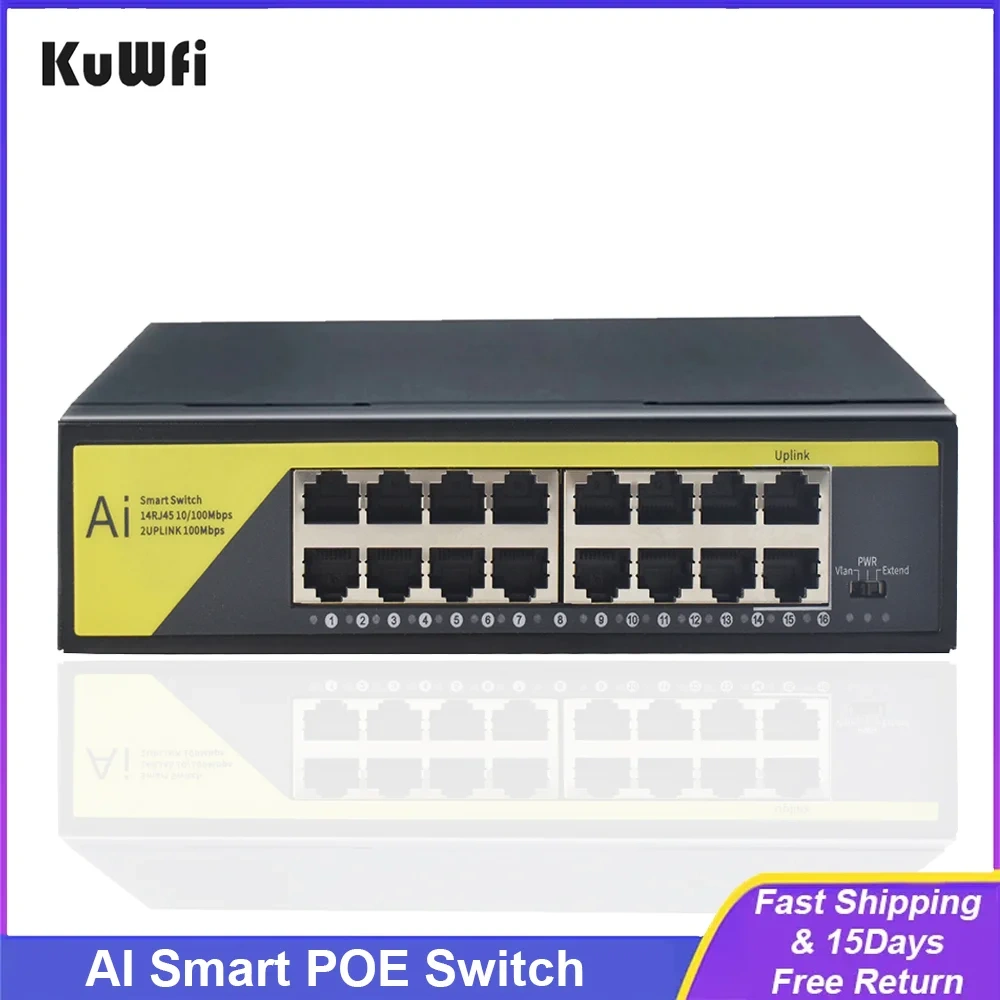

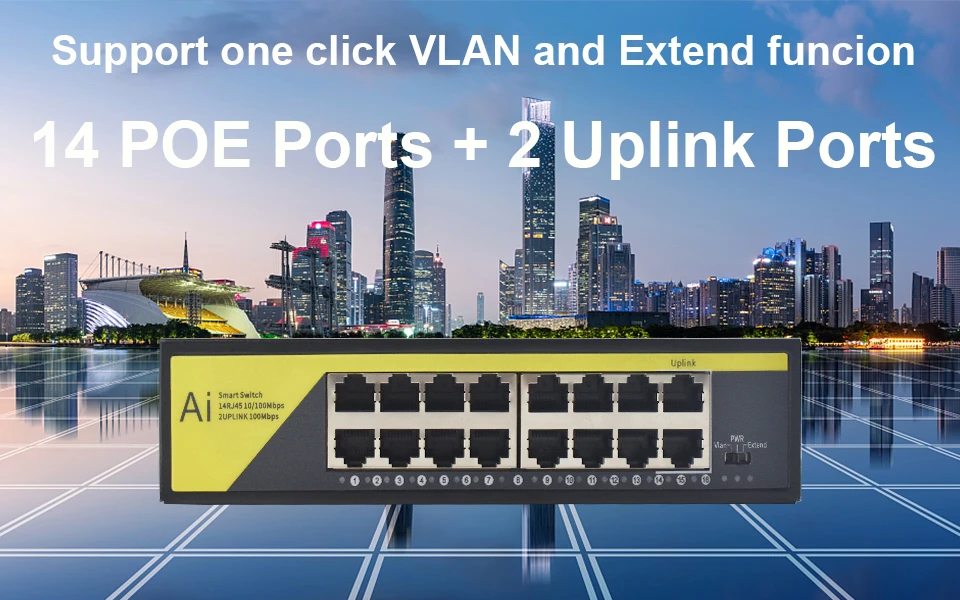

1.16-Port PoE Switch:14x 10/100 Mbps PoE ports + 2x 10/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play.
2. The POE Switch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.

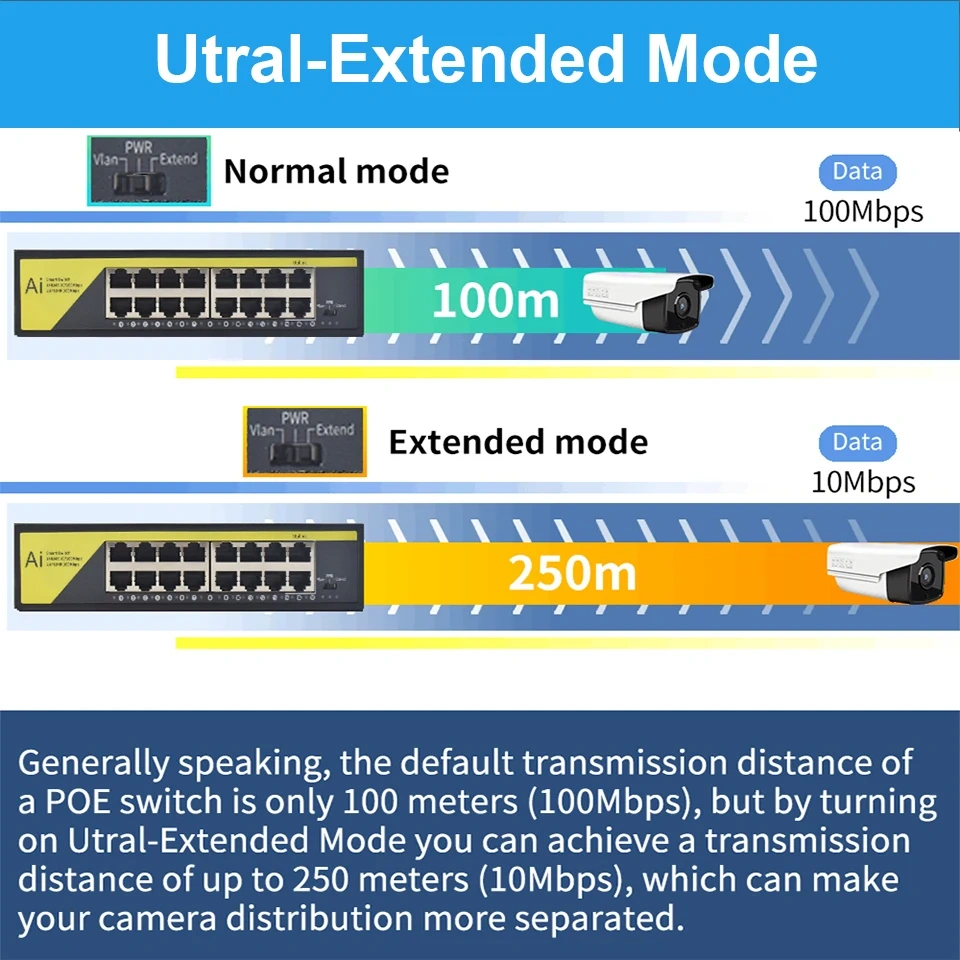

3. Utral-Extend Mode:
The default transmission distance of a poe switch is only 100 meters(100mbps),buy by turning on Utral-Extend Mode you can achiece a transmission distance of up to 250 meters(10Mbps),which can make your camera distribution more separated.
4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products

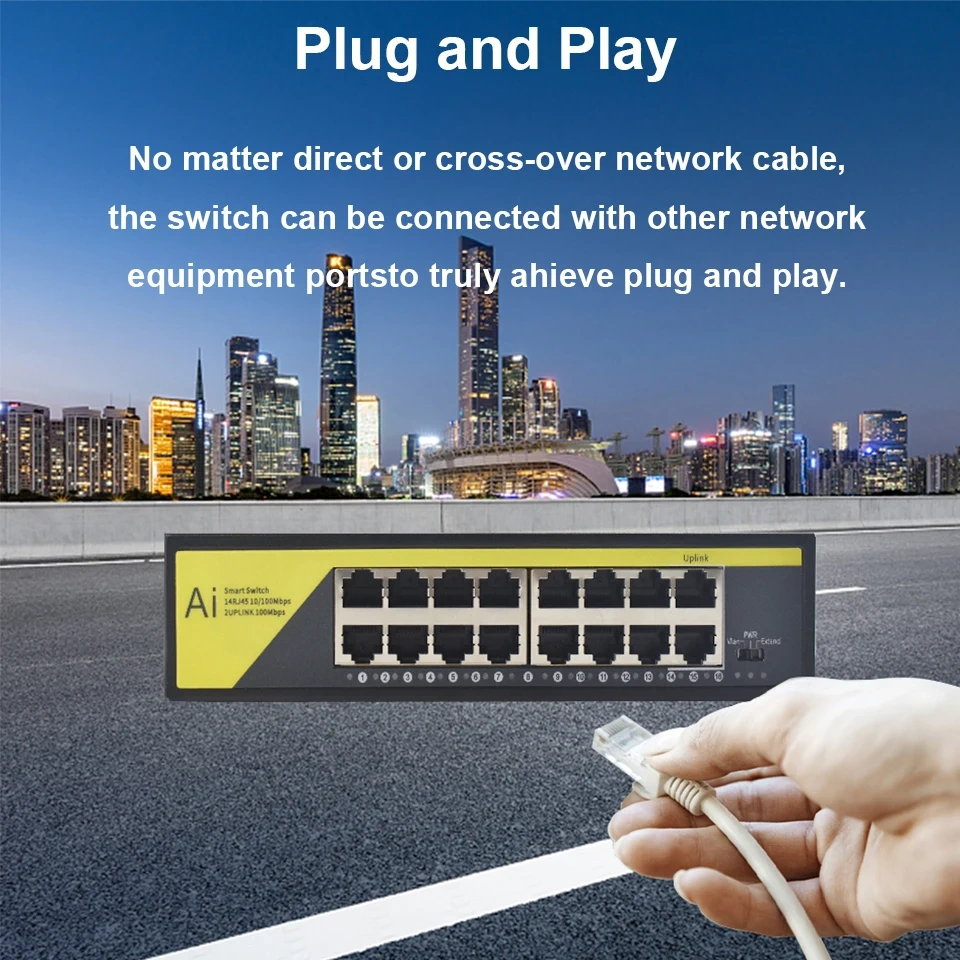

6.No matter direct or cross-over network cable,the switch can be connected with other network equipment portsto truly ahieve plug and play.

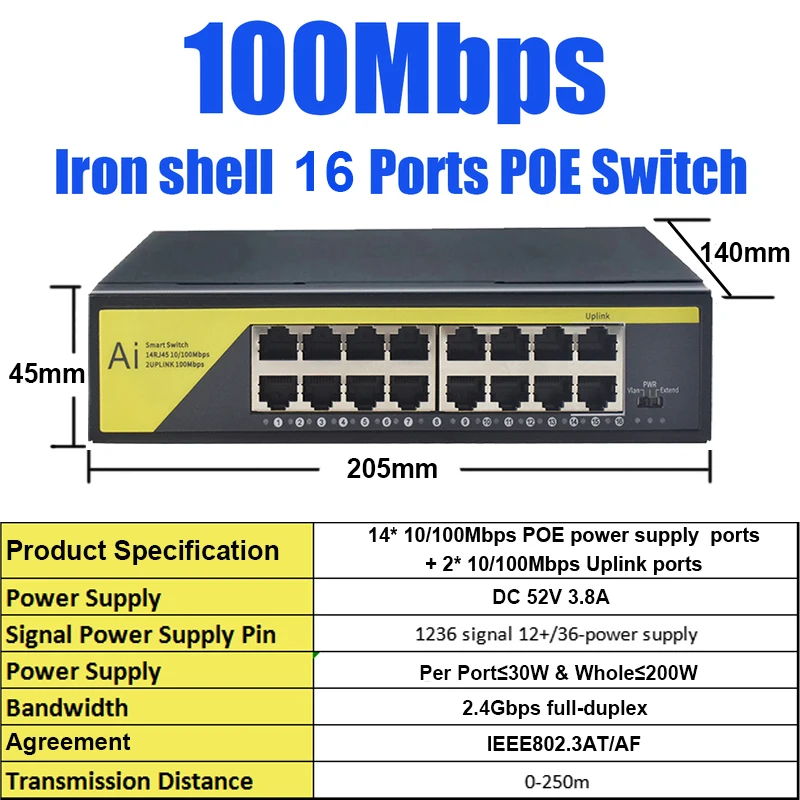

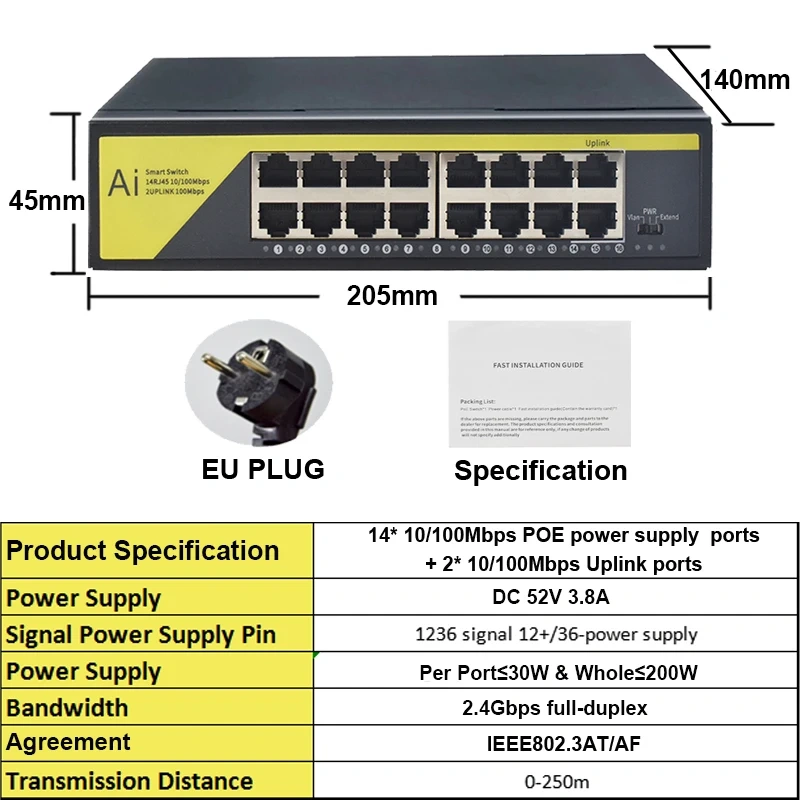

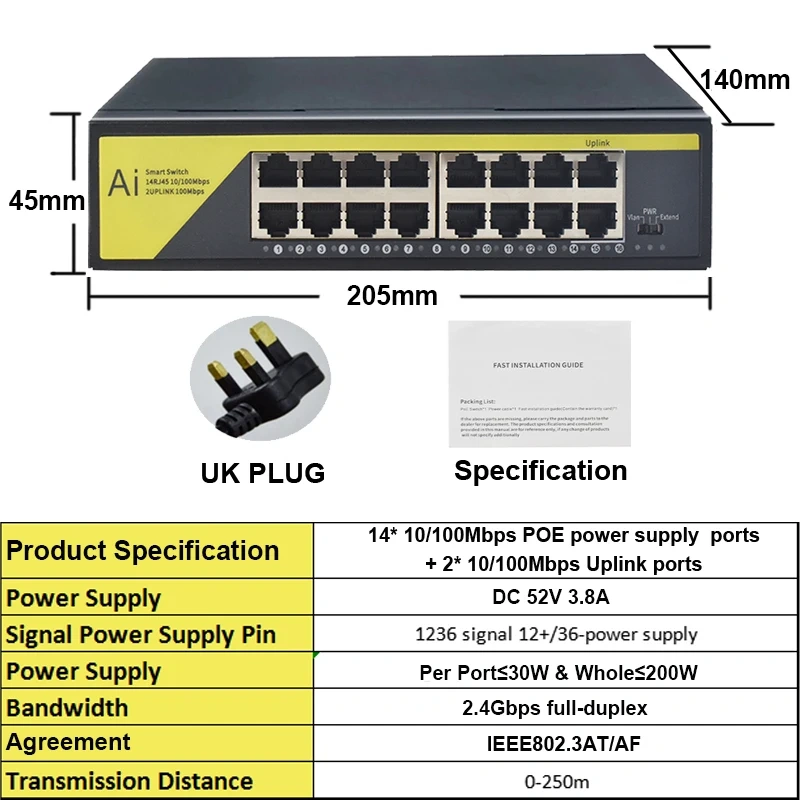

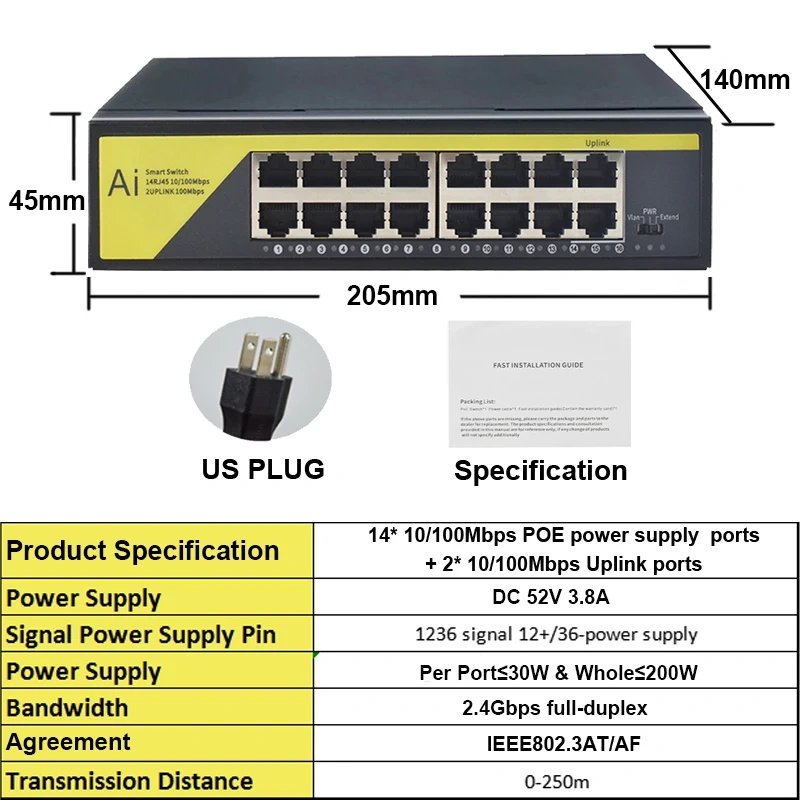

Product Detail:
POE RJ45 Port:14*10/100Mbps
Uplink Port:2*10/100Mbps
PoPer≤30W &Whole≤200W:
Agreement:IEEE802.3AT/AF
Data signal port:1236
Power supply port:1236(12+ 36-)
DC:52V/3.8A (Standard 48V)
Bandwidth:2.4G
Distance:250M
Extend:Yes

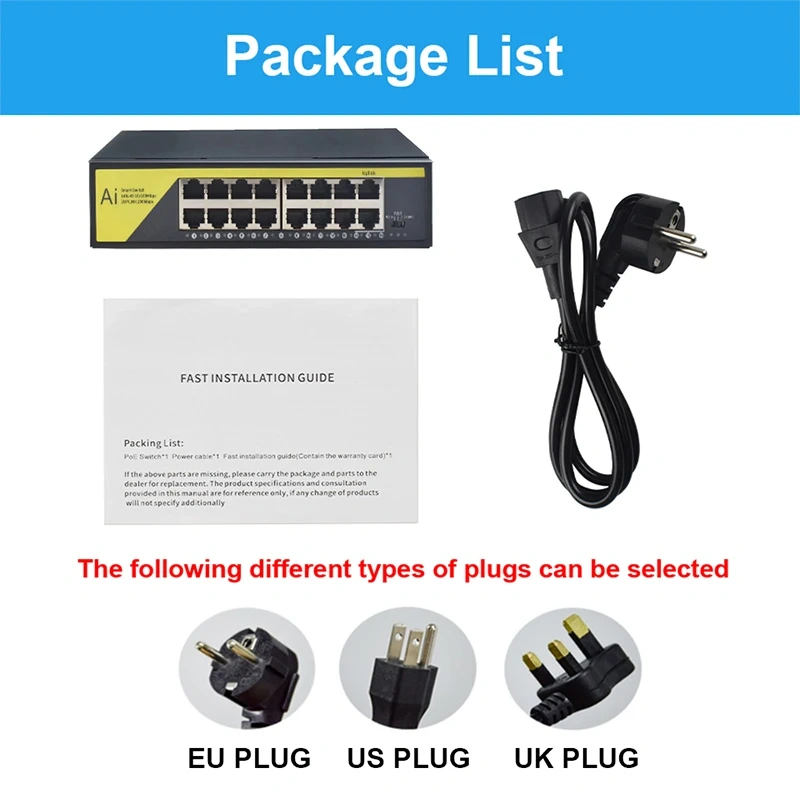

Package Listing:
1*48v poe switch
1*DC Power
1*English Manual
