wireless router KuWFi 4G LTE SIM Router Wireless WiFi Internet 300Mbps Unlocked with 4pcs Non-Detachable Antennas Mobile WiFi Hotspot support network

• 【What CPE812 is】It is a 4G LTE router suitable for home / office, which can access the Internet through UMTS / HSPA / LTE. It also has the function of converting 4G to WiFi hotspot. No matter you are at home / office / any place, you can enjoy smooth Internet. It can be connected to 32 devices at the same time. It can be connected to tablets, laptops, mobile phones and different types of WI-FI devices. The coverage of the signal is 300-500M, which mainly depends on the strength of the signal
• 【 4G Network Band 】 KuWFi 4G LTE 4G CPE Router support 4G LTE FDD B2/B4/B5/B12/B17 Network Frequency for USA/CA/Mexico. Please you confirm whether your SIM card frequency band is compatible with it before buying a router. Unlocked mean work with any sim card but the sim card network Frequency band should be support the router network band

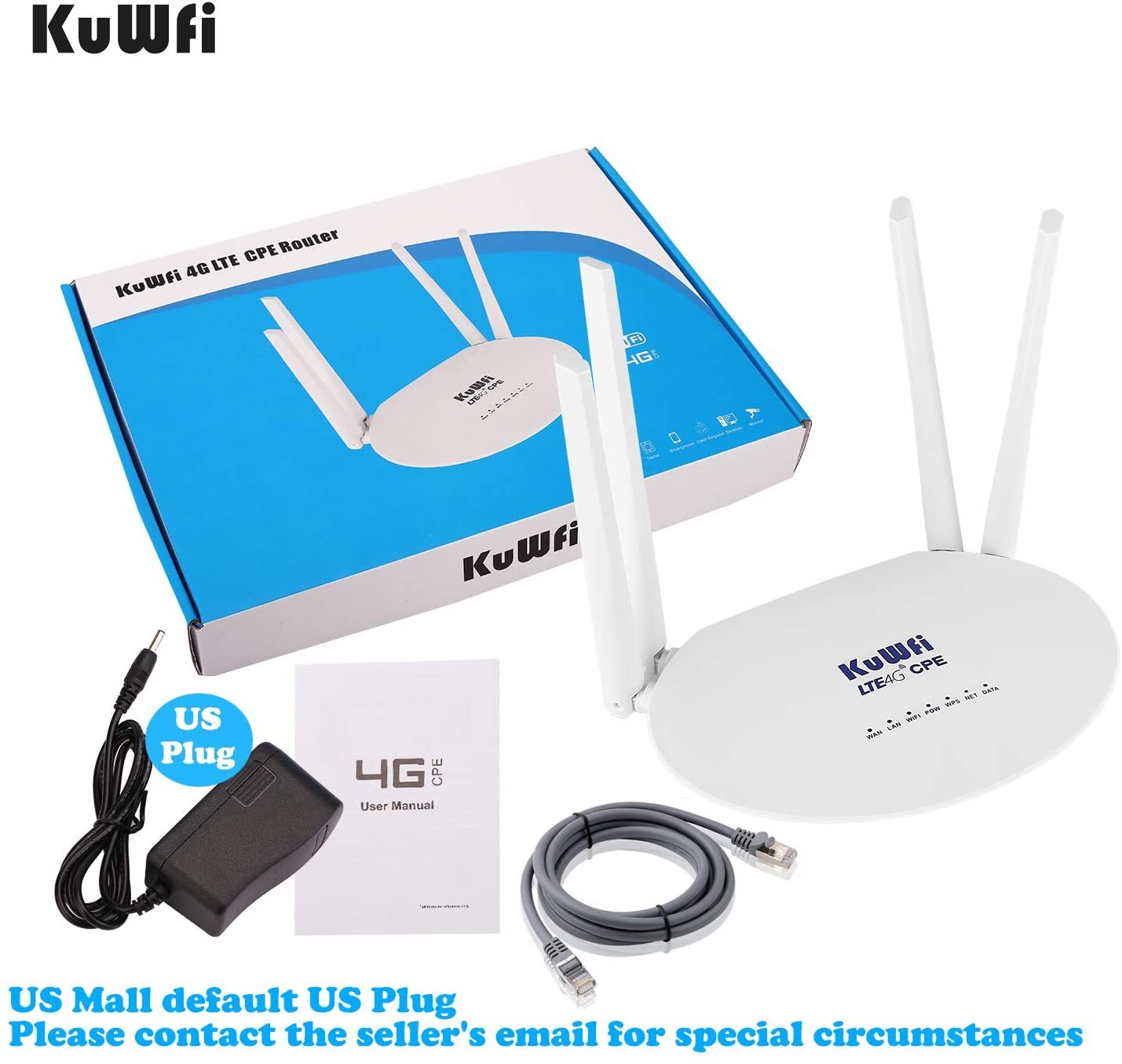

• 【 Main feature Performance 】Its download speed is up to 150mbps, upload speed is up to 50mbps, and wireless transmission speed is 300mbps. It effectively reduces co-channel interference, expands the wireless transmission range, and eliminates dead zones. It has 4 high-performance non-removable antennas, equipped with 1 * LAN and 1* Wan port 1 * SIM card slot interface, the package comes with 12V 1A power supply. Ethernet mode: dynamic / PPPOE / LAN, working temperature: -10 ℃ ~ 40 ℃
• 【HOW TO USE 】Insert SIM card then power on the router, Even if your SIM card is compatible with the product, it is not necessarily plug and play, you may need to disable the PIN code of the SIM card and modify the APN .Enter the router IP address: 192.168.10.1, and then Click Network—APN—Enable. Modify APN. You can find the APN of the SIM card from the carrier's official website or mobile phone. Make sure the SIM card is activate, Not support roaming service and Virtual SIM Card and IoT SIM Card
• 【Customer Service】For 30 days after the date of purchase, return your undamaged KuWFi product and receive a full refund for ANY reason.12-month warranty for quality-related issues For 12 months after the date of purchase. we take care of all quality-related issues with a REPLACEMENT OR FULL REFUND. The firmware and the User manual download : https://drive.google.com/file/d/1hQflCePc885RRHt-5WE1dsHvo2PAeifN/view?usp=sharing

Product Description

Please note

if your sim card support the router network band ,also have update APN （APN seting should be from Operator) ,but still not work ,please confirm

1.the sim card is an IoT card .

2. the sim card have limited service ,not work with router or hotspot .

3.APN not correct .

4.not support roaming service.

5.some place did not cover the network Frequency band.

Network Frequency : if connect the sim card provider but without internet service ,need update APN, if have problem please contact seller

KuWFi 4G LTE Wireless Router support network Frequency:

4G LTE FDD:  B2/B4/B5/B12/B13/B17/B18/B25/B26

3G WCDMA:B1(2100Mhz)

Main CPU: RT7628 Basic Frequency 580MHz

ROM: 64Mbits SPI Flash

RAM: 1024Mb DDR2

Transmission Range: 50-100M

Working Temp: -10℃ ~ 40℃ for storage: -40℃ ~70℃ for working

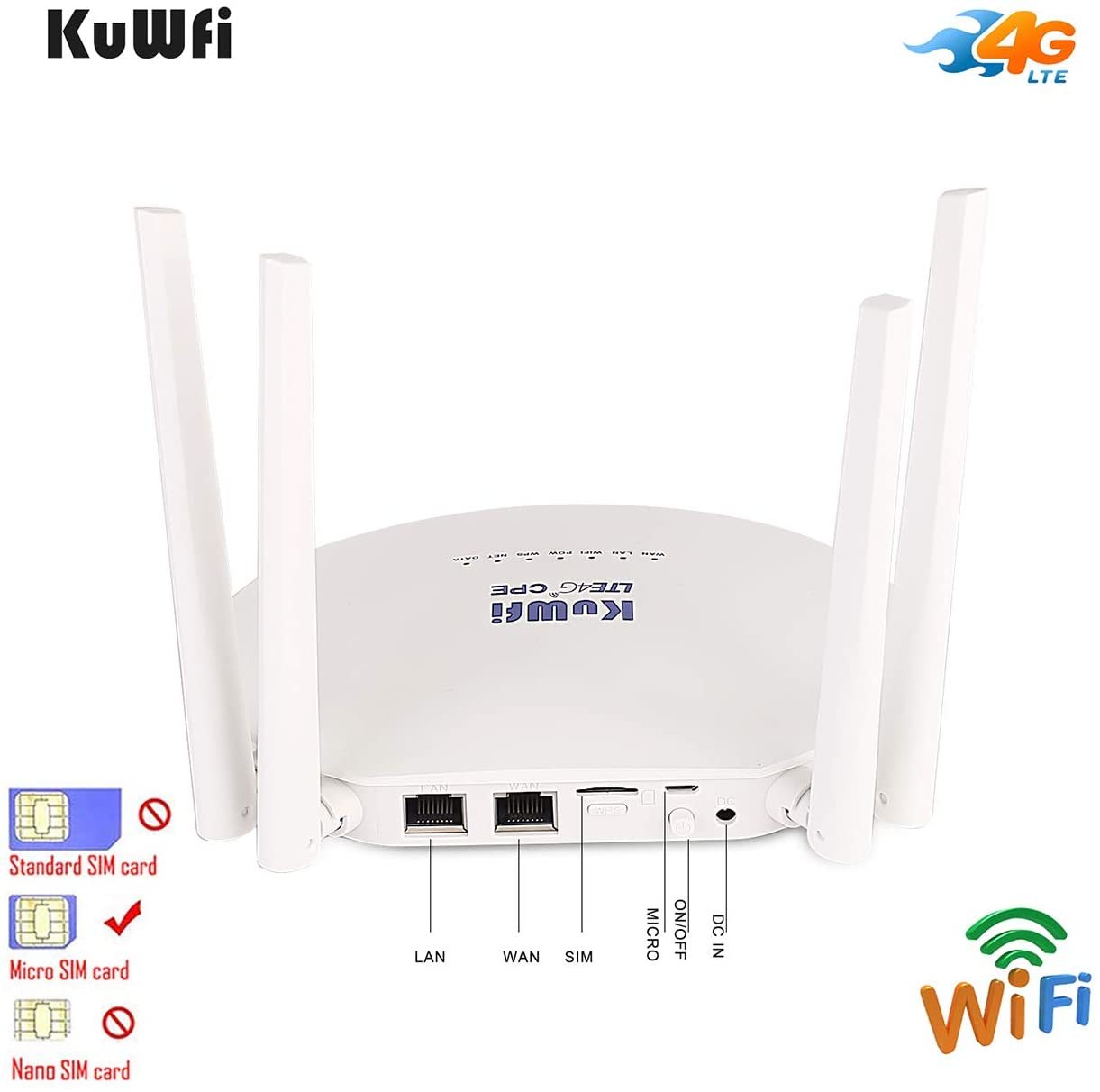

LAN: RJ45 x 2（1WLAN 1LAN, WAN port can also use as LAN port, both of WAN and LAN ports are marked by different color on Housing）

4G WiFi router CAT4 , 150Mbps ,provides a wireless transmission speed up to 300Mbps

Produce a 2.4GHz WFi hotspot with a powerful 3,000 square meter WiFi coverage

Internet connection sharing reaches to 32 WiFi users

Internal dual-antenna, selectable 4G / 3G signal A stylish and slim design to fit in perfectly with your home

With LED indicator display, see the status easily

Supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zones

Work Mode

Wired Mode:

Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem

The WAN port can automatically log in to the Internet access provided by the ISP using the PPPoE protocol

Multiple user devices can access the local network through wireless or wired, sharing Internet connection

SIM Card Mode:

4G wireless mode（Default）Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN

4G To LAN: Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop

KuWFi 4G WiFi Router for home/office/hotel etc.

Stream and share smoothly movie, music, photos with your families and friends at the same time

Provide high-speed for 32 users simultaneously

Make you have a greater wireless enjoyme no need to connect the broardband ,there is 4G ,there is wifi, just plugs the 4G SIM card and play

How to use the router ?

1.Plug in standard SIM Card to convert WiFi

2.Use it without broadband also access to enjoy surfing the Internet connect the PC wifi SSID WIFI-XXXXX Password is 12345678

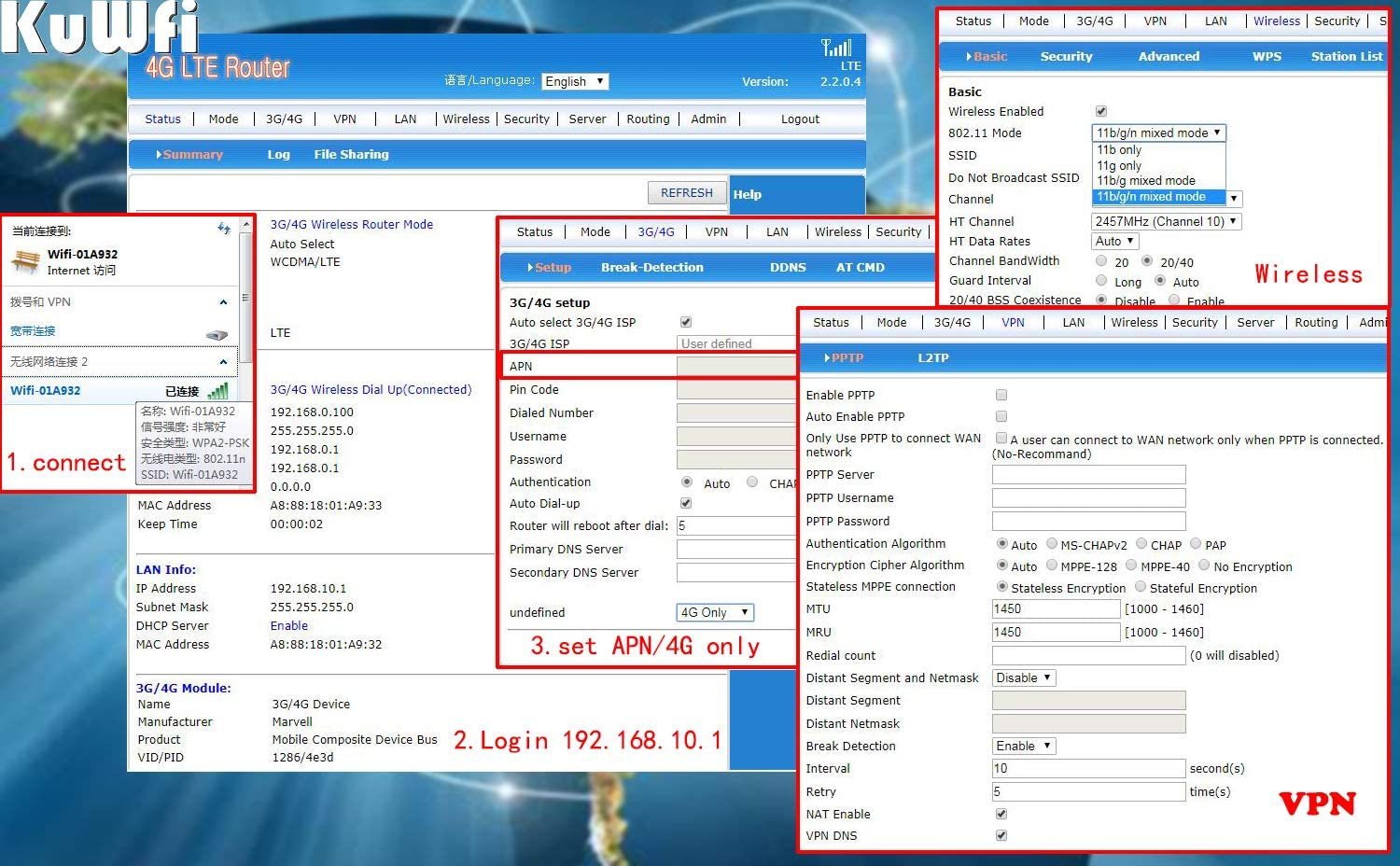

How to Log in web interface?

log in web UI 192.168.10.1, and see web interface show work mode signal and IP address. then click 3G/4G setup, Here we must remove the check mark "auto select 3G / 4G ISP, it will activate the ability to enter the fields below. ,choose Users Defined,then Write correct APN（APN confirm from SIM Card provider ） then the "APPLY" button

How to change wifi ssid name and password?

Find Wireless -Basic -SSID(revise SSID) then apply . then security - WPA-PSK Key (revise) then apply.

Why 4G signal is not good ?

Please confirm that you have choose 4G only and 4G signal is good in your place.

	KuWFi Internet Router EU Version Cat4	KuWFi Internet Router US Version Cat4	KuWFi Internet Router US Version Cat6
Network Frequency	4G LTE FDD: B1/B3/B5/B7/B8/B20 4G LTE TDD: B38/B39/B40/B41 & 3G WCDMA: B1/B8	4G LTE FDD: B2/B4/B5/B12/B17 & 3G WCDMA: B1	4G LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B30/B66 & 3G WCDMA: B2/B4/B5
LTE UE-Category	Cat4	Cat4	Cat6
Router Version	EU Version	US Version	US Version
Data Transfer Rate	WiFi: 300M & 4G LTE: 150M (Cat4)	WiFi: 300M & 4G LTE: 150M (Cat4)	WiFi: 300M & 4G LTE: 300M (Cat6)
2.4 GHz	✓	✓	✓
Main Application Area	Mainly used in Europe, Middle East and other regions	Mainly used in USA/Canada/Mexico	Mainly used in USA/Canada/Mexico
Support VPN	✓	✓	✓
