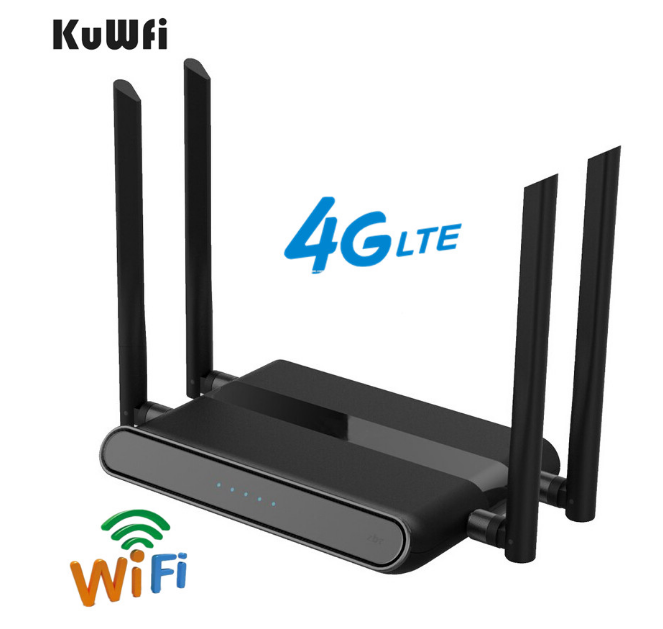

KuWFi 4G LTE Wifi Router 2.4G CAT4 150Mbps 4G LTE FDD/TDD CPE Router Wireless AP With 4*5dBi Antenna Dual sim card slot

Price:
USD
$89.00
    Please select the information you wantX
  • model:
    Black-1
    Black-2
    Black-3
Quantity:
-
+
(600 available)
  • Description
  • Reviews

Version-1

4G LTE FDD:B1/B3/B5(2100/1800/850MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia

Version-2
4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa

Version-3
4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in all off EU ,Asia ,Africa,Oceania

-----WE5928 uses the latest MT7628N wireless solution, performs better and more function. Stable wireless performance, more functions  2.4G150Mbps, Also support 3G&4G function.One SD card slot. Beautiful share design.It is best choice to use home,office and other engineering project.

-----4G LTE CPE Router have 4pcs powerful Non-detachable antenna Produce a 2.4GHz 150Mbps WFi hotspot with a powerful WiFi coverage


-----Access/PPPoE work mode
if you do not have 4G sim card , you can connect the routerto lan port by PPPoE mode.

-----This 4g lte wifi router ia equipped with 3 LAN and  1Wan port 2*SIM Card slot interface,when the 4G router transmits the WiFi ,you may connect to other Devices simultaneously ,upport 9V 1A power adapter charger

-----Bridge WiFi and share network with your families and friends securely in the hotel or other public places.

-----Provide high-speed for 32 users simultaneously, make you have a greater wireless enjoyme no need to connect the broardband ,there is 4G ,there is wifi, just plugs the 4G SIM card and play!

-----Working Mode:

SIM Card Mode(Work with Micro SIM Card)4G wireless mode(Default):Choose 3G/4G Wireless modem mode as default, pulg in to Micro SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.

4G To LAN

Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop ,

Wired Mode:
Standard wireless modem mode:Static online mode/Dynamic Internet access/PPPoE online modem

detail

Hardware

Main Chipset

MT7628NN

RAM

DDR2 64MB (MAX DDR2 128MB)

 SPI FLASH

8MB (MAX 16MB)

Protocol

IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u

RT Power

802.11b   18dBm±2dBm;

802.11g   15dBm±2dBm;

802.11n   15dBm±2dBm;



Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER



Work Channel

2.4GHz choose :1-13

Wireless Rate

Max 300Mbps

Work Frequency

2.4GHz

Antenna

2* 2.4G 5dBi antenna,2*4G 5dBi antenna, 2*4G FPC antenna

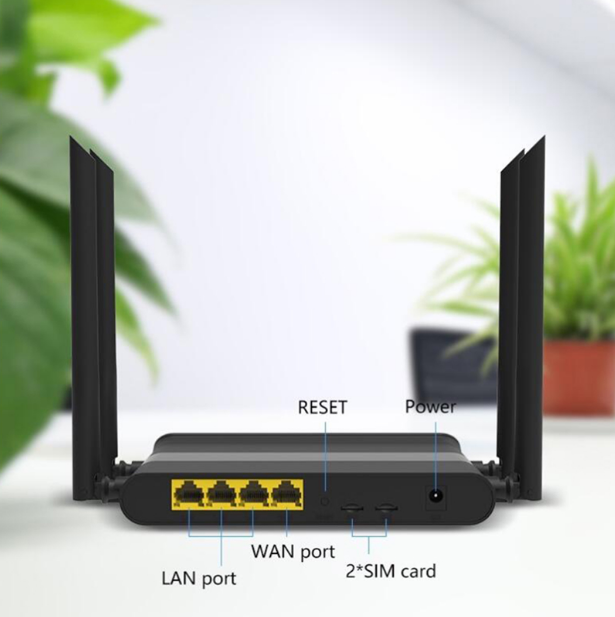

Interface

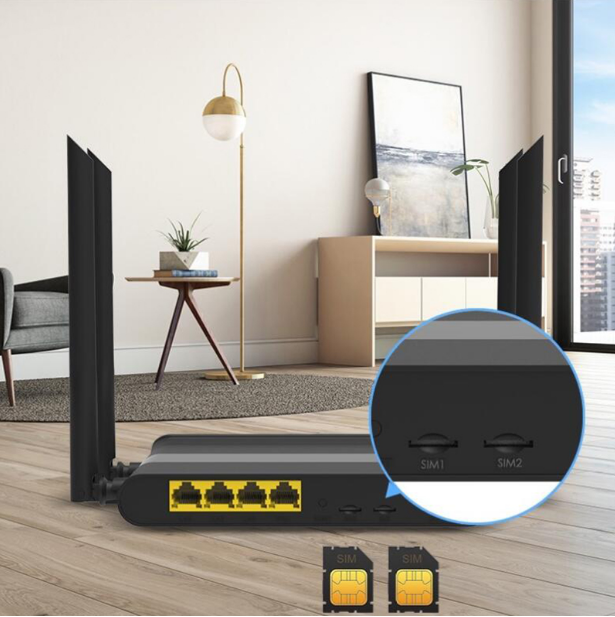

2*SIM card slot

1*Micro SD card slot

1*10/100M  WAN port(Auto MDI/MDIX)
3*10/100M  LAN port(Auto MDI/MDIX)

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,

Button

Reset/WPS

Max Power consumption

< 12W

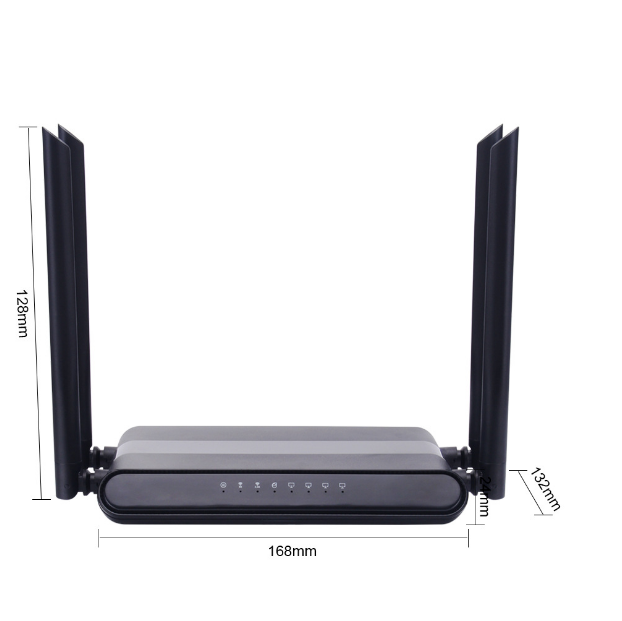

Dimension(L*W*H)

141*85*26MM

Software

WAN Type

PPPoE、Dynamic IP、 Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwareding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web firmware upgrade

Others

Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter

9V 1A

Authentication

CE, FCC, RoHs

Other accessories



Power adapter





WE5926
