Description:

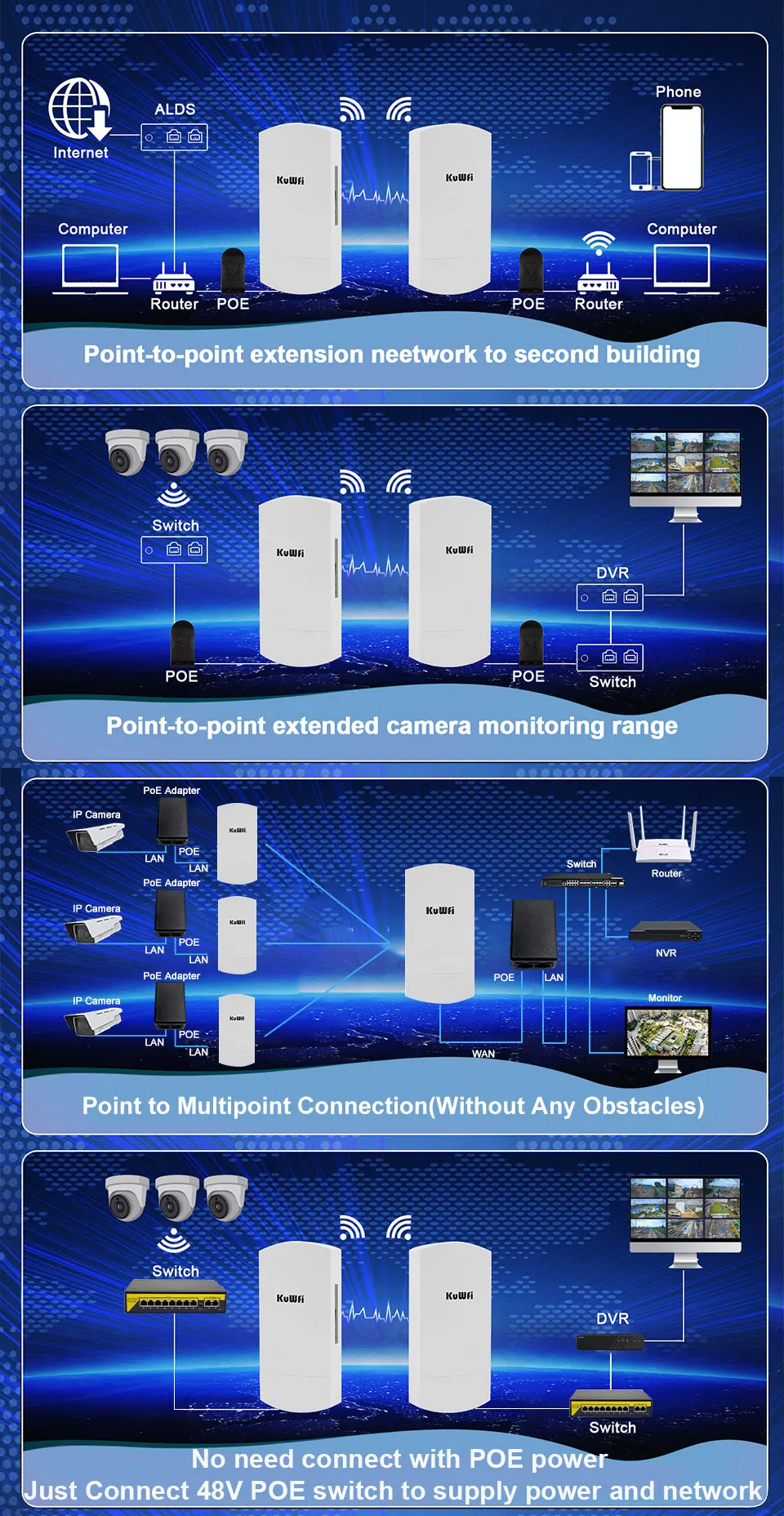

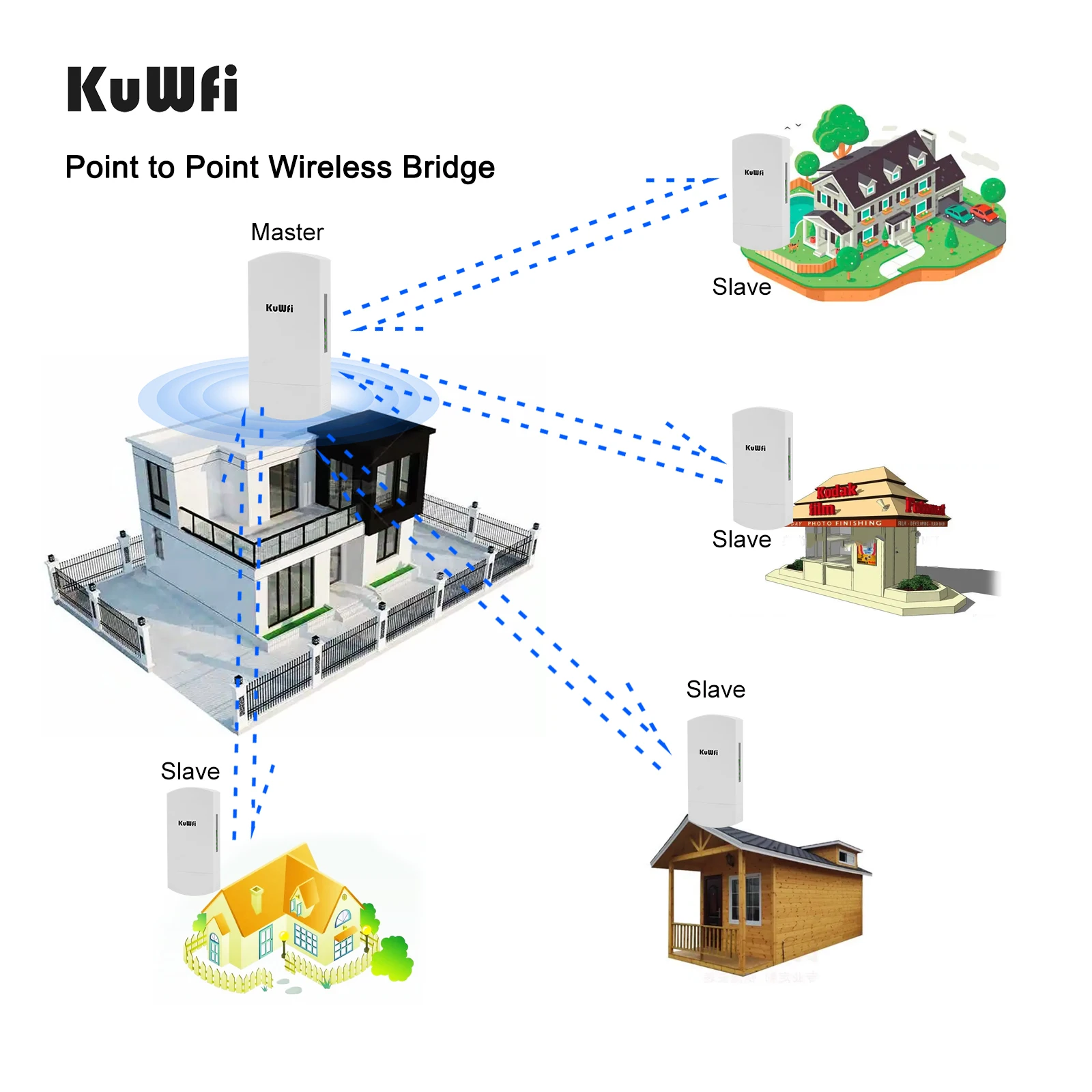

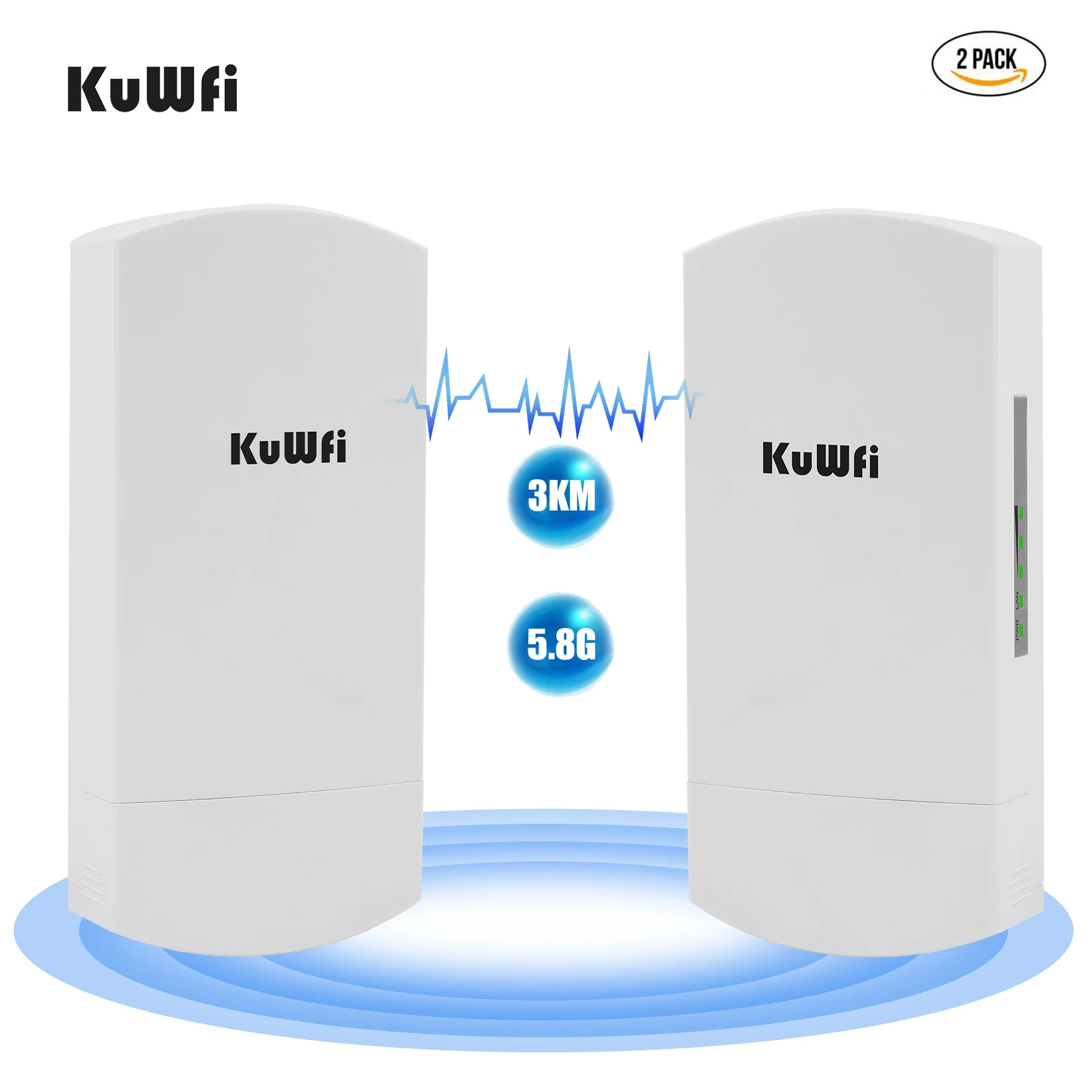

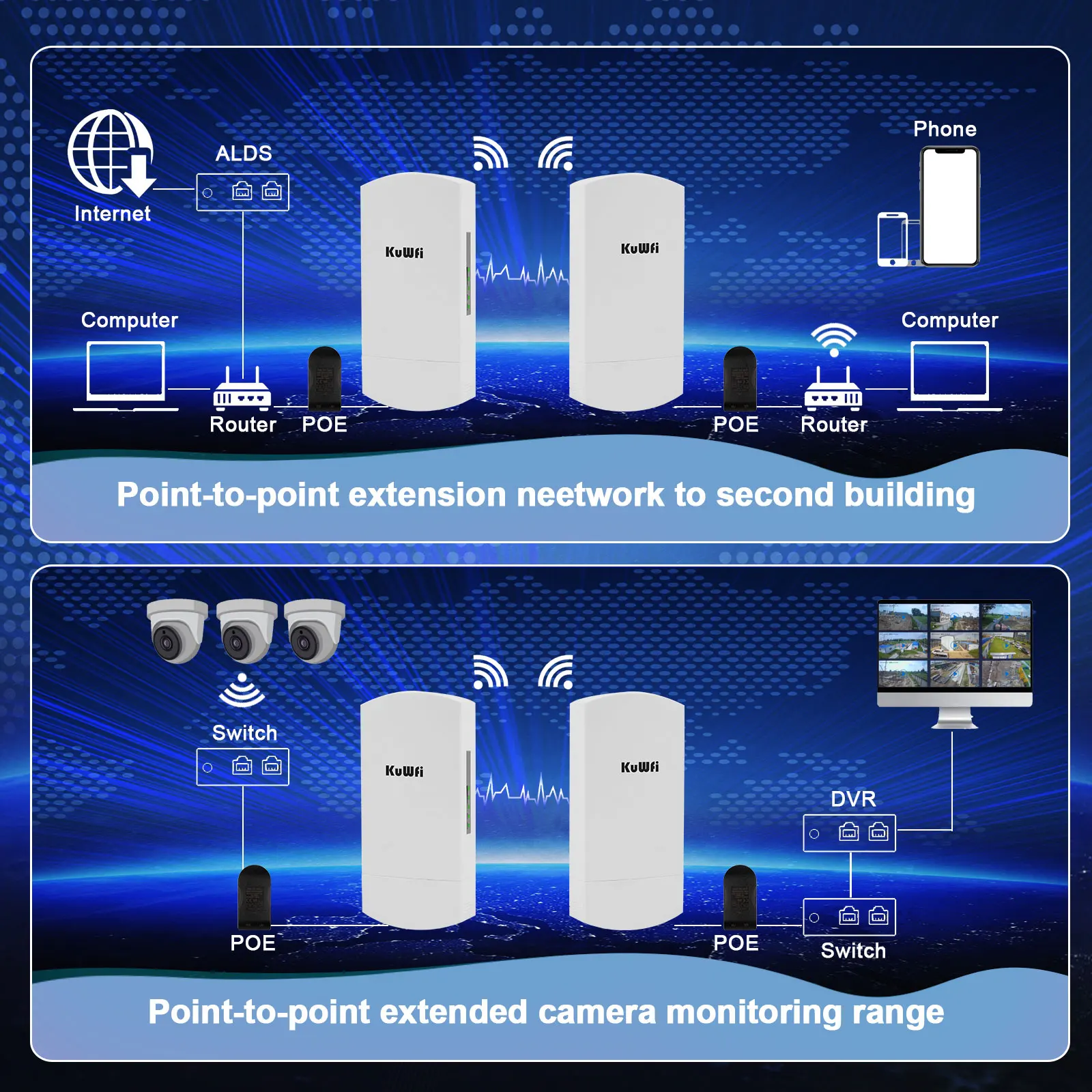

This is a high power high performance 5.8G 11a/n 300Mbps wireless outdoor bridge CPE. It adopts Qualcomm AR9344 chipset, external PA and directional 12dBi high gain antenna, it supports a transmission distance up to 3KM. With LED display and AP/Client mode toggle switch for easy pairing without entering into the web UI interface.Multiple network port and two DC output design: it can connect with multiple cameras, eliminating the switch, and also with two DC output jack to supply power to the cameras, eliminating two power adapters. It is ideal to use for CCTV/IP camera data transmission for its stable wireless data transmission and multiple functions.
Main Features:

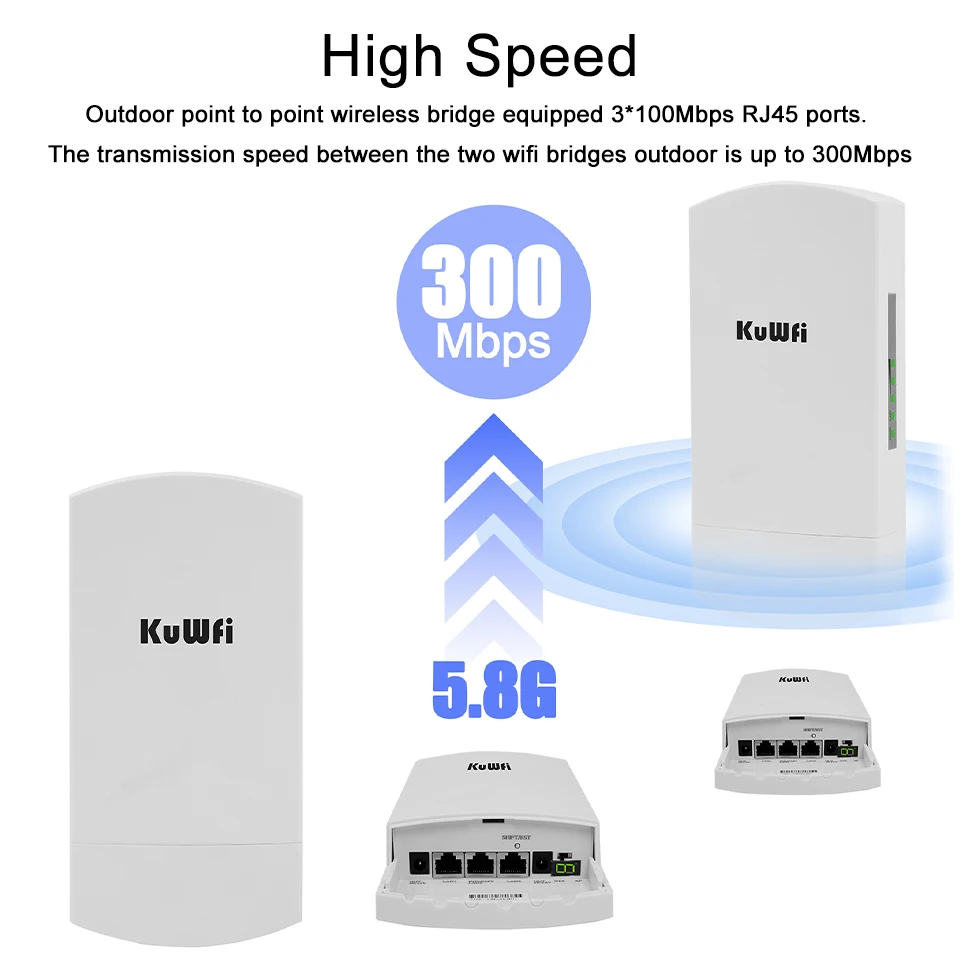

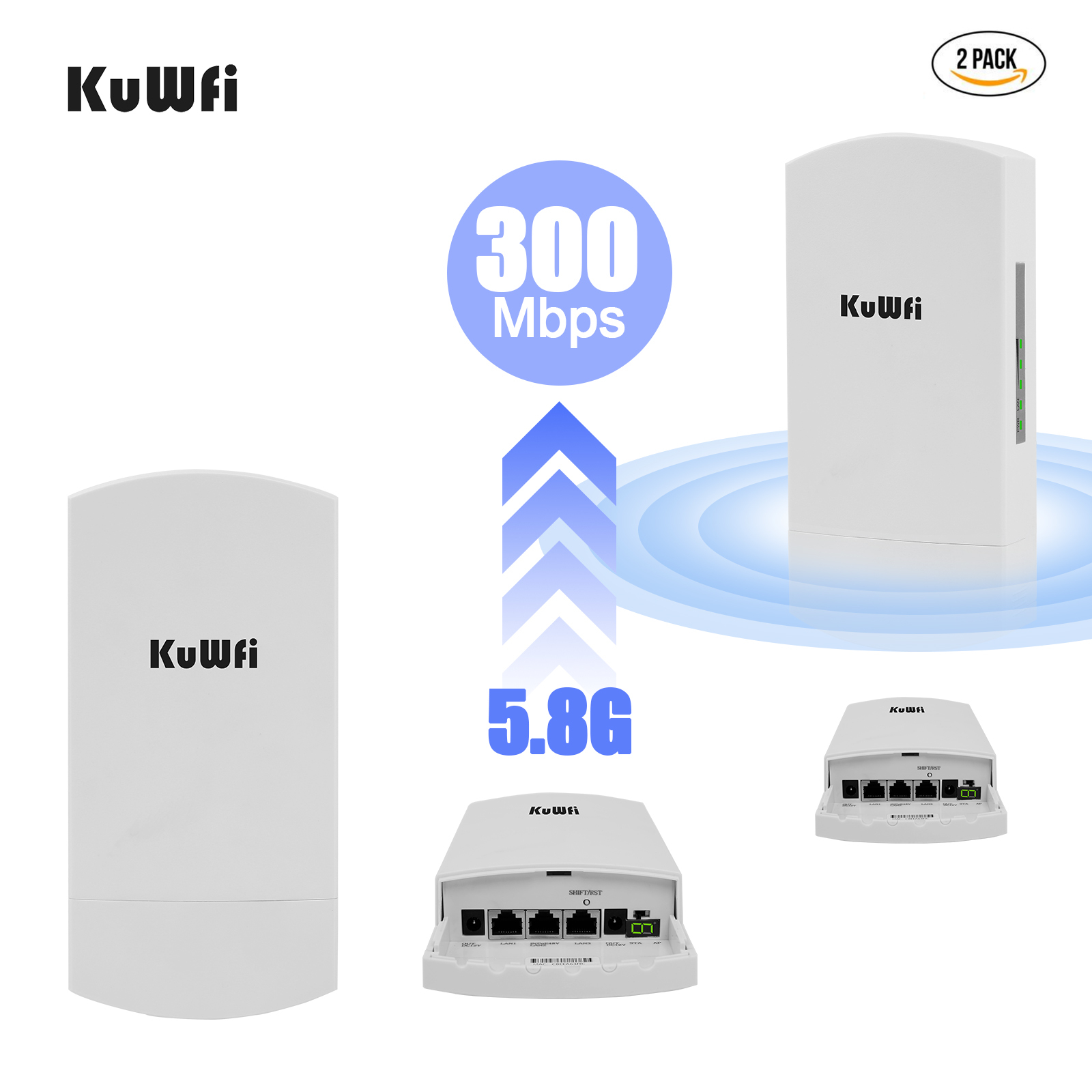

➢ Complies with 5.8GHz IEEE802.11a/n standard, the Wi-Fi data rate is up to 300Mbps
➢ 23dBm high RF power and 12dBi high gain antenna design, up to 3 kilometers long distance transmission
➢ 3 10/100Mbps LAN ports, 2 DC 12V output jack. It can omit the use of switch and directly supply power to the camera
➢ Support 48V PoE power supply, which makes the networking construction convenient and cost saving
➢ IP65 durable weatherproof enclosure, ESD and surge protection design protects the access point against harsh outdoor conditions and provides stable wireless coverage

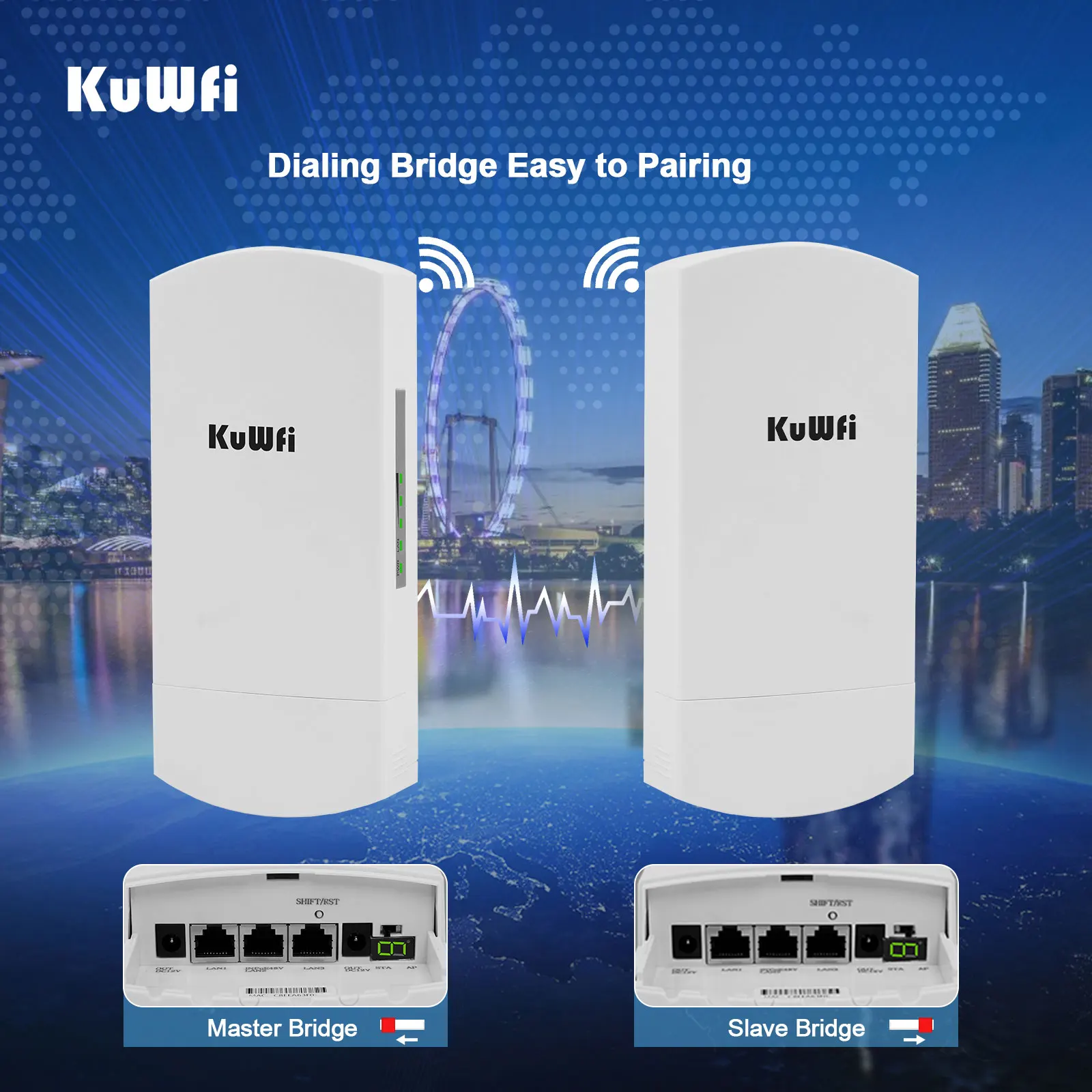

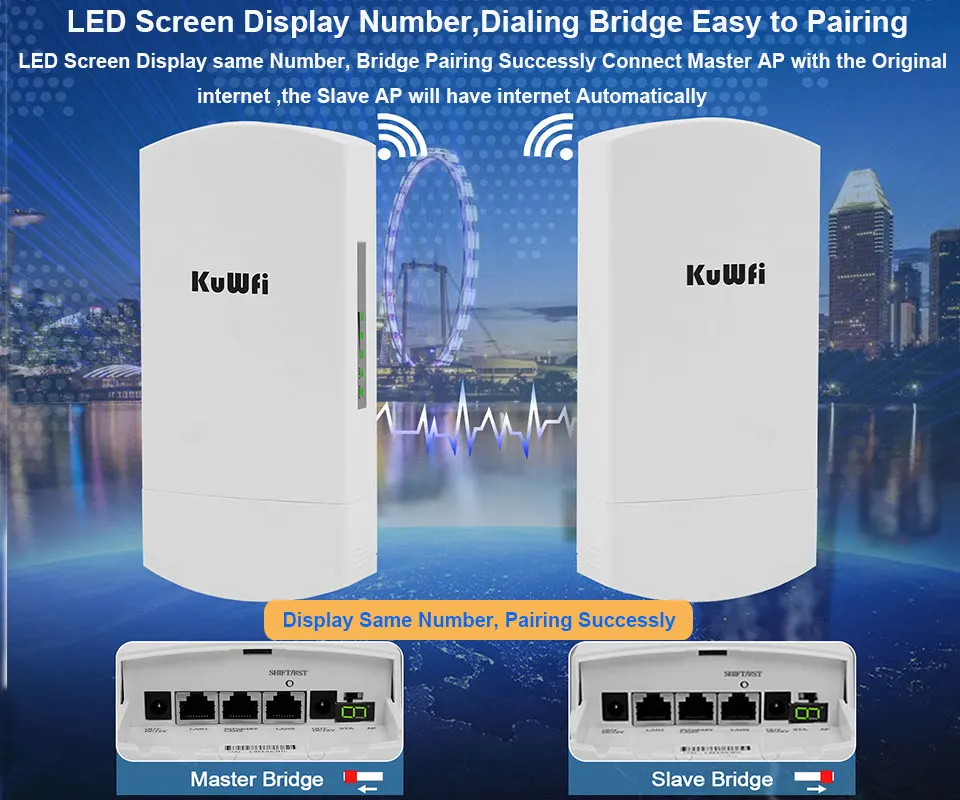

➢ With LED display and AP/Client mode toggle switch for easy pairing without entering into the web UI interface
Hardware Specification:
CPU |
QualcommAR9344 |
StandardsComply |
IEEE802.11a/n, IEEE802.3u, IEEE802.3x |
DDR |
64Mbyte |
FLASH |
8Mbyte |
PowerSupply |
POE 48V |
CPU Frequency |
533MHz |
Antenna |
Internal 12dBi directionalpaneldual-polarizationantenna
(horizontalbeam60º, Verticalbeam25º) |
Antennatype |
2×2 (2Tx,2 Rx) |
Ethernet Ports |
3 10/100Mbps RJ45 LAN Ports, middle LAN support PoE input |
ResetButton |
1x Reset/Shiftbutton, can shift frequency channel for pairing |
ModeSwitch |
AP/Station mode toggle switch |
LEDDisplay |
Show frequency channel for easy pairing |
Firmware Upgrade |
Through WebandTFTP |
LED Indicator |
SYS, LAN, RSSI1, RSSI2,RSSI3 |
DataTransfer Rate |
300Mbps |
TransmissionType |
DSSS |
ModulationType |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
RF Frequency range |
5.180GHz ~ 5.850 GHz (Channel 36~165) |
DC Interface |
2DC 12V output jack, supply power to other device like IPCAM |
RF Power |
23dBm |

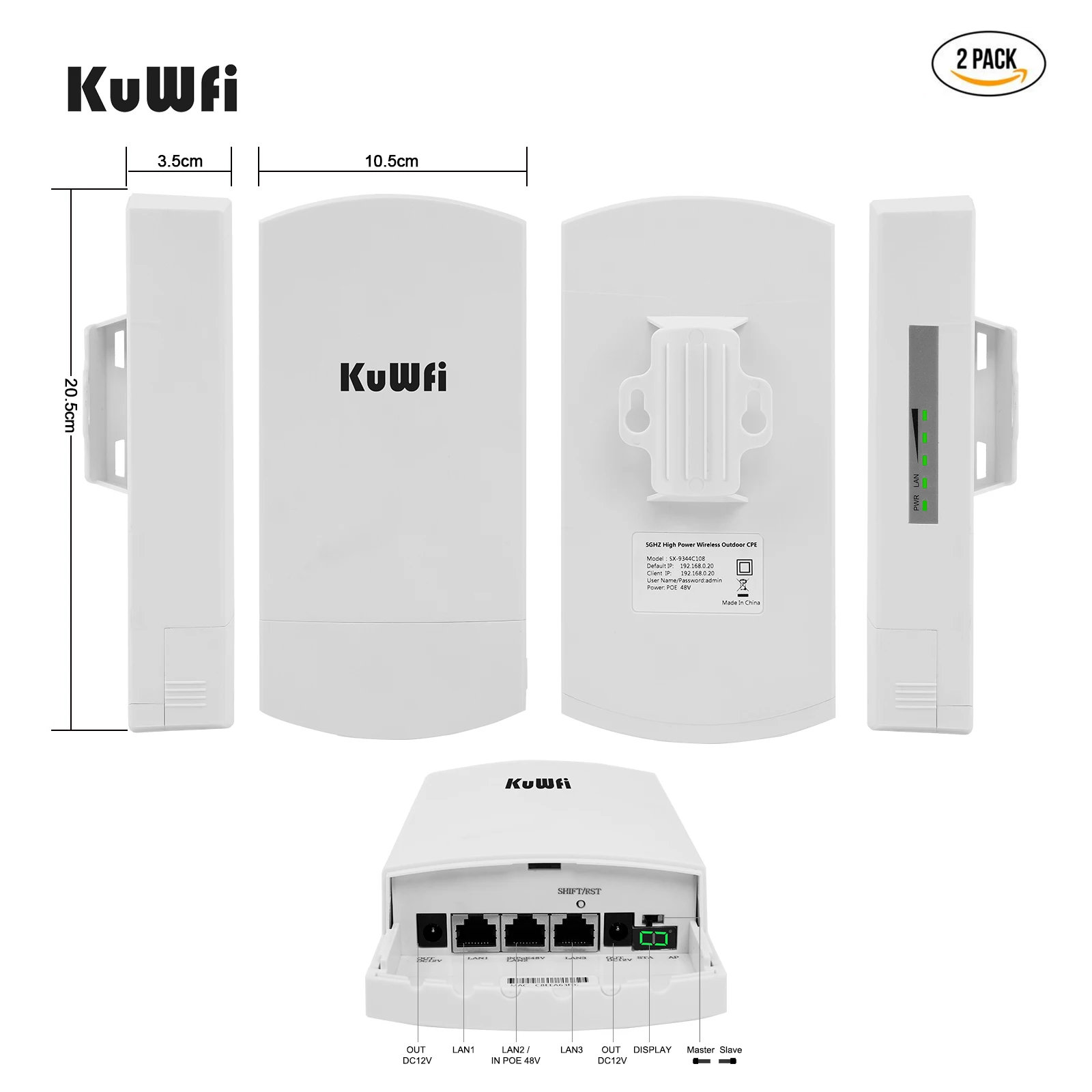

ProductSize |
230*106*37mm |
EnvironmentalRequirement |
Working Temperature |
-30~+70℃ |
WorkingHumidity |
10%~90% RH (non-condensation) |
Storage Temperature |
-40~+80℃ |
Storage Humidity |
5%~90%RH (non-condensation) |
Lightning Protection |
Common mode 1.5KV, differentialmode1KV |
EnvironmentalStandards |
RoHs Compliance |

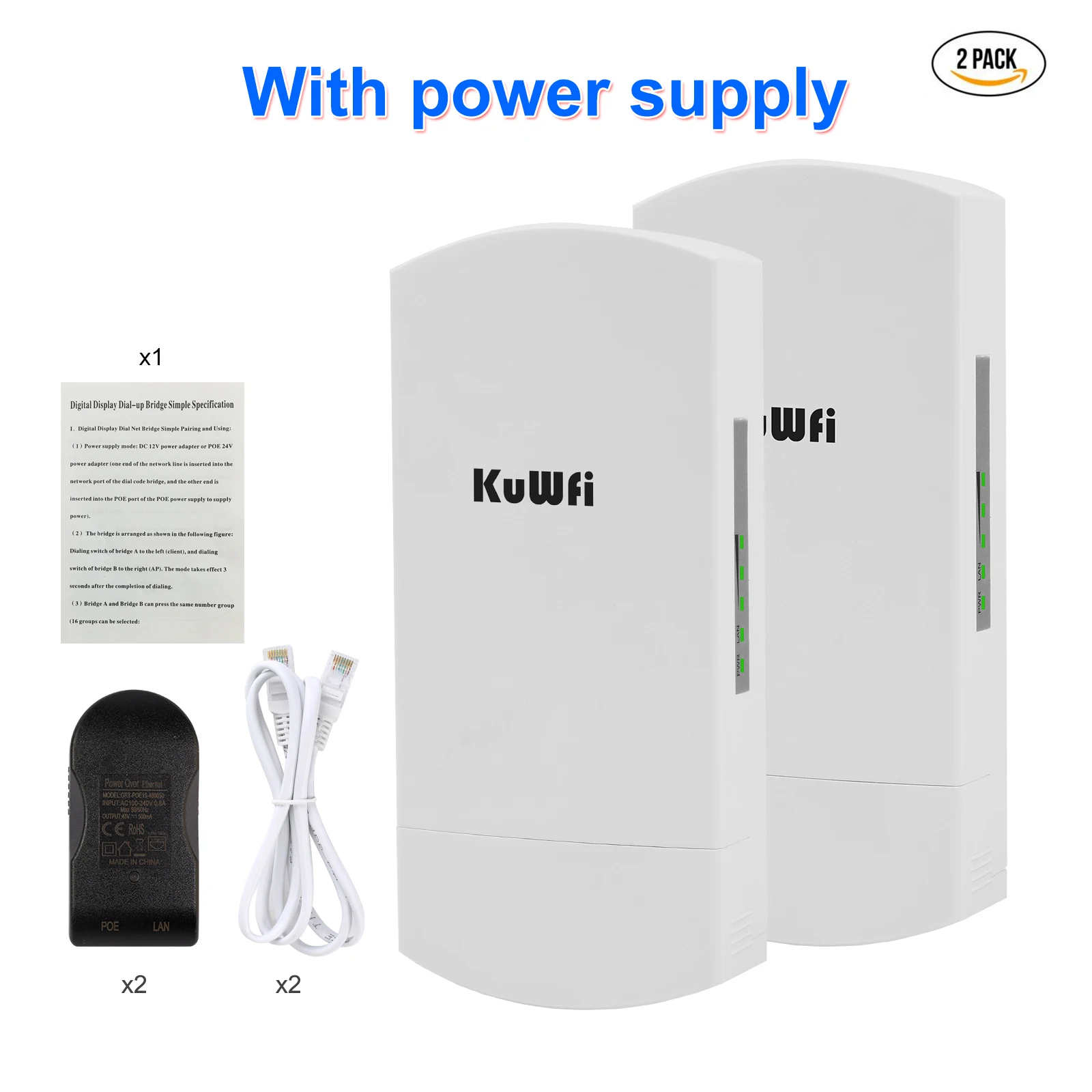

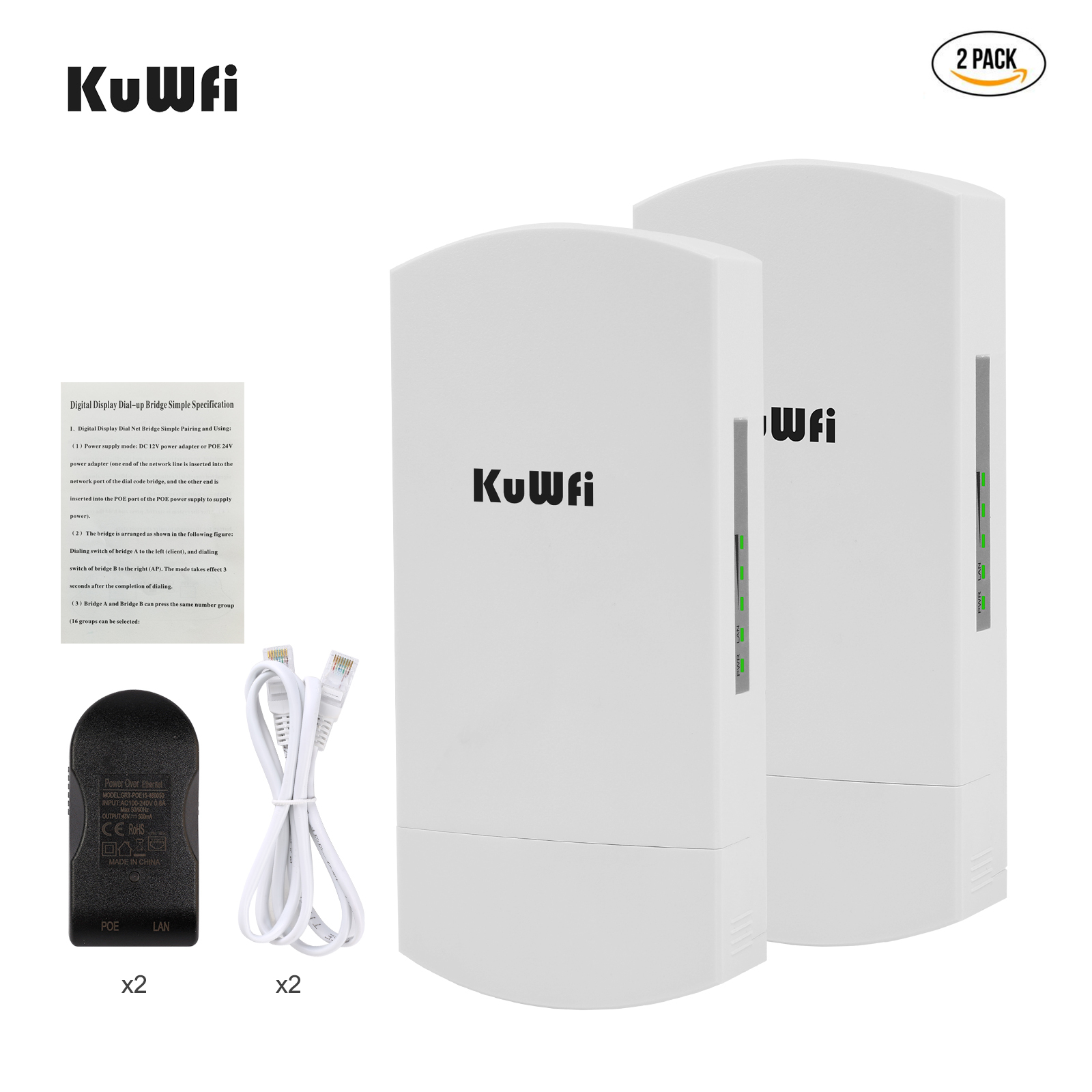

Package Included:
2x 5.8G 300Mbps Wireless Outdoor Bridge
2x 48V PoE Power Adapter
2x RJ45 LAN Cable
1x User Manual
