FAQ:

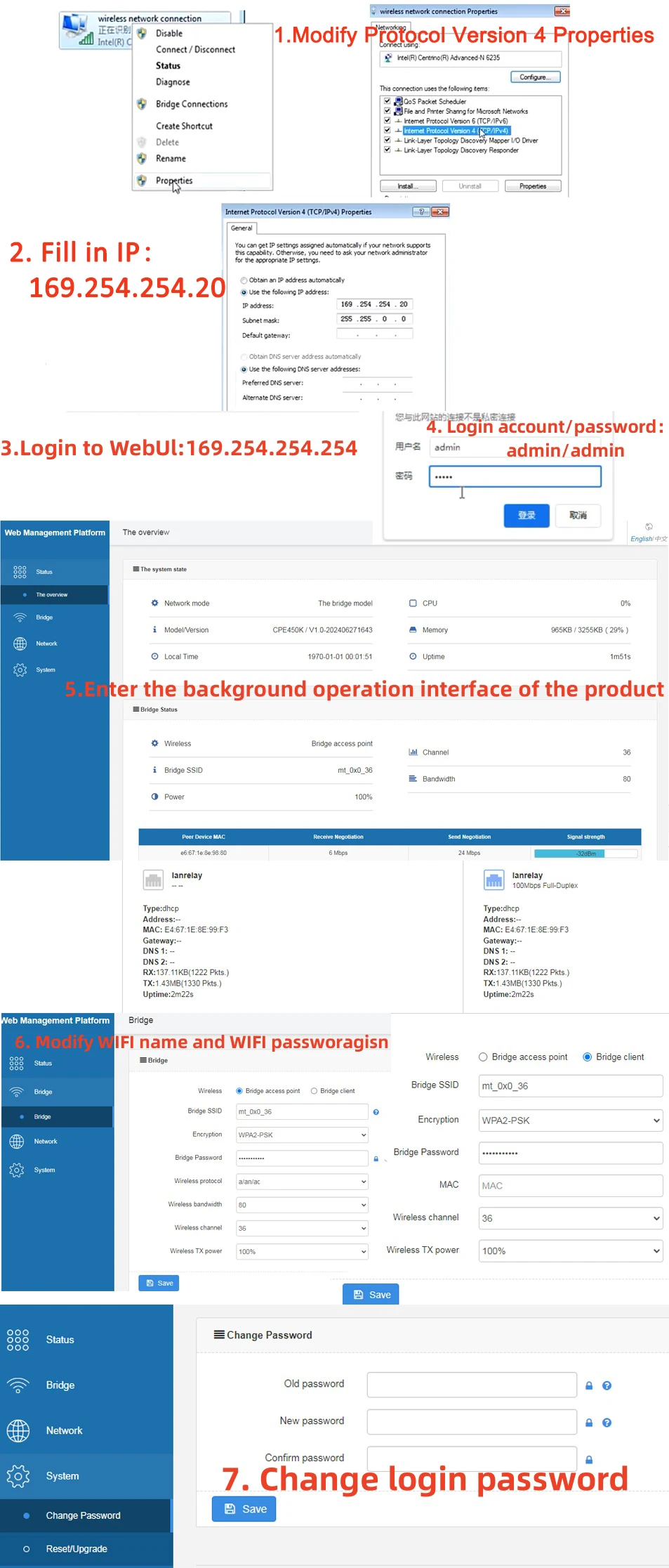

Q1:How to log in WEB UI page?
A1: If you need to manage the bridge, you can use a computer to connect to the bridge wifi or use network cable.
Then set a static IP address for the network to access the WEB UI page.
Q2: i can not log in web ui page for the bridge?
A2: If you need to manage the bridge, you can use a computer wired connect or smartphone wifi connect to the bridge.Then set a static IP address for the network to access the WEB UI page.
You can set static ip address type 169.254.254.20 and Subnet mask type 255.255.255.0.And then you can log in web ui page 169.254.254.254 in browser.
Since the static IP address is set only to change the bridge Settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.
Description:

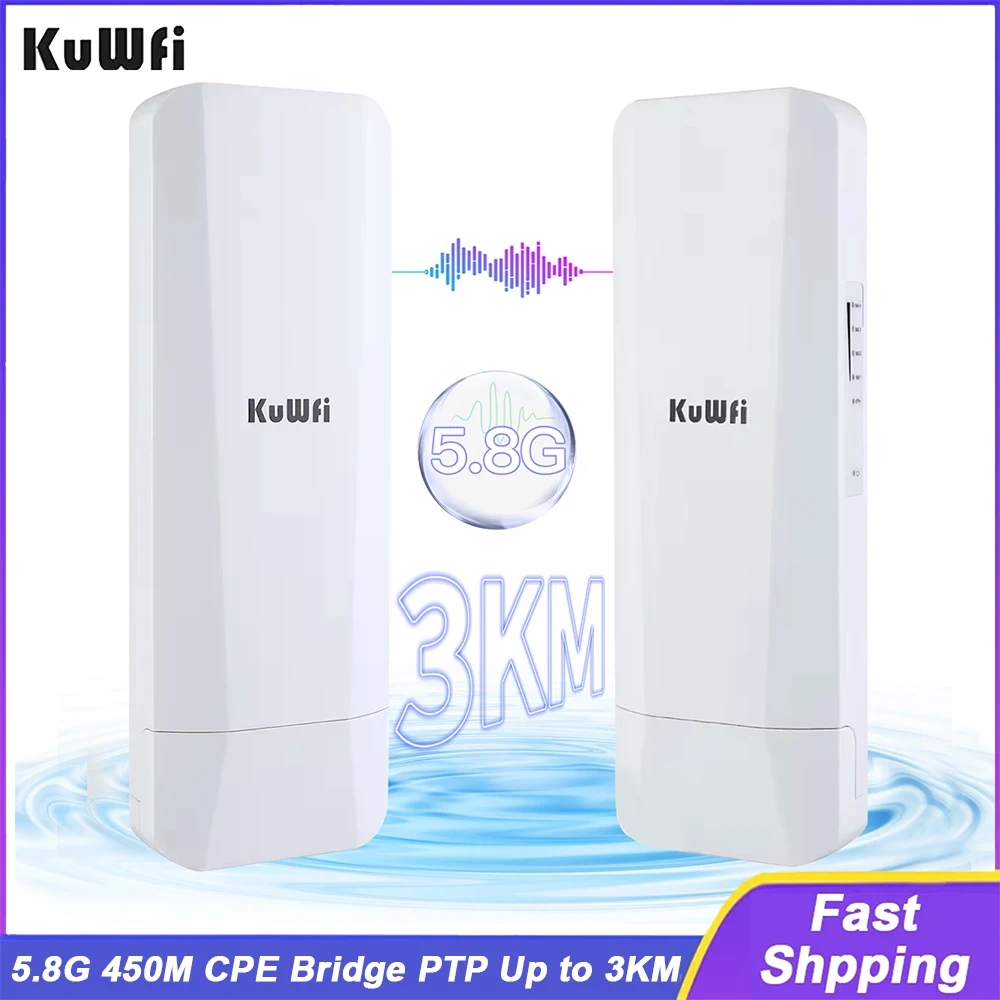

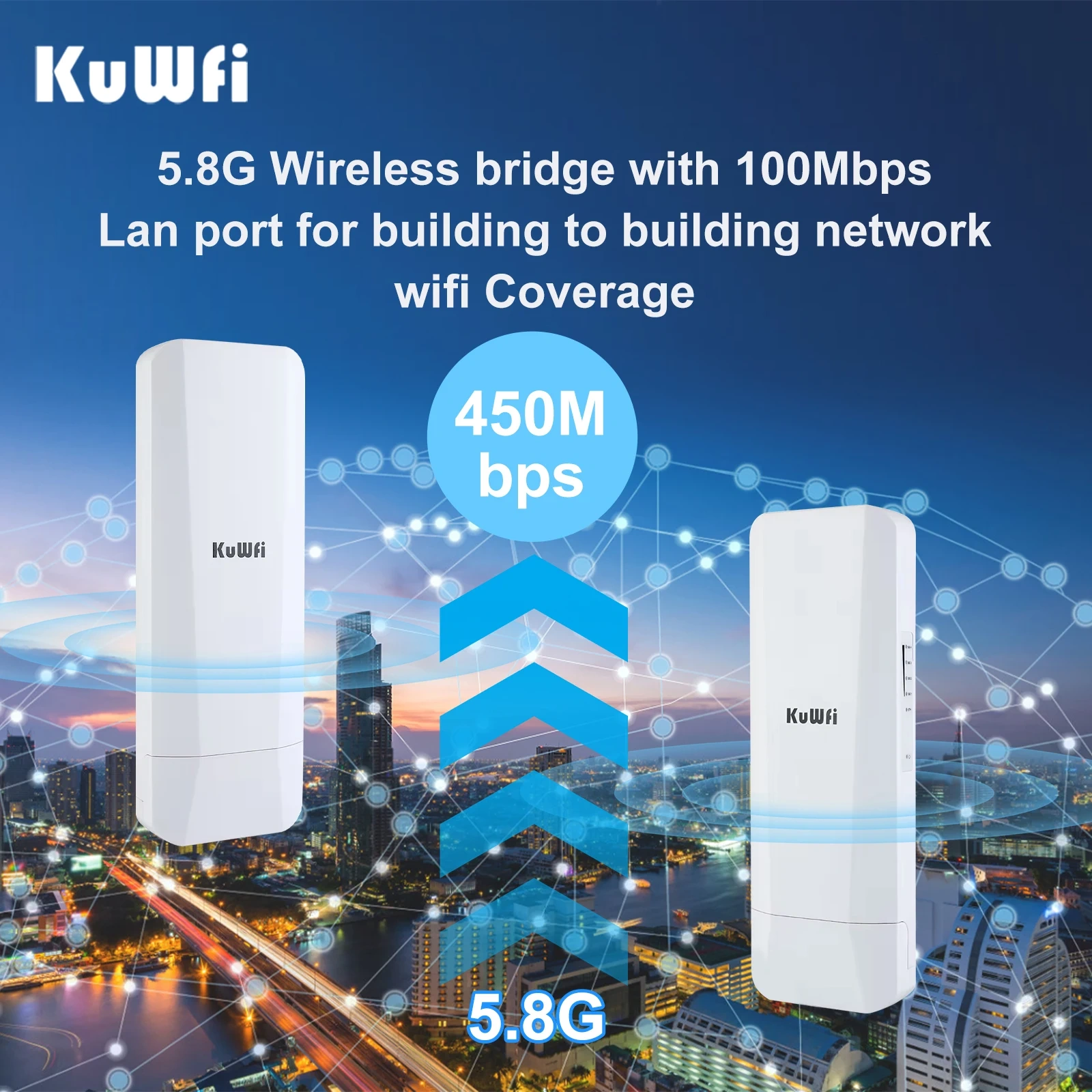

The N660 is a 5.8Ghz 450Mbps outdoor CPE Bridge with two 100Mbps Ethernet ports,supports 24V POE and DC 12V power supply. Users can not only connect devices via wireless Wi-fi, but also via wired. Each Bridge has AP Mode and Repeater Mode, and the N660 has a built-in 14dBi panel antenna with an optimal transmission distance of 3KM measured in the lab.
Product Main Features
450Mbps 5.8Ghz CPE Bridge
The CPE Bridge 5.8GHz Wi-fi network maximum rate of 450Mbps.Has two RJ45 100Mbps Enternet ports(WAN/LAN Port). Make the wi-fi Router applicable to more scenarios,wirless and wired.

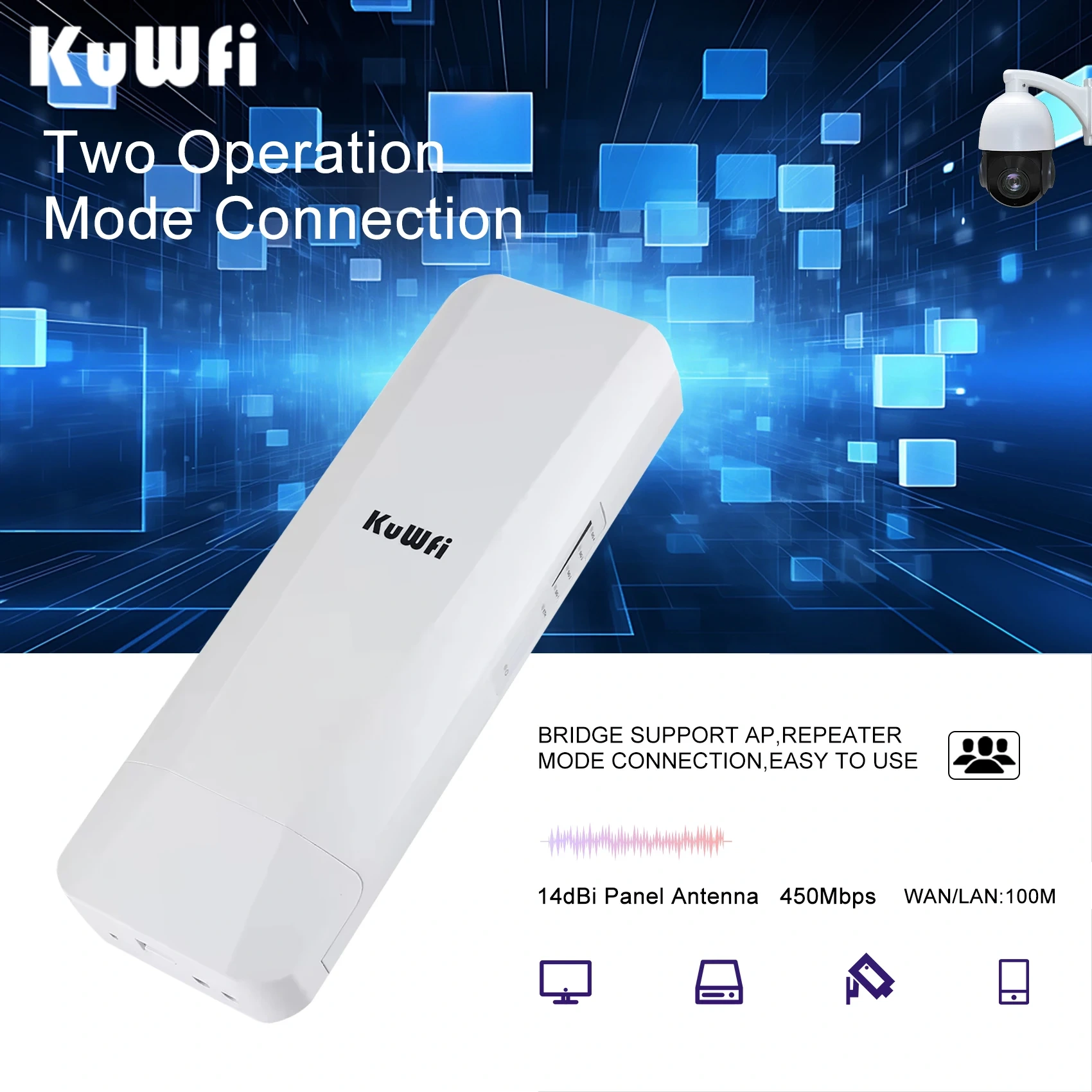

Support AP / Repeater ode

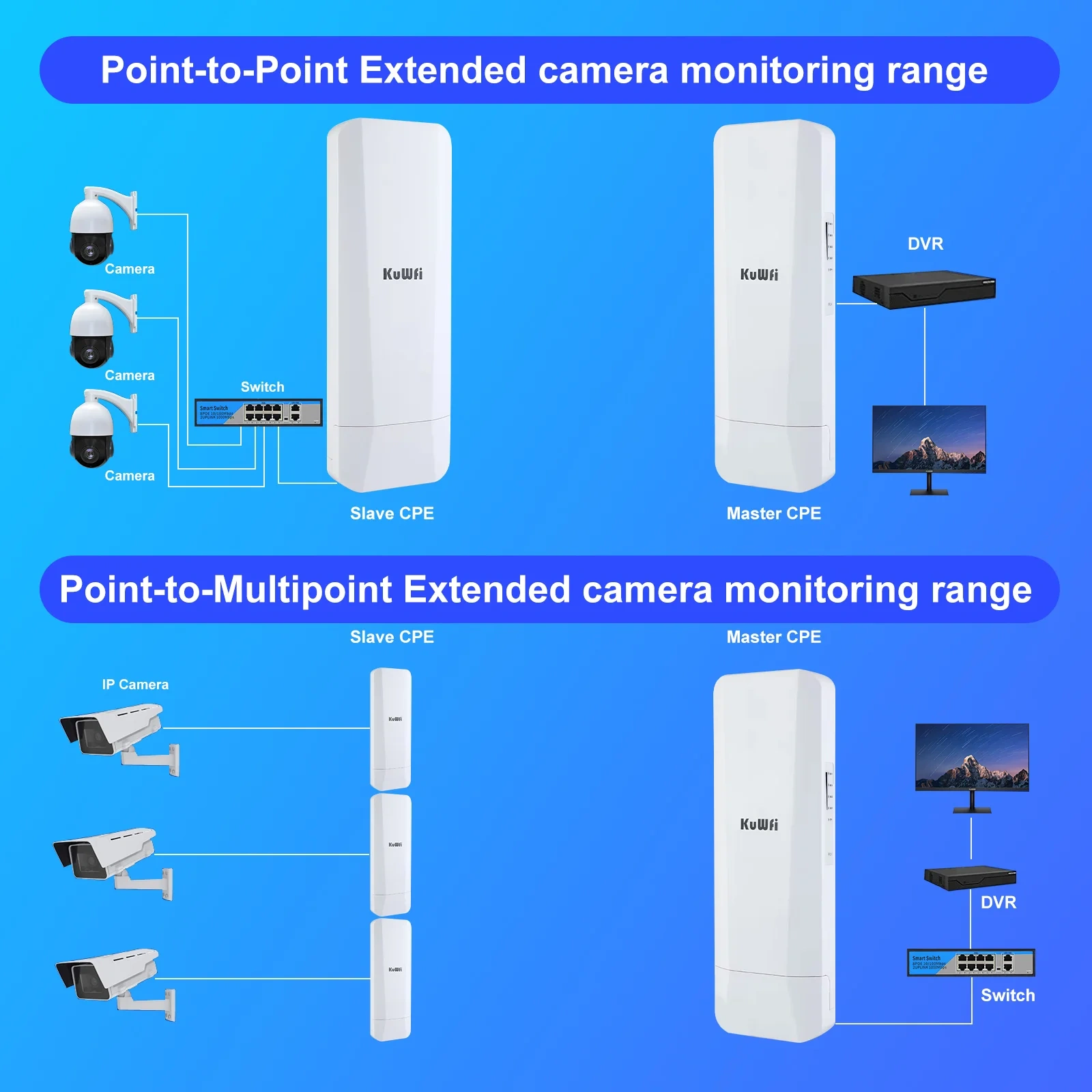

The CPE Bridge support AP mode and Repeater mode, with a wider range of user application scenarios.When the two Bridges are used in pairs, the Wifi signal can be extended to further distances.PTP or PTMP Up to 3km(Test under optimal conditions).
Built in 14dBi Panel Antenna
Built in 14dBi panel antenna, which can meet the wireless transmission within 3KM, and can realize the outdoor coverage and application of point-to-point.Very suitable for outdoor wifi camera monitoring.
One-click Fast Pairing
Simultaneously press the Reset button on the Bridge for one second and the two devices will be paired automatically. Eliminates tedious pairing process. Point-to-point connection is possible.
Supports Two Modes of Power Supply
The CPE Bridge supports 24V PoE power supply and DC 12V power supply.The power supply mode of POE solves the problem that the network bridge can be placed remotely through the network cable.(Package does not include DC 12V power supply)
IP65 Outdoor Waterproof and Lightning Proof
Adopt outdoor ABS plastic shell, simple and elegant!Support professional lightning protection, IP65 water-proof, dust-proof, suit for multiple harsh environments.
Specifications:
Wi-fi frequency: 5.8Ghz
Antenna: Built in 14dBi Panel Antenna
5.8Ghz Rate: 450Mbps
LAN/POE Port: 10/100Mbps,Support 24V POE
LAN Port : 10/100Mbps
IP Grade: IP65 Outdoor Waterproof
Working Temperature : -20°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity: 5 percent to 95 percent (Non-Condensing)
Switch Button: AP Mode(‘M’)/ Repeater Mode(‘S’)
Reset Button: Reset Button: Long press for 10-15 seconds to restore the factory default configuration, and short press for 1 second to initiate pairing.

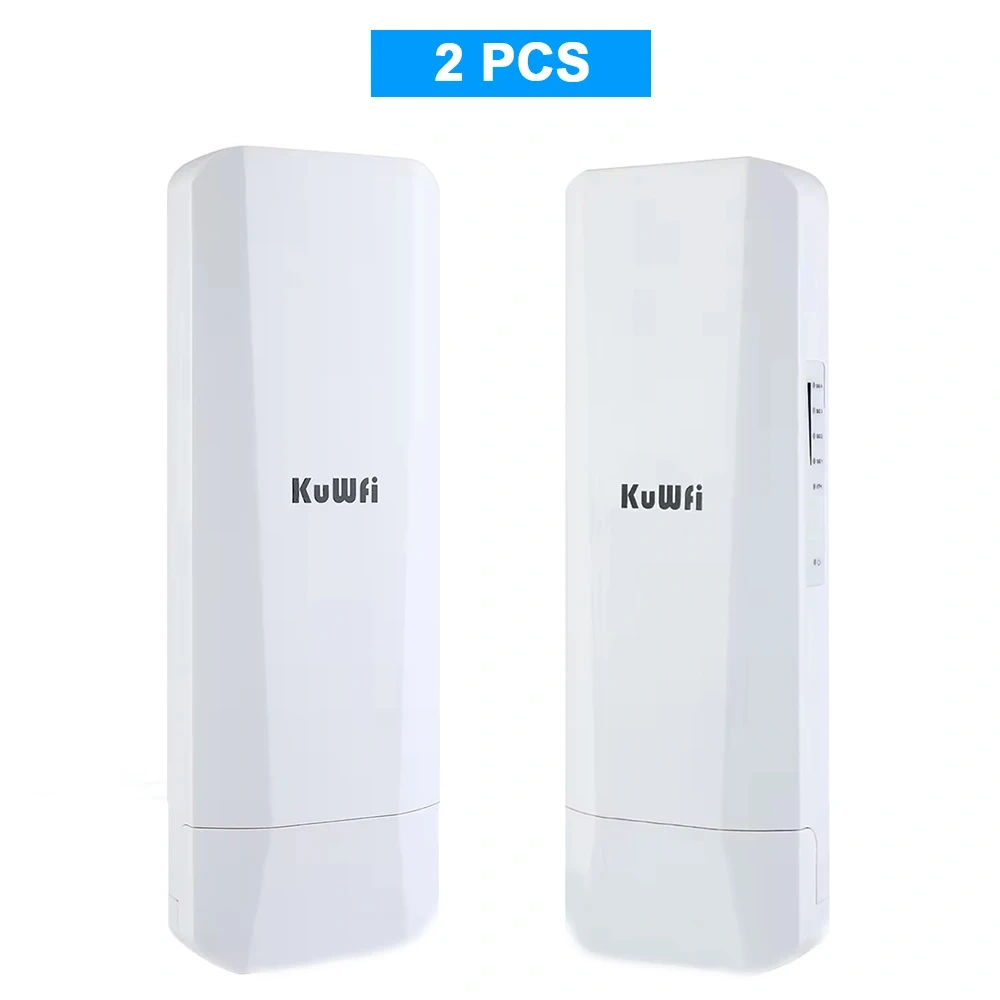

2PCS Package Listing:
• 2x 5.8GHz CPE Bridge
• 2x POE Power Supply
• 2x Network Cable
• 1x User Manual
