Pre-purchase Notice:
(1) Please confirm the selected plug type before purchasing.

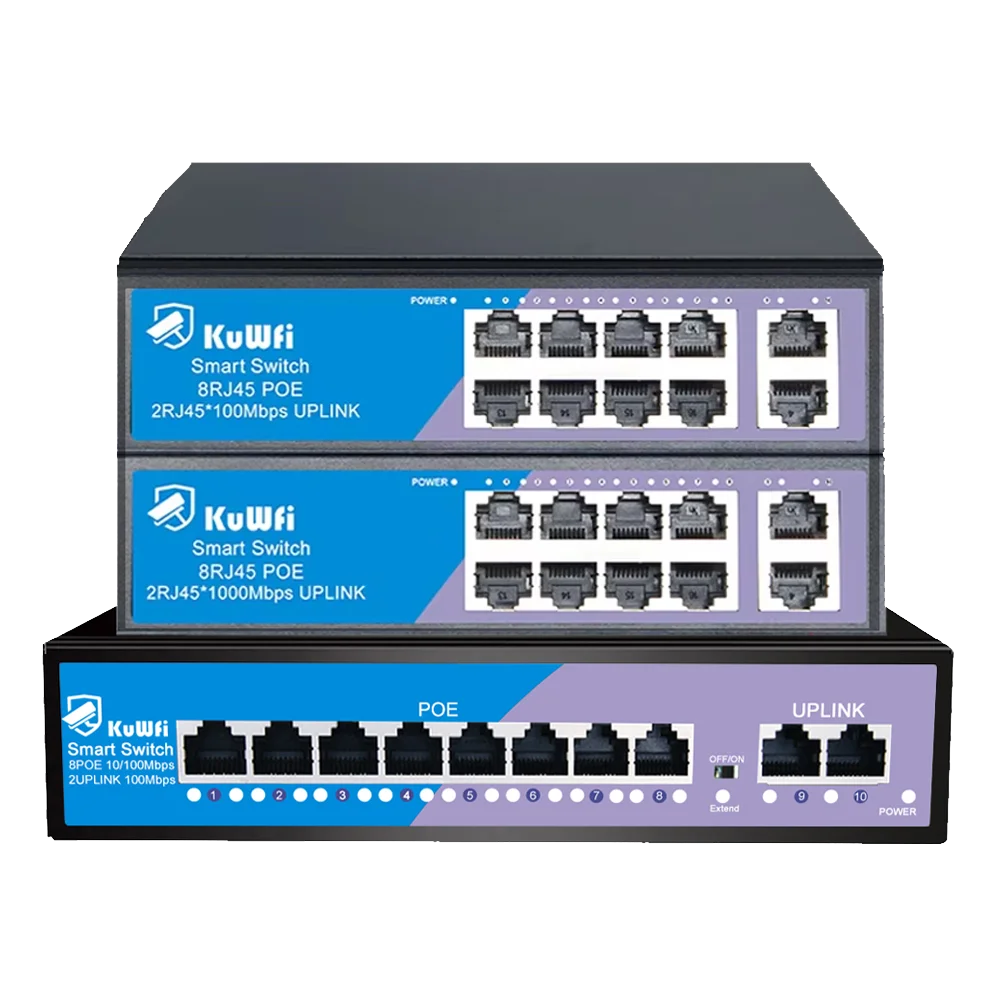

(2)There are three models of POE Switch, please check the corresponding parameters before buying.
(3)The 1010-J & F082020-J is a built-in power supply.
The 1010B is an external power supply.

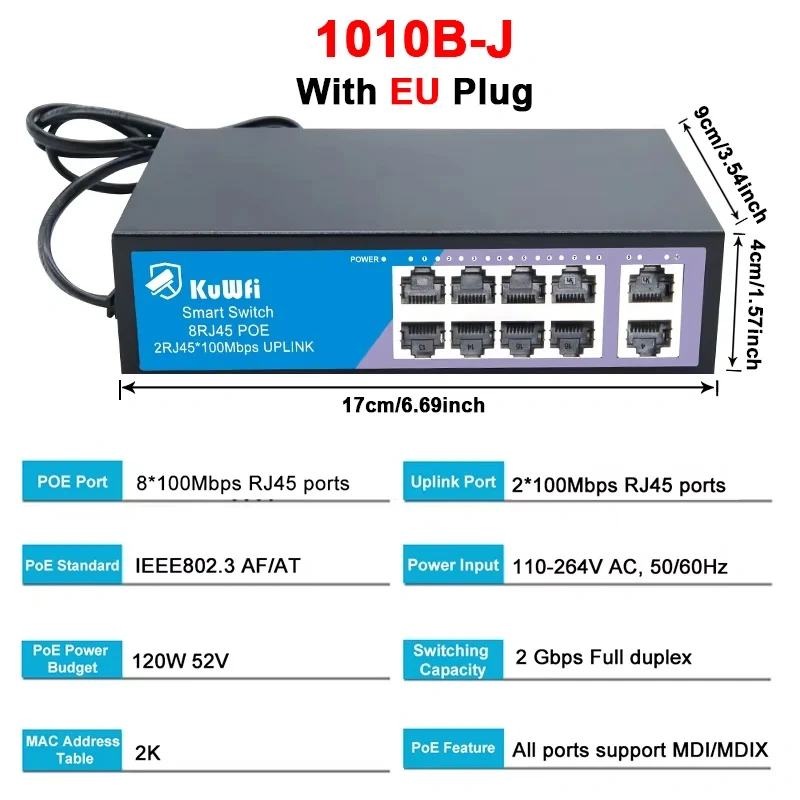

1010B-J (Built-in power supply)
● Port: 8*10/100Mbps PoE + 2*10/100Mbps Uplink
● Supports PoE power up to 30W
● PoE Standard: IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-
● PoE Power Budget: 120W 52V
● Power Input: 110-264V AC, 50/60Hz
● Power Source: Bult-in Power Supply
● Distance: 0 to 100 meter
● Switch Capability: 2Gbps Full duplex
● MAC Address: 2K
● Power Consumption : <5W
● Working temperature：-10° to 55°C
● Storage Temperature : -40° to 70°C
●Humidity : 10%-95% , non-condensing
● Size: 170*90*40mm

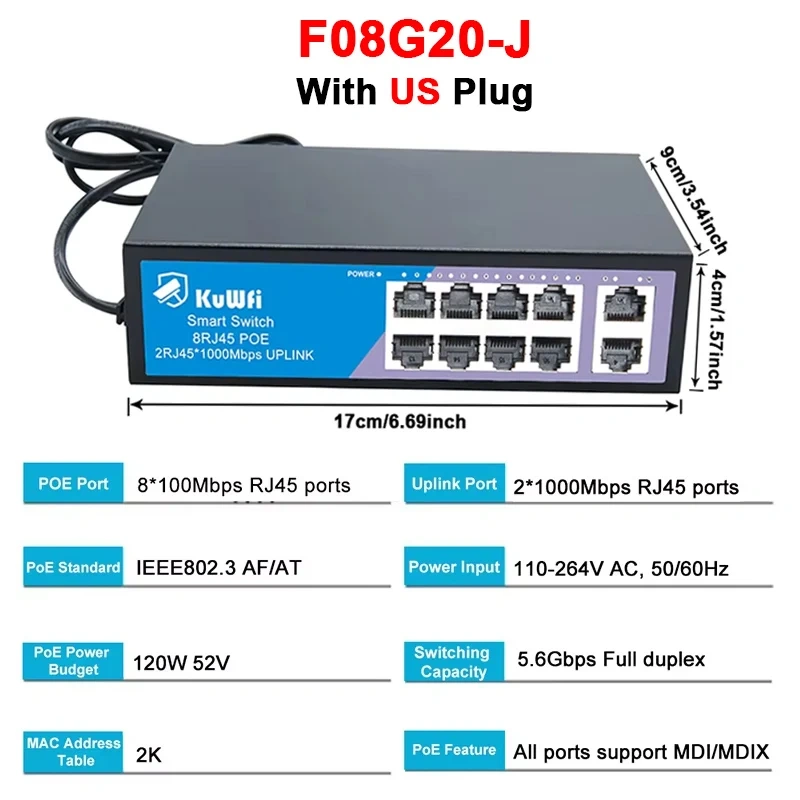

F08G20-J (Built-in power supply)
● Port: 8*10/100Mbps PoE + 2*10/1000Mbps Uplink
● Supports PoE power up to 30W
● PoE Standard: IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-
● PoE Power Budget: 120W 52V
● Power Input: 110-264V AC, 50/60Hz
● Power Source: Bult-in Power Supply
● Distance: 0 to 100 meter
● Switch Capability: 5.6Gbps Full duplex
● MAC Address: 2K
● Power Consumption : <5W
● Working temperature：-10° to 55°C
● Storage Temperature : -40° to 70°C
●Humidity : 10%-95% , non-condensing
● Size: 170*90*40mm

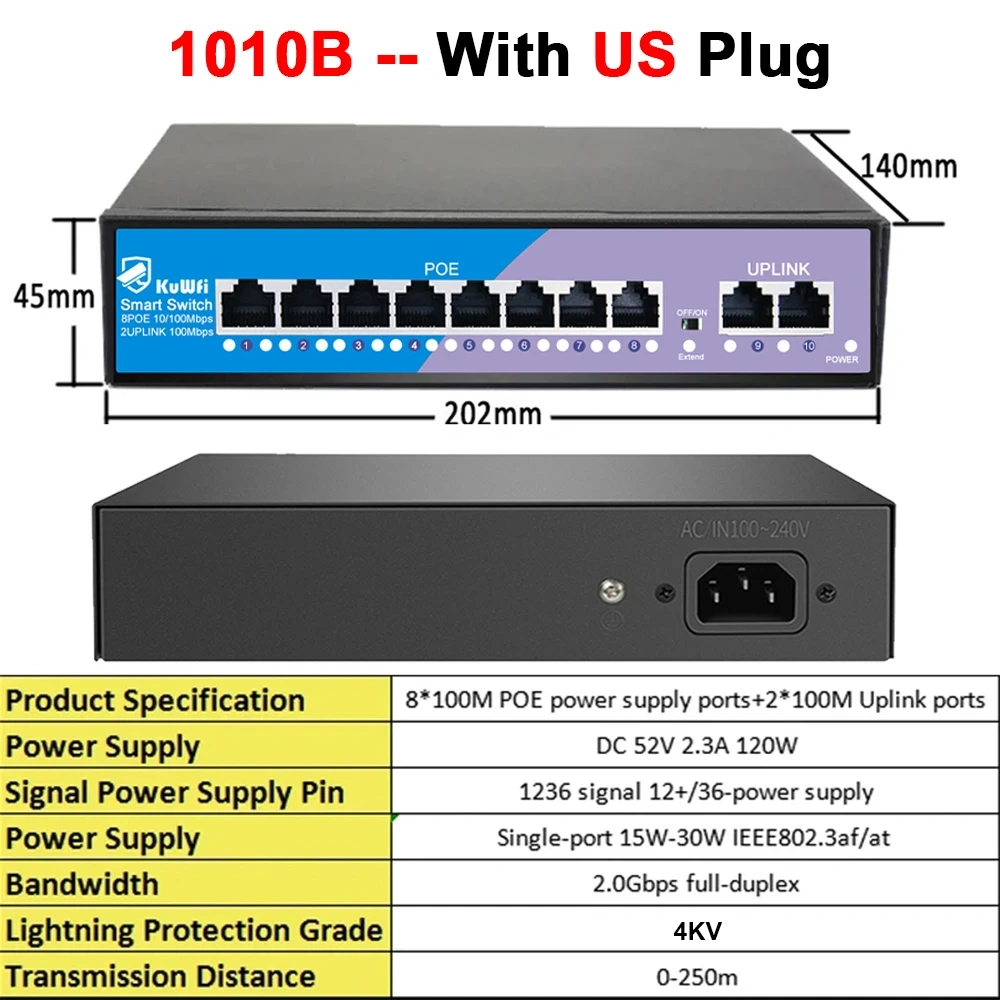

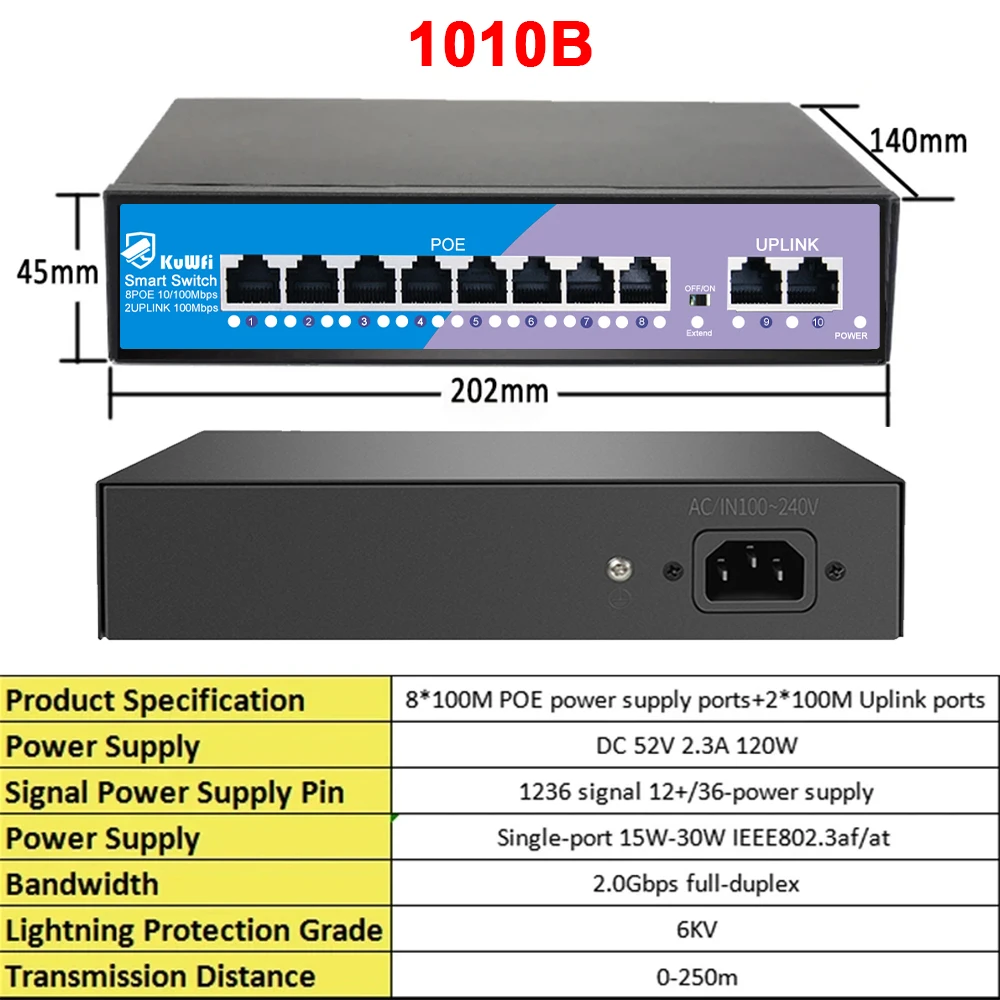

1010B (External power supply)
● Port: 8*10/100Mbps PoE + 2*10/100Mbps Uplink
● PoE Output Power:15.4W/30W
● Network Medium: Cat5 (UTP) or more
● Network Standards: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
● PoE power: 15.4W per port(IEEE802.3af).
● Backboard Bandwidth:2G
● Power:Input: 52V DC input
●Operating temperature:-10-55℃(32-104℉)
● Storage temperature:-40-70℃(14-158℉)
●Support Extend Mode,Up to 250 Meter.(Only 10Mbps in Extend Mode)
Description
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes
● Supports IEEE802.3af/at full duplex control
● Supports storage and forward for Data exchange

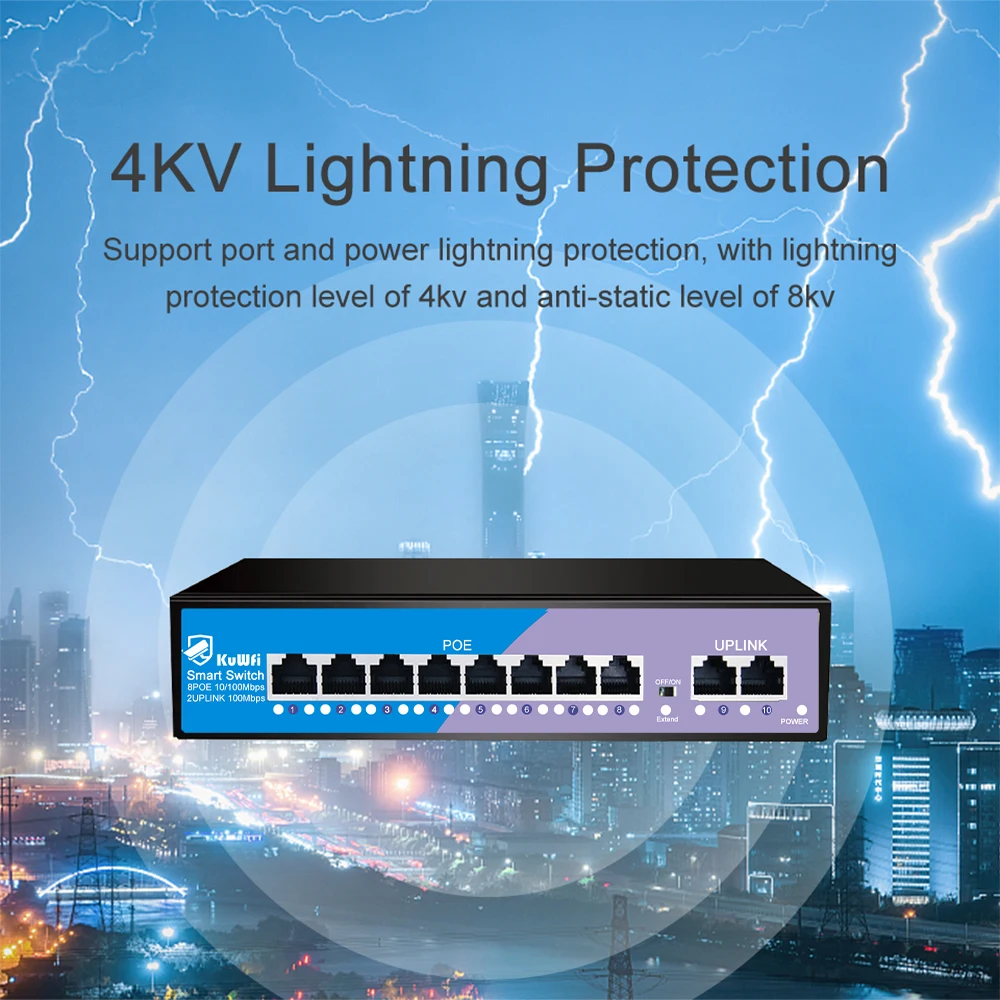

●4KV lightning protection,Keep equipment safe from hazards
Features:

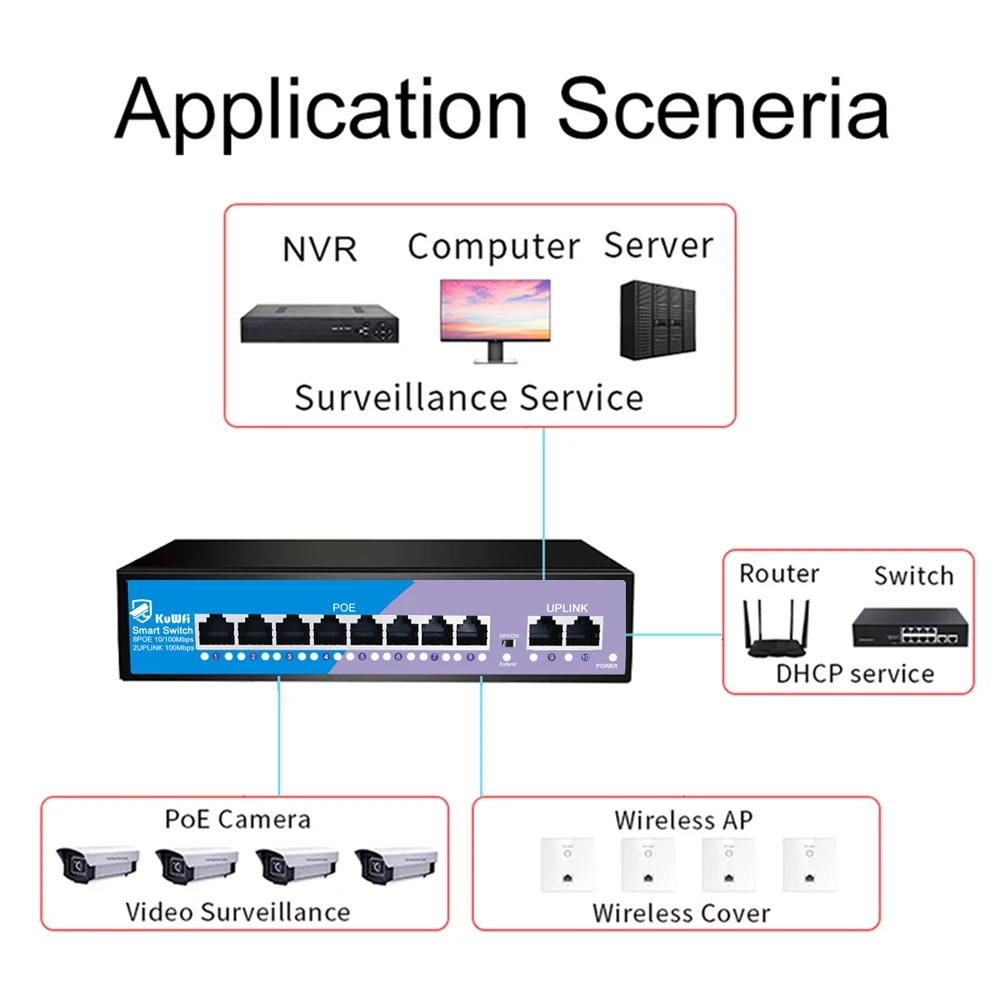

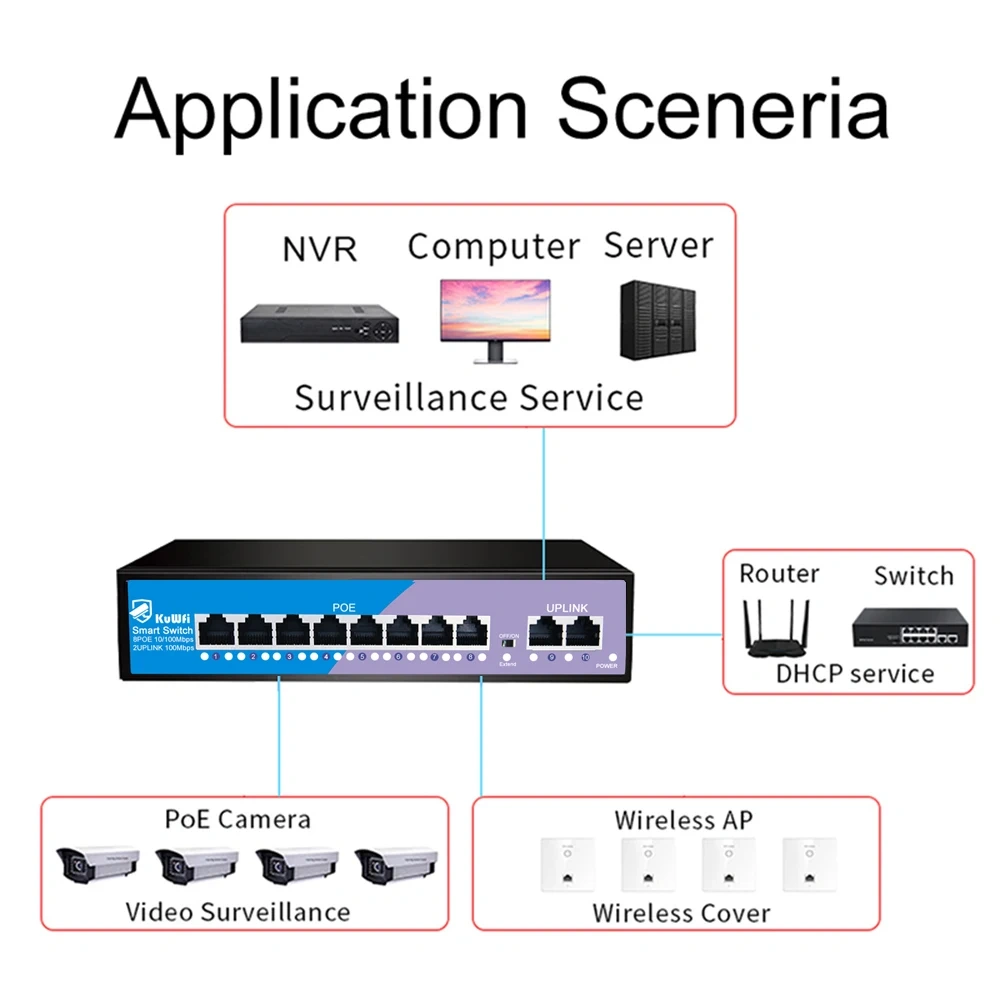

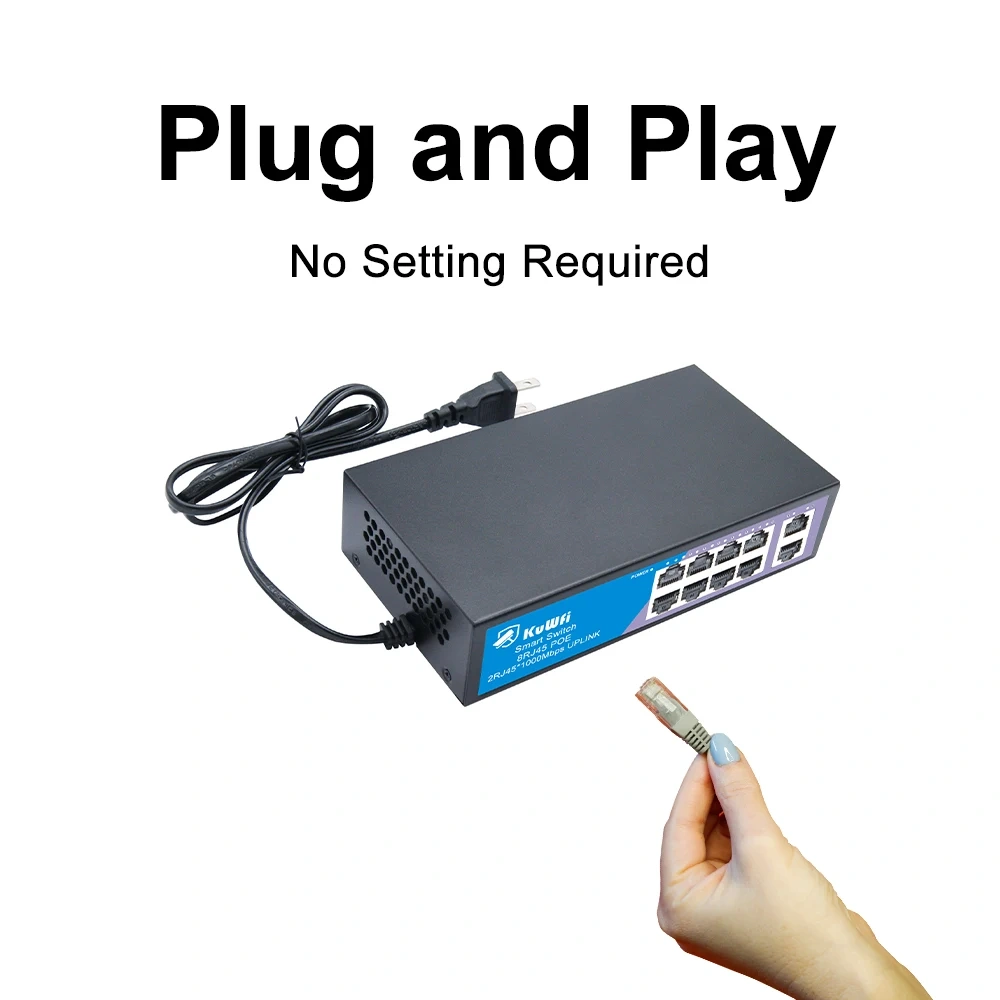

1.PoE ports for Security IP Camera Connection and fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
3.The Poe Switcher can be used for any 10/100Mbps link.
4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products

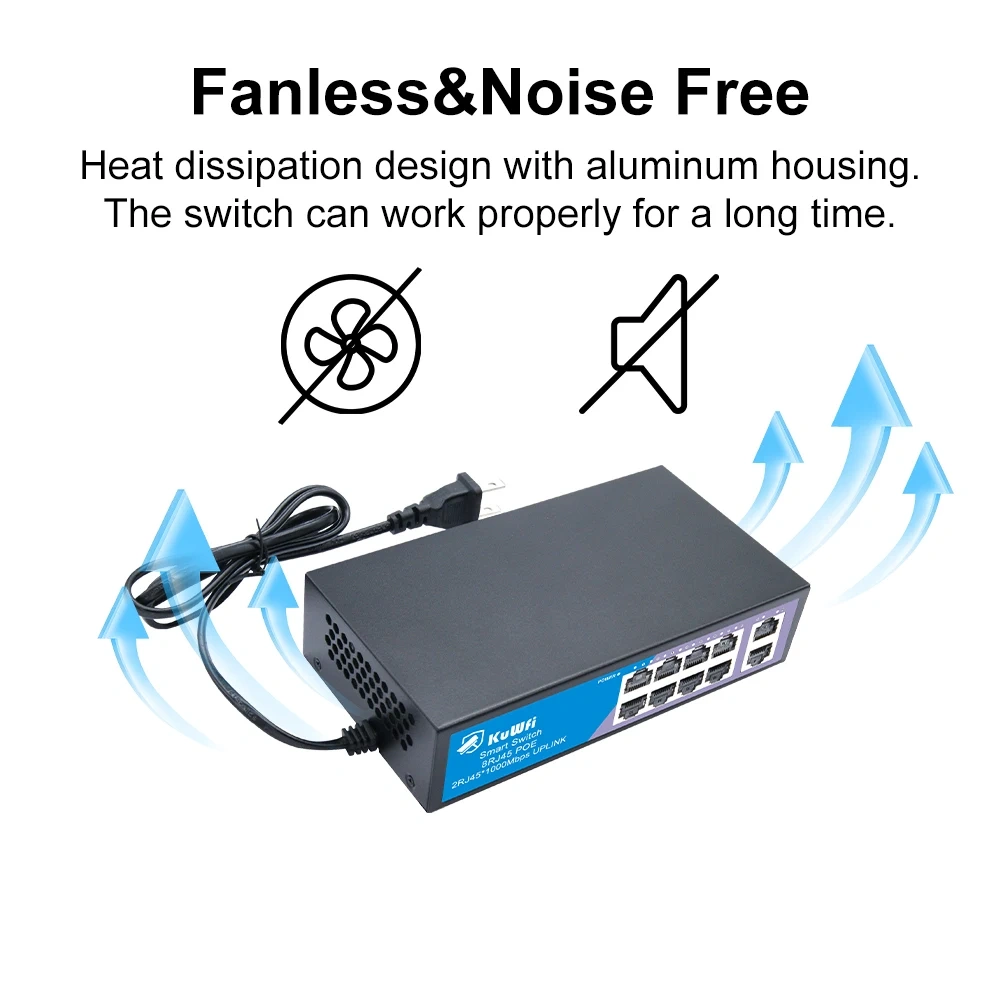

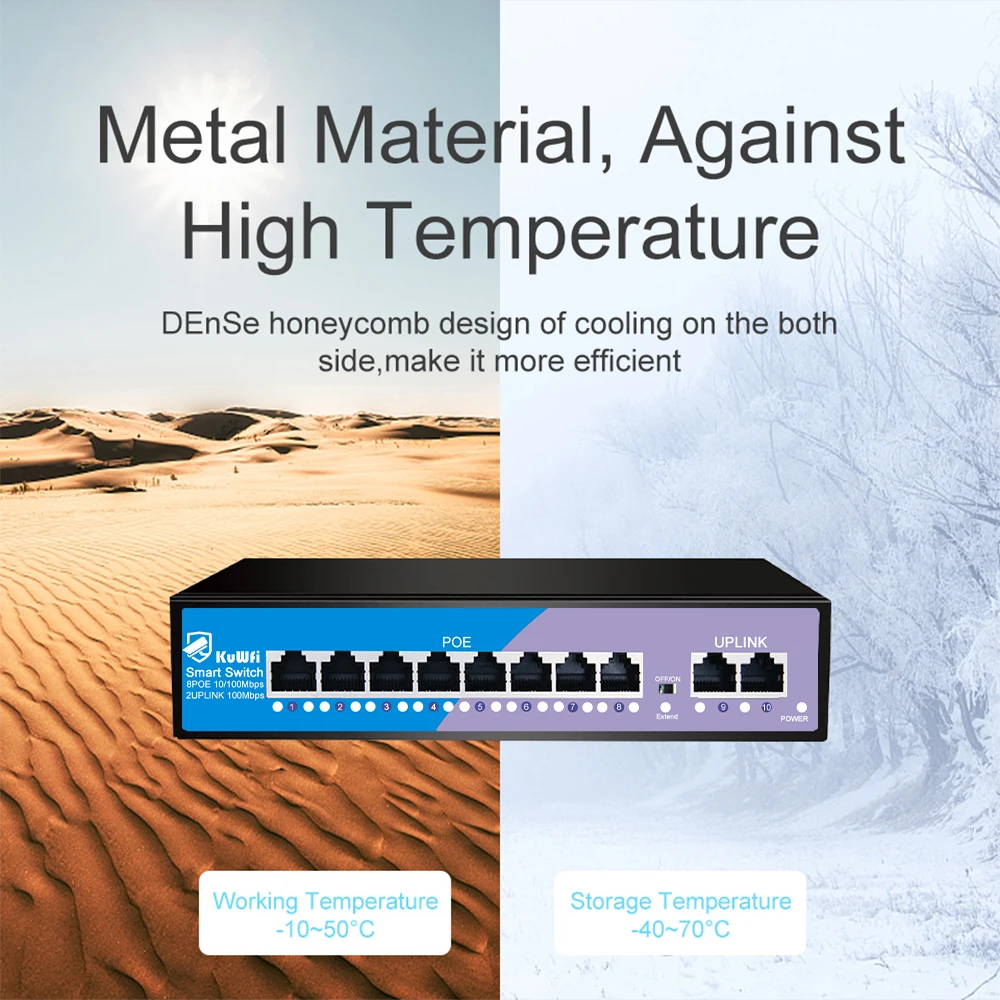

6.PoE switch adopts a heat-dissipation design shell, so that the device can maintain a stable network under continuous work.
7.It can supply power for wireless AP, network camera, and other POE terminal equipment through the network cable, supply the network, simple installation, plug and play
Package Listing
1* Manual
1* 48V POE switch(Default is EU Plug)
