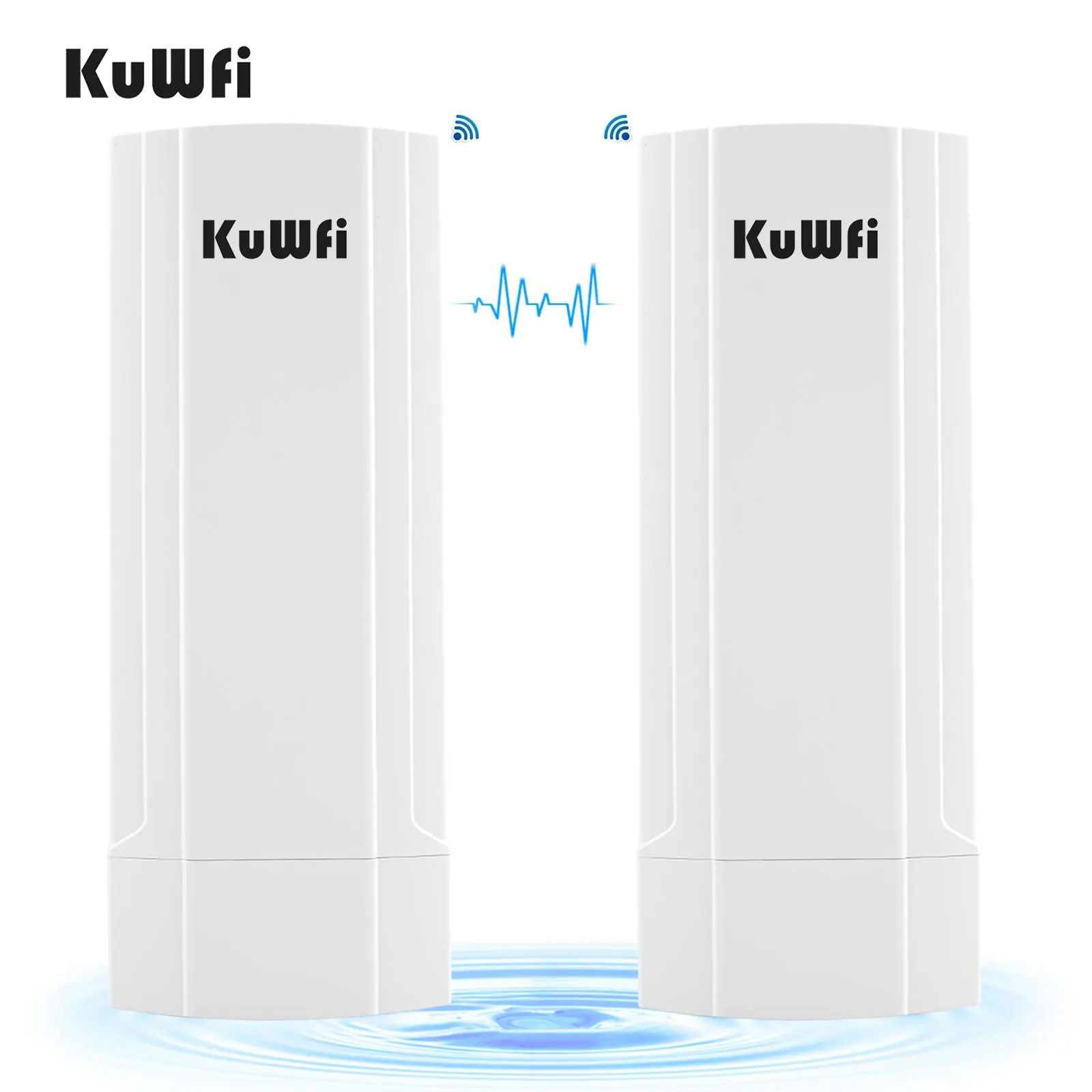

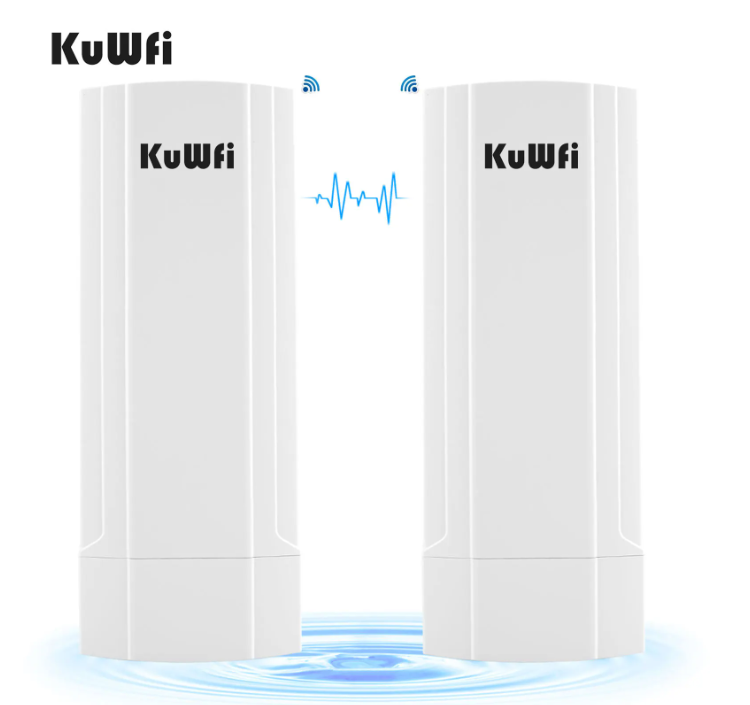

KuWfi 900Mbps 5GHz Outdoor Wifi Bridge CPE Router Long Range Extender PTP Up to 5KM Wifi Coverage Gigabit Port AP Repeater Mode

FAQ：

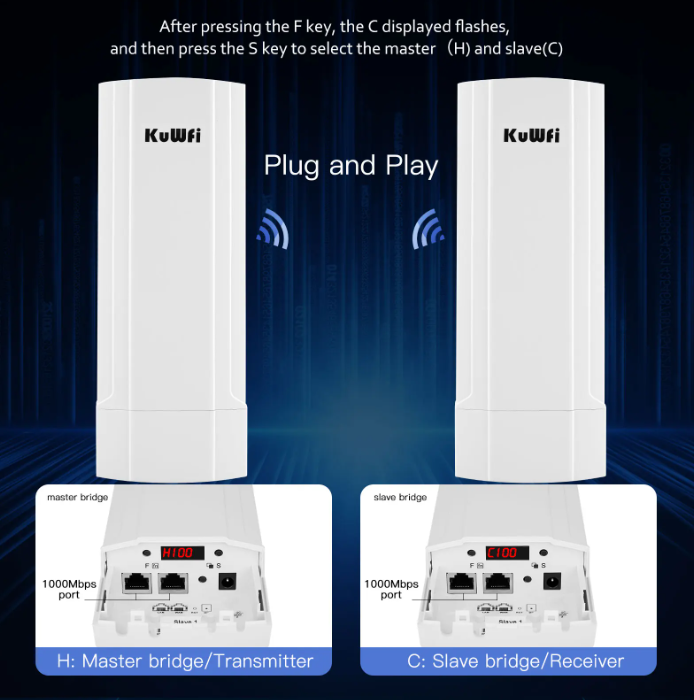

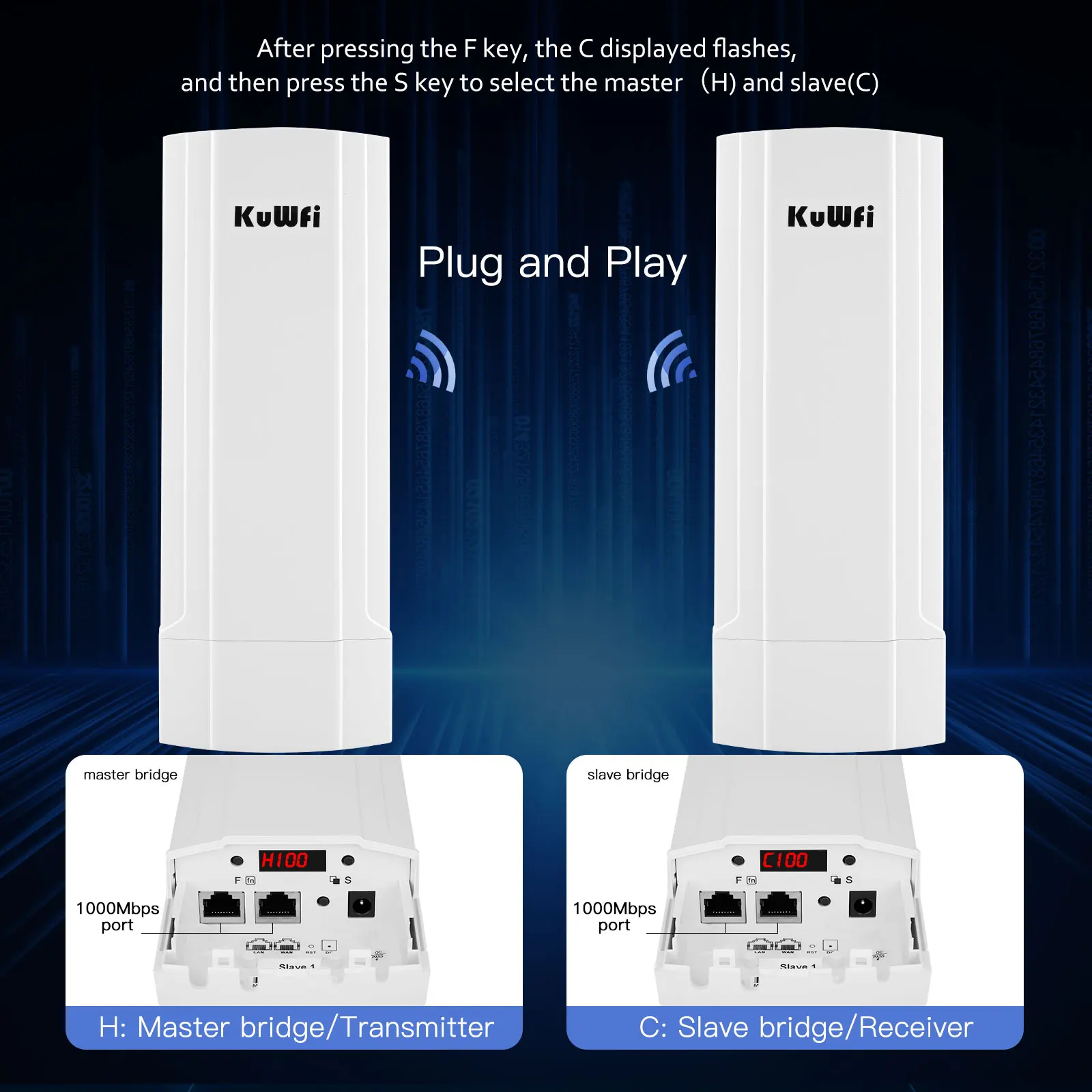

Q1: How to pair Bridges?

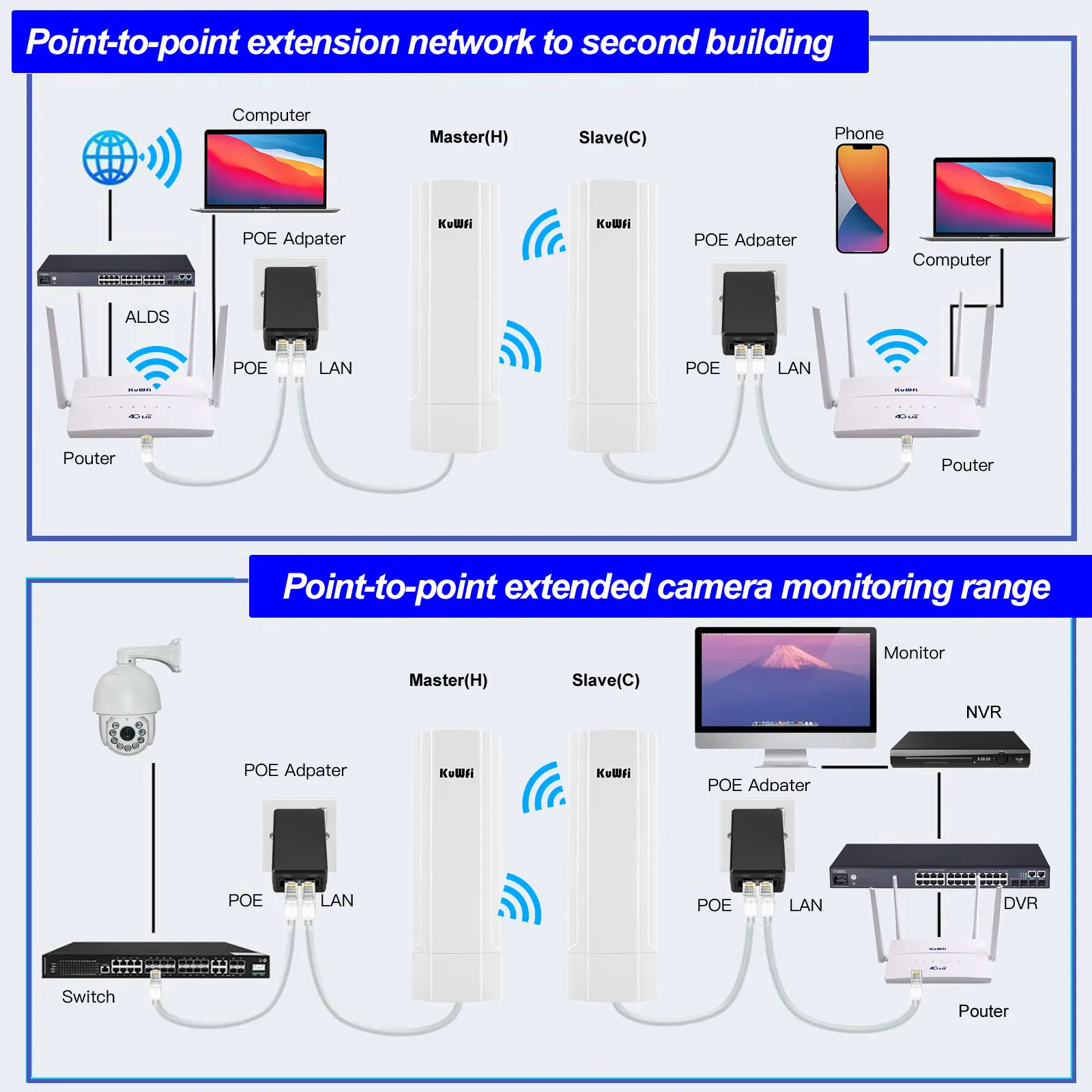

A1: If you need to expand the wifi signal, you must first pair the two Bridges and then secure them to the designated place.Set one of the Bridges as the Master Bridge and move the switch on the bridge to the "H" end.The other Bridge is set as the Slave Bridge, and the switch on the bridge is moved to the "C" end.
Then you need to press the "RST" button of both Bridges at the same time for one second, and the Bridges will automatically pair.

Q2: i can not log in web ui page for the bridge?

A2: If you need to manage the bridge, you can use a computer wired connect or smartphone wifi connect to the bridge.Then set a static IP address for the network to access the WEB UI page.
You can set static ip address type 192.168.188.10 and Subnet mask type 255.255.255.0.And then you can log in web ui page 192.168.188.253 in browser.
Since the static IP address is set only to change the bridge Settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.

Q3: Outdoor wi-fi bridge is less than described distance?

A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.

Q4: The bridge Wi-Fi signal is weak or the transmission distance is short?

A4: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.

Q5: Does the bridge support 360-degree signal transmission?

A5:The bridge uses panel antennas, so it does not support 360-degree transmission. It is recommended that when installing, the two Bridges are face to face, which can improve the stability of Wi-fi signal transmission.

Q6: Can't find a Wi-Fi signal?

A6: Since each country supports different Wifi channels, I suggest you log into the WEB UI page to change the region of Wifi signal or use another channel.

Description:

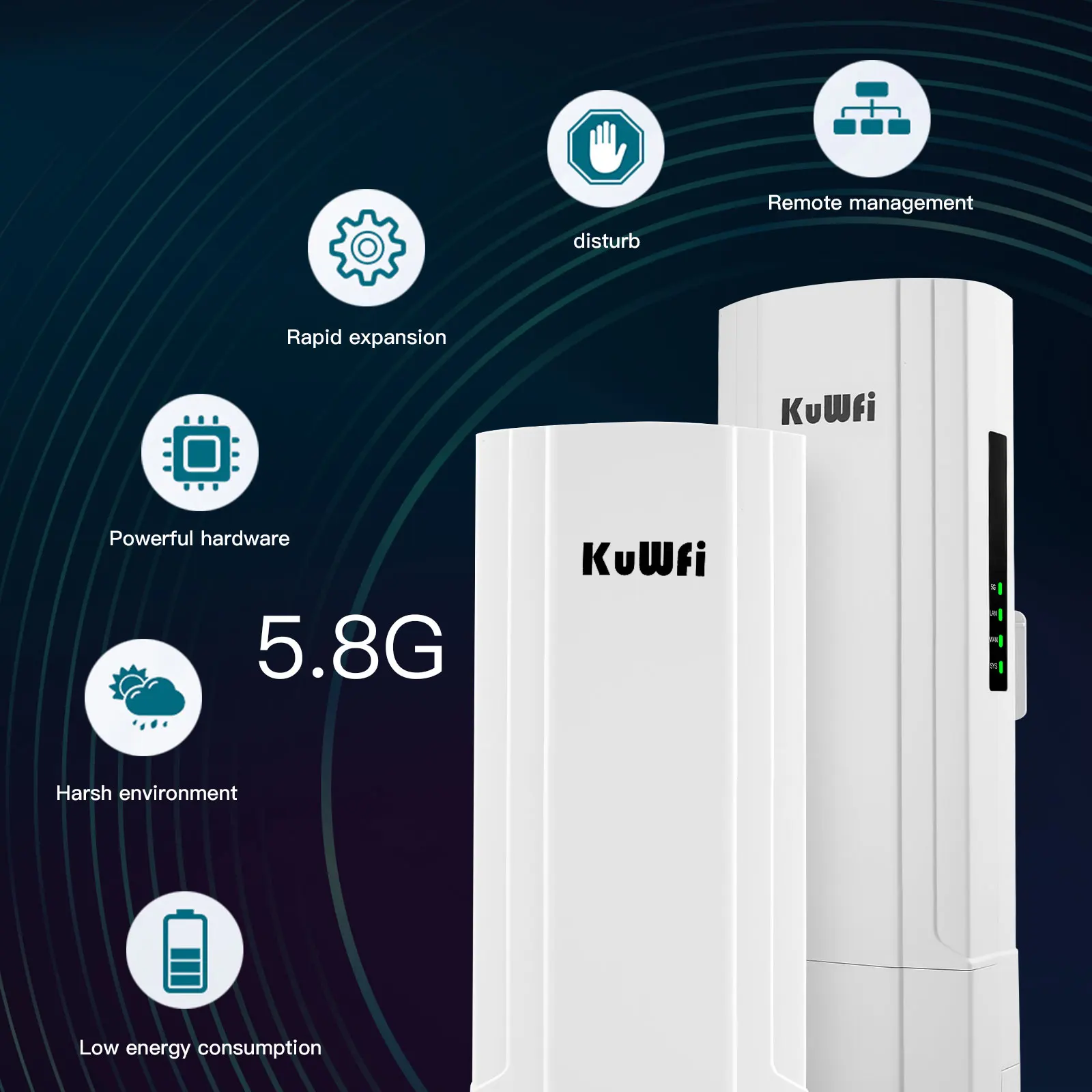

CPE850Q is an high power industrial 5G outdoor CPE with 5KM PTP/PTMP range. Comply with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 900Mbps high speed in 5.8G, equipped Gigabit WAN port, 3 times Ethernet data rate faster than 300Mbps model; It with LED display to show and configure CPE’s operation mode, Channel, IP address and Signal Strength, simple to do the Point to Point connection by reset button, no need to access into GUI.

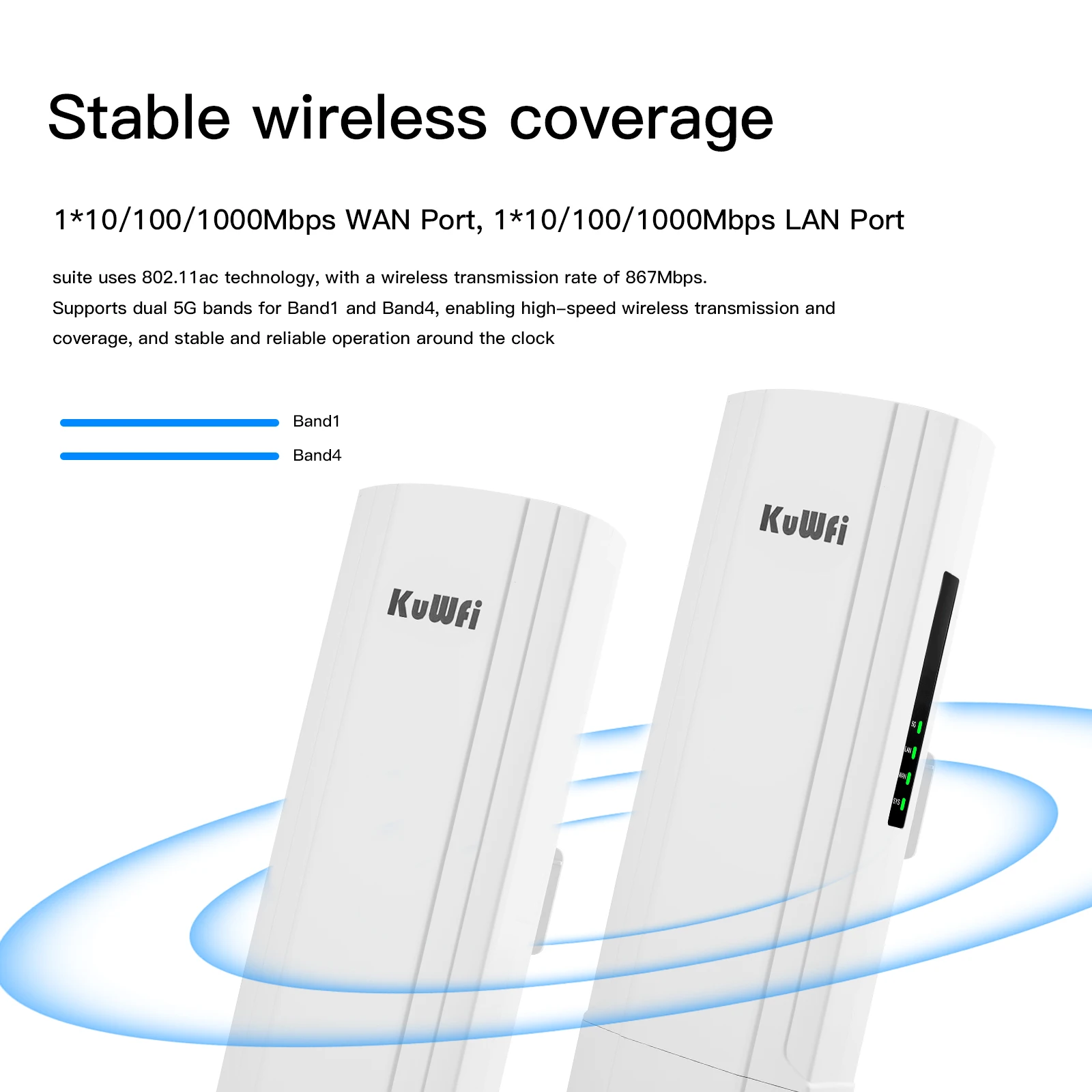

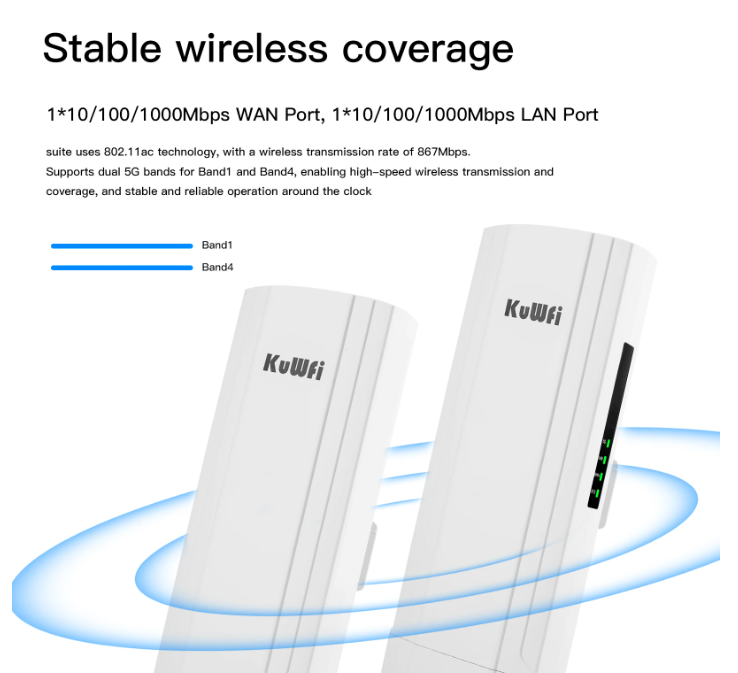

900Mbps Data Rate & Gigabit WAN/LAN Ports

CPE850Q features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.

5GHz WI-Fi Frequency

It avoid the frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

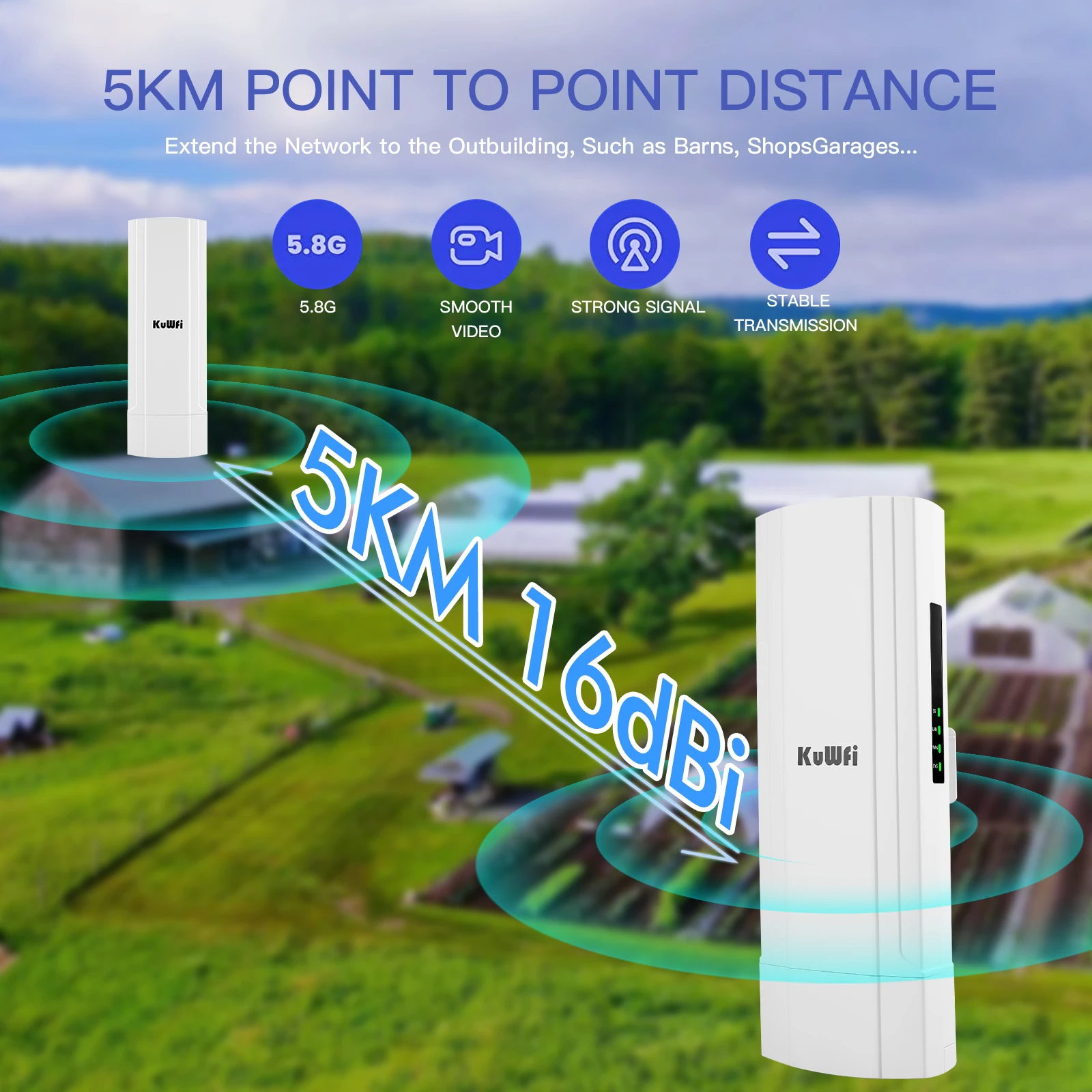

5KM PTP/PTMP Distance

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, 15dBi MIMO high gain panel antenna, greatly increase the Wi-Fi range to 5KM distance, then supply the stable Wi-Fi signal for users.

LED Display

CPE850Q with LED display to show AP/Client operation mode, Channels, IP address and RF Power; What’s more, it is easy to setup CPE850Q operation mode, IP address, Channels by set switch on product, no need to access into GUI, avoid the complex setup program, simple to check the working status.

Power over Ethernet

CPE850Q has integrated IEEE802.3af 48V PoE, (passive Power over Ethernet is optional), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Main Features:

Comply with IEEE 802.11ac/a/n, 5GHz,900Mbps Data Rate

1*10/100/1000Mbps WAN Port,

1*10/100/1000Mbps LAN Port

300mW high power, build in 15dBi MIMO panel antenna, stronger signal strength, more wireless coverage

Support 48V IEEE 802.3af PoE, passive PoE, 24V is optional

Support SSID broadcasting, Muiti SSID up to 4, then support tag VLAN based on SSID.

Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP, WDS operation mode

With function of build in firewall, IP filter, URL filter and MAC filter

Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

Support DDNS, VPN pass through, Port forwarding and DMZ host

Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
