FAQ:
Q1: How to login web ui page?
A1: If you need to manage the AP Router, you can use a computer to connect to the bridge wifi or use network cable.
Then set a static IP address for the network to access the WEB UI page.
you can set static ip address : 6.6.6.4
Subnet mask： 255.255.255.0
And then login Master Bridge web ui pgae: 6.6.6.6
Tips: After the configuration is complete, you need to restore the original ip address settings, otherwise you will not be able to surf the Internet.
Product Introduction:
SX-7621A107 is an enterprise-grade ceiling wireless AP with PoE and high gain antennas, ensure a stable connection in indoor high-density wireless coverage environment. It operates at 2.4GHz and 5GHz dual band, adopts new generation Wi-Fi 6(802.11ax) technologies and comply with IEEE 802.11a/b/g/n/ac/ax standards, the Wi-Fi data rate is up to 3000Mbps. It supports Micro AC, local AC, cloud AC and mesh networking. It provides a cost-effective solution for indoor wireless network applications like villa, office, hotel, restaurants, shopping mall, stores, schools ect. High performance dual core processor, comprehensively improving the network load capacity, faster data forwarding, and more stable long-term operation.
Main Features:

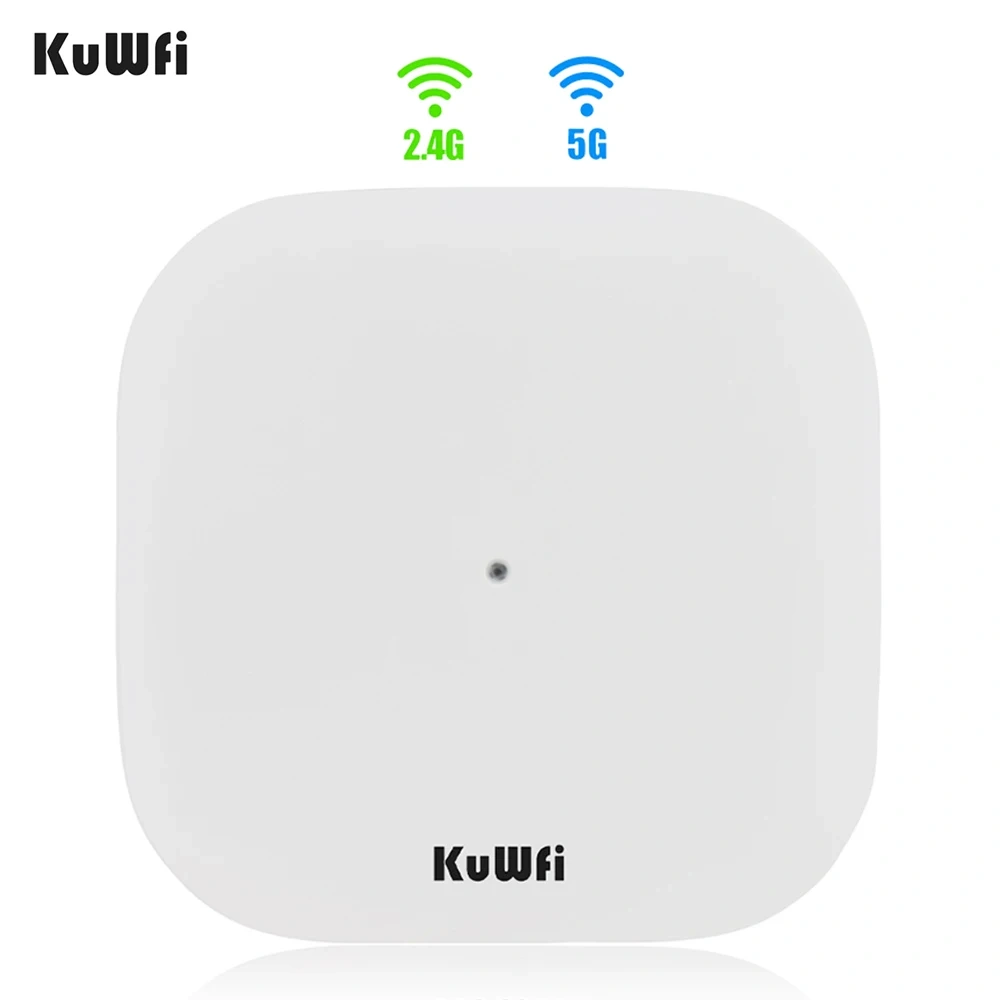

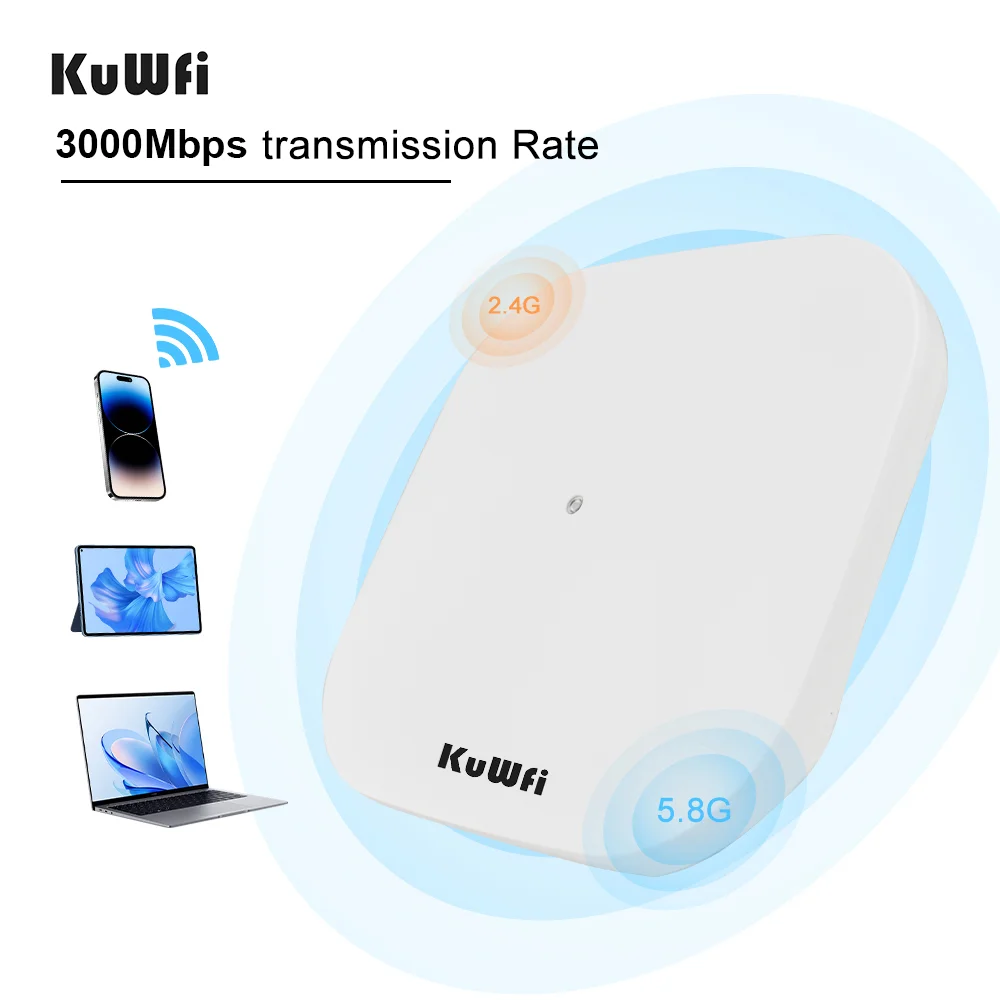

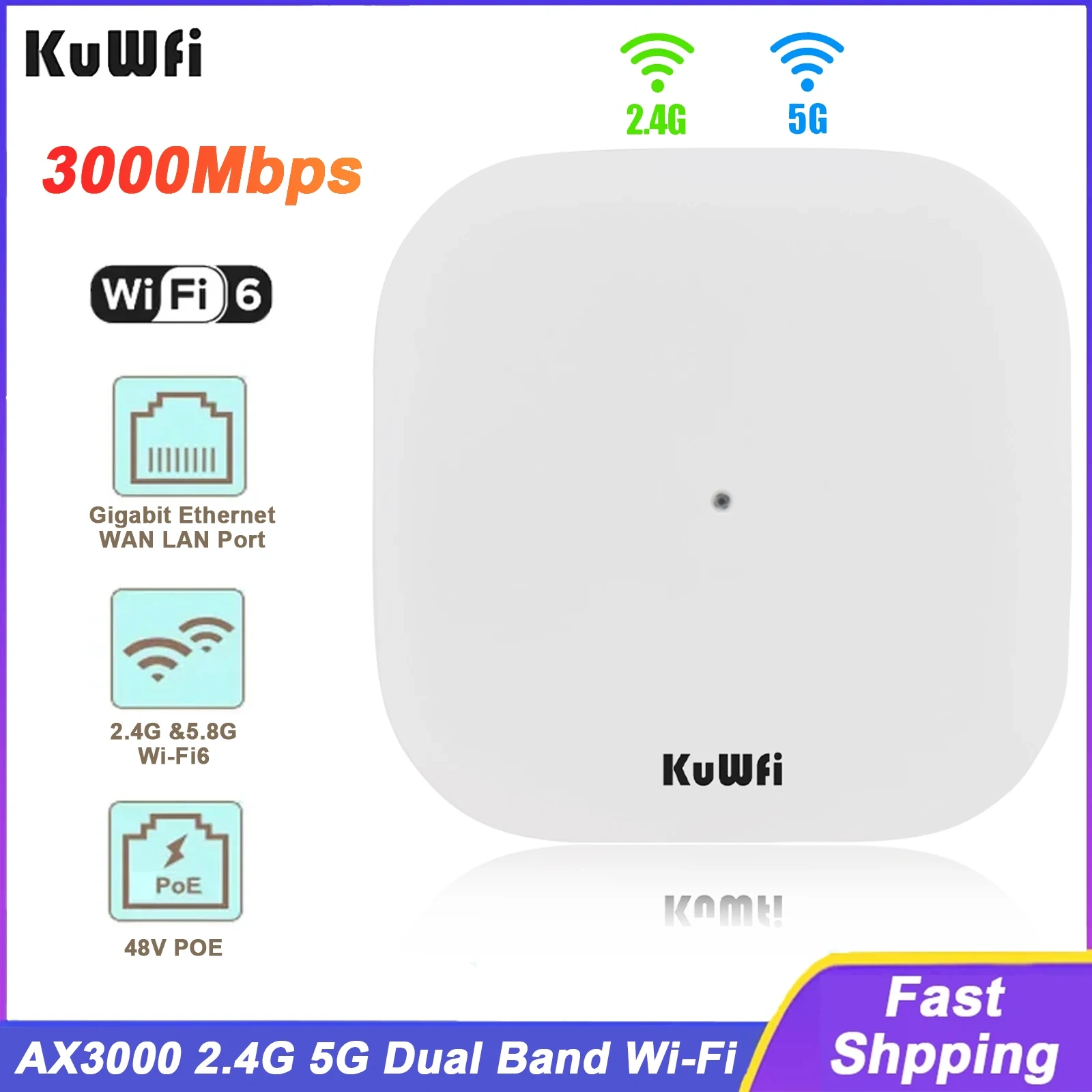

AX3000 Dual Frequency Wi-Fi6 Ceiling AP Router

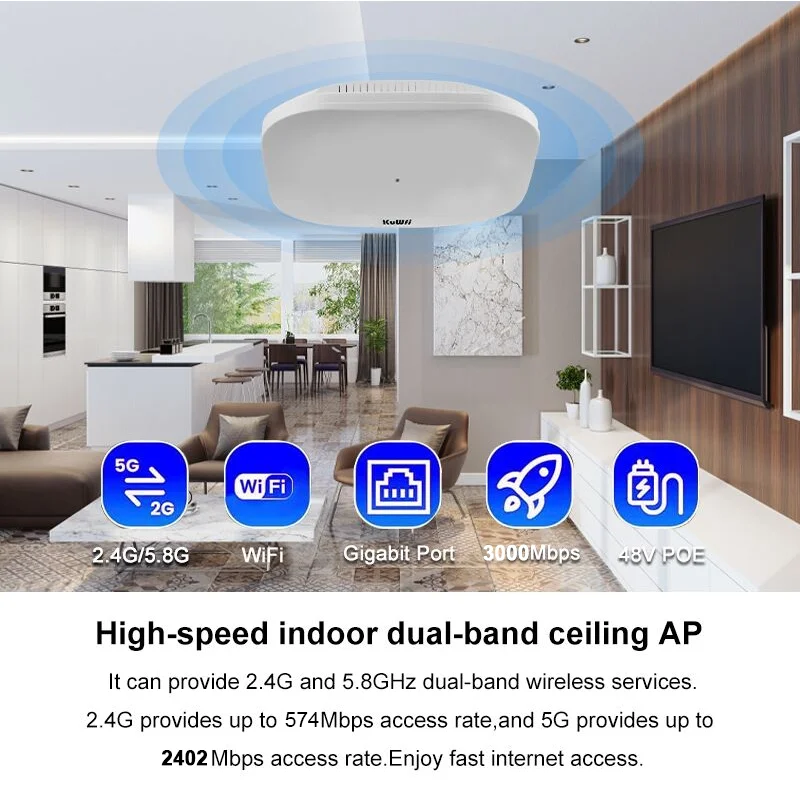

The AP Router provide 2.4GHz and 5GHz dual frequency wireless wifi. 2.4Ghz wi-fi provides up to 574Mbps access rate, and 5Ghz wi-fi provides up to 2402Mbps access rate.The router provides high-speed wireless access speeds for multiple scenarios.
With Gigabit Enternet Port
The Router provide 10/100/1000Mbps WAN LAN enternet port, and can enjoy high-speed network when connecting to PC, laptops and other devices.
Built-in 4pcs 5dBi Internal Antennas
High gain built-in 4x 5dBi internal antennas design significantly enhance the stability of wireless signal and extends wireless range to reduce dead spots.
Support MESH
Users can form a MESH network with multiple KuWFi AP Routers to achieve full coverage of Wi-Fi signals throughout the house.
Supports Two Power Supply Modes

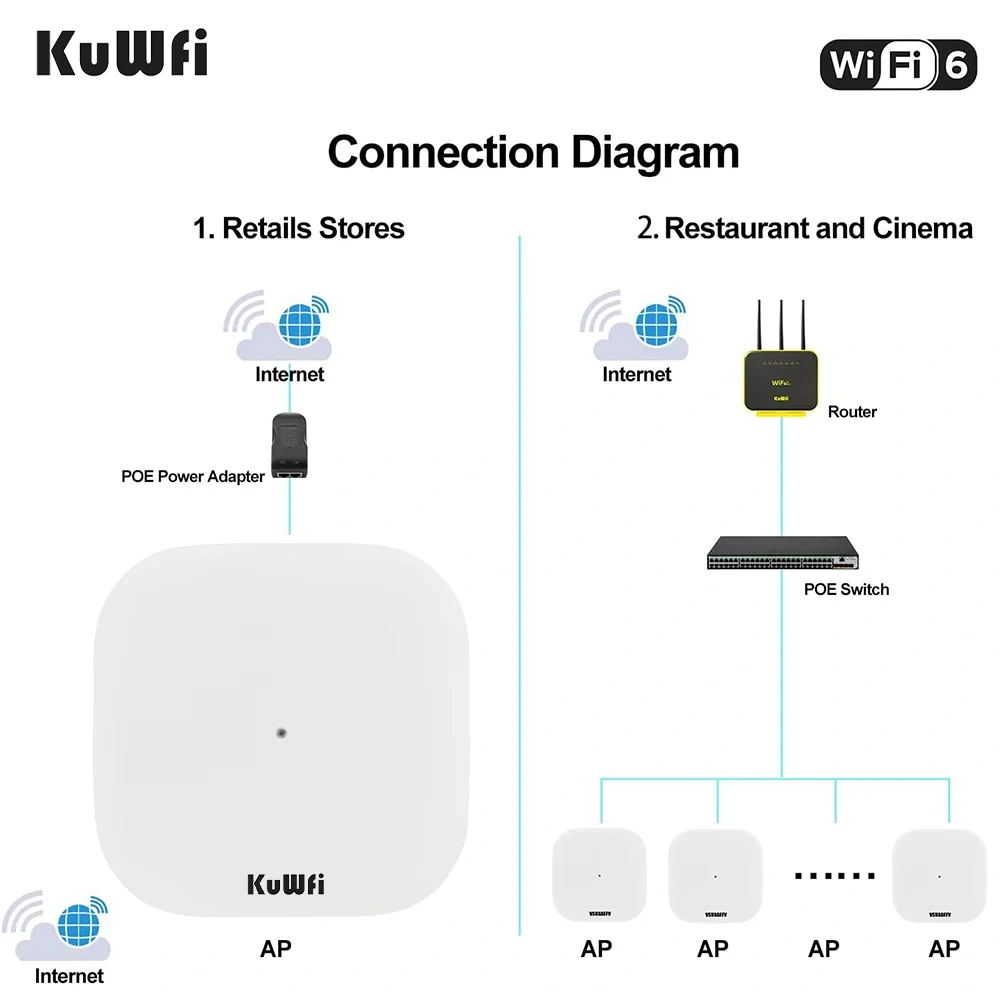

The router support 48V POE and DC 12V power supply can be used to power the router(package does not include DC power).To cope with a variety of different use cases.
Support Max 100+ Users
The Router support user quantity limited, Max 100+ users to access each band,share the Internet with your family, friends, and colleagues. Ideal for smart home devices
Additional Functionality
According to the needs of users, the router support MESH,QoS,Bandwidth Superposition, Firewall, behaviors Management and Roaming Seamless etc.
Product Specification:
Wi-Fi Band: 2.4GHz & 5GHz
Protocols Comply: IEEE802.11a/b/g/n/ac/ax, IEEE802.3, IEEE 802.3u, IEEE 802.3ab
2.4GHz WiFi: 574Mbps, 2.412 GHz ~ 2.472 GHz (Channels 1~13)
5.8GHz WiFi: 2402Mbps, 5.180 GHz ~ 5.850 GHz (Channel 36~165)

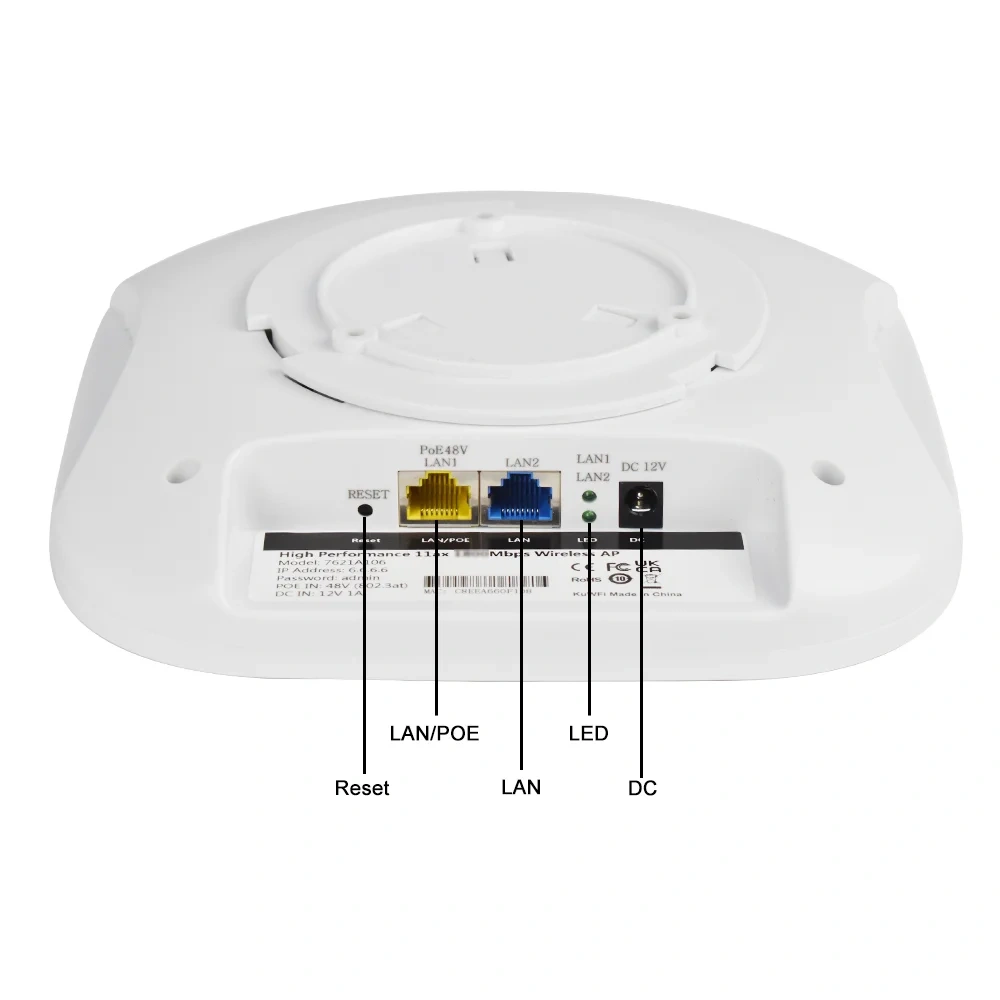

LAN1 Port: 1x 10/100/1000Mbps,Support POE 48V
LAN2 Port: 1x 10/100/1000Mbps
Power Supply: POE 48V, DC 12V 1A(Package not include DC Power)
Modulation Type: OFDM/BPSK/QPSK/DQPSK/DBPSK
Antenna Internal: 5dBix 4PCS
Working Temperature: -10°C~+55°C
Storage Temperature: -40°C~+80°C
Working Humidity: 10%~90% RH (non-condensation)
Storage Humidity: 10%~90% RH (non-condensation)
Package Included:
1x Ceiling AP Router
1x 48V POE Power adapter
1x Ethernet LAN Cable
1x User Manual
