Tips：
This is Outdoor AP router, not support insert USIM Card.
FAQ:
Q1: Why is my internet slow when I use it indoor?
A1: As this is an outdoor AP router, we recommend that buyers use it outdoors. If used indoors, the walls will block most of the Wifi signals, affecting the user experience.
Q2:Why is the penetration of Wifi signals poor?
A2: 2.4Ghz Wifi has strong penetration and can transmit over longer distances, but is slower. 5Ghz Wifi has weak penetration, but is fast at close distances. Please avoid walls if you can, so whatever router encounters a wall will weaken the Wifi signal.
Q3: Outdoor wi-fi transmission is less than described distance?
A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.When installing the router, please avoid walls or other obstacles as much as possible.
Q4: The router Wi-Fi signal is weak?
A4: Adjusting the wifi protocol and bandwidth of the router will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.
Q5: Does the router support 360-degree signal transmission?
A5: The router is equipped with omni wifi antenna and support 360-degree signal transmission, making it suitable for various scenarios. Open areas such as factories, parks, gardens, etc.
Q6: Wrong or forgotten WIFI password?
A6: Users need to keep the router on, then press the reset button for 10-15 seconds and wait for the router to reboot, the router will restore the initial Wifi password.
Description：

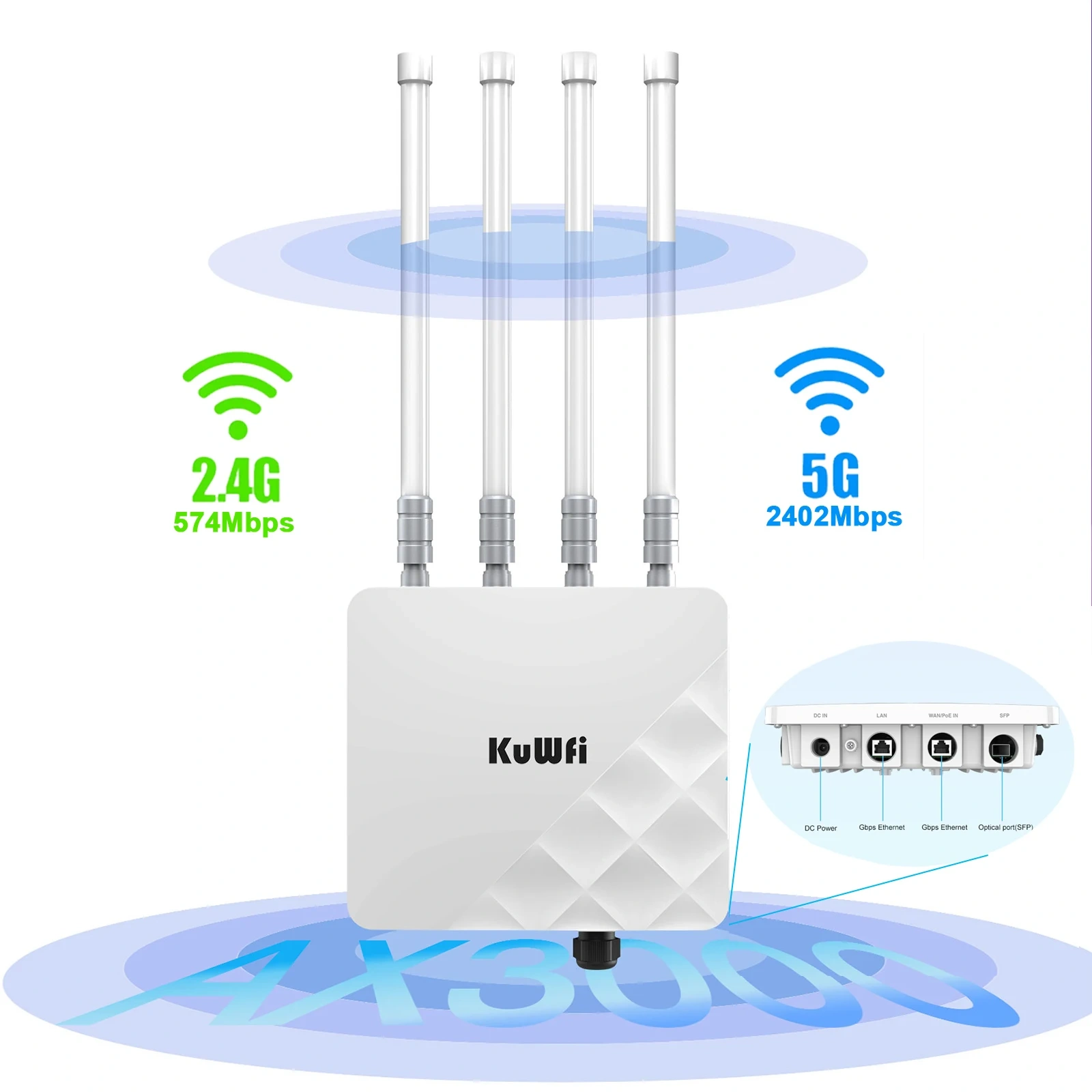

APH3000 is a high-performance dual-band 802.11AX product that provides 2.4GHz and 5GHz dual-band wireless services. The 2.4GHz band provides a maximum access rate of 574Mbps, and the 5GHz band provides a maximum access rate of 2402Mbps.
It is an industrial-grade outdoor wireless AP that uses the WiFi6 protocol and is equipped with 4 fiberglass omnidirectional antennas. It provides 2.4GHz and 5GHz dual-band wireless signals, and a wireless coverage radius of 300-500 meters. It uses a high-quality cast aluminum shell, built-in lightning protection design, and provides IP67-level protection. It is designed for wireless communications in large parks, squares, rail transit, smart manufacturing, warehousing and logistics, electricity and other scenarios and industries.
Summary of Main Features:
●Dual frequency concurrency, with a maximum wireless concurrency rate of up to 3000Mbps.
●Supporting fiber access, equipped with SFP optical port and Gigabit network port, providing rich network access methods
●IPQ5018 chip greatly expands user capacity and can support 256 users.
●Adapted to high gain dual frequency antennas, with a wide coverage range.
●4 fiberglass omnidirectional antennas the radio frequency uses high-power FEM, with stable performance and longer coverage.
●Low power consumption.
●Added lightning protection board components, greatly enhancing the protection capability of the equipment.
●Dual-band concurrent, 2.4GHz provides up to 574Mbps wireless rate, 5GHz provides up to 2402Mbps wireless rate
●IP67 dustproof and waterproof, -40℃～70℃ wide temperature design, cast aluminum shell, adapt to extreme temperatures and harsh industrial environments
●Provide PoE/DC two power supply methods, support pole installation, flexible construction, adapt to the requirements of industrial environment network construction
●Support AC management and cloud platform centralized management, convenient operation and easy maintenance
Features Introduction:

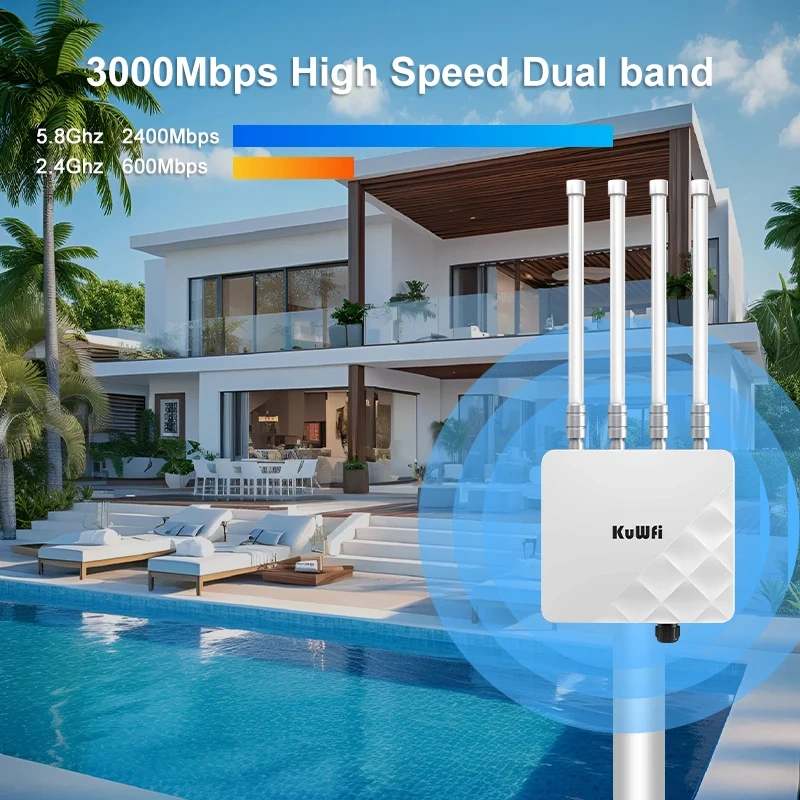

802.11ax 3000Mbps Dual-Band WiFi6 AP Router:
Providing 2.4GHz and 5GHz dual-band wireless wi-fi, 2.4GHz up to 574Mbps access rate, 5GHz up to 2402Mbps access rate.The router maximum concurrent connection rate of dual-band can reach up to 3000Mbps, which can build a stable and high-speed wireless network for users.

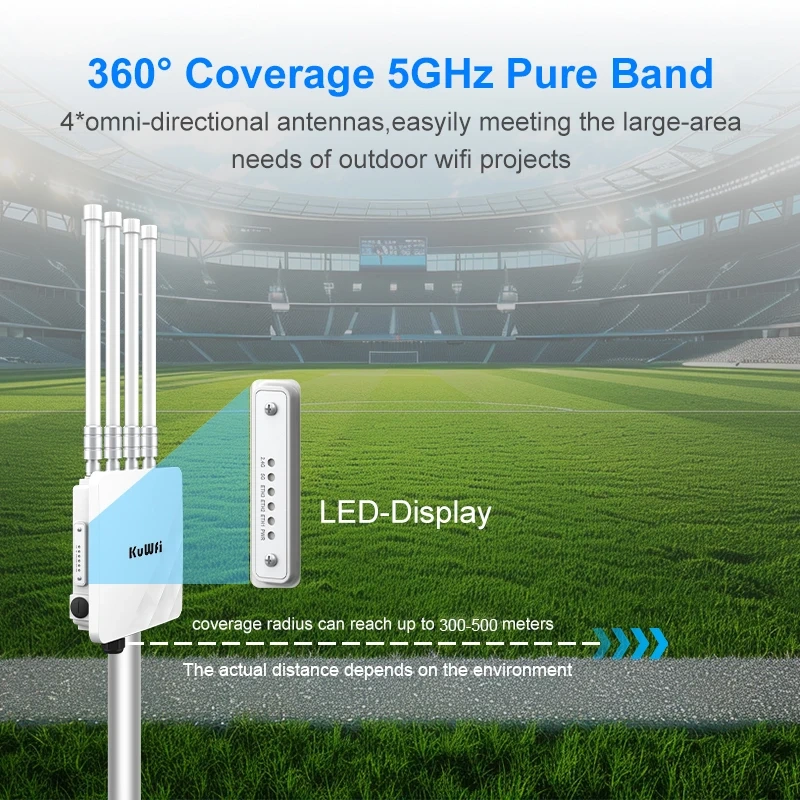

4Pcs Full Coverage Omni-directional Wi-Fi Antennas:
APH3000 have 4x 6dBi 2.4G/5G Wi-Fi antennas..Support 360-degree full coverage of Wifi signals.Under the condition of no interference at all, the maximum transmission distance can reach 300-500 meter.High-performance wireless indicators, can get a larger wireless coverage area and better wall penetration performance.

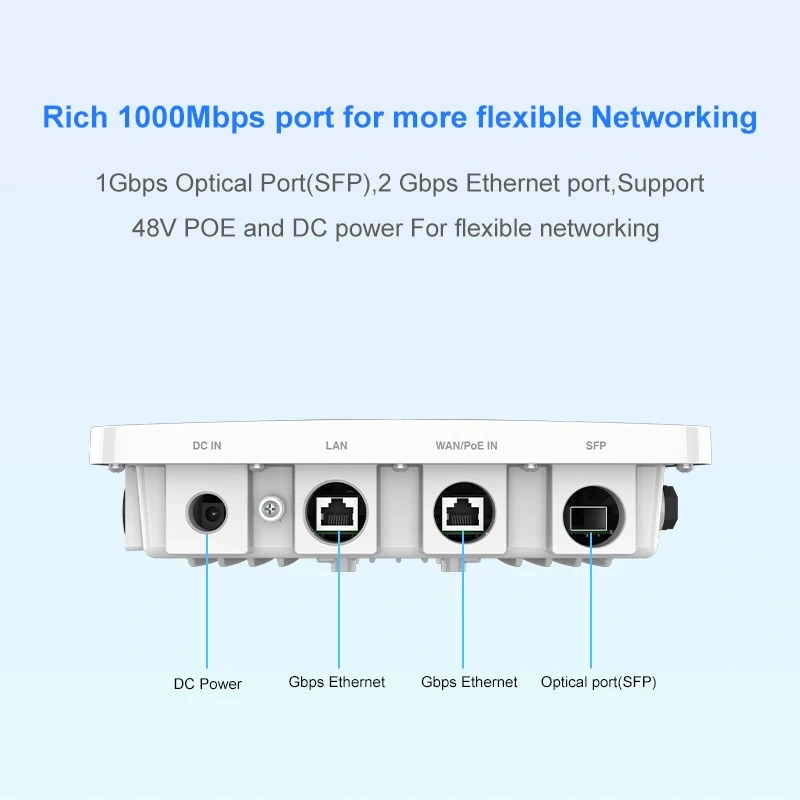

Gigabit Ethernet & SFP Port:
APH3000 with rich gigabit Ethernet ports, users can use it according to their specific needs.It have gigabit WAN,LAN and SFP Port.The WAN port also support 48V POE.Users can use CAT6 or above network cables to provide gigabit network speed for the router.

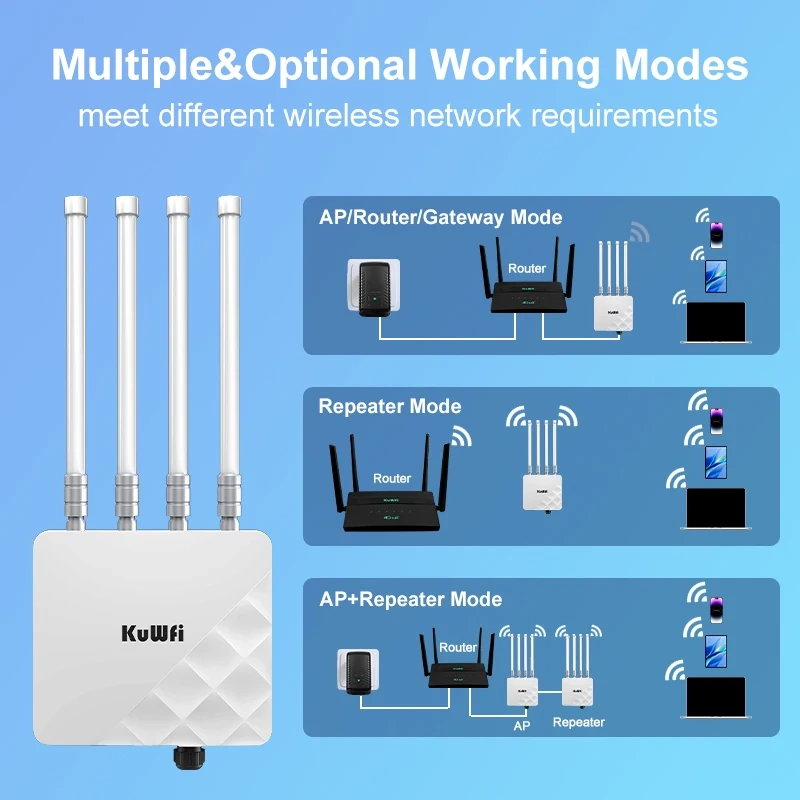

Support Working Modes:
①AP Mode:
Devices cover wireless network signals over other clients and devices, and use Ethernet to connect to other routers for WAN access
②Repeater Mode:
Users can turn on Rpeater Mode to extend the distance of other WiFi signals. In order to keep the Wifi signal stable, it is recommended that users avoid the wall as much as possible when using.

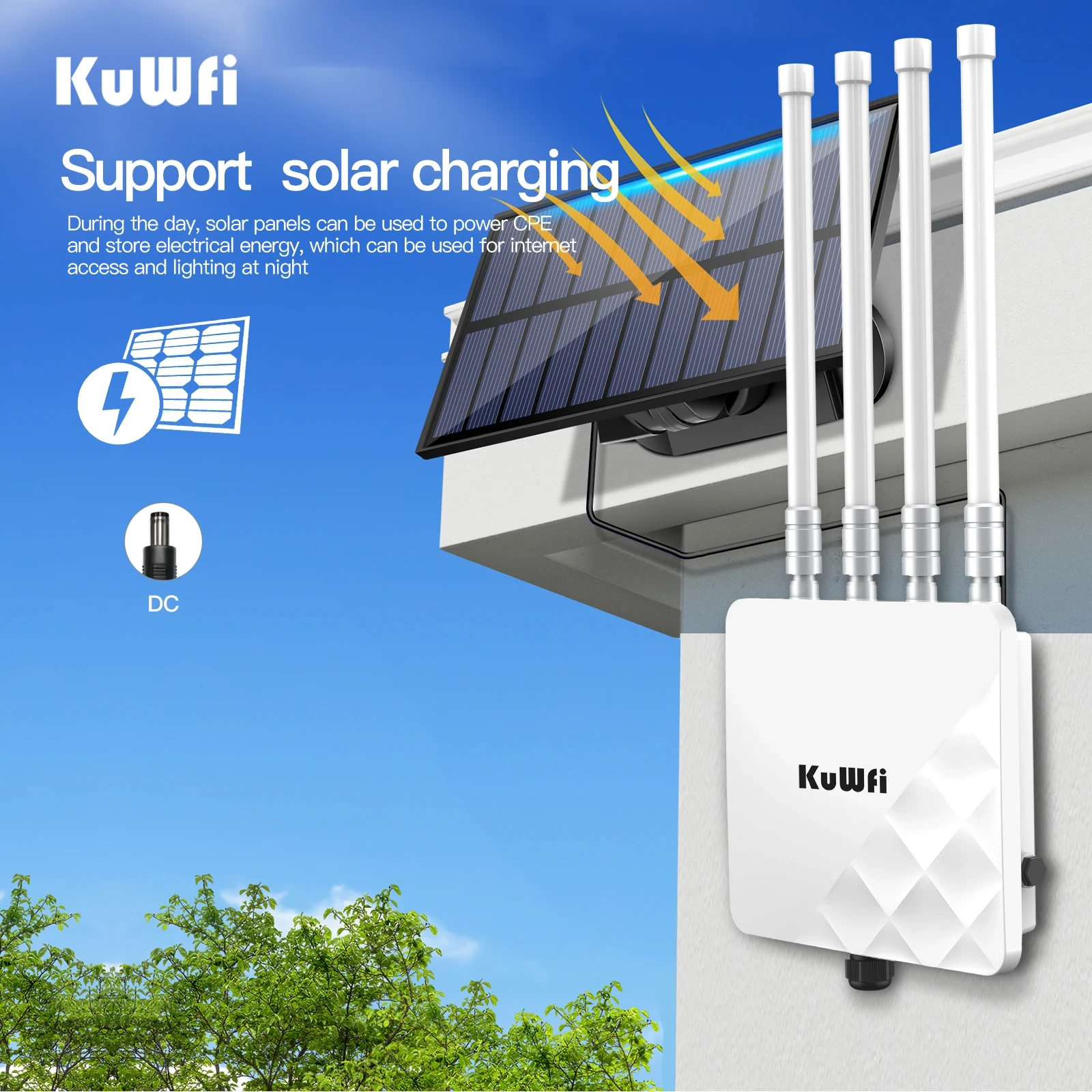

Flexible Power Supply Options
Provide 48V PoE/DC two power supply methods, support pole installation, flexible construction, adapt to the requirements of industrial environment network construction. Support solar DC 12V/2A power supply.(Package not include DC Power Supply)
Outdoor IP67 Waterproof & Lightning Protection:
Outdoor IP67 waterproof design,Weatherproof enclosure protection ensure safety and stable connection in harsh outdoor conditions.Added lightning protection board components, greatly enhancing the protection capability of the equipment.
Support Multi-scenario Usage:
The APH3000 is mainly used in outdoor scenarios to provide wireless networks for outdoor camera devices.Most users need it in farms, home front yards, factories, stores and other open places to provide stable wireless network in outdoor areas.
Support 256 User/Devies Connect at the Same Time
The router supports up to 256 simultaneous users/devices, making it the best choice for wireless access in high-density, high-bandwidth environments such as homes, stores, restaurants and businesses.
Support AC & Cloud Management
Support AC management and cloud platform centralized management, convenient operation and easy maintenance.
Specification:
rodut Model: APH3000
CPU: IPQ5018+QCN6102+QCA8337
Flash: SPI NOR 8MB,Nand 128MB
DDR2: 512MB
Wi-Fi Coverage Area: 300 to 500 Meter(Under undisturbed conditions)
2.4G WiFi Band: 2.4GHz ~ 2.484GHz
2.4G Wi-Fi Protocal Standard: Support IEEE 802.11 b/g/n/ax
5GHz WiFi Band: 5.150GHz～5.850GHz
5G Wi-Fi Protocal Standard: Support IEEE 802.11 a/n/ac/ax
2.4GHz WiFi Antenna: 2*6dBi WiFi Antennas
5GHz WiFi Antenna: 2*6dBi WiFi Antennas
2.4G Wi-Fi Maximum rate: up to 574Mbps
5G Wi-Fi Maximum rate: up to 2402Mbps
WAN Port: 1x 10/100/1000 Mbps (Support 48V POE)
LAN Port: 1x 10/100/1000 Mbps
SFP Port: 1x 10/100/1000 Mbps SFP
Reset: Reset to factory settings by pressing 8-12 seconds
DC Port: 12V 2A (Support solar power supply,Package not include DC Power Supply)
Indicators : WAN, LAN, SYS, 2.4G_WiFi, 5G_WiFi.
Power: < 18W
Protection Grade: IP67
ESD: Air:±8K, Touch:±6K
Electrical Surge: Common Mode: 4K, Differential Mode: 2K
Operating Temperature：-30℃～55℃
Storage Temperature：-40℃～70℃
Operating humidity：10%～90%RH noncondensing
Storage Humidity：5%～95%RH Noncondensing
Package Listing:
1x APH3000 Outdoor AP Router
1x Network Cable
1x Power Supply
1x User Manual
