Q1: Can I change the imei of this router?
A2: Yes,this router can change imei.
1) Login web : http://192.168.1.254/cgi-bin/luci/admin/network/gcom/atcmd
2) Check current imei, input command: AT+EGMR=0,7
3) Set advance mode, input command: at*prod=1
4) Set new imei, input command: AT+EGMR=1,7,"xxxxxxxxxxxxxxx”
(xxxxxxxxxxxxxxx is your new imei)
5)And then check new imei, input command: AT+EGMR=0,7
Q2: Does the router support all SIM carriers?
A2: Not all SIM Card operators are supported, for example Spain Digi SIM Card is not available.Buy a SIM card can check before frequencies, website: https://www.frequencycheck.com/carriers/smart-philippines
Q3: My router's Internet speed is slow, how can I improve it?
A3: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals.
Q4:Why can't I use the internet when I insert a SIM card?
A4:Even if your SIM card is compatible with the product, it is not all usim card necessarily plug and play, you need to disable the SIM card PIN and modify the APN.
Q5: My router's Internet speed is slow, how can I improve it?
A5: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals
EU Version
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.
Description：

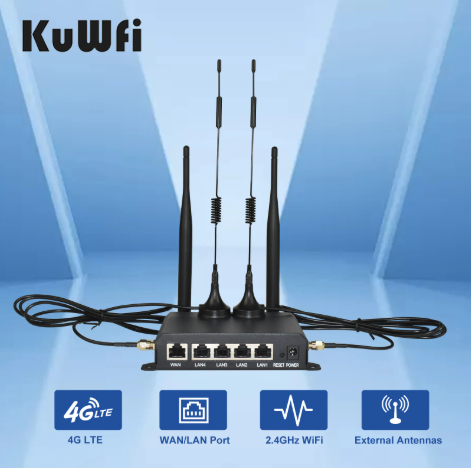

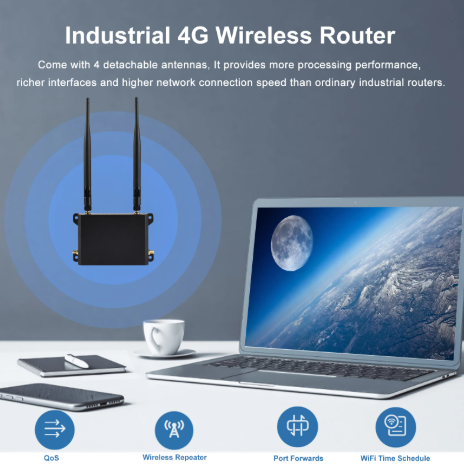

WR181 is an industrial 4G wireless router that integrates multiple functions with metal housing.
It adopts Mediatek MT7628 chipset, comply with IEEE 802.11b/g/n standard, the Wi-Fi data rate is up to 300Mbps. With built-in mini PCI-E slot for 3G/4G modem. It supports FDD-LTE/TDD-LTE worldwide full frequencies up to 150Mbps 4G LTE download speed. Come with 4 detachable antennas, It provides more processing performance, richer interfaces and higher network connection speed than ordinary industrial routers. This product is suitable for different application types and scenarios, such as intelligent parking lot, intelligent transportation, smart electricity grids, supply chain automation, Intelligent data collection, intelligent building, vending machine, video surveillance etc.

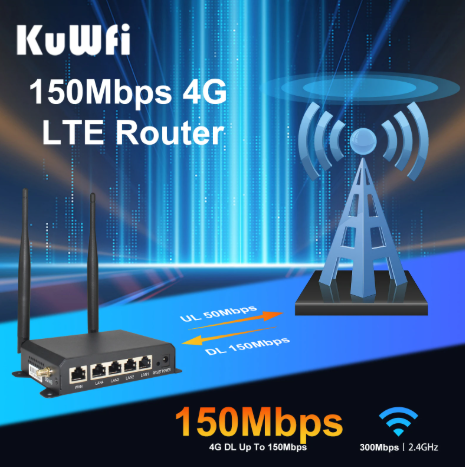

CAT4 4G LTE Router
The 4G CPE Router provides you with stable 4G network. Max download speed: 150mbps; max upload speed : 50Mbps. (Since carriers limit speeds, it's normal for you to get less than 150Mbps.)
300Mbps 2.4GHz Wirelee Wi-Fi
This router provides only 2.4Ghz Wi-Fi signals. 2.4GHz Wi-Fi rates up to 300Mbps.

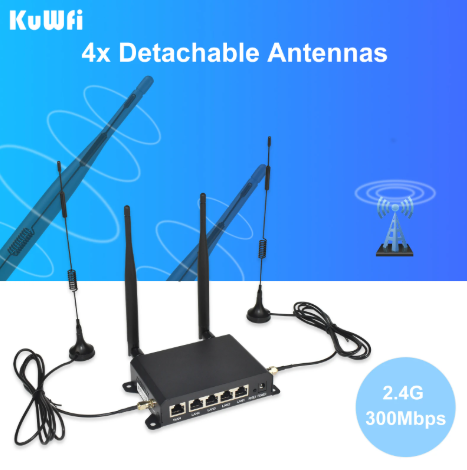

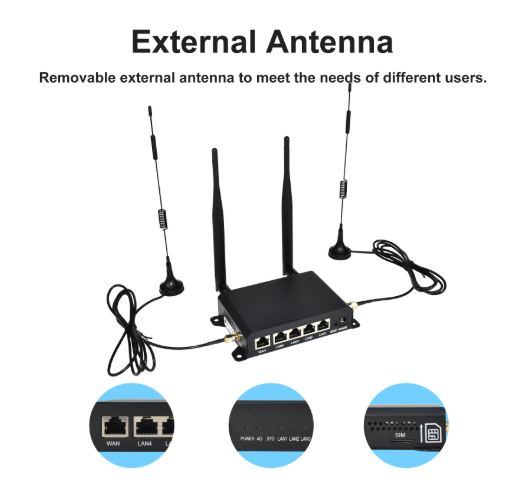

4pcs Detachable High-Gain External Antennas
The 4G Router adopts the design of 4pcs detachable external antennas to improve the stability and coverage of signal transmission.Bring better experience to users.The user can replace the antenna of the same type and interface, but the compatibility of the antenna cannot be guaranteed.
4G Mode / AP Mode / Repeater Mode
Users can use the corresponding mode of the router according to different requirements. Support users to provide network through 4G SIM Card(4G Mode). Users can use upper-layer network devices to provide Internet for the router(AP Mode). It also supports users to use repeater mode to expand the wifi signal of other routers.
Wireless / Wired Connection

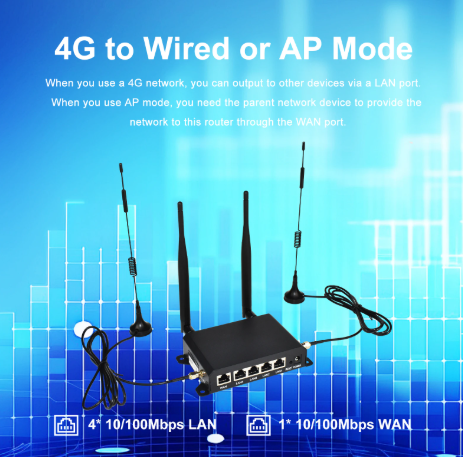

The 4G Router supports the conversion of 4G networks to Wi-fi signals and the output of 4G networks to other network devices through LAN ports.
100Mbps WAN / LAN Port
You can use the WAN port to make the router provide a Wi-Fi signal. At the same time, 4 LAN ports can be used to provide network for other devices.

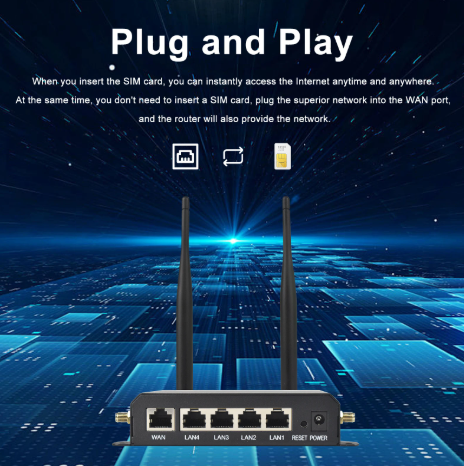

Plug and Play

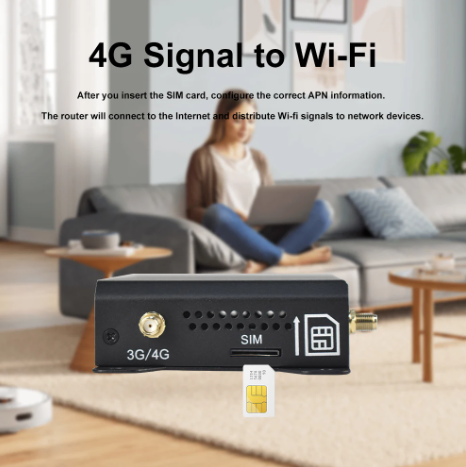

When you insert the SIM card, you can instantly access the Internet anytime and anywhere. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.)
Support for multiple devices
It can connect to mobile phones, televisions, cameras, computers, etc.Solve the problem that devices need network.
Specification:
CPU Chipset: MT7628
DDR: 64MB
FLASH: 8MB
4G Data Speed: DL up to 150Mbps, UL uo to 50Mbps
AP Mode 2.4G Wi-Fi Speed: Up to 300Mbps
Protocols Comply: IEEE802.11 b/g/n, IEEE802.3u
Frequency Range: 2.412 GHz ~ 2.472 GHz (Channel 1 ~13)
Wi-Fi Data Rate: MIMO 2*2 300Mbps 2.4G
Power Supply: DC 12V/1A
Ethernet Ports: 1x WAN + 4x LAN (10/100Mbps)
Reset Button: Restore factory default settings
LED Indicator: POWER, 4G, SYS, LAN1, LAN2, LAN3, LAN4, WAN
Modulation Type: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Working Temperature: -20~50 ℃
Package Listing:
1 x WR181 4G Wireless Router
4x External Antennas
1x DC Power Adapter
1x English User Manual
