FAQ:
Q1: This router is very cheap, can it bring smooth Internet speed?
A1: For your better experience, it is recommended that you choose a more expensive router, which can bring you better Internet speed.You can click the following image to jump to the corresponding link.
Q2: Can not recognize SIM card?
A2: Please insert the SIM card before powering up the device, otherwise the SIM card will not be recognised.You can insert SIM card into the router for one minute first,then turn on the power.And then log in web ui page to check the sim card.If still not recognized the SIM card,please install another SIM card from another SIM card operator.
Q3: The device can not connect to the Internet normally?
A3: You need to disable the PIN code and modify the APN. Please log in web ui to fill in correct APN.About APN ,you can call your sim card operator to check.APN setting refer web, www.apn.how
Q4: My router's Internet speed is slow, how can I improve it?
A4: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals.
Q5: Can this router work in my country?
A5: The router not support Spain Digi SIM Card.Other SIM Card refer.If you are not sure whether it can work in your country,you can consult the seller or research it here before you place the order.Check SIM card web,www.frequencycheck.com.
Q6: Wrong or forgotten WIFI password?
A6: Users need to keep the router on, then press the reset button for 10-15 seconds and wait for the router to reboot, the router will restore the initial Wifi password.
Q7: Why doesn't the indicator light come on when the unit is powered on and won't start?
A7: We recommend that users check the voltage in their homes to see if it is normal. Try to change another power outlet or DC 12V power supply and try again.
Frequency Band：

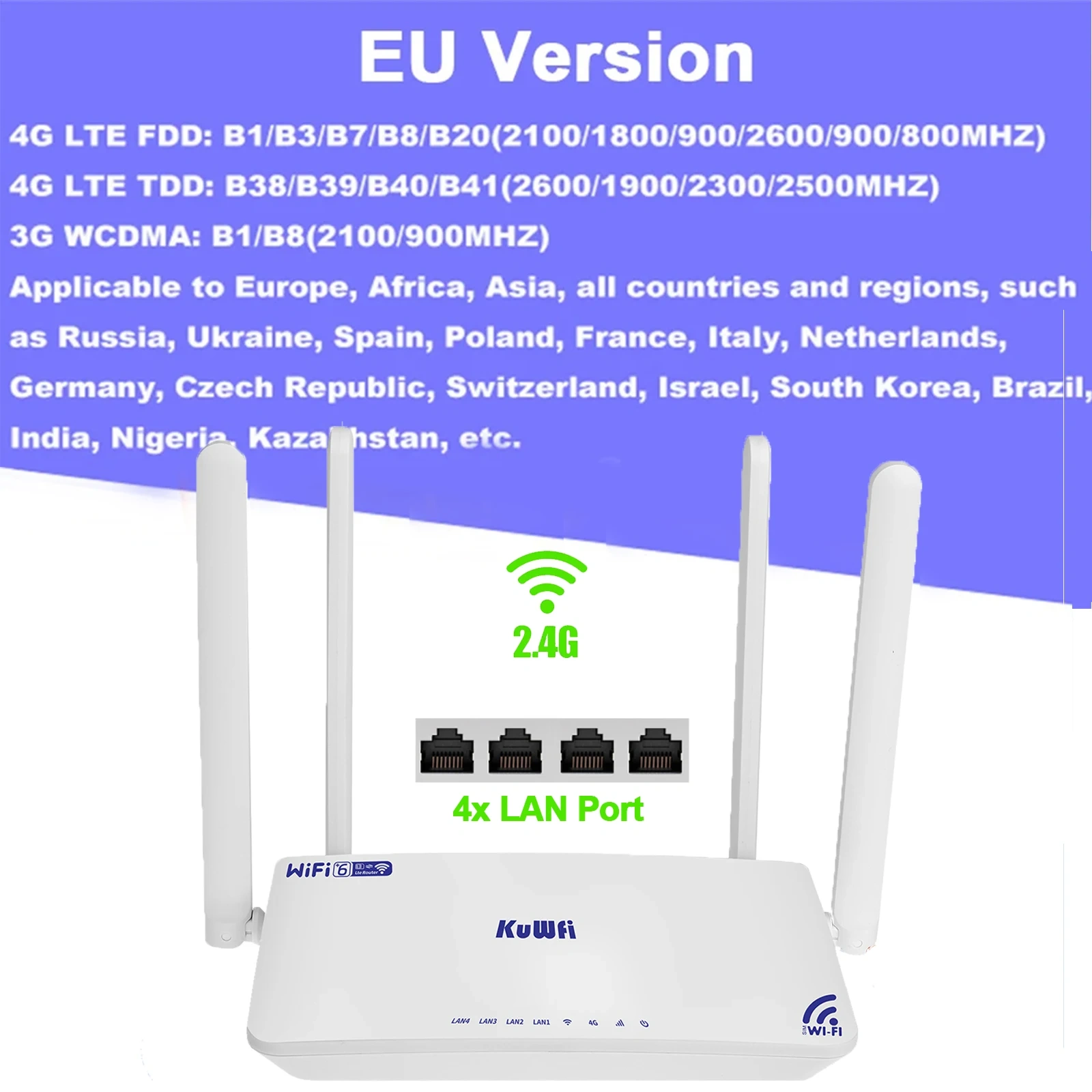

EU Version
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.
Description：

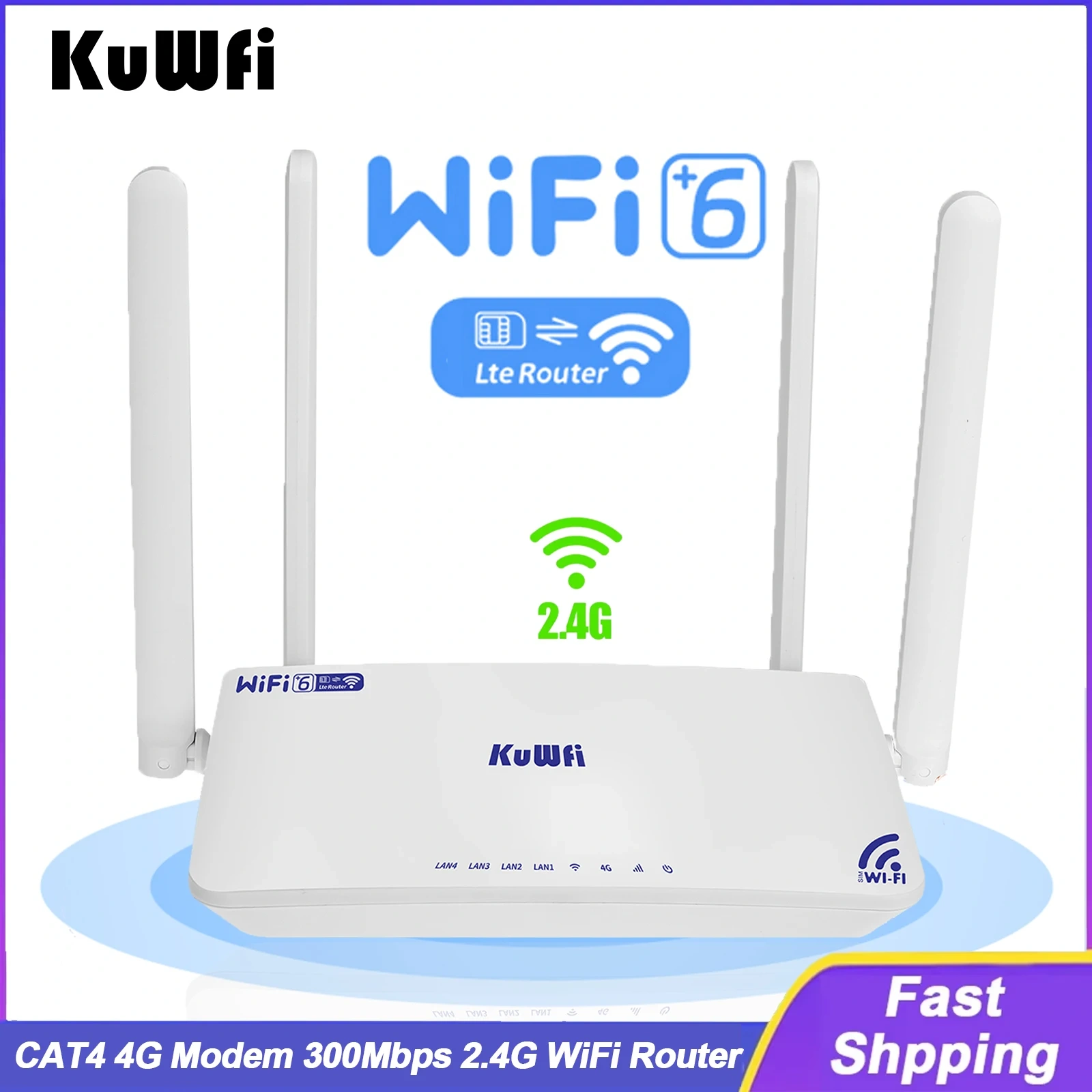

KuWFi C970 is a WiFi 6 4G Indoor Customer Premise Equipment (CPE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data to end-users. It converts high-speed TDD/FDD signals to WiFi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the CPE router simultaneously.
Features:
CAT4 4G LTE Modem
The Router provide a Nano SIM Card Slot. After inserting the SIM card and logging in to the WEB UI to configure the APN information, the SIM card signal can be converted to Wi-fi signal.4G LTE transmission rate up to 150Mbps(DL) / 50Mbps(UL). Some network frequency bands can be locked.
300Mbps 2.4GHz Wireless WiFi6 Router
Providing 2.4GHz wireless wi-fi6, 2.4GHz up to 300Mbps access rate,Wi-Fi Standards: IEEE802. 11 b/g/n/ax.When the user chooses different Wi-fi frequency or set different Wi-fi protocols, the network speed and transmission distance will be different, which can be adjusted according to the actual use.

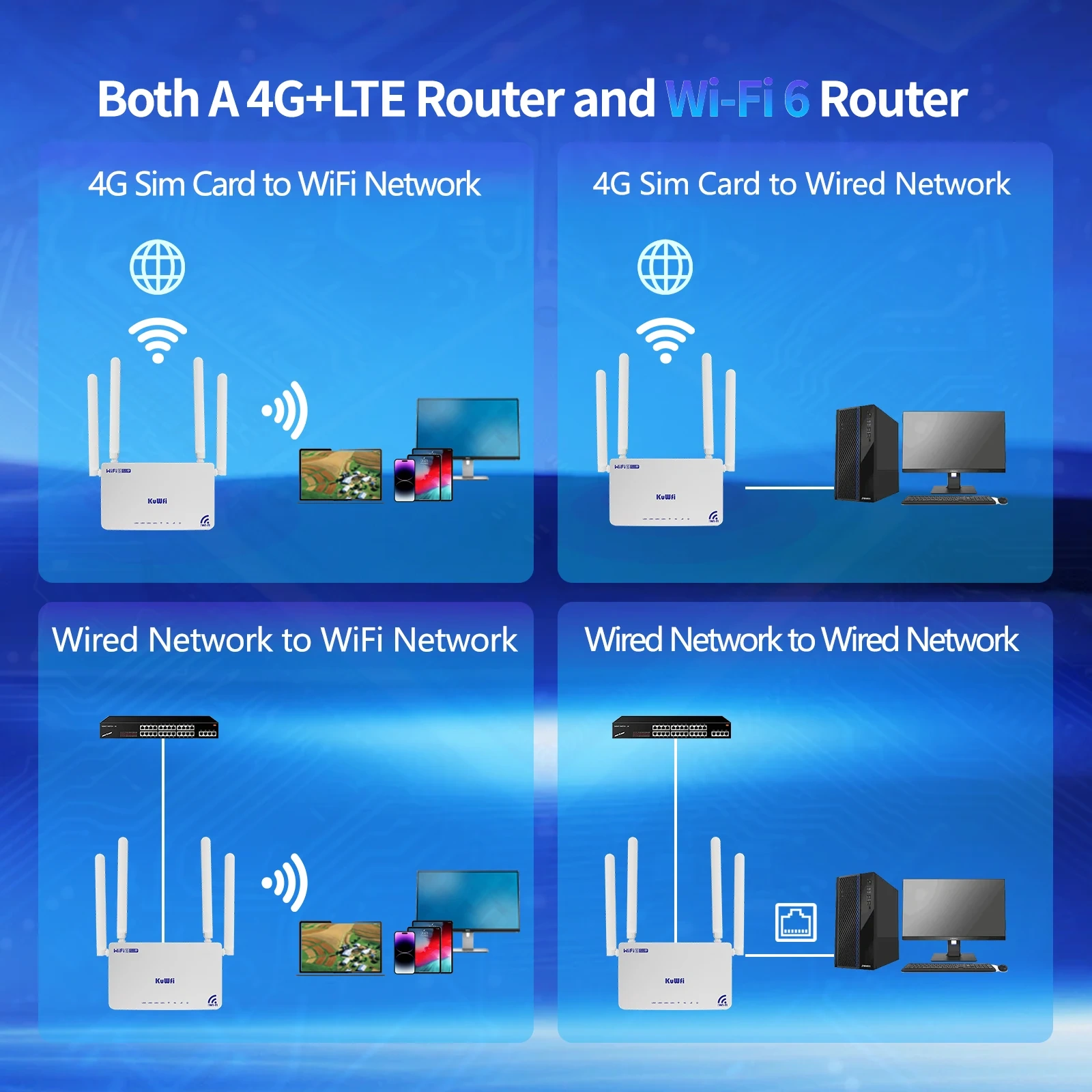

Support Three Working Modes
(1)AP Mode:
Connect the upper-layer network to the WAN port of the router through a network cable to provide the Internet for the router. Users can choose to connect to the router's Wi-Fi signal or LAN port to provide network for other devices.
(2)4G to Wi-Fi Signal Mode:
After inserting a SIM card, log in to the WEB UI to configure correct APN information for the SIM card. It will convert the SIM network signal into a Wi-Fi signal.
(3)4G to Wired Mode:
When the router successfully connected to the SIM card's 4G network, the user can provide the network to other network devices through the LAN port.

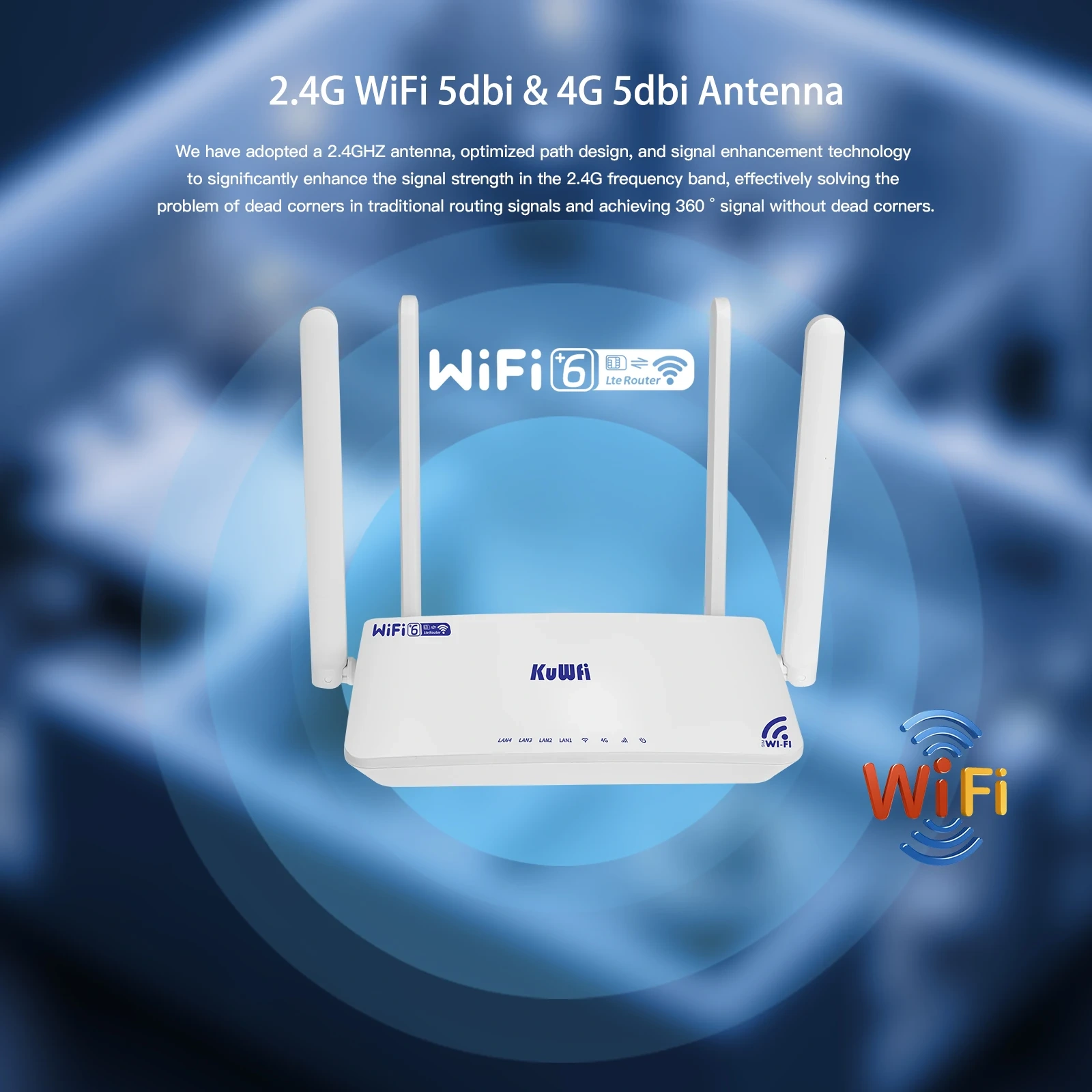

4Pcs Non-detachable External Antennas
4pcs non-detachable external antennas provide more stable and better signal transmission,include 4G LTE antennas and 2.4Ghz Wi-Fi antennas.

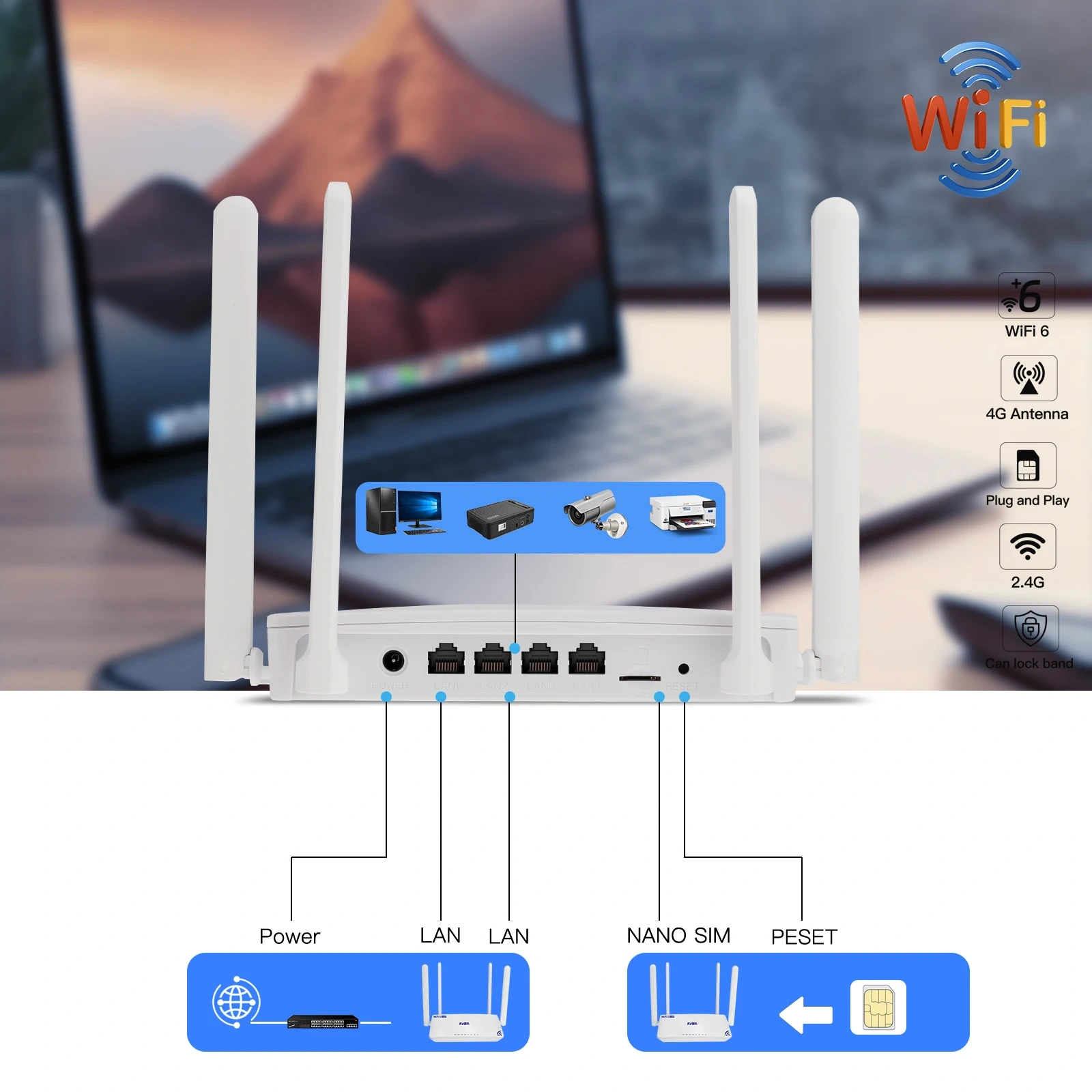

4x 10/100Mbps Ethernet LAN Port
The Router with 4x 10/100 Mbps Ethernet LAN port.To meet the needs of different users, Ethernet ports are provided, which can be used in a variety of scenarios.
Support 32 User/Devies Connect at the same time
The router supports up to 32 simultaneous users/devices, allowing your friends or family to connect to your router.Also smart devices in the home can connect to this router.In 4G mode, in order to provide a stable network, we do not recommend connecting too many devices.
Plug and Play
When you insert the SIM card, you can instantly access the Internet anytime and anywhere. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.)
Support for multiple devices
It can connect to mobile phones, televisions, cameras, computers, etc.Solve the problem that devices need network.
Support More Features
This router supports IPV4 and IPV6, and for Internet security, it also offers a firewall function.Support TCP / UDP / PPP / HTTP / NITZ / NDIS / NTP / HTTPS / PING protocol.
Specification:
CAT4 4G LTE Rate: Up 150 Mbps(DL)/Up 50Mbps(UL)
Wi-Fi Frequency: 2.4GHz
Wi-Fi Standards: IEEE802. 11 b/g/n/ax
Channel Bandwidth: 20MHz,40MHz
Wi-Fi Access Rate: 2.4Ghz WiFi up to 300Mbps
External Antenna : 2.4Ghz Wi-Fi Antenna and LTE Antenna(Non-detachable)
TXRX: 2T2R
Nano SIM Card Slot: 1* 4FF SIM Card Slot
USB Port: Only for upgrade the 4G modem
LAN Port: 4x 10/100 Mbps
Power: Input: 100V-240V AC; Output: 12V DC/1A
Working Temperature: -10°C to 45°C
Storage Temperature: -25°C to 70°C
Operating Humidity: 5% to 95% (no condensation)
Reset Button: Press and hold 10s-15s to restore the factory settings
Support Function: Port forwarding,DMZ,IP/MAC/URL Filter,Access Control,Firewall etc.
LED Indicators: Power LED ×1,WIFI(WPS)LED×1,LAN LED×1,LTE Internet LED×1,Signal LED×4
FDD-LTE: 150 Mbps DL / 50Mbps UL
HSPA+: 21 Mbps DL / 5.76 Mbps UL
WCDMA PS: 384Kbps DL / 384Kbps UL
Package Listing:
1x CAT4 4G LTE Router
1x DC 12V Power Supply
1x Ethernet Cable
1x User Manual
