Tips:
1. The router not support Spain Digi Sim Card.
2.Please confirm the network frequency band of the SIM card before purchasing
FAQ：
Q1: Why is my internet slow when I use it indoor?
A1: As this is an outdoor portable 4G router, it does not have external antenna, so we recommend buyers to use it when they are outdoors. If you use it indoor, it may not be favorable for the router to receive outdoor signals.
Q2: My router's Internet speed is slow, how can I improve it?
A2: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals.
Q3: Can not recognize SIM card?

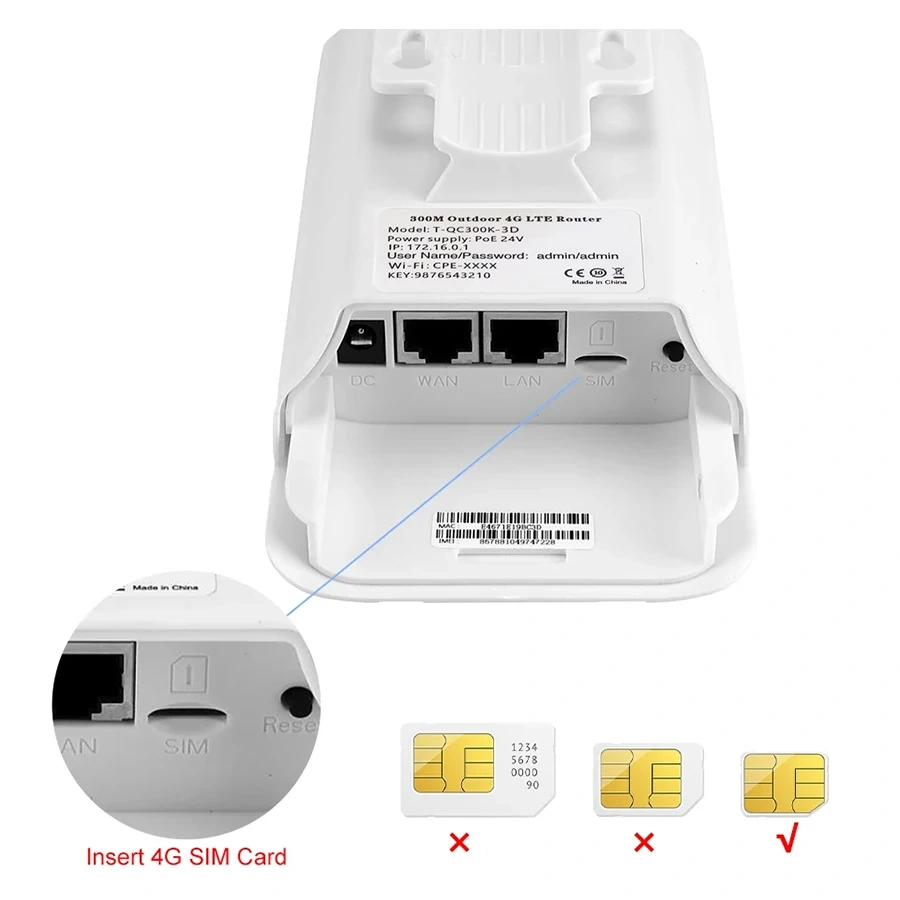

A3: You can insert SIM card into the router for one minute first,then turn on the power.And then log in web ui page to check the sim card.If still not recognized the SIM card,please install another SIM card from another SIM card operator.
Q4: The device can not connect to the Internet normally?
A4: You need to disable the PIN code and modify the APN. Please log in web ui to fill in correct APN.About APN ,you can call your sim card operator to check.APN setting refer web, www.apn.how
Q5: Wrong or forgotten WIFI password?
A5: Users need to keep the router on, then press the reset button for 10-15 seconds and wait for the router to reboot, the router will restore the initial Wifi password.
Frequency band

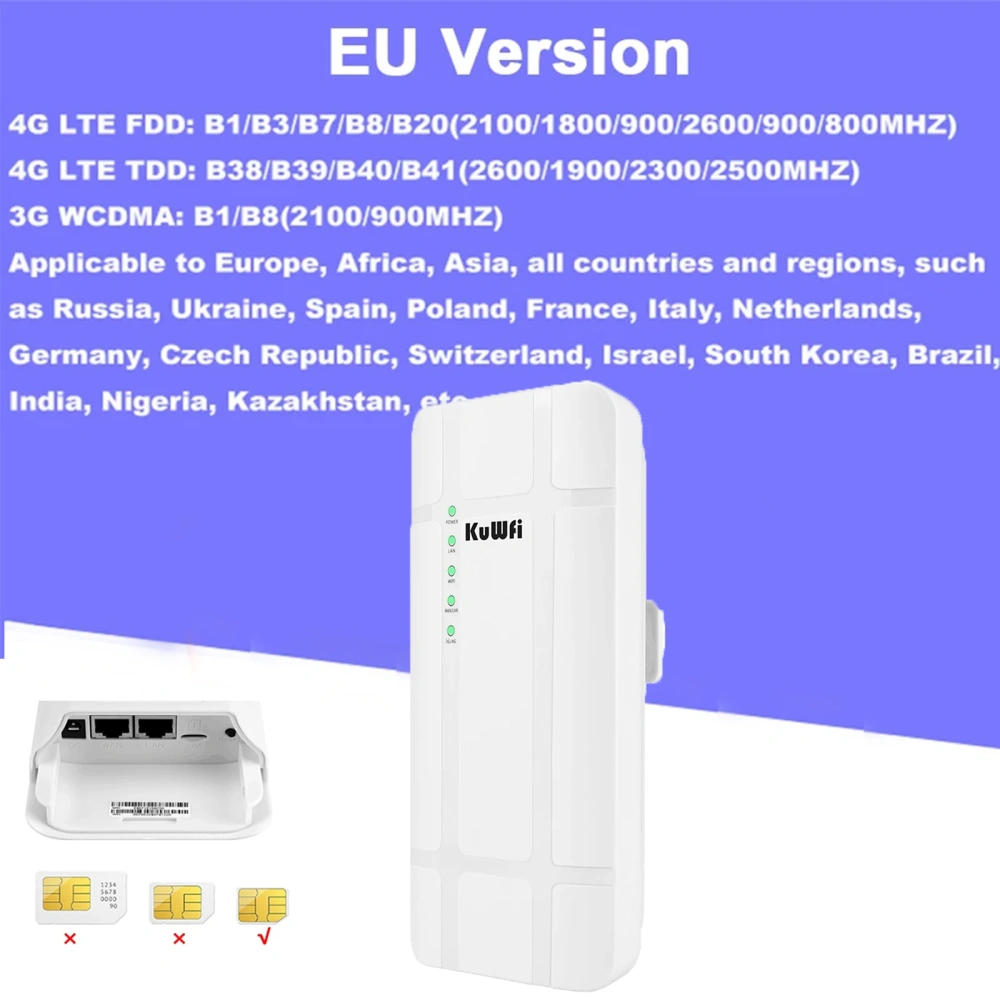

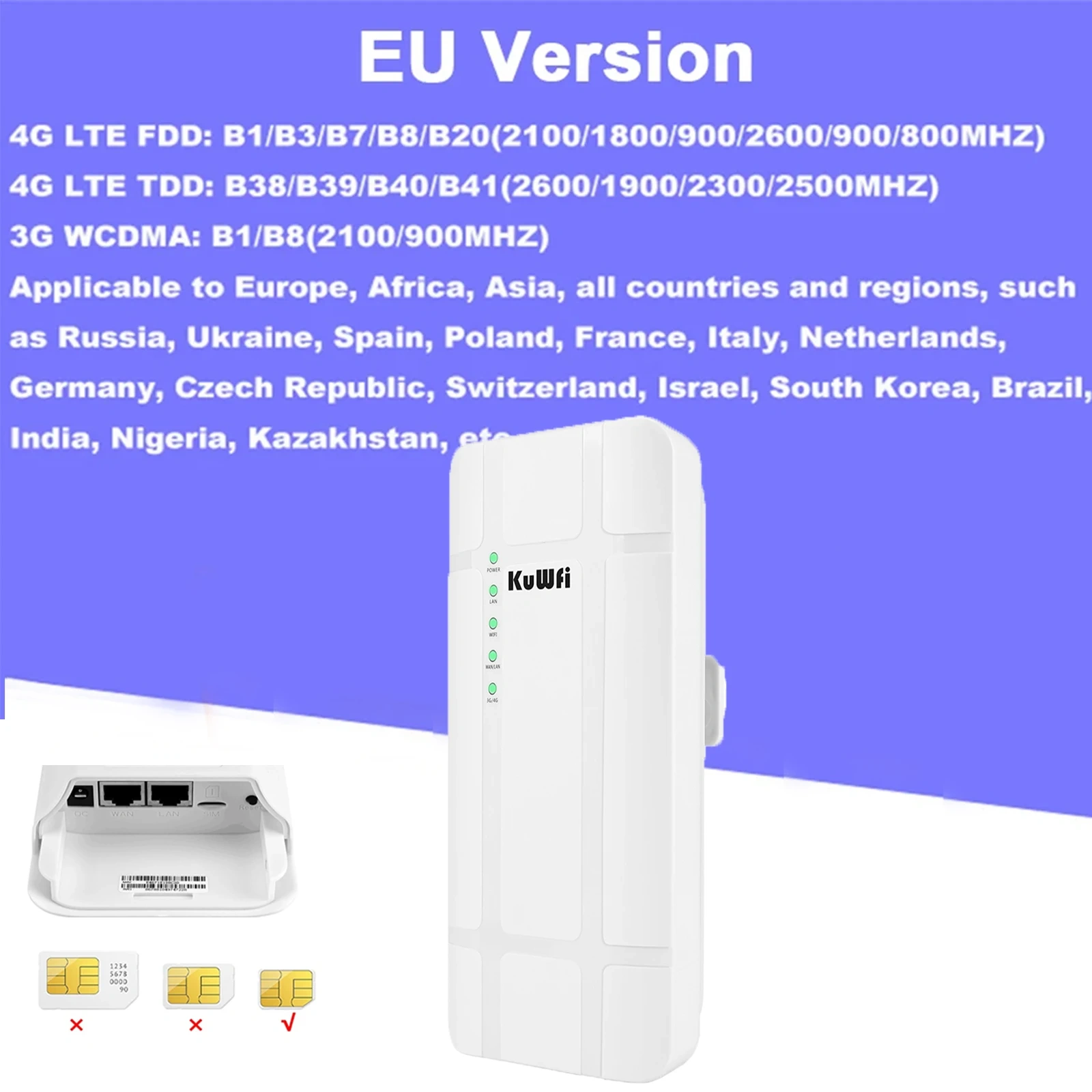

EU Version
LTE-FDD: B1/B3/B5/B7/ B8/B20(2100/1800/850/2600/900/8002500Mhz)
LTE-TDD: B38/B40/B41(2600/2300/2500Mhz)
WCDMA: B1/B8(2100/900Mhz)
GSM: 900MHz/1800MHz.
Work in France, Germany, Spain, Italy, Japan, South Korea and other Asian and European countries.
US Version
4G LTE FDD: B2/B4/B5/B7(1900/1700/850/2600MHz)
3G WCDMA: B2/B4/B5(1900/1700/850MHz)
Working in USA/CA/Mexico etc. South American or North American countries.
【About this Item】

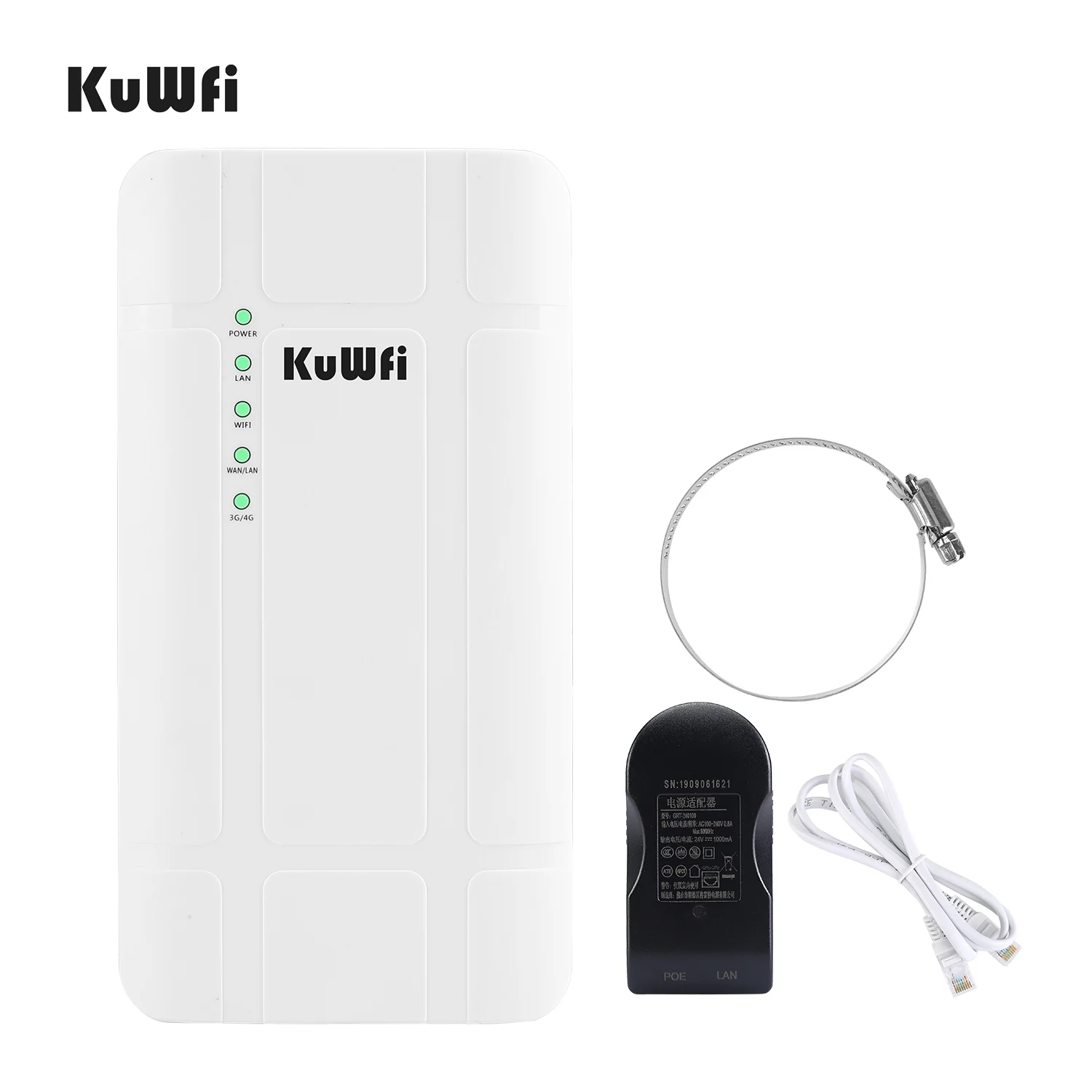

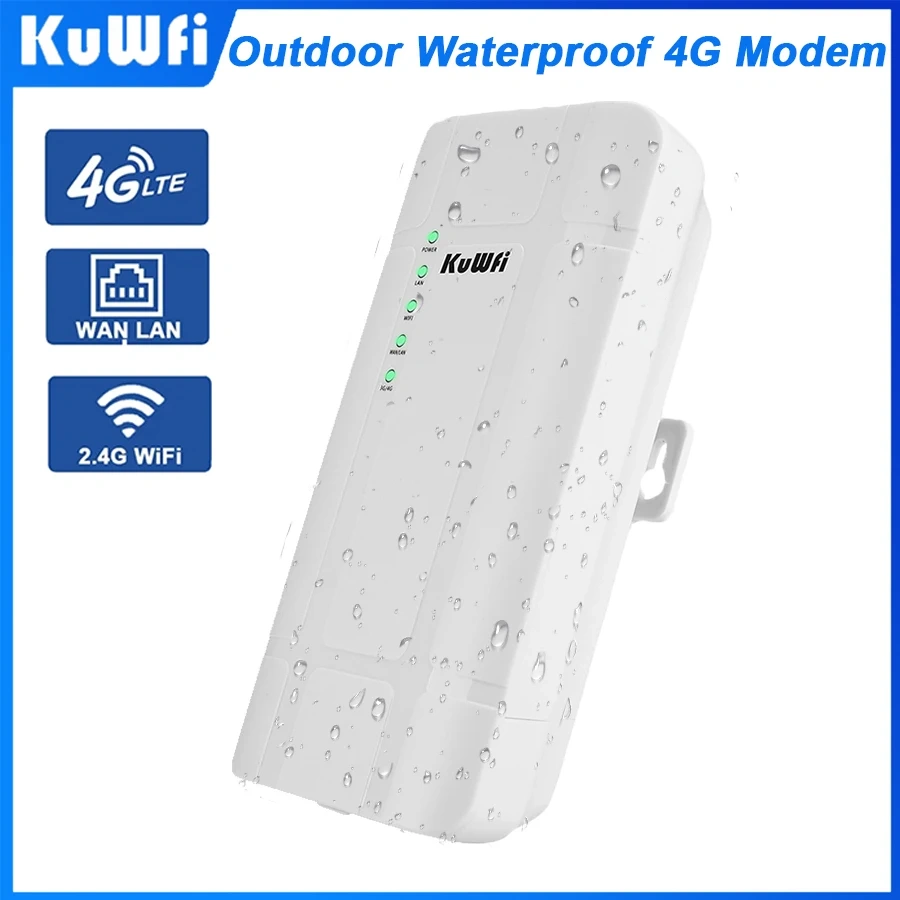

1.It is outdoor 4G LTE router with 24VPOE adapter , enables easy-to-install wireless connectivity in small business or remote office locations.
2.. It provides wired Ethernet, and 3G/4G wireless WAN connectivity to keep you and your business up and running. Get internet and home phone service all in one device with the 4G LTE Broadband Router with Voice. Whether you need high-speed internet and/or phone connectivity at home or away,
3. this router securely connects multiple devices wherever there is a 4G LTE signal. The coverage of the signal is 30-80M, which mainly depends on the strength of the signal.download speed is up to 150mbps, upload speed is up to 50mbps
4.【 Main feature Performance 】4G outdoor router is MTK7628KN, and 5dBi high Gain antenna, Equipped with 1 * LAN and 1* Wan port 1 * SIM card slot interface, support 24V 0.5A POE power supply
5.It is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card,then you will enjoy the WiFi with your friends with this portable 4G LTE router.
Detail
Speed(CAT4)
FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps
TDD-LTE: Downlink: 150Mbps, Uplink: 50Mbps
Wi-Fi Frequency: 2.4Ghz Wi-fi
Wi-fi Speed: Up to 300Mbps

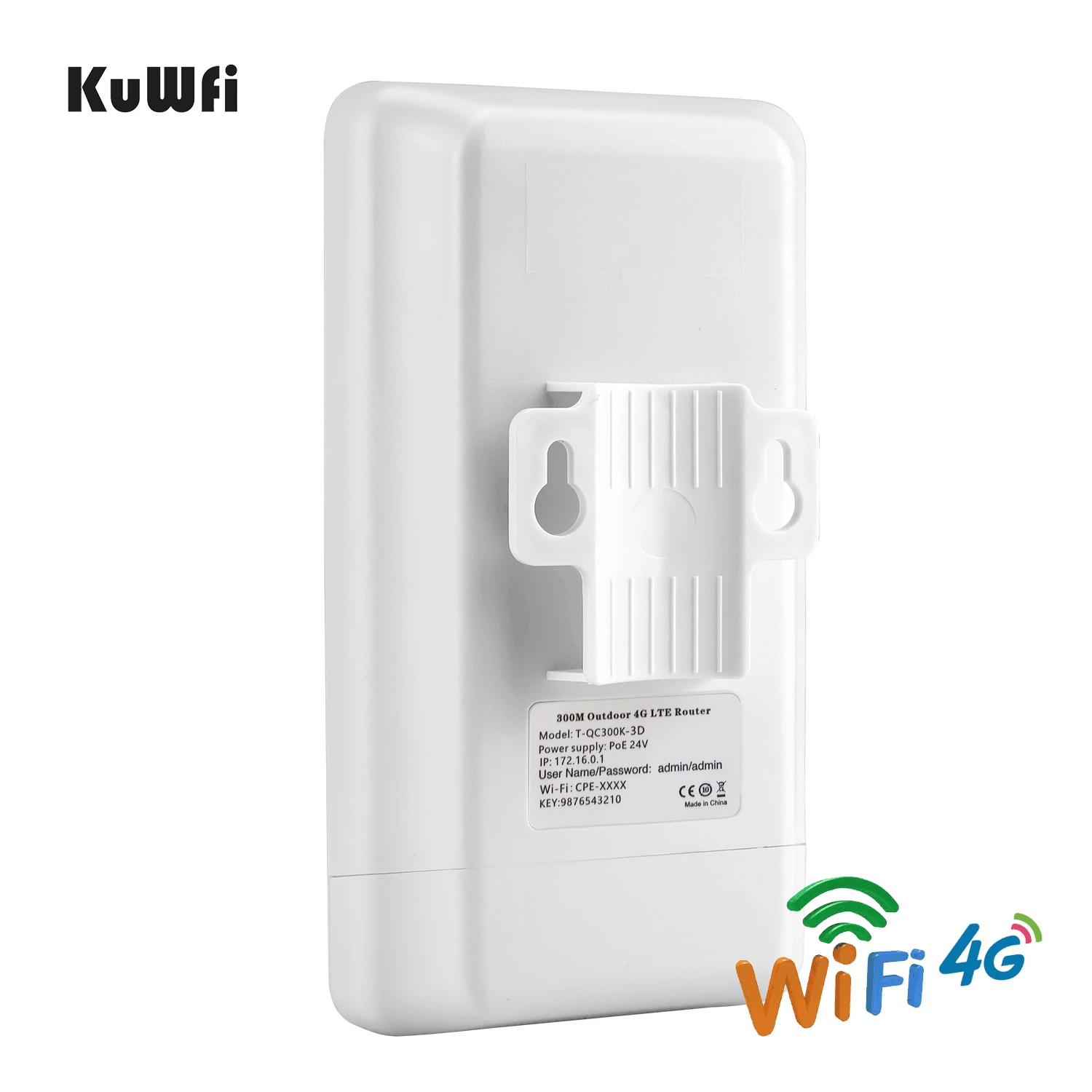

WEB UI Page IP address: 172.16.0.1
Username/Password: admin
Default WiFi SSID Name: CPE-XXXX
Default WiFi Password: 9876543210
Interface type:
Wan: 1*10/100Mbps RJ45
Lan: 1*10/100Mbps RJ45
Flash：2MB //Memory：8MB
Support external antenna：2*WIFI+2*LTE， 5dBi gain.
Power:24V 0.5A PoE / DC 12V 1A(Package not inlucde DC Power)
Operating Environment：
Operating Temperature：Normal:0°C to +45°C;
Operating Humidity：-20° C to +70° C
Operating Humidity：5%~ 95%
Storage Humidity：5%~ 95%
