TIPS:
1)1200Mbps Dual Band WiFi Rate = 2.4GHz WiFi Rate + 5GHz WiFi Rate
2)CAT6 4G+ LTE Download Rate up to 300Mbps, Upload Rate up to 50Mbps
3)Please do not confuse the concepts of CAT6 4G+ 300Mbps and 1200Mbps WiFi Rate.

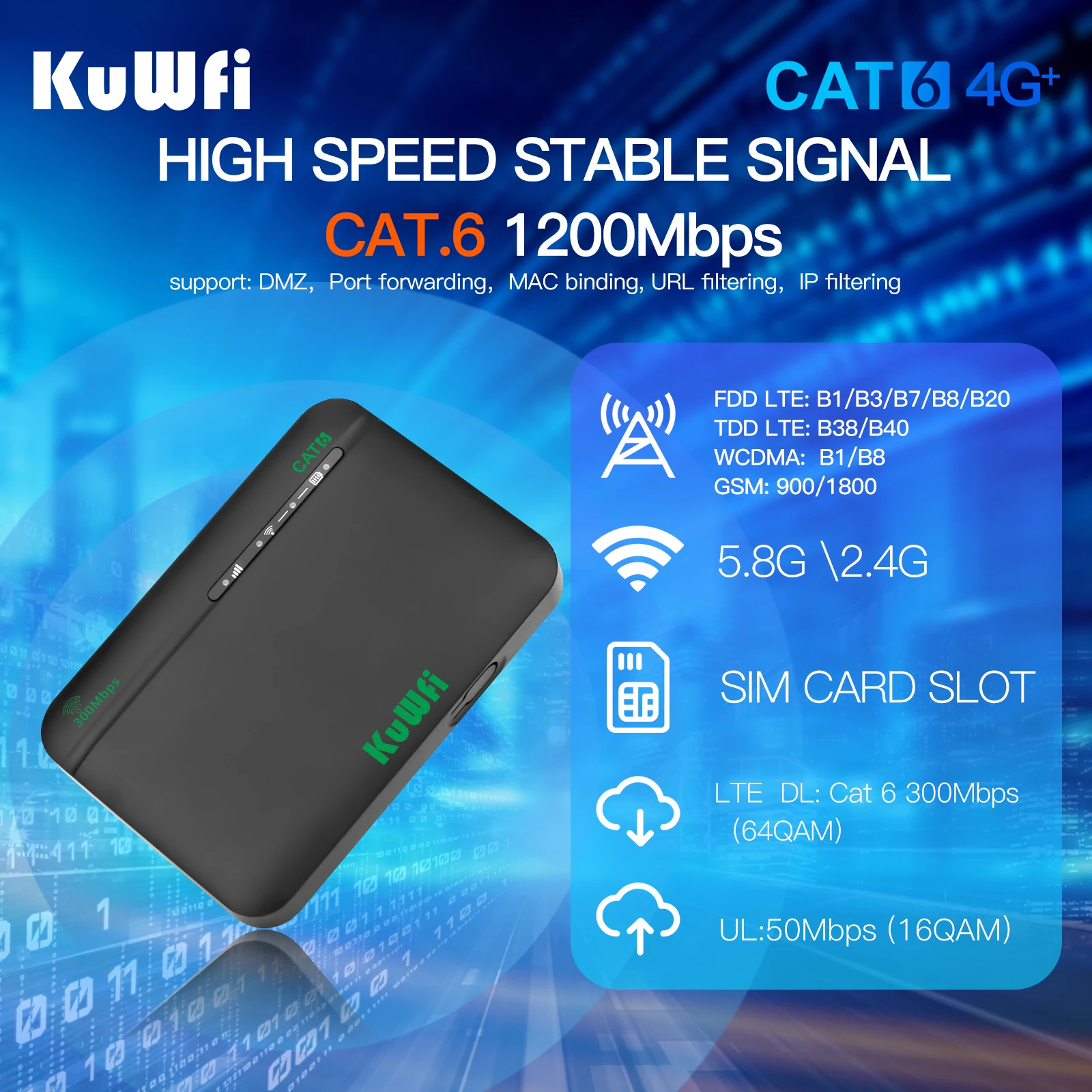

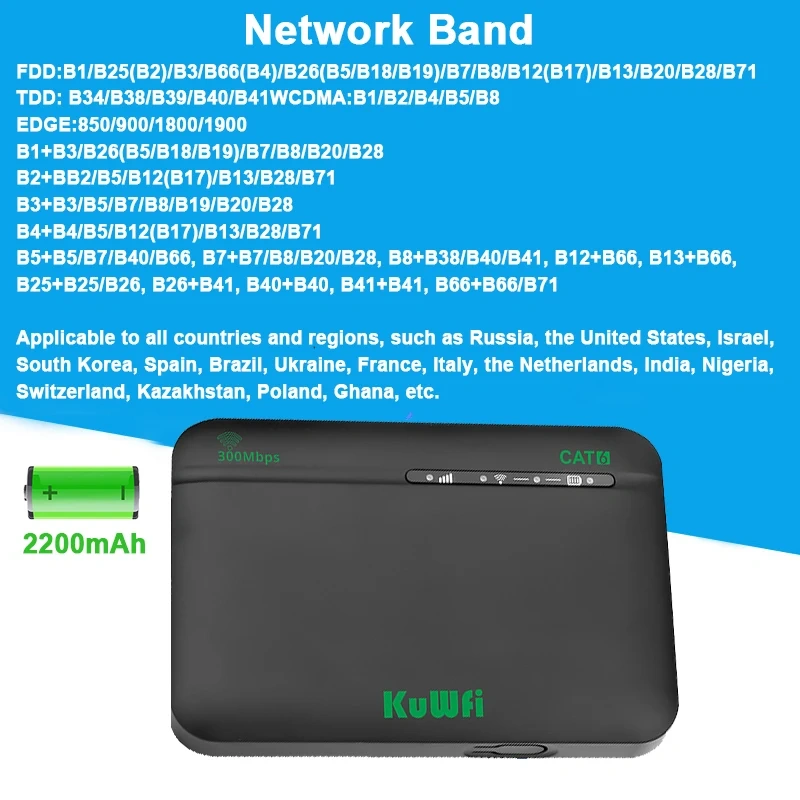

Global Version - Network Band:
FDD:B1/B25(B2)/B3/B66(B4)/B26(B5/B18/B19)/B7/B8/B12(B17)/B13/B20/B28/B71
TDD:B34/B38/B39/B40/B41WCDMA:B1/B2/B4/B5/B8
EDGE:850/900/1800/1900
B1+B3/B26(B5/B18/B19)/B7/B8/B20/B28
B2+BB2/B5/B12(B17)/B13/B28/B71
B3+B3/B5/B7/B8/B19/B20/B28
B4+B4/B5/B12(B17)/B13/B28/B71
B5+B5/B7/B40/B66,B7+B7/B8/B20/B28,B8+B38/B40/B41,B12+B66,B13+B66,B25+B25/B26,B26+B41,B40+B40,B41+B41,B66+B66/B71
Applicable to all countries and regions, such as Russia, the United States, lsrael,South Korea, Spain, Brazil, Ukraine, France, ltaly, the Netherlands, India, Nigeria,Switzerland, Kazakhstan, Poland, Ghana, etc.
FAQ:
Q1: Can not recognize SIM card?
A1: Please insert the SIM card before powering up the device, otherwise the SIM card will not be recognised.You can insert SIM card into the router for one minute first,then turn on the power.And then log in web ui page to check the sim card.If still not recognized the SIM card,please install another SIM card from another SIM card operator.
Q2: The device can not connect to the Internet normally?
A2: You need to disable the PIN code and modify the APN. Please log in web ui to fill in correct APN.About APN ,you can call your sim card operator to check.APN setting refer web, www.apn.how
Q3: My router's Internet speed is slow, how can I improve it?
A3: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If you use it indoor, it does not have external antenna,so it may not be favorable for the router to receive outdoor signals.
Q4: Can this router work in my country?
A4: The router not support Spain Digi SIM Card.Other SIM Card refer.If you are not sure whether it can work in your country,you can consult the seller or research it here before you place the order.Check SIM card web,www.frequencycheck.com.
Q5: Why can't 4G+ network speeds reach 300Mbps?
A5: Router's 4G+ chipset top capacity is 300Mbps, and 4G+ base station's theoretical top speed is 300Mbps too. However the 4G+ base station provide service to many 4G+ users at the same time,instead of giving full 300Mbps bandwidth to one user,and 4G+ signal strength, SIM card limitation and environment would affect the network speed too
Q6: Why the internet speed slower when the SIM card is inserted into the router than in the phone?
A6: Please don't compare the speed of our router to the speed of a cell phone. Our product uses a cheaper 4G chip than a cell phone 4G chip and has a different design scheme, so it is not comparable.
Q7: Wrong or forgotten WIFI password?
A7: Users need to keep the router on, then press the reset button for 10-15 seconds and wait for the router to reboot, the router will restore the initial Wifi password.
Q8: Why doesn't the indicator light come on when the unit is powered on and won't start?
A8: We recommend that users check the voltage in their homes to see if it is normal. Try to change another power outlet or DC 12V power supply and try again.
Description：

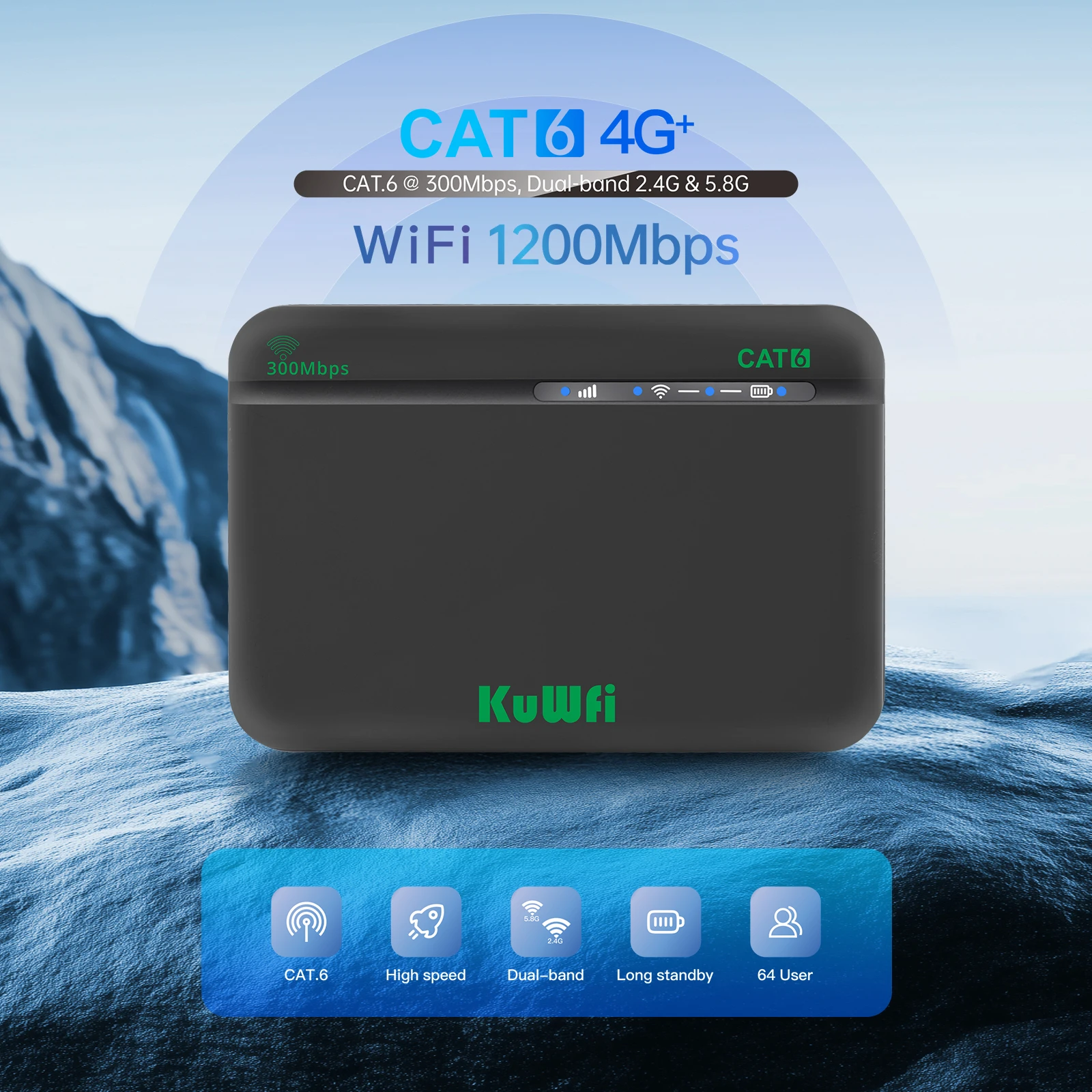

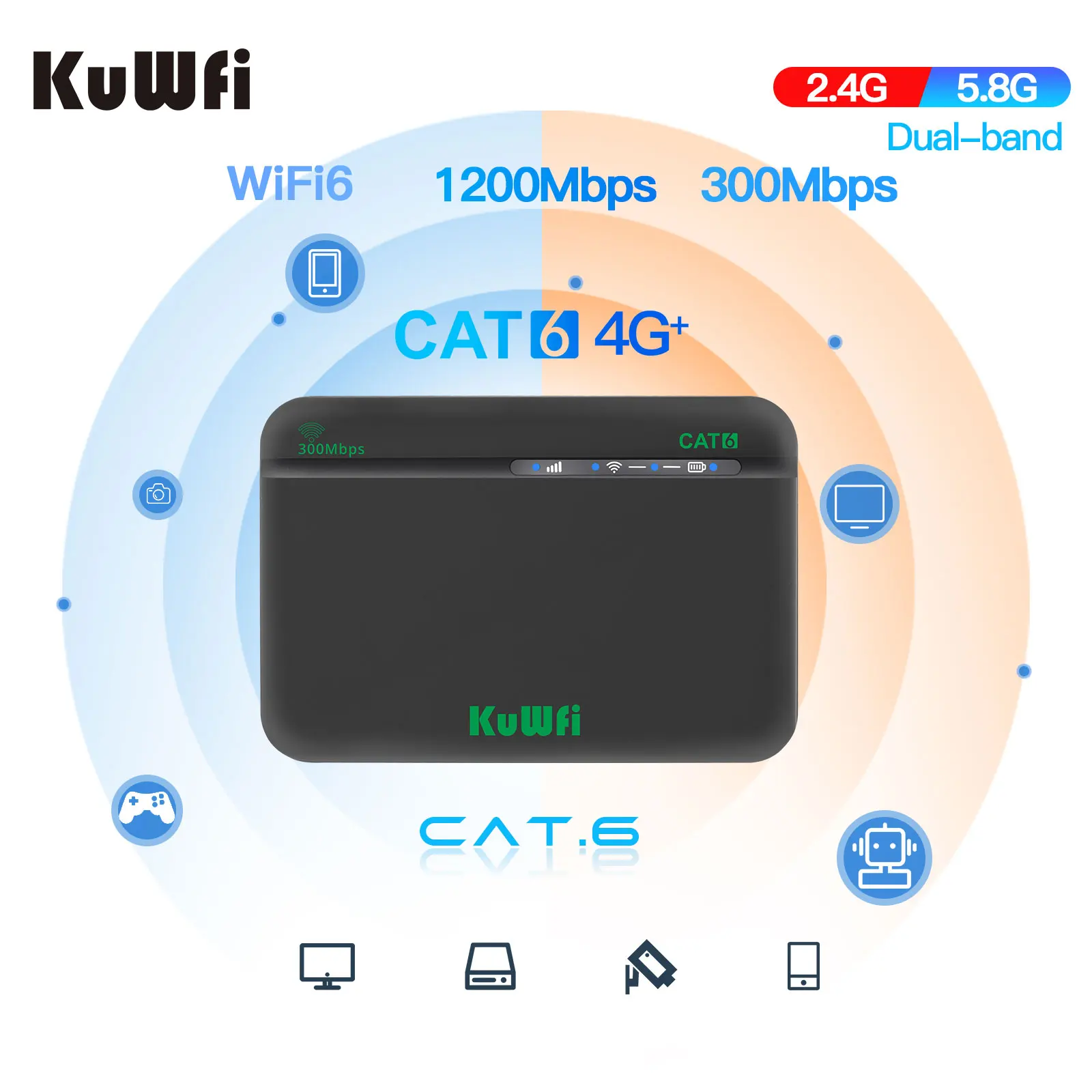

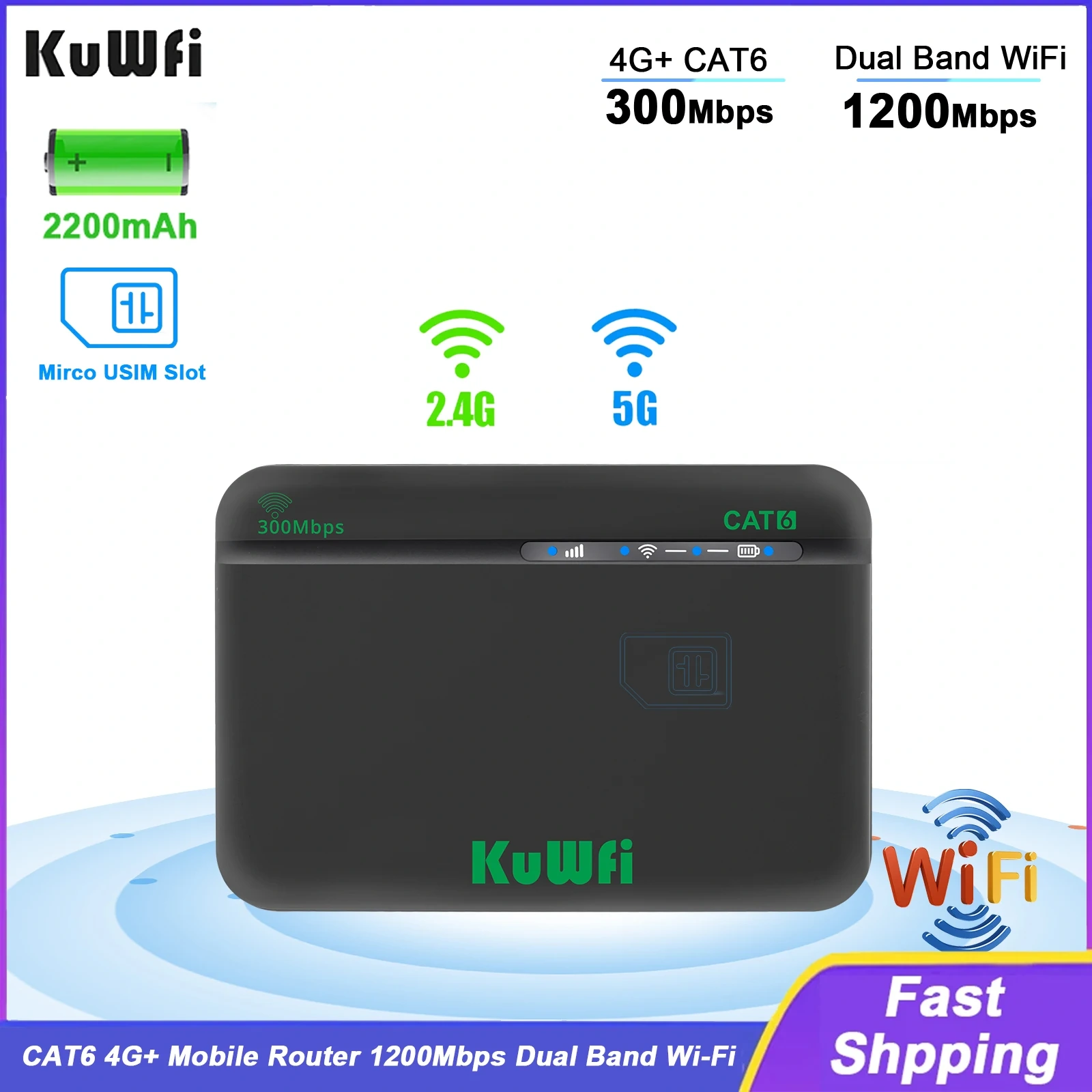

KuWFi C802 is a CAT6 4G+ portable travel mobile router.The router comply with IEEE 802.11b/g/n/a/ac standard, the total Wi-Fi rate up to 1200Mbps. Support 2.4GHz & 5GHz Wi-Fi Bnad.2.4Ghz Wi-Fi rate up to 300Mbps,5GHz Wi-Fi rate up to 867Mbps.With a removable 2200mAh battery (about wokring time: 3-10 hours) and Mirco SIM slot.
Features:
CAT6 300Mbps 4G+ LTE Travel Router
The CAT6 travel mobile router provides you with stable 4G+ network. 4G+ MAX download speed: 300mbps; MAX upload speed : 50Mbps. (Since carriers limit network speed, it's normal for you to get less than 300Mbps.)
1200Mbps 2.4GHz & 5GHz Dual Band Wi-Fi:
The router comply with IEEE 802.11 b/g/n/a/ac standard.Providing 2.4GHz and 5GHz WiFi band. 2.4GHz up to 300Mbps Wi-Fi rate, 5GHz up to 867Mbps Wi-Fi rate.Since this is a portable WiFi router, the best transmission distance is within 10 meters.

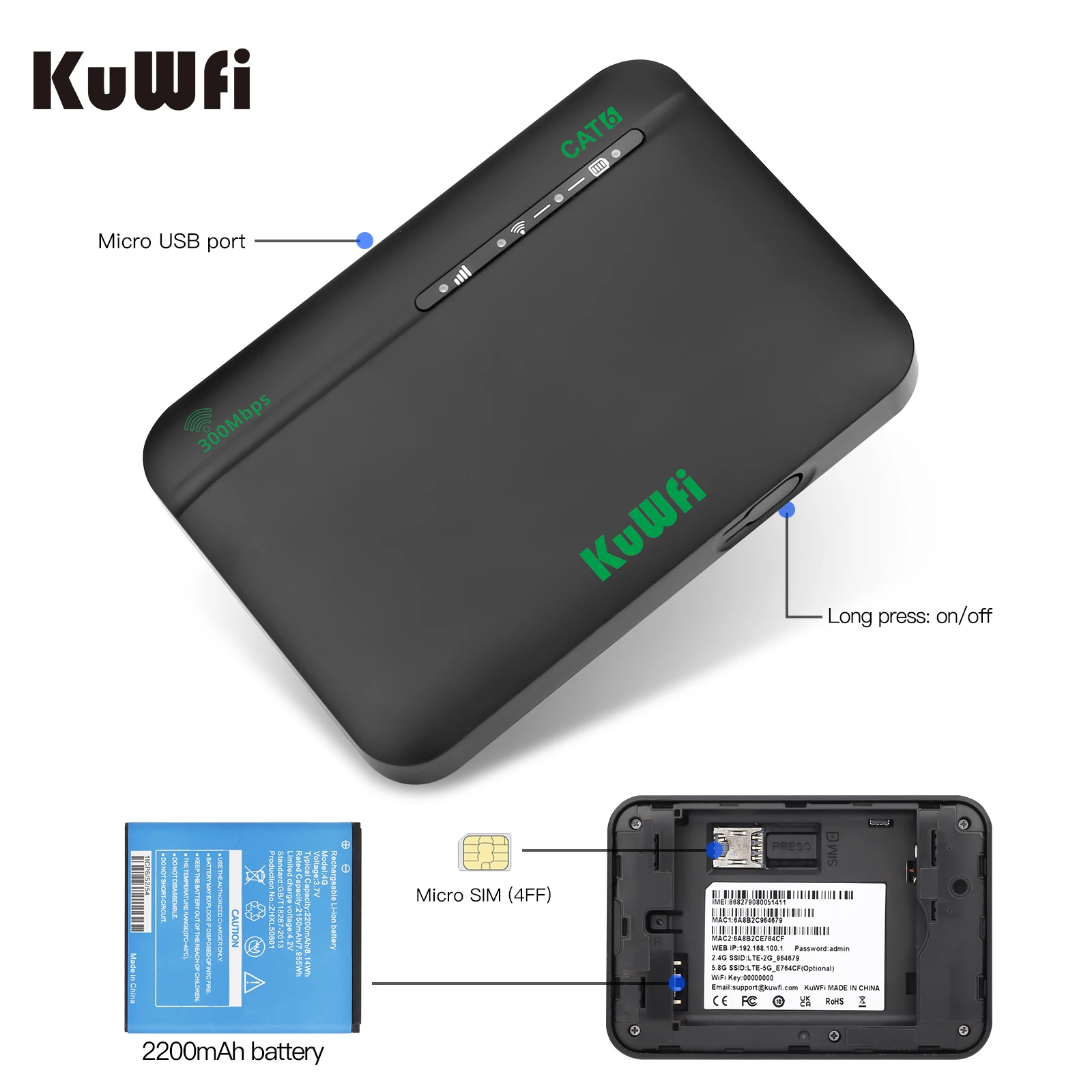

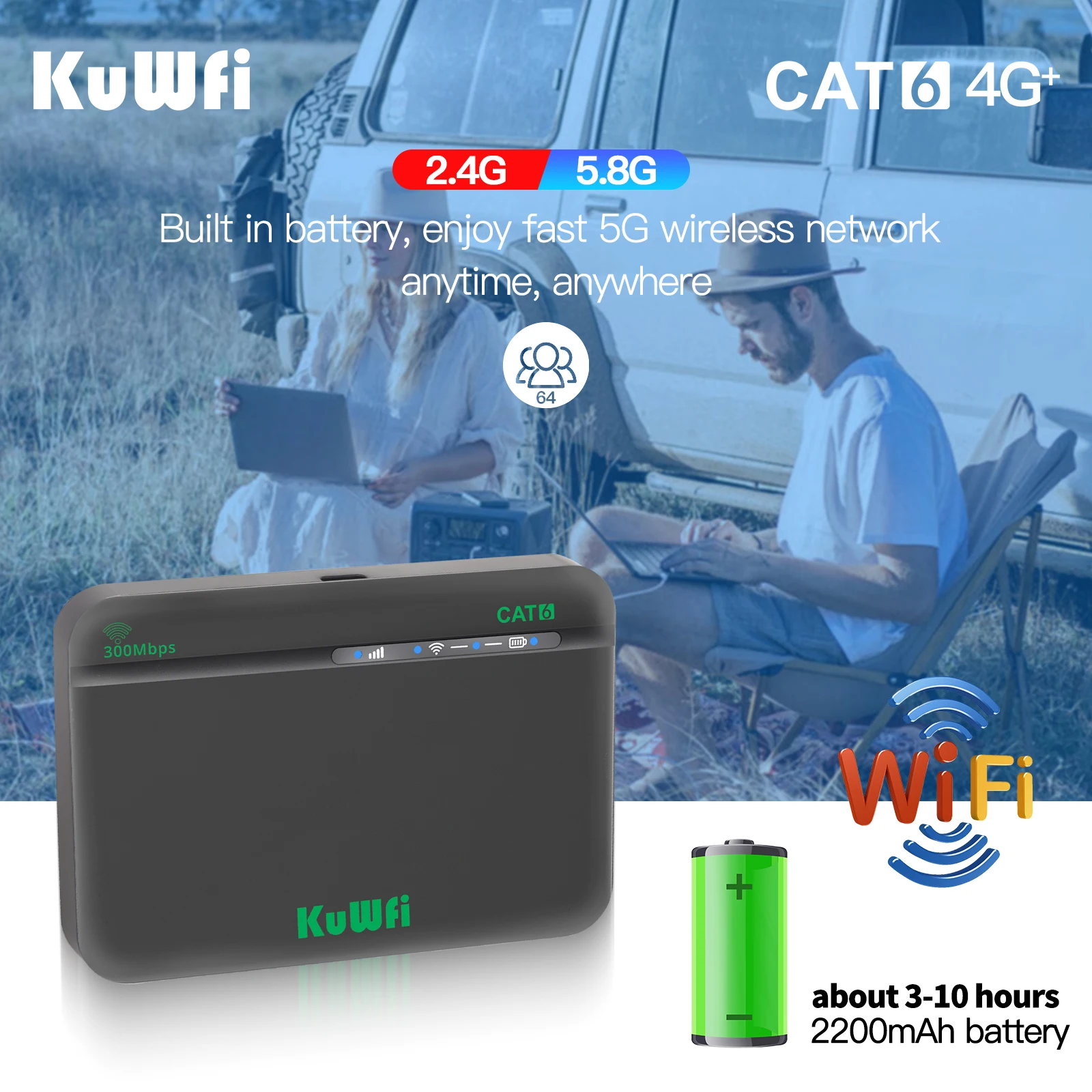

Removable 2200mAh Battery
The router have a removable 2200mAh Li-ion battery, it can provide about 3-10 hours of Internet access working time.Due to its portable feature, it enables you to enjoy WiFi anytime and anywhere.
4G+ Signal to Wi-Fi Signal
The CAT6 4G+ router supports the conversion of 4G+ network to Wi-Fi signal.It is a portable 4G+ LTE Modem,provide stable Wi-Fi hotspot. Access to the Internet anytime, anywhere.
Plug and Play
When you insert the SIM card, you can instantly access the Internet anytime and anywhere. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.Refer APN Info. Web: https://apn.how)
Secure and Reliable
Built-in firewall, VPN support （wireguard, PPTP, L2TP), and WPA3 encryption keep your data safe. Ideal for remote workers handling sensitive information.
Easy to Use, No Setup Hassle
Plug-and-play via USB power. No charger needed.Compact and lightweight, it fits in any bag—ready whenever you are.
Support 64 User/Devies Connect at the Same Time
The router supports up to 10 simultaneous users/devices, making it the best choice for wireless access in high-density, high-bandwidth environments such as homes, stores, restaurants and businesses.
Specification:
CAT6 4G+ Data Speed: DL up to 300Mbps, UL up to 50Mbps (Theoretical Value of the Chip)
Optimal Connection Distance: Less than 10 meter
1200Mbps WiFi Rate : 2.4GHz WiFi Rate + 5GHz WiFi Rate
Dual Wi-Fi Band: 2.4GHz and 5GHz,802.11 b/g/n/a/ac
Wi-Fi Rate: 2.4GHz up tp 300Mbps, 5GHz up to 867Mbps
Secure Encryption: Support WPA/WPA2 /WPA3
MAX. Connection Number:64 Devices/Users
Language: Chinese / English
Battery Capacity: 2200mAh
Battery Working Time: 3 to 10 Hours (Depending on the network environment)
2.4G SSID Name: LTE-2G_XXXXXX (last 6 digits of the MAC address)
5.8G SSID Name:LTE-5G_XXXXXX (last 6 digits of the MAC address)
Wi-Fi Password: 12345678
Gateway: http://192.168.100.1
Log in Username: admin
Log in Password: admin
Charge Port: 5V/1A,Default without Charger
SIM Card Slot: 1*Mirco Card Slot
Reset Button: Restore factory default settings
LED Indicator lights: Power Indicator,4G Network Indicator, Wi-Fi Indicator
Size: 93mm*65mm*10mm
Weight: about 85g
Working Temperature: -10℃-- +45℃
Storage Temperature: -10℃- 60℃
Humidity: 10% - 95%
Package Listing:
1* C802 CAT6 Router (Include 2200mAh Battery)
1* USB charging cable
