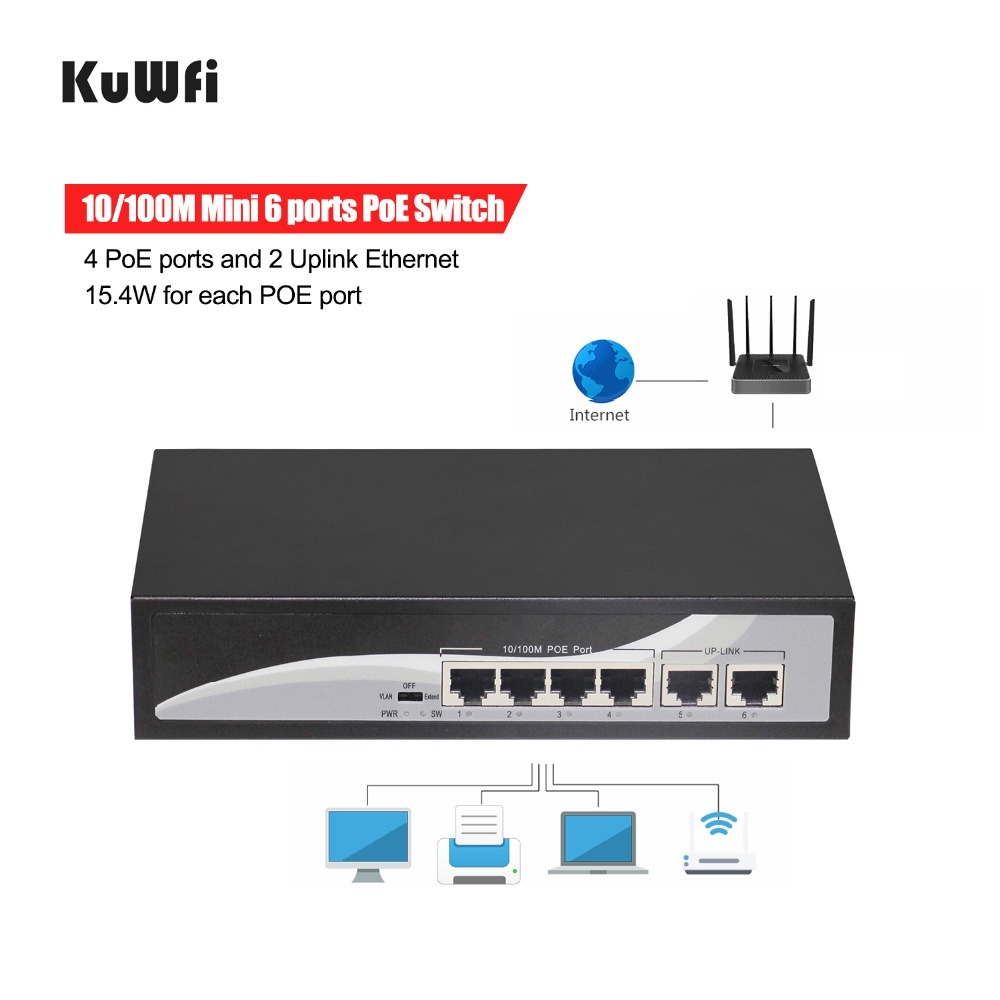

Choose to plug in up to 4 Ethernet or Fast Ethernet devices and mix up to four IEEE802.3af IP-based devices such as wireless access points or IP-based network surveillance cameras. Put these IEEE802.3af-compliant devices where they belong—on high walls and ceilings for maximum coverage—or anywhere else you need them. Power and data are transmitted over standard Cat 5 cables.
Plug and Play The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.

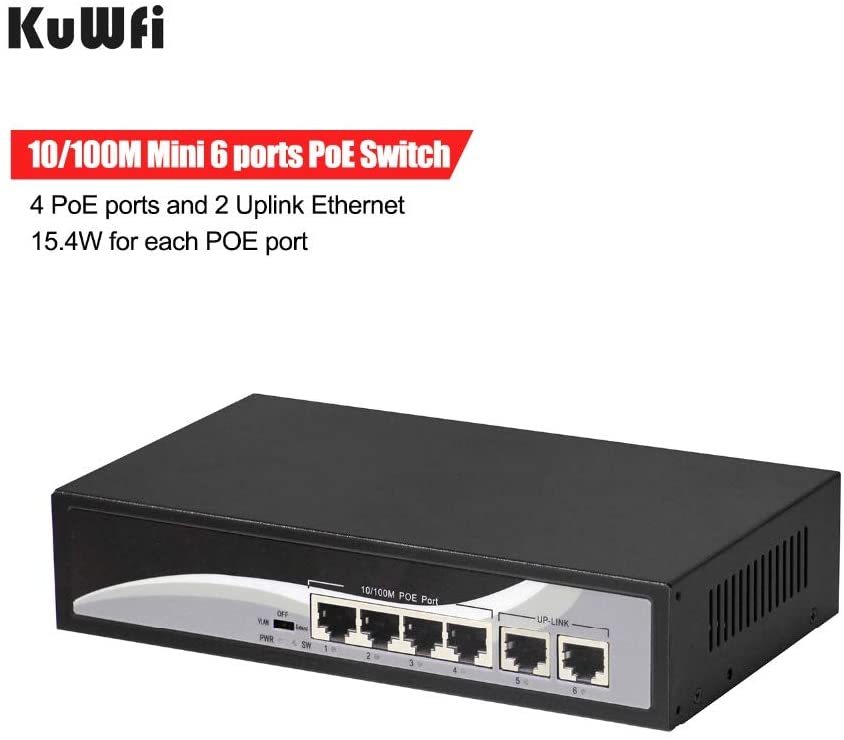

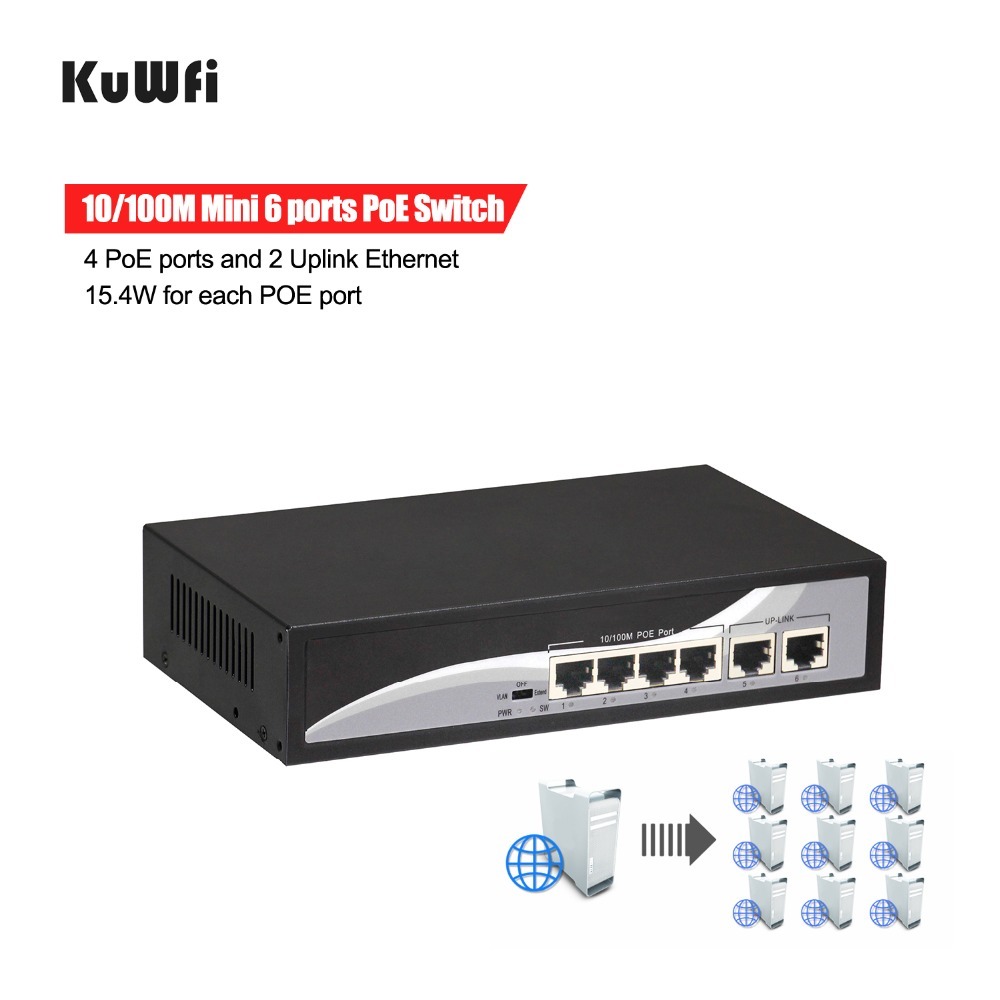

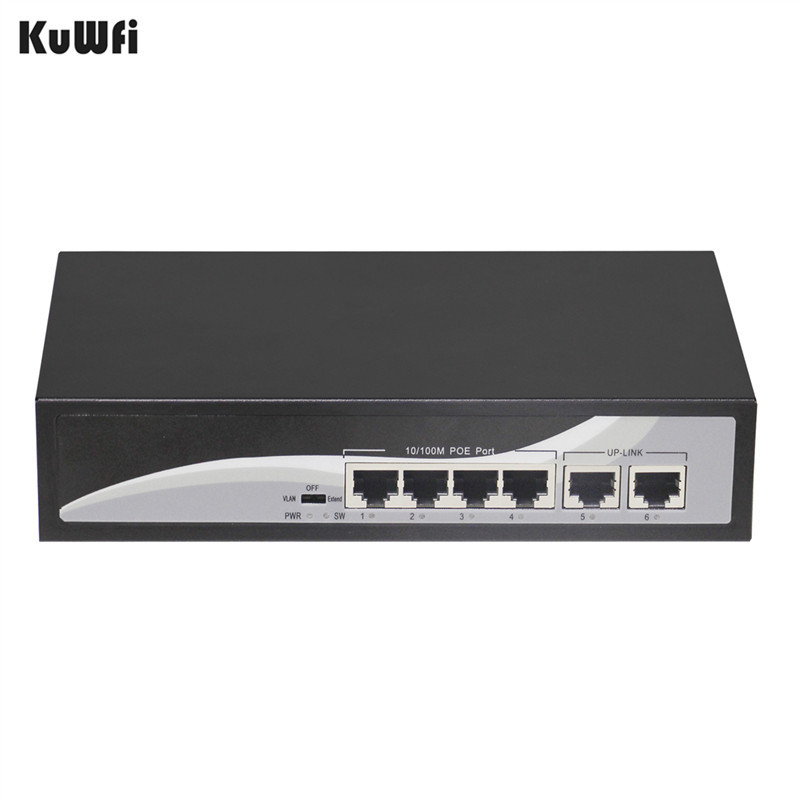

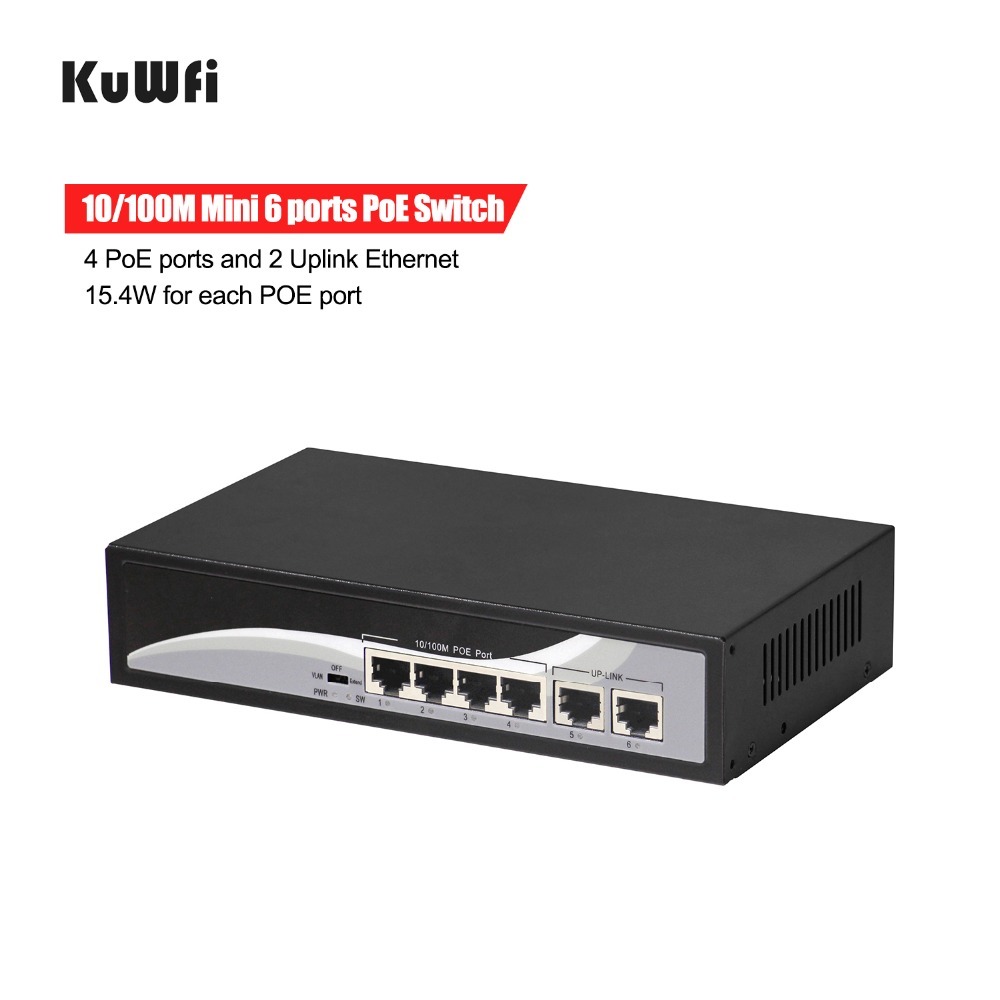

6-PORT 10/100 switch with 4 PoE ports and2 Uplink Ethernet, IEEE 802.3af; PoE Power Output: 15.4Watts per port. Total powerbudget 48 Watts
Supports PoE power up to 15.4W for each PoE port
-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- -------------
Product description
8-PORT 10/100 switch with 6 PoE ports and 1 Uplink Ethernet, IEEE 802.3af;
PoE Power Output: 15.4Watts per port. Total power budget 48Wattsv ◆IEEE 802.3af power on up to 6 ports
◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆6x 10/100 Mbps Ports with AutoUplink
◆Supports PoE power up to 15.4W for each PoE port
◆Supports PoE IEEE 802.3af compliant PDsv ◆Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆1K entry MAC address table of the PoE Switch with
auto-learning and auto-aging
◆Support Extend 250meters
◆Support Fixed Vlan(Optional)
◆External power adapter supply
Connector Type 6x 10/100M copper RJ45 ports (6 PoE ports + 2 uplinks
) Network Media 10BASE-T: Cat3, 4, 5 UTP (≤100 m) 100BASE-TX: Cat5 or more UTP (≤100 m
Bandwidth 1.0Gbps (non-blocking)
Address database size 1K
MTBF190,000 hours (approximately 21 years)
Forward Mode Store and Forward v Network Protocols IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE2af IEEE Power via MDI2
LED display system: power supply; each port: connection, PoE working status

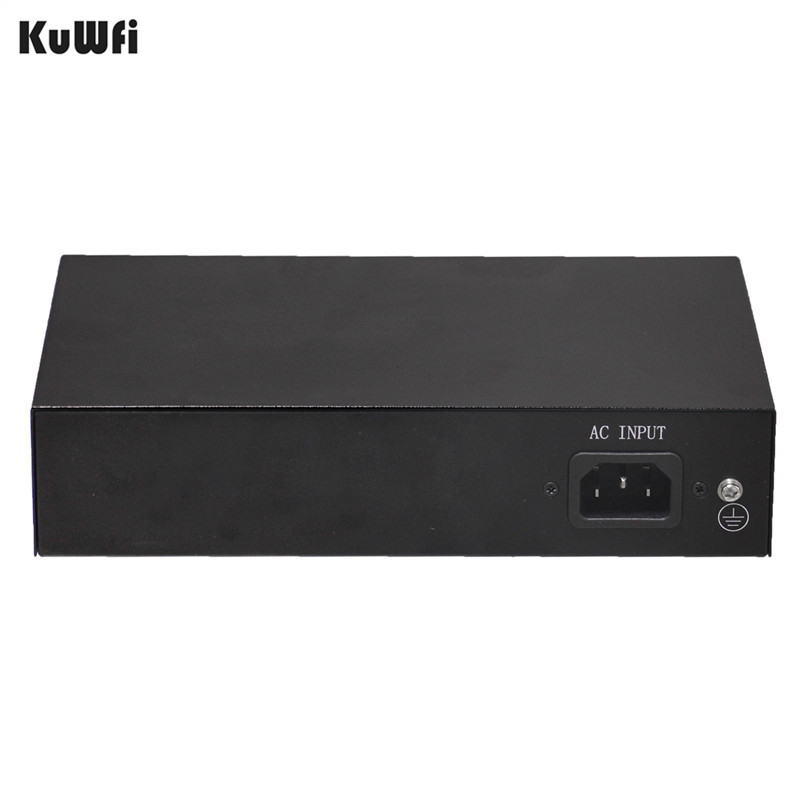

Power supply Power input: AC100-240V 50/60Hz; (customized power plug for each country)
PoE PortsPort1-6 support POE
PoE Port Power15.4W for each POE port
PoE standard IEEE 802.3af
PoE Feature All ports support MDI/MDIX
