Product Description

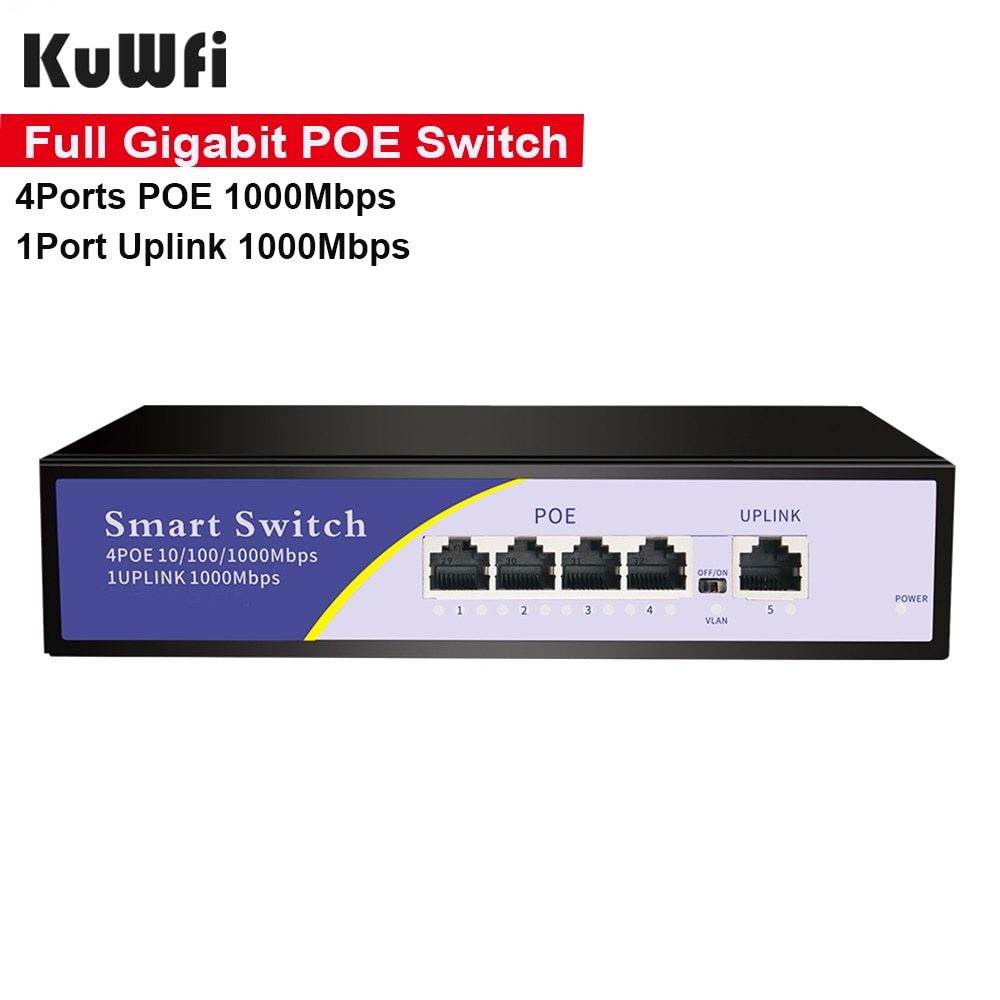

1.4-Port PoE Switch:4 x 10/100/1000 Mbps PoE ports for Security IP Camera Connection +1 x 10/100/1000Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
3.Seitch can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.
4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products
Product Detail

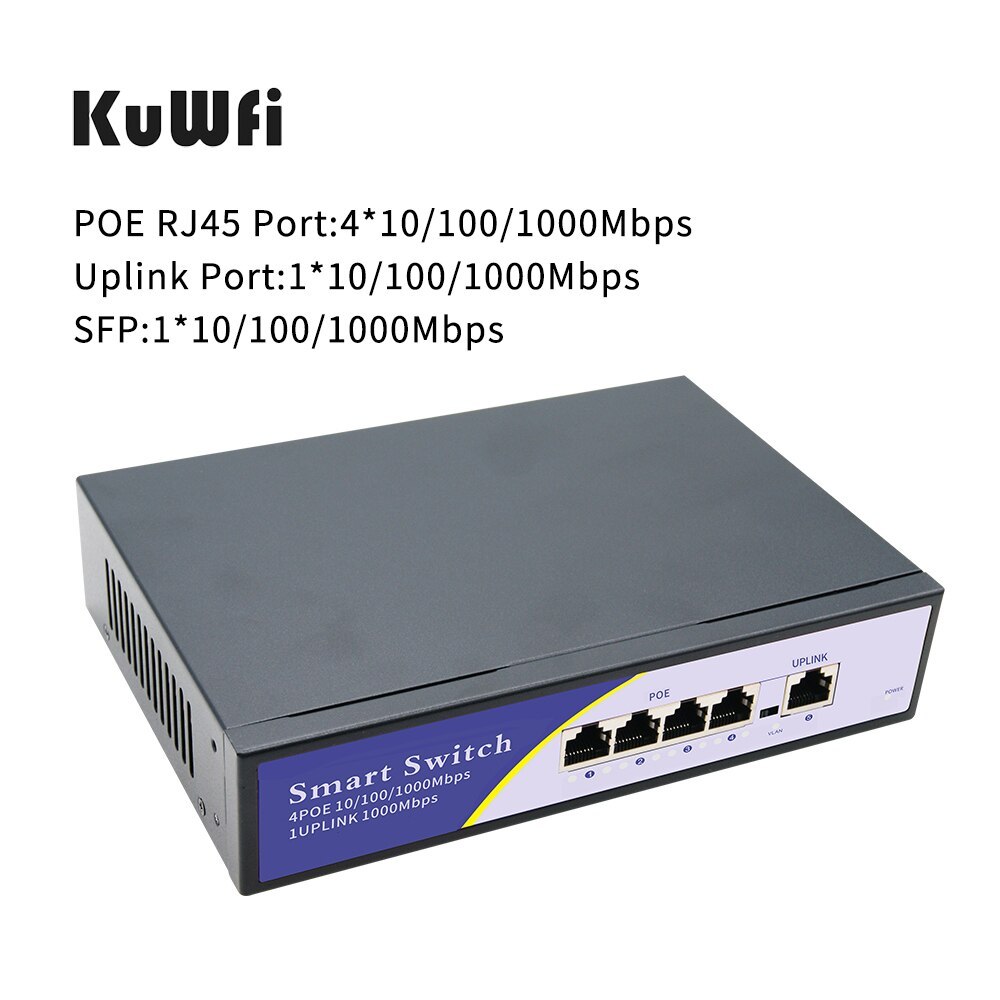

POE RJ45 Port:4*10/100/1000Mbps
Uplink Port:1*10/100/1000Mbps
DC:52V/1.25A
Bandwidth:10G
full duplex Power:Per≤30W &Whole≤65W
Data Pin:12+ 36- 45+ 78-
Distance:100M
Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
Network Medium Cat5 (UTP) or more
Network Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power:15.4W per port(IEEE802.3af).
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Package
1 x PoE switch
1 x Power cable
1 x User Manual
