FAQ:
Q1: How to pair Bridges?

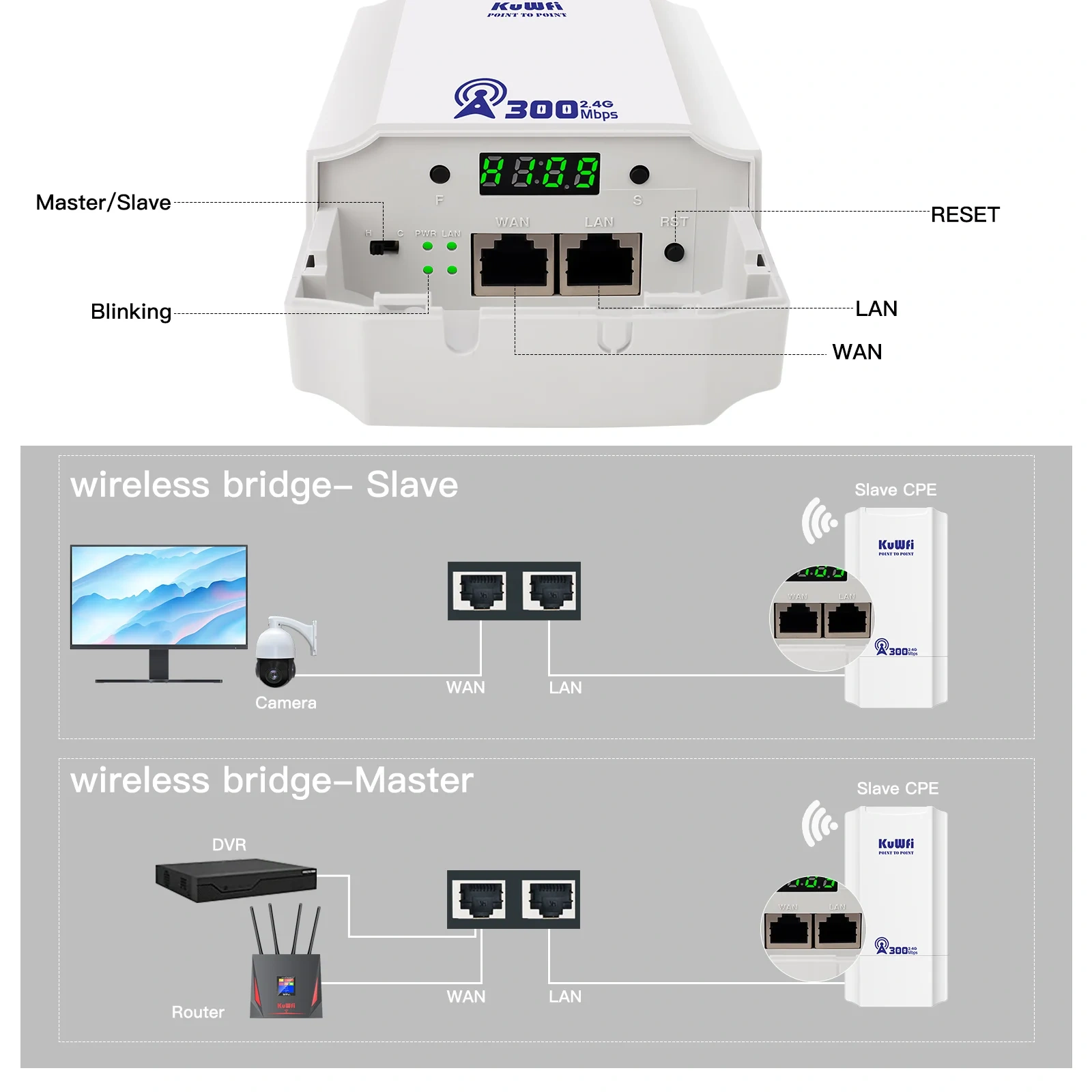

A1: If you need to expand the wifi signal, you must first pair the two Bridges and then secure them to the designated place.Set one of the Bridges as the Master Bridge and move the switch on the bridge to the "H" end.The other Bridge is set as the Slave Bridge, and the switch on the bridge is moved to the "C" end.
Then you need to press the "RST" button of both Bridges at the same time for one second, and the Bridges will automatically pair.
Q2: i can not log in web ui page for the bridge?
A2: If you need to manage the bridge, you can use a computer wired connect or smartphone wifi connect to the bridge.Then set a static IP address for the network to access the WEB UI page.
You can set static ip address type 192.168.188.10 and Subnet mask type 255.255.255.0.And then you can log in web ui page 192.168.188.253 in browser.
Since the static IP address is set only to change the bridge Settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.
Q3: Outdoor wi-fi bridge is less than described distance?
A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.
Q4: The bridge Wi-Fi signal is weak or the transmission distance is short?
A4: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.
Q5: Does the bridge support 360-degree signal transmission?
A5:The bridge uses panel antennas, so it does not support 360-degree transmission. It is recommended that when installing, the two Bridges are face to face, which can improve the stability of Wi-fi signal transmission.
Q6: Can't find a Wi-Fi signal?
A6: Since each country supports different Wifi channels, I suggest you log into the WEB UI page to change the region of Wifi signal or use another channel.
Q7: Outdoor wi-fi bridge is not powered
A7: Please connect product's WAN or POE port with adapter's POE port.If connect correctly ,still not power ,please change the adapter and rj45 lan cable to try.
Description：

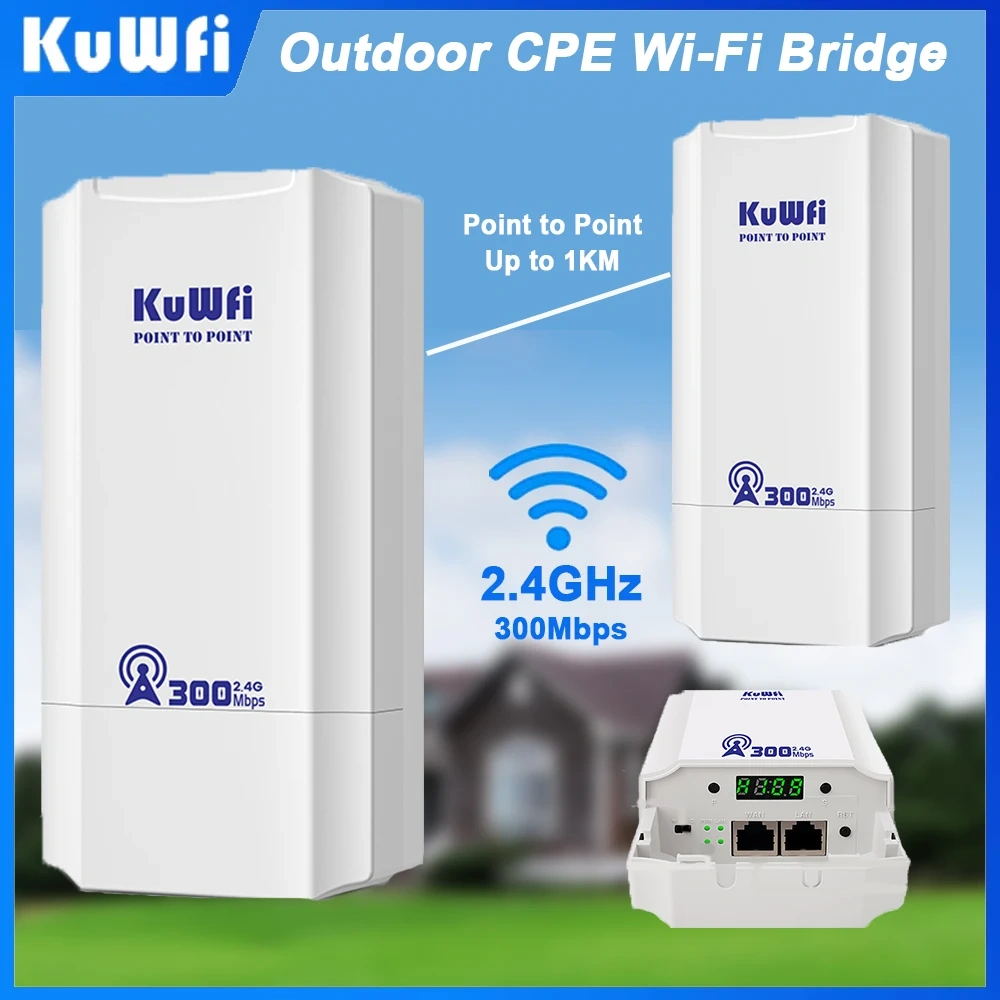

CPE130 is an economic 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection. It comply with IEEE 802.11b/g/n standard, with 8dBi dual polarized high gain antenna, the PTP/PTMP distance Up to 1000 meters.
It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with LED display, easy to setup bridge operation mode, IP address, Channel by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, and simple to view the connection status and signal strength by LED display, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
1.300Mbps 2.4Ghz Outdoor CPE Bridge
The CPE Bridge 2.4GHz Wi-fi network maximum rate of 300Mbps.Two RJ45 100Mbps network ports(WAN/POE and LAN Port).
2.AP Mode and Repeater Mode
The Wi-Fi Bridge supports universal AP mode and Repeater mode, with a wider range of user application scenarios.
3.Built in 8dBi Antenna
Built-in 8dBi Panel antenna, PTP/PTMP connect distance up to 1KM, very suitable for outdoor wi-fi camera monitoring.
4.Support One-click pairing

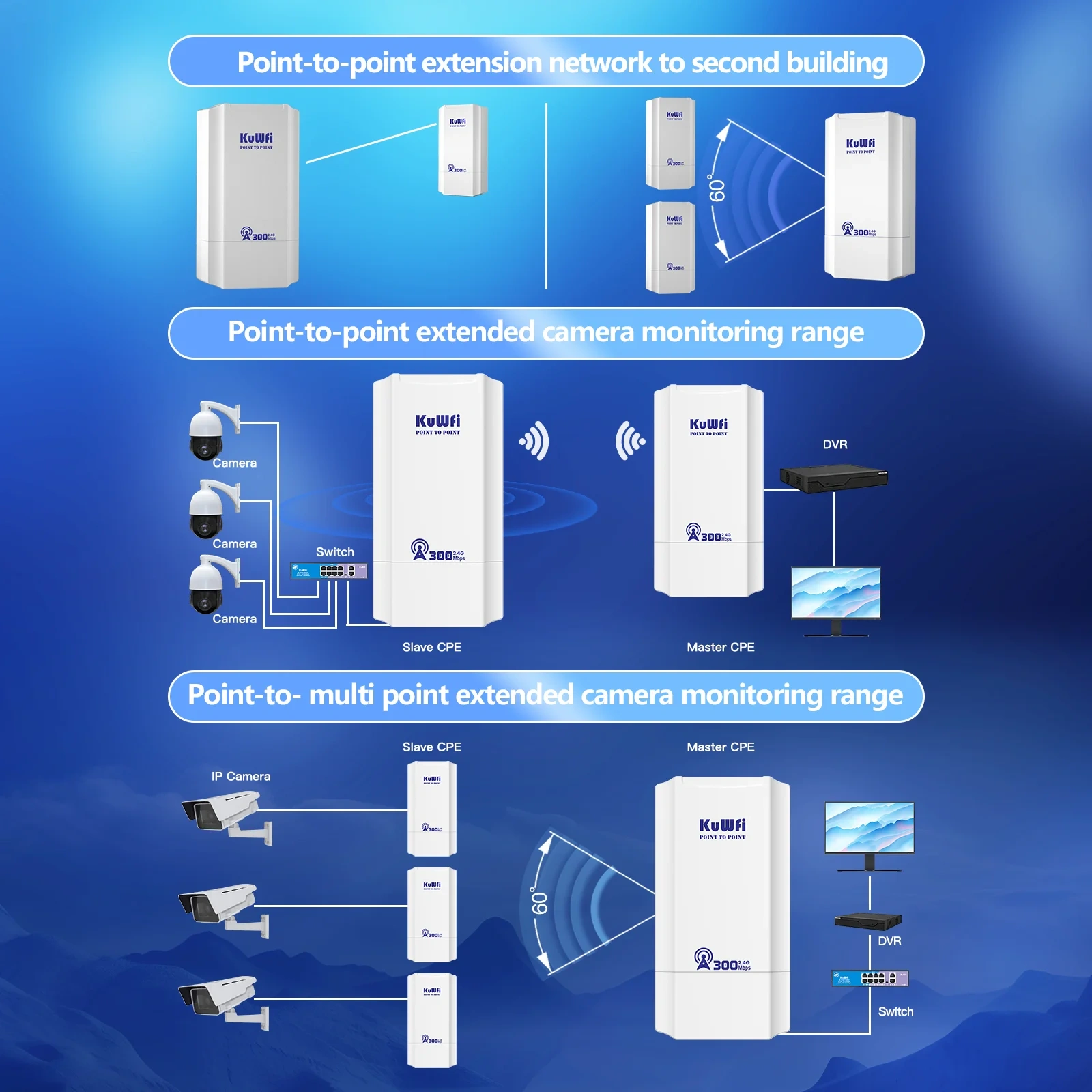

Through the buttons on the bridge, the two Bridges can be pairing with one click, eliminating the tedious pairing process.Realize point-to-point connection.One Master Bridge can be paired with multiple Slave Bridges.
5.Support 24V POE Power Supply
The CPE Bridge supports 24V PoE power supplyhe power supply mode of POE solves the problem that the network bridge can be placed remotely through the network cable.
6.IP65 Outdoor Waterproof & 4KV Lightning Proof
Adopt outdoor ABS plastic shell, simple and elegant.Support professional 4KV lightning protection, IP65 water-proof, dust-proof, suit for multiple harsh environments.
Specification:
Chipset: MT7628DAN
Memory: 64MB RAM
Flash: 8MB
Wireless: 802.11b/g/n, 2.4GHz to 2.484GHz
Data Rate: 300Mbps
WAN/POE Port: 1*10/100Mbps
LAN Port: 1*10/100Mbps
Antenna: 8dBi Panel Antenna,V: 60°,L: 33°
Outdoor Waterproof Level: IP65

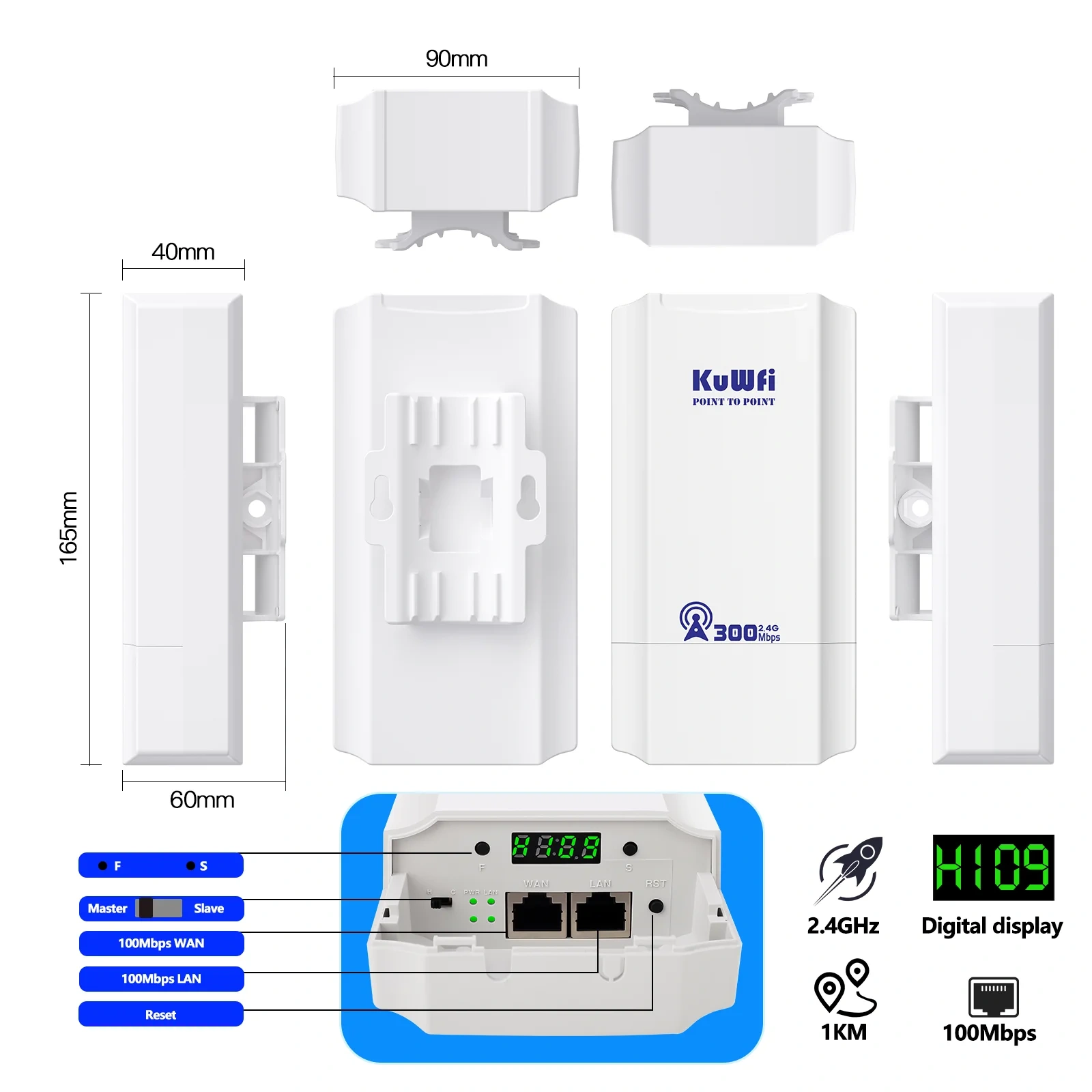

Size: 168mm*88mm*57.6mm
Power: POE 24V/0.5A
Working Temperature: -30°C ~ 55°C
Storage Temperature: -40°C ~ 70°C
Humidity: 5%~95% (typical)
Packing list:

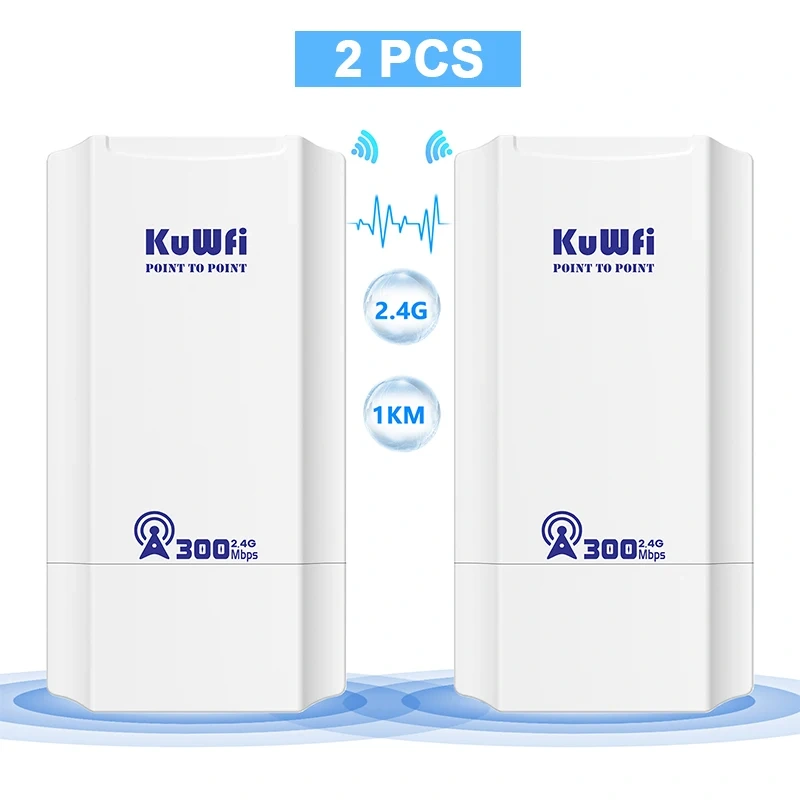

2pcs CPE Bridge
2pcs Ethernet Cable
2pcs POE Power Supply
1pc Quick Start Guide
Applications Case
I was looking for a wireless bridge to bring internet connection to my backhouse about 500 meter from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need.
