Network Frequency Bands
[US Version] Mainly used in United States/Canada/Mexico El Salvador Guatemala Panama Bahamas Dominican Republic Jamaica Argentina Chile Puerto RicoTrinidad and Tobago Colombia Ecuador Peru Honduras |
High Speed Network
Downlink: 150Mbps; Uplink: 50Mbps
It effectively reduces co-channel interference, expands the wireless transmission range, and eliminates dead zones |
Support up to 32 users
|
Product Specifications
|
Work Even in Extreme Weather
|

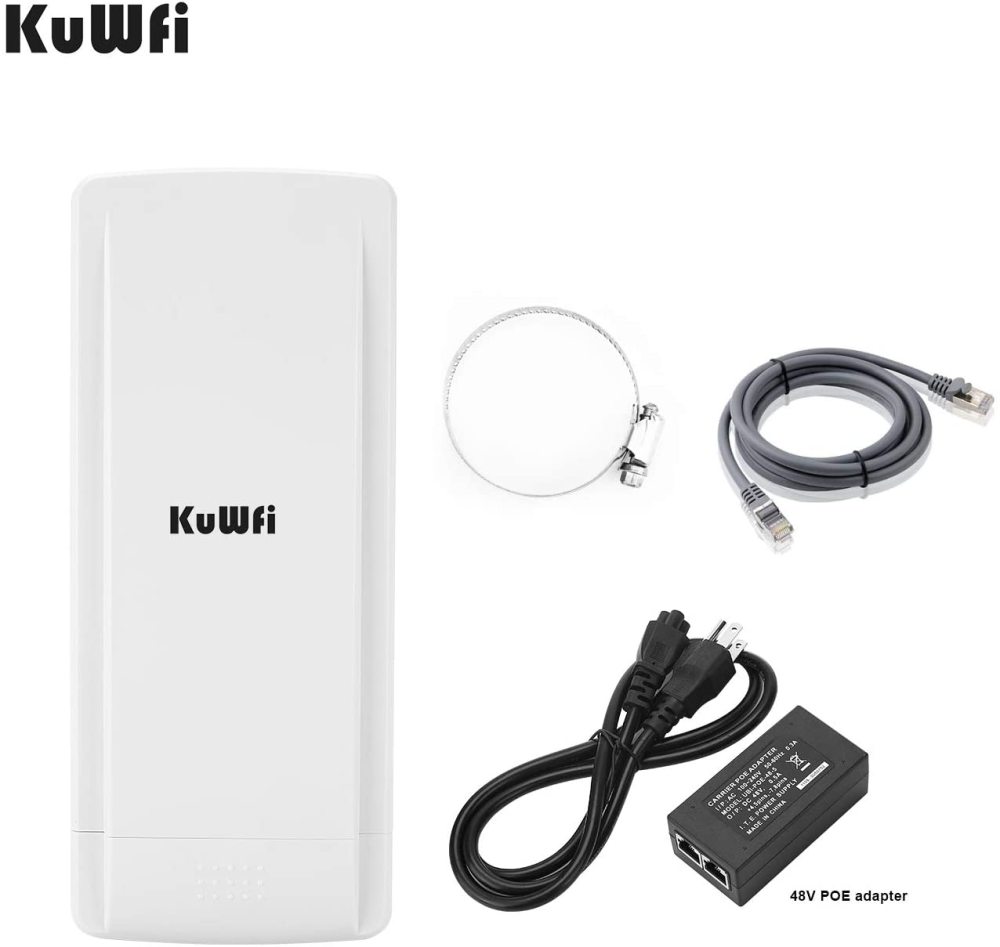

Package Included
|

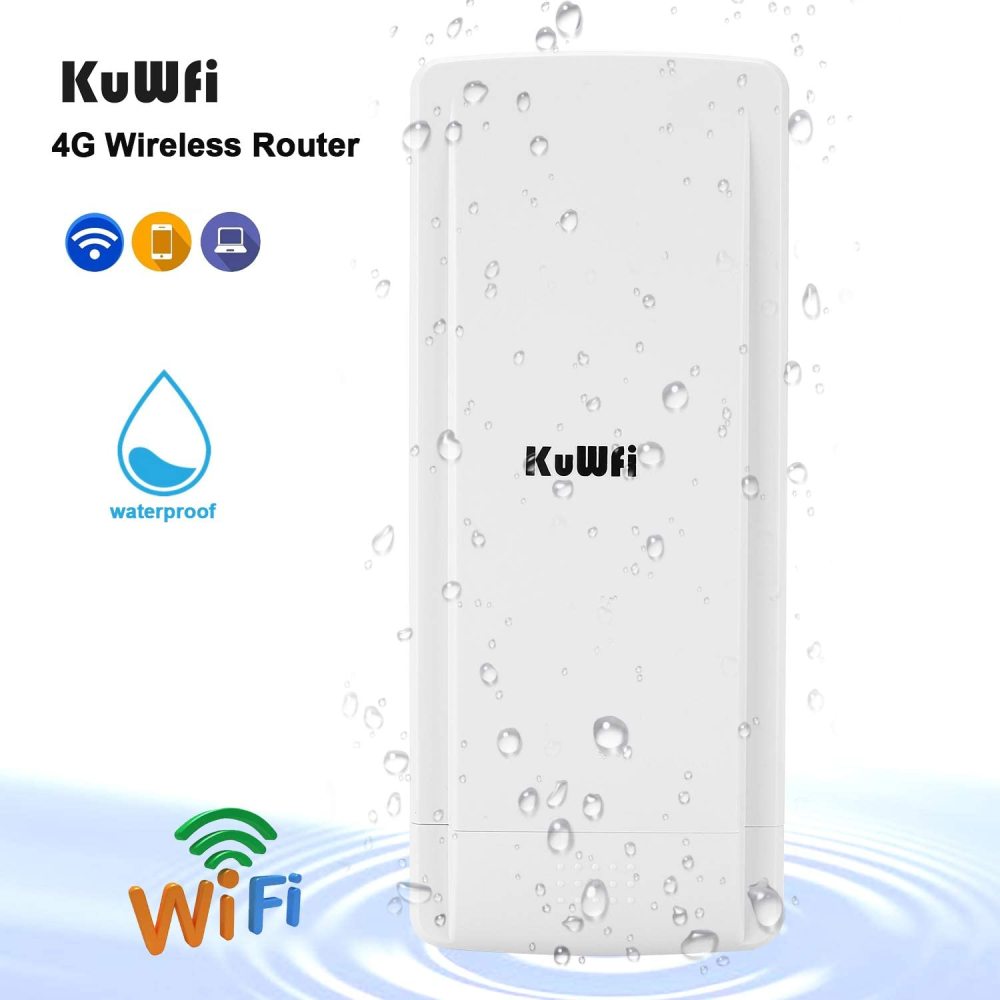

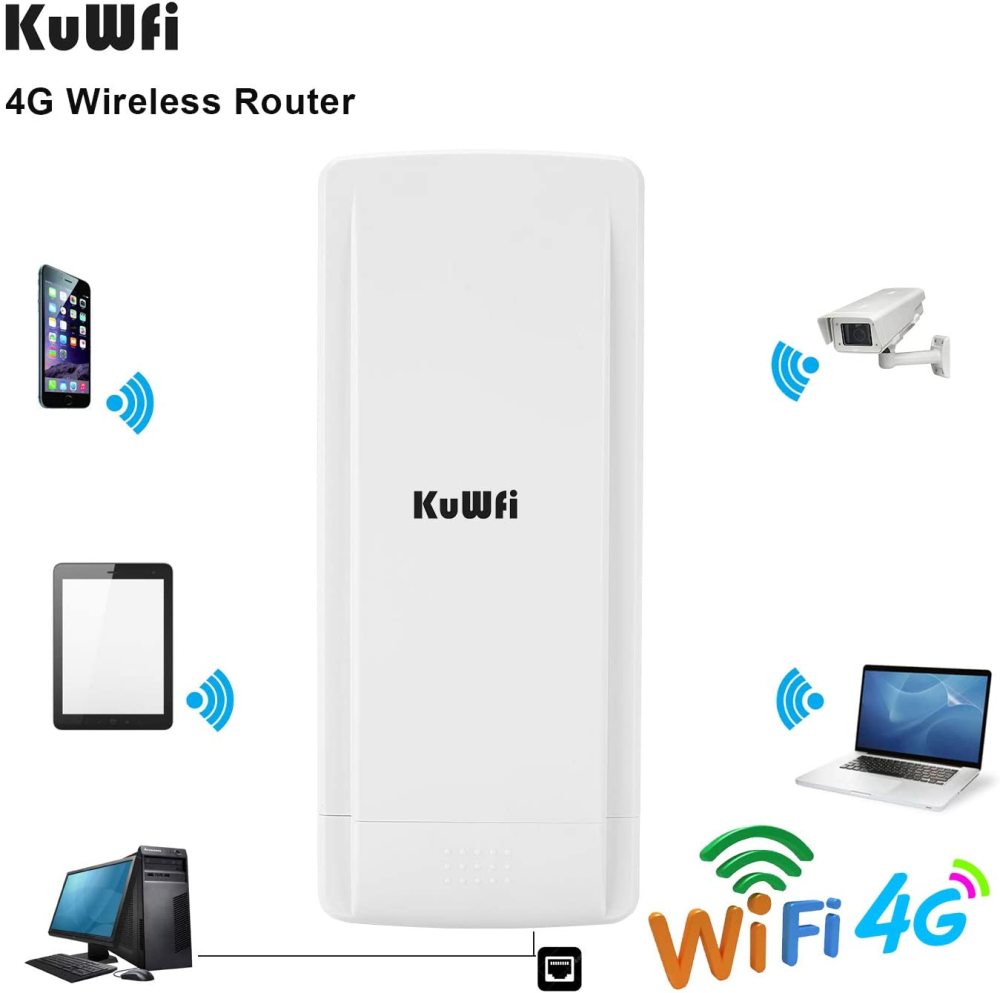

KuWFi XM219-US is a new 4G LTE CPE router with LTE technology. It is mainly aimed at the office/home. It provides high-speed and reliable routing and data transmission capabilities, to meet their different application scenarios. It can be connected to tablets, laptops, mobile phones and different types of WI-FI devices. The coverage of the signal is 300-500M, which mainly depends on the strength of the signal
Firewall
Antenna: build in 3dbi antenna
Power: 48V POE adapter,connect RJ45 port
Reset: Restore the router to its original factory default setting
Dissipation <15W
WiFi:IEEE 802.11b/g/n [2.4~2.4835GHz]
Support IPv4
Support static routing
Please note
if your sim card support the router network band ,also have update APN (APN seting should be from Operator) ,but still not work ,please confirm
1. The sim card is an IoT card .
2. The sim card have limited service ,not work with router or hotspot .
3. APN not correct .
4. Not support roaming service.
5. Some place did not cover the network Frequency band.
Frequency:
FDD-LTE:B2/B4/B5/B12/B17 US verison (Mainly applicable to USA Canada Colombia Mexico El Salvador Guatemala Panama Bahamas Dominican Republic Jamaica Argentina Chile Puerto RicoTrinidad and Tobago Colombia Ecuador Peru Honduras)
Speed(CAT4)
FDD - LTE Downlink:150Mbps, Uplink:50Mbps
Interface type
1x10/100M LAN interface

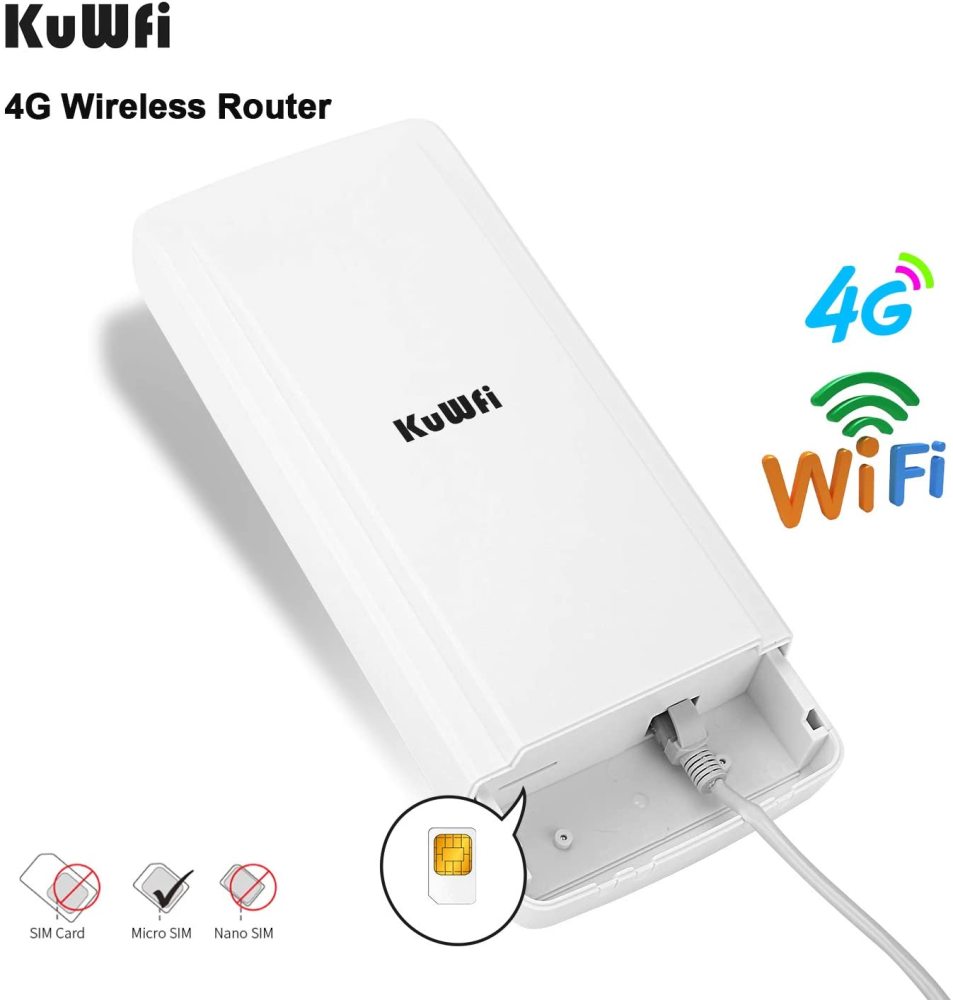

1xSIM Card interface
Temperature: Operating temperature: -40 ~
70℃ Storage temperature: -40 ~ 85℃
Humidity Operating humidity: 5 ~ 95%(Non-condensing)
Waterproof and dustproof level IP65

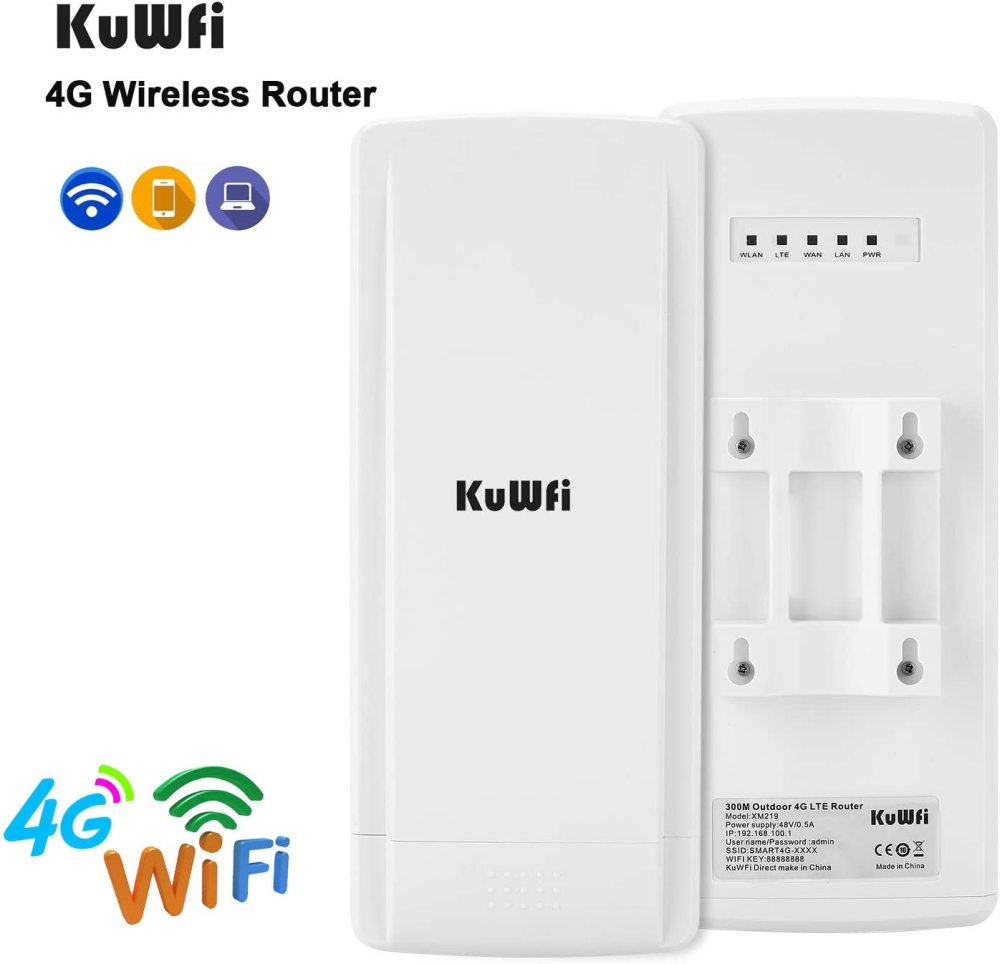

Installation Pole installation, wall installation
Antenna: build in 3dbi antenna
Power: 48V POE adapter,conenct RJ45 port
Reset: Restore the router to its original factory default setting
Size 242x110x75mm
Weight <800g
Power POE 48V
Dissipation <15W
WiFi:IEEE 802.11b/g/n
WiFi:2.4~2.4835GHz
Support IPv4
Support static routing
Firewall
Support firewall function
Support MAC filtering
Support IP filtering
Support URL filtering
Please note
if your sim card support the router network band ,also have update APN (APN seting should be from Operator) ,but still not work ,please confirm
1.the sim card is an IoT card .
2. the sim card have limited service ,not work with router or hotspot .
3.APN not correct .
4.not support roaming service.
5.some place did not cover the network Frequency band.
