KuWFi Outdoor Router 4G LTE SIM Card Waterproof WiFi Router Support Port Mapping DMZ Setting Work with 48V POE Switch POE Camera

Brand Name: KuWFi
Origin: CN(Origin)
With Modem Function: No
Type: wireless
Certification: NONE
WAN Ports: 1 x10/100Mbps
Number of USB Interfaces: 1 x USB
Wi-Fi Supported Frequency: 2.4G
5G Wi-Fi Transmission Rate: None
Package: Yes
Supports :4G
Price:
USD
$36.90
$69.00
  • model:
    Version 1
    Version 2
    Version 3
Quantity:
-
+
(1500 available)
Please select the information you wantX
  • Description
  • Reviews

Frequency Band:

Please you confirm whether your SIM card frequency band is compatible with it before buying a router. Unlocked mean work with any sim card but the sim card network Frequency band should be support the router network band

Version-1
4G LTE FDD:B1/B3(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Working in most of Asia

Version-2
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Working in most of in EU,Asia,Africa

Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
EVDO BC0
Working in all of EU ,Asia ,Africa,Oceania

【What KuWFi CPF905-CF5 is】

It is a outdoor 4G LTE CPE router designed for WIFI users to get access to internet via UMTS/HSPA/LTE. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project(it can convert 4G to WiFi hotspot)use for indoor or outdoor without broadband place, let you enjoy smooth internet while working from home/working online /telecommuting. can be connected to 10 devices at the same time

【 Main feature Performance 】

KuWFi CPF905-CF5 LTE CAT4 up to 150Mbps IP65 Waterproof and the wireless transmission speed rate is 300mbps. Come with 48V POE adapter PowerSupply work with IP camera and POE switch . including 1* WAN/LAN port and one sim card slot,Ethernet mode :dynamic/PPPOE/LAN. It is suitable for installation in home/office/factory/warehouse/garden/ parking lot . Dual high gained external antenna two is 4G antenna and two is WiFi antenna (support remove and change other antenna)

【HOW To Use 】

Please insert SIM card then power on the router, Even if your SIM card is compatible with the product, it is not necessarily plug and play, you may need to disable the PIN code of the SIM card and modify the APN .Enter the router IP address: 192.168.199.1 and Click Network—APN—Enable. Modify APN. You can find the APN of the SIM card from the carrier's official website or mobile phone. Make sure the SIM card is activate, Not support roaming service and Virtual SIM Card and IoT SIM Card

【Update function】

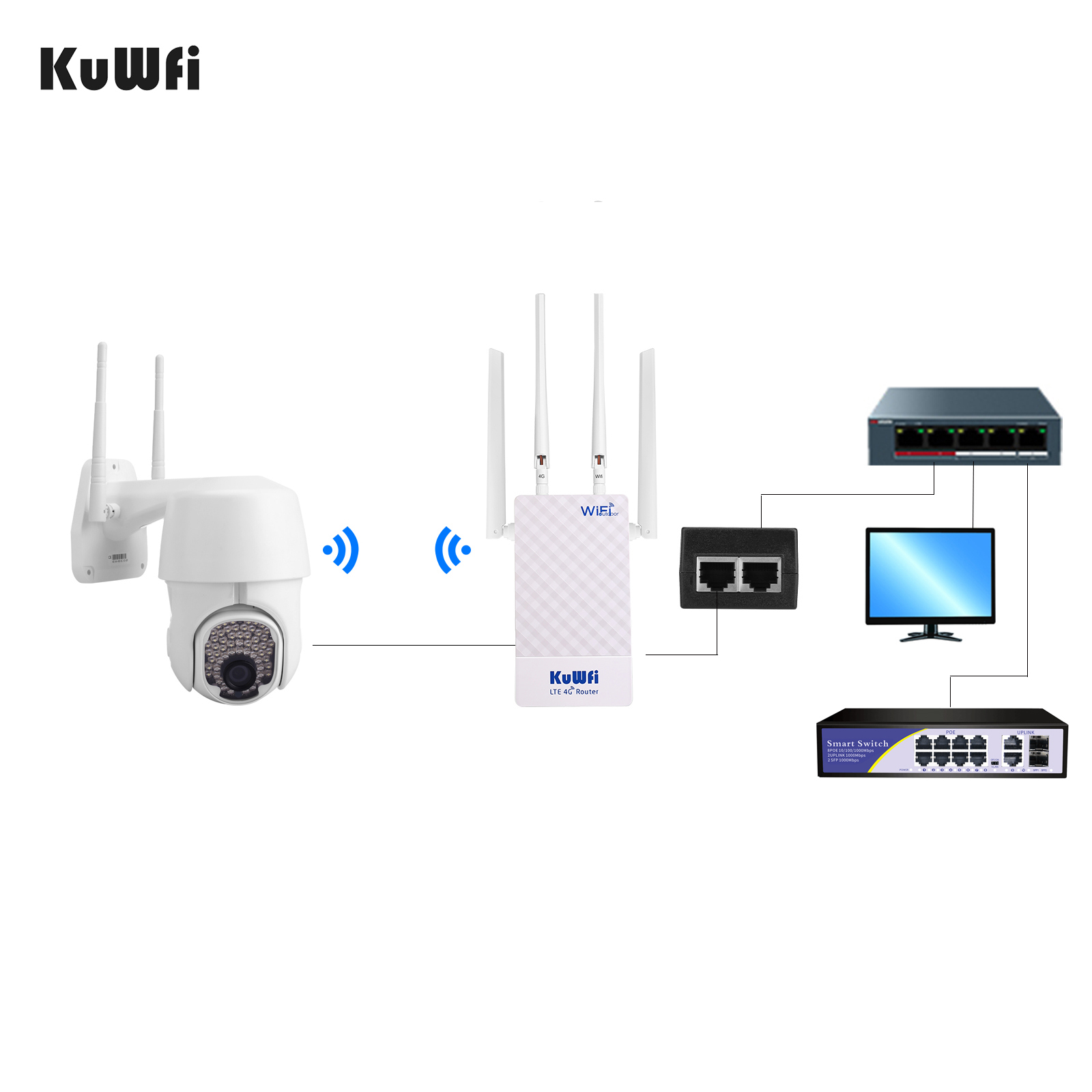

Support Port Filtering MAC/IP/Port Filtering Settings Port Mapping DMZ Settings,,work with 48V POE switch and POE Camera



Features:

- HW_VER:CPF905-CF5 POE version
- MTK Chipset:MT6735WM
- Wi-Fi Chipset:MT6625L
- RAM/ROM:4GByte EMMC+512MByte DDR2
- Wi-Fi:IEEE 802.11b/g/n
- Wi-Fi Transfer rate:UP to 150Mbps
- Encryption:Wi-Fi Protected Access (WPA/WPA2)2
- Soft SIM:esim or softsim
- Customization:Smart system,high-level;Customization possibility
- LED:LED indicator

4G LTE Category Up to 150 Mbps Download / 50 Mbps Upload
2.4GHz WiFi Speed Up to 300 Mbps on 2.4GHz
Antennas 4 x 5 dBi Fixed Antennas
SIM Slot Micro SIM (also include with a SIM adapter which could turn Nano SIM to a Micro SIM)
Cellular Frequency Band 4G-LTE-
VPN Clients OpenVPN、WireGuard、PPTP、L2TP
DNS Configure CloudFlare 、NextDNS、Google...

Port
- SIM:2FF SIM(SIM card is NOT including)
- USB:USB TYPE A (5V 1A IN)
- DC:12V 1A IN/48V POE Adapter
- RJ45:1* WAN/LAN
Internet
- Wi-Fi:Wi-Fi AP Max 10 users
- SSID:4G-CPE-XXXX(last 4 digits of IMEI)
- WiFi password by default:1234567890
Operating Environment
- Working temperature: -20° to 75°C
- Working height:Current tested max height 3000m (10,000 inches)
Operation system
- PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8
- MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later
- IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later

- Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later
If your indoor signal is strong enough, you can put the 4g router indoors. After inserting the sim card, the router can directly provide wifi for computers and mobile phones.

If you have no signal indoors, you can install the router outdoors one and then install a wifi amplifier indoors. The wifi amplifier can enhance the wifi signal; even if you put the 4g router outdoors, you can also use the wifi indoors through the wifi amplifier.

Please notice:

It is compatible with the frequency bands of SIM cards in most European countries. But you need confirm whether your SIM card frequency band is compatible with it before buying a router.

If the frequency band of your SIM card is compatible with CPF905-CF5, but your device cannot connect to the Internet normally, you need to disable the PIN code and modify the APN. (the info can consult operator)

If signal is unstable, you can also manage the settings page, lock 4G or 3G network, can effectively improve the stability of the network.

If your settings are correct and the device still cannot connect to the network, please consider whether it is caused by the following problems:

1.Account got suspended for too much data usage.

2.Is the SIM card an IoT card?

3.the sim card have limited service ,not work with router or hotspot .

4.not support roaming service.

5.some place did not cover the network Frequency band.
