Product Description
Please noted:it do not support wifi coverage
1.High speed ,up to 300mbps data rate power and 500-1000m long-range coverage
2.KuWFi outdoor AP single-frequency outdoor CPE works in the 2.4GHz frequency band, supports 300Mbps AP, reepater functions, can access more wireless clients.

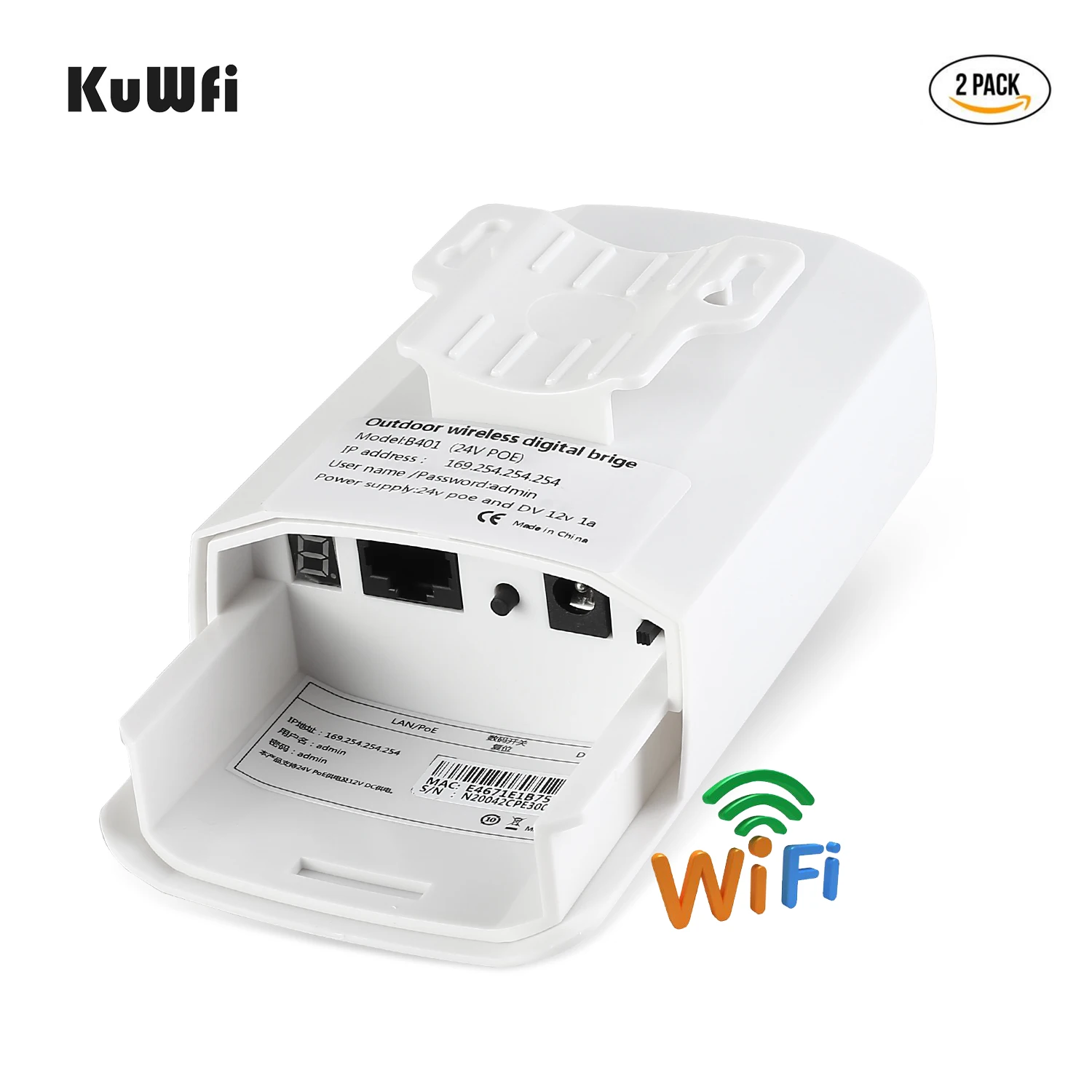

3.KuWFi outdoor AP uses dustproof and waterproof shell, all-weather sunscreen, waterproof, dustproof seal design can be used in various outdoor Working in the environment.
4.KuWFi outdoor AP also supports PoE remote 100M network cable power supply and DC power supply mode, convenient management, --

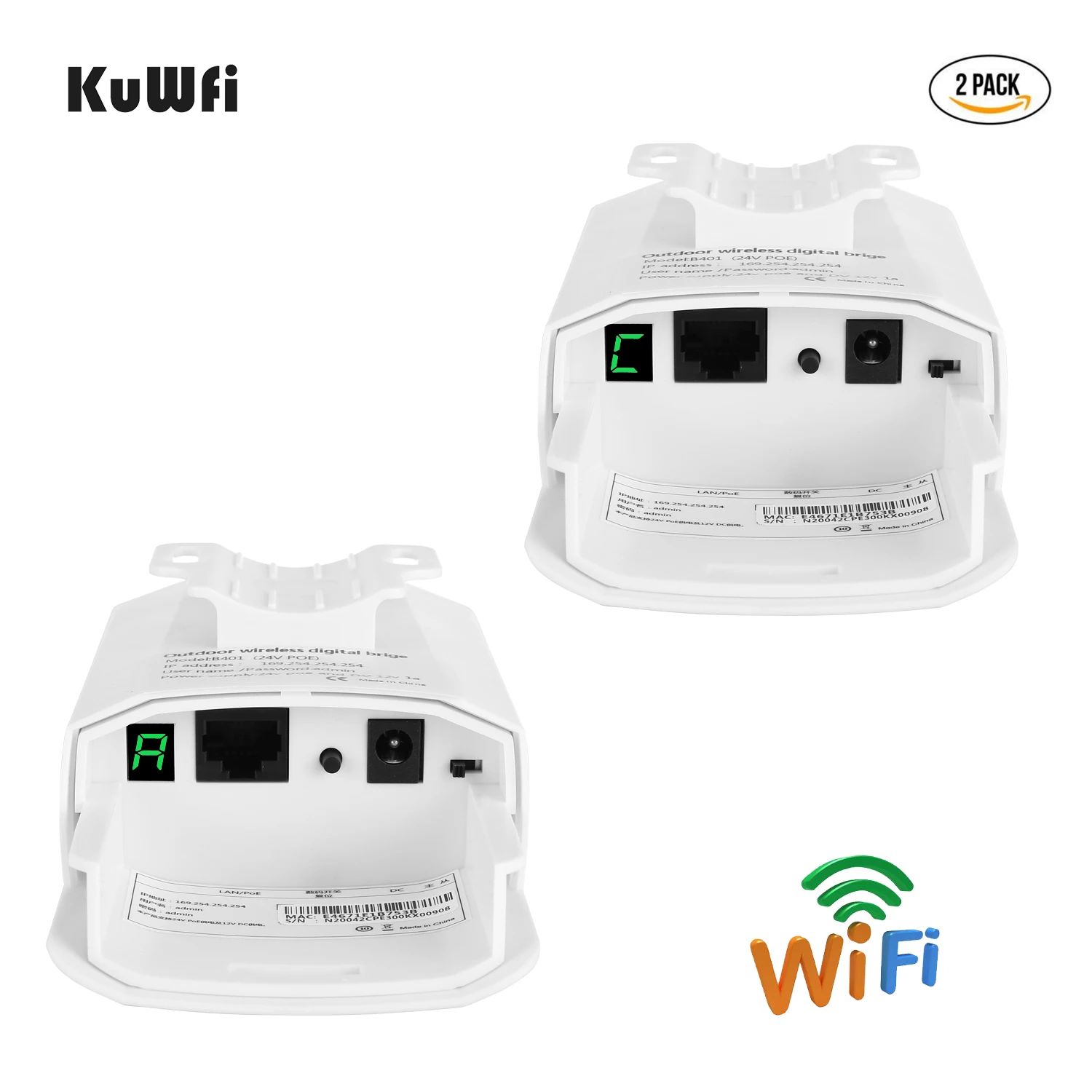

5.support digital display pairing information for remote pairing
KuWFi outdoor AP two unit work at the same time and LED show same digital NO ,mean have paird.
Product Detail
Chipset MTK 7628KN 300Mbps
Flash 1MB
RAM 8MB
Transmission Rate 2.4GHz :300 Mbps
Modulation mode OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output Power
802.11n: @MCS7:12±2DB, @MCS0:14±2DB
802.11g: @54M:13±2DB, @6M:15±2DB
802.11b: @11M:15±2DB, @1M:17±2DB
Receiving sensitivity
802.11n: -70dbm@MCS7, [email protected]: -72dbm@54Mbps, -88dbm@6Mbps
802.11b: -85dbm@11Mbps, -94dbm@1Mbps
EVM 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB
Frequency offset ±20ppm
Interface 1 10/100M adaptive WAN port (POE 24V 0.5A)
Power supply POE 24V 0.5A DC12V-24V/1A
DIP switch Define product AP mode and reepater mode
Reset button Reset button (long press to reset, short press to debug digital display plus or minus)

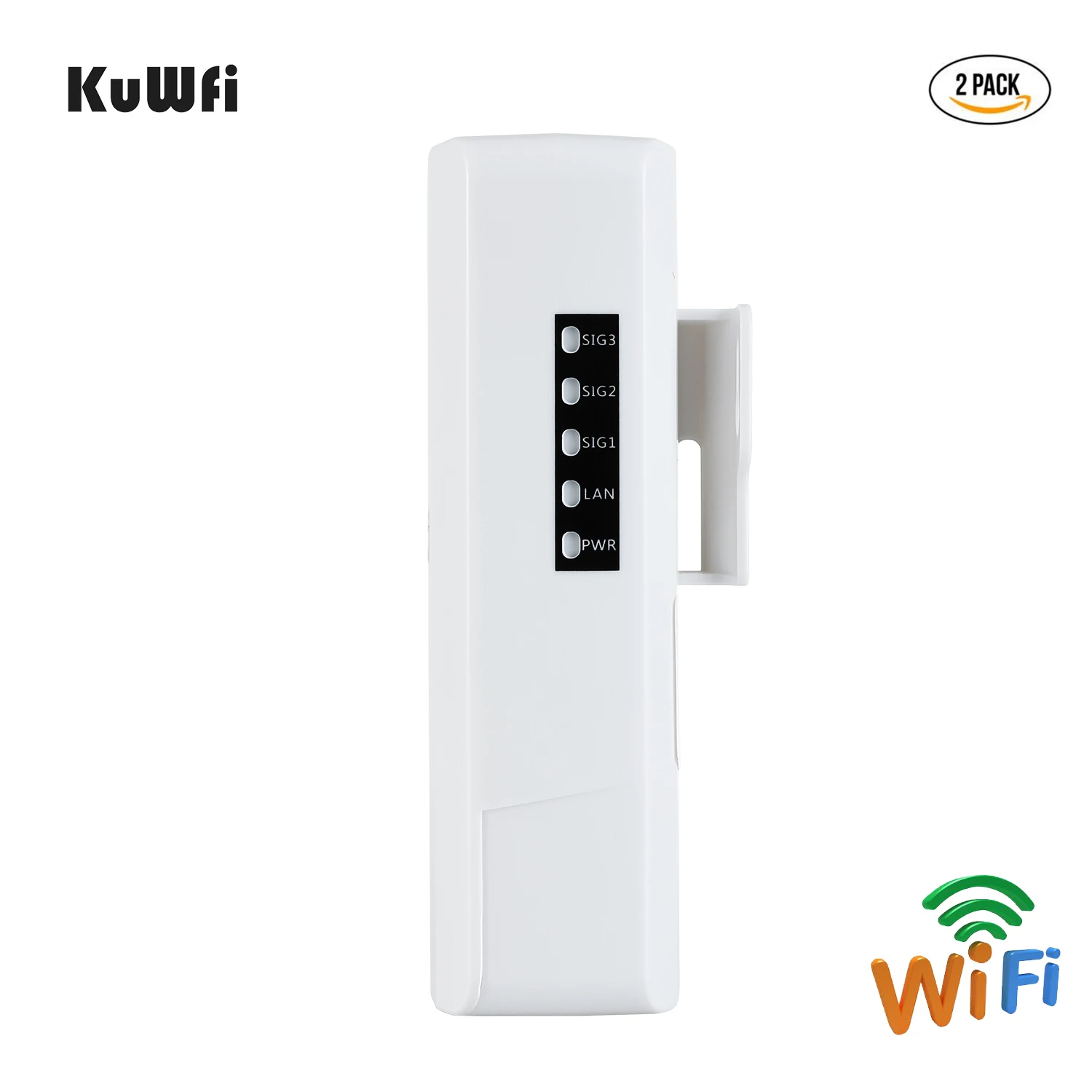

Status Indicator POWER LED,WAN LED,LAN LED,LINK LED
Applications Case

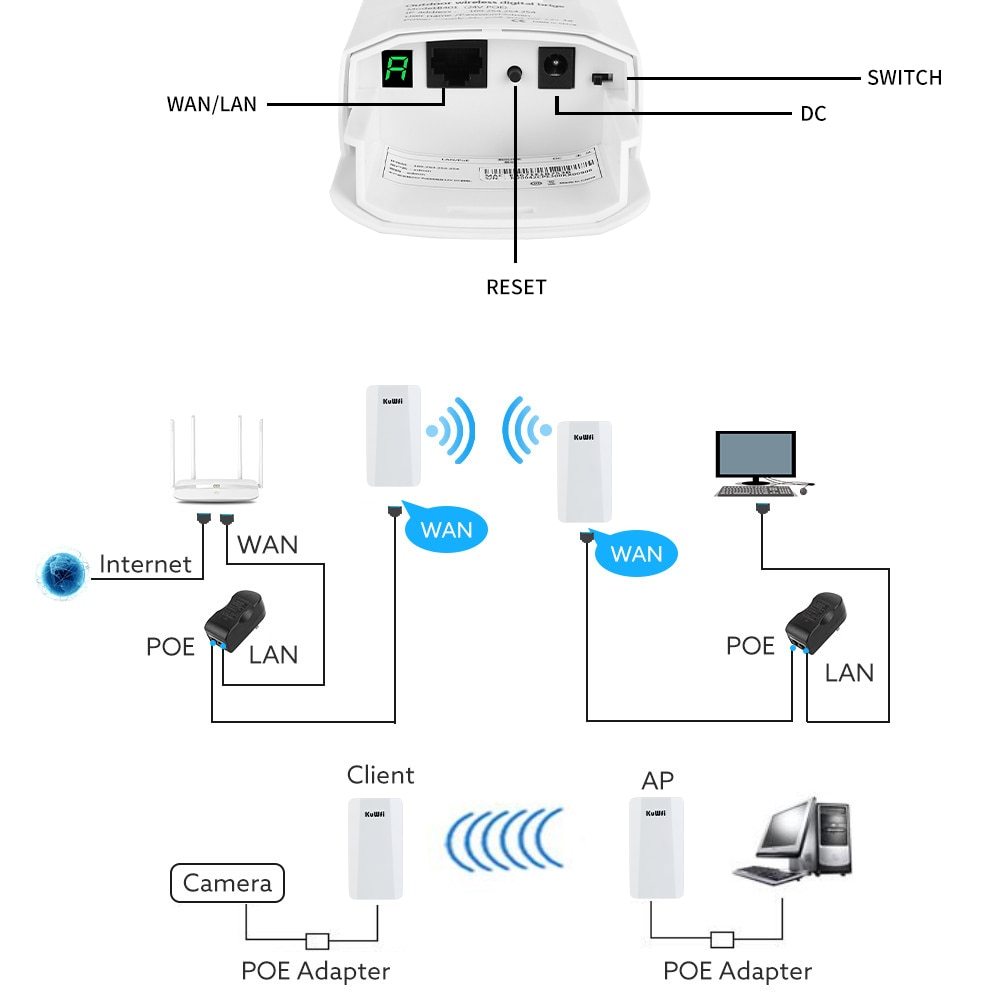

I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
