Tips:
(1)The default is send the EU plug
(2)If you need to replace other types of plugs, please fill in the order item remark at the time of purchase. Or contact the store's customer service before making a purchase.

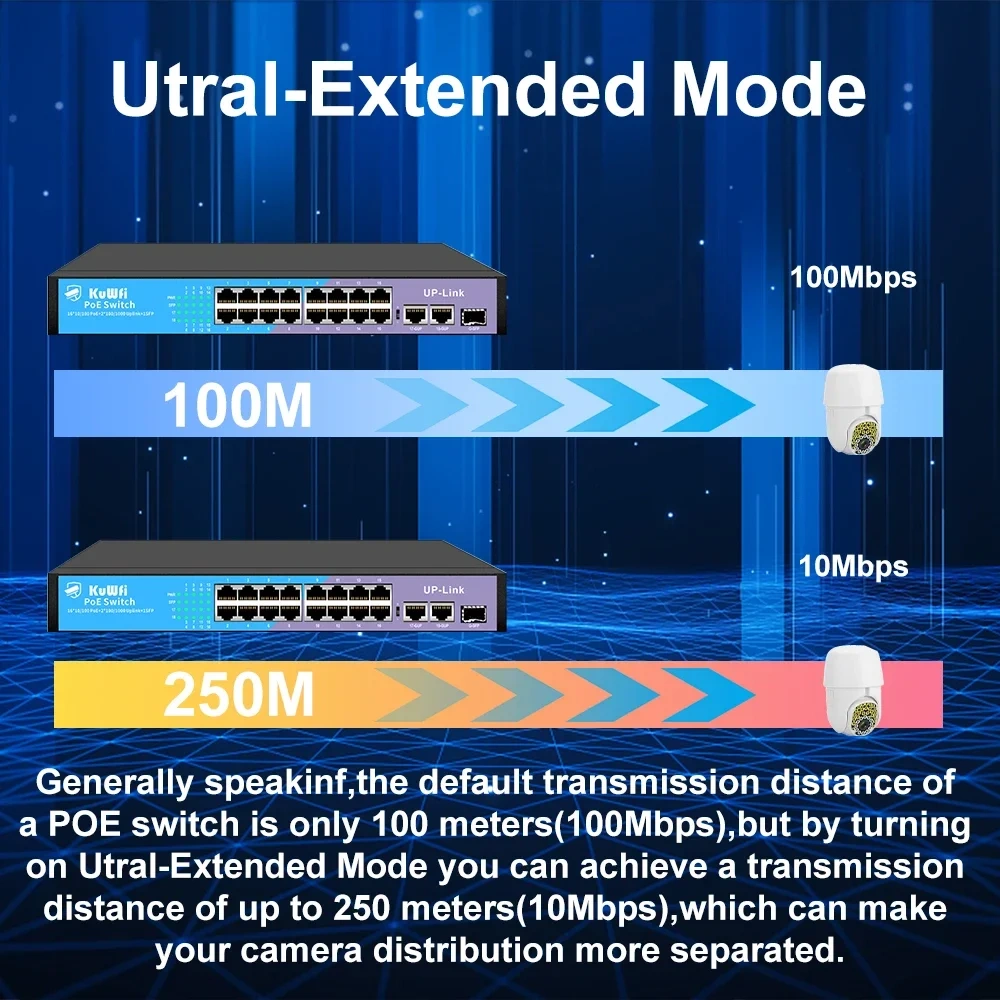

Utral-Extend Mode:
The default transmission distance of a poe switch is only 100 meters(100mbps),buy by turning on Utral-Extend Mode you can achiece a transmission distance of up to 250 meters(10Mbps),which can make your camera distribution more separated.
Plug & Play
It can supply power for wireless AP, network camera, and other POE terminal equipment through the network cable, supply the network, simple installation, plug and play

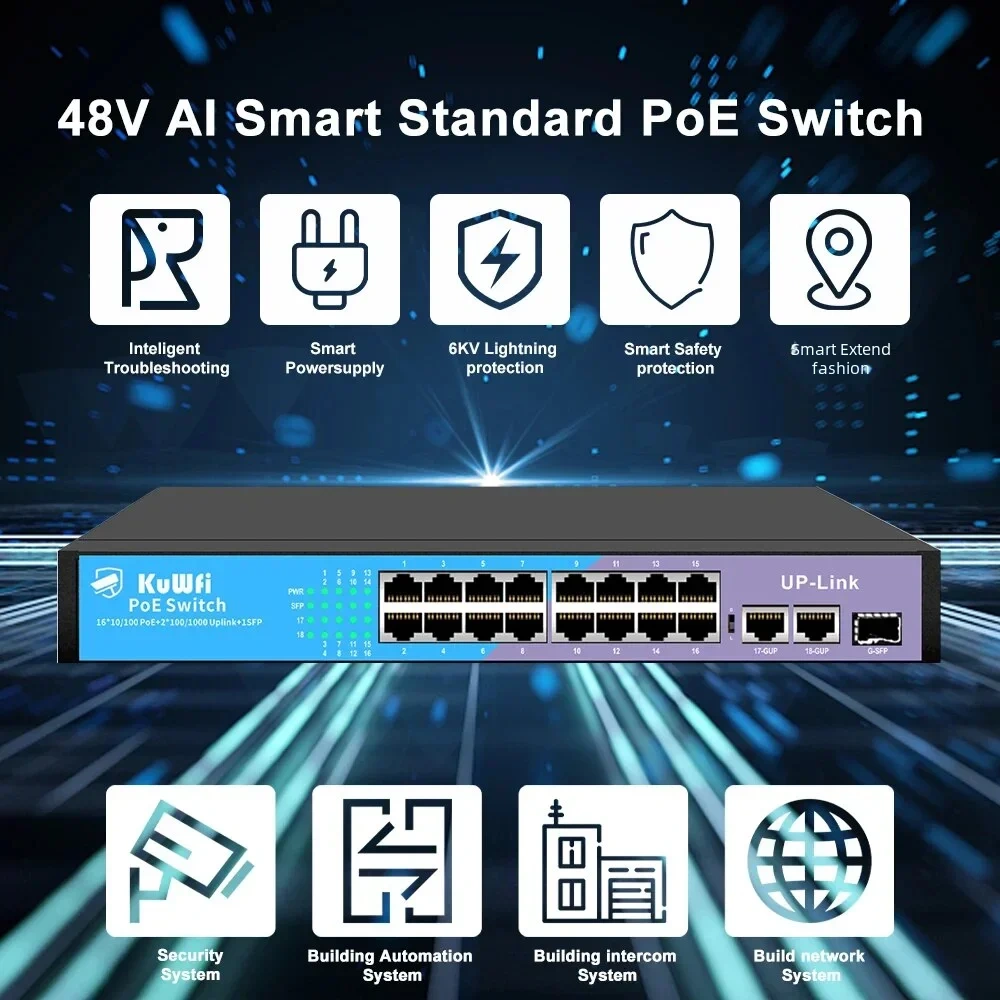

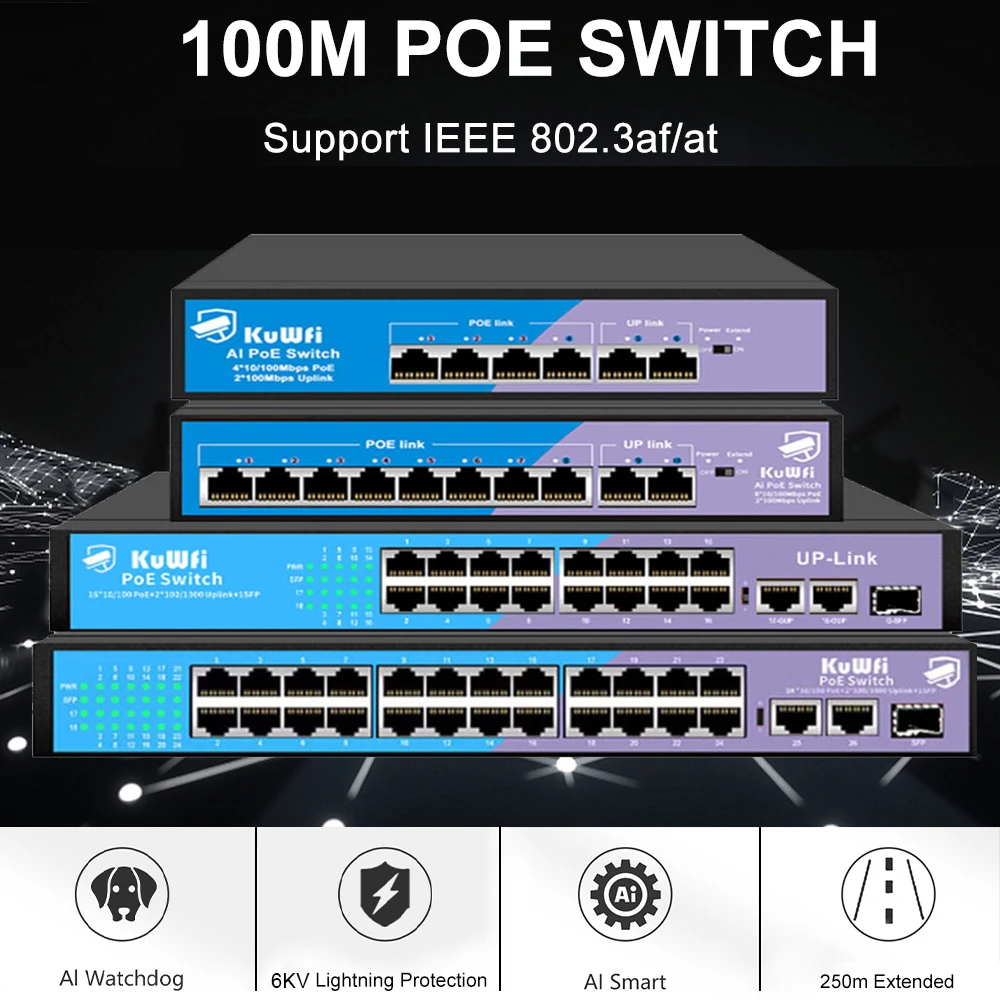

Description
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes
● Default/Extend mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex flow control
● Supports storage and forward for Data exchange
●6KV lightning protection,Keep equipment safe from hazards

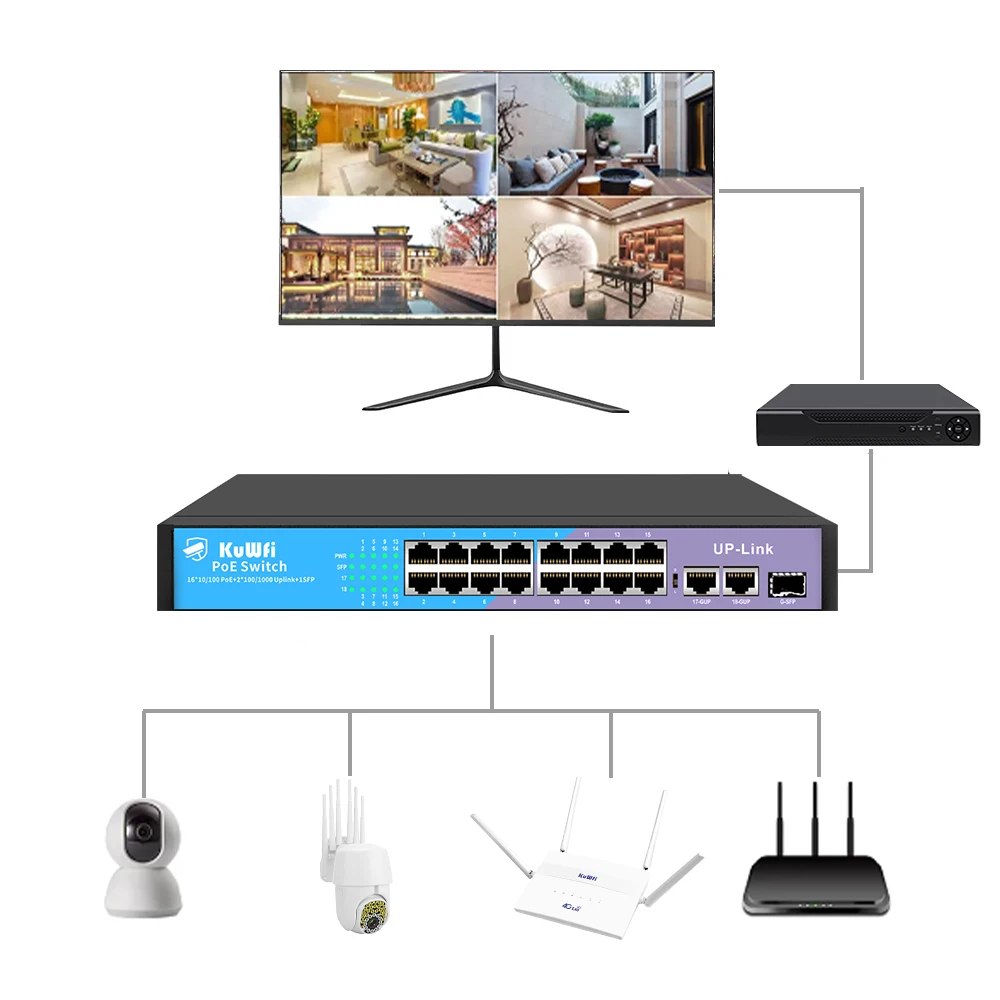

1.PoE ports for Security IP Camera Connection and fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
3.The Poe Switcher can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power.
4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products

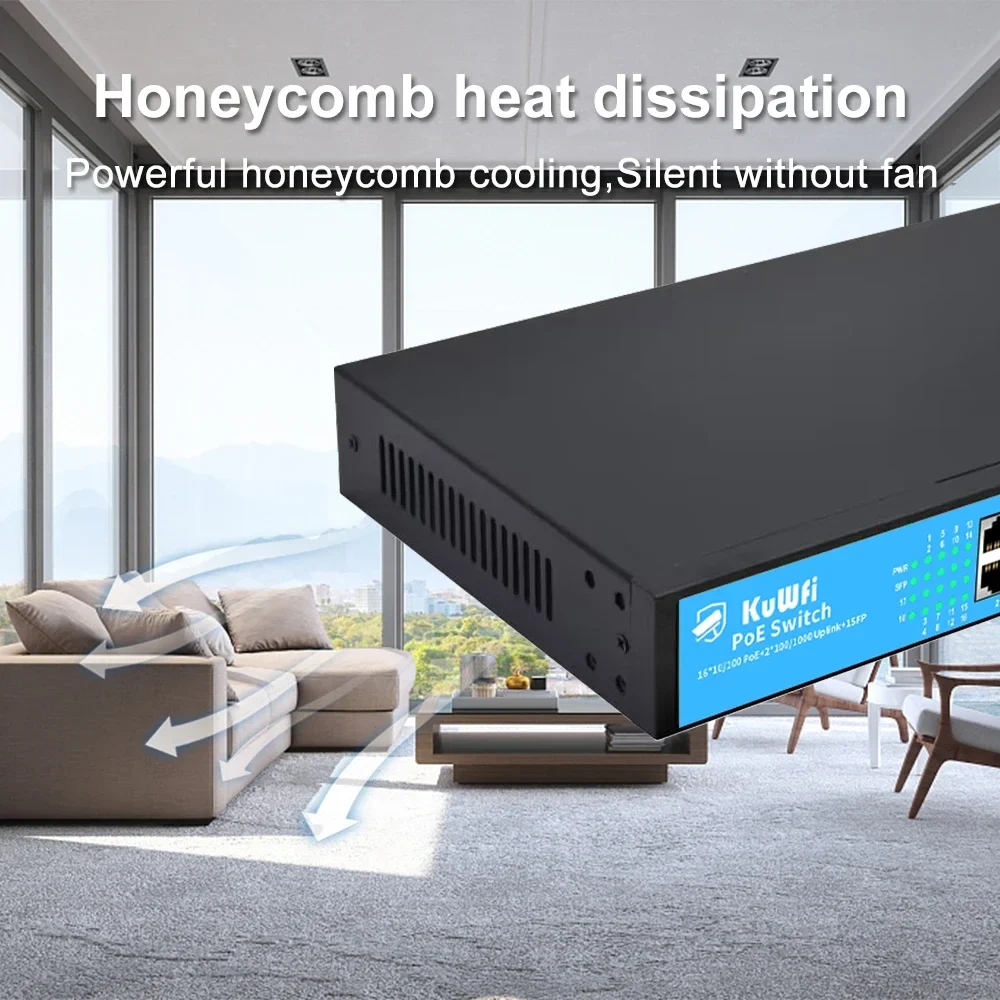

6.PoE switch adopts a heat-dissipation design shell, so that the device can maintain a stable network under continuous work.

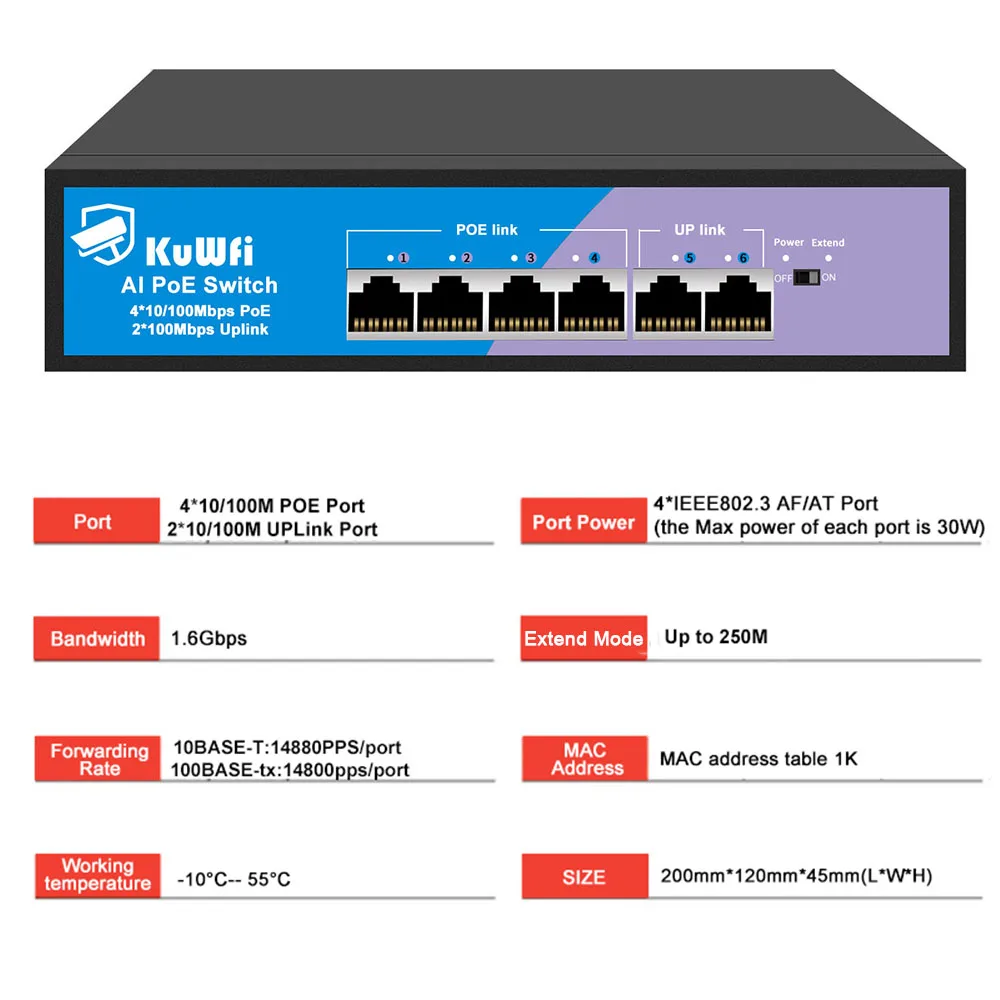

4 Port POE Switch
● Port: 4*10/100Mbps PoE + 2*10/100Mbps Uplink

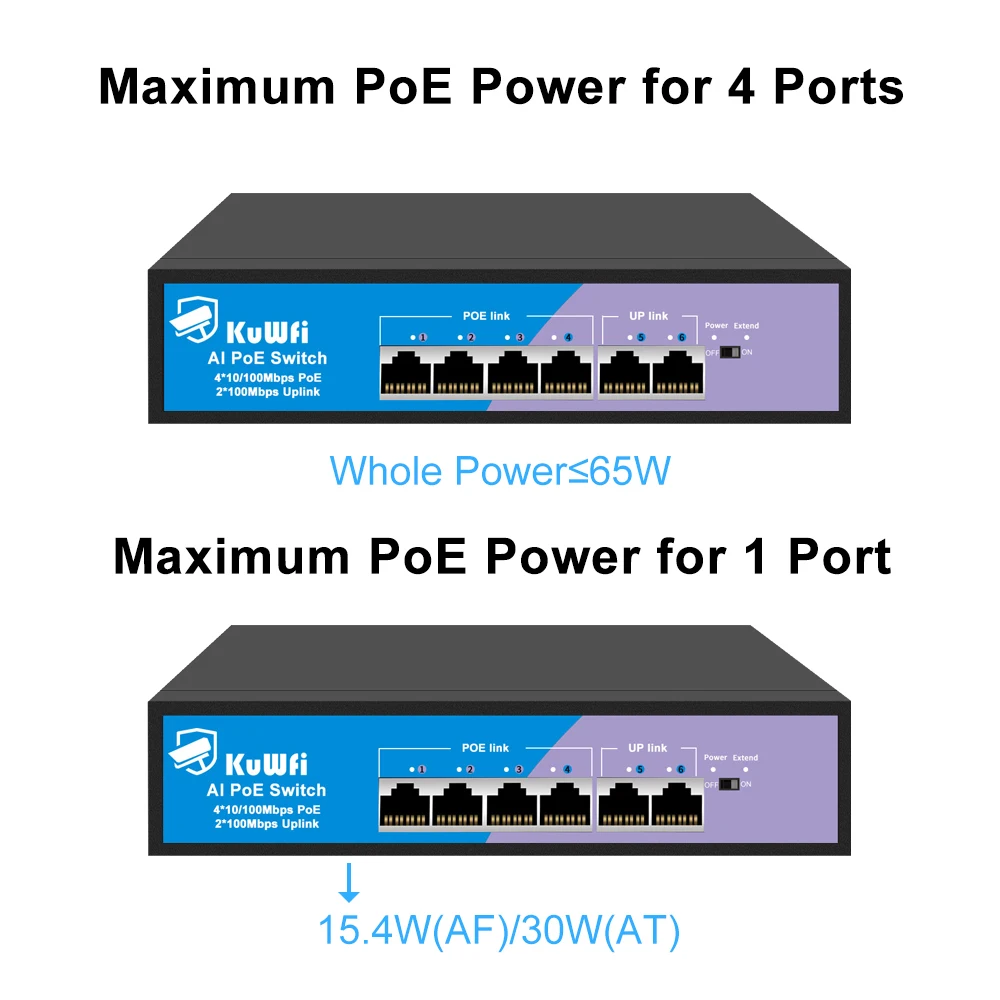

● Supports PoE power up to 30W for each PoE port
● Output Power: 15.4W/30W IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-
● Whole Power: ≤65W (52V 1.25A)
● POE Protocol: IEEE 802.3af/IEEE 802.3at
● Extend Distance: ≤250m
● Network Standard: UEEE 802.3 IEEE802.3u、802.3x、802.3af/at
● Switch Capability: 1.6Gbps
● MAC Address: 1K
● Working temperature：-10°-- 55°C

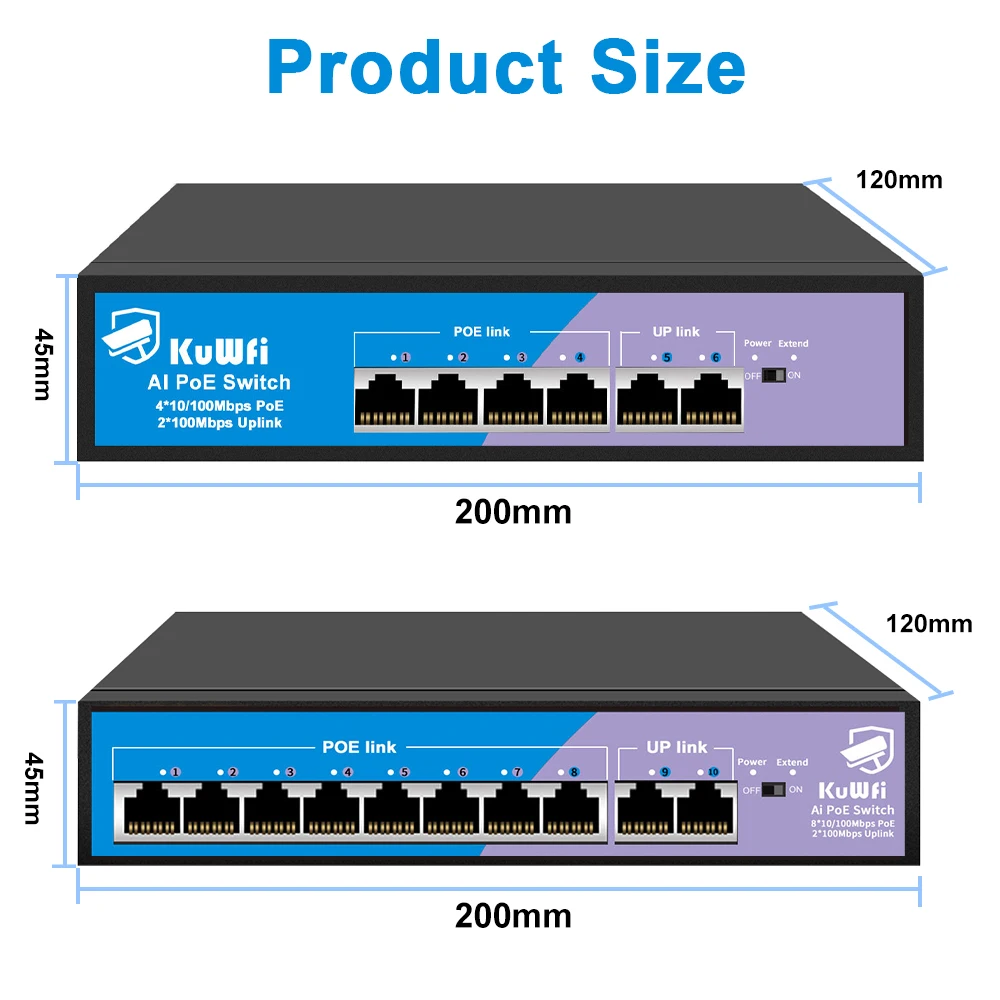

● Size: 200mm*120mm*45mm(L*W*H)

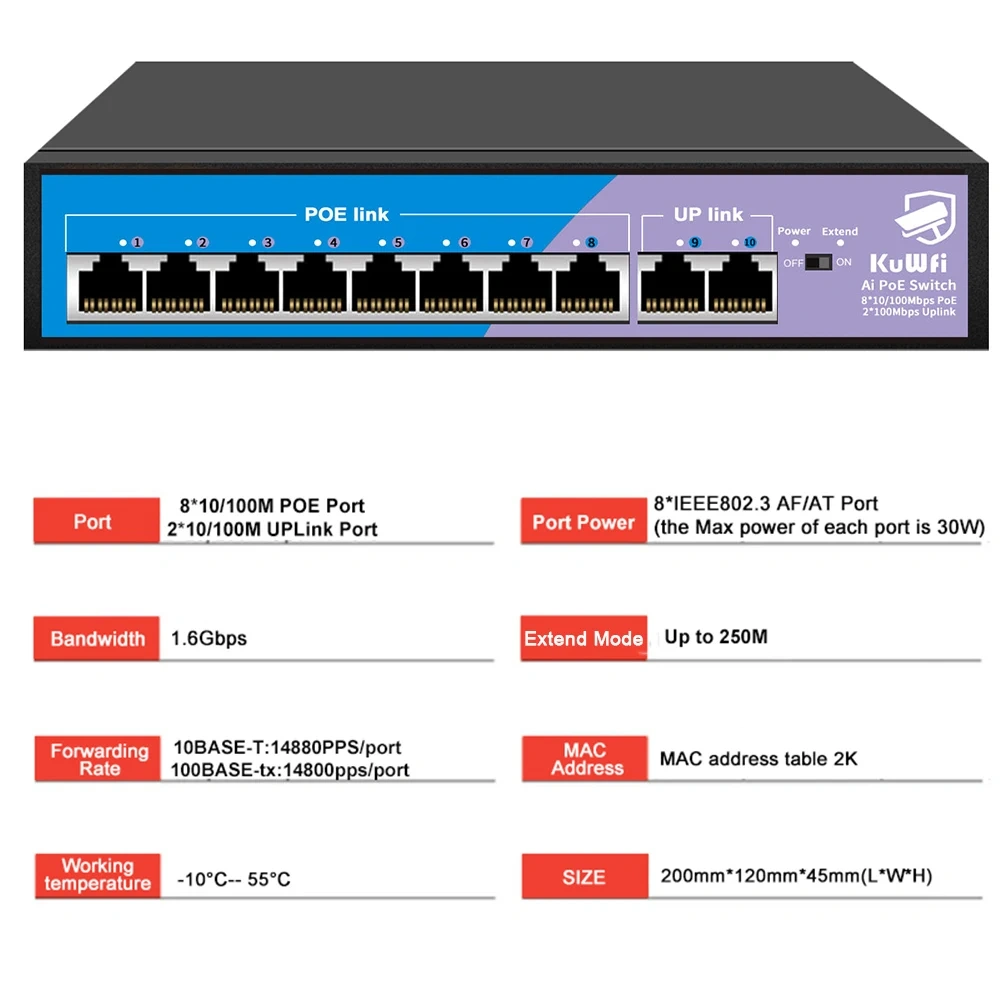

8 Port POE Switch
● Port: 8*10/100Mbps PoE + 2*10/100Mbps Uplink
● Supports PoE power up to 30W for each PoE port
● Output Power: 15.4W/30W IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-

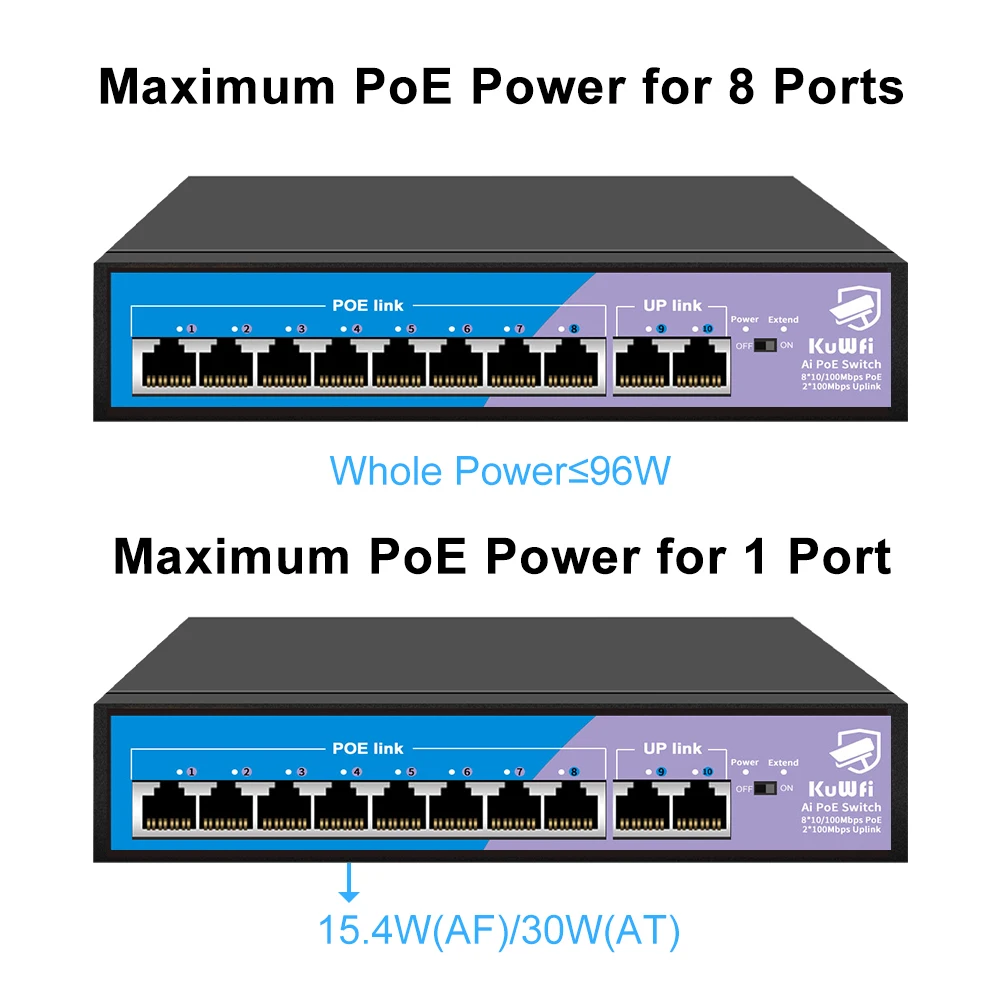

● Whole Power: ≤96W (52V 1.8A)
● POE Protocol: IEEE 802.3af/IEEE 802.3at
● Extend Distance: ≤250m
● Network Standard: UEEE 802.3 IEEE802.3u、802.3x、802.3af/at
● Switch Capability: 1.6Gbps
● MAC Address: 2K
● Working temperature：-10°-- 55°C
● Size: 200mm*120mm*45mm(L*W*H)

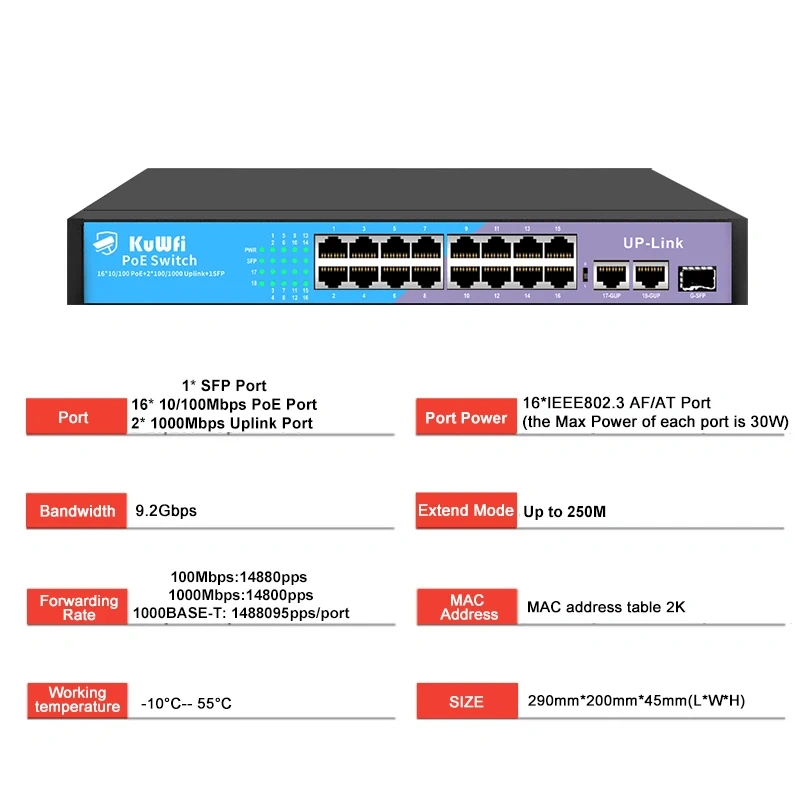

16 Port POE Switch
● Port: 16*10/100Mbps PoE + 2*10/100/1000Mbps Uplink + 1*SFP
● Supports PoE power up to 30W for each PoE port
● Output Power: 15.4W/30W IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-

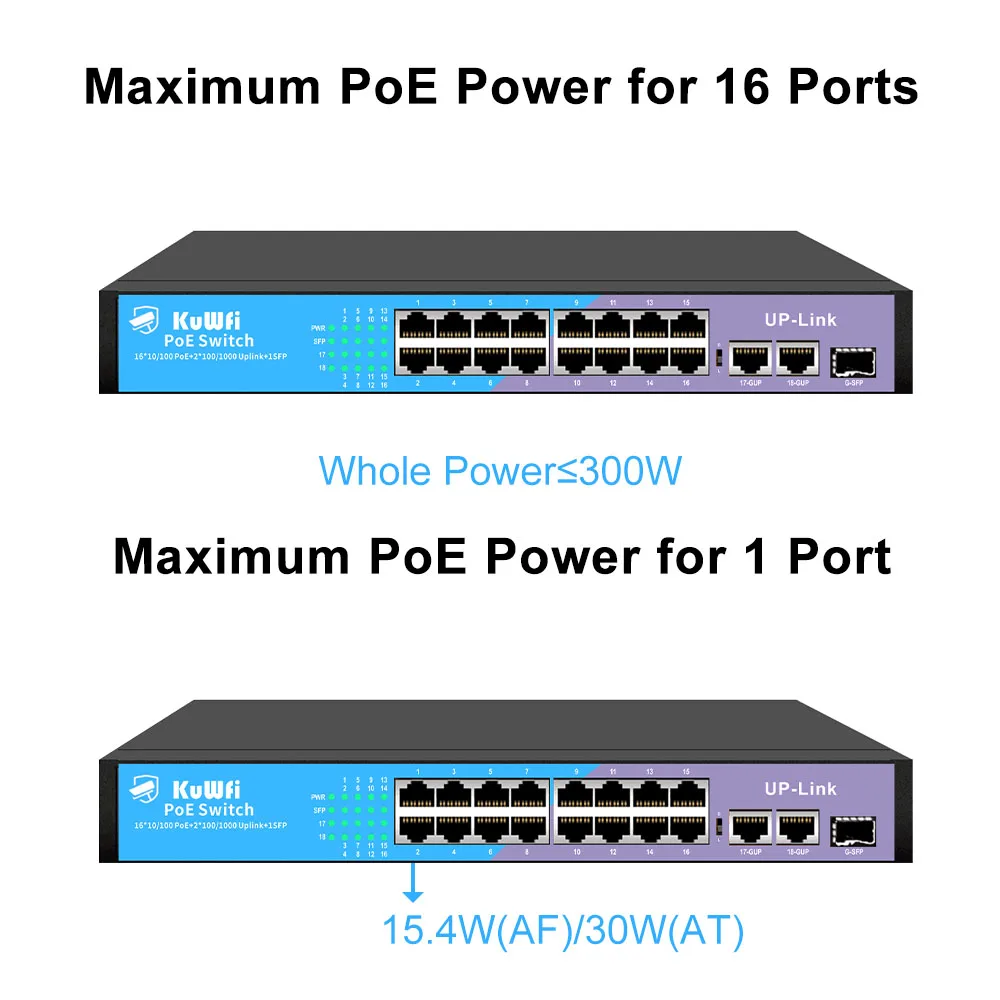

● Whole Power: ≤300W (52V 5.8A)
● POE Protocol: IEEE 802.3af/IEEE 802.3at
● Extend Distance: ≤250m
● Network Standard: UEEE 802.3 IEEE802.3u、802.3x、802.3af/at
● Switch Capability: 9.2Gbps
● MAC Address: 2K
● Working temperature：-10°-- 55°C

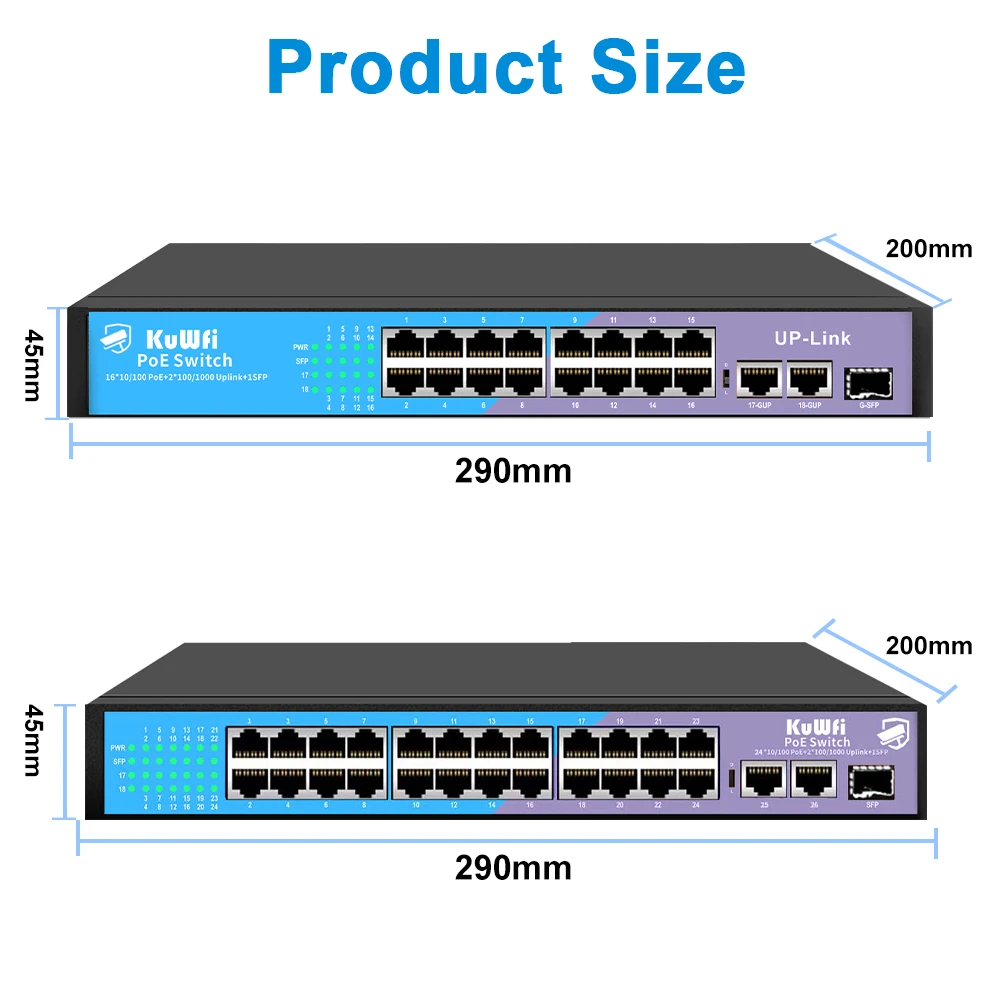

● Size: 290mm*200mm*45mm(L*W*H)

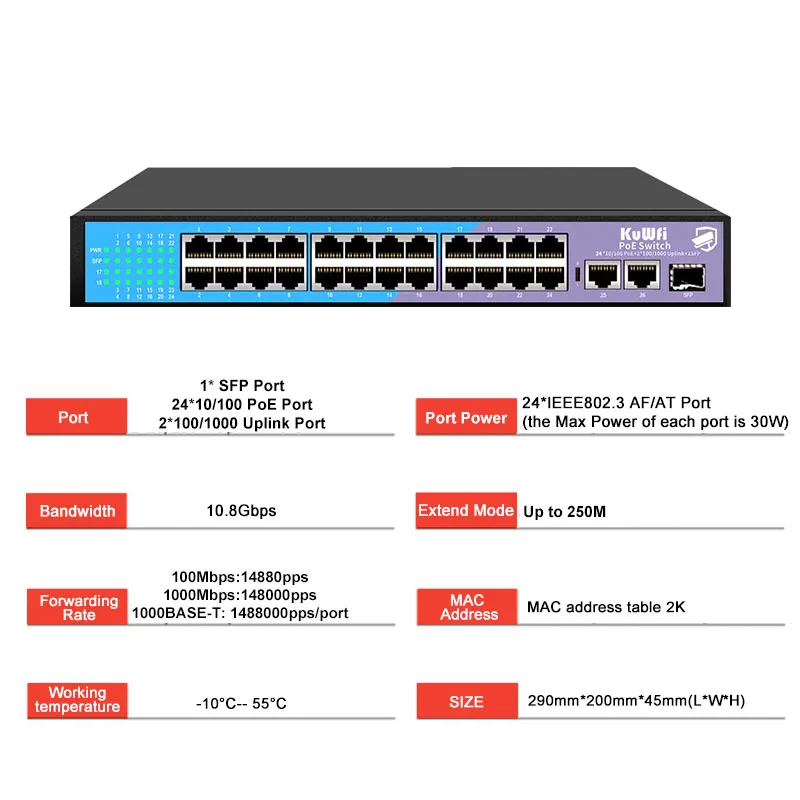

24 Port POE Switch
● Port: 8*10/100Mbps PoE + 2*10/100/1000Mbps Uplink + 1*SFP
● Supports PoE power up to 30W for each PoE port
● Output Power: 15.4W/30W IEEE802.3af/at
● Power Pin: Both 1/2+、3/6-

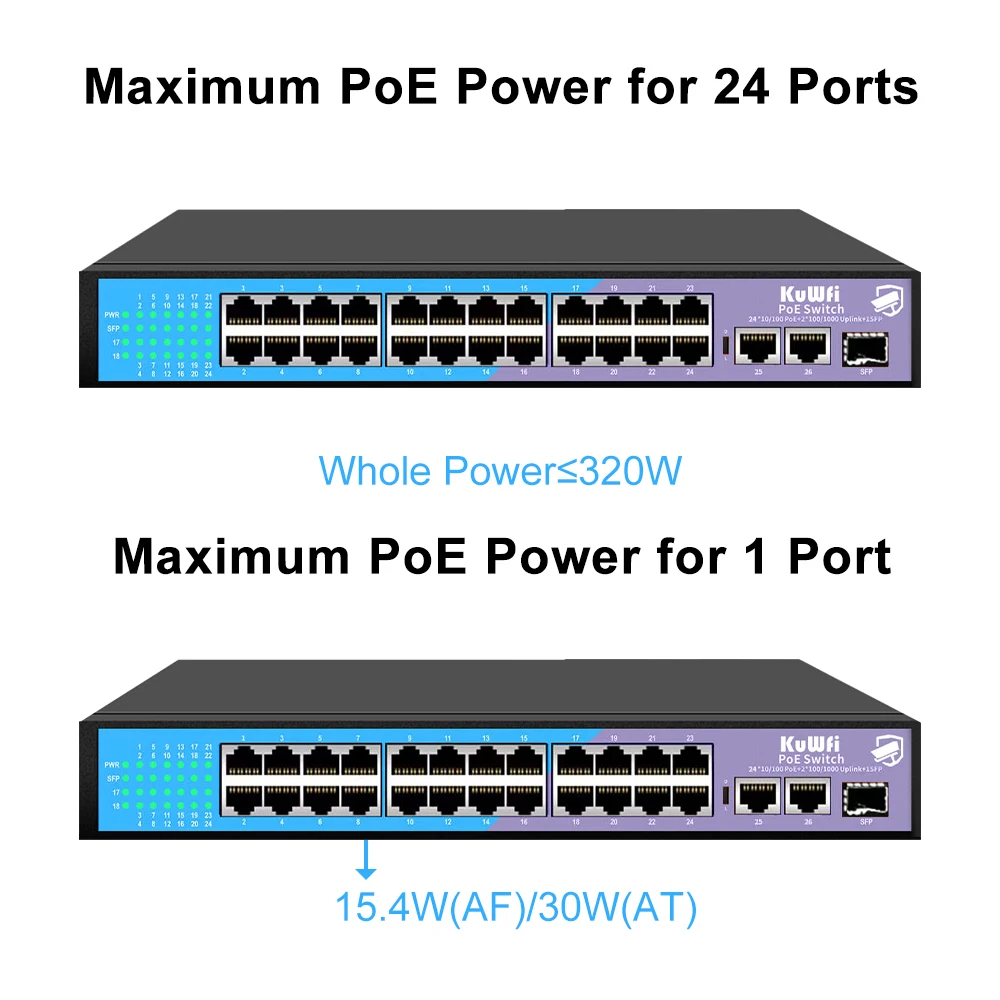

● Whole Power: ≤320W (52V 6.2A)
● POE Protocol: IEEE 802.3af/IEEE 802.3at
● Extend Distance: ≤250m
● Network Standard: UEEE 802.3 IEEE802.3u、802.3x、802.3af/at
● Switch Capability: 10.8Gbps
● MAC Address: 2K
● Working temperature：-10°-- 55°C
● Size: 290mm*200mm*45mm(L*W*H)
Package Listing
1* Manual
1* 48V POE switch
1* DC Power (Default is EU Plug)
