High Detail
It can supply power for wireless AP, network camera, and other POE terminal equipment through the network cable, supply the network, simple installation, plug and play
Product Description

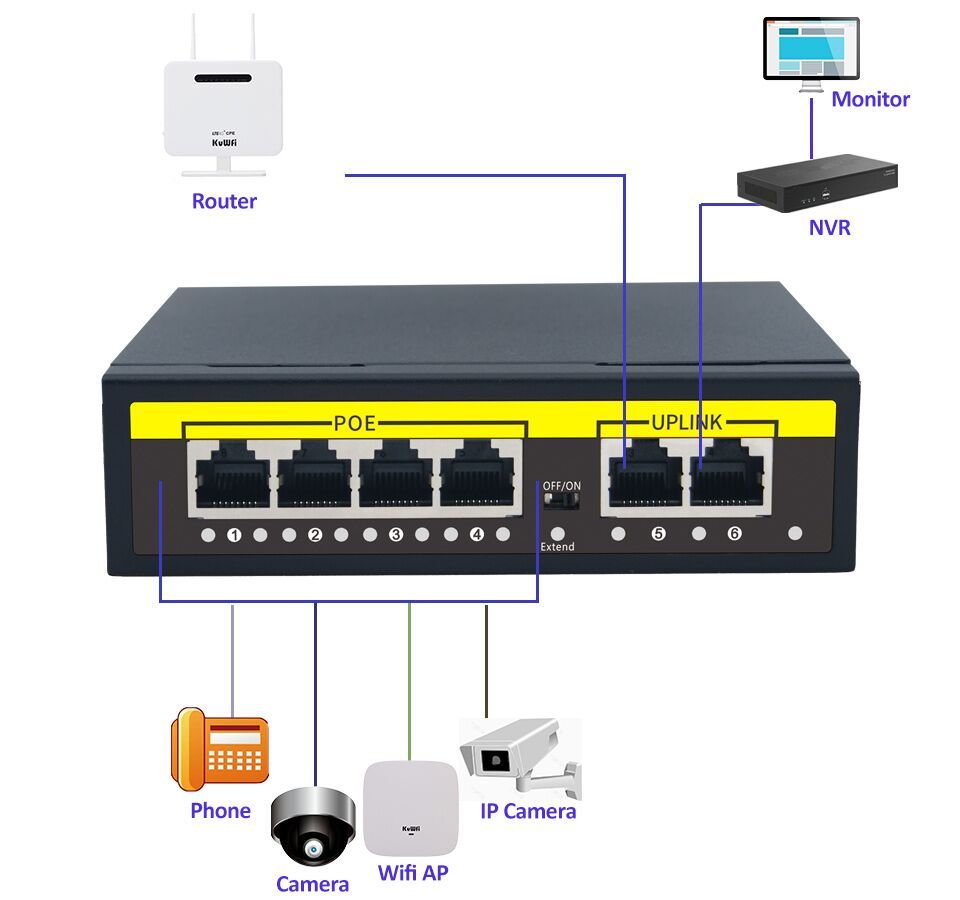

1.4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 100/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
3.RJ45 hub Switcher can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.
4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

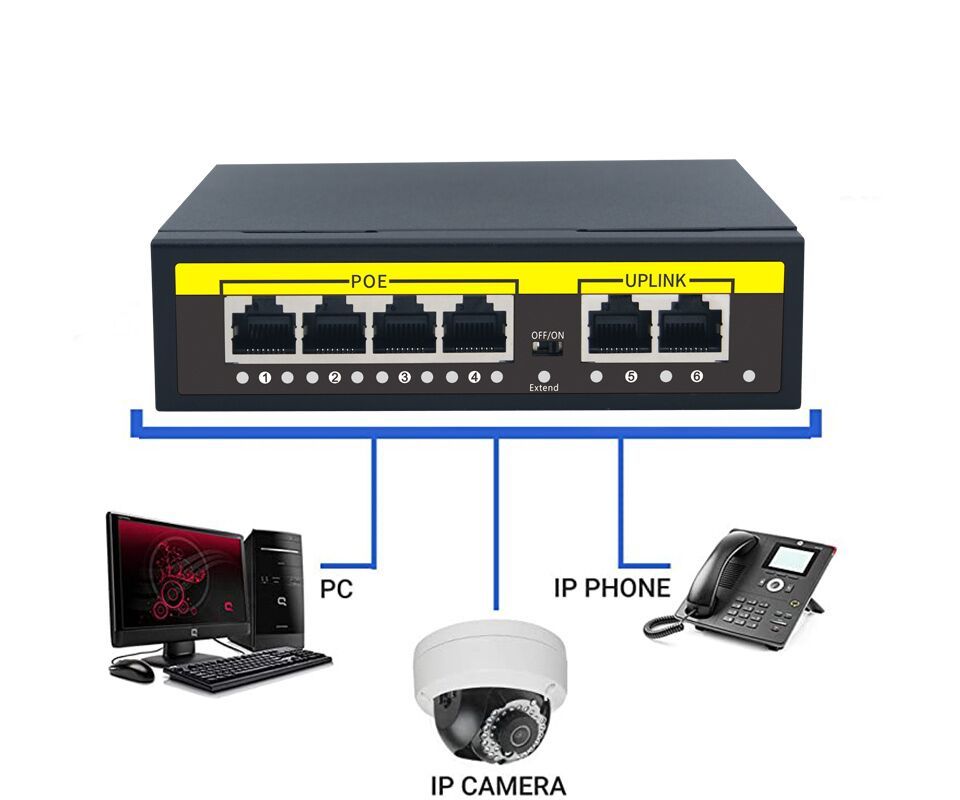

5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products
Product Detail

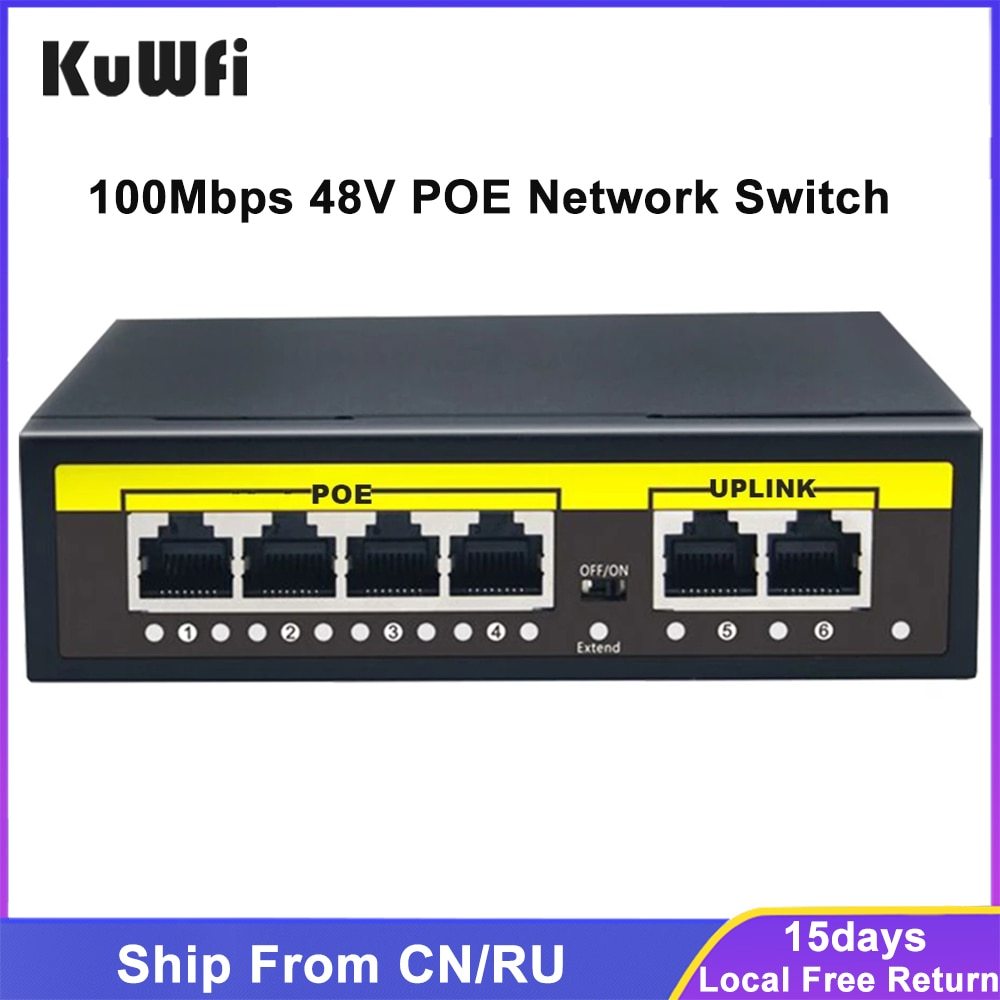

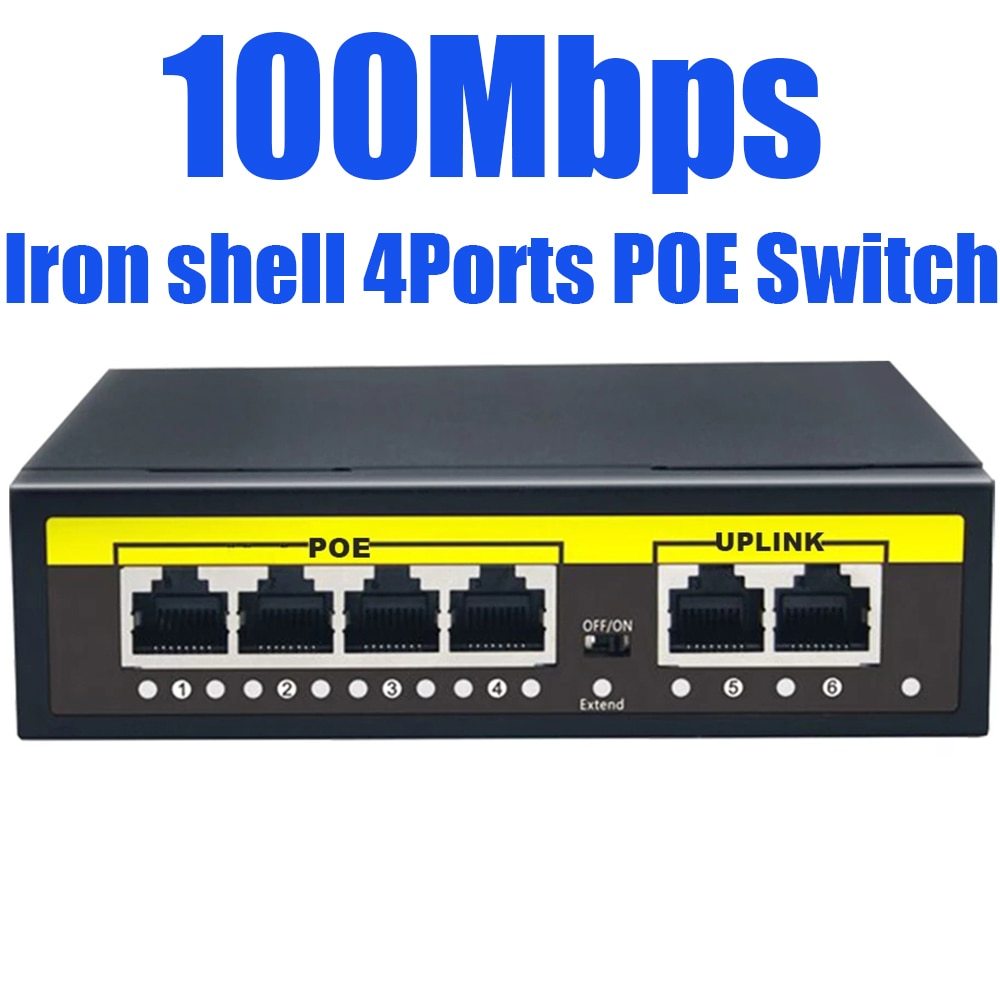

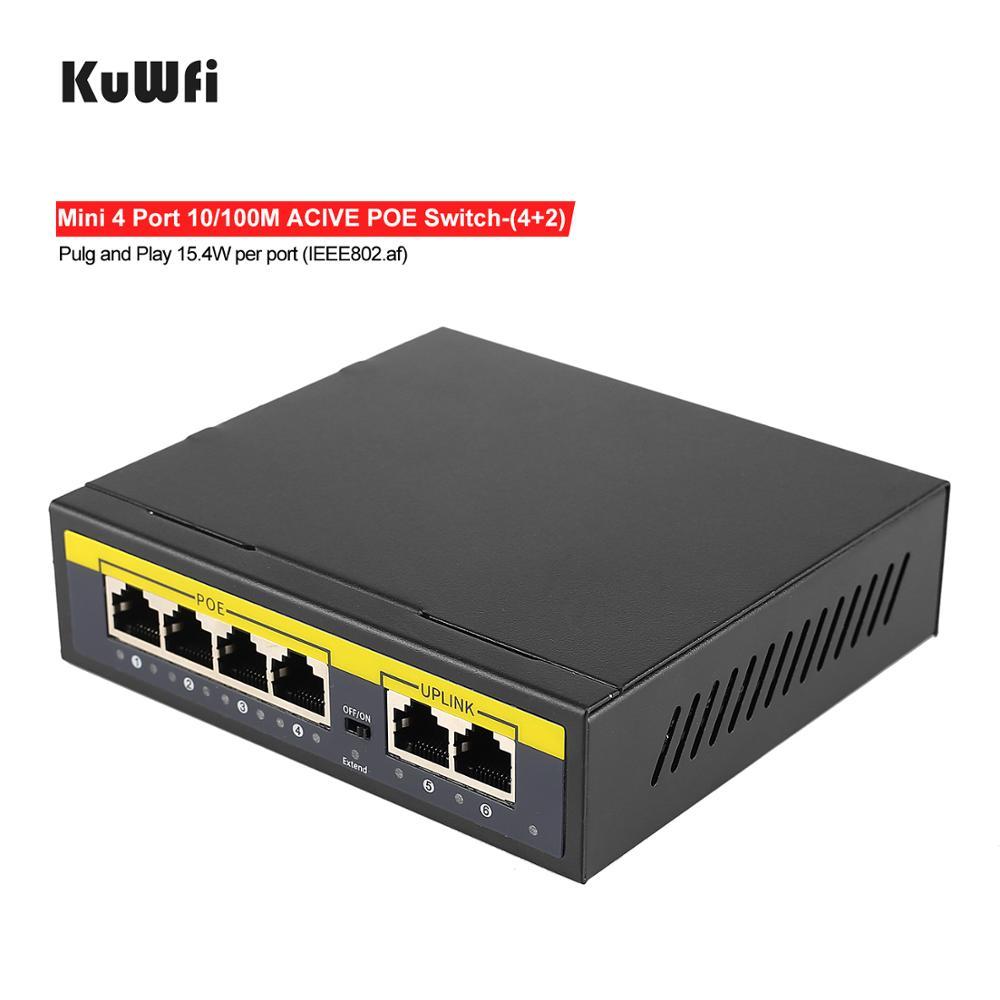

Product Name:4 Port 10/100M ACTIVE POE Switch(4+2)
Data Pin:1/2+,3/6-
Power Supply Type:Build in, 1/2+,3/6-
PoE Output Power:15.4W/30W
Connector:4*10/100mbps POE port,2*10/100mbps uplink port
Network Medium Cat5 (UTP) or more
Network Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power:15.4W per port(IEEE802.3af).
Wiring: Data & power provided over pairs 1/2 and 3/6
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Buffer memory:48Kb embedded memory per unit
Backboard Bandwidth :1 .2G
Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power Input:52V DC input
PoE power consumption:15.4W per port(IEEE802.af)
LED Indicators System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Package Listing
1*48v poe switch
1*DC Power
1*English Manual
Shipping time and tracking
We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .
Warranty time and service
Customer service working hours:Beijing 9:30-18:30
Ship orders within 48 hours (except weekends)
The warranty period of the router is 1 year, and the warranty period of other products is 3 months
