Model |
CPF905 |
CPF905-CF5 |
CPF909 |
C900 |
Picture |
||||
Suitable for |
Outdoor&Indoor |
Outdoor&Indoor |
Outdoor&Indoor |
Indoor |
Outdoor Protection Level |
IP65 |
IP65 |
IP67 |
- |
SIM Card Type |
Micro Sim Card |
Micro Sim Card |
Standard Sim Card |
Standard Sim Card |
Users |
10 |
10 |
64 |
64 |
LTE UE-Category |
Cat4 |
Cat4 |
Cat4 |
Cat4 |
4G WiFi Speed |
Download: 150Mbps |
Download: 150Mbps |
Download: 150Mbps |
Download: 150Mbps |
2.4GHz WiFi Speed |
300Mbps |
300Mbps |
300Mbps |
300Mbps |
5.8GHz WiFi Speed |
- |
- |
- |
867Mbps |
Antenna |
1x WiFi Antenna |
2x WiFi Antenna |
1x WiFi Antenna |
2x WiFi Antenna |
WAN/LAN Port |
1x 10/100M WAN/LAN |
1x 10/100M WAN/LAN |
2x 10/100M WAN/LAN |
1x 10/100/1000M WAN |
Wifi Distance |
5-10m |
5-10m |
5-50m |
5-10m |
Working Mode |
WiFi Mode/AP Mode |
WiFi Mode/AP Mode |
WiFi Mode/AP Mode |
WiFi Mode/AP Mode |
Working Temperature |
-20℃~70℃ |
-20℃~70℃ |
-30℃~70℃ |
0℃~50 ℃ |
Power Supply |
12V/1A DC Power Adapter |
48V/0.5A POE Power Adapter |
24V/0.5A POE Power Adapter |
12V/1A DC Power Adapter |
Port Forwarding |
× |
√ |
√ |
√ |
Remote Management |
× |
× |
√ |
√ |

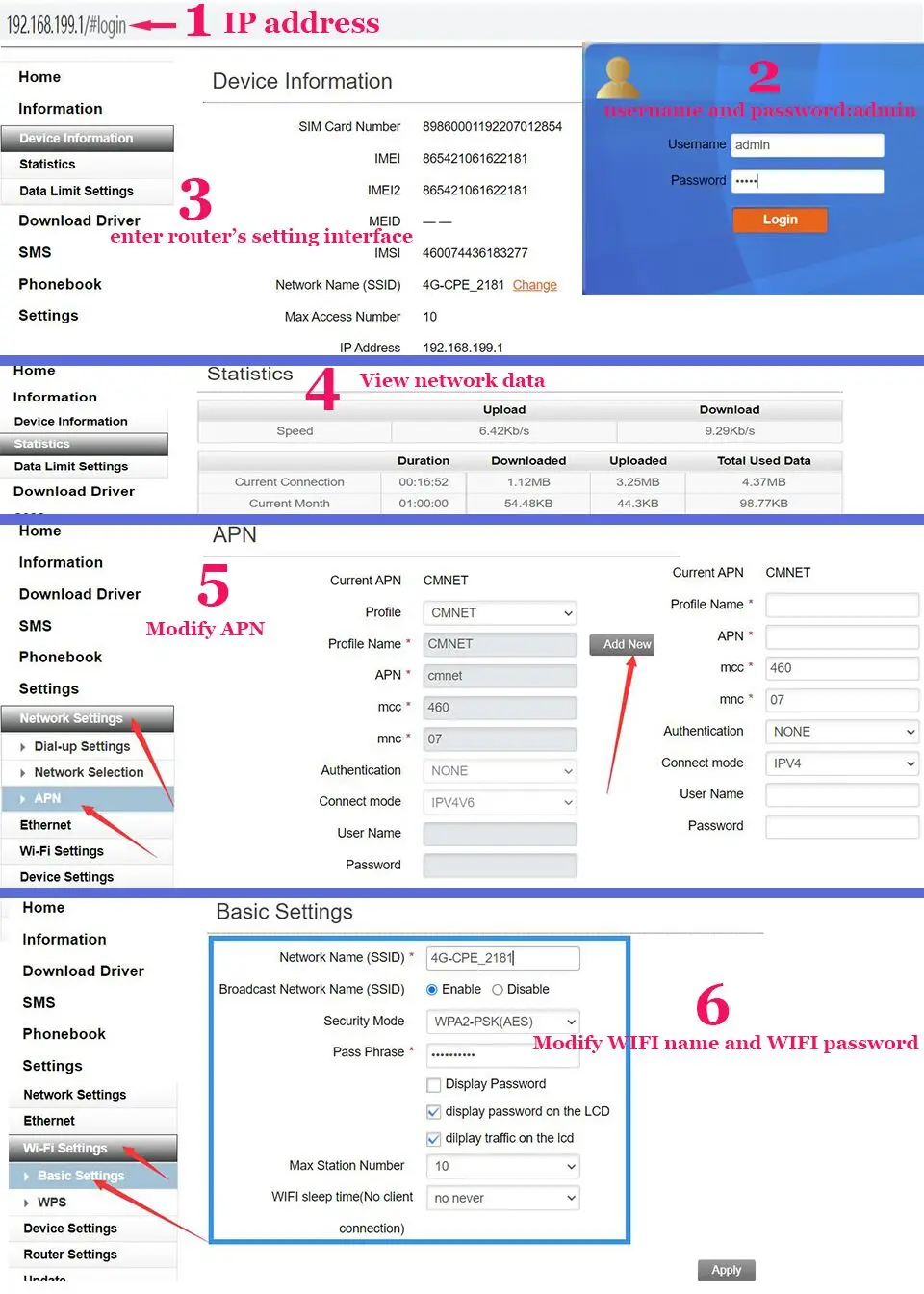

IP Address |
192.168.199.1 |
192.168.199.1 |
192.168.1.254 |
192.168.10.1 |
Warm Tip
We are factory,welcome to ask price for wholesale and dropshipping order
1. Asserted peak speed of 100 or 150Mps is tested in laboratory, you will never get these speeds in the daily using. It is because signal of ISP.
2.Because of global COVID-19 epidemic, the internation shipping is not stable and slow.
3. When you get the item, if you find it does not work, please contact us, we will help to solve. Many problem can be sloved with our guidance.
4. In order to get a better experience when you use router. We suggest to buy the version 3(EU version) if you are from Europe, Asia, Africa or Brazil.
5. Please do not compare speed of our router with cellphone's. Our products are much cheaper than cellphone, it is designed with a slower speed than cellphone.
6.Our 4G router only support universal ordinary SIM cards,donot suppport IOT card and Roaming card .when you buy sim card ,please ask if it can work in Router
Noted: router do not support Spanish Digi Mobil SIM Card.
7.Router's 4G chipset top capacity is 150M, and 4G base station's theoretical top speed is 150M too.However the 4G base station provide service to many 4G users at the same time,instead of giving full 150M bandwidth to one user,and 4G signal strength, SIM card limitation and environment would affect the network speed too.
Product Description

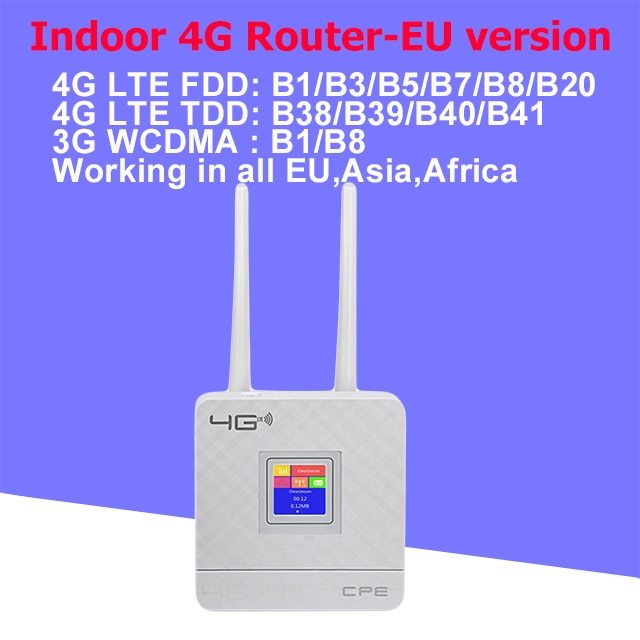

4g cpe router Support 4G LTE frequency Band:

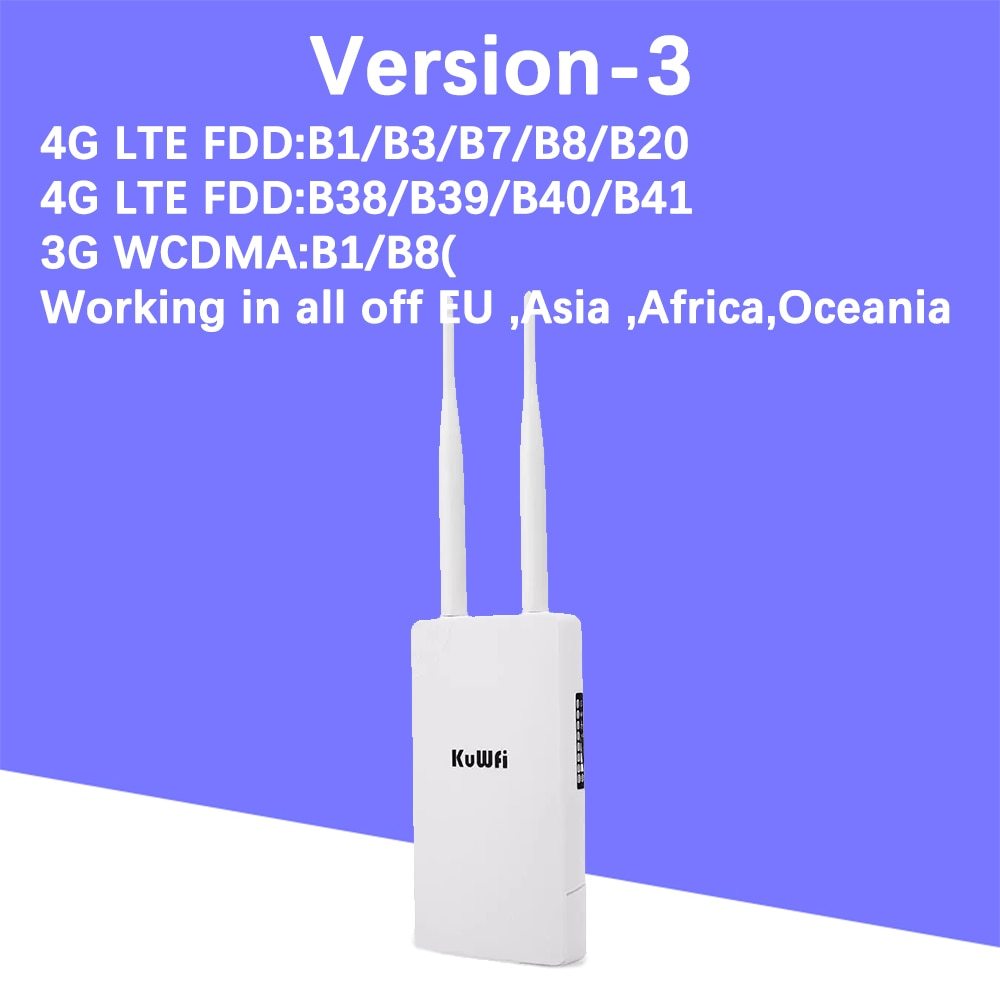

EU Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

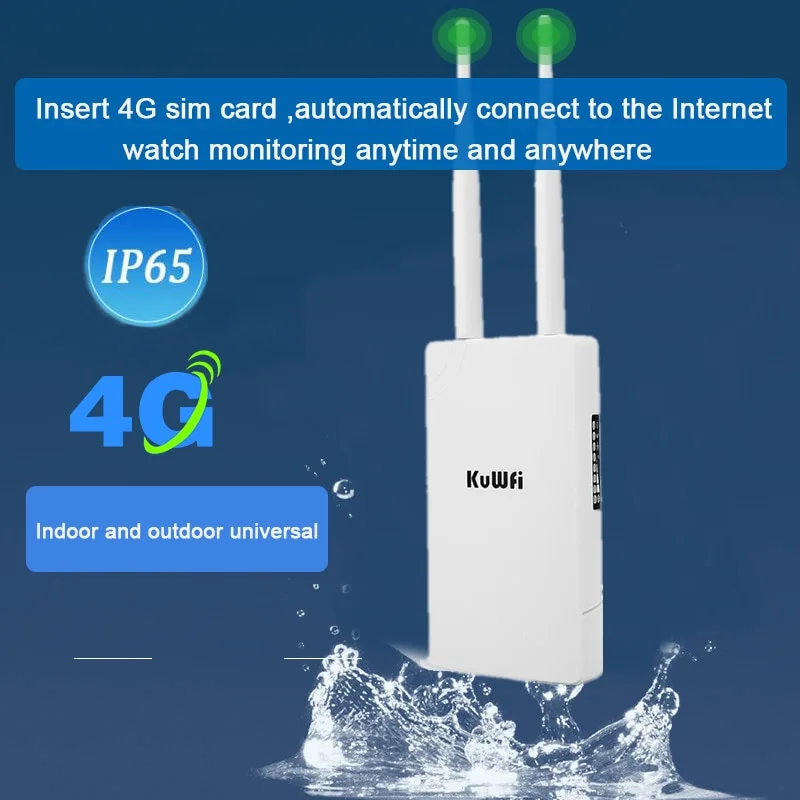

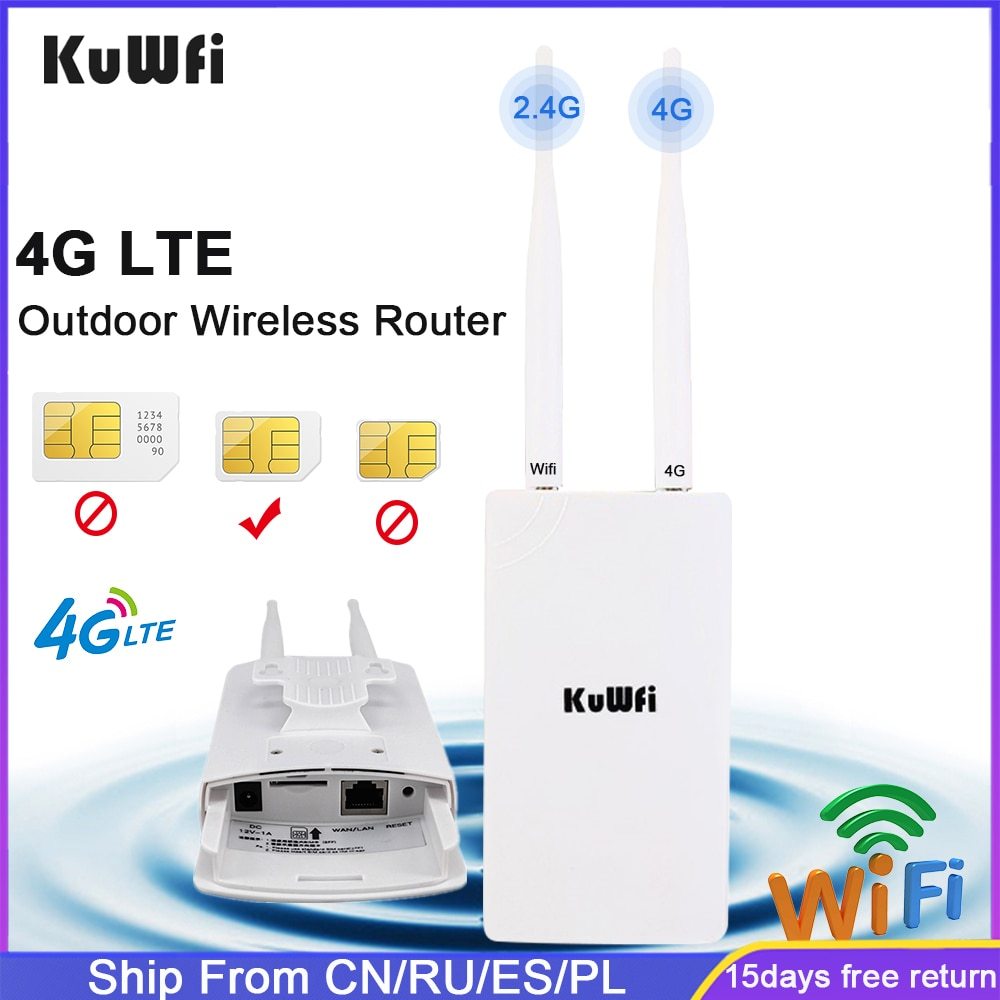

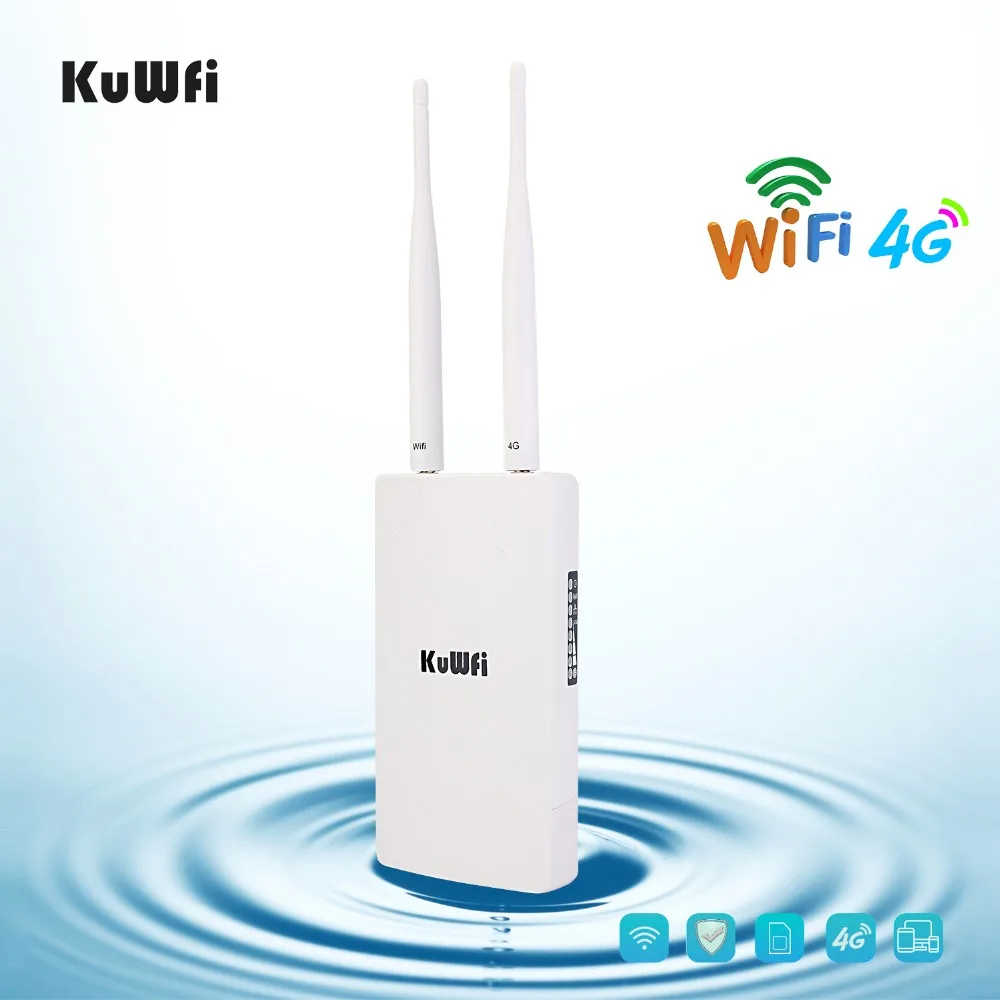

◆1.150mbps wifi router is outdoor 4G CPE router with 2pcs external high gain antenna to achieve 4g LTE signal amplification.
◆2. 4g router is desiged with water-proof and lightning-proof casing helps the unit to be good used at outdoors without Broadband
◆3.KuWFi Outdoor Waterproof 4G lte CPE Router use MTK Chipset MT6735WM.
◆4.Outdoor wifi distance :10-50M ,support max 10users ,thanks!
◆5.When getting access to internet through ethernet cable; Get access to internet through 4G/3G/2G Get access to internet by inserting SIM card and connecting to device(SIM 4G mode need to confirm the LTE frequency is supported and the APN is correct)
◆6.Dual antenna high speed - External antenna *2(one for wifi, one for LTE main antenna), Internal LTE diversity antenna. Wi-Fi Transfer rate:UP to 150Mbps. Support LED indicator1.150mbps wifi router is outdoor 4G CPE router with 2pcs external high gain antenna to achieve 4g LTE signal amplification.
Main Features:
◆ MTK chipset supporting global network TDD-LTE/ FDD-LTE/ UMTS
◆ LTE CAT4 up to 150Mbps
◆ IP66 Waterproof Level
◆ Low power consumption
◆ Dual high gained external antenna
◆ DC12V, 1A power in

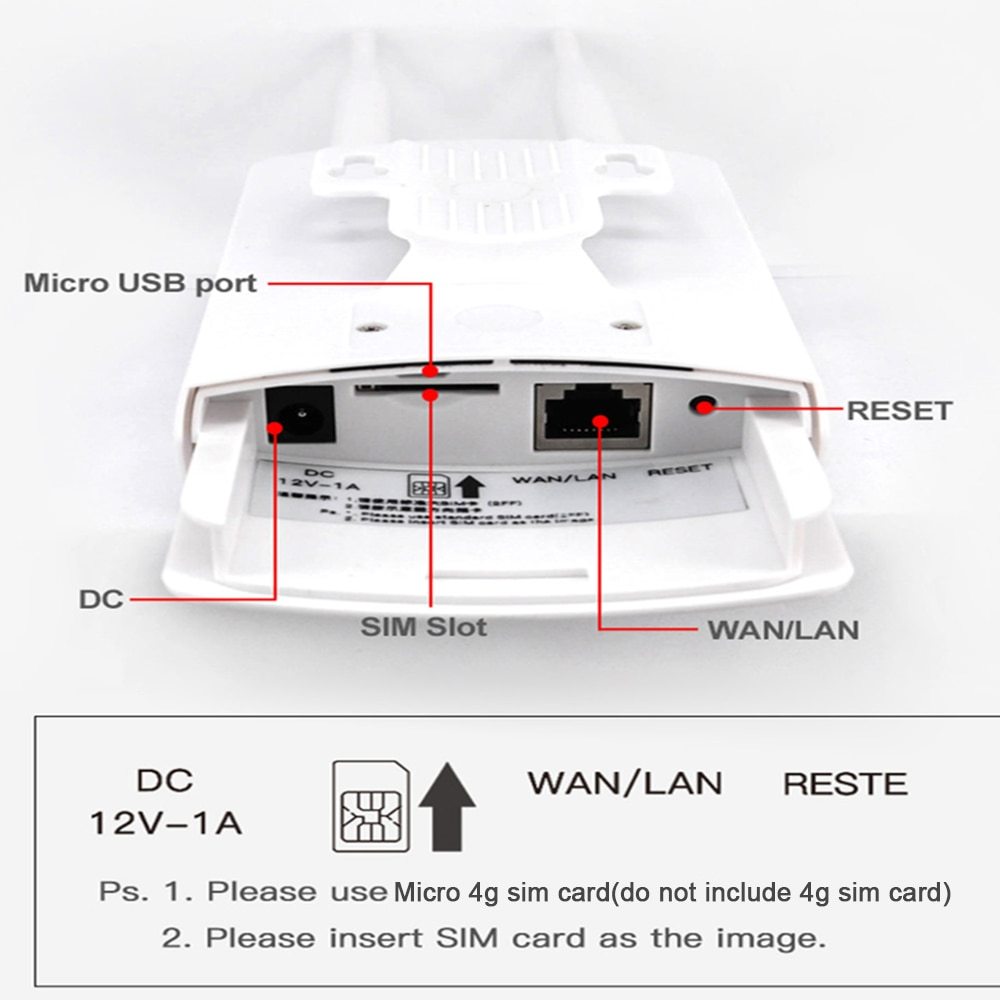

◆Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
◆Antenna: external 2pcs antennas
◆Power: 1 x DC power adapter , DC12 V/1A
◆Reset: Restore the router to its original factory
◆Operator Temperature:-20C~70C

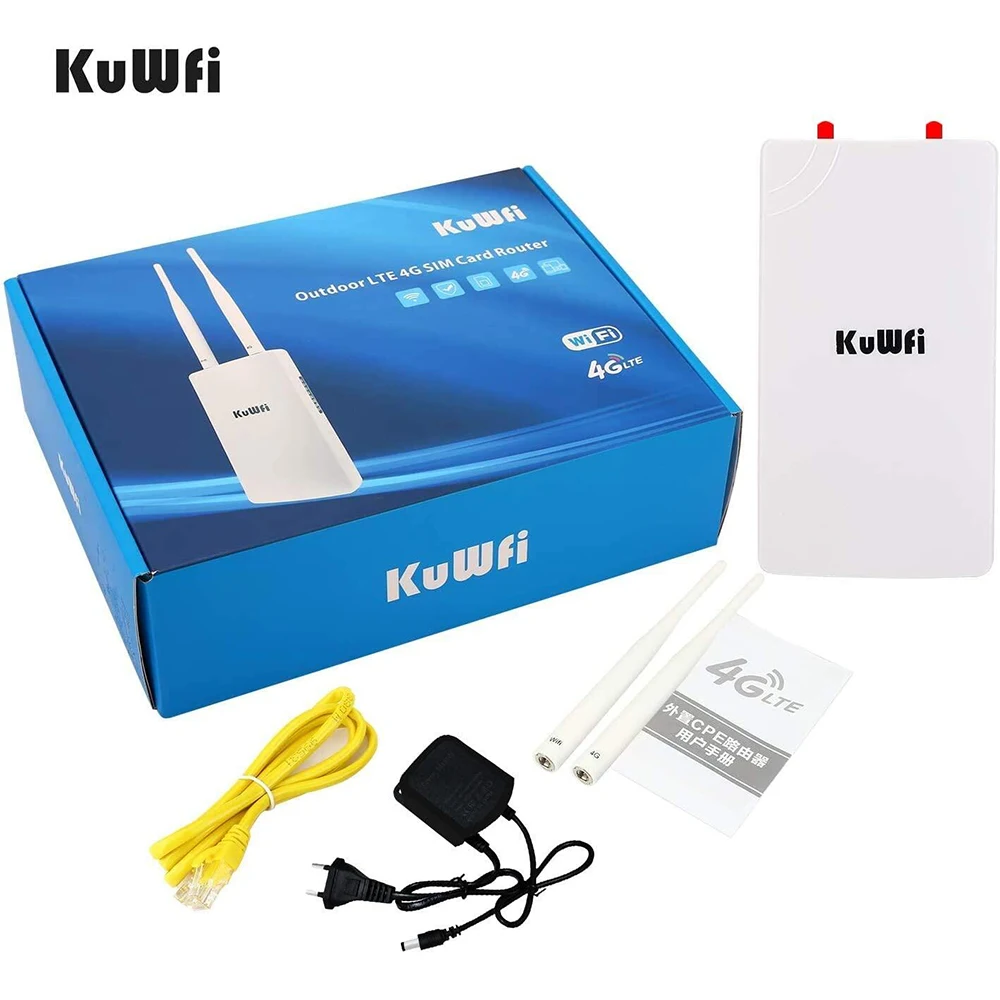

Package Listing:
1 x 4G WiFi Router
2x Antennas
1x DC Power Adapter
1x English User Manual
1x RJ45 Lan Cable
