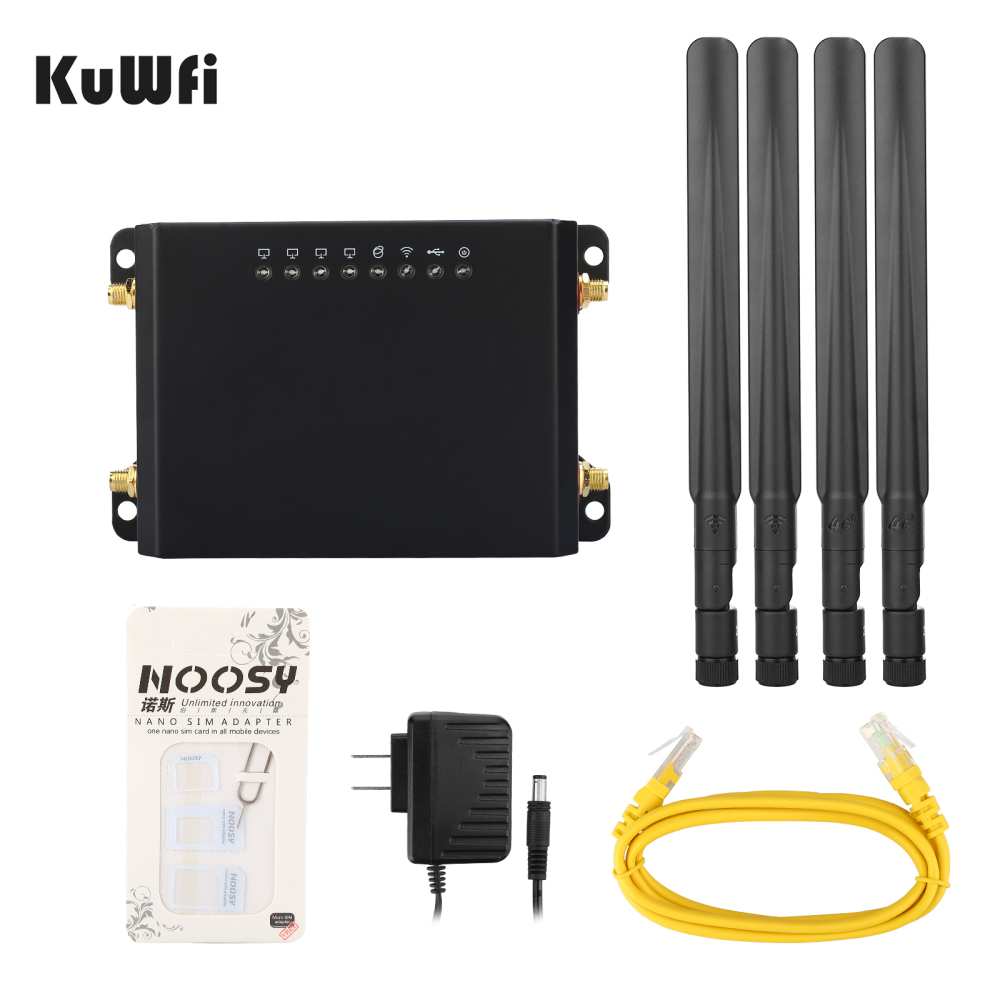

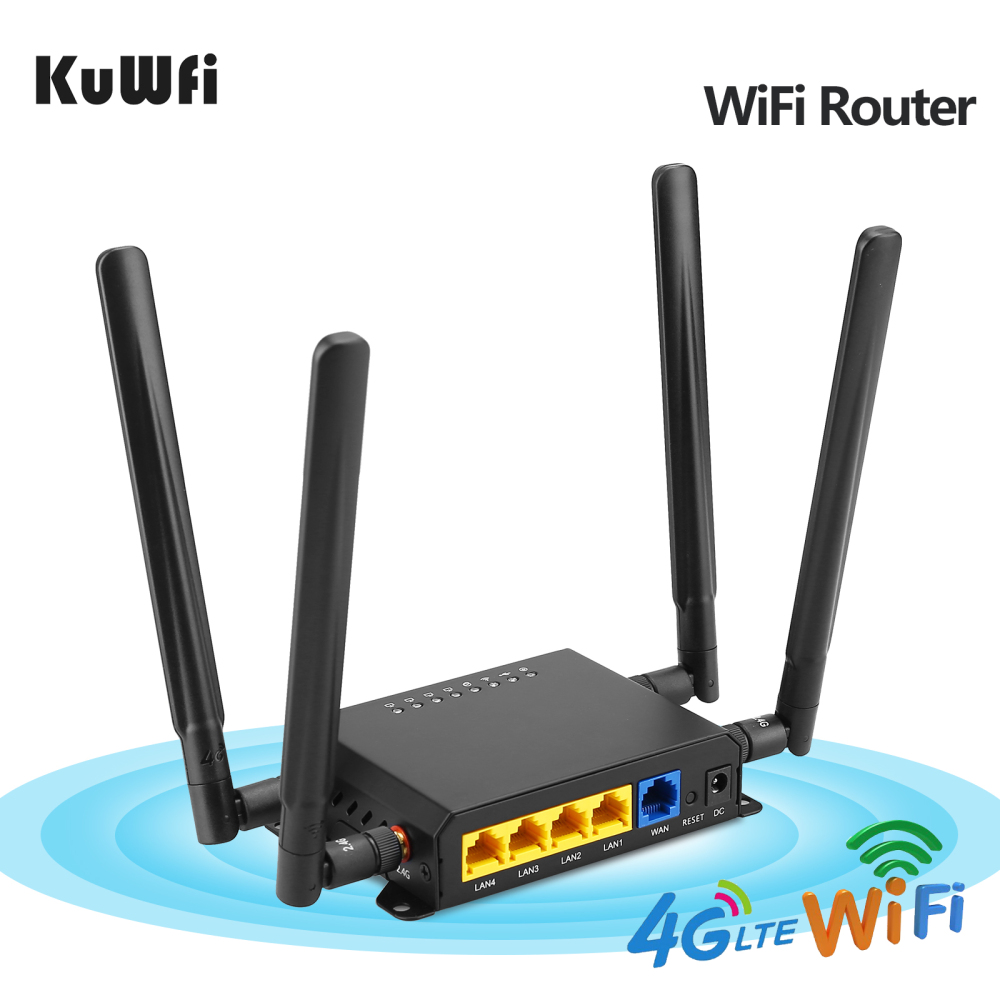

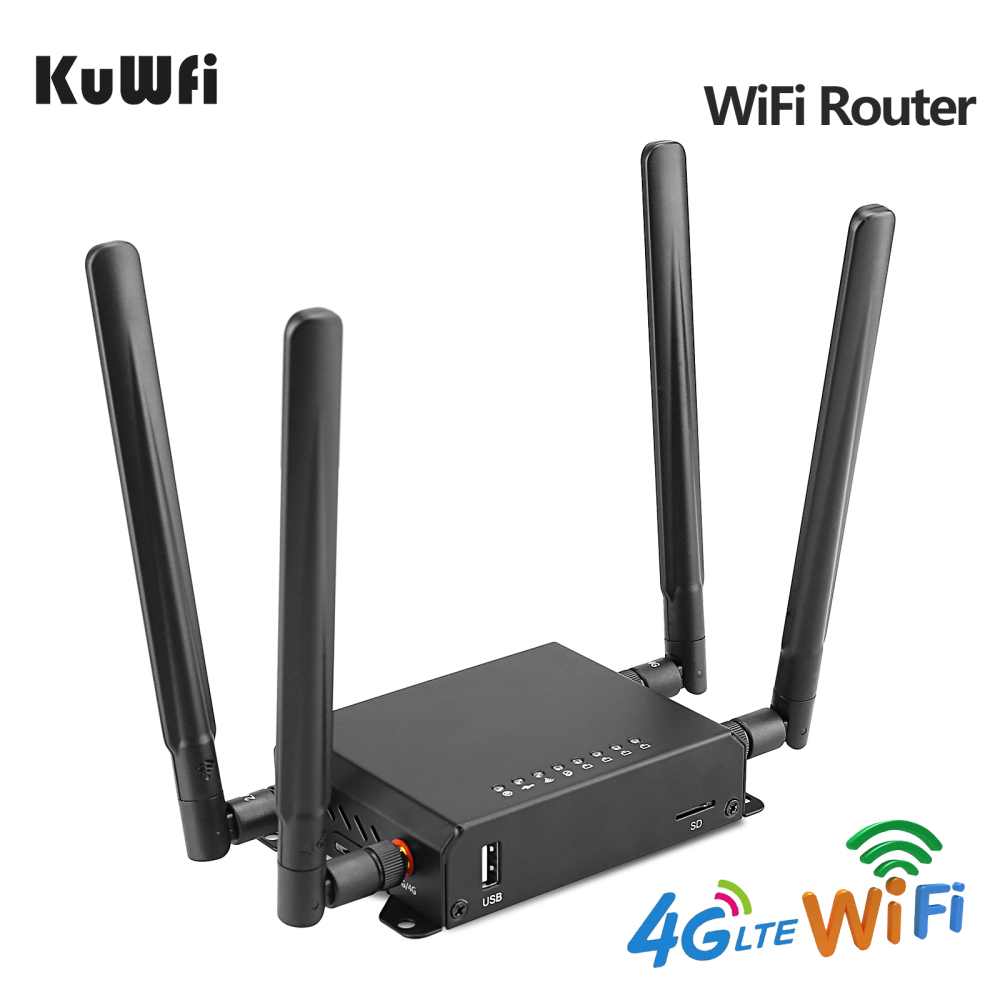

KuWFi 300Mbps 3G 4G LTE Car WiFi Wireless Router Extender Strong Signal Car WiFi Routers with USB Port SIM Card Slot with External Antennas for USA/Canada/Mexico
- KuWFi WE826-EC25-AF is a 4G LTE Car WiFi Wireless Router that with USB Port & SIM Card Slot & External Antennas. it use for designed for WIFI users to get access to internet via UMTS/HSPA/LTE. provides users with 3G/4G high-speed Internet access. It is used to supply internet access to indoor &outdoor WiFi coverage, can be connected to 32 devices at the same time. The coverage of the signal is 300-500M, which mainly depends on the strength of the signal
- Work with USA/Canada/Mexico: The 4g Internet Router Support 3G/4G network band 4G LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71; 3G WCDMA: B2/B4/B5. Support US T-Mobile, AT&T; Support US SIM card (except Verizon Boost Mobile/FreedomPop/Sprint)please you confirm whether your SIM card frequency band is compatible with it before buying a router. you can also use PPPOE dial-up Internet without a SIM card
- Multi-Mode 4G Router: with 1*10/100Mbps WAN Port, 4*10/100Mbps LAN Port & USB 2.0 port, support SAMBA, FTP server and DLNA, it is a wireless router can sharing files. Suppor wireless AP, WiFi Router multi operation mode to meet with different requirement. Support VPN and AC Management, Router information contains IMEI code. Open Source OpenWRT for better performance, and the firmware of OS More user-friendly settings. two software web interface can be update. but we will build in OS firmware
- Tips on product using: insert SIM card then power on the router, Even if your SIM card is compatible with the product, it is not necessarily plug and play, you may need to disable the PIN code of the SIM card and modify the APN .Enter the router IP address: 192.168.1.1—Click Network—APN—Enable. Modify APN. Make sure the SIM card is activate, Not support roaming service and Virtual SIM Card and IoT SIM Card,In rural area did not cover good signal some time disconnect .that is normal
- Customer Service: For 30 days after the date of purchase, return your undamaged KuWFi product and receive a full refund for ANY reason.12-month warranty for quality-related issues For 12 months after the date of purchase we take care of all quality-related issues with a REPLACEMENT OR FULL REFUND. Download firmware link: https://drive.google.com/file/d/117UHZDzlh5T3n6fNRCDPq9EdWRKsS5Le/view?usp=sharing; YouTube Video Link: https://www.youtube.com/watch?v=wmNyyytTOIw
WE826-EC25-AF is a high power Wireless router with 4G with MIPS networking processor, solution for enterprise, home, company, office’s WiFi networking. It’s compatible with IEEE 802.11b/g/n standard, the data rate reach to 300Mbps. With external power amplifier, 1000mW high power,4PCS external detachable antenna, WiFi signal more stable and longer range.
Main Features:
- Support wireless AP, WiFi Router multi operation mode to meet with different requirement
- Support PPPOE, static IP, dynamic IP in PPPOE operation mode
- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
- Support SSID broadcasting, multi SSID, VLAN tag and Chinese SSID With function of build in firewall, IP filter, URL filter and MAC filter With build in DHCP Server, can assign IP address for connected wireless access point
Mainly used in United States/Canada/Mexico
- MT7620A chipset Support Openwrt version(Contact seller for firmware)
- Support 3G/4G network band( Can work in USA) :
- (EC25-AF Mini PCIe)---For USA/CA/Mexico countries
- 4G LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
- 3G WCDMA: B2/B4/B5
- Support US T-Mobile, AT&T

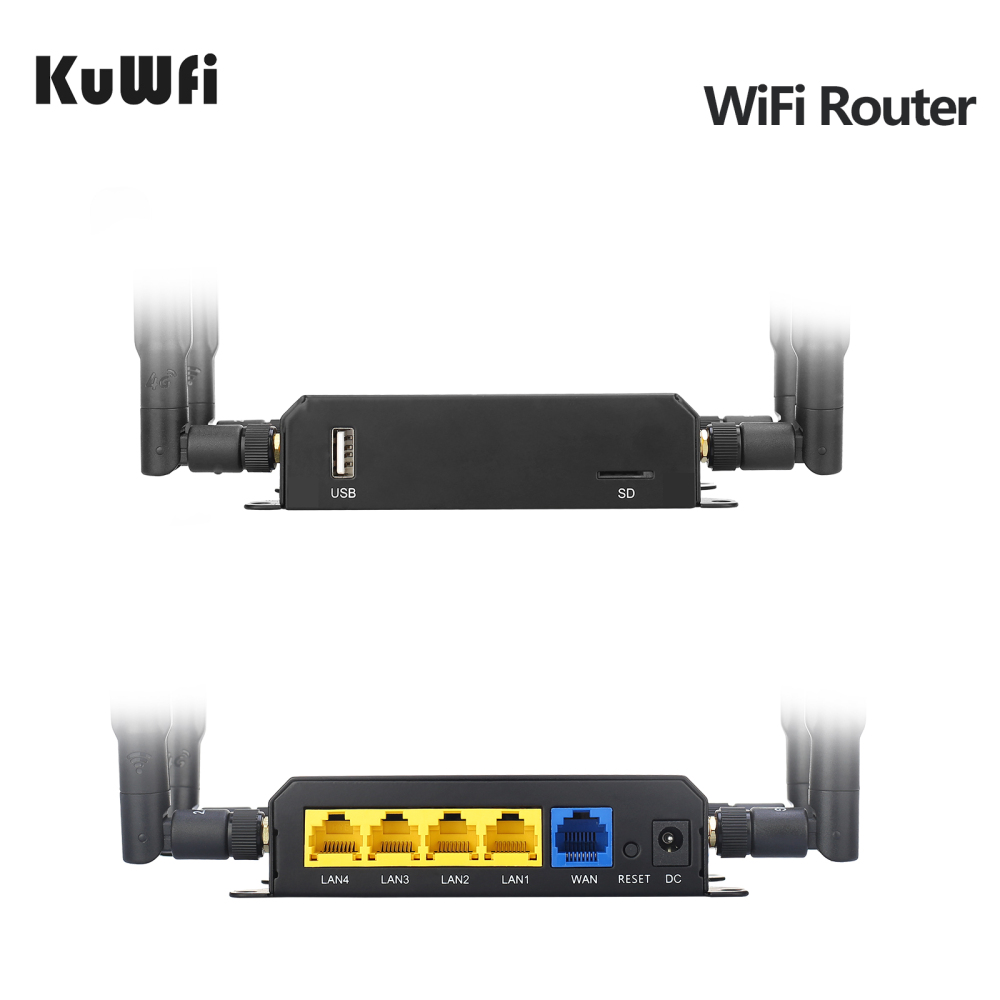

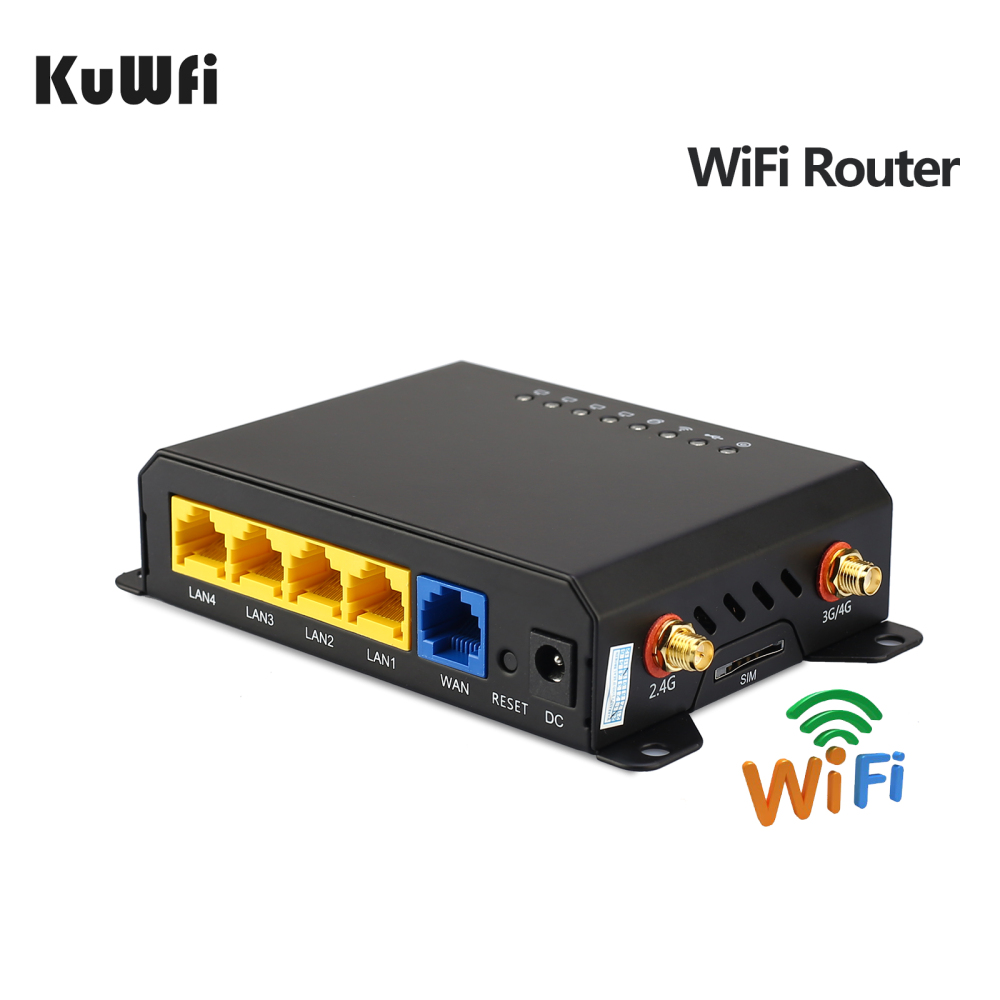

Ports and buttons
1* Reset Button
1* Power in
1* 10/100Mbps WAN Port
4* 10/100Mbps LAN Port
1* SD Micro slot

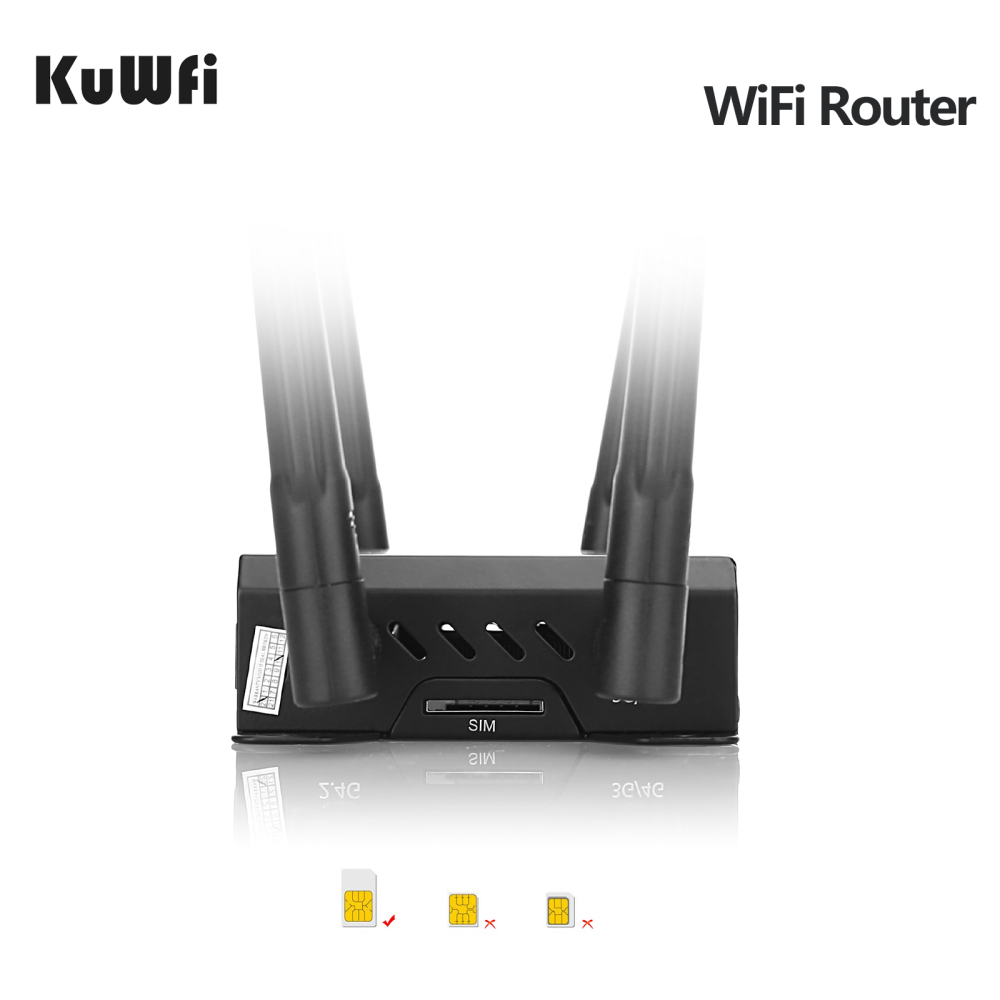

1* SIM card slot (standard size)
1* USB 2.0 port (Support SAMBA, FTP server and DLNA, it is a wireless router can sharing files)
Set Access Point Name (APN)
- Enter the router IP address: 192.168.1.1
- Click Network—APN—Enable. Modify APN.
- You can find the APN of the SIM card from the carrier's official website or mobile phone.
There is an mac APP called " LTE Info", you could download on your mobile and then check what 4G LTE band in your area or Insert the SIM card into your phone. Click on "Wi-Fi & internet - SIM & network - SIM - Access Point Names". You can find APN.
Please Note
if your sim card support the router network band ,also have update APN （APN seting should be from Operator) ,but still not work ,please confirm
1. The sim card is an IoT card.
2. The sim card have limited service ,not work with router or hotspot.
3. APN not correct.
4. Not support roaming service.
5. Some place did not cover the network Frequency band.
