Spcification:
1.Wireless:802.11n, 2T2R 300Mbps MIMO Technology

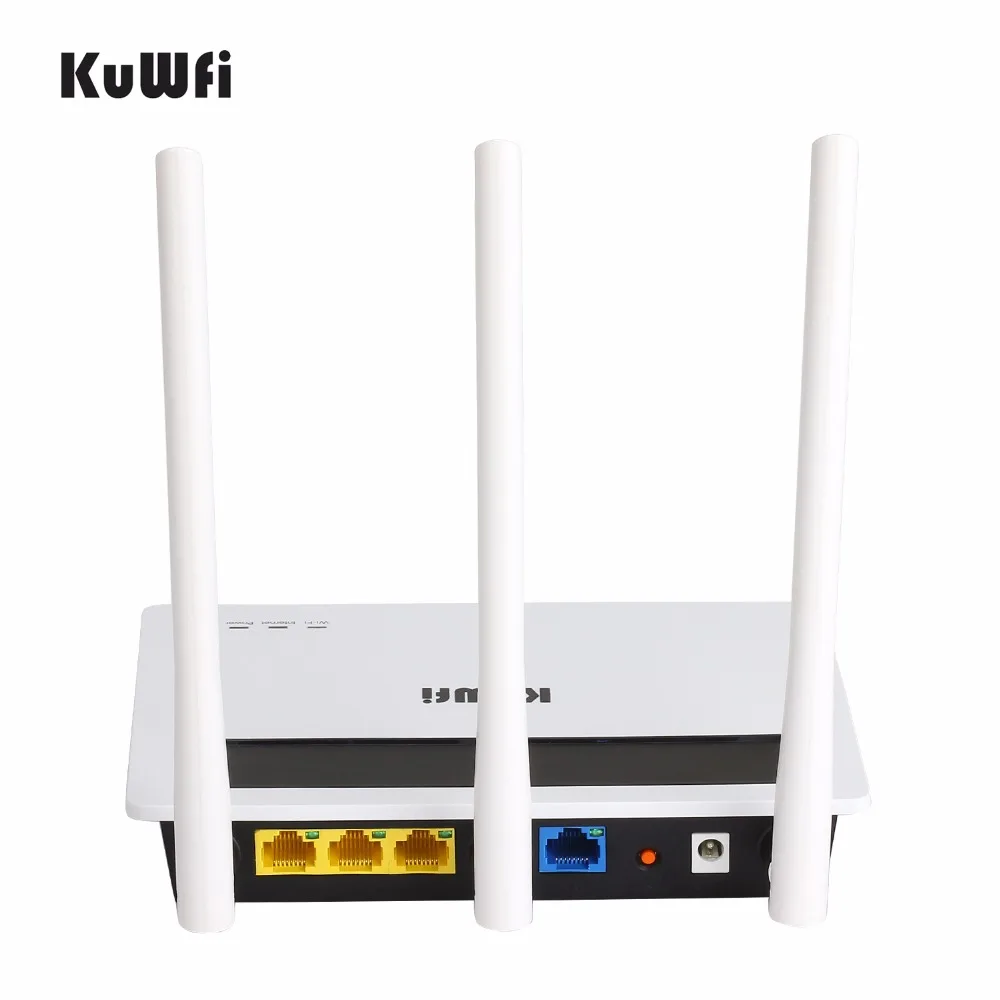

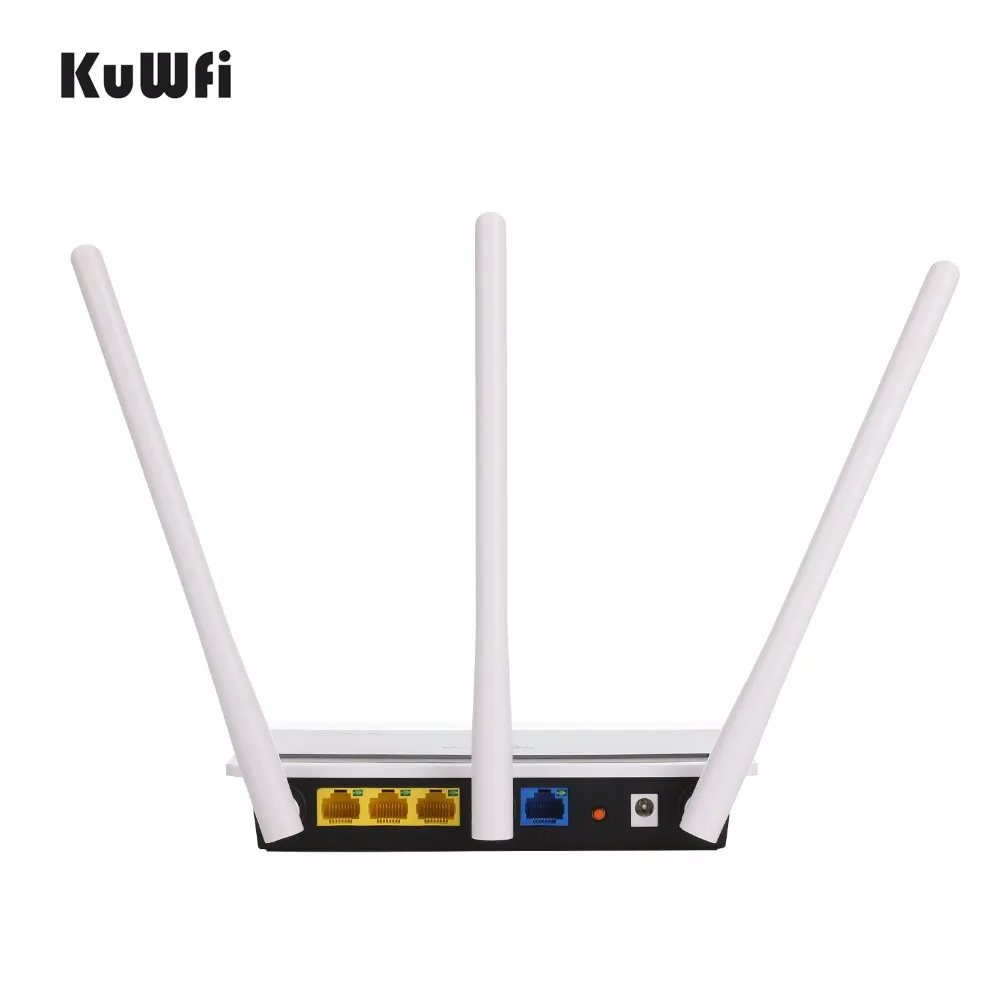

2.ireless Interface:1*10/100Mbps auto Negotiation WAN Port
3*10/100Mbps auto Negotiation Wired LAN Ports
1*Reset Button
1*DC In
3.External antenna:3PCS 2.4G OMNI High Gain 6dBi external fixed antenna
4.Power:DC 12V/1A
5.Flash/SD RAM:8MB64MB
6.Size:177 mm X120mm X 29mm
7.Operation Mode:Gateway, Repeater, AP
8.Wireless Standard:IEEE 802.3(Ethernet)//IEEE 802.3u(Fast Ethernet)//IEEE 802.11n/g/b
9.Wireless Setting:Intelligent Channel Analysis
Multi SSID, tag VLAN support
BSSID
Wireless SecurityWEP Encryption-64/128/152 bit
WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)
Hidden SSID
System SettingWeb-based configuration (HTTP/Telnet)
Firmware Upgrade Upgrade firmware via web browser or TFTP
10.Administration Management:Admin User name/Password can be configured
11.System monitoring:Device and Networking status statistic
12.Reset:Reset to factory defaults
13.Backup:Backup device configuration, then restore this configuration if need
14.Operating Environment:Temperature Working Temperature : 0°C~55°C
Storage temperature: -40°C to 70°C
Humidity Working Humidity 5%~95% RH NonCondensing
Storage Humidity 5%~95% RH Non Condensing
