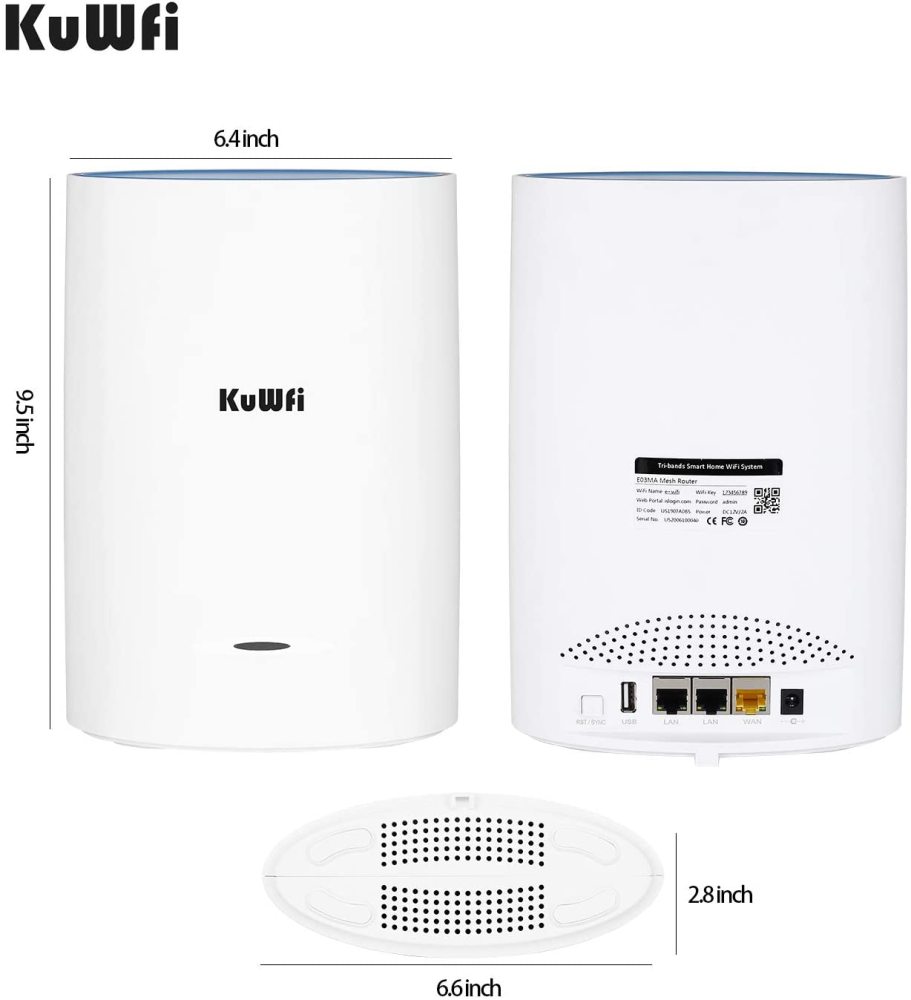

Dimensions: 242mm*170mm*60mm each
Weight: 680g each
Indicator Light Description:
LED Indicator Status (Router)
- Color Red ON:Power ON
- Color Blue Blinking: Link Coding with Sub-node
- Color Blue ON: Internet connected
LED Indicator Status (Node)
- Color Red ON:Power ON
- Color Blue Blinking: Link Coding with Router
- Color Blue ON: Router connected

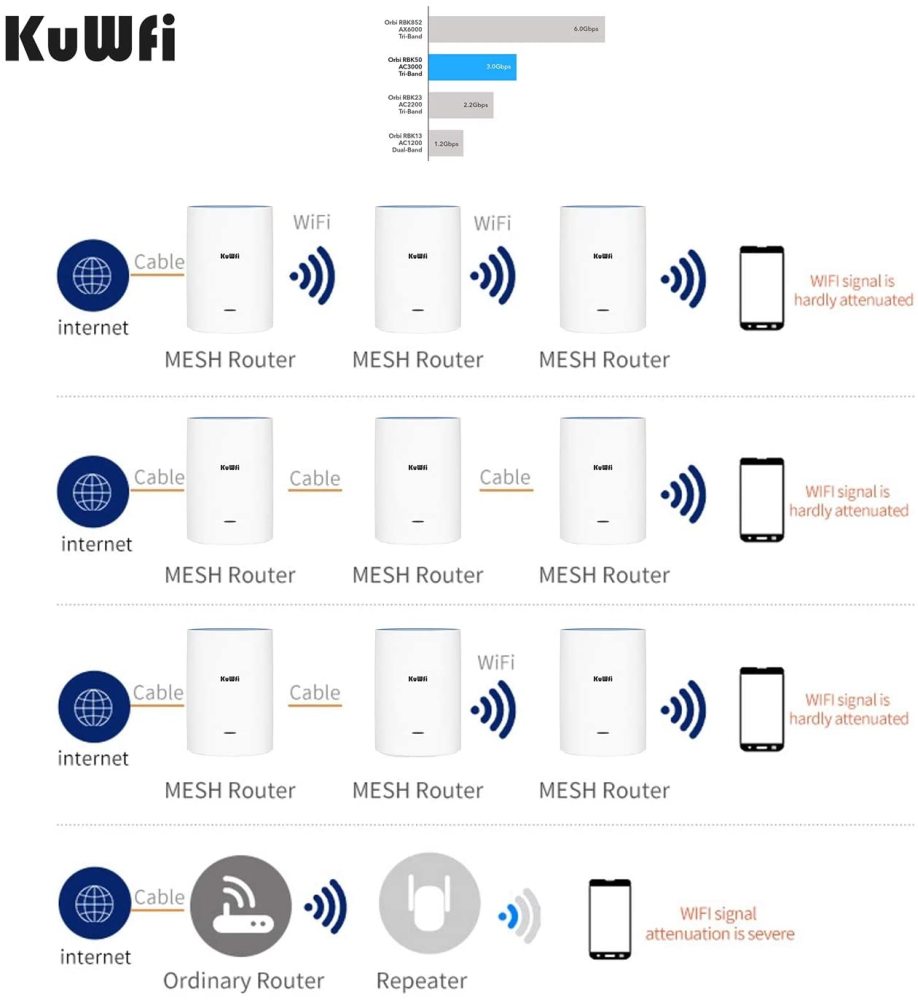

An additional third band dedicated to the router and satellite frees up the other two bands for maximum speed to your devices

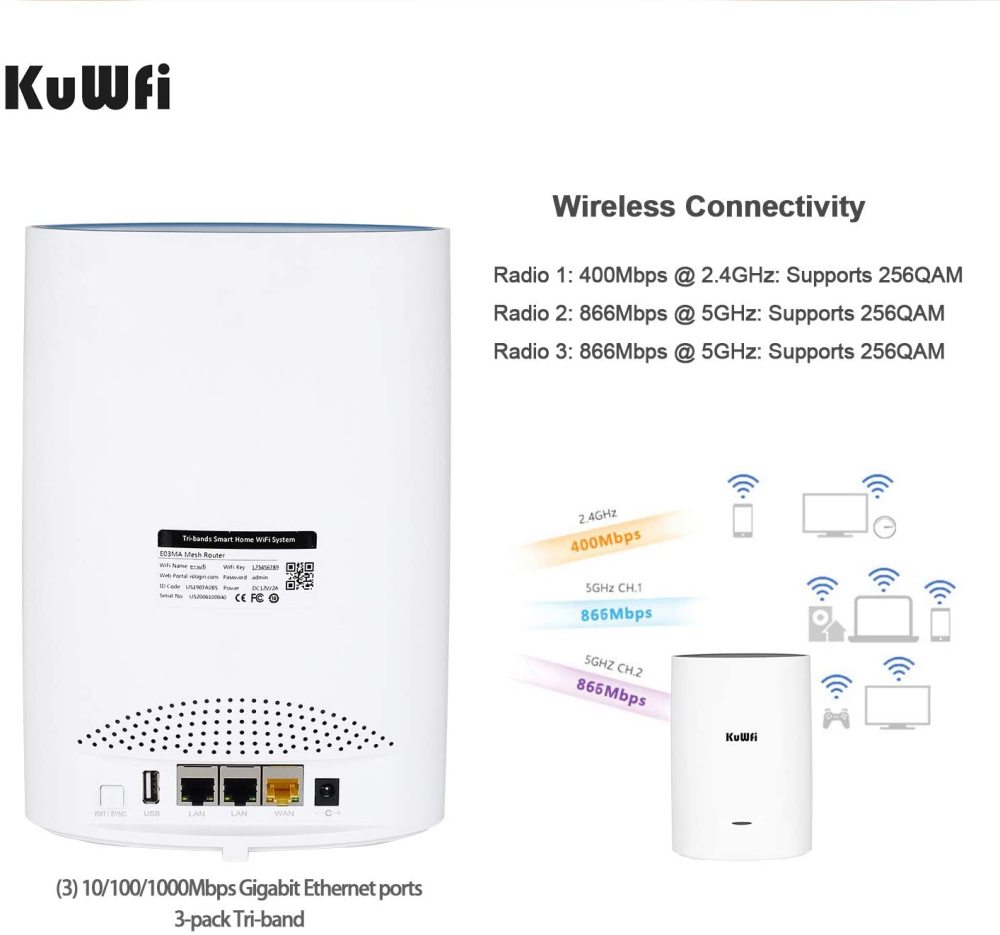

Wireless Connectivity
- Radio 1: 400Mbps @ 2.4GHz: Supports 256QAM
- Radio 2: 866Mbps @ 5GHz: Supports 256QAM
- Radio 3: 866Mbps @ 5GHz: Supports 256QAM
DC power in & USB port & Reset & Sync Button
- Reset button (long press for 10 seconds to restore the default factory configuration), networking: short press (blue networking light flashes)
Ethernet Ports (Router): Three (3) 10/100/1000Mbps Gigabit Ethernet ports[One (1) WAN & Two (2) LAN]
Ethernet Ports (Node): Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports
Working Mode
Web Service and mobile App, provide the better user experience of setup and management
Safe Wi-Fi Setting & Parental Control & Speed Test & Client management & Data Statistics & Network Map
Chip TechnologySolution – Qualcomm IPQ4029 - 32MB Flash - 512MB DDR3 Core Technology: MESH+ Wi-Fi SON WiFi Security – WPA/WPA2 |
Working EnvironmentWorking temperature: -20℃~+50℃ Storage temperature: -40℃~+70℃ Humidity: 5% to 95% (no condensation) |
The package includingOne (1) MESH+ Router Two (2) MESH+ Node One (1) 1m Cat5e Ethernet cable Three (3) DC12V/2.0A power adapter Quick start guide |
