Product Description
1.Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine
while enjoy UHD videos, online games at the home rush hours.
2.5G & WiFi-6 Smart Router System is based on brand-new embed platform, it can be satisfied with
growing-up mobile connections requirements and provides the fast speed beyond your imagination. The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world,
3.plug and play and enjoy the ultra-fast broadband connection at any places. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily.
4.With 802.11ax (Wi-Fi 6)technology built-in,5G CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
5.Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all
5G Cellular
1) 5G Network Modes: SA (standalone), NSA (non-standalone)
2) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
3) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G Standards:3GPP Release 15
5) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
6) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
4G Cellular
7) LTE Category：Down Cat 16/ UP Cat 18
8) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
9) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
10) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
11) WCDMA:B1/B2/B3/B4/B5/B8/B19
12) LTE : Down 1.0 Gbps；UP 200 Mbps
WiFi 6（802.11ax）

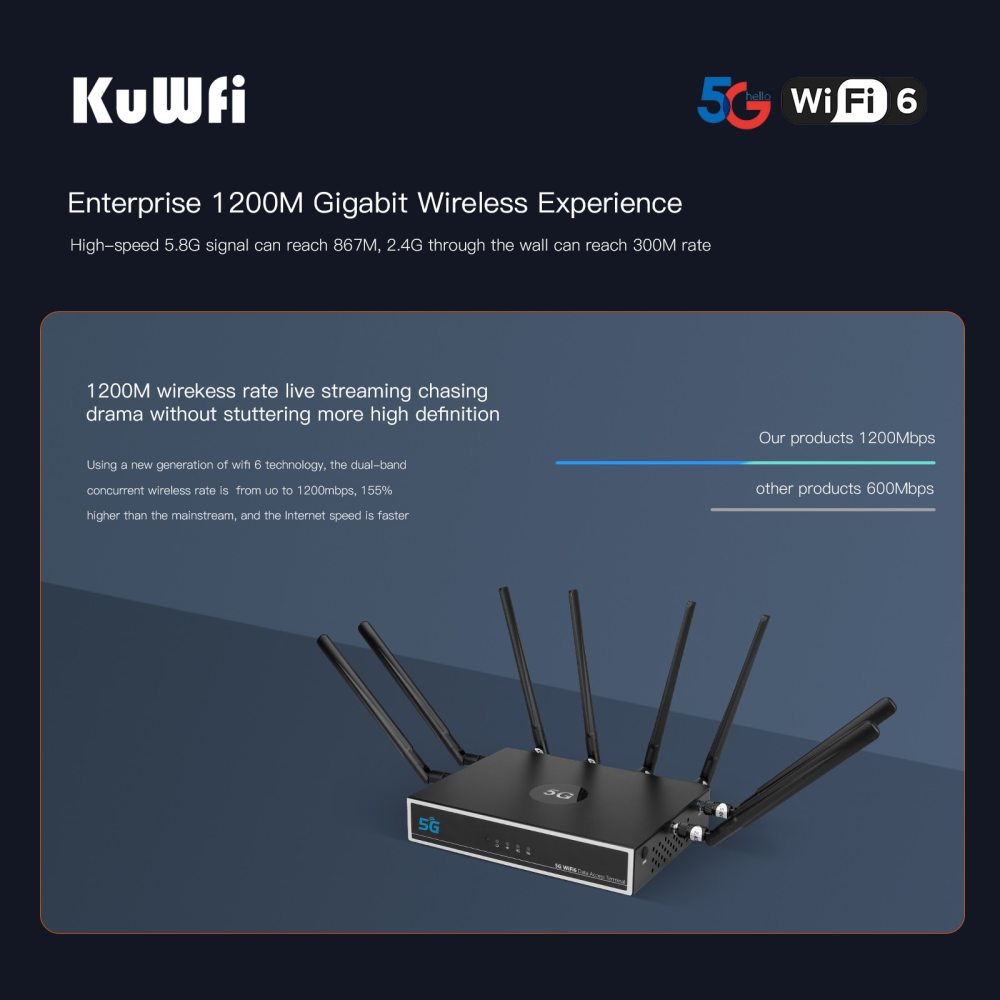

1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Coding Technology:1024-QAM / OFDMA
3) Peak Connections:>100+ Clients
4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

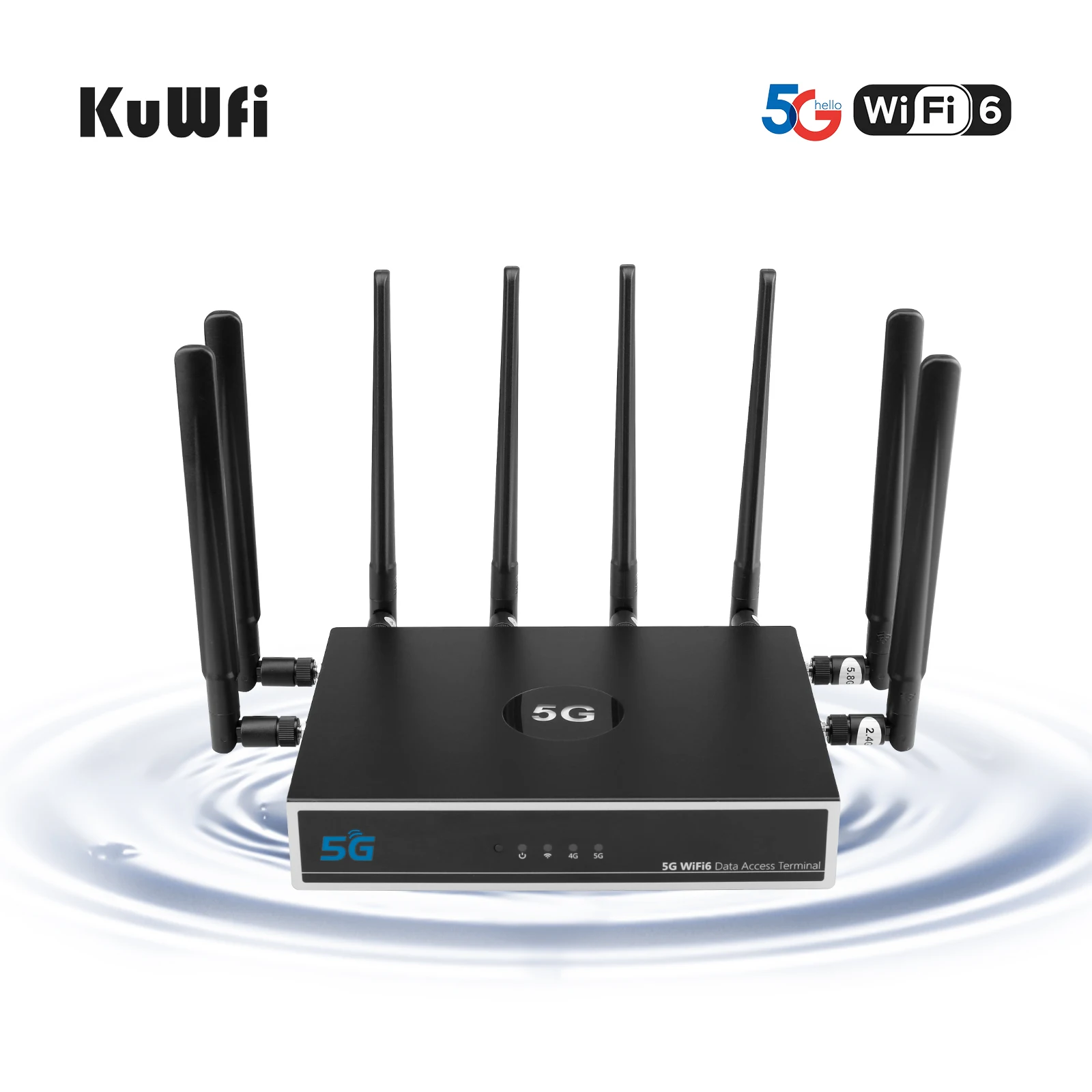

5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.
Data Switching
1) Mobile 4G/5G Connection (Support APN)
2) Giga Ethernet Connection
3) MESH:MESH+ hybird
4) 2.4G/5Ghz WiFi
5) Advanced Firewall
6) MAC Filter
7) WiFi Sercurity
8) VPN Passthrough and VPN Client (L2TP PPTP)
9) IPV4/IPV6
10) WEB / APP Mangement
11) Firmware upgrade
Hardware Specifications:
1) Memory:16MB Flash + 256MB DDR3
2) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

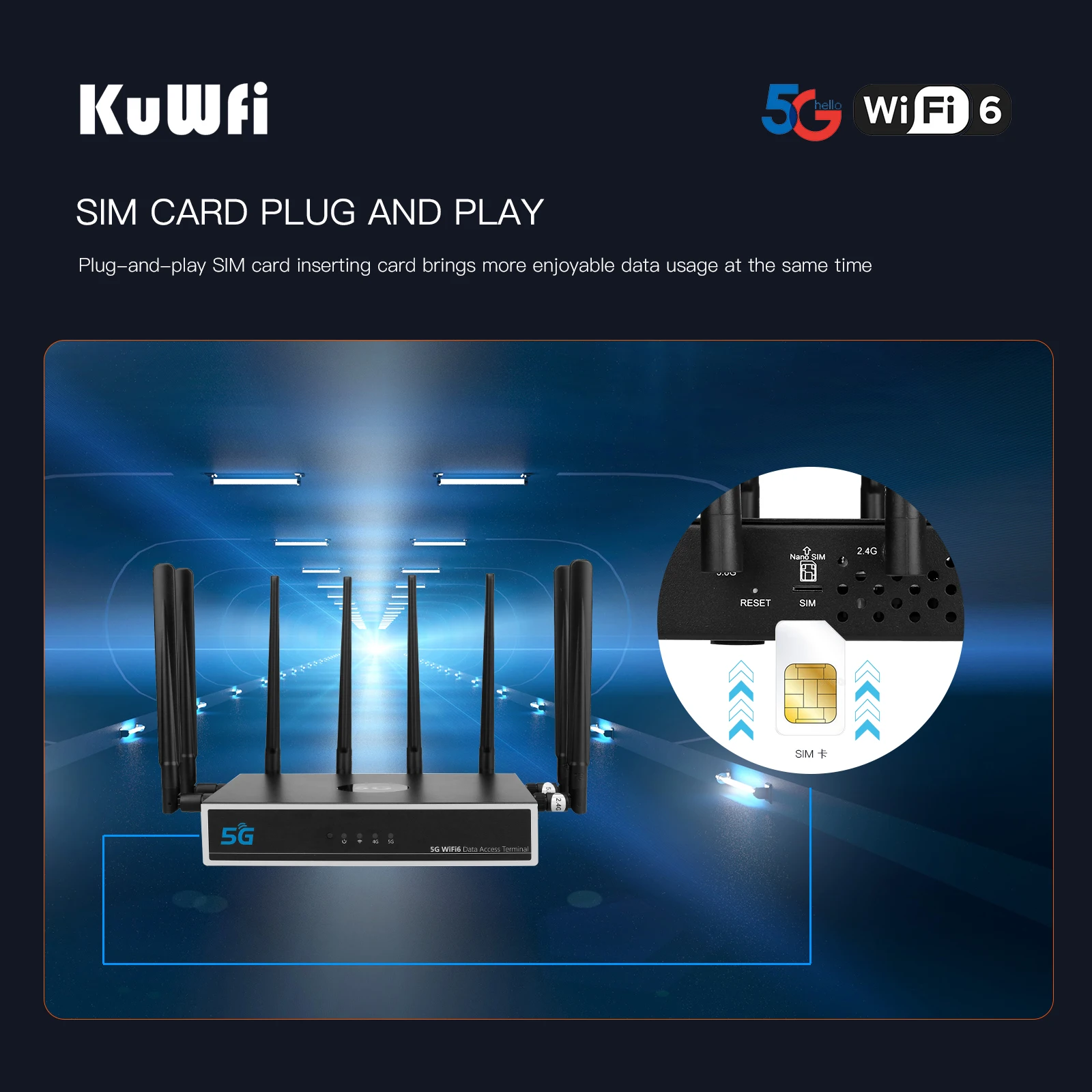

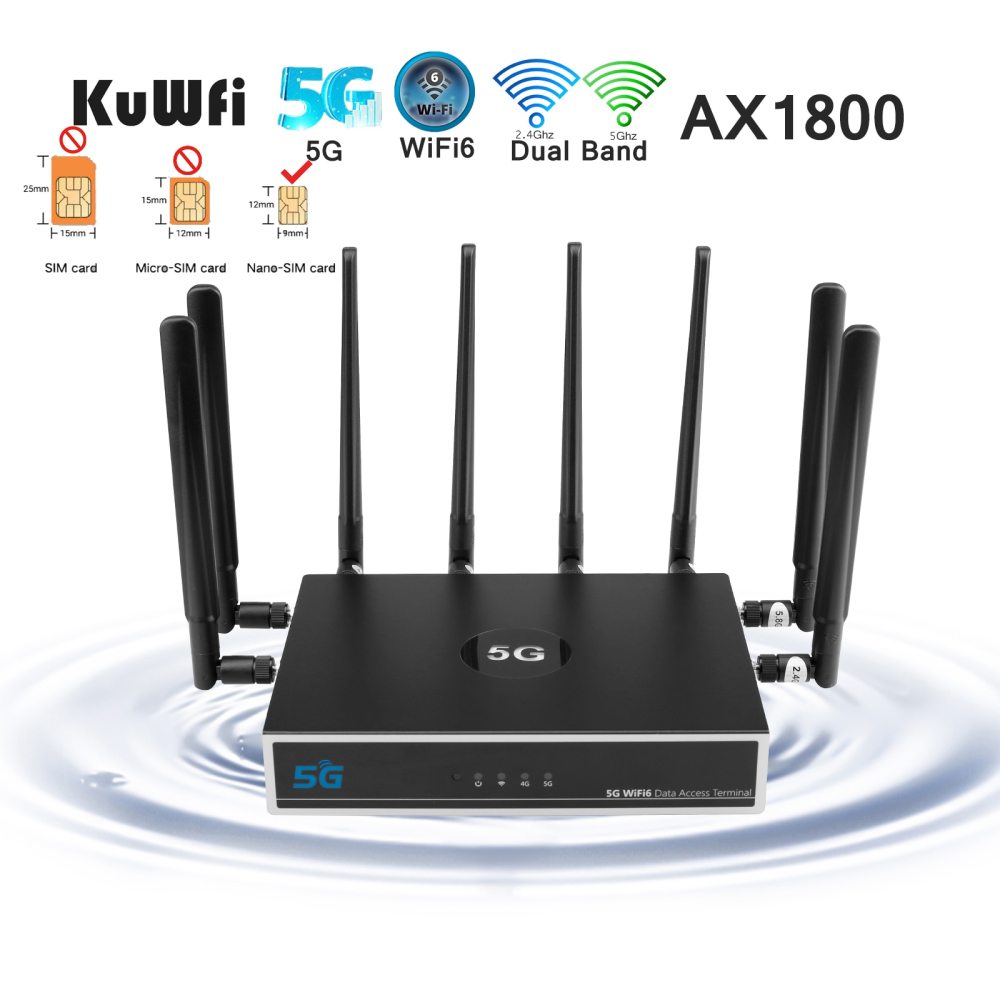

3) 1* SIM Slot（Nano-SIM）
4) Reset button
5) MESH+ Button
6) MESH+ LED Switch
7) LED Indicator
– MESH+ Working Status (breathing light)
– 4G Status
– 5G Status
– WiFi Status
– Power Status
8) General
– Power Consumption:<20W
– DC Power Supply: 12V/2A
– Working temperature:0℃～40℃,
– Storage temperature: -20℃～+70℃
– Humidity:5%～95%
Package Included:

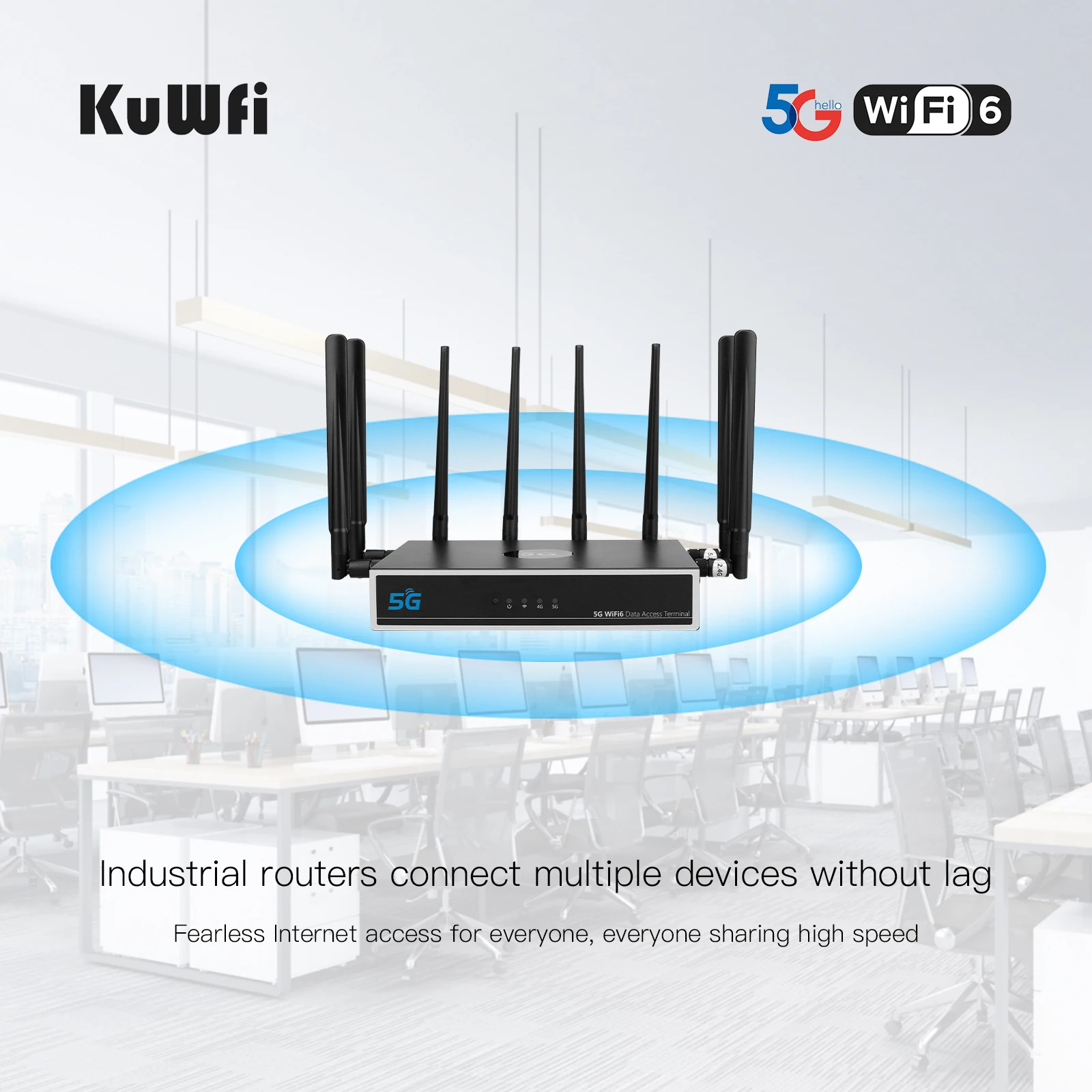

1x5G CPE Router (M10K21)
1x 1m Cat6 Ethernet cable
1x 12V/2A DC Power Adapter
1x Quick Start Guide
