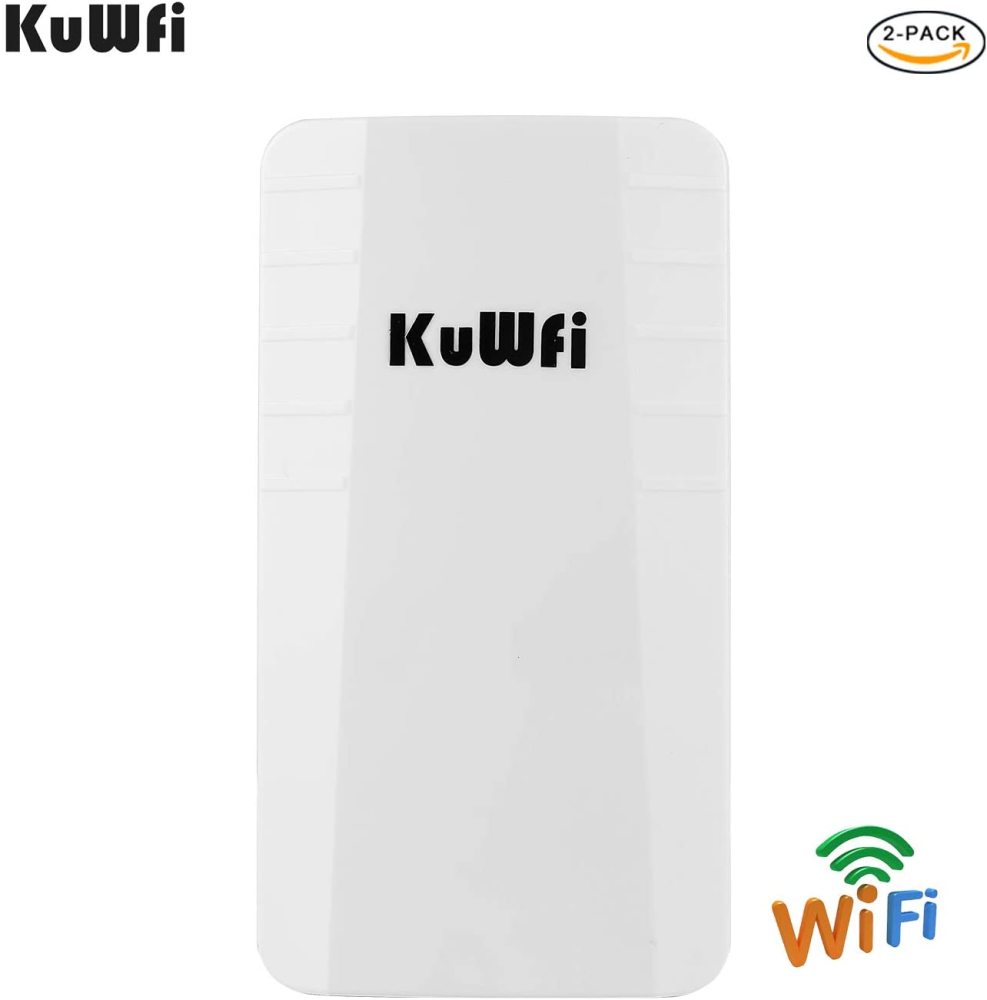

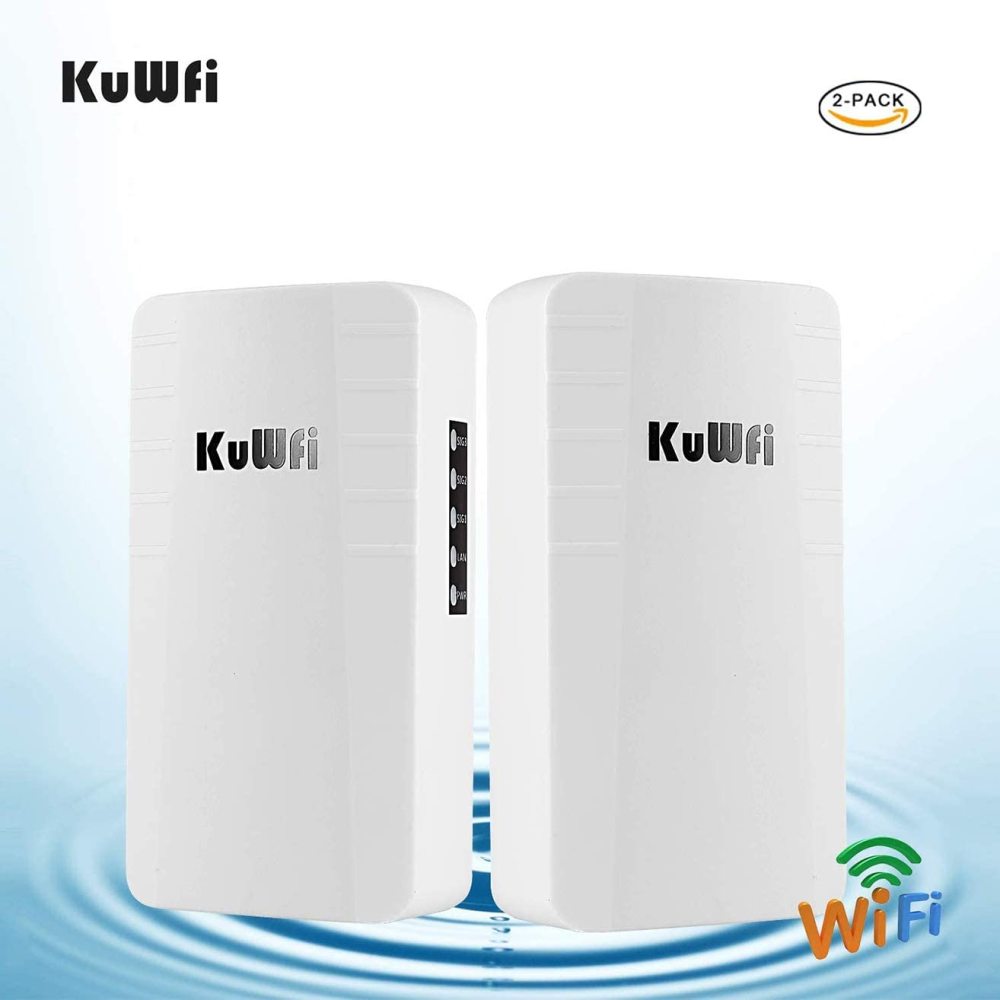

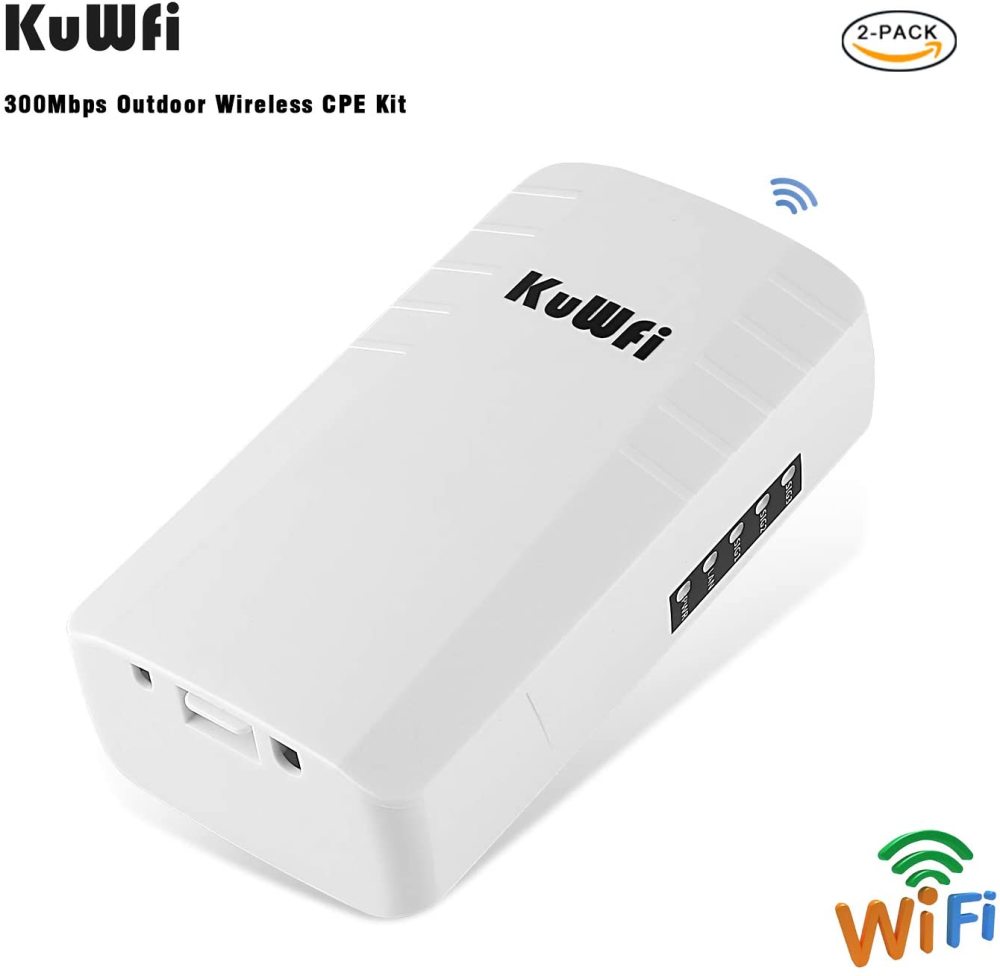

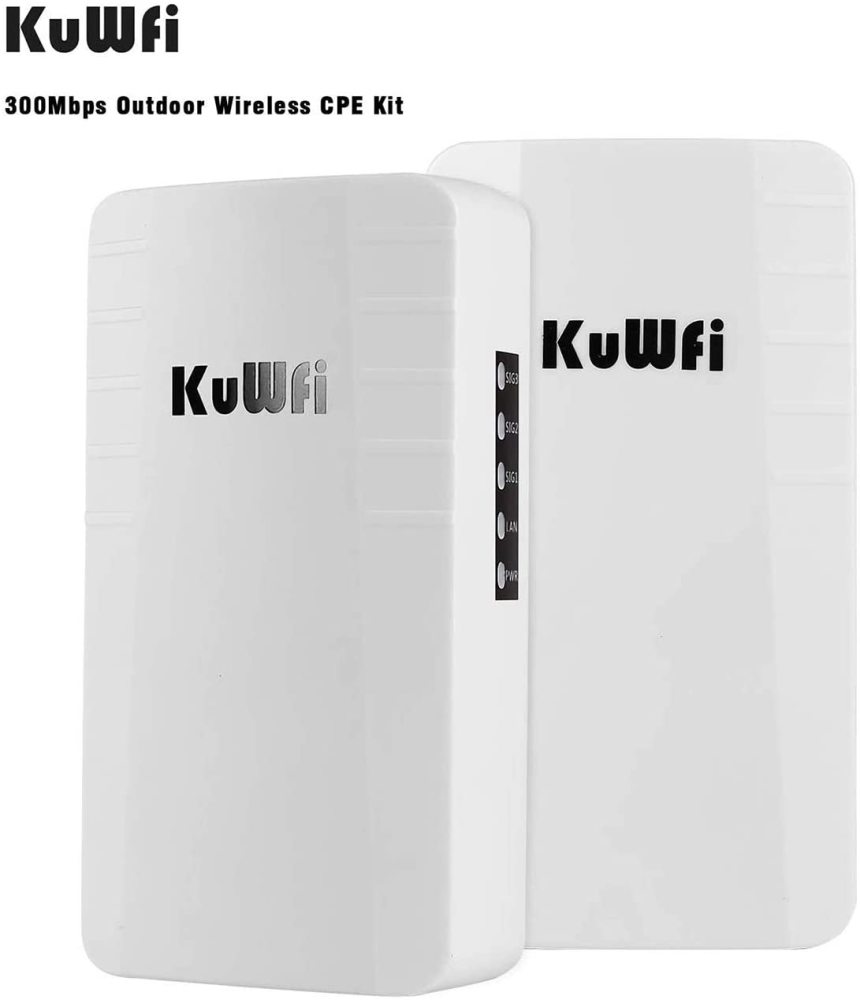

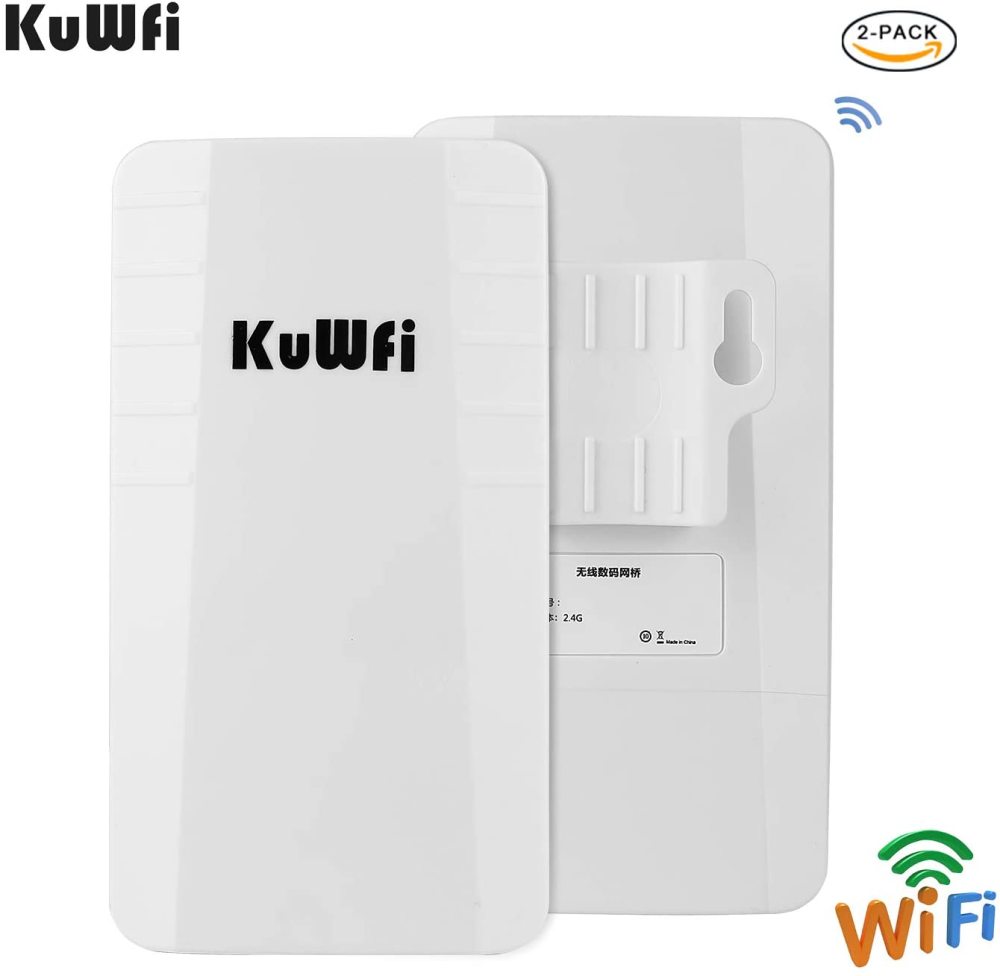

KuWFi Point to Point Wireless WiFi Bridge Outdoor CPE Kit 2.4G 300Mbps Waterproof Long Range WiFi Extender with Ethernet Port

  • Specification:

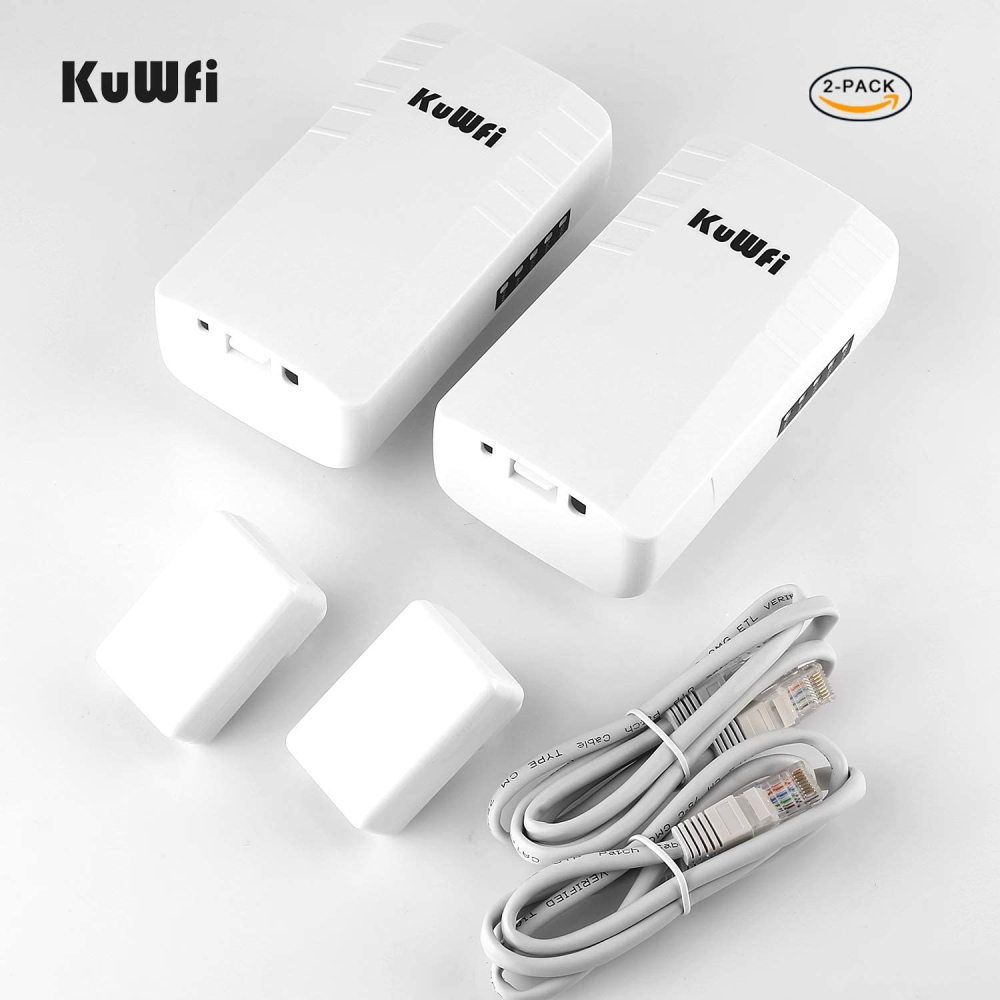

    A pair
(1000 available)
Please select the information you wantX
  • Description
  • Reviews

High power wireless bridge wifi 300mbps ap omni-directional outdoor wireless router access point/cpe/repeater up to 64 wifi users

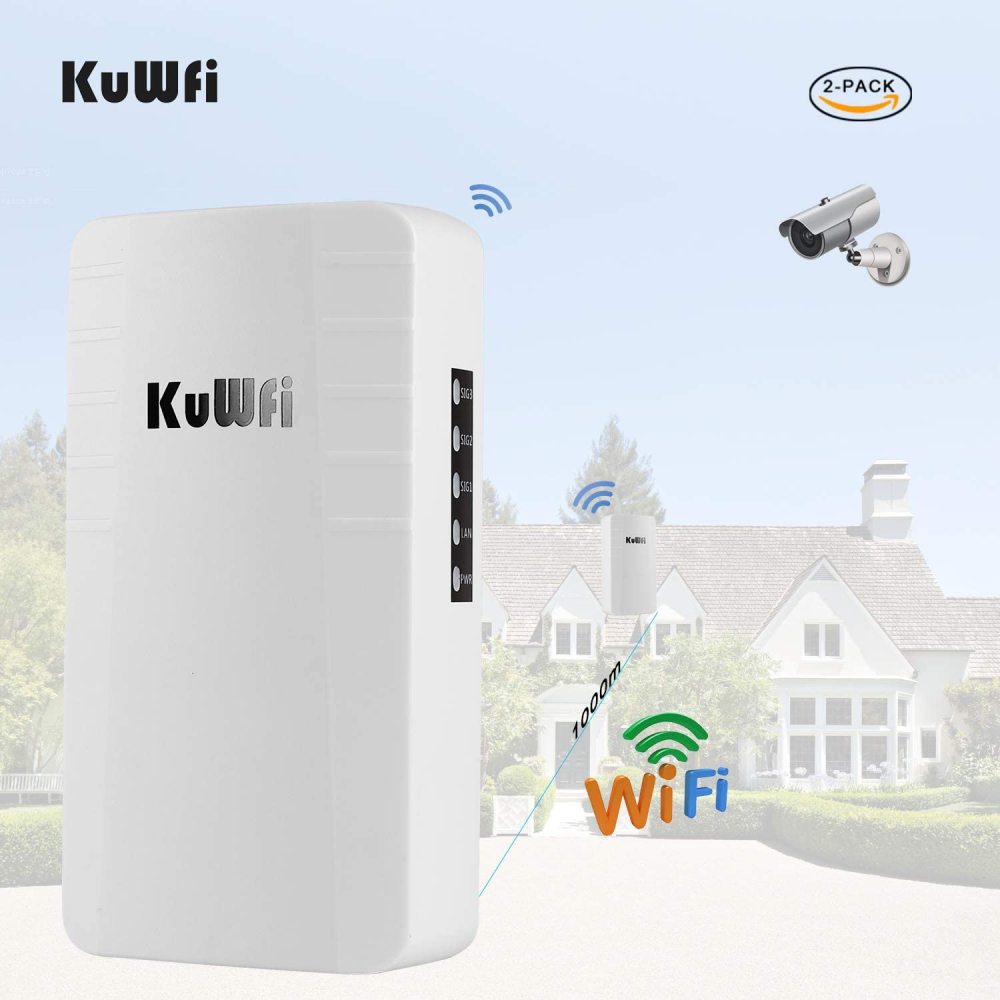

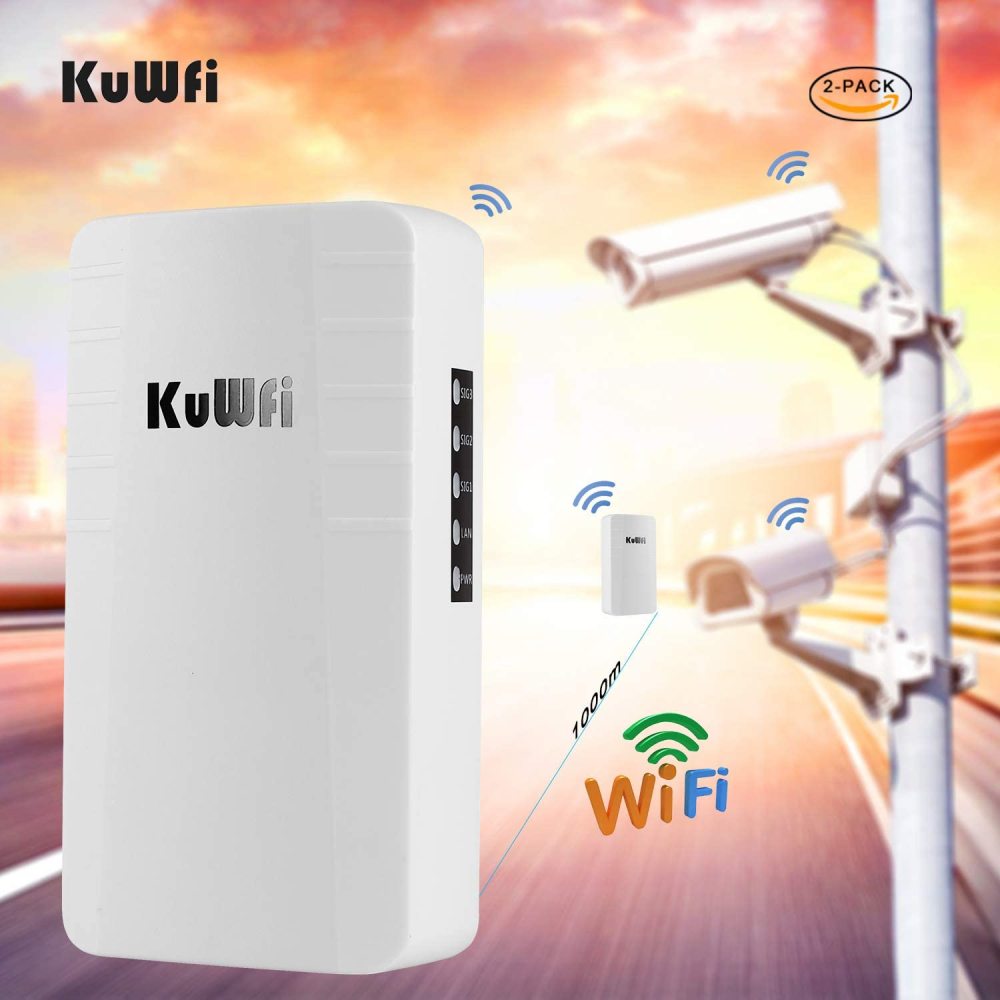

----- High speed, up to 300mbps data rate power and 1km long range coverage

------ Kuwfi outdoor single-frequency outdoor cpe ap works in 2.4ghz frequency range, supports 300mbps ap, reepater functions, can access more wireless clients.

------ Kuwfi outdoor ap uses dustproof and waterproof shield, all-weather sunscreen, waterproof, dustproof sealing design can be used in various outdoor work in environment.

----- Kuwfi outdoor ap also supports remote poe 100m power supply network cable and dc power supply mode, convenient management, -----

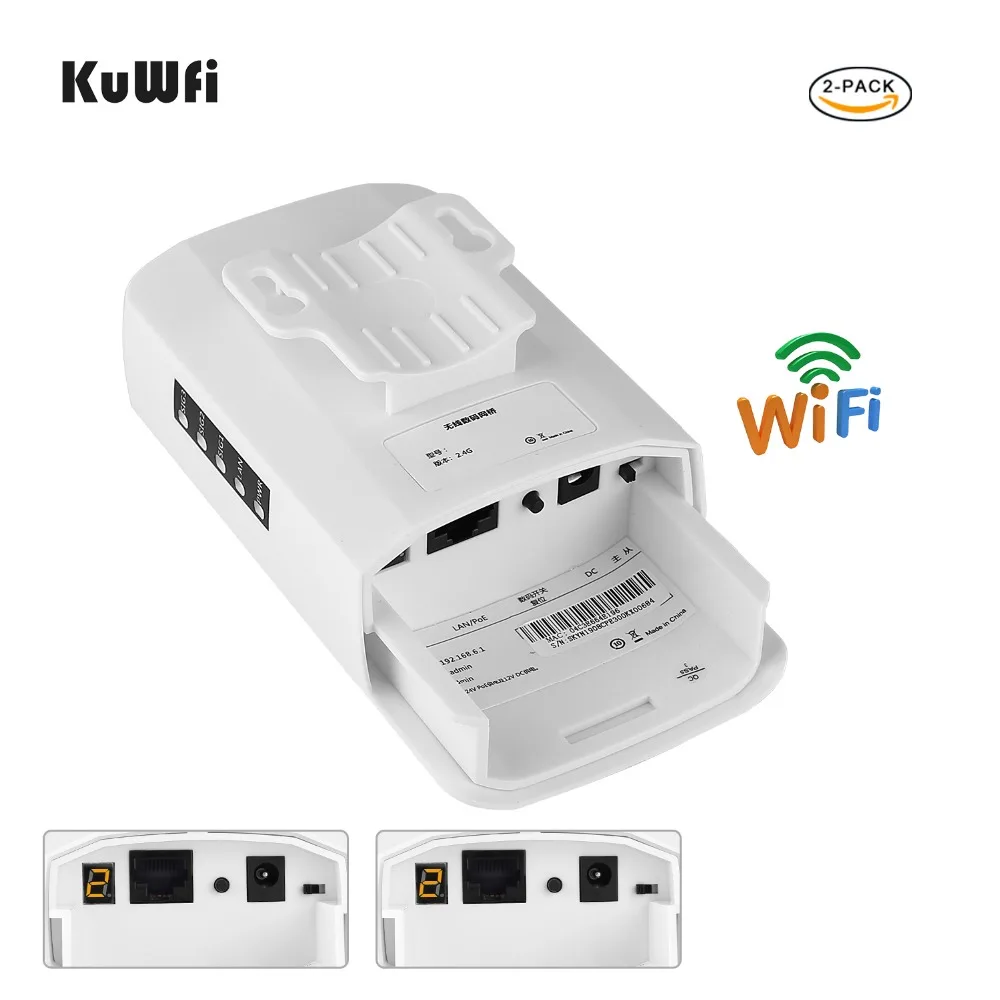

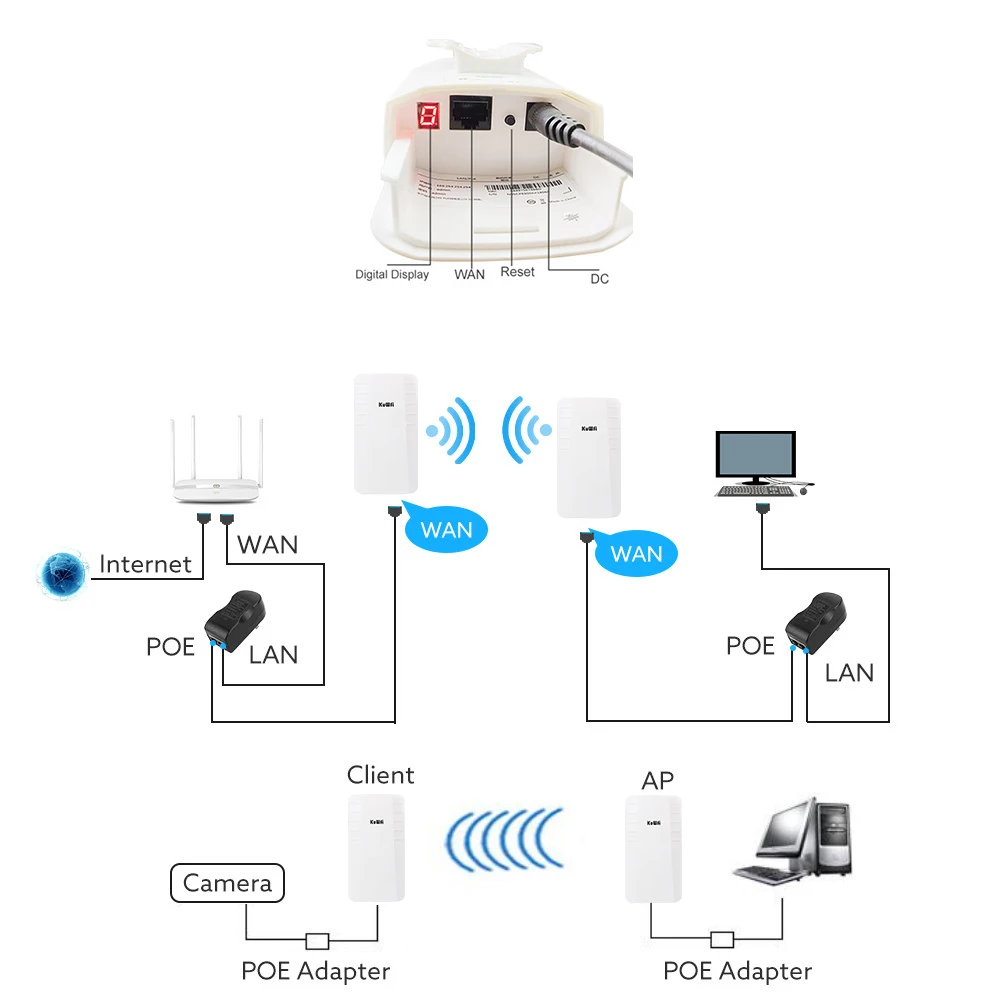

----- Support digital display pairing information for remote pairing
Kuwfi outdoor ap two unit working at the same time and led show even digital no, it means has paird.


Chipset mtk 7628kn 300mbps
Flash 1mb//ram 8mb
2.4ghz baud rate: 300 mbps
Modulation mode ofdm = bpsk, qpsk, 16-qam, 64-qam; dsss = dbpsk, dqpsk, cck
Output power
802.11n: @ mcs7: 12 22db, @ mcs0: 14 22db
802.11g: @ 54m: 13 22db, @ 6m: 15 22db
802.11b: @ 11m: 15 22db, @ 1m: 17 22db
reception sensitivity
802.11n: -70dbm @ mcs7, -88dbm@MCS0802.11g: -72dbm @ 54mbps, -88dbm @ 6mbps
802.11b: -85dbm @ 11mbps, -94dbm @ 1mbps
Evm 802.11n: db-28 db 802.11g: db-25 db 802.11b: db-10 db
Offset frequency ± 20ppm

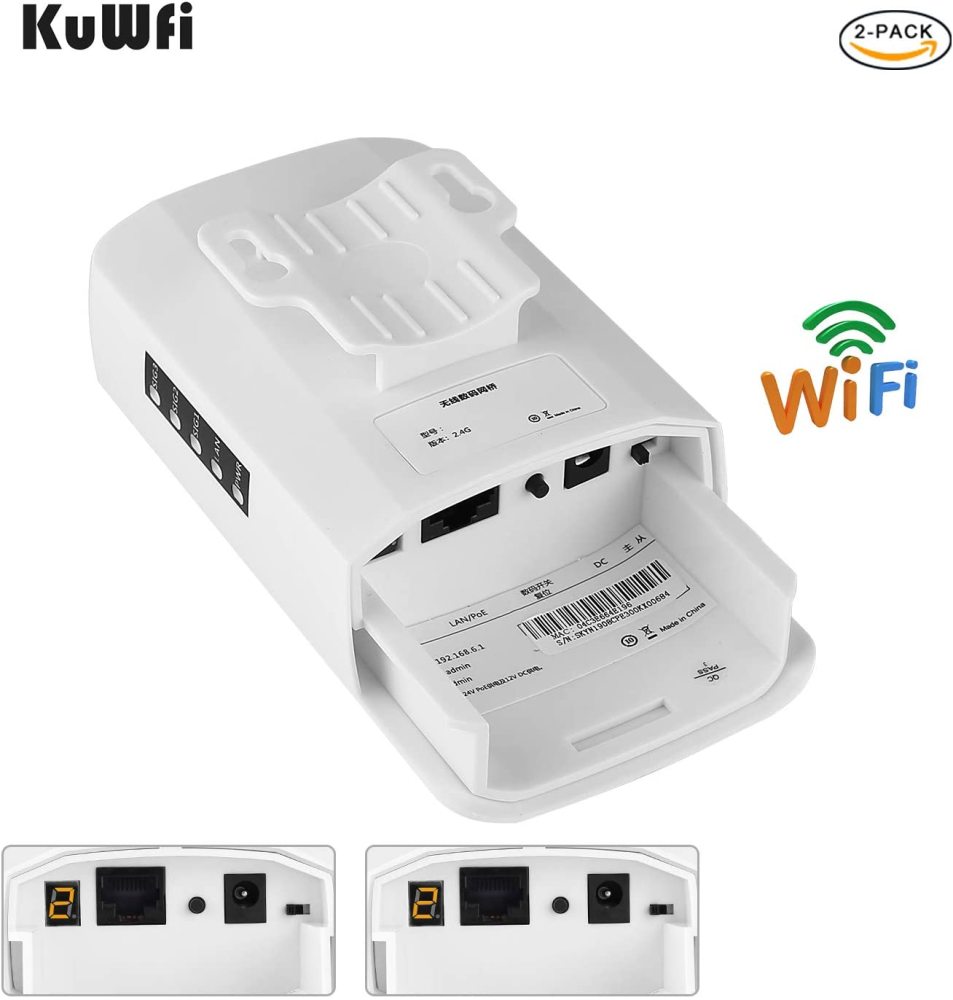

Adaptive interface 1 10/100m wan port (24v 0.5a input point)
Power supply poe 24v 0.5a DC12V-24V/1a
The dip switch sets the product's ap mode and reepater mode.
Reset button reset button (long press to reset, short press to debug digital display more or less)
Status indicator power led, wan led, lan led, led connection
