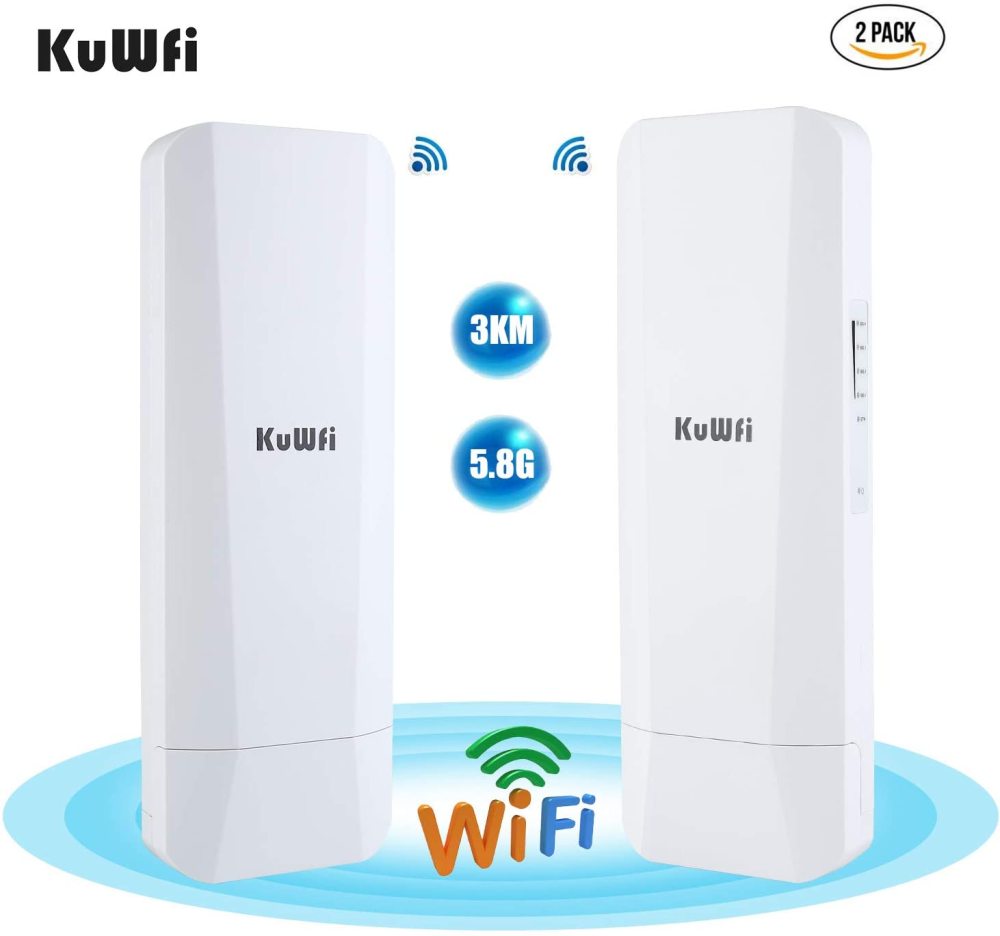

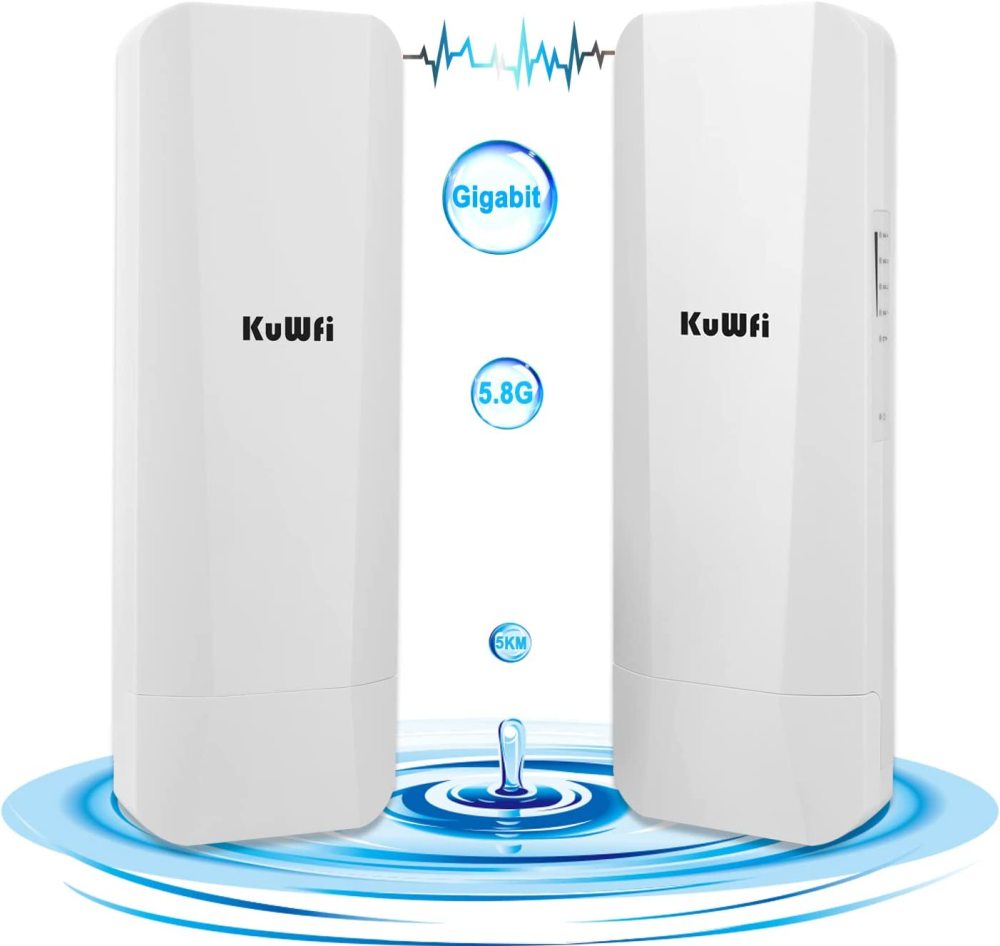

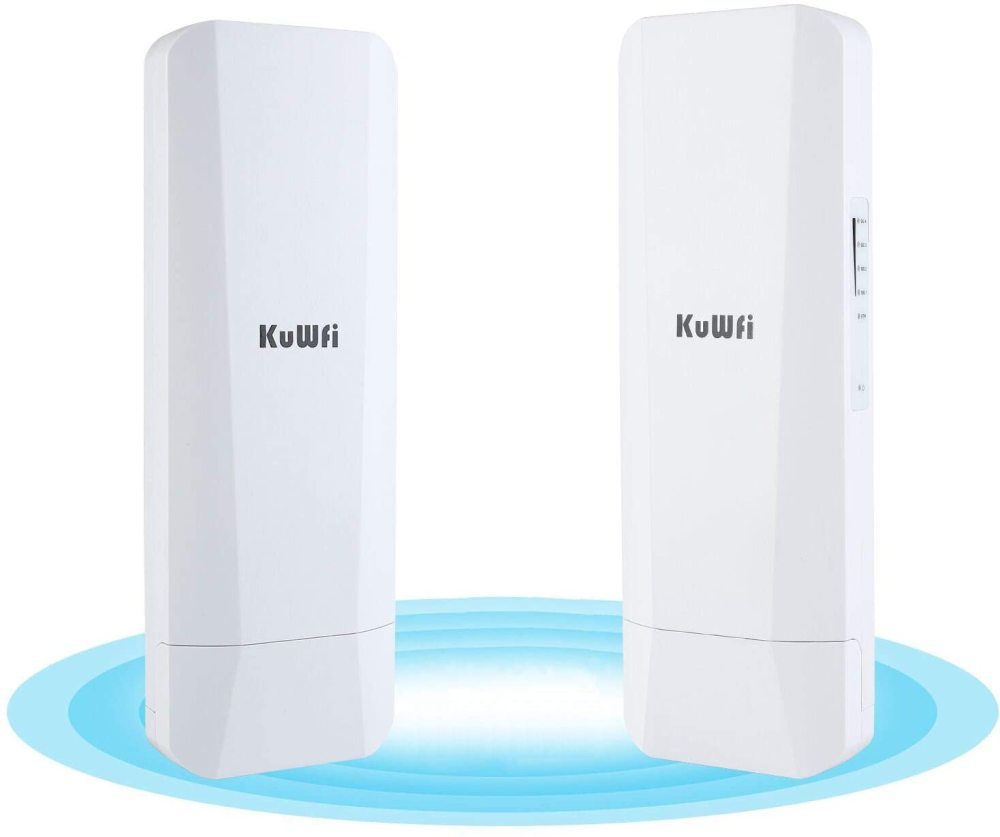

Product Description
Main Feature
- AP + Bridge operation mode, more stable Support AP and bridge operation mode, simple to built the PTP/PTMP connections, meet with multiple Wi-Fi transmission scheme demands.
- Outdoor Wireless CPE Bridge Waterproof, dust proof, lighting protection. with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather.
- Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 70℃. Suit for any country.
Multi operation mode: Multi operation mode: Bridge mode(Master/Slave).
Portantenna Inbuilt 14dBi Dual Polarization HG Directional Panel Antenna

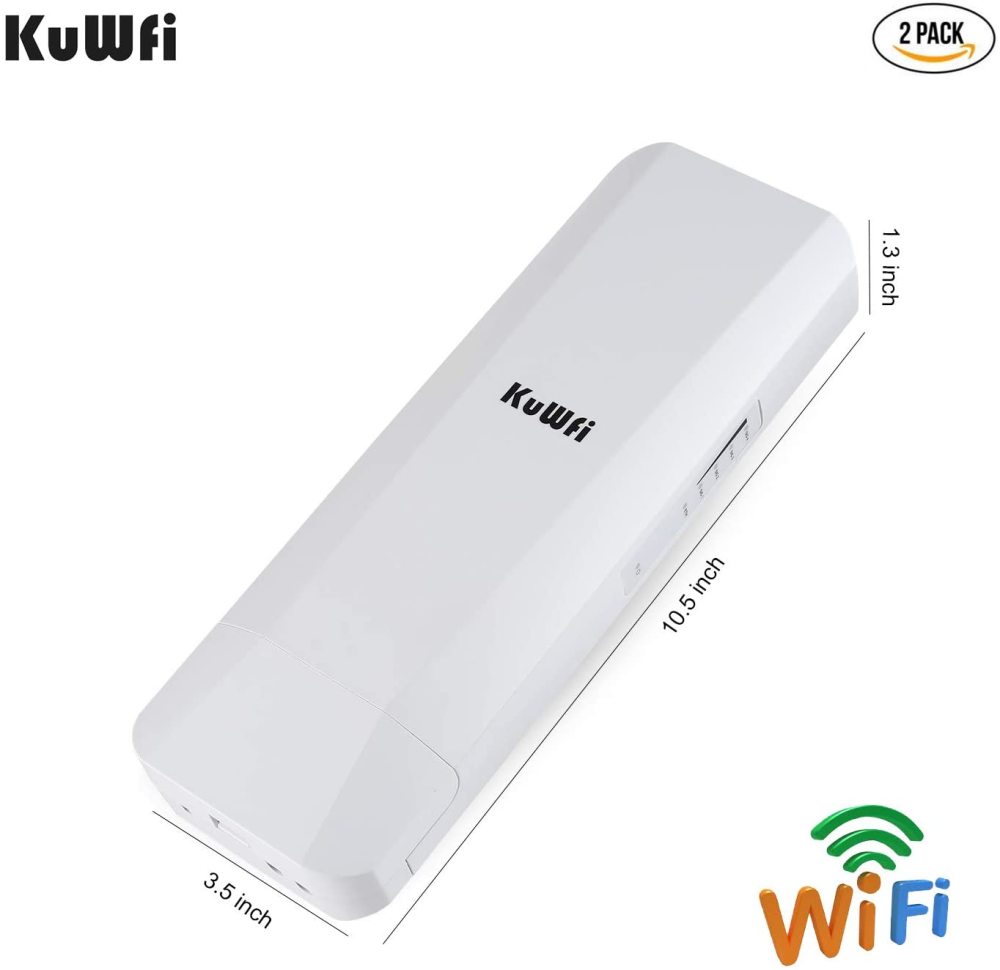

Size: 260*90*37mm

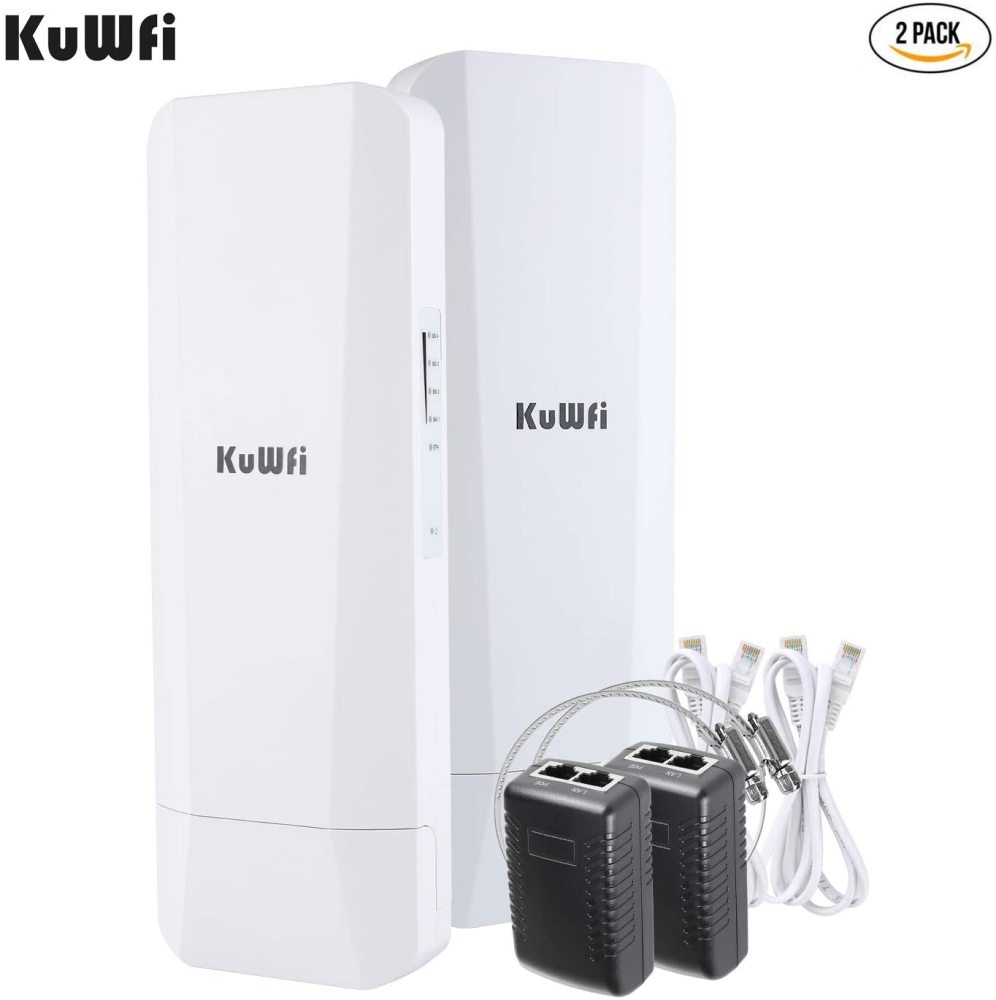

Package List:
- Gigabit Wireless Bridge- 2pcs
- POE Power Adapter (24V1A) - 2pcs
- Quick Start Guide - 1pcs
- Ethernet Cable (1 meter) - 2pcs
- Metal Hoop - 2pcs
Easy to Connect
- Master CPE :The CPE 1000M Lan port conenct to POE adapter's POE port,The POE adapter's Lan Port conenct to PC network cable. CPE 100M port connect to other router that has internet service
- Slave CPE :The CPE 1000M Lan port conenct to POE adapter's POE port,The POE adapter's Lan Port conenct to PC/Router, this two unit should be communicate with each other (Slave unit has internet service)

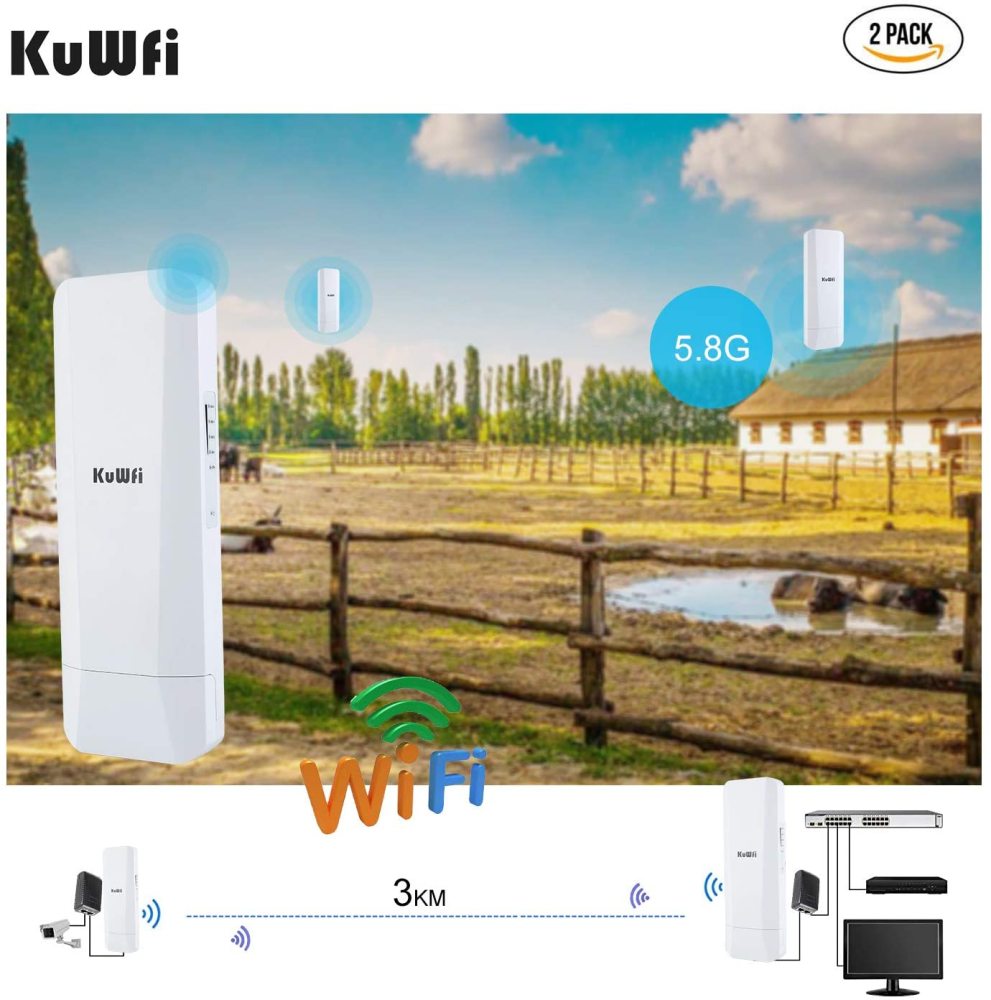

- Point to Point WiFi Coverage
- Point to Multi-Point Connection for Monitoring
- Multi-Point to Multi-Point Connection for Monitoring
|
|
|
|

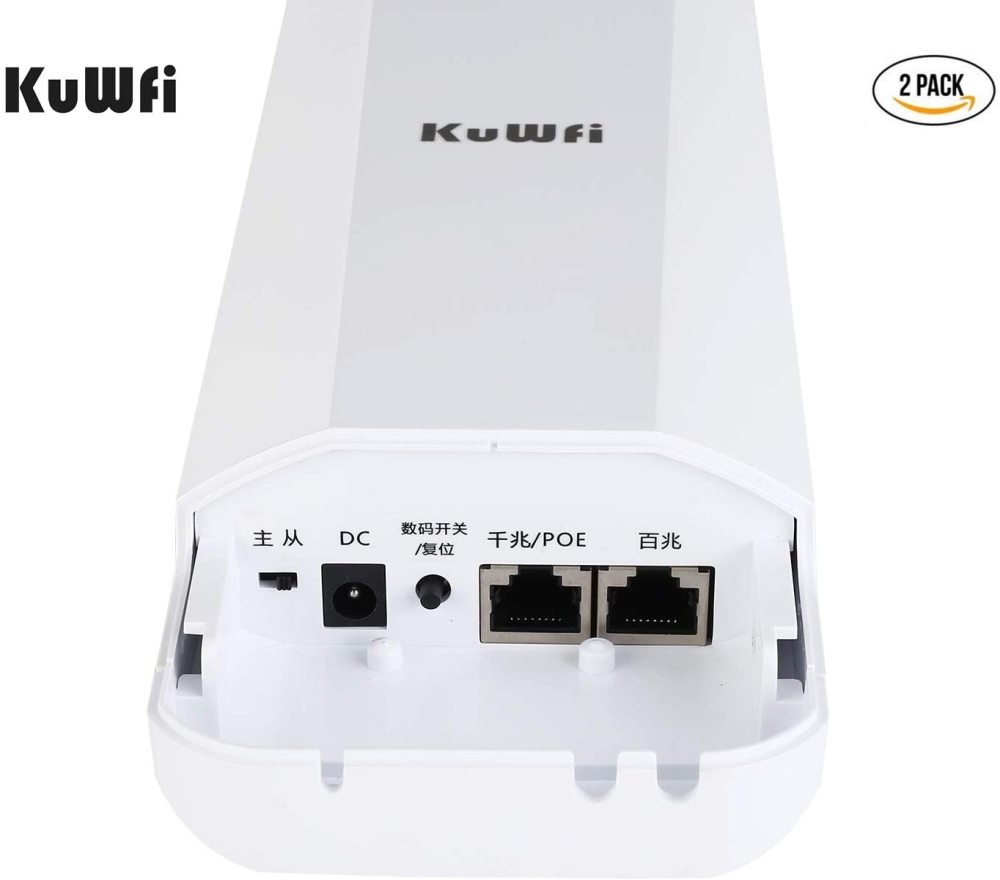

Button & Port
- 1*10/1000Mbps WAN Port(support PoE power input 24V 1A)
- 1*10/100Mbps LAN(please donnot use 100M to conenct POE , it will be damage)
- 1* M/S Switch
- 1* DC input (12V 1A)(not including adapter)
- 1* Digital Switch/Reset: Short Press to Change the Displayed Number; Long Press 5s to Reset
|

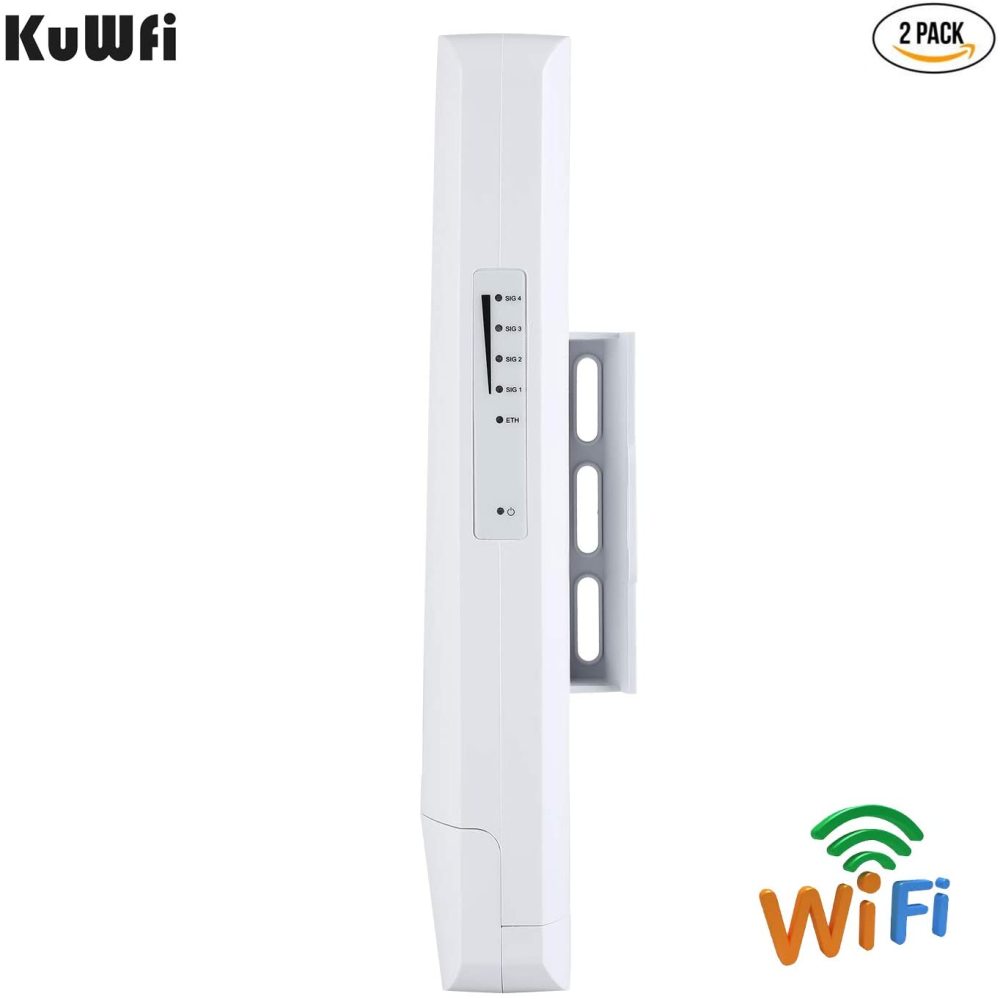

Indicator Light
- Signal Strength Indicator
- Ethernet indicator: When the wire is connected, it is always bright and goes out when it is broken
- Power Indicator: When the power is electrified, the lamp is always bright and goes out when it is broken
|

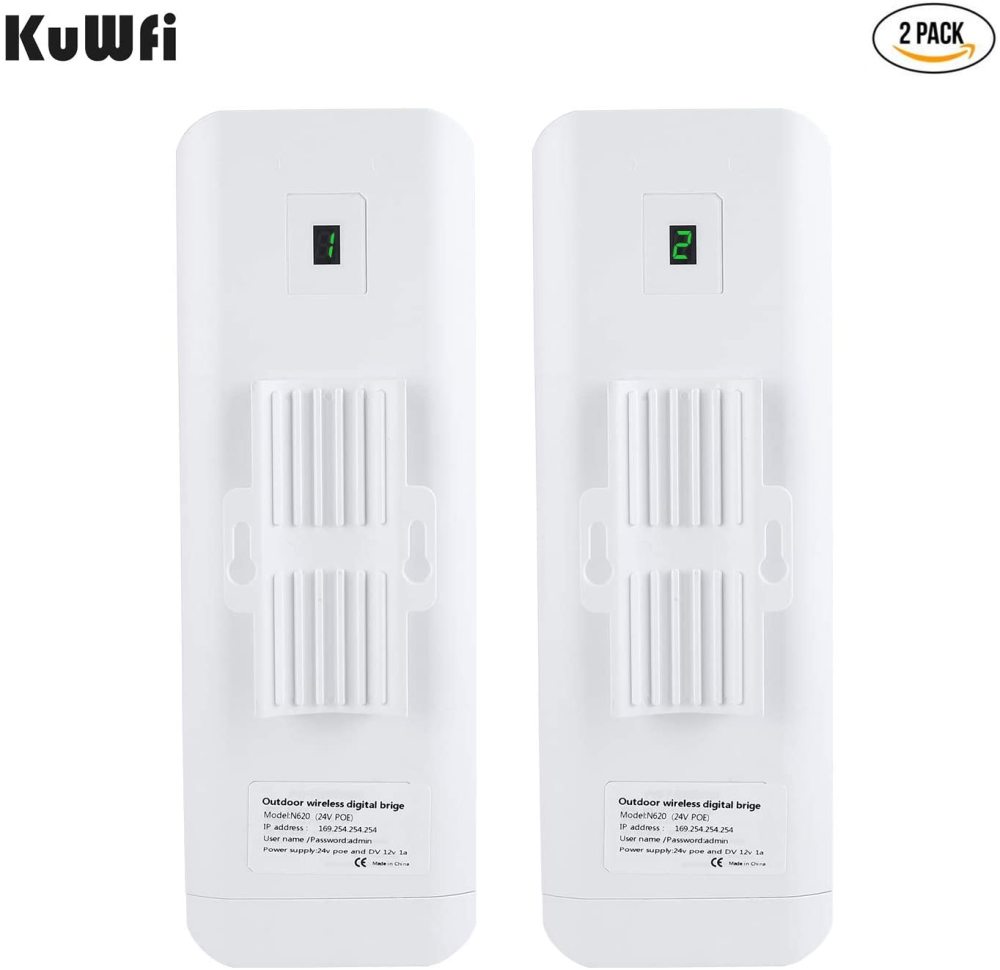

LED Digital Display
- KuWFi Gigabit wireless WiFi bridge product with digital display. Fast pairing of digital switch
- 1. Dial a bridge to "M" and the another bridge to "S"
- 2. Short press "Dig SW/Reset" button, each digital tube value will addone(0-9-A-F cycle)
- 3. The paired bridge is set to the same value and can be paired successfully
|
|
|
|
|
Power over Ethernet
- Support 24V POE power supply and 12V DC , easy to install and deploy, simplify construction, safe and reliable
|
Work Environment
- TEMP：-30℃～+55℃（work），-40℃ ～+70℃（storage）
- Humidity(Non-Condensing)：10％～90％（work），5％～95（storage）
- Waterproof Rate: IP65
|
5.8G Hight Speed
- Support Wireless Speed: 802.11ac: 6.5Mbps-867Mbps; 802.11n: 6.5Mbps and 300Mbps
|
|
|
|
|
Lane Monitoring Application
- Display your courtyard camera, garage camera, and driveway camera images in the monitoring room wirelessly, without digging and burying lines, destroying the road, and saving costs
|
Network Extension Application
- Extend the network in the house to your barn, garage, church, , even neighbor's house through wireless bridge signal transmission
|
Elevator Monitoring Application
- Using a wireless bridge to transmit monitoring signals in elevator monitoring can effectively avoid cable damage and obtain stable monitoring images. Wireless bridge can be quickly deployed and easily dismantled for reuse
|
How to login the management page?
- Enter in the browser URL bar: 169.254.254.254. You will see 2 options, Server Mode/Client Mode, Server =Master and Client =Slave
- On the Web management page, enter user name: admin, password is admin, click login, then enter the WebUI page
- On the network setting page, you can set the mode, bridge mode/ route mode. And set the IP address(DHCP/Static)
- On the WiFi setting page, you can choose hide the WiFi or no, and set the SSID name and password(default 88888888)
