Frequency Band
EU Version:
5G NR:
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
LTE-FDD: B1/3/5/7/8/18/19/20/26/28/32
LTE-TDD: B34/38/39/40/41/42/43
WCDMA: B1/3/5/6/8/19
US Version:
5G NR: n2/n5/n7/n12/n25/n41/n48/n66/n71/n77/n78
LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD: B41/B48
LAA: B46
WCDMA: B2/B4/B5
Overview

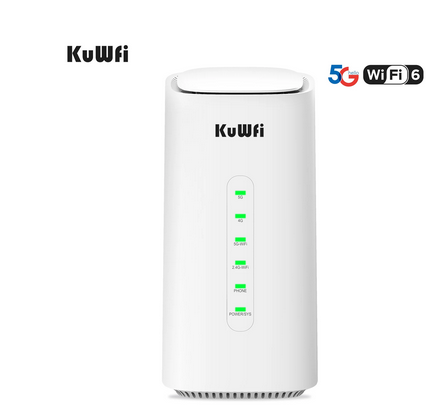

BRAX FA556 is a 5G wireless CPE that implements the conversion between 5G NR/LTE wireless data and wired Ethernet data. It supports 802.11ax WiFi6, 4*4 MIMO, and can be used independently.
BRAX FA556 supports 5G NR Sub6 bands, and LTE Cat16 UE category, which provides the stable data, voice, Wi-Fi, maintenance and management service to home and enterprise users.

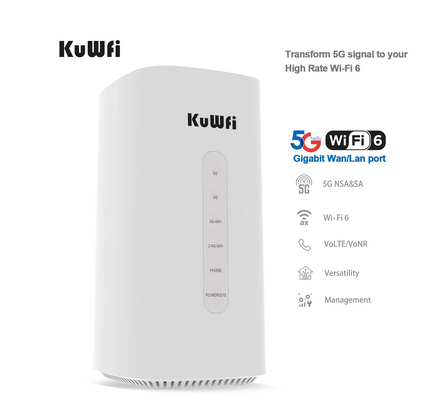

High Performance
BRAX FA556 supports the worldwide 5G NR network, the highest data rate can arrive 2.5Gbps. And the WLAN supports the newest IEEE 802.11ax standards. The AX3600 WiFi data rate can easily supply the HD video, online game, and high-quality network applications. The MU-MIMO and beamforming function can ensure the high data rate and signal quality when several users are using simultaneously.
Versatility
Besides the basic 5G NR and WLAN functions, BRAX FA556 also support VoLTE, SMS, firewall, VPN, QoS, etc. It satisfies the multi-directional requirements of users. Multiple management and maintenance methods (TR069/CLI/APP*) are convenient for checking and operating. The software online update tool will also constantly provide the upgrade of these functions.
Key Features
⚫High Performance
•NSA: 2.5Gbps (DL)/650Mbps (UL)
•SA: 2.1Gbps (DL)/900Mbps (UL)
•Multi-frequency coverage
⚫Platform
•CPU: 4 Core A53, 2.2GHz

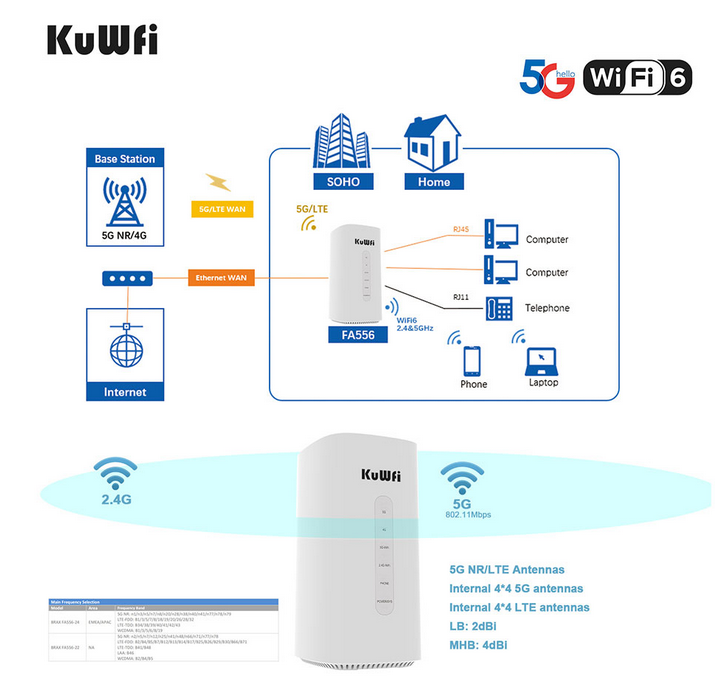

⚫5G NR/LTE Antennas
•Internal 4*4 5G antennas
•Internal 4*4 LTE antennas
•LB: 2dBi
•MHB: 4dBi
⚫Wi-Fi Antennas
•Internal 4*4 2.4GHz antennas
•Internal 4*4 5GHz antennas
•Gain: 3dBi
⚫Network Protocols and Features
•Operation modes: Bridge or Routed
•Connection modes: PPPoE/DHCP/Static
•IPv4, IPv6, IPv4/IPv6
•DHCP v4/v6 server
•Static (v4/v6) routing
•NAT/ALG/DMZ/virtual server
•ARP/ICMP/DNS proxy
•NTP
•VLAN
•VPN: PPTP/L2TP/IPSec
⚫Physical specification
•Dimensions: L124.2*W104.2*H213.7mm
•Operating temperature: -10°C to 45°C
•Storage temperature: -40°C to 70°C
•Humidity: 5% – 95% (non-condensing)
Package Included:
1x 5G CPE Router
1x Quick Start Guide (warranty card)
1x Power adapter
1x CAT5E Ethernet cable
